Innovision Optics Probe II User manual

For additional technical support, please call 310-453-4866
www.innovision-optics.com
This manual is available for download from the website.
35mm Probe II+ Lens System
Manual and Depth of Field Charts

35mm Probe II+ Lens System
Hints, Tips and Notes
Tighten the taking lens fully against the module so that the O-Ring properly seals.
Failure to fully tighten the lenses will cause a loss of infinity focus.
When used underwater, it is important that all O-Rings are installed and they should be lightly greased to
prevent them from “bunching up” while the modules are tightened together.
The lens system is waterproof with all modules to within 1” of the focus ring. Newer Probe models have a
red ring around the relay at this point and are marked “Do not submerge beyond this point”
Do not let water into the focus and aperature rings. There are no seals there so water can enter the relay
and damage the whole lens system.
When using the Close Focus Shims, the following instructions apply:
1. Remove the O-Ring and replace it with the close focus shim of your choice.
2. Caution: The lens system will not be waterproof when using close focus shims
3. The use of shims will cause infinity focus to be lost to a varying degree.
4. The use of shims wil cause depth of field to be narrowed. (this can be used for dramatic effect as well)
5. The thicker shims have more close focus effect and narrow DOF effect than the thinner shims.
6. Start testing with the thinnest shim and work up to the thicker shims.
7. The engraved numbers correlate to the shim thickness, for example, the shim marked 30 is 0.030” thick.
8. Only use 1 shim at a time, it is possible to have a lens fall off the barrel if you stack 2 or more shims.
The thickest shim available is the maximum amount you can extend the lens while still having enough
threads to hold the lens in place.
Caution: The lens system is not waterproof when using close focus shims

35mm Probe II+ Lens System
Direct View Configuration

35mm Probe II+ Lens System
45 Degree View Configuration

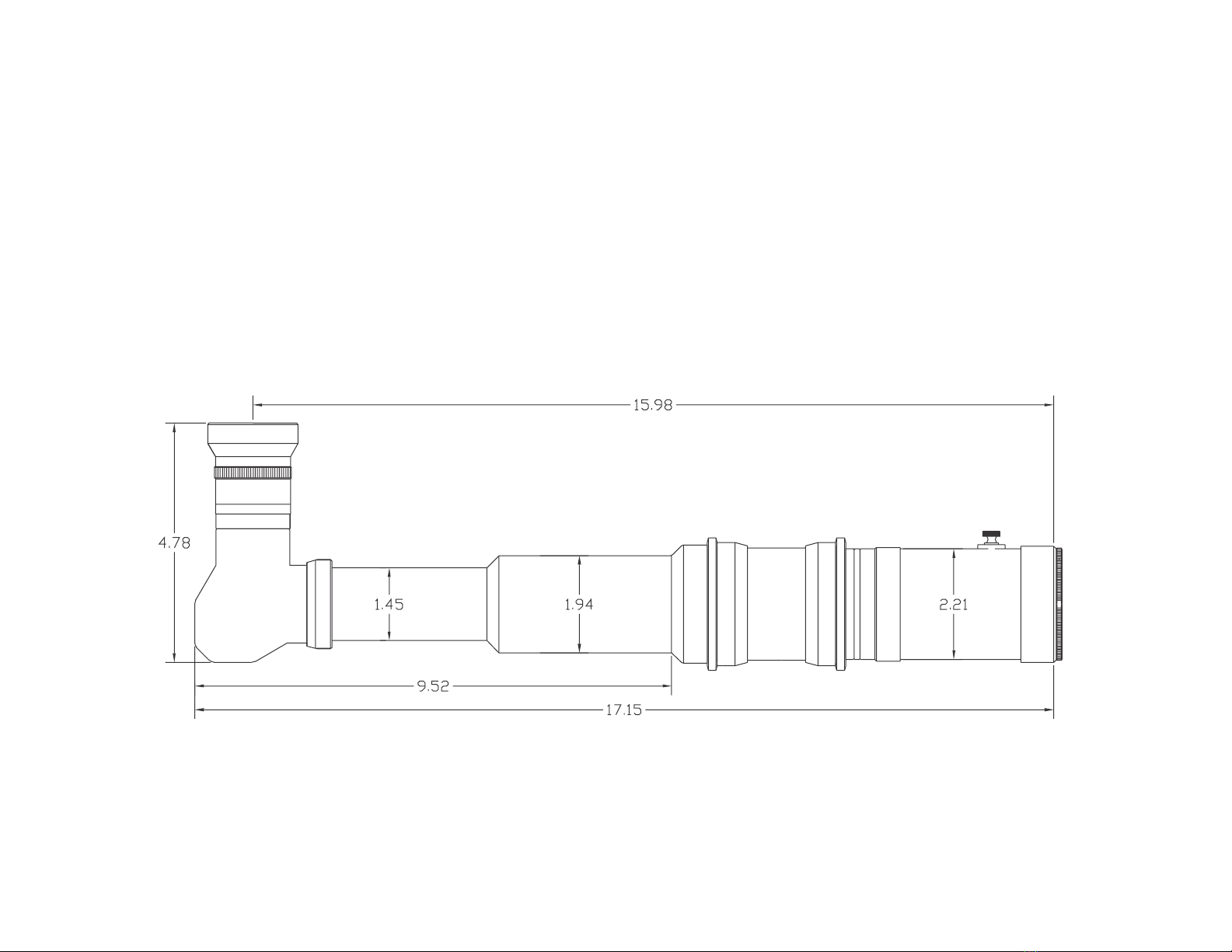

35mm Probe II+ Lens System
90 Degree View Configuration

www.innovisionoptics.com
Lens Format @ Full Aperature T-Stop @ Format Corner Minimum Focus
(from front glass)
9mm TV Safe T 32 1/4"
12mm Academy T 32 1/2"
16mm Full T 32 1 1/4"
20mm Full T 22 2"
32mm Full T 32 5"
40mm Full T 32 11"
35mm Probe II Plus Objective Lens Coverage

www.innovisionoptics.com
Tips and Techniques for Close Focus shim Use
Remove "O" Ring from Probe II focusing Relay
Mount Shim between Objective Lens and Relay
Lens is NOT WATERPROOF when Using Shims
Infinity Focus will be lost
Depth of field will become more narrow as a thicker shim is used
Only one shim should be used - Do not combine shims
Shims-> No Shim 10 20 30 40 50 75 100
9mm Front Element
12mm 1/2"
16mm 1 1/4" 7/8" 3/4" 5/8" 1/2" 3/8" 1/4" 1/8"
20mm 2" 1 3/8" 1 1/4" 1" 3/4" 1/2" 1/4" 1/8"
32mm 6" 4" 3 3/4" 3 1/4" 3" 2 1/2" 1 3/4" 1 1/2"
Not Recommended
This minimum focus Data is Courtesy of Clairmont Camera. Please verify the minimum focus with your
particular Camera / Lens / T Stop during camera prep if the absolute minimum focus is critical.

www.innovisionoptics.com
35mm Probe II Plus LENS: 9mm
Circle of Confusion: 0.001
Distance(in) 123456789
T-Stop
6.3 Near 0.952 1.818 2.607 3.331 3.997 4.612 5.180 5.708 6.200
Far 1.053 2.223 3.532 5.004 6.675 8.585 10.790 13.365 16.412
8Near 0.940 1.774 2.519 3.188 3.792 4.341 4.841 5.299 5.720
Far 1.068 2.292 3.709 5.368 7.338 9.714 12.636 16.318 21.101
11 Near 0.919 1.702 2.376 2.962 3.477 3.933 4.339 4.703 5.032
Far 1.096 2.425 4.070 6.158 8.898 12.650 18.102 26.748 42.559
16 Near 0.887 1.594 2.170 2.649 3.054 3.400 3.700 3.961 4.192
Far 1.146 2.684 4.857 8.159 13.782 25.492 64.859 INFINITY INFINITY
22 Near 0.851 1.481 1.966 2.352 2.665 2.925 3.144 3.331 3.492
Far 1.212 3.079 6.325 13.374 40.369 INFINITY INFINITY INFINITY INFINITY
Distance(in) 10 11 12 15 18 21 24 30 36
T-Stop
6.3 Near 6.659 7.088 7.490 8.558 9.458 10.225 10.888 11.974 12.828
Far 20.072 24.552 30.162 60.652 185.997 INFINITY INFINITY INFINITY INFINITY
8Near 6.108 6.467 6.800 7.670 8.384 8.982 9.489 10.304 10.929
Far 27.563 36.779 50.984 339.310 INFINITY INFINITY INFINITY INFINITY INFINITY
11 Near 5.330 5.602 5.850 6.482 6.985 7.395 7.735 8.268 8.666
Far 80.738 303.511 INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY
16 Near 4.397 4.580 4.744 5.152 5.465 5.712 5.913 6.220 6.443
Far INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY
22 Near 3.633 3.757 3.868 4.134 4.333 4.487 4.611 4.795 4.926
Far INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY

www.innovisionoptics.com
35mm Probe II Plus LENS: 12 mm
Circle of Confusion: 0.001
Distance(in) 123456789
T-Stop
6.3 Near 0.973 1.893 2.766 3.594 4.382 5.131 5.845 6.526 7.177
Far 1.029 2.120 3.278 4.509 5.822 7.223 8.724 10.333 12.065
8Near 0.965 1.866 2.709 3.498 4.240 4.938 5.596 6.217 6.805
Far 1.037 2.154 3.361 4.669 6.092 7.644 9.344 11.216 13.286
11 Near 0.953 1.821 2.614 3.341 4.012 4.631 5.205 5.738 6.235
Far 1.052 2.219 3.521 4.982 6.635 8.519 10.687 13.207 16.174
16 Near 0.933 1.749 2.469 3.109 3.681 4.195 4.661 5.084 5.471
Far 1.077 2.335 3.822 5.608 7.793 10.528 14.050 18.756 25.364
22 Near 0.910 1.671 2.315 2.869 3.349 3.770 4.142 4.473 4.769
Far 1.109 2.491 4.260 6.604 9.859 14.684 22.578 37.830 79.713
Distance(in) 10 11 12 15 18 21 24 30 36
T-Stop
6.3 Near 7.799 8.394 8.964 10.538 11.936 13.185 14.308 16.245 17.856
Far 13.933 15.953 18.146 26.014 36.590 51.564 74.400 195.787 INFINITY
8Near 7.361 7.889 8.391 9.755 10.941 11.982 12.902 14.456 15.718
Far 15.587 18.160 21.057 32.442 50.727 84.913 171.690 INFINITY INFINITY
11 Near 6.699 7.133 7.541 8.624 9.538 10.320 10.995 12.104 12.977
Far 19.717 24.023 29.368 57.525 159.426 INFINITY INFINITY INFINITY INFINITY
16 Near 5.825 6.150 6.451 7.228 7.859 8.382 8.822 9.522 10.054
Far 35.316 52.017 85.845 INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY
22 Near 5.036 5.278 5.498 6.052 6.488 6.841 7.131 7.582 7.915
Far 697.404 INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY INFINITY

www.innovisionoptics.com
35mm Probe II Plus LENS: 16 mm
Circle of Confusion: 0.001
Distance(in) 123456789
T-Stop
6.3 Near 0.984 1.938 2.864 3.761 4.632 5.478 6.300 7.098 7.875
Far 1.016 2.066 3.150 4.271 5.431 6.632 7.875 9.164 10.500
8Near 0.980 1.922 2.829 3.701 4.542 5.353 6.134 6.889 7.618
Far 1.021 2.084 3.193 4.351 5.561 6.826 8.150 9.538 10.995
11 Near 0.973 1.895 2.770 3.601 4.391 5.144 5.862 6.548 7.203
Far 1.029 2.117 3.272 4.499 5.805 7.197 8.685 10.280 11.992
16 Near 0.961 1.851 2.676 3.444 4.161 4.831 5.459 6.049 6.604
Far 1.042 2.175 3.413 4.769 6.263 7.915 9.753 11.810 14.127
22 Near 0.947 1.800 2.572 3.274 3.915 4.502 5.043 5.542 6.004
Far 1.059 2.249 3.599 5.140 6.918 8.991 11.440 14.377 17.964
Distance(in) 10 11 12 15 18 21 24 30 36
T-Stop
6.3 Near 8.630 9.365 10.080 12.115 13.999 15.749 17.378 20.321 22.907
Far 11.887 13.328 14.824 19.689 25.203 31.504 38.775 57.286 84.028
8Near 8.322 9.003 9.662 11.517 13.207 14.754 16.174 18.693 20.860
Far 12.525 14.135 15.830 21.503 28.253 36.420 46.500 75.918 131.293
11 Near 7.830 8.430 9.005 10.595 12.008 13.273 14.412 16.379 18.018
Far 13.835 15.826 17.982 25.677 35.927 50.258 71.711 178.202 17838.340
16 Near 7.126 7.620 8.087 9.347 10.430 11.371 12.197 13.577 14.684
Far 16.757 19.768 23.250 37.959 65.647 137.051 743.955 INFINITY INFINITY
22 Near 6.433 6.833 7.206 8.189 9.009 9.703 10.298 11.264 12.016
Far 22.443 28.196 35.855 89.101 8919.170 INFINITY INFINITY INFINITY INFINITY

www.innovisionoptics.com
35mm Probe II Plus LENS: 20 mm
Circle of Confusion: 0.001
Distance(in) 123456789
T-Stop
6.3 Near 0.990 1.960 2.911 3.844 4.758 5.655 6.535 7.399 8.246
Far 1.010 2.041 3.094 4.169 5.268 6.390 7.536 8.708 9.906
8Near 0.987 1.950 2.888 3.804 4.697 5.569 6.420 7.251 8.064
Far 1.013 2.053 3.121 4.218 5.345 6.503 7.695 8.921 10.182
11 Near 0.983 1.931 2.848 3.735 4.593 5.423 6.227 7.006 7.761
Far 1.018 2.074 3.169 4.306 5.487 6.715 7.993 9.323 10.710
16 Near 0.975 1.902 2.784 3.626 4.429 5.196 5.929 6.631 7.304
Far 1.026 2.109 3.252 4.460 5.741 7.099 8.543 10.081 11.723
22 Near 0.966 1.867 2.711 3.503 4.247 4.947 5.607 6.231 6.822
Far 1.037 2.153 3.357 4.662 6.078 7.623 9.313 11.171 13.223
Distance(in) 10 11 12 15 18 21 24 30 36
T-Stop
6.3 Near 9.078 9.894 10.696 13.016 15.217 17.307 19.295 22.991 26.358
Far 11.131 12.384 13.666 17.697 22.029 26.697 31.741 43.155 56.765
8Near 8.857 9.633 10.391 12.568 14.607 16.523 18.325 21.628 24.582
Far 11.481 12.820 14.198 18.600 23.445 28.805 34.766 48.947 67.229
11 Near 8.493 9.204 9.894 11.847 13.643 15.300 16.833 19.579 21.969
Far 12.157 13.667 15.246 20.440 26.445 33.470 41.798 64.138 99.643
16 Near 7.949 8.568 9.163 10.814 12.291 13.619 14.821 16.909 18.662
Far 13.478 15.360 17.383 24.474 33.614 45.845 63.051 132.856 507.259
22 Near 7.381 7.912 8.416 9.789 10.984 12.033 12.962 14.531 15.807
Far 15.500 18.042 20.899 32.069 49.821 82.405 161.737 INFINITY INFINITY

www.innovisionoptics.com
35mm Probe II Plus LENS: 32 mm
Circle of Confusion: 0.001
Distance(in) 123456789
T-Stop
6.3 Near 0.996 1.984 2.965 3.937 4.903 5.860 6.811 7.754 8.690
Far 1.004 2.016 3.036 4.065 5.101 6.146 7.200 8.262 9.333
8Near 0.995 1.980 2.955 3.921 4.877 5.824 6.761 7.690 8.609
Far 1.005 2.020 3.046 4.082 5.129 6.187 7.256 8.336 9.428
11 Near 0.993 1.973 2.939 3.892 4.833 5.760 6.676 7.580 8.472
Far 1.007 2.028 3.064 4.114 5.179 6.260 7.357 8.470 9.599
16 Near 0.990 1.960 2.912 3.845 4.760 5.658 6.539 7.403 8.251
Far 1.010 2.041 3.094 4.168 5.265 6.386 7.531 8.702 9.898
22 Near 0.986 1.946 2.880 3.790 4.676 5.539 6.381 7.201 8.002
Far 1.014 2.057 3.130 4.235 5.372 6.544 7.752 8.998 10.283
Distance(in) 10 11 12 15 18 21 24 30 36
T-Stop
6.3 Near 9.618 10.540 11.454 14.157 16.800 19.384 21.913 26.808 31.499
Far 10.413 11.502 12.600 15.950 19.385 22.910 26.527 34.055 42.002
8Near 9.520 10.422 11.316 13.946 16.503 18.990 21.410 26.060 30.471
Far 10.531 11.646 12.773 16.227 19.796 23.486 27.303 35.344 43.980
11 Near 9.352 10.221 11.079 13.587 16.004 18.332 20.577 24.836 28.812
Far 10.745 11.908 13.089 16.740 20.565 24.577 28.788 37.875 47.968
16 Near 9.084 9.902 10.705 13.030 15.235 17.331 19.325 23.034 26.414
Far 11.121 12.372 13.651 17.672 21.990 26.639 31.660 43.006 56.506
22 Near 8.783 9.545 10.289 12.418 14.406 16.265 18.009 21.189 24.016
Far 11.609 12.979 14.394 18.937 23.984 29.622 35.964 51.355 71.855

www.innovisionoptics.com
35mm Probe II Plus LENS: 40 mm
Circle of Confusion: 0.001
Distance(in) 123456789
T-Stop
6.3 Near 0.997 1.990 2.977 3.960 4.937 5.910 6.878 7.841 8.799
Far 1.003 2.010 3.023 4.041 5.064 6.093 7.127 8.166 9.211
8Near 0.997 1.987 2.971 3.949 4.921 5.886 6.845 7.799 8.746
Far 1.003 2.013 3.029 4.052 5.082 6.118 7.162 8.212 9.269
11 Near 0.996 1.982 2.961 3.930 4.892 5.844 6.789 7.726 8.655
Far 1.004 2.018 3.040 4.072 5.113 6.164 7.224 8.294 9.374
16 Near 0.994 1.975 2.943 3.899 4.844 5.776 6.698 7.607 8.506
Far 1.006 2.026 3.059 4.106 5.167 6.242 7.331 8.435 9.555
22 Near 0.991 1.965 2.922 3.863 4.788 5.697 6.591 7.470 8.335
Far 1.009 2.036 3.082 4.147 5.232 6.337 7.463 8.611 9.781
Distance(in) 10 11 12 15 18 21 24 30 36
T-Stop
6.3 Near 9.752 10.701 11.645 14.449 17.213 19.936 22.621 27.876 32.984
Far 10.261 11.316 12.377 15.594 18.863 22.183 25.558 32.475 39.624
8Near 9.688 10.623 11.553 14.308 17.012 19.668 22.275 27.353 32.254
Far 10.333 11.405 12.483 15.763 19.110 22.526 26.014 33.214 40.730
11 Near 9.575 10.488 11.394 14.064 16.669 19.211 21.691 26.477 31.043
Far 10.464 11.564 12.675 16.069 19.562 23.157 26.859 34.605 42.841
16 Near 9.394 10.271 11.138 13.676 16.127 18.494 20.782 25.135 29.215
Far 10.690 11.840 13.007 16.607 20.365 24.291 28.397 37.200 46.891
22 Near 9.185 10.022 10.845 13.238 15.522 17.702 19.787 23.694 27.286
Far 10.973 12.189 13.430 17.302 21.420 25.808 30.492 40.879 52.891
