INSIGHT Pilot PCM User manual
PILOT PCM
INSTALLATION INSTRUCTIONS
Insight Lighting
www.insightlighting.com
August 30, 2016 4:02 PM 1 of 4
SHAPING THE EXPERIENCE OF LIGHT
Wattage 120VAC 277VAC
3.5W 100 feet 200 feet
5W 100 feet 200 feet
7W 100 feet 200 feet
10W 70 feet 125 feet
13W 55 feet 100 feet
DIMENSIONS
4"
4"
12" 48"
20"
1-7/8"
1-15/16"
1.5"
1.4"
2"
1.3"
± 90°
WIRING
MAXIMUM RUN LENGTHS
T681X series Installation Guide
™
/
General Luminaire LTD Minhang District Shanghai, China www.gL-Lighting.com
INstallation: section c
NOTE:
Read these instructions before using product.
Lisez les instructions avant d’utiliser ce produit.
!
5
Wiring
Cables
Specifications are typical values and may change without notification. May not be exactly as show.
GL, Chameleon Systems and related graphics are trademarks of General Luminaire LTD.
NON/TRIAC DIMMING
LEADER CABLE
LINE NEUTRAL GROUND
white
white green
green
black
black
0-10V DIMMING
LINE NEUTRAL GROUND DATA - DATA +
white
white green
orange redgreen
black
black
WARNING
!
DISCONNECT POWER BEFORE INSTALLING OR
SERVICING TO AVOID ELECTRICAL SHOCK.
POWER CABLE SHOULD NOT SUPPORT
WEIGHT OF FIXTURE: LEAVE LOOSE
WARNING
!
LEADER CABLE
DMX CONTROL
LINE NEUTRAL GROUND DATA - DATA +
white
white green
orange redgreen
black
black
LEADER CABLE
black
orange
or
black
red
or
white
TRIAC DIMMIMG NON DIMMING / 0-10V DIMMING
PILOT PCM
INSTALLATION INSTRUCTIONS
Insight Lighting
www.insightlighting.com
August 30, 2016 4:02 PM 2 of 4
SHAPING THE EXPERIENCE OF LIGHT
Verify electric plan and ensure all hardware is present
T681X series Installation Guide
™
/
General Luminaire LTD Minhang District Shanghai, China www.gL-Lighting.com
INstallation: Section A
NOTE:
Read these instructions before using product.
Lisez les instructions avant d’utiliser ce produit.
!
Verify electric plan and ensure all hardware is present.
Vérier le plan électrique et assurer que tout le matériel est présent.
Dry/Damp Location Install
Installation Emplacement Sec/Humide
Max Continuous Run: See Section D
Run Continue Max: Voir La Section C
Jumper Cable Terminator
Fixture to Fixure Connection
Leader Cable
Specifications are typical values and may change without notification. May not be exactly as show.
GL, Chameleon Systems and related graphics are trademarks of General Luminaire LTD.
T681X series Installation Guide
™
/
General Luminaire LTD Minhang District Shanghai, China www.gL-Lighting.com
INstallation: Section A Cont.
NOTE:
Read these instructions before using product.
Lisez les instructions avant d’utiliser ce produit.
!

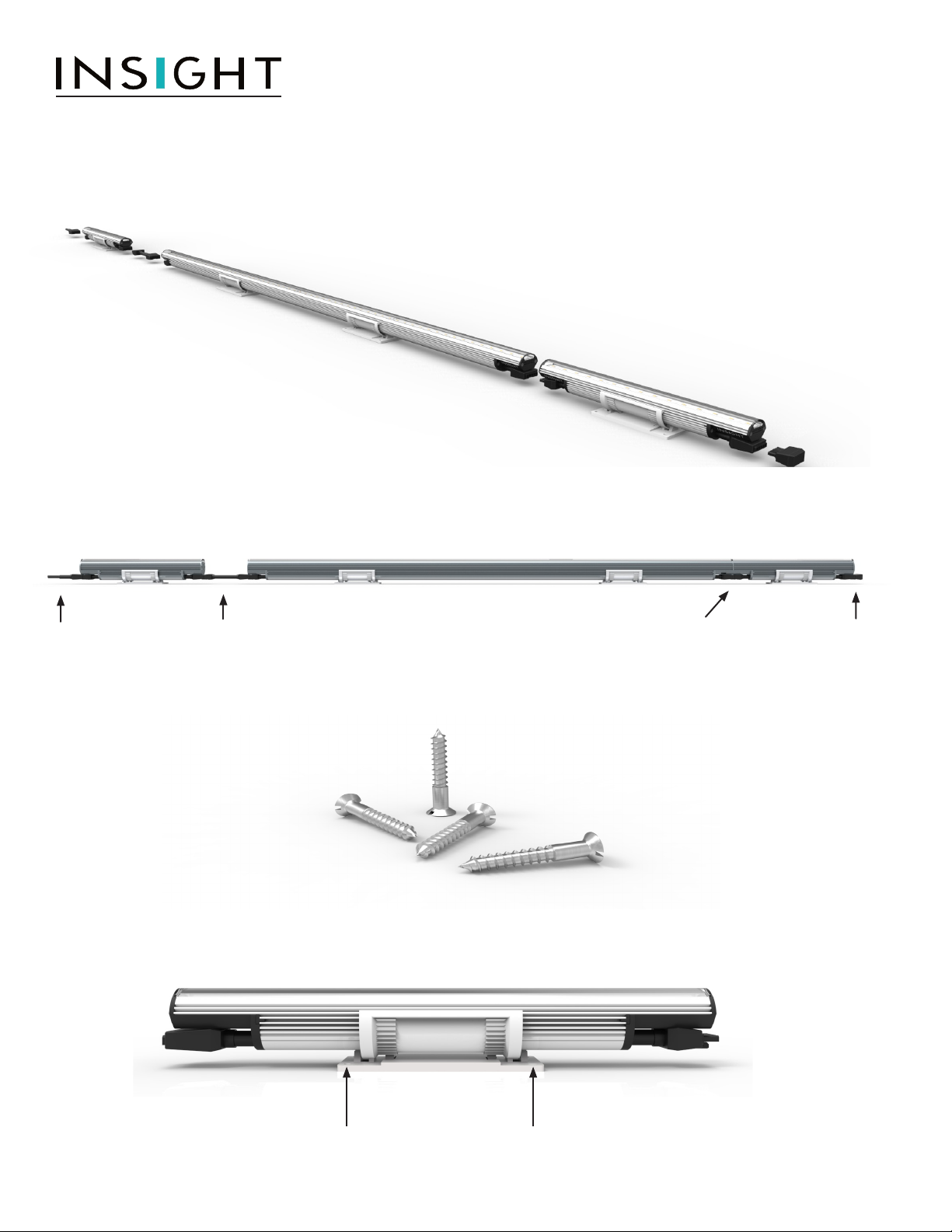

Mount to surface using the 4 screw holes on the bracket.
Mont à la surface en utilisant les 4 trous de vis sur le support.
Screw Hole Screw Hole
Specifications are typical values and may change without notification. May not be exactly as show.
GL, Chameleon Systems and related graphics are trademarks of General Luminaire LTD.
Mount to surface using the 4 screw holes on the bracket. Fasteners by others.
screw hole screw hole
PILOT PCM
INSTALLATION INSTRUCTIONS
Insight Lighting
www.insightlighting.com
August 30, 2016 4:02 PM 3 of 4
SHAPING THE EXPERIENCE OF LIGHT
T681X series Installation Guide
™
/
General Luminaire LTD Minhang District Shanghai, China www.gL-Lighting.com
INstallation: Section B
NOTE:
Read these instructions before using product.
Lisez les instructions avant d’utiliser ce produit.
!
Push down on bracket to rotate.
Poussez vers le bas sur le support à tourner.
5Rotate to desired angle then release.
Rotation Moda Mini Cove à l’angle désiré , puis relâchez.
Bracket is self locking, do not rotate like a conventional bracket. Place on a at surface and push down
on bracket to release locking mechanism then release once desired position has been reached.
Support est auto-bloquante , ne tournent pascomme un support classique. Placersur une surface plane et pousser vers le bassur le support
pour libérer le mécanisme de verrouillage puis relâcherune fois la position désirée est atteinte.
Specifications are typical values and may change without notification. May not be exactly as show.
GL, Chameleon Systems and related graphics are trademarks of General Luminaire LTD.
Push down on bracket to rotate.
Rotate to desired angle then release.
Bracket is self locking, do not rotate like a conventional bracket. Place on a at surface and push down on bracket to
release locking mechanism then release once desired position has been reached.
PILOT PCM
INSTALLATION INSTRUCTIONS
Insight Lighting
www.insightlighting.com
August 30, 2016 4:02 PM 4 of 4
SHAPING THE EXPERIENCE OF LIGHT
PRODUCT SAFETY
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved
To avoid risk of electrical shock, disconnect power
before installing, wiring, or servicing xture
Fixture has no user-serviceable parts. Do not
open xture compartments, except as noted in this
document
Do not apply paint, lubricants or other coatings to
xture, suspension cables, or fasteners
If you attach a safety cable, attach it to the xture in
accordance with all national, state, and local construction
codes
Do not use xture if the housing, suspension cables, optics,
or power cable are damaged
!
!
!
!
!
!
INSTALLATION NOTES
To avoid risk of electrical shock, disconnect power before installing, wiring or servicing xtures
!
ADDITIONAL NOTES
In accordance with national, state, and local electrical code, connect the power cable to the line circuit
