USER GUIDE
14,000 BTU Portable
Air Conditioner
NS-AC14PWH8
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 1 Wednesday, December 14, 2016 8:51 AM

www.insigniaproducts.com
2
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Electrical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Integrated circuit breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Preferred grounding method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Temporary grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Main components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Setting up your portable air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Placing your air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Installing your air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Using your portable air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Inserting the batteries in the remote control . . . . . . . . . . . . . . . . . .20
Using the air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Understanding your air conditioner’s automatic protection . . .23
Cleaning and maintaining your air conditioner . . . . . . . . . . . . . . . . . . . . .24
Cleaning the case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Cleaning the air filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Emptying the water collection tank. . . . . . . . . . . . . . . . . . . . . . . . . . .25
Running your air conditioner in DRY mode. . . . . . . . . . . . . . . . . . . 17
Storing your air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Restarting your air conditioner after storage . . . . . . . . . . . . . . . . . .27
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Introduction
Congratulations on your purchase of a high-quality Insignia product. Your
NS-AC14PWH8 represents the state of the art in portable air conditioner
design and is designed for reliable and trouble-free performance.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 2 Wednesday, December 14, 2016 8:51 AM

3
14,000 BTU Portable Air Conditioner
www.insigniaproducts.com
Important Safety Instructions
WARNING
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this machine near water.
6Clean only with damp cloth.
7Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the machine.
11 Do not attempt to modify or extend the power cord of this machine.
12 Unplug this machine during lightning storms or when it will not be
used for long periods of time.
13 Make sure that the available AC power matches the voltage
requirements of this machine.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within your portable air conditioner.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying your portable air
conditioner.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 3 Wednesday, December 14, 2016 8:51 AM

4
NS-AC14PWH8
www.insigniaproducts.com
14 Do not handle the plug with wet hands. This could result in an electric
shock.
15 Unplug the power cord by holding the plug, never by pulling the cord.
16 Do not turn the machine on or off by plugging or unplugging the
power cord.
17 Turn off the machine before unplugging it.
18 Refer all servicing to qualified service personnel. Servicing is required
when the machine has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the machine, the machine has been exposed
to rain or moisture, does not operate normally, or has been dropped.
19 To reduce the risk of fire or electric shock, do not expose this machine
to rain, moisture, dripping, or splashing, and no objects filled with
liquids should be placed on top of it.
20 Batteries should not be exposed to excessive heat such as sunshine,
fire, or the like.
Additional precautions
• This machine is intended for household use. Do not use for any other
purpose.
• Use this machine indoors in a dry location only. Do not use it outdoors.
• Do not place heavy objects on the machine, as this could damage the
machine.
• Wipe the machine with a soft cloth to clean it. Do not use wax, thinner, or
irritating detergents.
• Do not allow children or pets to drink the water discharged by the
machine.
• Do not disassemble or attempt to repair the machine yourself.
• Do not plug this machine into an outlet with several other high electrical
usage appliances.
• Keep the machine away from heat sources and avoid direct sunlight.
• If the machine is making a loud noise or producing an odor or smoke,
switch off it, disconnect the plug, and immediately try to determine the
cause.
• Do not place heavy objects on the power cord to avoid it being crushed
and causing an electric shock.
• Do not put your fingers or hard objects into the outlet air guide bars.
• Turn the machine off and unplug it if there is water inside the machine,
then contact qualified service personnel for servicing.
Caution
Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 4 Wednesday, December 14, 2016 8:51 AM

5
14,000 BTU Portable Air Conditioner
www.insigniaproducts.com
• Turn the machine off and unplug it before cleaning, moving, or servicing
it.
• To avoid injury, do not allow children or other individuals with special
needs to touch or operate the machine. The machine should only be used
with adult supervision.
• Place the air conditioner on a flat surface and upright to ensure the
normal operation of the compressor.
• Do not use the machine near gasoline or other flammable liquids.
• Do not use aerosol sprays or other solvents near the machine. This may
cause plastic deformation or possibly damage the electrical components
of the machine.
• The air conditioner unit must always be stored and transported
upright, otherwise you may cause irreparable damage to the
compressor. In case of doubt, we suggest that you wait for at least
24 hours before you start air-conditioning unit.
• Avoid restarting the air conditioning unit unless three minutes have
passed since being turned off, or the compressor may get damaged.
WARNING
Electric Shock Hazard
Failure to follow these instructions can result in electric shock, fire, or
death.
• This unit must be properly grounded.
• Do not, under any circumstances, cut or remove the grounding plug.
• If you do not have a properly grounded AC outlet, or if there is any
doubt that the outlet is not properly grounded, a qualified electrician
should check the outlet and circuit and, if necessary, install a properly
grounded outlet.
• This air conditioner must be plugged into a grounded 120V, 60 Hz AC
outlet, protected by a 15 amp time-delay fuse or circuit breaker.
• This air conditioner must be installed in accordance with national
wiring codes.
• Do not alter or modify the plug or cord of this air conditioner. If the
power cord becomes worn or damaged, the cord should only be replaced
by a qualified service technician using genuine replacement parts.
• Do not use an extension cord.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 5 Wednesday, December 14, 2016 8:51 AM

6
NS-AC14PWH8
www.insigniaproducts.com
Electrical Safety
Integrated circuit breaker
For additional safety, the power cord on this air conditioner features an
integrated circuit breaker. You can test and reset the circuit breaker using
the buttons provided on the plug case.
The circuit breaker should be tested periodically by pressing the TEST
button then the RESET button. If the TEST button does not cause the
circuit breaker to trip, or if the RESET button does not stay engaged,
unplug the air conditioner immediately and contact an Insignia
technician.
Preferred grounding method
TEST button
RESET button
Make sure that a proper
ground exists before use.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 6 Wednesday, December 14, 2016 8:51 AM

7
14,000 BTU Portable Air Conditioner
www.insigniaproducts.com
Temporary grounding
Due to potential safety hazards, we strongly discourage the use of an
adapter plug. If an adapter plug must be used for a temporary
connection, use only a UL-listed adapter with a minimum capacity of
110-120V~60Hz, 10A, and 1150W. Make sure that the large slot of the
adapter is aligned with the large slot in the outlet.
To prevent damage to the adapter’s ground terminal, hold the adapter in
place while plugging or unplugging the air conditioner.
Attaching the adapter ground terminal to the wall receptacle cover screw
does not ground the appliance unless the cover screw is metal and not
insulated and the wall receptacle is grounded through the house wiring.
Frequent connection and disconnection can damage the ground terminal
on the adapter. Never use a broken or damaged adapter.
Make sure that a proper
ground exists before use.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 7 Wednesday, December 14, 2016 8:51 AM

8
NS-AC14PWH8
www.insigniaproducts.com
Features
• 14,000 BTU (up to 500 sq. ft. cooling capacity)
• 3-in-1 design (air conditioner, dehumidifier, fan)
• Digital controls with LCD display
• Multiple fan speeds with auto control
• Programmable timer and remote control
• Auto defrost
•AutoOn/Off

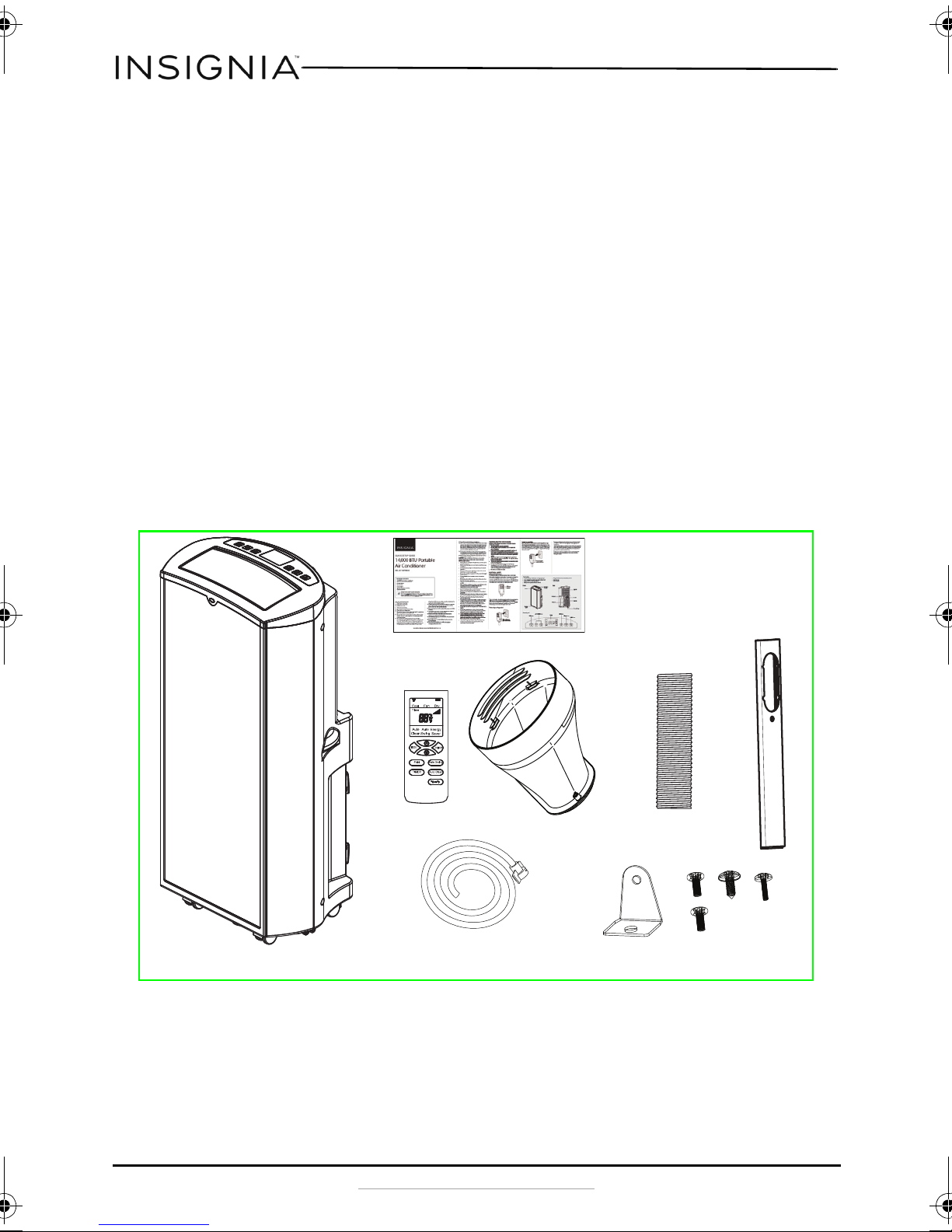

Package contents
• 14000 BTU portable air conditioner
• Remote Control (2 batteries included)
•Exhaustnozzle
• Exhaust hose
• Window seal plate assembly
•QuickStartGuide
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 8 Wednesday, December 14, 2016 8:51 AM

9
14,000 BTU Portable Air Conditioner
www.insigniaproducts.com
Main components
Front
Back
#Item Description
1 Air outlet Allows cool air to exit the air conditioner. Do not block.
2 Swiveling casters Allow you to move the air conditioner easily on most surfaces. Pre-installed.

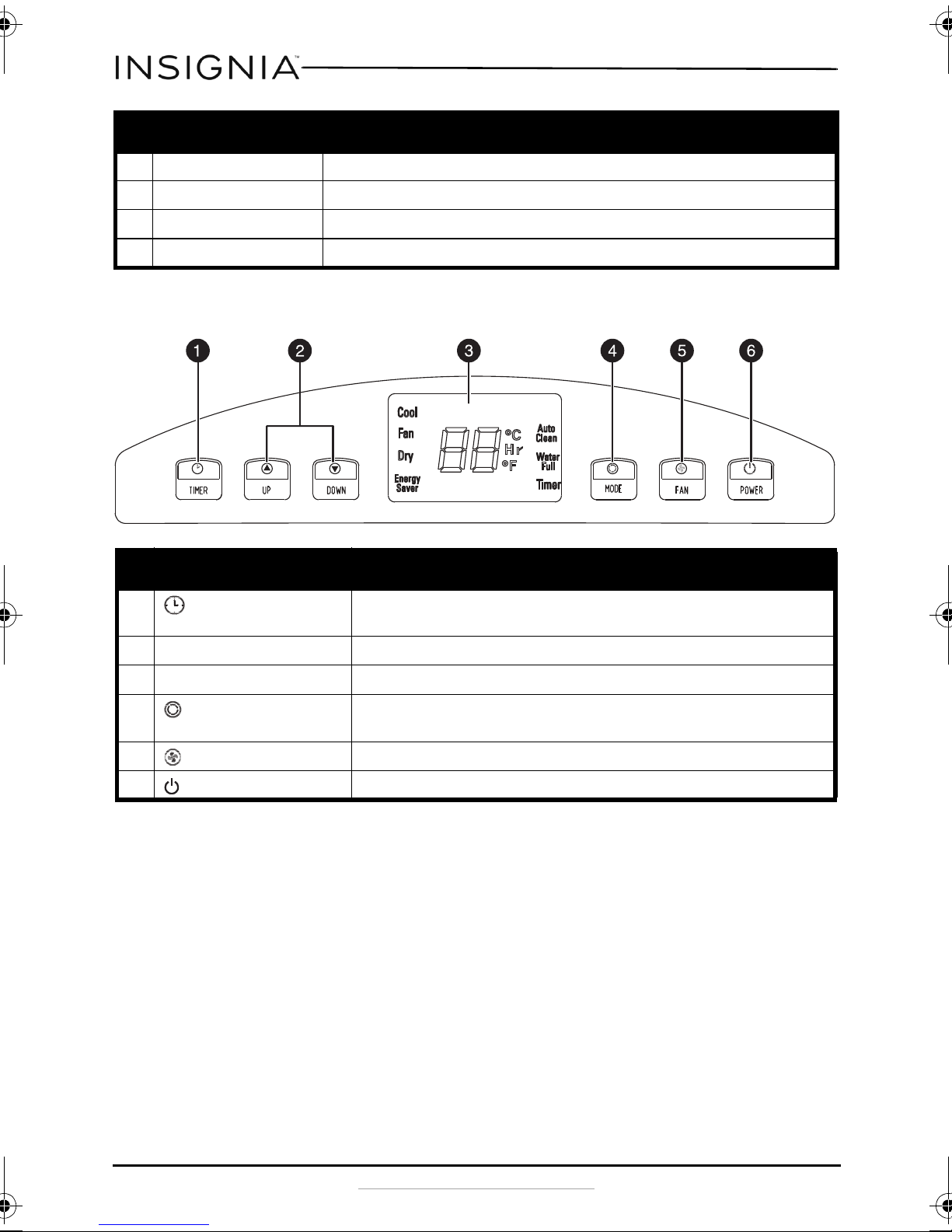

3 Control panel and display Displays air conditioner settings. Press the buttons to change settings.
#Item Description
1 Side handles (2) Provides a convenient grip when moving your air conditioner.
2 Power cord Plug this into a 115V 60 Hz AC outlet.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 9 Wednesday, December 14, 2016 8:51 AM

10
NS-AC14PWH8
www.insigniaproducts.com
Control panel
3 Upper filter Covers the upper air intake filter. Remove to clean the filter.
4 Protective net Connect the exhaust hose to this outlet to vent exhaust air outside.
5 Lower filter Covers the lower air intake filter. Remove to clean the filter.
6 Drain outlet/cover Use to drain the condensation from the air conditioner.
#Item Description
1 TIMER button Press to set the air conditioner to turn on or off automatically. Change the settings
with the UP and DOWN buttons.
2  UP and  DOWN buttons Press to raise or lower settings.
3 Display Shows the temperature, time, mode, and other important information.
4 MODE button Press to cycle the air conditioner through the available modes. Options include
COOL, FAN, DRY, and ENERGY SAVER.
5 FAN speed button Press to select low, medium, or high speed.
6 POWER button Press to turn the air conditioner on or off.
#Item Description
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 10 Wednesday, December 14, 2016 8:51 AM

11
14,000 BTU Portable Air Conditioner
www.insigniaproducts.com
Accessories
#Item Description
1 Remote control Use to remotely control the air conditioner.
2 Exhaust nozzel Used to vent the exhaust air outside.
3 Exhaust hose Used to adapt the exhaust hose to a window to vent exhaust air outside.
4 Window seal plate assembly Connects the exhaust hose to the window sealing plate.
5 Drain hose Use to continuously drain the water from the air conditiioner.
6 Window security bracket Used to hold the window in place with the seal plate installed.
7Screws(2) (Please describe)
8 Wood screw Used to hold the window security bracket in place.
9Screw (Please describe)
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 11 Wednesday, December 14, 2016 8:51 AM

12
NS-AC14PWH8
www.insigniaproducts.com
Remote control
#Item Description
1LCD Lights when you press any button.
2 Mode indicator The selected mode lights.
3 Timer Lights when the timer is being set.
4 Number display Shows the time or temperature when settings are being made.
5 Function indicator Lights to show the current function.
6
 (up) and  (down)
buttons
Press to raise or increase settings.
7MODE button Press to cycle the air conditioner through the available modes. Options
include COOL, FAN, DRY, and ENERGY SAVER.
8FAN button Press to select low, medium, or high speed.
9TIMER button Press to set the air conditioner to turn on or off automatically. Change
settings with the
 and  buttons.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 12 Wednesday, December 14, 2016 8:51 AM

13
14,000 BTU Portable Air Conditioner
www.insigniaproducts.com
Setting up your portable air conditioner
Remove and store (optional) packing materials for reuse. Remove any
shipping tape before using the air conditioner. Remove tape residue with
liquid dish soap and a damp cloth. Do not use sharp tools, alcohol,
thinners, or abrasive cleaners to remove adhesive, which could damage
the finish.
10 Battery indicator Shows the current battery charge in the remote control
11 Fan speed indicator Indicates the current fan speed.
12 POWER Press to turn the air conditioner on or off.
13 Auto Swing button Press to turn the auto swing function on or off.
14 Auto Clean button Press to turn the auto clean function on or off.
15 °C -- °F button Press to switch between Centigrade and Fahrenheit.
Note
• Do not remain in the direct airflow from the air conditioner
for extended periods.
• When used at the same time as stoves, fireplaces, or other
combustion/heating devices, make sure that there is
sufficient flow of fresh air into the room. Do not use in
tightly closed spaces with these types of devices.
• This air conditioner is intended for household use as a
consumer comfort appliance. Do not use it as a precision
climate control system for the purpose of cooling precision
equipment, food, pets, plants, artwork, and so on. Such
items could be damaged.
• Do not bend the hose downward when the window
installation kit is not being used. Doing so may cause
inferior performance or failure of the air conditioner.
#Item Description
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 13 Wednesday, December 14, 2016 8:51 AM

14
NS-AC14PWH8
www.insigniaproducts.com
Placing your air conditioner

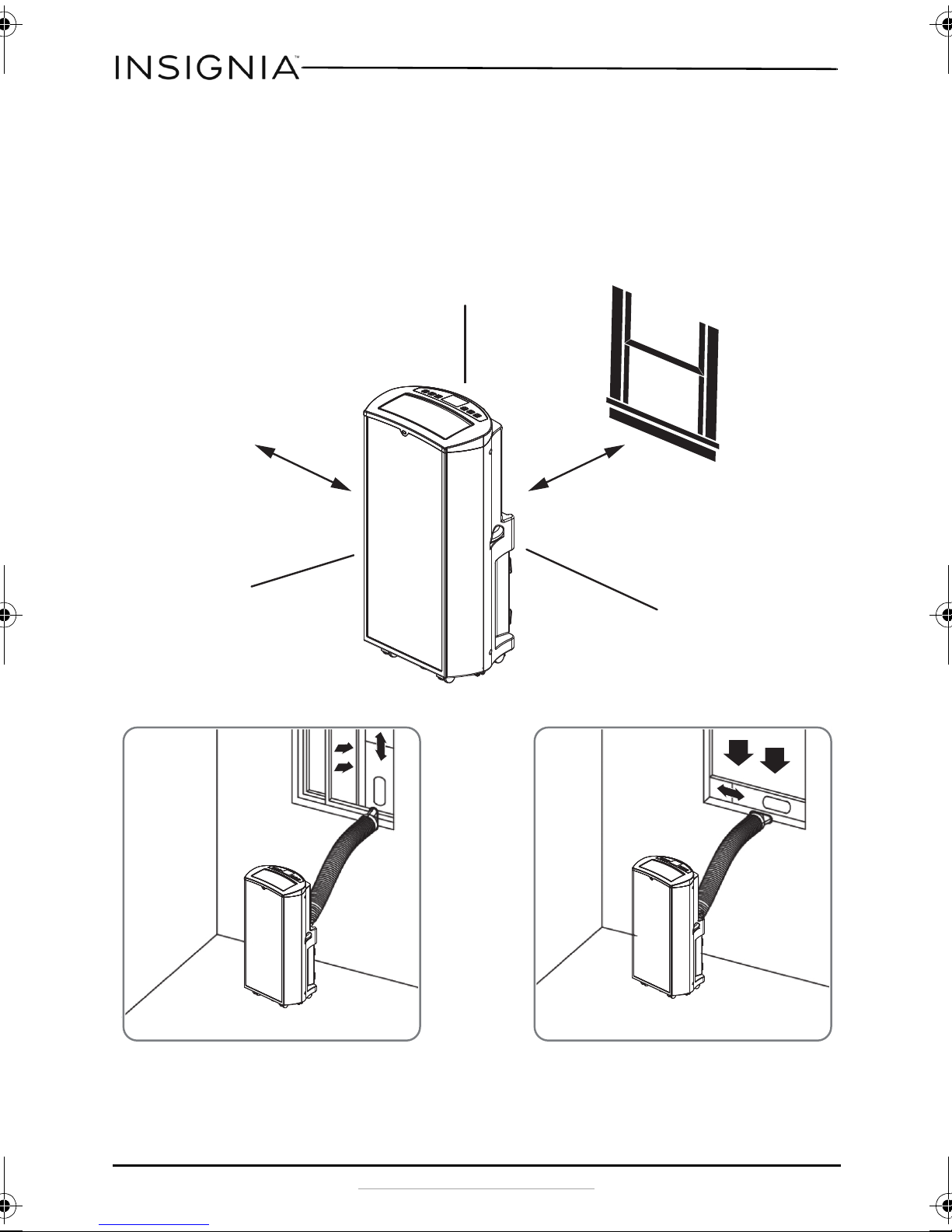

Place the unit on a flat, dry area near a window, so you can use the hose
and diffuser to connect the air conditioner to the window installation kit
in order to vent the exhaust air outside.
To maintain good air circulation and optimum machine performance,
leave a 20 in. (50 cm) space around it.
20 in. (50 cm)
20 in. (50 cm)
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 14 Wednesday, December 14, 2016 8:51 AM

15
14,000 BTU Portable Air Conditioner
www.insigniaproducts.com
Installing your air conditioner

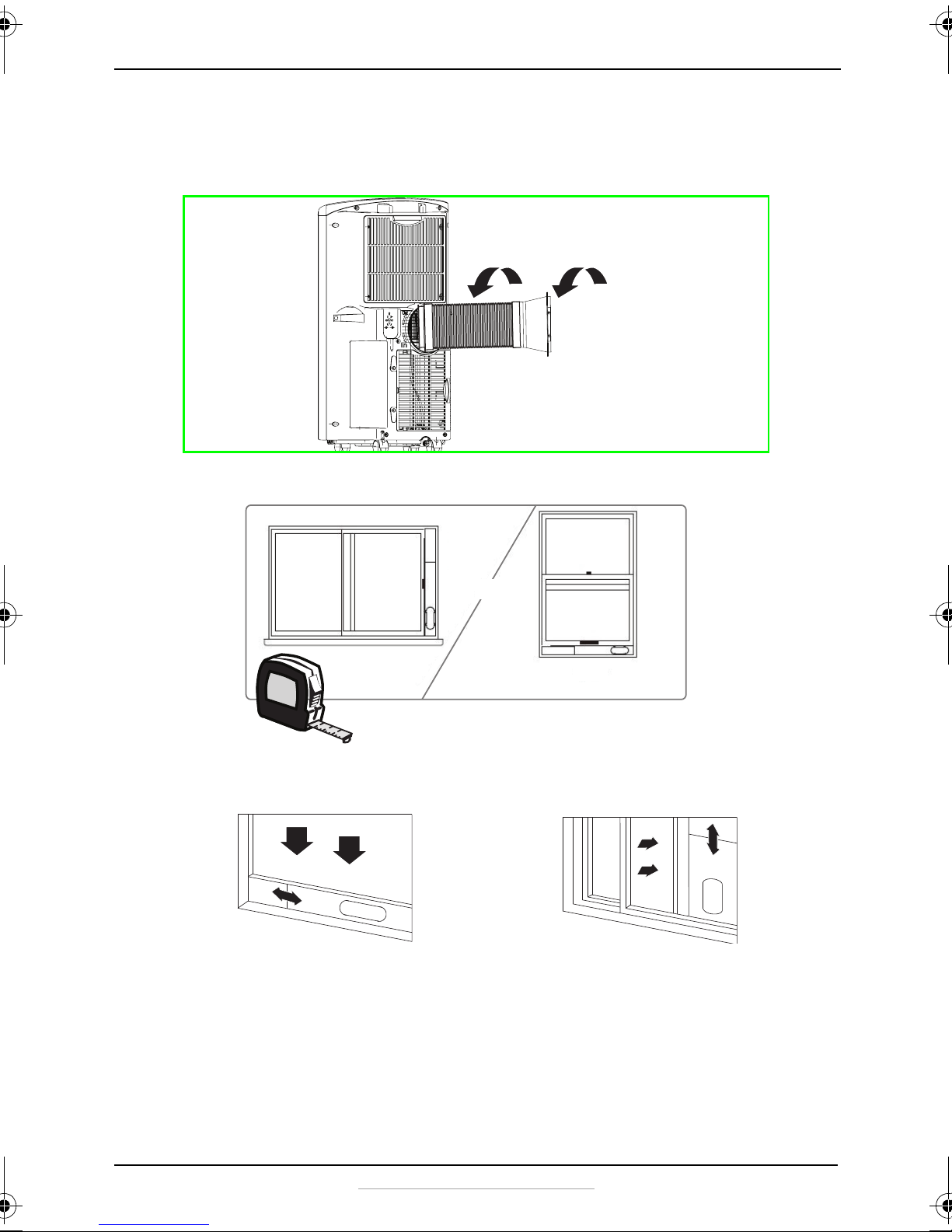

1Screw the exhaust hose to the air outlet on the back of your air
conditioner, then screw the hose adapter to the other end of the hose.
2Measure the window size.
3Adjust the length of the window sealing plate to fit the window
opening and secure it with a screw.
4Install the window sealing plate in the window opening and secure it
with the screws provided.
5Insert the hose adapter into the vent panel, then slide it down or left
until it clicks into place.
OR
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 15 Wednesday, December 14, 2016 8:51 AM

16
NS-AC14PWH8
www.insigniaproducts.com
• For optimum performance, do not twist the venting hose. For better
efficiency, shorten the hose, if possible.
Small gap
First insert
Second slide
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 16 Wednesday, December 14, 2016 8:51 AM

17
14,000 BTU Portable Air Conditioner
www.insigniaproducts.com

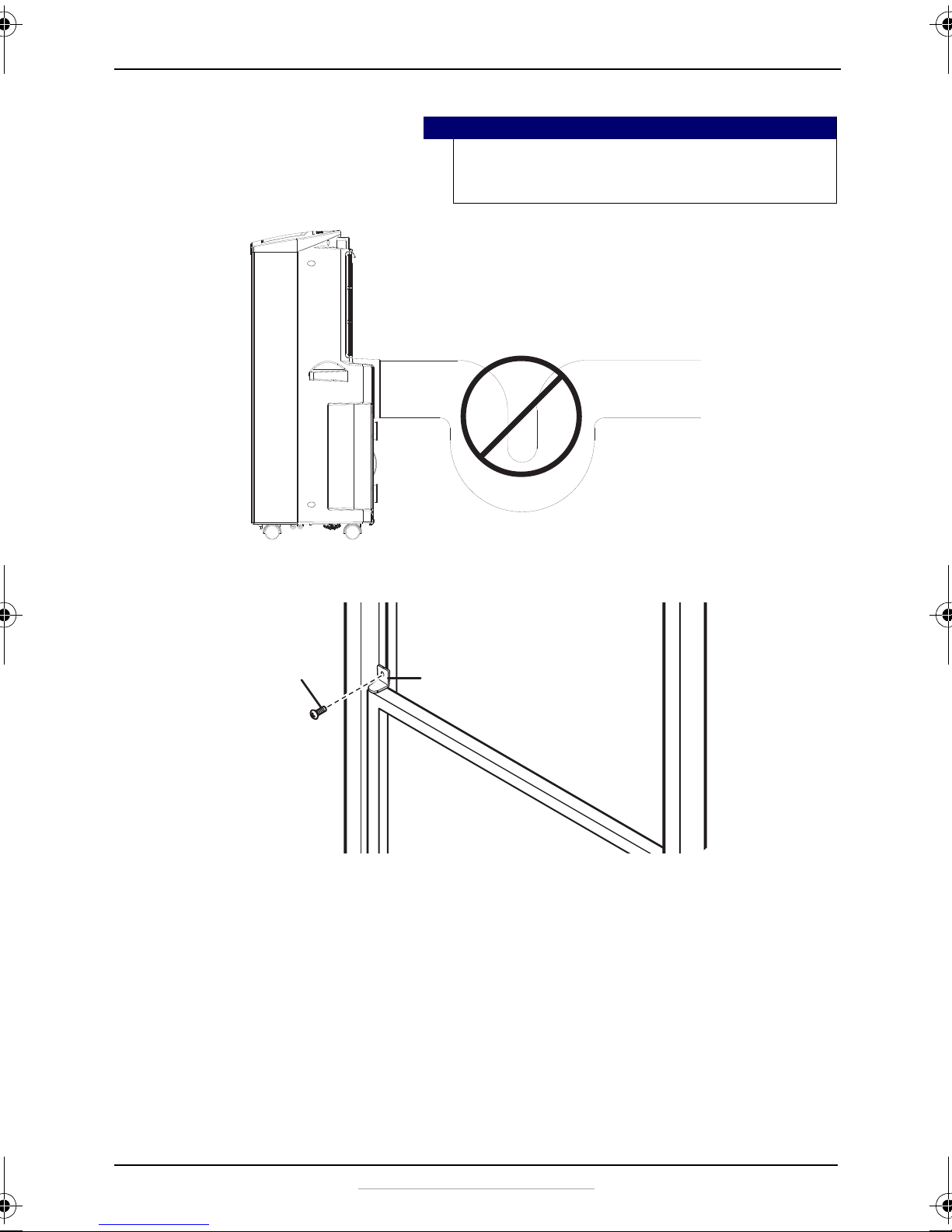

6If desired, install the security bracket with the type B screw.
Running your air conditioner in DRY mode
If you want to continuously drain the water from your air conditioner and
never have to manually drain the collection tank, we suggest you do the
following:
1Unplug your air conditioner and move it to a location where you can
work on it.
Caution
The exhaust duct is designed especially for this air conditioner.
Replacing or lengthening the duct could result in damage to your
unit.
Type B screw Security bracket
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 17 Wednesday, December 14, 2016 8:51 AM

18
NS-AC14PWH8
www.insigniaproducts.com

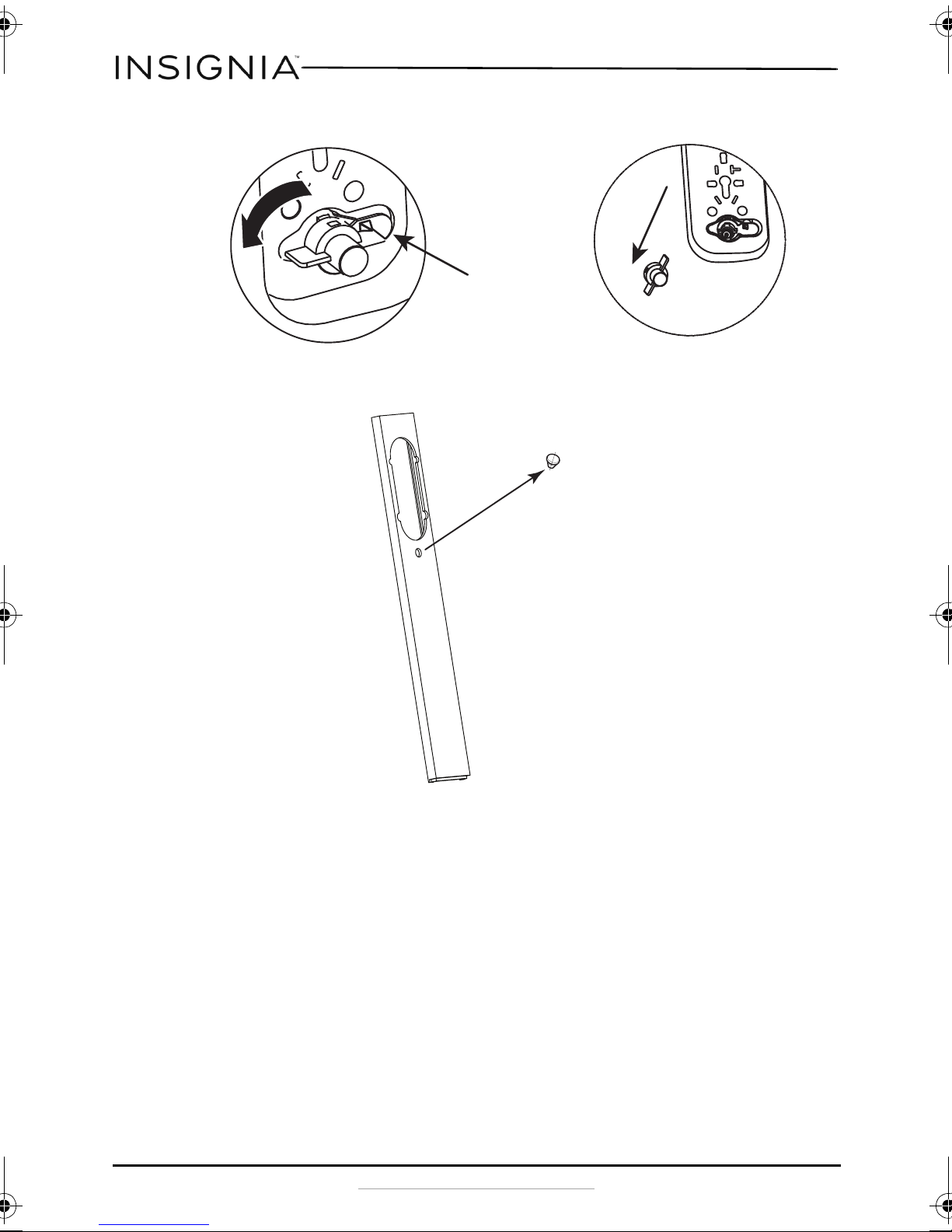

2Remove the water plug from the drain outlet.
3Remove the rubber plug from the window plate.
4Install a 1/2 in. inside diameter drain hose on the back of the unit
where you removed the rubber plug. Use a hose clamp to make sure
that there are no leaks.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 18 Wednesday, December 14, 2016 8:51 AM

19
14,000 BTU Portable Air Conditioner
www.insigniaproducts.com
5Place the open end of the hose in a suitable location to drain
continuously.
6Plug in your air conditioner and restart it.
Note
Make sure that the drain pipe extends more than eight inches
out from the vent panel.
Caution
To stop water from being drained through the drain pipe, press
the TIMER and DOWN buttons simultaneously. To begin draining
again, press the TIMER and DOWN buttons simultaneously
again.
Indoor drain
Outdoor drain
More than 8”
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 19 Wednesday, December 14, 2016 8:51 AM

20
NS-AC14PWH8
www.insigniaproducts.com
Using your portable air conditioner
Inserting the batteries in the remote control
1Press down on the arrow on the back of the remote control, then slide
the battery compartment cover from the battery compartment.
2Insert two AAA carbon-zinc (provided) into the battery compartment.
Note the proper orientation of the + and – polarity of the batteries.
3Reinstall the battery compartment cover, making sure the tab locks
into place.
Notes
• Use only carbon-zinc or alkaline batteries. Do not use
rechargeable batteries.
• When you replace the batteries, always replace them with
new batteries. No not mix old and new batteries.
• If your air conditioner will not be used for an extended
period of time, remove the batteries from the remote
control.
Cautions
• If the fluid from inside the batteries comes into contact with
your skin or clothes, wash immediately with clean water.
• Do not use the remote control if the batteries are leaking.
• If the fluid from inside the batteries gets into your mouth or
eyes, flush immediately with clean water and contact a
doctor for treatment.
Make sure that you orient the
batteries correctly (+ and –)
when you install them.
NS-AC14PWH8_16-0836_MAN_V1_ENG.fm Page 20 Wednesday, December 14, 2016 8:51 AM
