Introduction
Congratulations on your purchase of a high-quality
Insignia product. Your NS-C3112 CD/MP3 Car Deck
represents the state of the art in car stereos, designed
for reliable and trouble-free performance.

2
NS-C3112
www.insignia-products.com
Safety information
Electric shock warning
Warning
To reduce the risk of electric shock, do not remove the cover or
back. There are no user-serviceable parts inside. Refer servicing
to qualified service personnel.
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
car deck’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the car deck.
Warning
To prevent fire or electric shock hazard, do not
expose this car deck to rain or moisture.
Caution
The car deck should not be exposed to water
(dripping or splashing) and no objects filled with
liquids, such as vases, should be placed on the car
deck.
CAUTION
Risk of Electric Shock
Do Not Open

NS-C-3112
3
www.insignia-products.com
Read and follow instructions
Read all safety and operating instructions before
operating your car deck.
Follow all operating and use instructions.
Retain instructions
Keep the safety and operating instructions for future
reference.
Heed warnings
Follow all warnings on your car deck and in the operating
instructions.
Accessories
Use only attachments and accessories specified.
Vents and radiator panels
Do not block vents or radiator panels. Blocking will cause
heat to build up inside and may result in fire.
Object and liquid entry
Do not push objects through any openings in your car
deck because they may touch dangerous voltage points
or short out parts that could result in fire or electric
shock. Never spill or spray any type of liquid into your car
deck.
Damage requiring service
Do not try to service your car deck yourself. Opening or
removing covers may expose you to dangerous voltage
or other hazards. Refer servicing to qualified service
personnel under the following conditions:

4
NS-C3112
www.insignia-products.com
• When the wiring is damaged.
• If liquid has been spilled, or objects have fallen,
into your car deck.
• If your car deck has been exposed to rain or
water.
• If your car deck does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions because an incorrect adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore your car deck to its normal
operation.
Replacement parts
When replacement parts are required, make sure that
the service technician uses replacement parts specified
by Insignia or those that have the same characteristics
as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.
Safety check
Upon completion of any service or repairs to your car
deck, ask the service technician to perform safety checks
to determine that your shelf system is in correct
operating condition.
Disc slot
Keep your fingers clear of the disc slot while it is closing.
You may injure yourself.
Disc
Do not use cracked, deformed, or repaired discs. These
discs are easily broken and may cause serious personal
injury and product malfunction.

NS-C-3112
5
www.insignia-products.com
Equipment classification
This is classified as Class II equipment, which means
that the car deck has a double-insulation system.
F
Invisible laser
radiation
possible when
open and
interlock failed or
defeated. Avoid
direct exposure
to laser beam.
Laser safety
This car deck employs an optical laser
beam system in the CD mechanism
designed with built-in safeguards. Do
not try to disassemble. Refer to
qualified service personnel. Exposure
to this invisible laser light beam may be
harmful to the human eye.
This is a Class 1 laser product. Using
controls, adjustments, or procedures
other than those specified herein may
result in hazardous laser light beam
exposure.

6
NS-C3112
www.insignia-products.com
Features
Controls
Front panel
# Control Description
1 Aux In Slot Use to connect an external
auxiliary source.
2 MUTE button Press to cut off the sound output.
Press again to resume sound.
3 LCD panel LCD shows current status.
AUX IN
AUX I N
12345
678910 11
12
13
1415
TP
TA
AF

NS-C-3112
7
www.insignia-products.com
4 AMS button While in radio mode, press quickly
to scan each stored station for five
seconds. Press and hold to
activate automatic station
storage.
5 RELEASE button Press to release the front panel.
6 DISPLAY button Press to display the time.
7 Power button Press to turn on the car deck.
Press and hold to turn off the car
deck.
8VOL/SEL knob Rotate to adjust the volume.
Press to set sound
characteristics.
9 MODE button Press to select mode:
•Radio
• Playback
• Aux In (external source)
10 Number buttons While in radio mode, press for
preset tuning.
While in playback mode, press to
activate functions:
•,
• INT (Intermittent)
• RPT (Repeat)
• RDM (Random)
•DOWN
•UP
11 ST button While in radio mode, press to
move between mono and stereo.
12 LOC button While in radio mode, press to
move between distant and local
stations.
# Control Description

8
NS-C3112
www.insignia-products.com
Back
13 LOUD button Press and release quickly to
activate the loud function.
14 BAND button While in radio mode, press to
select band.
15 Select Station/Track
buttons While in radio mode, press for to
select station. Press three times
to search stations automatically.
While in playback mode, press to
select tracks. Press and hold for
fast forward or fast reverse.

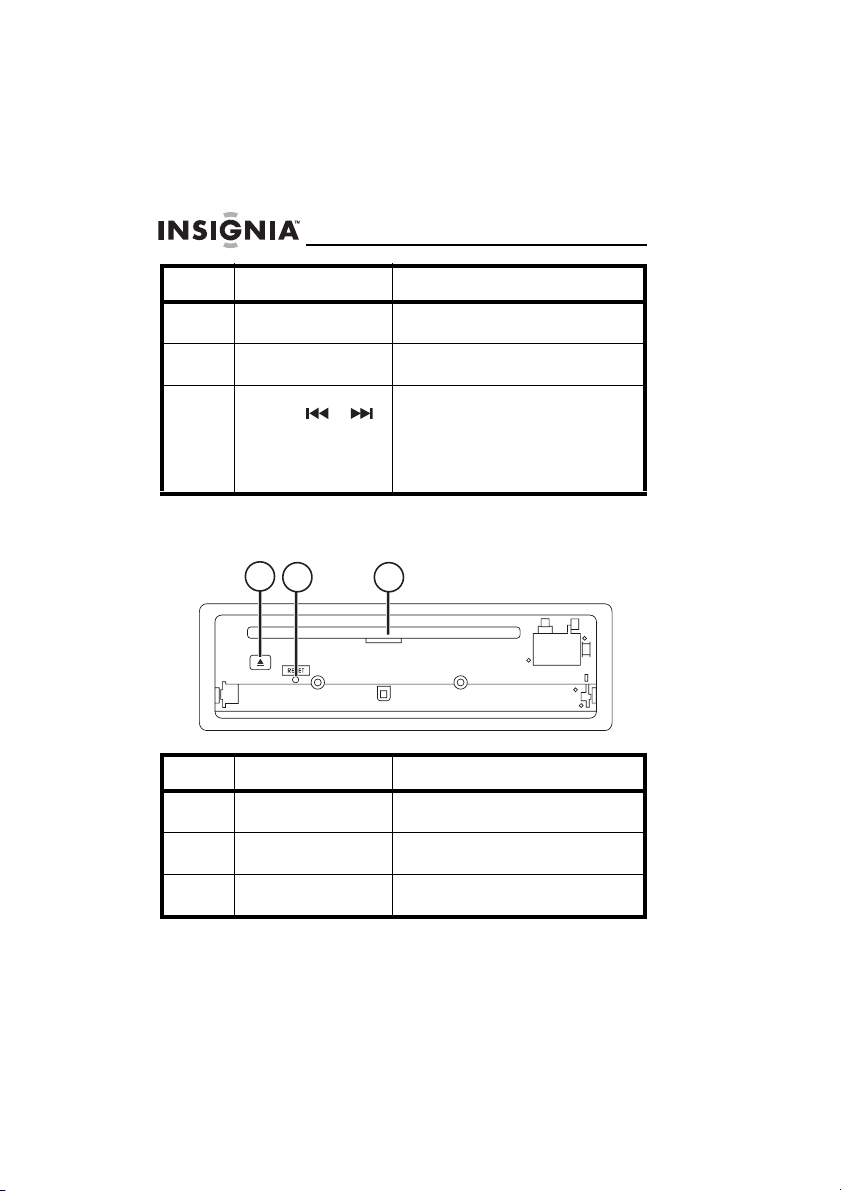

# Control Description
1 EJECT button Press to eject the compact disc
after releasing the front panel.
2 RESET button Press to set the car deck back to
initial factory settings.
3 Disc loading slot Insert disc in this slot for
playback.
# Control Description
123

NS-C-3112
9
www.insignia-products.com
Wiring
Caution
Make sure that you connect the color-coded leads
according to the diagram. Incorrect connections
may cause the car deck to malfunction or damage
the vehicle’s electrical system.
Be sure to connect the (-) speaker leads to the (-)
speaker terminal. Never connect the left and right
channel speaker cables each other or to the
vehicle body.
Make sure all the connections are completely
correct before turning on your car deck.
Antenna
Front L RCA
Front R RCA
Rear L RCA
Rear R RCA
Magnifier Magnifier

10
NS-C3112
www.insignia-products.com
# Connection
1 Screw holes
2 Front right RCA jack
3 Front left RCA jack
4 Rear left RCA jack
5 Rear right RCA jack
6 Output jack
7 Antenna receptacle
8Output plug for output jack
Negative ground
Red
Front R
speaker
To power
antenna
Violet/Black
Blue
Rear L
speaker Violet
Grey/Black
Grey
Memory
backup 12V
Green
Yellow
White
Ignition key
Rear R
speaker
Front L
speaker
White/Black
Green/Black
Black
Choke
box

NS-C-3112
11
www.insignia-products.com
Installing your car deck
Attaching the mounting case
There are two methods for installing your car deck:
• the DIN front-mount method
• the screw-mount method.
The screw-mount method uses only the screw holes at
the sides of the car deck.
To install your car deck using the DIN
front-mount method:

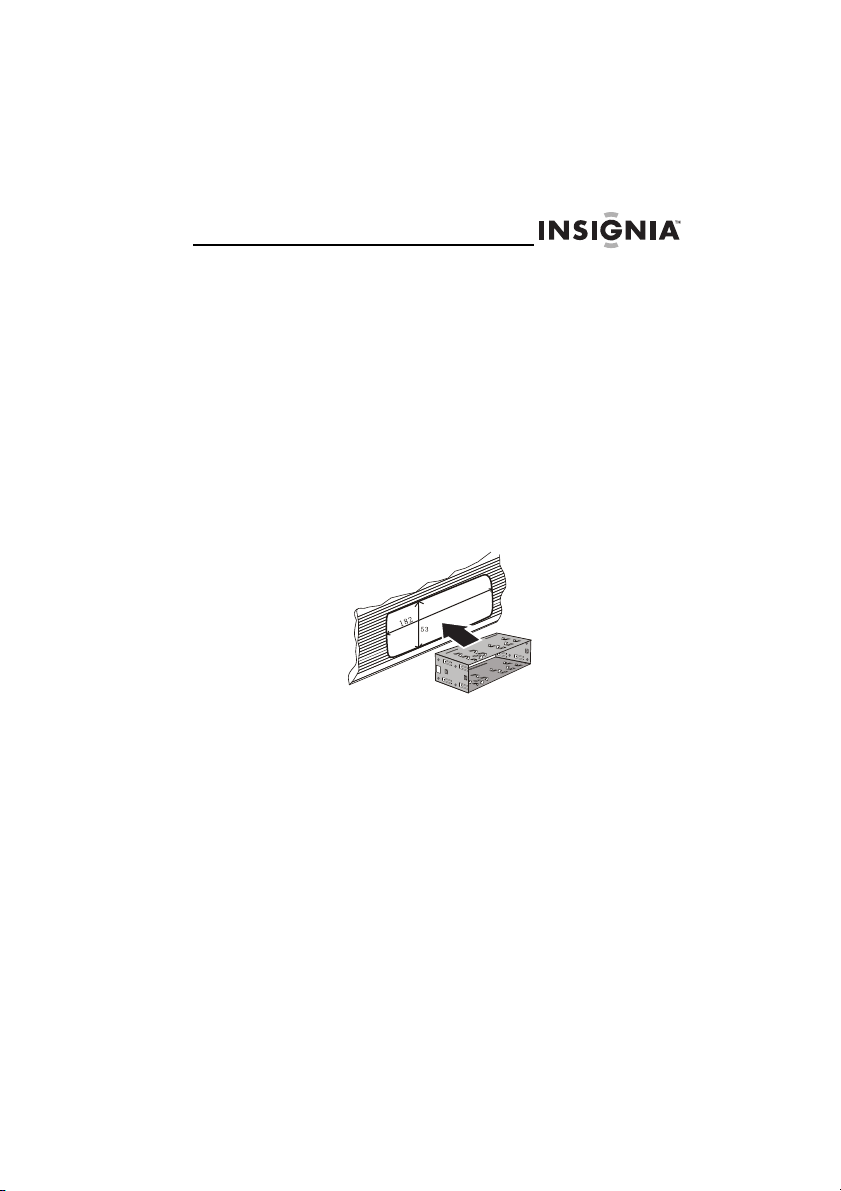

1Insert the mounting case into the car deck opening.

12
NS-C3112
www.insignia-products.com
2Bend the mounting tabs outward until the mounting
case is secure.
3Attach the mounting case to the firewall for additional
support.
4Slide the car deck into the mounting case and attach
face plate to the front of the car deck.

NS-C-3112
13
www.insignia-products.com
To install your car deck using the
screw-mount method:

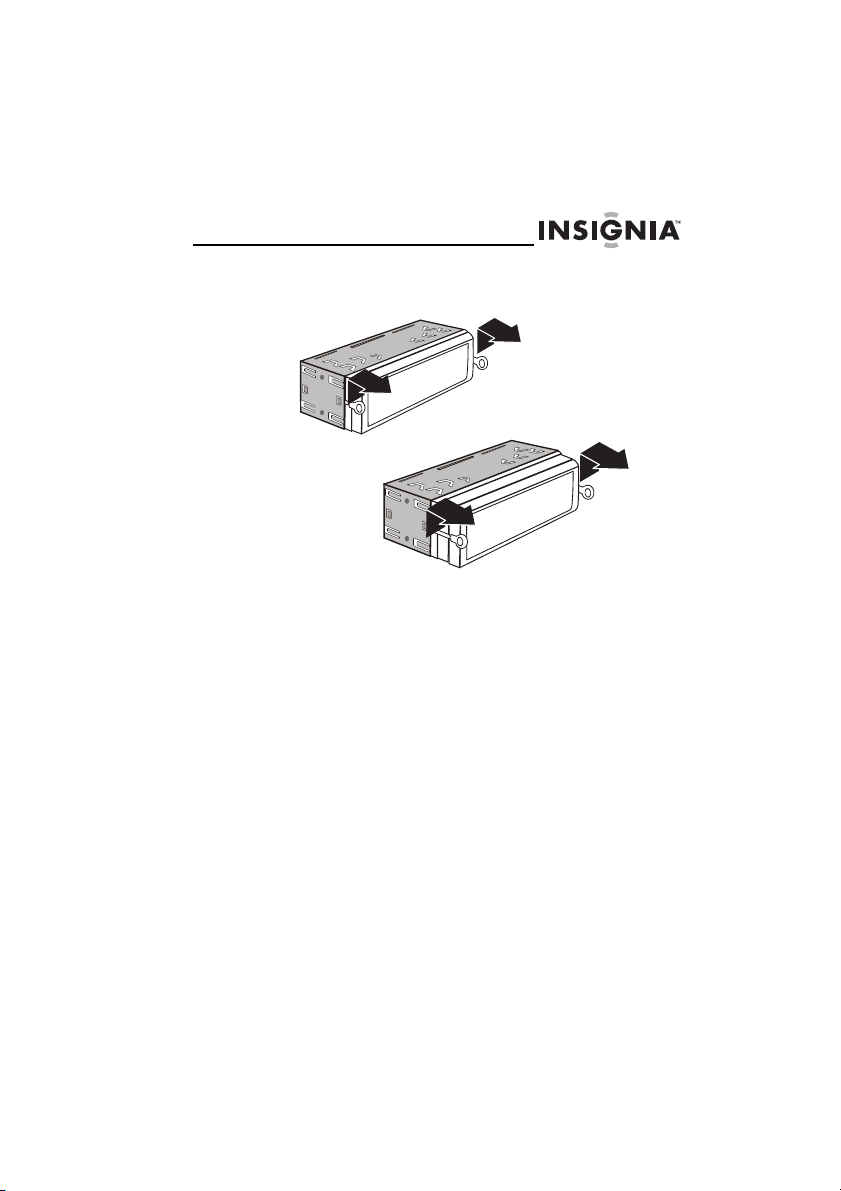

1Remove the hooks on both sides of the car deck.
2Align the two screw holes on each side of the car
deck with the screw holes of the mounting bracket
(supplied with the vehicle), then tighten the screws to
secure the car deck.
NoteOuter trim frame, hook, and mounting case are not
used for installation.
Dashboard
Hook
Bracket
(supplied
with your

14
NS-C3112
www.insignia-products.com
Installing and removing the face
plate
To install the face plate:
1Align face plate by securing the notch (2) to the shaft
(1) and pressing the face plate into the right side.
2To secure the face plate to the front of the car deck,
slide the face plate to the right and up.
1
2

NS-C-3112
15
www.insignia-products.com
To remove the face plate:
1Press the REL button located at the upper right
corner of the car deck. The face plate releases and
folds down.
2Hold the face plate at a 45-degree angle and slide it
to the left to remove.
REL
(Release)

16
NS-C3112
www.insignia-products.com
Removing your car deck
To remove your car deck from the vehicle:
1Remove the face plate.
2If the outer trim frame is used, remove it by pulling it
straight out.
3Insert the keys supplied with the car deck at both
sides of the car deck until you hear them click.

NS-C-3112
17
www.insignia-products.com
4Pull the keys straight toward you to remove the car
deck and mounting case from the dashboard.
To install your player using the screw
method:
• Remove the hooks on both sides of the
player.
Using your car deck
Operating the car deck
The display changes according to the button pressed or
feature selected.
To turn the tuner on and off:
1Press POWER to start the tuner.
OR, insert a CD in the disc slot with the power off.

18
NS-C3112
www.insignia-products.com
The CD/MP3 player will begin playing.
2Press and hold POWER to turn the car deck off
completely.
To adjust the sound:
1Rotate VOL/SEL clockwise to increase the volume.
2Rotate VOL/SEL counterclockwise to decrease the
volume.
To reset the car deck:
1When operating the car deck for the first time or after
replacing the car battery, restart the car deck by
pressing RESET with a pointed object.
2Press RESET when errors occur in the display. The
clock setting and some memorized features will be
erased.
To eject a stuck disc:
1If a disc becomes stuck in the car deck and EJECT
does not release it, press MODE to change to radio
mode.
2Release the face plate, then press and hold EJECT
for three seconds. The disc ejects.
To use auxiliary in:
1Insert the audio plug for an external device in the
Aux In slot on the front of the car deck. The volume
increases.
2Remove the external device to resume normal
volume.
