Welcome
Congratulations on your purchase of a high-quality Insignia product.
Your NS-14FTV color TV represents the state of the art in color
television design, and is designed for reliable and trouble-free
performance.

4
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Safety information
Read instructions
Read all safety and operating instructions before operating your TV.
Retain instructions
Keep the safety and operating instructions for future reference.
Heed warnings
Follow to all warnings on your TV and in the operating instructions.
Follow instructions
Follow all operating and use instructions.
Warning
Risk of electric shock. Do not open. Do not attempt to
service your TV yourself because opening or removing
covers may expose you to dangerous electrical voltage or
other hazards. Refer all servicing to qualified service
personnel.
Warning
To reduce the risk of fire or electric shock, do not expose
your TV to rain or moisture. Do not expose your TV to
dripping or splashing liquids. Do not set objects filled with
liquids, such as vases, on your TV.
Warning
To avoid fire, do not place an open flame source, such as a
lighted candle, on your TV.
Warning
Leave at least 4.0 inches (10 cm) space around your TV for
sufficient ventilation. Do not block the ventilation openings
with items, such as newspapers, tablecloths, curtains, or
similar items.
Warning
In case of smoke, strange noises, or strange smells from
your TV, turn it off, unplug it from the wall outlet, and contact
your dealer or service center.

5
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Outdoor antenna grounding
If an outside antenna or cable system is connected to TV, make sure
that the antenna or cable system is grounded to provide some
protection against voltage surges and built-up static charges. Section
810 of the National Electrical Code (NEC), ANSI/NFPA 70, provides
information with respect to correct grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and requirements
for the grounding electrode.
Cleaning
Unplug your TV from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning the
exterior cabinet only.
Lightning
To protect your TV from a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to
your TV from lightning and power line surges.
1 Electric service equipment
2 Power service grounding electrode system
3 Ground clamps
4 Grounding conductors
5 Antenna discharge unit
6 Grounding clamp
7 Antenna lead in wire
6
7
5
2
1
3
4

6
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Power cord protection
Route power supply cords so they are not likely to be walked on or
pinched by items placed on or against them. Pay particular attention
to cords at plugs, wall outlets, and the points where they exit from
your TV.
Water and moisture
Do not use your TV near water (for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool).
Ventilation
Slots and openings in the cabinet back or bottom are provided for
ventilation, to ensure reliable operation of your TV, and to protect it
from overheating. These openings must not be blocked or covered.
Do not place your TV on a bed, sofa, rug, or other similar surface. Do
not place your TV near or over a radiator or heat source. Do not place
your TV in a built-in installation, such as a bookcase or rack, unless
you provide correct ventilation or follow the manufacturer's
instructions.
Power source
Operate your TV only from the type of power source indicated on the
rating plate. If you are not sure of the type of power supply to your
home, consult your TV dealer or local power company.
Moving your TV
If you move your TV from a cold place to a warmer place, wait until
the condensation inside the TV has evaporated completely before
you turn it on.
Sunlight
Position your TV so the screen is not exposed to direct sunlight.
Viewing environment
Use soft, indirect lighting while watching your TV. A completely dark
environment and reflection from the screen may cause eye fatigue.
Magnetic interference
Keep your TV away from high magnetic fields, such as powered
speakers, to avoid affecting the tint.

7
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Maintenance
Use an isolated power transformer during maintenance because your
TV chassis may be electrified.
Note to cable system TV installer
This reminder is provided to call the cable TV system installer's
attention to Article 820-40 of the NEC that provides guidelines for
correct grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.

8
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Features

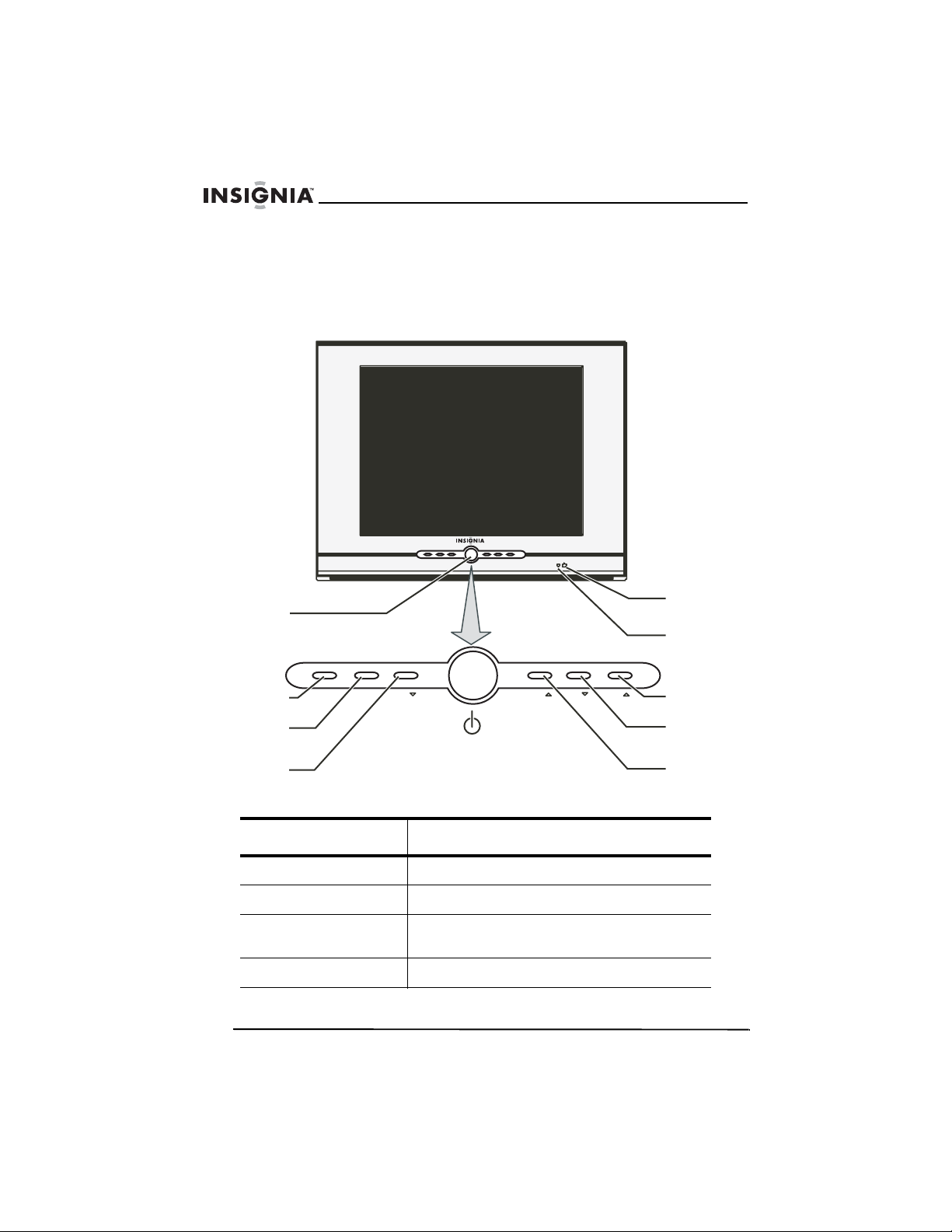

Front
The location of features may vary depending on your TV model.
Feature Description
Power button Press to turn your TV on or off.
Power indicator Turns red when your TV is in Standby mode.
Remote control sensor Receives signals from the remote control. Do
not block.
INPUT button Press to select the video input.
INPUT MENU VOL VOL CH CH
Power
button
Remote
sensor
Power
indicator
Input button
Menu button
Volume down
button Volume
up button
Channel
down button
Channel
up button

9
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com

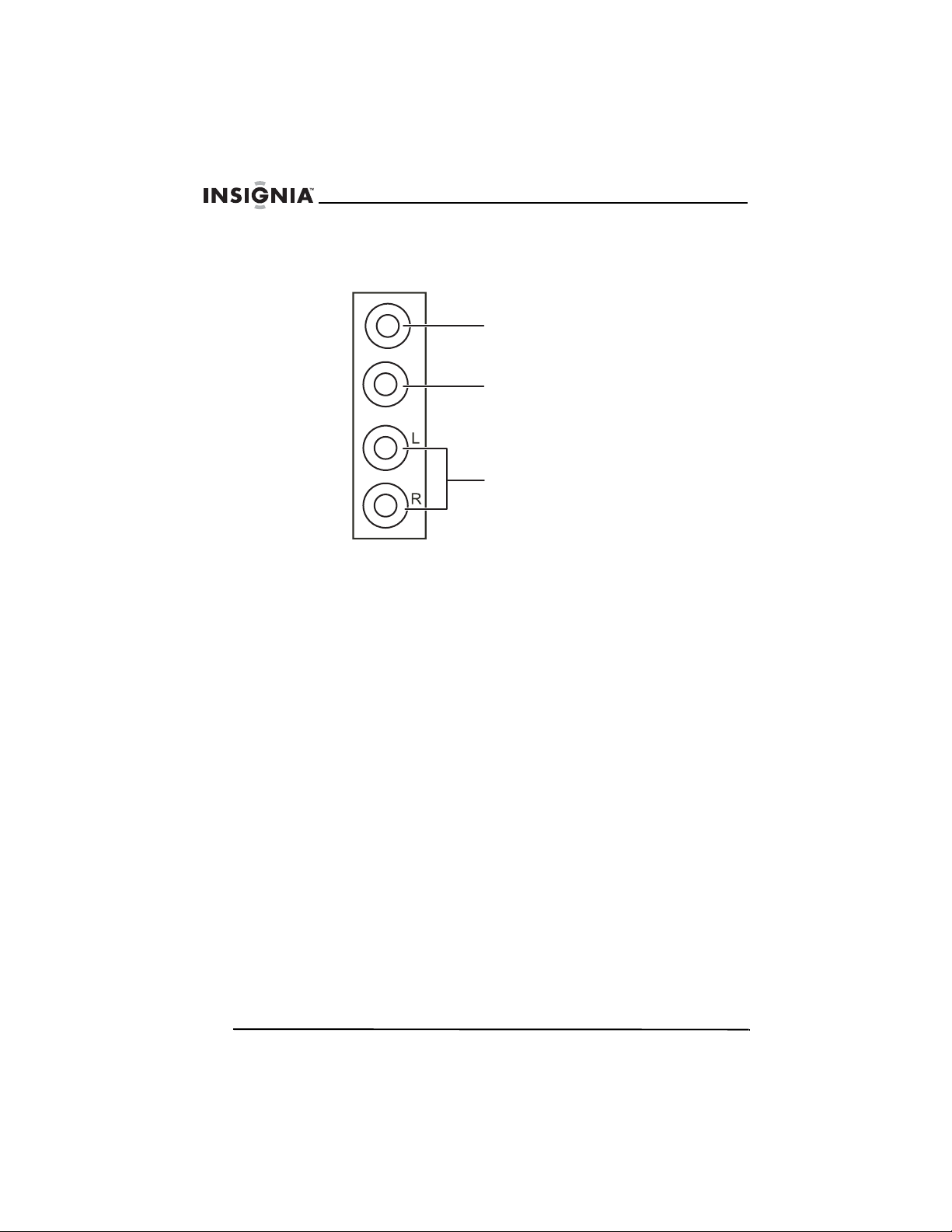

Back
The type and location of jacks may vary depending on your TV model.
For more information, see “Specifications” on page 25.
MENU button Press to open the TV on-screen display
(OSD).
VOL button Press to decrease the volume.
VOL button Press to increase the volume.
CH button Press to change to a channel with a lower
number.
CH button Press to change to a channel with a higher
number.
Feature Description
L
R
S-Video
input jack Audio input
jacks
Antenna jack

10
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com

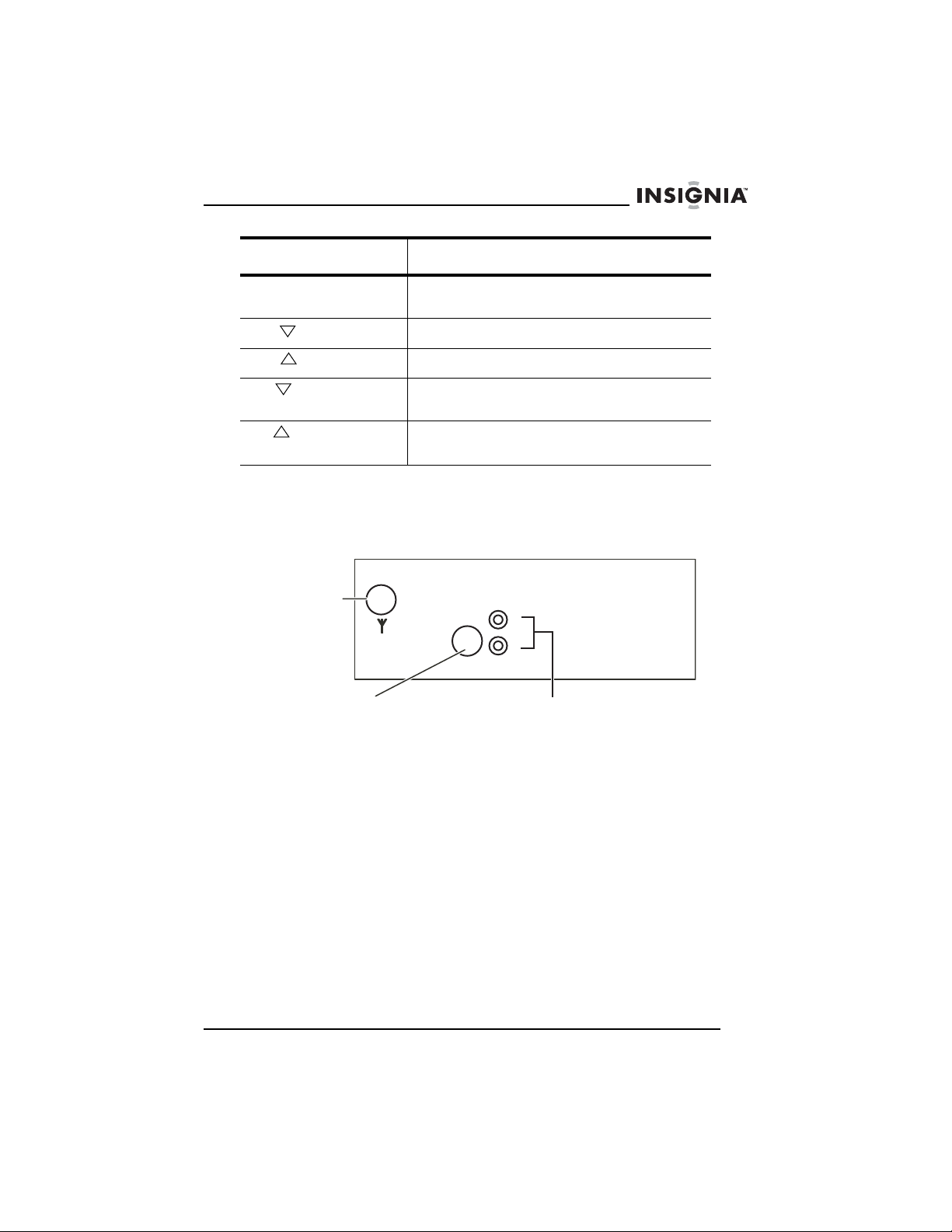

Side
The location of the jacks may vary depending on your TV model.
Video input jack
Audio input jacks
Headphone jack

11
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com

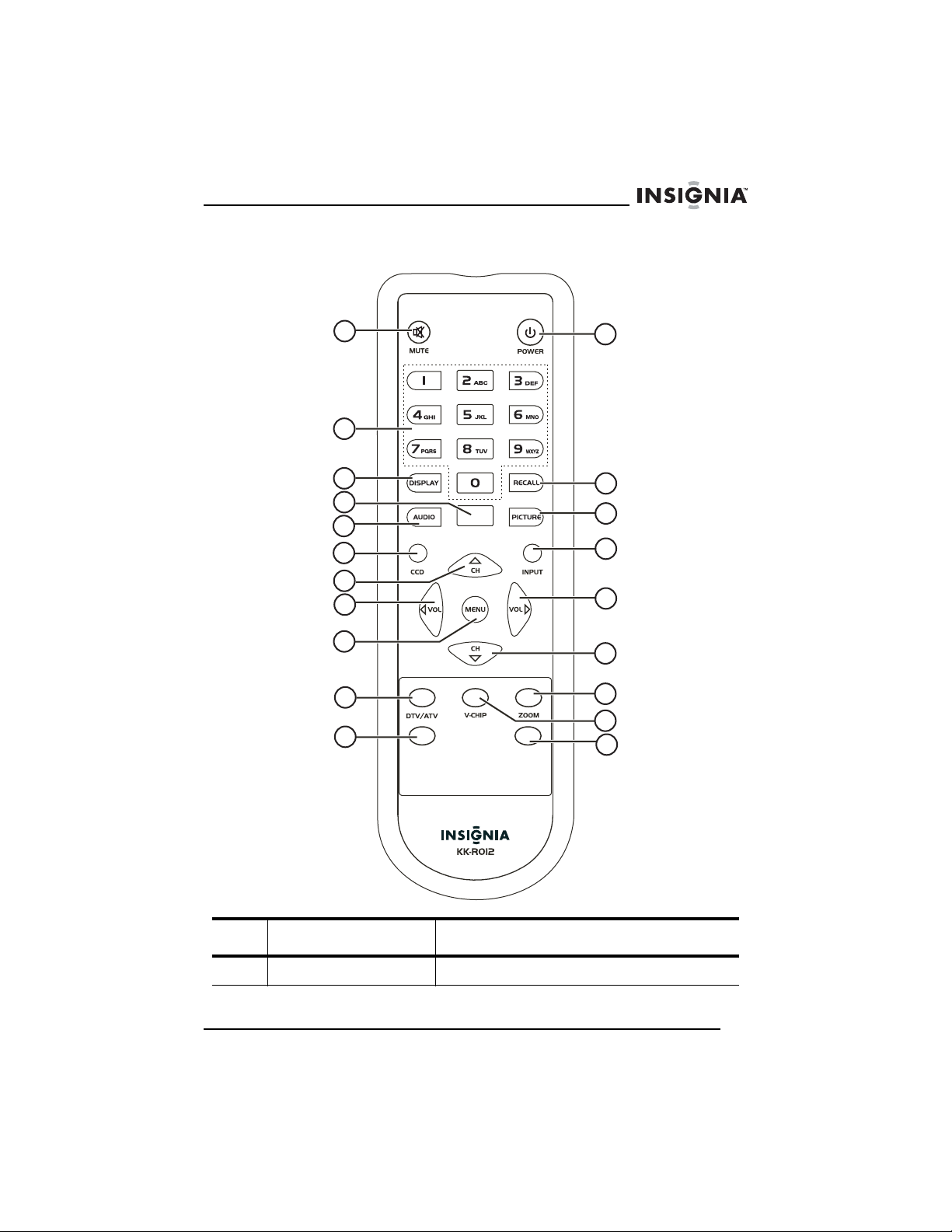

Remote
No. Button Description
1 MUTE Press to mute the sound.
MTS/SAPSLEEP
．
1
2
3
4
6
8
7
5
9
10
11
12
13
14
15
16
17
18
19
20

12
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
2 Numbers/letters Press to enter channel numbers. If you are
adding a label to a channel, press to enter
letters.
3 DISPLAY Press to display channel information.
4 • Press to enter digital TV channel numbers.
For more information, see “Changing TV
channels” on page 18.
5 AUDIO Press one or more times to select one of the
preset audio modes.
6 CCD Press to turn closed captioning on or off.
7 CH When you are watching your TV, press to tune
to a higher-numbered TV channel.
When you are using the OSD, press to select
a menu option.
8 VOL When you are watching your TV, press to
decrease the volume.
When you are using the OSD, press to scroll
down through menu options.
9 MENU Press to open the on-screen display (OSD).
10 DTV/ATV Press to select the type of TV signal. You can
select DTV (digital TV) or ATV (analog TV).
11 SLEEP Press to access sleep timer settings.
12 POWER Press to turn your TV on and off. If your TV is
in Standby (power saving) mode, press to exit
Standby mode.
13 RECALL If you are watching your TV, press to return to
the previous channel you were watching.
14 PICTURE Press one or more times to select one of the
preset picture modes.
15 INPUT Press to select the video input signal.
16 VOL When you are watching your TV, press to
increase the volume.
When you are using the OSD, press to scroll
up through menu options.
No. Button Description

13
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Universal remote control programming
Your TV is compatible with popular universal remote controls.
For compatibility with other universal remotes, use codes listed for
these brands: Emerson, Memorex, Orion, Sansui, Sylvania, or
Zenith.
Universal remote control programming
Your TV is compatible with popular universal remote controls.
For compatibility with other universal remotes, use codes listed for
these brands: Emerson, Memorex, Orion, Sansui, Sylvania, or Zenith.
17 CH When you are watching your TV, press to tune
to a lower-numbered TV channel.
When you are using the OSD, press to select
a menu option.
18 ZOOM Press to select the screen display mode. You
can select STANDARD, FULL, or ZOOM.
(This button is only available for the 16:9
digital TV signal.)
19 V-CHIP Press to open or close the parental controls.
20 MTS/SAP Press one or more times to select the audio
channel . (Only available for DTV mode.)
Remote Brand Program Code
Philips 115
DirecTV 10463
RCA 135
One-For-All 0463
Sony 8042
Remote Brand Program Code
Philips 115
DirecTV 10463
RCA 135
One-For-All 0463
Sony 8042
No. Button Description

14
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Installing remote control batteries
To install batteries in the remote control:
1Remove the battery cover.
2Insert two AAA batteries into the battery compartment. Make sure
that the +/– symbols on the battery match the +/– marks inside the
battery compartment.
3Replace the battery cover.
Warning
Do not throw the batteries into fire. Dispose of used
batteries as hazardous waste.
Caution
Do not drop or disassemble the remote control. Do not get
the remote control wet.
NoteWhen the remote control will not be used for a long period of
time or when the batteries are worn out, remove the
batteries to prevent leakage.

15
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Setting up your TV
Connecting cable TV or a VHF/UHF external antenna
To connect cable TV or a VHF/UHF external antenna:
1Connect a 75 Ohm cable to the antenna jack on the back of your
TV.
2Connect the other end of the 75 Ohm cable to a cable TV or an
external VHF/UHF TV antenna.
Caution
Do not bind the antenna cable and the power cord together.
NoteIf you use a 300 flat feeder, you need to connect a 300/75
Ohm converter to the 300 flat feeder, then connect the
converter to your TV antenna jack. We recommend using a
75 Ohm cable to reduce interference caused by radio
waves.

16
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Connecting a standard video device
If your model has audio jacks on the side, use the following illustration
to connect a standard video device to the side jacks.
Ye l l ow
White
Headphones
Red
Yellow
(to video output)
White
Red
(to audio output)
Non-S-Video
device

17
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Connection an S-Video device
White
Red
S-Video
output
S-Video
jack
White
Red
S-Video
device

18
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Using your TV
Turning your TV on and off
To turn your TV on and off:
1Plug the power cord into an electrical outlet.
2Press the Power button on your remote control.
Selecting the TV signal type
To select the TV signal type:
• Press the DTV/ATV button. You can select digital TV (DTV) or
analog TV (ATV).
Changing TV channels
To change TV channels:
• Press the CH or CH button on your remote control or TV.
To enter channel numbers and date settings directly:
• Analog TV–To enter a two-digit channel number, press the two
numbers within two seconds of each other. For example, to
select channel 12, press 1 then press 2. The channel changes
after two seconds. If you enter a 0 before you enter the 1 and
2, the channel changes immediately.
• Digital TV–To enter a channel number, enter the main channel
number, press the • button, then, within four seconds, enter the
subchannel number. For example, to select channel 38-12,
press 3, 8, •, 1, then 2. If you press the • button after you press
2, the channel changes immediately.
NoteThe power indicator turns off when your TV is active. The
power indicator turns red when the your TV is in Standby
mode. When your TV has a blue screen or is displaying a
screen saver, your TV goes into standby mode after five
minutes.

19
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Adding a channel label
You can add a label to a channel to make it easier to identify. Use the
following instructions to add a channel label.
To add a channel label:
1Open the OSD, then select the
TUNING menu. For more
information, see “Using the on-screen display (OSD)” on page 22.
2Enter the channel you want to add a label to in the CHANNEL
field.
3Select the LABEL OPTION.
4Press the VOL or VOL button on your remote control or press
the VOL or VOL button on your TV to select the character
you want to enter or edit, then press the appropriate button one or
more times to enter the letter you want. Button presses must be
within one second of each other. When you stop pressing the
letter button, the letter you selected is entered and the cursor
moves to the next character. After you have entered all five
charaters of the label, your label is saved.
Adjusting the volume
To adjust the volume:
• Press the VOL or VOL button on your remote control or
press the VOL or VOL button on your TV.
Setting the sleep timer
To set the sleep timer:
1Press the SLEEP button on your remote control one or more times
to select the amount of time you want the TV to wait before
automatically turning off.
2To cancel the SLEEP timer, press the SLEEP button one or more
times until
SLEEP OFF appears.
Selecting the picture mode
To select the picture mode:
• Press the PICTURE button on your remote control one or more
times to select the picture mode. You can select STANDARD,
DYNAMIC, MILD, or MEMORY. You can set up your own
picture mode preferences and save them under the MEMORY
picture mode.

20
Insignia NS-F14TV 14" Flat Panel TV
www.insignia-products.com
Selecting the sound mode
To select the sound mode:
• Press the AUDIO button on your remote control one or more
times to select the sound mode. You can select STANDARD,
NEWS, MUSIC, and MEMORY. You can set up you own sound
mode preferences and save them under the MEMORY sound
mode.
Setting up parental controls
To set up parental controls for an analog TV signal:
1Open the OSD, select the
FUNCTION menu, then select the
V-CHIP option. For more information, see “FUNCTION” on
page 24.
2Press the VOL button on your TV or the VOL button on your
remote control.
3Enter your four-digit password. The default password is 0358.
4Press the CH or CH button to select V-CHIP, press the
VOL or VOL button to select ON or OFF.
5Press the CH or CH button to select the MPAA, then press
the VOL or VOL button on your remote control to select the
MPAA (movie) rating you want to block. The rating you selected
and all other ratings higher than the rating you selected are
blocked.
You can select:
•N/R–Not rated.
•G–General. Appropriate for all children.
•PG–Parental guidance suggested.
•PG13–Parental guidance. Content not appropriate for
children under 13 years of age.
•R–Restricted. Content not appropriate for children under 17
years of age without parental supervision.
•NC-17–Content not appropriate for children under 17 years
of age.
•X–Adults only.
6Press the CH or CH button to select the TVPG SETTING,
then press the VOL or VOL button on your remote control to
open the TVPG SETTING submenu.
