Insignia NS-40L240A13 User manual

2
Composite video and analog audio
Component
OUT
CABLE
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
You can use the HDMI 2/DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Connection type Video qualityCable connector
HDMI video/audio Best
Component video
and analog audio
Better
Good
OR
OR
AUDIO/VIDEO
OUT
TV
VIDE HDMI ACC
ENTER
CH-LIST FAVORITE
INPUT CCD
+MUTE
SLEEP ZOOM PICTURE
VOL CH
MTS/SAP
E
X
I
T
M
E
N
U
H
o
m
e
I
N
F
O
*
AUDIO
NS-RC03A-13
Note: Cable is not provided.
Note: Cables are not provided.
Note: Cable is not provided.
Note: Cable is not provided.
OR
OR
3
Front features
Installing the stand
1Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Secure the stand to the screen with the four provided screws.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the four screws that secure the stand column, then remove the column.
3 Install Stand cover.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back of
your TV. See the instructions that came with the wall-mount bracket for information
about how to correctly hang your TV.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
Using composite cable (good)
Connecting an antenna/cable wall jack
Connect a coaxial cable to the ANT/CABLE jack on the back of your TV and to
the antenna/cable wall jack.
Connecting a Home Theater System
Using digital audio
Using analog audio
Connecting power
Plug the AC power cord into a power outlet
and press the Power button.
40" LCD TV 1080p

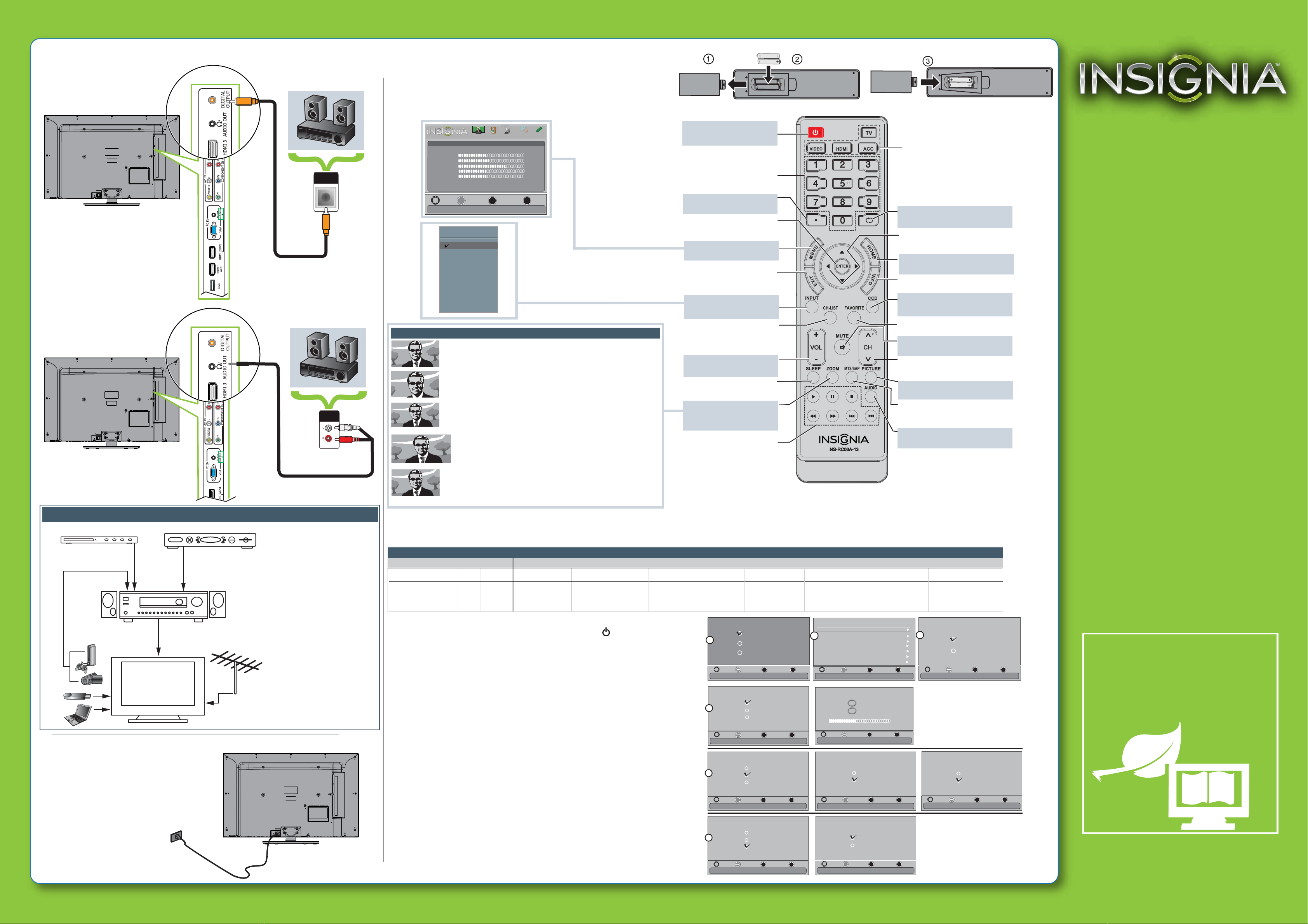

QUICK SETUP GUIDE
NS-40L240A13
Thank You
for purchasing this ne Insignia television. We hope you
enjoy the quality and reliability of this product for years
to come.
_______________________________
Remote control
and 2 AAA
batteries
TV stand
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service , enter your model
number in the Product Search eld,
then click Search.
Remote
control
sensor
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Warning
ST5 (14mm) screws (4)
Stand cover
Power
Indicator

40" LCD TV 1080p IQUICK SETUP GUIDE I NS-40L240A13
Antenna or
cable TV
(no box)
Blu-ray player/DVD player/VCR Cable or satellite TV box
AV receiver
Game console
or camera
USB ash drive
Computer
Front features
Installing the stand
1Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Secure the stand to the screen with the four provided screws.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the four screws that secure the stand column, then remove the column.
3 Install Stand cover.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back of
your TV. See the instructions that came with the wall-mount bracket for information
about how to correctly hang your TV.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
Using composite cable (good)
Connecting an antenna/cable wall jack
Connect a coaxial cable to the ANT/CABLE jack on the back of your TV and to
the antenna/cable wall jack.
Connecting a Home Theater System
Using digital audio
Using analog audio
Connecting power
Plug the AC power cord into a power outlet
and press the Power button.
ENGLISH 11-1310
Setting up and using your remote control
1Press the release button on the back of the remote to remove
the battery compartment cover.
2Insert two AAA batteries into the battery compartment. Make sure that
the + and – symbols on the batteries match the + and – symbols in the
battery compartment.
3Replace the cover.
Connecting a home theater system with multiple devices
We recommend that you connect
the AV receiver’s HDMI OUT jack
to your TV’s HDMI 1/ARC jack.
In the following situations, the
HDMI cable will route Dolby Digital
audio to the AV receiver, so you do
not need to connect a separate
digital audio cable:
• When you have a game console
connected to one of your
TV’s HDMI jacks.
• When you watch a program
through an antenna or cable TV
connected to the ANT /CABLE jack.
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
One-year limited warranty
See your online User Guide or visit
www.insigniaproducts.com for details.
Need additional help?
See your online User Guide! This
comprehensive guide includes everything
from basic how-to steps to more advanced
features.
Check out our online community forum at
www.insigniaproducts.com for helpful
information from other Insignia TV owners.
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada markets)
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, MN USA
55423-3645
© 2012 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY
Solutions, Inc. Registered in some countries. All other
products and brand names are trademarks of their
respective owners.
Note: Cable is not provided.
OPTICAL
AUDIO IN
Note: Cable is not provided.
AUDIO IN
*
Recall
Returns to the previous channel.
Arrows
Navigate in on-screen menus.
HOME
Opens the on-screen menu.
INFO
Opens a TV status banner.
CCD
Turns closed captioning on or o.
FAVORITE
Opens the Favorite Channel List.
MUTE
Mutes the sound.
Channel
Changes the TV channels.
Selects the picture mode.
MTS/SAP
Cycles through mono, stereo, and
secondary audio for analog programs.
AUDIO
Selects the audio mode.
Programming your remote control
To program a universal remote control to work with your new Insignia TV, see the table for common codes. If you have problems programming your remote or
need a dierent remote control code, visit www.insigniaproducts.com/remotecodes for the latest remote control code information.
Power
Turns your TV on or o.
Numbers
Enter channel numbers.
.
Enters a digital sub-channel
number (e.g. 4.1).
ENTER
Conrms selections or
changes.
MENU
Opens the on-screen menu.
EXIT
Closes the on-screen menu.
INPUT
Opens the Input Source List.
CH-LIST
Opens the channel list.
Volume
Changes the volume.
SLEEP
Sets the sleep timer.
ZOOM
Changes how the picture
displays on the screen.
Media Controls
Controls HDMI-CEC devices
connected to your TV.
Normal:
Displays the original 4:3 aspect ratio with vertical black bars on the left
and right hand side of the screen.
Zoom:
Expands the image to ll the screen. The top and bottom of the
image may be cropped.
Wide:
Use this option to view content recorded in a 16:9 (wide-screen) aspect ratio.
Cinema:
Stretches the image at the edges, but keeps a clear image in the center.
Auto:
Automatically adjusts the image based on the screen size and the TV
program. Note: Auto is only available when Auto Zoom in the
CHANNELS menu is set to On.
Aspect ratio options
Universal remote TV codes
Universal remote controls Cable/Satellite/Set-top boxes
One for All Philips RCA Sony Cablevision Charter Comcast Cox Direct TV Dish Network Time Warner Tivo Verizon
0054 0198,
0490 135
1326,
1463
0198,
0490
400, 450, 461, 456,
10463, 1463, 0463
0091
068, 069, 078,
096, 100, 164,
168, 229, 026
2002, 1204, 1423, 1517,
0171, 1963, 0463, 1463,
0842, 1326, 167, 415,
424, 450, 456, 461, 507,
523, 567, 577, 586
10171, 11204,
11326, 11517,
11564, 11641,
11963, 12002
720
068, 069,
078, 096,
100, 164,
168, 229,
026
10171, 11204, 11326,
11463, 11517, 11641,
11780, 11785, 11892,
11963, 12002
Turning on your TV for the rst time
1Connect your TV’s power cord to a power outlet, then press (power).
The Choose Your Menu Language screen opens. Press ▲or ▼to highlight a language,
then press ENTER.
2Press ◄or ►to select Auto or Manual, then press ENTER. If you select Auto, the date
and time are set automatically from a digital TV signal. If you select Manual, you can
manually set the date and time. Press ENTER.
3Press ▲or ▼to highlight Home Mode or Retail Mode, then press ENTER. If you
select Retail Mode, a message asks you to conrm your selection. Select Yes or No.
Retail mode is not an energy-saving mode.
4Press ▲or ▼to highlight Antenna, Cable, or Satellite Box, then press ENTER.
A. If you select Antenna, your TV scans for available channels. The scan may take
several minutes.
B. If you select Cable, a message asks if you have a cable box.
• Select No if no cable box is connected. Your TV scans for available channels.
The scan may take several minutes.
• Select Ye s if a cable box is connected. A message asks how you connected
the cable box to your TV:
• Select AV, Component, or HDMI if you connected a cable box to your TV
using one of these cables. Read the message, then press ENTER to close the wizard.
• Select Coaxial if you connected a cable box to your TV using a coaxial cable.
Read the message, then press ENTER to start the channel scan (VHF channels only).
C. If you select Satellite Box, a message asks how you connected the satellite
box to your TV:
• Select AV, Component, or HDMI if you connected a satellite box to your TV
using one of these cables. Read the message, then press ENTER to close the wizard.
• Select Coaxial if you connected a satellite box to your TV using a coaxial cable.
Read the message, then press ENTER to start the channel scan (VHF channels only).
Move
OK
E NTE R
MEN U E XIT
Exit
Previous
Se lec t
Choose Your Time Setting
Mode Auto
Time Zone Atlantic
Daylight Savings On
Year 2012
Month October
Day 28
Time 08:07 AM
If Automatic, options are automatically set by TV source
2
Analog Channels
Digital Channels
Scanning for Channels
0
Move
OK
E NTE R
MEN U E XIT
Exit
Previous
Se lec t
0
Channel scan may take 20+ minutes
5or63or
4
English
Choose Your Menu Language
Move
OK
E NTE R
MEN U E XIT
Exit
Previous
Se lec t
Set menu language to English, or
Fran aisç
Espa ñol
Move
OK
E NTE R
MEN U E XIT
Exit
Previous
Se lec t
Choose Your Picture Mode
Reduces total power consumption
Home Mode
Retail Mode
Fran aisçEspañol
13
Choose Your TV Source
Antenna
Cable
Satellite Box
Move
OK
E NTE R
MEN U EXIT
Exit
Previous
Se lec t
Select if using an antenna for standard or HD TV
4A
Choose Your TV Source
Antenna
Cable
Satellite Box
Move
OK
E NTE R
MEN U EXIT
Exit
Previous
Se lec t
Select if you have cable service.
Do you have a Cable Box?
No
Yes
Move
OK
E NTE R
MEN U EXIT
Exit
Previous
Se lec t
How did you connect the
AV, Component, or HDMI
Coaxial
Move
OK
E NTE R
MEN U E X IT
Exit
Previous
Se lec t
Cable Box to the
TV?
Choose Your TV Source
Antenna
Cable
Satellite Box
Move
OK
E NTE R
MEN U EXIT
Exit
Previous
Se lec t
Select if you have a satellite box.
How did you connect the
AV, Component, or HDMI
Coaxial
Move
OK
E NTE R
MEN U EXIT
Exit
Previous
Se lec t
Satellite Box to theTV?
4B
4C
Quick Launch Inputs
Selects another video source
connected to your TV. Note: the ACC
button has no function.
Input source
TV
AV
Component
VGA
HDMI 1
HDMI 2
HDMI 3
USB
Select if you have a satellite box.
Select if you have a cable service. Select if you have a cable service.
Move
MENU
Previous
Select
OK
EXIT
Exit
Picture Mode
Brightness
Contrast
Color
Tint
Sharpness
Reset Picture Settings
Energy Savings
68
48
52
ENTER
_____
Adjust settings to affect picture quality.
0
10
Advanced Video
41%
PICTURE CHANNELS SETTINGS PHOTOSAUDIO
