Insignia NS-32E400NA14 User manual

AUDIO/VIDEO OUT
AUDIO/VIDEO
OUT
CABLE
L R Y PBPR
QUICK
SETUP GUIDE
32” LED TV
NS-32E400NA14
Included accessories
Remote control
and two AAA batteries
TV stand
M4 screws
(14 mm length) (4 pcs.)
Power indicator
Remote control sensor
Which cables do you have?
Your TV has several dierent jacks for connecting devices. For the
best video quality, use the best available connection. Use the cables
that came with your devices.
Note: You can use the HDMI 3/DVI jack to connect a DVI device to your TV. Attach an
HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
device’s jack. See your online User Guide for more information about dierent types of
HDMI (ARC, DVI, MHL).
Note: Images do not necessarily represent the exact design of your television.
Features
Front view
Back view
OVER
VIDEO QUALITY
BEST
BETTER
GOOD
GOOD
HDMI video/audio
Component video and analog audio
Composite video and analog audio
Coaxial video/audio
JACK TYPE CABLE CONNECTOR
STOP!
Do not plug your
power cord in until all
other devices have
been connected.
Multi-purpose jacks: You can plug any
device that uses HDMI into the any
HDMI jack. However, certain devices
must be connected to the HDMI 1
(ARC), HDMI 2 (MHL), or HDMI 3 (DVI)
jacks. See the instructions that came
with your MHL, ARC, or DVI device for
more information.
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it.
Note: Connect the yellow video
cable to the green Y/VIDEO jack on
the back of your TV.
Using an HDMI cable
(BEST)
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
How do I connect my TV to an antenna or cable wall jack?
Component cable option
AV cable option
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) and/or connect a device such as a DVD or
Blu-ray Disc player, game station, MHL-enabled device, Roku streaming stick, or camcorder?
- OR -
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
BLocate the mounting screw holes on the back of your TV and see the
instructions that came with your wall mount for more information about
how to correctly mount your TV.
START HERE
How do I attach the stand to my TV? (not for wall mounting)
You’ll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect the screen
from damages and scratches.
BInsert the stand column into the TV.
C Secure the stand with the four provided screws.
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
Power connector
Front of Base
M4 type (14mm length)
AC
B
AB
Before using your new product, please read these instructions to prevent any damage.
TM

V2 ENGLISH 13-0312
COAXIAL
AUDIO IN
AUDIO IN
4
OK
ENTER
MENU EXIT
PICTURE AUDIO CHANNELS SETTINGS MHL/ACC
Adjust settings to aect picture quality.
MOVE SELECT PREVIOUS EXIT
Picture Mode
Backlight
Brightness
Contrast
Tint
Energy Savings
39
50
52
75
0
50
Color
Sharpness
Advanced Video
INPUT SOURCE
TV
MOVE SELECT
OK
ENTER
MENU
PREVIOUS
EXIT
EXIT
Set menu language to English, Français, or Español
TV SETUP
Choose Your Menu Language
Français
Español
English
32" LED TV IQUICK SETUP GUIDE I NS-32E400NA14

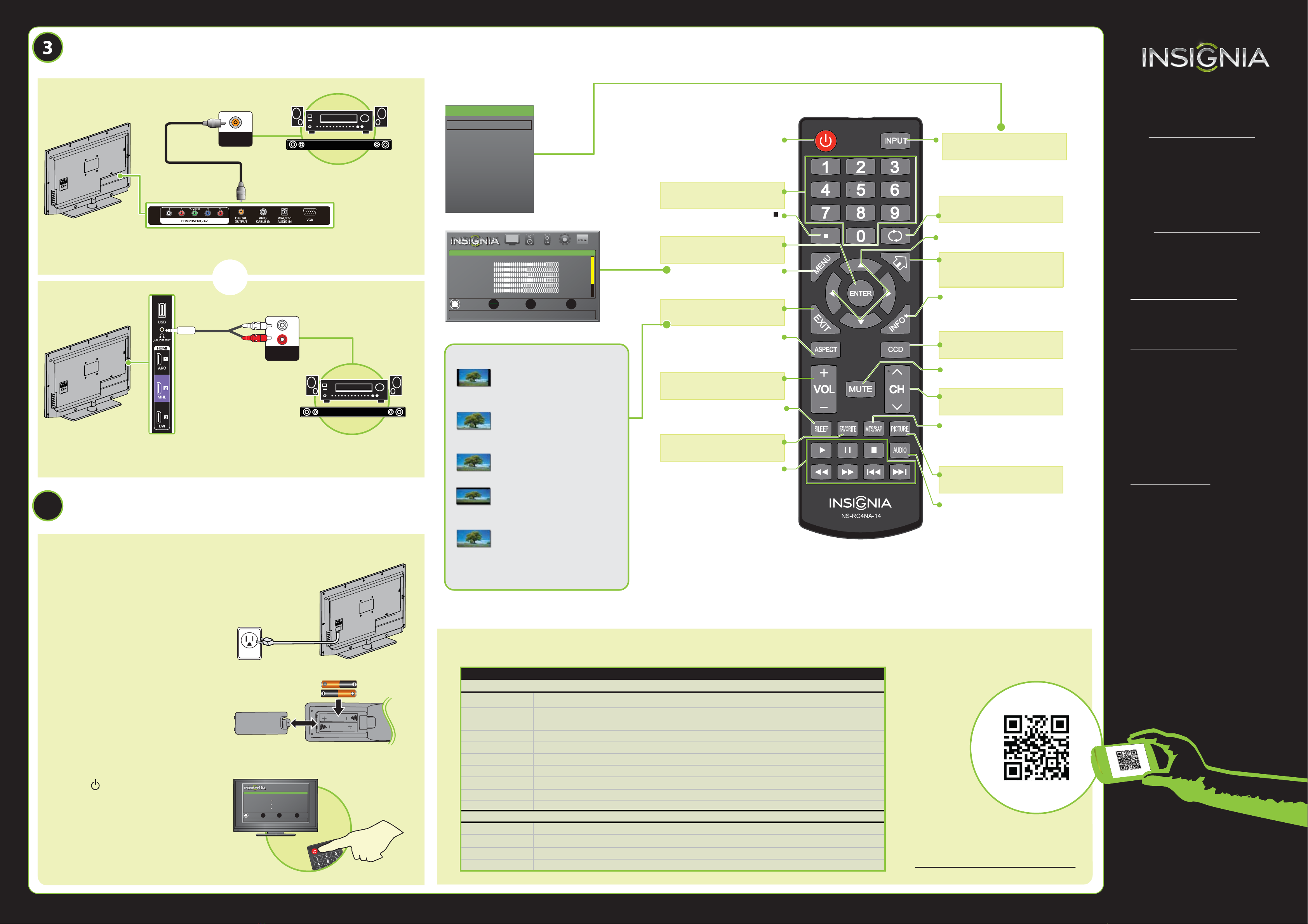

Using digital audio
Using analog audio
Note: Refer to the instructions that came
with your speakers for more information.
Note: Refer to the instructions that came
with your speakers for more information.
The best time to turn on your TV is after you have attached the TV
stand or wall-mounted your TV and connected all devices.
When your television is in place:
1Plug the power cord into a power
outlet.
2Install the remote control batteries.
3Press (power) on your remote
control.
4Follow the on-screen instructions.
CONNECTING AUDIO DEVICES
How do I connect my TV to external speakers?
SOUNDBAR
SOUNDBAR
- OR -
TURNING ON MY TV
When can I turn on my TV?
I already have a universal remote control. How do I make it control this TV?
UNIVERSAL REMOTE TV CODES
CABLE BOX, SATELLITE BOX, OR OTHER SET-TOP BOX
Cablevision 068, 069, 078, 096, 100, 164, 168, 229, 026
Charter 2002, 1204, 1423, 1517, 0171, 1963, 0463, 1463, 0842, 1326, 167, 415, 424, 450, 456, 461,
507, 523, 567, 577, 586
Comcast 10171, 11204, 11326, 11463, 11517, 11641, 11780, 11785, 11892, 11963, 12002
Cox 1326, 1463
Direct TV 10171, 11204, 11326, 11517, 11564, 11641, 11963, 12002
Dish Network 720
Time Warner 400, 450, 461, 456, 10463, 1463, 0463
Tivo 0091
Verizon 0198, 0490
One for All 0054
Philips 0198, 0490
RCA 135
Sony 068, 069, 078, 096
If you already have a universal remote control that you would like to program to work with your TV and don’t
want to use the included Insignia remote control, see the table for common codes.
For an up-to-date list of codes for other
cable providers and universal remote brands,
scan this QR code or visit
www.insigniaproducts.com/remotecodes
UNIVERSAL REMOTE CONTROLS
RECALL
Returns to the previous channel.
Arrows
Navigate in on-screen menus.
HOME
Opens the MHL device’s home menu
when an MHL device is plugged in.
INFO*
Opens a TV status banner.
CCD
Turns closed captioning on or o.
MUTE
Mutes the sound.
Channel
Changes the TV channels.
MTS/SAP
Cycles through mono, stereo, and
secondary audio for analog programs.
Selects the video mode.
AUDIO
Selects the audio mode.
Numbers
Enter channel numbers.
Enters a digital sub-channel
number (for example 4.1).
ENTER
Conrms selections or changes.
MENU
Opens the on-screen menu.
EXIT
Closes the on-screen menu.
ASPECT
Changes how the picture is
displayed on the screen.
Volume
Changes the volume.
SLEEP
Sets the sleep timer.
FAVORITE
Opens the Favorite Channel List.
INlink media controls
Control HDMI-CEC devices
connected to your TV.
NORMAL: Original aspect ratio is
preserved. Black bars are present if content
is not widescreen (16:9).
ZOOM: Expands the image to ll the
screen. The top and bottom of the image
may be cropped.
WIDE: Displays content recorded in a
16:9 (wide-screen) aspect ratio.
CINEMA: Stretches the image at the
edges, but keeps a clear image in the
center.
AUTO: Automatically adjusts the image
based on the screen size and the TV
program. Select this option if you are
uncertain which aspect ratio to choose.
Note: Auto is only available when Auto
Aspect Ratio in the CHANNELS menu is set
to On.
What are my screen-size options?
INPUT
Opens the INPUT SOURCE list.
Power
Turns your TV on or o.
One-year limited warranty
Visit www.insigniaproducts.com for details.
Need additional help?
See your online User Guide! This
comprehensive guide includes everything
from basic how-to steps to more advanced
features. A copy of your User Guide is not
provided in the box but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
Check out our online community forum at
www.insigniaproducts.com for helpful
information from other Insignia TV owners.
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289
(U.S./Canada markets)
INSIGNIA is a registered trademark of BBY Solutions, Inc.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC,
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2013 BBY Solutions, Inc.
All Rights Reserved
1-877-467-4289
www.insigniaproducts.com
HDMI 1
HDMI 2
HDMI 3
Component/AV
VGA
USB (Photos)
TM
Using your remote control
