Insignia NS-BIPCD01 User manual

Quick Setup Guide
Boom Box with iPod Dock/CD l NS-BIPCD01
Congratulations on your purchase
of a high-quality Insignia product.
Your Boom Box with iPod Dock / CD
is designed for reliable and
trouble-free performance. Use this
guide for initial setup.
Package contents
• Boom box with iPod Dock / CD
• AC power adapter
• Quick Setup Guide
Back
Features
Front
Bottom
FM rod
antenna
POWER
SOURCE
PRESET
MEMORY
VOL +/-
DC 9V jack Headphone jack AUX IN jack
Battery door/compartment
Introduction
Please read these instructions carefully before using this product and retain them in a safe place for
future reference.
Power Supply
This product can be powered by either the included AC power adapter (100/240V, 50-60Hz), or by
six "C" size alkaline batteries.
Using batteries
1Open the battery compartment on the bottom of your boom box.
2Insert 6 “C” size alkaline batteries (not supplied) into the battery compartment, observing the
correct polarity as indicated inside the battery compartment.
3Close the battery compartment.
Notes: Ensure the compartment cover is securely tted. When you replace the batteries, make sure you
replace them all at the same time and with the same type of battery. If the product is not to be used for
an extended period of time, the batteries should be removed to prevent any possible damage to the
product from corrosive leakage which will invalidate the warranty.When the batteries reach 20% of
capacity, a low battery icon ashes to let you know to change batteries.
Using AC
1 Plug one end of the AC power adapter into the DC 9V jack on the back of your boom box.
2 Plug the other end into an AC power outlet.
Powering your boom box
1Press the POWER button to turn the boom box ON.
2Press POWER again to turn the boom box OFF when nished listening.
Controlling the volume
Press the VOLUME +/- buttons to the desired level.
Listening to an external audio device
1Using an audio cable with a 3.5 mm stereo plug (not provided), connect the external audio
equipment to the AUX IN jack on the back panel of your boom box.
2 Repeatedly press the SOURCE button until AUX appears in the display. Audio plays through the speakers.
Using headphones
Use headphones with a 3.5 mm plug (you may need to buy an adapter if your headphones are dierent).
The speakers are automatically switched o when the headphones are being used.
Caution: Listening to high volume sound for long periods of time can damage your hearing.
Listening to the radio
1Press the POWER button to turn the boom box ON. The LCD display turns on.
2Repeatedly press the SOURCE button until the FM mode is selected.
Example : FM mode
3Press the / buttons to tune to the desired station.
Auto Tuning
Press the / buttons momentarily and release. The tuner will move up or down by 0.2
MHz continuely until stop at next/previous exist station.
Manual Tuning
Press and hold the / buttons until the display approaches your desired station. Tap the
buttons repeatedly until the display shows the exact frequency.
4When you have nished listening, press the POWER button to turn the boom box OFF.
6 "C"
batteries
Handle
iPod
compartment
iPod holder
PLAY/PAUSE
STOP
REPEAT
RANDOM
/
LCD Display
Speakers Speakers
CD door
“Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specically to iPod or iPhone, respectively, and has
been certied by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that the
use of this accessory with iPod or iPhone may
aect wireless performance.
- +- +
- +- +
- +- +
NS-BIPCD01_10-1308_QSG_V1_Eng_final.eps 1 1/21/2011 7:34:03 PMNS-BIPCD01_10-1308_QSG_V1_Eng_final.eps 1 1/21/2011 7:34:03 PM

90-day limited warranty. Visit www.insigniaproducts.com for details. For customer service, call: 800-467-4289 (U.S./Canada markets). We’re here for you at www.insigniaproducts.com
© 2011 BBY Solutions, Inc., Inc. All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners. ENGLISH 10-1308
iPod/iPhone Operation
Insert the iPod/iPhone
Insert the iPhone or iPod rmly in the compartment.
Playback iPod/iPhone les
1 Press the POWER button to ON.
2Repeatedly press the SOURCE button to select iPod mode.
The display shows the following.
If there are les of proper format on your iPod/iPhone playback will start from
the where playback was last stopped or paused. If there are no les of proper
format on your iPod/iPhone, the following symbols will appear on the display:
3Press the PLAY/PAUSE button to begin playback.
Note: When the unit is playing in iPhone mode and you receive a call, it stops playback
and you hear the iPhone ring tone through your boom box.
4 To pause the playback, press the PLAY/PAUSE button. To resume
playback, press the PLAY/PAUSE button again.
Note: To stop playback, press the PLAY/PAUSE button, the STOP button does not
function in the iPod/iPhone mode.
After reading TOC
To play the Disc
In CD stop mode, press PLAY/PAUSE to play the CD
To pause disc playing
Press the PLAY/PAUSE button while the disc is playing. Press it again to
resume playing.
While paused
To stop disc playing
Press the STOP button.
Stop display

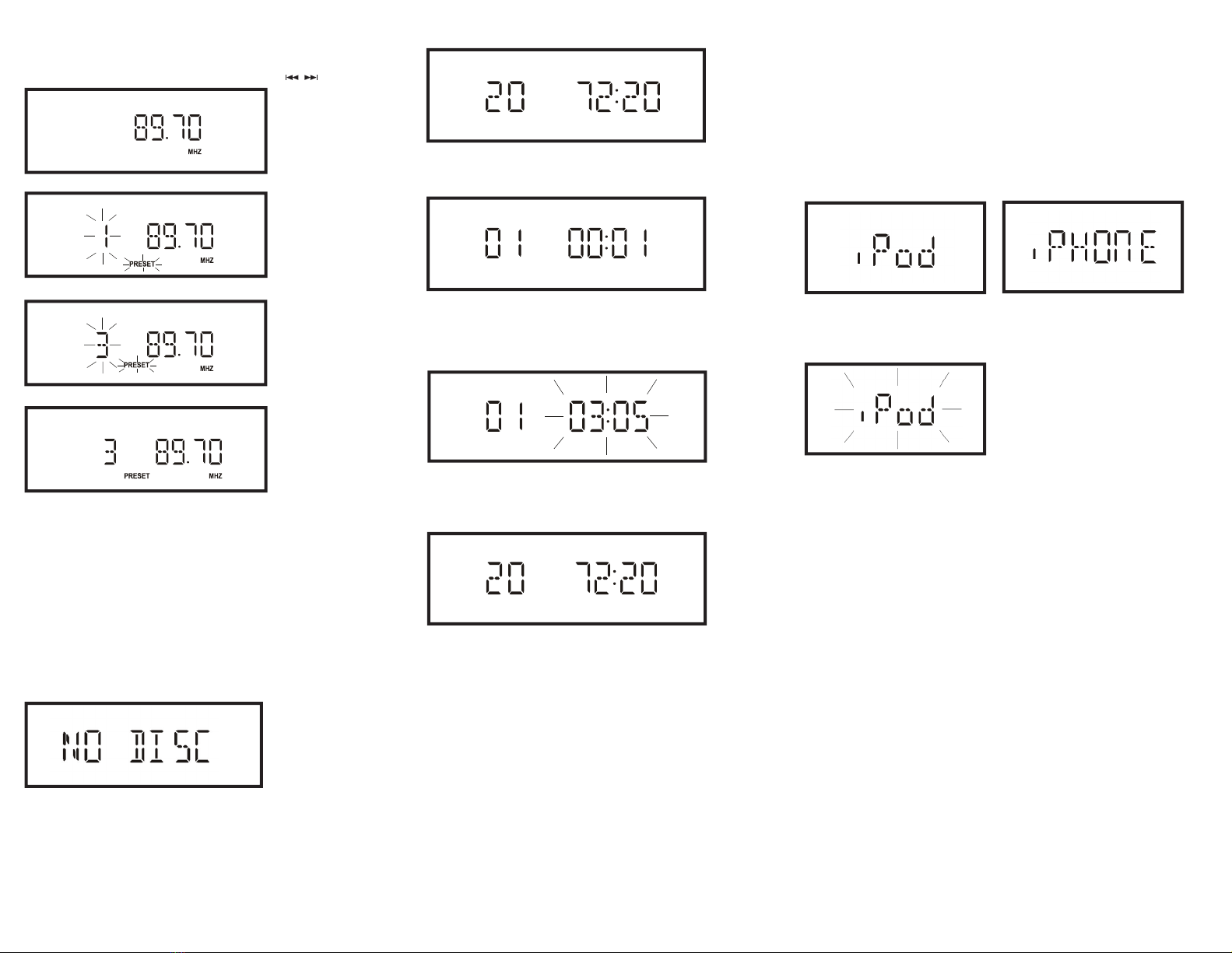

STORING PRESET STATIONS
The unit enables you to program 10 stations of FM band.
1Tune to the station you wish to store by pressing the / buttons.
2Press the MEMORY button once.
3
Press the PRESET button repeatedly to set the desired preset station number.
4Press the MEMORY button again. The station is stored in channel 3.
5To store other stations, repeat above steps.
RECALLING PRESET STATION
Press the PRESET button repeatedly to select the desired station.
Playing Compact Discs
1Press the POWER button to ON.
2Repeatedly press the SOURCE button to select CD mode.
CD READ ashes in the display.
3If there is no disc inside, “NO DISC” is displayed.
When there is no disc
To load a disc
1Lift up the CD door.
2Load a disc inside and then close the CD door. After that,
reading disc will start.
Note: Ensure the disc is pushed fully and locked in place.
