ATA004N and ATA005P Smart Battery Data Reader
Operating Instructions
Inspired Energy 25440 NW 8th Place, Newberry FL 32669
US toll free: 1-888-5-INSPIRE (1-888-546-7747) Tel: [phone] Fax: [phone]
www.inspiredenergy.com
ATA004N - For use with
Inspired Energy ‘N’-series
battery packs
ATA005P - For use with
Inspired Energy ‘P’-series
battery packs
The ATA004N and ATA005P are diagnostic tools which can be used to view the data fields stored by Inspired
Energy smart battery packs. It uses a standard USB port, with software written by Inspired Energy to display the
battery data on any windows based computer. The unit can be used to view and record static battery data, or to
log dynamic battery data while the battery is charging or discharging. This makes it an invaluable tool for quality
assessments, system testing, SMBus communications troubleshooting and battery end-of-life determinations. The
unit can also be used to write to those battery data fields which support external input.
What’s in the box?
Getting Started:
1. Insert the CD into the drive on your PC
a. If installation does not automatically begin, navigate to the root directory on the CD & click on
“Setup.exe”
2. If you wish to load the software in the recommended directories click “Next” or browse to the directories into
which you wish to save the software.
3. Accept the license agreements; one from Inspired Energy & one from National Instruments, and click “Next”.
4. For windows 8 and above, uncheck the "Disable windows fast startup to prevent problems with installation or
removing hardware" option. Click “Next” to begin the installation process & then “Finish” to complete the
installation.
The ATA005P consists of:
A “Y” cable with 3 connectors
A CD containing the software
The ATA004N consists of:
A “Y” cable with 3 connectors
A CD containing the software

ATA004N and ATA005P Smart Battery Data Reader
Operating Instructions
Inspired Energy 25440 NW 8th Place, Newberry FL 32669
US toll free: 1-888-5-INSPIRE (1-888-546-7747) Tel: [phone] Fax: [phone]
www.inspiredenergy.com
5. The ATA004N-5P software will be listed in your Start Menu alongside the light bulb icon:
The Battery Data Screen:
•The battery data is displayed in boxes in the center of the window.
oA full description and derivation of each data field can be found in the Smart Battery Data
Specification rev.1.1. Please contact Inspired Energy or visit www.sbs-forum.org/specs/ for a copy.
•Clicking on the logo at the top of the page will take you to www.inspired-energy.com.
•Along the bottom are the status indicators for the USB connection, data scanning and battery status codes.
•On the left of the window are the scanning buttons and the quick health check status indicators.
Connecting to the ATA004N: Connecting to the ATA005P:
Battery Pack
USB Port
Device or Charger
Battery Pack
USB Port
Device or Charger

ATA004N and ATA005P Smart Battery Data Reader
Operating Instructions
Inspired Energy 25440 NW 8th Place, Newberry FL 32669
US toll free: 1-888-5-INSPIRE (1-888-546-7747) Tel: [phone] Fax: [phone]
www.inspiredenergy.com
If you wish to save the
scanned data, click the
logging button. A screen
will prompt you to enter a
filename / location, and
data logging will then
begin with one full record
saved for every scan.
•Plug the USB connector into an available USB port (1.0 or higher) in your computer. The Blue LED will
illuminate indicating power from the USB
•Plug the male blade or D-Sub connector into the battery pack observing the polarity.
oThe units are protected against reverse polarity insertion.
At this point the software can read the battery data, and the system can be used to assess the state of health
of the battery. The green LED will illuminate indicating that the SMBus internal pull-ups are on.
•If you wish to view &/or log dynamic battery data during a charge or discharge, plug the female connector
into a charger or into your battery-powered device. This will enable the battery to operate the device as if it
were inserted.
The Battery Health monitor provides a quick check on a battery’s state of health. The bars will change from green
through amber to red depending on the health of the battery. These are only a guide, and a red bar does not
necessarily mean that the battery requires replacement. We recommend that you establish acceptable limits for
your particular application, and always re-calibrate the battery before making any end of life determination. For
example; you may decide to replace the battery only if two or more red bars are showing.
In the example shown above, the battery is a few years old & the fuel gauge requires calibration, but otherwise it
is in good health & will continue to provide good service.

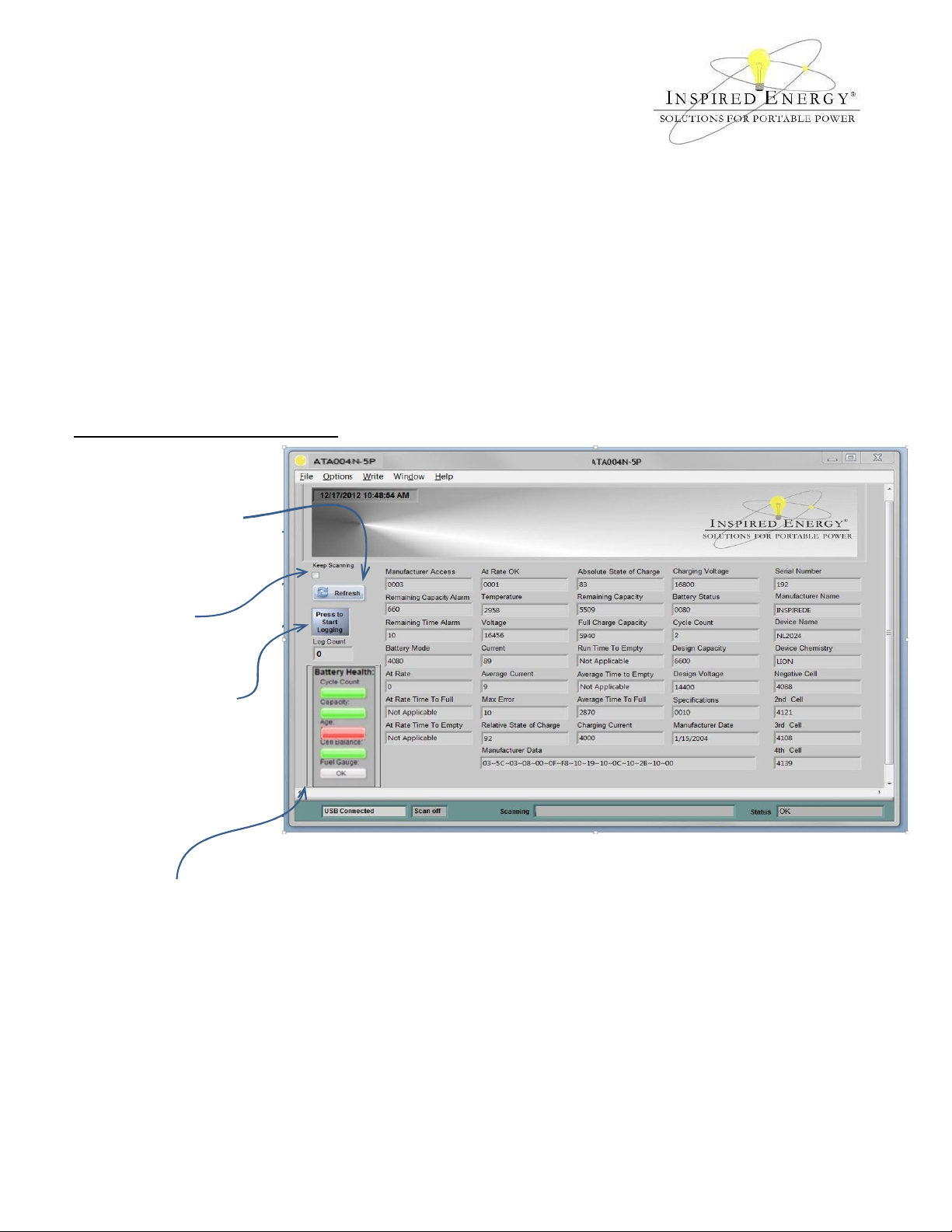

Operating the ATA004N-5P software
With the battery & USB
port connected, you can
scan the battery manually
by using the “Refresh”
button.
To scan the battery
automatically click the
“Keep Scanning”
checkbox.

ATA004N and ATA005P Smart Battery Data Reader
Operating Instructions
Inspired Energy 25440 NW 8th Place, Newberry FL 32669
US toll free: 1-888-5-INSPIRE (1-888-546-7747) Tel: [phone] Fax: [phone]
www.inspiredenergy.com
The “Options” Menu:
Scan can be toggled on or off. This has the
same function as the “Keep Scanning”
checkbox.
The SMBus Pullups in the battery can be set low or high to suit the requirements of your device. Please note, the
default is for the internal battery pullups to be ON. Changing them to off may cause communications difficulties.
Writing to the Battery: Manufacturer Access is used only internally by Inspired Energy.
The Scan / Log Interval can be adjusted using this tab. Entering a value in
seconds will change the scanning / data logging rate accordingly
The Remaining Capacity Alarm can be
altered to suit the needs of your device.
By default, all Inspired Energy products
have this value set to 10% of the design
capacity. Open this window & enter a
value to a value that will enable your
device to shut down in an orderly
manner, & press the “write button. The
“Read” button can be used to check that
the battery has accepted the new data.
Similarly the Remaining Time Alarm can be adjusted to suit the length of
time your users require to save their work and shut down the device. The
default is set to 10 minutes on all Inspired Energy products.
The Battery Mode feature can be used
to select the various operational modes
for the battery; for example whether
the battery capacity is reported in mAh
or mWh etc..
The “AT-Rate” function allows you to
ask the battery questions. Literally “If
I were to charge / discharge the battery
AT the following RATE, how long will it
take until the battery is full /empty?”
Enter a negative integer for a discharge
current and a positive integer for a
charge current.
Note: if you have used the battery Mode
feature to change the capacity reporting
from mAh to mWh you’ll need to enter a
value in mWh.

ATA004N and ATA005P Smart Battery Data Reader
Operating Instructions
Inspired Energy 25440 NW 8th Place, Newberry FL 32669
US toll free: 1-888-5-INSPIRE (1-888-546-7747) Tel: [phone] Fax: [phone]
www.inspiredenergy.com
Using the ATA004N and ATA005P to Determine End of Life For A Battery:
The unit can be used to check the state of health of a population of batteries. The following guidelines can be used
to run a quick assessment of whether a battery should be returned to service or replaced. For example, it may be
time to replace the battery if:
•Cycle Life: If the Cycle Life count has exceeded 355
•Manufacture Date: If this shows a date older than 4 years
•Full Charge Capacity: If this value is less than 65% of the Design Capacity
These are guidelines only. Each application is different and may have differing thresholds for battery replacement.
To assist in your decisions the battery state of health monitor uses a “traffic light” system to monitor &
communicate those battery parameters which are typically used in end of life determinations.
NOTE: The Max Error value should be below 5% before making any end of life determinations.
Thresholds used by the battery health monitor
Green
Amber
Red
Cycle Count
<250
250 - 355
>355
Full Charge Capacity
>80%
80% - 65%
<65%
Age
<2yrs
2 –4yrs
>4yrs
Cell Balance (Max cell voltage deviation)
<60mV
n/a
>60mV
The “Fuel Gauge” box changes from “OK” to “Recalibrate” when Max Error >= 10%
The ATA004N and ATA005P are for use with Inspired Energy products only.
