Insportline SHDV-5004 User manual

1
IN 7599 Sports camera inSPORTline
SHDV-5004
User Manual

2
Thank you for purchasing this sportive camcorder. Please read these
operating instructions carefully in order to use the camcorder
correctly. Keep the instructions in a safe place after reading so that
you can refer to them later.
Precautions
Before using the sportive camcorder, please ensure that you read and
understand the safety precautions described below. Always ensure that
the camcorder is operated correctly.
Do not point the sportive camcorder directly into the sun or other
intense light sources which could damage your eyesight.
Do not try to open the case of the sportive camcorder or attempt to
modify this sportive camcorder in any way. Maintenance and repairs
should be carried out only by authorized service providers.
Keep the sportive camcorder and its accessories out of the reach of
children and animals to prevent accidents or damage to the sportive
camcorder.

3
If you notice smoke or a strange odor coming from the sportive
camcorder, turn the power off immediately. Take the sportive
camcorder to the nearest authorized service center for repair. Never
attempt to repair the sportive camcorder by your own.
Use only the recommended power accessories. Use of power sources
not expressly recommended for this equipment may lead to
overheating, distortion of the equipment, fire, electrical shock or other
hazards.
Disclaimer
We assume no responsibility for damages suffered by the user or third
parties as a result of inappropriate handling of the product or its
accessories, or by their operational failure and by their use. We
reserve the right to make changes to this product and its accessories
without prior notice.
The photos included in this user manual are only for reference.

4
Contents
Precautions............................................................................2
Disclaimer .............................................................................3
Preparing for using...............................................................................6
Part of the camcorder ............................................................6
Water resistant TPU case.......................................................7
Battery indicator....................................................................7
Inserting the Memory Card ...................................................8
Install this sportive camcorder mount ...................................8
Basic operation...................................................................................12
Turn Power On and Off.......................................................12
Change the mode of the camcorder..................................13

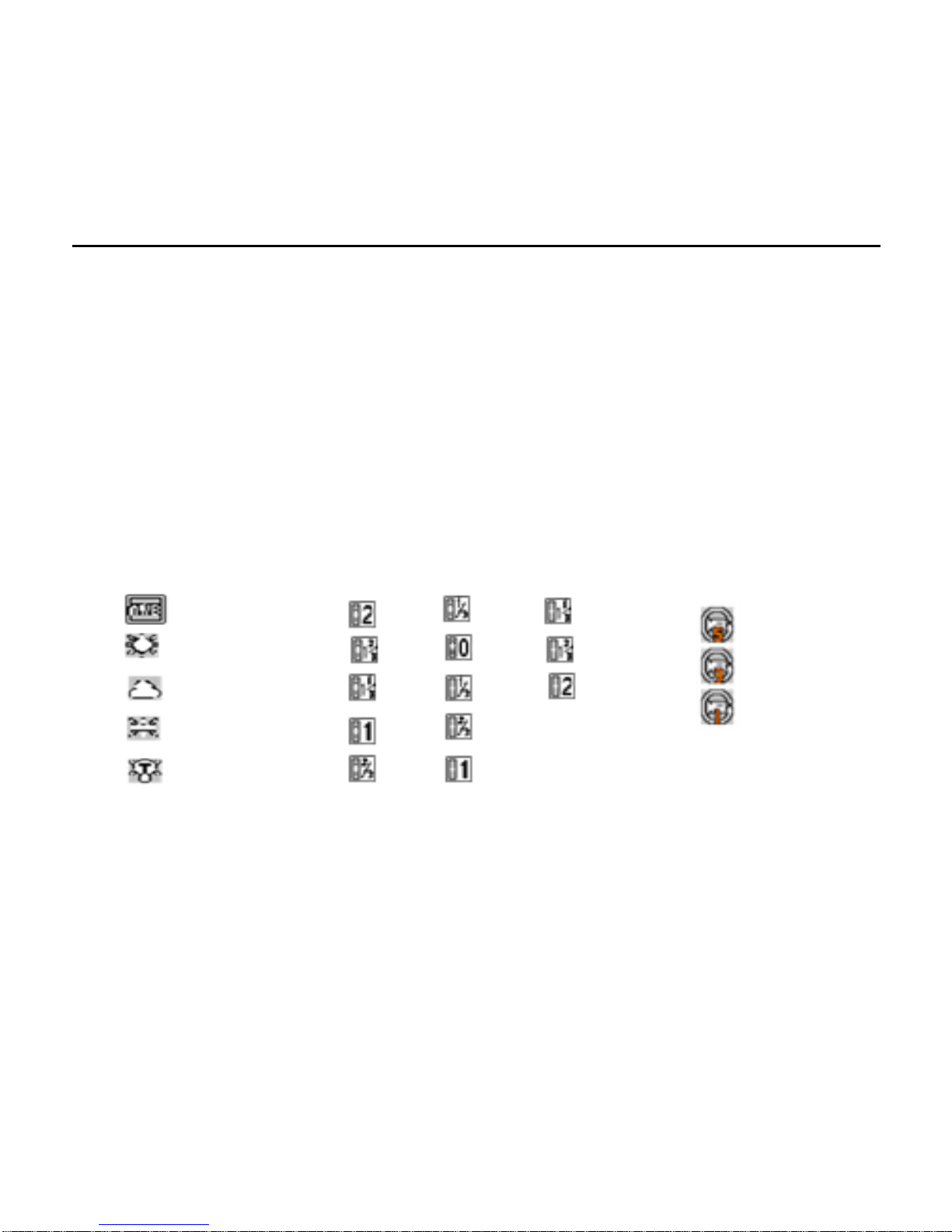

Display on the LCD screen .................................................14
Setting the camcorder..........................................................18
Recording Movie Clips .......................................................20
Video mode menu................................................................21

5
Taking still images ..............................................................23
Capture mode menu ............................................................24
Playback and delete.............................................................26
Playback mode menu ..........................................................27
Making connections ...........................................................................29
Connecting the Camcorder to a TV.....................................29
Connecting the Camcorder to a HDTV...............................29
Connecting the Camcorder to a PC.....................................30
How to use the PC Camera function ...................................32
Software Installation...........................................................................32
Installing driver...................................................................33
Specification.......................................................................................34

6
Preparing for using
Part of the camcorder
1. USB jack
2. TF card slot
3. LCD screen
4. Shutter button
5. Speaker
6. Charging indicator light
7. Busy indicator light
8. Power button
9. Reset
10. AV out jack
11. HDMI jack
12. Tripod slot
13. Microphone
14. Lens

7
Water resistant TPU case
The part A is a water resistant TPU
case, You can wear on it during using.
The TPU case can keep your
camcorder clean , and the most
important function is water resistant .
Battery indicator
The camcorder has an internal lithium battery, Please charge the
battery at least 1 hours for first time use.
1、Turns off the camcorder.
2、Connect the USB cable to the camcorder and the computer for
battery charging.
3、when charging ,the power indicator light will turn red.
4、Unplug the USB cable.
The camcorder body may be warm after extended use. This is
normal.

8
Inserting the Memory Card
This camcorder does not equipped with internal memory. An TFcard
or multimedia card must be inserted for this sportive camcorder to
operate. If a card has not been inserted this sportive camcorder can not
record..
1:Turns off the camcorder.
2: Open the rubber cover at the side of camcorder .Find the TF card
slot, and then insert the TF card .
If the memory card has successfully be inserted, you can hear a clear
buzzer.
Install this sportive camcorder mount
There are three kinds of mounts in this camcorder. The operating steps
as follow:
1. Fix the metal screw/fixed cylinder of the mount to the tripod

9
slot/location hole of the camcorder respectively.
2. Hold the mount and wring the thread to fix the mount .

10
How to fix the sportive camcorder to the bike?
1. Fix the mount, please refer to page 9 for details.
2. Open the round of mount (1), insert rubber pad (3) into it then fix
them to handlebars of bike, then wring the arew(2) to fix it.
3. After fixing it to bike, you can start to take pictures.
How to use strap fix to your helmet?
1. Fix the mount, please refer to page 9 for details.
2. Insert strap into the two ends of the mount, adjust length
according to helmet’s size, and then you can use strap fix to your
helmet and start to take pictures.
