Integra DPS-5.4 User manual

DPS-5.4
SERVICE MANUAL
SERVICE MANUAL
DVD PLAYER
Black model
MODEL DPS-5.4
120V AC, 60Hz
100-240V AC, 50/60Hz
BMDD
BMDC
BMUA
Ref. No. 3767
JUL, 2003
RC-536DV

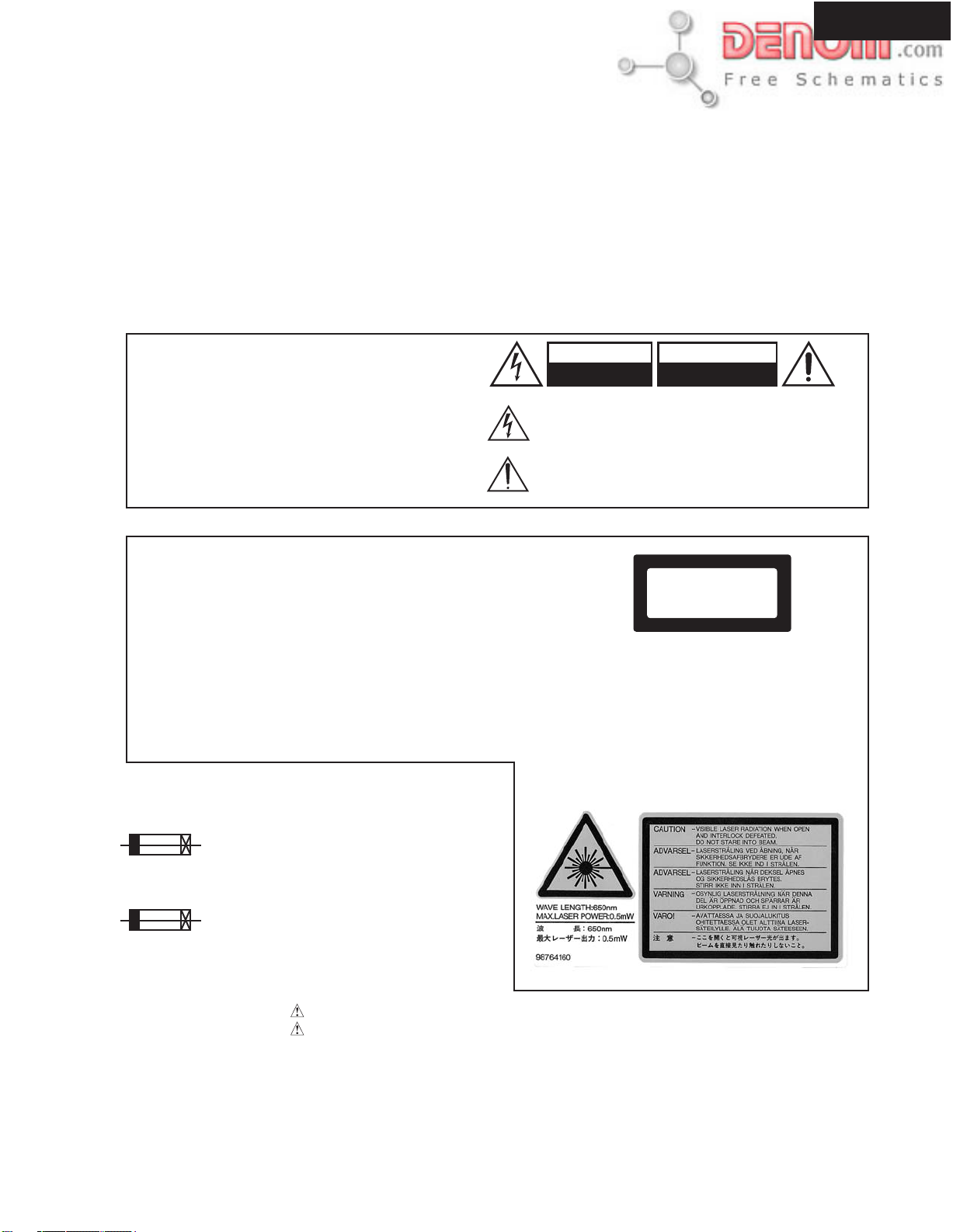

SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
www.denom.com

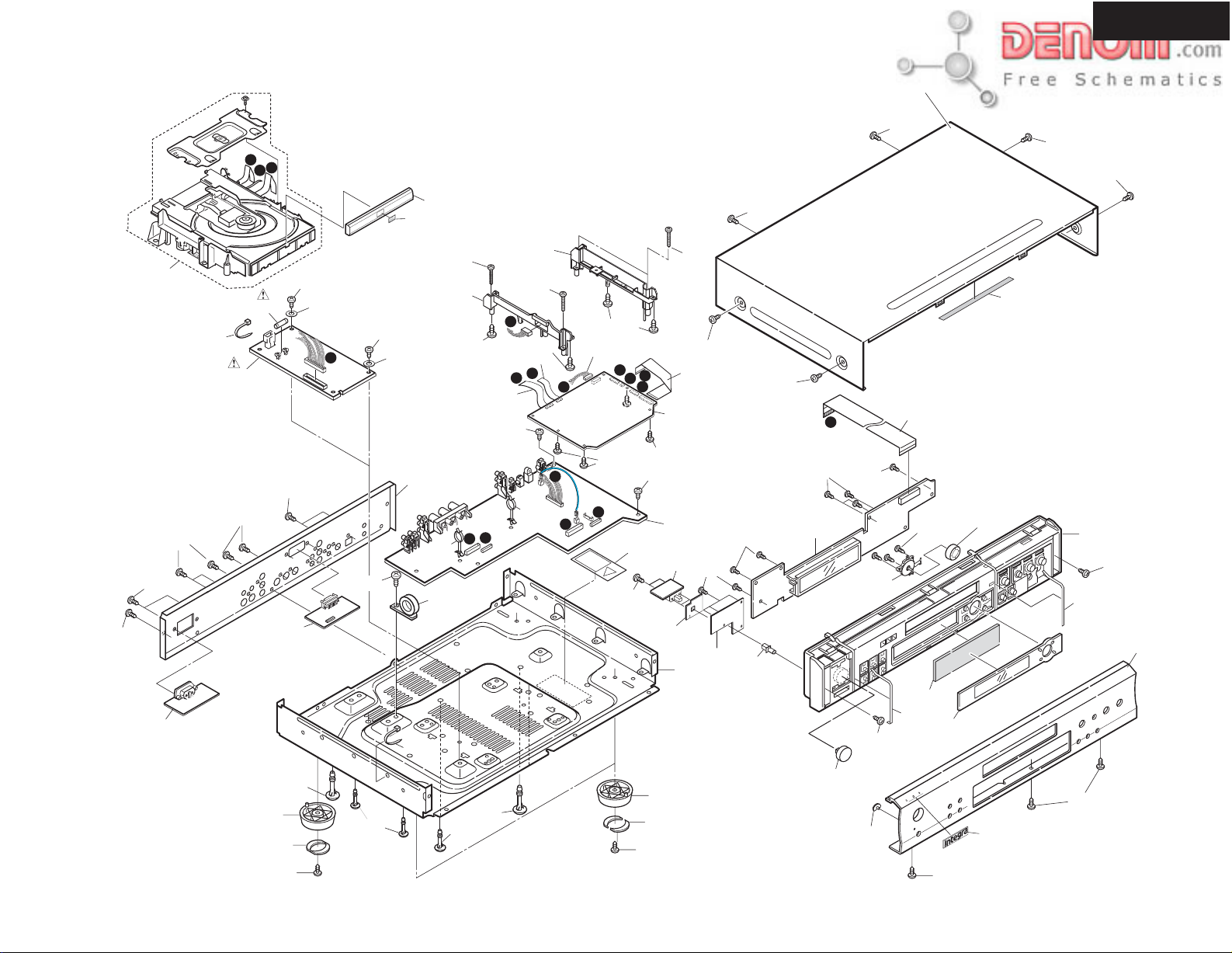

EXPLODED VIEW PARTS LIST ! : Safety part DPS-5.4
Exploded V REF. NO. PART NAME PART NO. DESCRIPTION REMARK
Exploded V A1 CHASSIS 27100425B
Exploded V A3 LEG 27175316C LEG
Exploded V A5 CUSHION 28141494
Exploded V A10 HOLDER 27190428A KGLS-10RT
Exploded V A11 SCREW 838130088 3TTB+8B
Exploded V A11a WASHER 87643010 W3*10F(BC)
Exploded V A12 HOLDER 27190657 KGLS-18RT
Exploded V A13 HOLDER 27190772 KGLS-22RT
Exploded V A15 LABEL(DVD2) 29362648
Exploded V A16 CLAMP 27301394 HL-18-0
Exploded V A20 F BRACKET 27111325A (B)
Exploded V A21 KNOB 28325756 (STANDBY)
Exploded V A22 CLEAR PLT 28191993
Exploded V A23 B PLATE 28133410 DPS-5.4(B)
Exploded V A24 TAPE 29110161
Exploded V A27 ST SCREW 838126068 2.6TTB+6B
Exploded V A30 KNOB 28325753 (POW)
Exploded V A32 SCREW 82143010 3P+10FN(BC)
Exploded V A35 KNOB 28326078 (CRS)
Exploded V A51 DOOR 28148479A
Exploded V A52 PLATE 27262651 (DVD)
Exploded V A55 COVER 28184864 (B)
Exploded V A56 SCREW 838430088 3TTB+8B(BC)
Exploded V A57 CUSHION 28141542 HIME0.5*120*10
Exploded V A41 F PANEL 27212527 DPS-5.4(B)
Exploded V A43 BADGE 28135278
Exploded V A44 FACET 28198906 (S)
Exploded V A46 SCREW 838430088 3TTB+8B(BC)
Exploded V A47 REAR PANEL 27123125 5.4MDD1N <MDD, MDC>
Exploded V A47 REAR PANEL 27123126 5.4MUA4P <MUA>
Exploded V A48 SCREW 838430088 3TTB+8B(BC)
Exploded V A49 SCREW 838440089 4TTB+8C(BC)
Exploded V F1 FUSE !252252 1.6A-T/UL-ST2 <MDD, MDC>
Exploded V F1 or FUSE !252147 1.6A-TSC <MDD, MDC>
Exploded V F1 FUSE !252273 1.6A-SE-TL250V <MUA>
Exploded V F1 or FUSE !252073 1.6A-SE-EAK IEC FUSE <MUA>
Exploded V P501 FFC 2045301512 NCFC5-301512
Exploded V P502 FFC 2045110612 NCFC5-110612
Exploded V P503 FFC 2045180712 NCFC5-180712
Exploded V P701 FFC 2045242012 NCFC5-242012
Exploded V P702 SOCKET AS 20044391025 NSAS-10P1160
Exploded V P901A CORE 230945 NFY-25 BLACK
Exploded V P910 WIRE TIE 260208 (CLAMPER)UL
Exploded V S731 JOY STICK 25035710 NPS-115-S673
Exploded V Z1 DVD Main circuit PC board assy 24150042 DB-VPB501

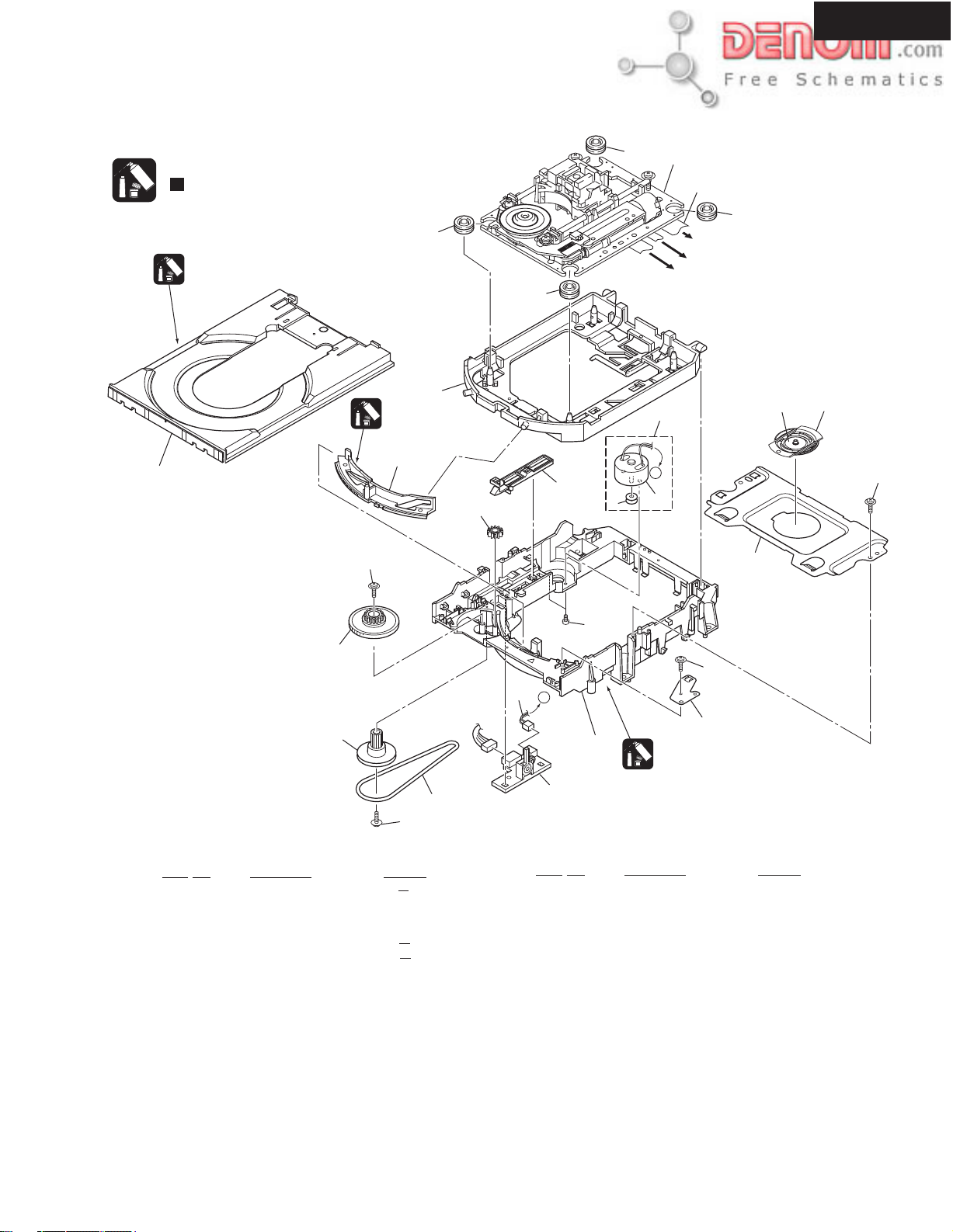

Exploded V Z10 DVD Mechanism assy 24801018 DB-VLD501-007
Exploded V Z12 HOLDER 27191201 (ML)
Exploded V Z13 HOLDER 27191202 (MR)
Exploded V Z14 SCREW 801433 3SMS8W.SW+14B(BC)
Exploded V Z15 SCREW 838130088 3TTB+8B
Exploded V Z91A SCREW 830440089 4TTC+8C(BC)
Exploded V U1 Output terminal PC board assy 1H505597-1G NAAR-7997-1G <MDD, MDC>
Exploded V U1 Output terminal PC board assy 1H505597-1H NAAR-7997-1H <MUA>
Exploded V U2 Display circuit PC board assy 1H505598-1G NADIS-7998-1G <MDD, MDC>
Exploded V U2 Display circuit PC board assy 1H505598-1H NADIS-7998-1H <MUA>
Exploded V U3 Standby switch PC boars assy 1H505599-1G NADIS-7999-1G <MDD, MDC>
Exploded V U3 Standby switch PC boars assy 1H505599-1H NADIS-7999-1H <MUA>
Exploded V U4 Power switch PC board assy 1H505500-1G NASW-8000-1G <MDD, MDC>
Exploded V U4 Power switch PC board assy 1H505500-1H NASW-8000-1H <MUA>
Exploded V U5 Inlet terminal PC board assy 1H505502-1G NAPS-8002-1G <MDD, MDC>
www.denom.com

Exploded V U5 Inlet terminal PC board assy 1H505502-1H NAPS-8002-1H <MUA>
Exploded V U6 Support PC board 1H505503-1G NAETC-8003-1G <MDD, MDC>
Exploded V U6 Support PC board 1H505503-1H NAETC-8003-1H <MUA>
Exploded V U7 RS-232 terminal PC board assy 1H505505-1G NAETC-8005-1G <MDD, MDC>
Exploded V U7 RS-232 terminal PC board assy 1H505505-1H NAETC-8005-1H <MUA>
Exploded V U20 Power supply unit !24150040 NGPS-0040-100-120V <MDD, MDC>
Exploded V U20 Power supply unit !24150041 NGPS-0041-100-240V <MUA>
NOTE: <MDD>: North American area
<MDC>: Canadian area
<MUA>: Australian area
PACKING PARTS LIST DPS-5.4
Packing V REF. NO. PART NAME PART NO. DESCRIPTION REMARK
Packing V A450 CARTON 29054065A DPS-5.4MDD <MDD, MDC, MU
A
Packing V A451 LABEL 29363464 (RE)MUA4P <MUA>
Packing V A455 UPC LABEL 29363446 DPS-5.4(B)
Packing V A530 WARRANTY CARD 29365089 (INTEGRA) <MDD, MDC>
Packing V
<MUA> supplied from
Sales Dep.
Packing V A601 PAD 29092099B (AS)
Packing V A604 POLY BAG 29100037-1A 650*500
Packing V A605 POLY BAG 29100097-1A 350*250
Packing V A607 PP TAPE 29110148 W48 OPP TAPE 1.3MT
Packing V A901 CORD AS 2010412 RCA3P(YWR)
Packing V A901 or PIN CORD AS 2010379 RCA3P(YWR)
Packing V A902 BATTERY 3010054 R6/AA(UM-3)
Packing V A903 PLUG CORD 2010200 3.5-MINI PLUG (RI)
Packing V A905 REMO CON 24140536 RC-536DV
Packing V A906 CORD AS 2010380 (S CORD)
Packing V A906 or CORD AS 2010360 TPX3000
Packing V A911 INS MANUAL 29343491 En(DPS-5.4)
Packing V P981 AC CORD !253352TES AS-UC-2 <MDD, MDC>
Packing V P981 or AC CORD !253297KAW AS-UC-2 <MDD, MDC>
Packing V P981 AC CORD !253311VOL AS-SAA <MUA>
NOTE: <MDD>: North American area
<MDC>: Canadian area
<MUA>: Australian area
PRINTED CIRCUIT BOARD PARTS LIST DPS-5.4
U1 : OUTPUT TERMINAL PC BOARD NAAR-7997
CIRCUIT NO. PART NAME PART NO. DESCRIPTION REMARK
AR-7997 Q352 IC 22274004HR2O TC74VHCU04FT
AR-7997 Q401 IC 22241448R2 NJM4580M-D
AR-7997 Q402 IC 22241448R2 NJM4580M-D
AR-7997 Q403 IC 22241448R2 NJM4580M-D
AR-7997 Q404 IC 22241448R2 NJM4580M-D
AR-7997 Q405 TR 2216141R2 HN1C03F-B
AR-7997 Q406 TR 2216141R2 HN1C03F-B
AR-7997 Q407 TR 2216141R2 HN1C03F-B
AR-7997 Q460 TR 2216480R2 DTA114YKA
AR-7997 Q460 or TR 2216360R2 RN2407
AR-7997 Q460 or TR 2216350R2 KRA107S
AR-7997 Q463 TR 2216470R2 DTC114YKA
AR-7997 Q463 or TR 2216260R2 RN1407
AR-7997 Q463 or TR 2216340R2 KRC107S
AR-7997 Q806 TR 2216706R2 UMG9N
AR-7997 Q920 TR 2216175R2 KTC3875-GR
AR-7997 Q920 or TR 2213145R2 2SC2712-GR
AR-7997 Q351 PHT CP 24120102 TOTX179L
AR-7997 Q801 PHT CP 24120043 ON3131
www.denom.com

AR-7997 D101 ZENER D 224550510R2 UDZS5.1B
AR-7997 D101 or ZENER D 224490510R2 UDZ5.1B
AR-7997 D460 C-DIODE 223234R2 1SS352
AR-7997 D460 or C-DIODE 223269R2 1SS355
AR-7997 D801 C-DIODE 223234R2 1SS352
AR-7997 D801 or C-DIODE 223269R2 1SS355
AR-7997 D901 ZENER D 224550510R2 UDZS5.1B
AR-7997 D901 or ZENER D 224490510R2 UDZ5.1B
AR-7997 D920 ZENER D 224551100R2 UDZS11B
AR-7997 D921 C-DIODE 223234R2 1SS352
AR-7997 D921 or C-DIODE 223269R2 1SS355
AR-7997 D922 C-DIODE 223234R2 1SS352
AR-7997 D922 or C-DIODE 223269R2 1SS355
AR-7997 D923 C-DIODE 223234R2 1SS352
AR-7997 D923 or C-DIODE 223269R2 1SS355
AR-7997 D924 C-DIODE 223234R2 1SS352
AR-7997 D924 or C-DIODE 223269R2 1SS355
AR-7997 L351 EMIFIL 230958R1 BK1608LM182-T
AR-7997 L351 or EMIFIL 230968R1 FBM-10-160808-202T
AR-7997 L352 EMIFIL 230958R1 BK1608LM182-T
AR-7997 L352 or EMIFIL 230968R1 FBM-10-160808-202T
AR-7997 L353 EMIFIL 230958R1 BK1608LM182-T
AR-7997 L353 or EMIFIL 230968R1 FBM-10-160808-202T
AR-7997 L354 EMIFIL 230958R1 BK1608LM182-T
AR-7997 L354 or EMIFIL 230968R1 FBM-10-160808-202T
AR-7997 P351A SOCKET AS 2009990787UL NSAS-4P1148
AR-7997 P901 SOCKET AS 2004C193060UL NSAS-30P1102
AR-7997 CN901 SOCKET 25052524 NSCT-30P2421
AR-7997 CN901 or SOCKET 25051954 NSCT-30P1741
AR-7997 CN901 or SOCKET 25052330 NSCT-30P2227
AR-7997 CN902 SOCKET 25052505 NSCT-11P2402
AR-7997 CN902 or SOCKET 25051935 NSCT-11P1822
AR-7997 CN902 or SOCKET 25052311 NSCT-11P2208
AR-7997 CN903 SOCKET 25052512 NSCT-18P2409
AR-7997 CN903 or SOCKET 25051942 NSCT-18P1729
AR-7997 CN903 or SOCKET 25052318 NSCT-18P2215
AR-7997 P104 SOCKET 25052344 NSCT-7P2241
AR-7997 P104 or SOCKET 25051889 NSCT-7P1676
AR-7997 P104 or SOCKET 25052528 NSCT-7P2425
AR-7997 P701A SOCKET 25052518 NSCT-24P2415
AR-7997 P701Aor SOCKET 25051948 NSCT-24P1735
AR-7997 P701Aor SOCKET 25052324 NSCT-24P2221
AR-7997 P201 PIN JACK 25045660 NPJ-10PDBY459
AR-7997 P203 PIN JACK 25045661 NPJ-3PDGLR460
AR-7997 P205 BNC JACK 25045634 P2298
AR-7997 P350 PIN JACK 25045592 NPJ-1PDOR403
AR-7997 P352 PIN JACK 25045589 NPJ-2PDB400
AR-7997 P401 PIN JACK 25045662 NPJ-3PDBRW461
AR-7997 P402 PIN JACK 25045593 NPJ-2PDWR404
AR-7997 P851A PLUG 25055152 NPLG-8P136
AR-7997 C101 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C221 VR C 394624717 CE04W6.3V-470M(VR)
AR-7997 C222 C-CERA C 332121045R1 CK725B1C-104K1
AR-7997 C223 VR C 394624717 CE04W6.3V-470M(VR)
AR-7997 C224 VR C 394621027 CE04W6.3V-1000M(VR)
AR-7997 C225 VR C 394624717 CE04W6.3V-470M(VR)
AR-7997 C226 VR C 394624717 CE04W6.3V-470M(VR)
AR-7997 C227 VR C 394621027 CE04W6.3V-1000M(VR)
AR-7997 C228 VR C 394624717 CE04W6.3V-470M(VR)
AR-7997 C229 VR C 394624717 CE04W6.3V-470M(VR)
AR-7997 C251 VR C 394624717 CE04W6.3V-470M(VR)
AR-7997 C252 VR C 394624717 CE04W6.3V-470M(VR)
AR-7997 C253 C-CERA C 332121045R1 CK725B1C-104K1
www.denom.com

AR-7997 C352 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C353 VR C 394621017 CE04W6.3V-100M(VR)
AR-7997 C357 C-CERA C 332121045R1 CK725B1C-104K1
AR-7997 C358 C-CERA C 342102204R1 CC725CH1H-220J1
AR-7997 C360 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C361 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C362 VR C 394621017 CE04W6.3V-100M(VR)
AR-7997 C363 C-CERA C 332152230R1 CK725F1H-223Z1
AR-7997 C364 C-CERA C 332152230R1 CK725F1H-223Z1
AR-7997 C401 VX C 393344707 CE04W16V-47M(VX)
AR-7997 C402 VX C 393344707 CE04W16V-47M(VX)
AR-7997 C403 TF C 374726814 ECQ-B50V-681J
AR-7997 C404 TF C 374726814 ECQ-B50V-681J
AR-7997 C405 TF C 374721524 ECQ-B50V-152J
AR-7997 C406 TF C 374721524 ECQ-B50V-152J
AR-7997 C407 TF C 374721024 ECQ-B50V-102J
AR-7997 C408 TF C 374721024 ECQ-B50V-102J
AR-7997 C409 C-CERA C 342104704R1 CC725CH1H-470J1
AR-7997 C410 C-CERA C 342104704R1 CC725CH1H-470J1
AR-7997 C411 VR C 394622217 CE04W6.3V-220M(VR)
AR-7997 C412 VR C 394622217 CE04W6.3V-220M(VR)
AR-7997 C413 VX C 393384707 CE04W50V-47M(VX)
AR-7997 C414 VX C 393384707 CE04W50V-47M(VX)
AR-7997 C415 VX C 393384707 CE04W50V-47M(VX)
AR-7997 C419 VX C 393384707 CE04W50V-47M(VX)
AR-7997 C420 VR C 394624717 CE04W6.3V-470M(VR)
AR-7997 C485 VR C 394642217 CE04W16V-220M(VR)
AR-7997 C486 VR C 394642217 CE04W16V-220M(VR)
AR-7997 C814 VR C 394621017 CE04W6.3V-100M(VR)
AR-7997 C815 TF C 374722234 ECQ-B50V-223J
AR-7997 C901 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C902 VR C 394642217 CE04W16V-220M(VR)
AR-7997 C903 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C904 VR C 394622217 CE04W6.3V-220M(VR)
AR-7997 C905 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C906 VR C 394642217 CE04W16V-220M(VR)
AR-7997 C907 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C908 VR C 394641027 CE04W16V-1000M(VR)
AR-7997 C909 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C910 VR C 394641027 CE04W16V-1000M(VR)
AR-7997 C911 VR C 394641017 CE04W16V-100M(VR)
AR-7997 C914 C-CERA C 332161040R1 CK725F1E-104Z1
AR-7997 C920 VR C 394641007 CE04W16V-10M(VR)
AR-7997 C921 VR C 394642217 CE04W16V-220M(VR)
AR-7997 C922 VR C 394642217 CE04W16V-220M(VR)
AR-7997 R1001 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1002 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1003 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1004 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1005 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1006 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1007 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1008 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1009 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R101 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R1010 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1012 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1013 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1015 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1016 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1017 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1018 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R1019 C-CARBON R 435030004R1 RN72K1J-000JE
www.denom.com

AR-7997 R102 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R1020 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R103 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R104 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R106 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R107 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R108 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R115 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R117 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R118 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R119 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R121 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R122 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R123 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R124 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R125 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R126 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R127 C-CARBON R 435034704R1 RN72K1J-470JE
AR-7997 R134 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R135 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R136 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R137 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R221 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R222 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R223 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R224 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R225 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R227 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R229 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R231 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R232 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R233 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R234 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R235 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R236 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R241 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R242 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R243 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R244 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R245 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R246 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R251 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R252 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R253 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R254 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R255 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R256 C-CARBON R 435037504R1 RN72K1J-750JE
AR-7997 R257 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R351 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R353 C-CARBON R 435034744R1 RN72K1J-474JE
AR-7997 R354 C-CARBON R 435033314R1 RN72K1J-331JE
AR-7997 R355 C-CARBON R 435031814R1 RN72K1J-181JE
AR-7997 R356 C-CARBON R 435031814R1 RN72K1J-181JE
AR-7997 R357 C-CARBON R 435034714R1 RN72K1J-471JE
AR-7997 R401 C-CARBON R 435031524R1 RN72K1J-152JE
AR-7997 R402 C-CARBON R 435031524R1 RN72K1J-152JE
AR-7997 R405 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R406 C-CARBON R 435030004R1 RN72K1J-000JE
AR-7997 R407 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R408 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R409 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R410 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R411 C-CARBON R 435031524R1 RN72K1J-152JE
www.denom.com

AR-7997 R412 C-CARBON R 435031524R1 RN72K1J-152JE
AR-7997 R413 C-CARBON R 435032234R1 RN72K1J-223JE
AR-7997 R414 C-CARBON R 435032234R1 RN72K1J-223JE
AR-7997 R415 C-CARBON R 435032234R1 RN72K1J-223JE
AR-7997 R416 C-CARBON R 435032234R1 RN72K1J-223JE
AR-7997 R417 C-CARBON R 435032234R1 RN72K1J-223JE
AR-7997 R418 C-CARBON R 435032234R1 RN72K1J-223JE
AR-7997 R419 C-CARBON R 435031524R1 RN72K1J-152JE
AR-7997 R420 C-CARBON R 435031524R1 RN72K1J-152JE
AR-7997 R421 C-CARBON R 435032234R1 RN72K1J-223JE
AR-7997 R422 C-CARBON R 435032234R1 RN72K1J-223JE
AR-7997 R423 C-CARBON R 435031524R1 RN72K1J-152JE
AR-7997 R424 C-CARBON R 435031524R1 RN72K1J-152JE
AR-7997 R427 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R428 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R429 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R430 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R431 C-CARBON R 435034714R1 RN72K1J-471JE
AR-7997 R432 C-CARBON R 435034714R1 RN72K1J-471JE
AR-7997 R433 C-CARBON R 435031014R1 RN72K1J-101JE
AR-7997 R434 C-CARBON R 435031014R1 RN72K1J-101JE
AR-7997 R435 C-CARBON R 435031014R1 RN72K1J-101JE
AR-7997 R441 C-CARBON R 435031044R1 RN72K1J-104JE
AR-7997 R442 C-CARBON R 435031044R1 RN72K1J-104JE
AR-7997 R443 C-CARBON R 435032714R1 RN72K1J-271JE
AR-7997 R444 C-CARBON R 435032714R1 RN72K1J-271JE
AR-7997 R445 C-CARBON R 435032224R1 RN72K1J-222JE
AR-7997 R446 C-CARBON R 435032224R1 RN72K1J-222JE
AR-7997 R447 C-CARBON R 435031014R1 RN72K1J-101JE
AR-7997 R448 C-CARBON R 435031014R1 RN72K1J-101JE
AR-7997 R449 C-CARBON R 435032224R1 RN72K1J-222JE
AR-7997 R450 C-CARBON R 435032224R1 RN72K1J-222JE
AR-7997 R452 C-CARBON R 435032224R1 RN72K1J-222JE
AR-7997 R453 C-CARBON R 435031014R1 RN72K1J-101JE
AR-7997 R454 C-CARBON R 435032224R1 RN72K1J-222JE
AR-7997 R455 C-CARBON R 435031044R1 RN72K1J-104JE
AR-7997 R456 C-CARBON R 435031044R1 RN72K1J-104JE
AR-7997 R457 C-CARBON R 435031044R1 RN72K1J-104JE
AR-7997 R458 C-CARBON R 435031544R1 RN72K1J-154JE
AR-7997 R459 C-CARBON R 435031544R1 RN72K1J-154JE
AR-7997 R460 C-CARBON R 435031544R1 RN72K1J-154JE
AR-7997 R461 C-CARBON R 435031544R1 RN72K1J-154JE
AR-7997 R462 C-CARBON R 435031024R1 RN72K1J-102JE
AR-7997 R463 C-CARBON R 435031024R1 RN72K1J-102JE
AR-7997 R481 NF CARBON R 415470224 R25J-2.2
AR-7997 R482 NF CARBON R 415470224 R25J-2.2
AR-7997 R820 C-CARBON R 435033324R1 RN72K1J-332JE
AR-7997 R821 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R822 C-CARBON R 435031034R1 RN72K1J-103JE
AR-7997 R823 C-CARBON R 435031014R1 RN72K1J-101JE
AR-7997 R902 C-CARBON R 435032224R1 RN72K1J-222JE
AR-7997 R920 C-CARBON R 435032214R1 RN72K1J-221JE
U2: DISPLAY CIRCUIT PC BOARD NADIS-7998
DIS-7998 CIRCUIT NO. PART NAME PART NO. DESCRIPTION REMARK
DIS-7998 Q702 FL TUBE 212238 HNV-13SS12T
DIS-7998 Q701 IC 22242005R3 MPD780232GC-092-8BT N
DIS-7998 Q703 IC 22241924R2 S-80130CLMC-JIP-T2
DIS-7998 Q704 TR 2216230R2 KRA103S
DIS-7998 Q704 or TR 2214540R2 RN2403
DIS-7998 D701 C-DIODE 223234R2 1SS352
DIS-7998 D701 or C-DIODE 223269R2 1SS355
DIS-7998 D702 ZENER D 224550560R2 UDZS5.6B
www.denom.com

DIS-7998 D703 C-DIODE 223234R2 1SS352
DIS-7998 D703 or C-DIODE 223269R2 1SS355
DIS-7998 Q705 REMO SENS 241348 RPM7138-H9
DIS-7998 P701B SOCKET 25052545 NSCT-24P2442
DIS-7998 P701Bor SOCKET 25052361 NSCT-24P2258
DIS-7998 P701Bor SOCKET 25051906 NSCT-24P1693
DIS-7998 P731 SOCKET 25052344 NSCT-7P2241
DIS-7998 P731 or SOCKET 25051889 NSCT-7P1676
DIS-7998 P731 or SOCKET 25052528 NSCT-7P2425
DIS-7998 JL703A WIRE HOL 25051088 NSCT-4P875
DIS-7998 X701 CERA LOCK 3010242 CST5.00MGW
DIS-7998 C701 ELECT C 355721019 CE04W6.3V-100M
DIS-7998 C702 C-CERA C 332161040R1 CK725F1E-104Z1
DIS-7998 C703 C-CERA C 332161040R1 CK725F1E-104Z1
DIS-7998 C704 C-CERA C 332161040R1 CK725F1E-104Z1
DIS-7998 C705 ELECT C 355782209 CE04W50V-22M
DIS-7998 C706 ELECT C 355721019 CE04W6.3V-100M
DIS-7998 R701 C-CARBON R 435031034R1 RN72K1J-103JE
DIS-7998 R702 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R703 C-CARBON R 435031014R1 RN72K1J-101JE
DIS-7998 R704 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R705 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R706 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R707 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R708 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R710 C-CARBON R 435031034R1 RN72K1J-103JE
DIS-7998 R711 C-CARBON R 435031054R1 RN72K1J-105JE
DIS-7998 R712 C-CARBON R 435034734R1 RN72K1J-473JE
DIS-7998 R713 C-CARBON R 435032244R1 RN72K1J-224JE
DIS-7998 R714 C-CARBON R 435031014R1 RN72K1J-101JE
DIS-7998 R715 C-CARBON R 435031014R1 RN72K1J-101JE
DIS-7998 R716 C-CARBON R 435031014R1 RN72K1J-101JE
DIS-7998 R717 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R718 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R719 C-CARBON R 435031034R1 RN72K1J-103JE
DIS-7998 R720 C-CARBON R 435031034R1 RN72K1J-103JE
DIS-7998 R721 C-CARBON R 435031034R1 RN72K1J-103JE
DIS-7998 R722 C-CARBON R 435031034R1 RN72K1J-103JE
DIS-7998 R723 C-CARBON R 435031034R1 RN72K1J-103JE
DIS-7998 R726 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R727 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R733 C-CARBON R 435031024R1 RN72K1J-102JE
DIS-7998 R734 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R737 C-CARBON R 435031024R1 RN72K1J-102JE
DIS-7998 R738 C-CARBON R 435030004R1 RN72K1J-000JE
DIS-7998 R740 C-CARBON R 435030004R1 RN72K1J-000JE <MDD>
DIS-7998 R741 C-CARBON R 435031024R1 RN72K1J-102JE <MUA>
DIS-7998 R742 C-CARBON R 435030004R1 RN72K1J-000JE <MUA>
DIS-7998 R743 C-CARBON R 435031024R1 RN72K1J-102JE <MDD>
DIS-7998 R751 C-CARBON R 435032724R1 RN72K1J-272JE
DIS-7998 R752 C-CARBON R 435033914R1 RN72K1J-391JE
DIS-7998 R753 C-CARBON R 435034714R1 RN72K1J-471JE
DIS-7998 R754 C-CARBON R 435038214R1 RN72K1J-821JE
DIS-7998 R755 C-CARBON R 435031024R1 RN72K1J-102JE
DIS-7998 R756 C-CARBON R 435031824R1 RN72K1J-182JE
DIS-7998 R758 C-CARBON R 435032724R1 RN72K1J-272JE
DIS-7998 R759 C-CARBON R 435033914R1 RN72K1J-391JE
DIS-7998 R760 C-CARBON R 435034714R1 RN72K1J-471JE
DIS-7998 R761 C-CARBON R 435038214R1 RN72K1J-821JE
DIS-7998 R762 C-CARBON R 435031024R1 RN72K1J-102JE
DIS-7998 R763 C-CARBON R 435031824R1 RN72K1J-182JE
DIS-7998 R764 C-CARBON R 435033924R1 RN72K1J-392JE
DIS-7998 R765 C-CARBON R 435031034R1 RN72K1J-103JE
www.denom.com

DIS-7998 R766 C-CARBON R 435032724R1 RN72K1J-272JE
DIS-7998 R767 C-CARBON R 435033914R1 RN72K1J-391JE
DIS-7998 R768 C-CARBON R 435034714R1 RN72K1J-471JE
DIS-7998 R769 C-CARBON R 435038214R1 RN72K1J-821JE
DIS-7998 R770 C-CARBON R 435031024R1 RN72K1J-102JE
DIS-7998 R771 C-CARBON R 435031824R1 RN72K1J-182JE
DIS-7998 R772 C-CARBON R 435033924R1 RN72K1J-392JE
DIS-7998 R773 C-CARBON R 435031034R1 RN72K1J-103JE
DIS-7998 S701 PUSH SW 25035718 NPS-111-S681
DIS-7998 S702 PUSH SW 25035718 NPS-111-S681
DIS-7998 S703 PUSH SW 25035718 NPS-111-S681
DIS-7998 S704 PUSH SW 25035718 NPS-111-S681
DIS-7998 S705 PUSH SW 25035718 NPS-111-S681
DIS-7998 S706 PUSH SW 25035718 NPS-111-S681
DIS-7998 S707 PUSH SW 25035718 NPS-111-S681
DIS-7998 S708 PUSH SW 25035718 NPS-111-S681
DIS-7998 S709 PUSH SW 25035718 NPS-111-S681
DIS-7998 S710 PUSH SW 25035718 NPS-111-S681
DIS-7998 S712 PUSH SW 25035718 NPS-111-S681
DIS-7998 S713 PUSH SW 25035718 NPS-111-S681
DIS-7998 S714 PUSH SW 25035718 NPS-111-S681
DIS-7998 S715 PUSH SW 25035718 NPS-111-S681
DIS-7998 Q702A CUSHION 28141513 t3*10*25
U3 : STANDBY SWITCH PC BOARD NADIS-7999
DIS-7999 CIRCUIT NO. PART NAME PART NO. DESCRIPTION REMARK
DIS-7999 Q708 TR 2216470R2 DTC114YKA
DIS-7999 Q708 or TR 2216340R2 KRC107S
DIS-7999 Q708 or TR 2216260R2 RN1407
DIS-7999 D721 LED 225290 SEL4110R
DIS-7999 JL703B WIRE HOL 25051088 NSCT-4P875
DIS-7999 R757 C-CARBON R 435033924R1 RN72K1J-392JE
DIS-7999 R779 C-CARBON R 435034714R1 RN72K1J-471JE
DIS-7999 S716 PUSH SW 25035718 NPS-111-S681
U4 : POWER SWITCH PC BOARD NASW-8000
SW-8000 CIRCUIT NO. PART NAME PART NO. DESCRIPTION REMARK
SW-8000 S991 PUSH SW 25035703 NPS-111-L666P
SW-8000 S991 or P SW 25035550 NPS-111-L512P
SW-8000 C991 IS C 3500196S RE275V-103M
U5 : INLET TERMINAL PC BOARD NAPS-8002
PS-8002 CIRCUIT NO. PART NAME PART NO. DESCRIPTION REMARK
PS-8002 P981B AC INLET 25055960 NPLG-2P913
PS-8002 P982B SOCKET AS 2009990661UL NSAS-2P0921
PS-8002 P982A CRIMP AS 2069943301UL CRIMP AS
U7 : RS-232C TERMINAL PC BOARD NAETC-8005
ETC-8005 CIRCUIT NO. PART NAME PART NO. DESCRIPTION REMARK
ETC-8005 Q802 IC 22241624R2 MPD789071MC-011-5A4
ETC-8005 Q803 IC 22241537R2 MPD4721GS
ETC-8005 L801 EMIFIL 230958R1 BK1608LM182-T
ETC-8005 L801 or EMIFIL 230968R1 FBM-10-160808-202T
ETC-8005 L802 EMIFIL 230958R1 BK1608LM182-T
ETC-8005 L802 or EMIFIL 230968R1 FBM-10-160808-202T
ETC-8005 L803 EMIFIL 230958R1 BK1608LM182-T
ETC-8005 L803 or EMIFIL 230968R1 FBM-10-160808-202T
ETC-8005 L804 EMIFIL 230958R1 BK1608LM182-T
ETC-8005 L804 or EMIFIL 230968R1 FBM-10-160808-202T
ETC-8005 L805 EMIFIL 230958R1 BK1608LM182-T
ETC-8005 L805 or EMIFIL 230968R1 FBM-10-160808-202T
ETC-8005 X801 CERA LOCK 3010242 CST5.00MGW
ETC-8005 P851B SOCKET AS 2002341620 NSAS-16P0277
www.denom.com

ETC-8005 P801 SOCKET 25052379 NSCT-9P2277
ETC-8005 P802 ST JACK 25045647 HSJ1002-01-1020
ETC-8005 C801 VR C 394680107 CE04W50V-1M(VR)
ETC-8005 C802 VR C 394680107 CE04W50V-1M(VR)
ETC-8005 C803 VR C 394680107 CE04W50V-1M(VR)
ETC-8005 C804 VR C 394680107 CE04W50V-1M(VR)
ETC-8005 C810 VR C 394621017 CE04W6.3V-100M(VR)
ETC-8005 C811 C-CERA C 332161040R1 CK725F1E-104Z1
ETC-8005 C812 C-CERA C 332161040R1 CK725F1E-104Z1
ETC-8005 C813 VR C 394621017 CE04W6.3V-100M(VR)
ETC-8005 R8001 C-CARBON R 435030004R1 RN72K1J-000JE
ETC-8005 R801 C-CARBON R 435031054R1 RN72K1J-105JE
ETC-8005 R802 C-CARBON R 435030004R1 RN72K1J-000JE
ETC-8005 R803 C-CARBON R 435030004R1 RN72K1J-000JE
ETC-8005 R804 C-CARBON R 435030004R1 RN72K1J-000JE
ETC-8005 R805 C-CARBON R 435030004R1 RN72K1J-000JE
ETC-8005 R806 C-CARBON R 435030004R1 RN72K1J-000JE
ETC-8005 R807 C-CARBON R 435034704R1 RN72K1J-470JE
ETC-8005 R808 C-CARBON R 435030004R1 RN72K1J-000JE
ETC-8005 R809 C-CARBON R 435034704R1 RN72K1J-470JE
ETC-8005 R810 C-CARBON R 435034704R1 RN72K1J-470JE
ETC-8005 R811 C-CARBON R 435034704R1 RN72K1J-470JE
ETC-8005 R812 C-CARBON R 435034704R1 RN72K1J-470JE
NOTE: <MDD>: North American area
<MDC>: Canadian area
<MUA>: Australian area
www.denom.com

DPS-5.4
Specifications and features subject to change without notice.
Video system North American model: Standard NTSC,
Australian model: PAL/AUTO
Region code North American model: 1,
Australian model: 4,
Laser Semiconductor laser, wavelength 650 nm (DVD), 780 nm (CD)
Frequency response DVD linear audio 4 Hz-20 kHz @ 48 kHz sampling rate
4 Hz-44 kHz @ 96 kHz sampling rate
CD audio 4 Hz-20 kHz
Signal-to-noise ratio (digital audio) 106 dB
Audio dynamic range (digital audio) 96 dB
Harmonic distortion (digital audio) 0.008%
Wow and Flutter Below measurable level (+/- 0.001% (W. PEAK) or less)
Operating conditions Temperature 5 to 35 C (41 F to 95 F)
Installation Install horizontally
Video outputs
COMPONENT VIDEO Y: 1.0 V (p-p), 75 ohm, negative sync, RCA/phono x1, BNC x1
PB/PR: 0.7 V (p-p), 75 ohm
S VIDEO (S-Video) Y: 1.0 V (p-p), 75 ohm, negative sync, 4-pin mini DIN x 2
C: 0.286 V (p-p), 75 ohm
VIDEO (composite video) 1.0 V (p-p), 75 ohm, negative sync, RCA/phono x 2
Audio outputs
OPTICAL -22.5 dBm, optical connector x 1
COAXIAL 0.5 V (p-p), 75 ohm, RCA/phono x 1
ANALOG 2.0 V rms, 470 ohm, RCA/phono x 1
General
Power supply North American model: 120 V AC, 60 Hz
Australian model: 100-240 V AC, 50/60 Hz
Power consumption 15 W
Power consumption in
Standby mode
North American model: 1.6 W
Other models: 2.5 W
Weight 3.3 kg (7.3 lbs.)
Dimensions (W x H x D) 435 X 81 X 307 mm (17-1/8" X 3-3/16" X 12-1/16")
SPECIFICATIONS
www.denom.com

DPS-5.4
SERVICE PROCEDURES-1
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs a laser. Therefore, be sure to follow
carefully the instructions below when servicing.
WARNING!!
SERVICE WARNING : DO NOT APPROACH THE
LASER EXIT WITH THE EYE TOO CLOSELY.
IN CASE IT IS NECESSARY TO CONFIRM LASER
BEAM EMISSION, BE SURE TO OBSERVE FROM
A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE
OPTICAL PICKUP BLOCK.
Laser Diode Properties
LASER WARNING
Wavelength: 650/780nm (DVD/CD)
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS
OUVRIR
AVIS
WARNING
This unit contains a semiconductor laser system and is classified
as a "CLASS 1 LASER PRODUCT". So, to use this model
properly, read this Instruction Manual carefully. In case of any
trouble, please contact the store where you purchased the unit.
To prevent being exposed to the laser beam, do not try to open
the enclosure.
VISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK
FAILED OR DEFEATED. DO NOT STARE INTO BEAM.
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
The label on the right
is applied on the rear
panel except for USA
and Canadian
models.
1. This unit is a CLASS 1 LASER PRODUCT and employs a
laser inside the cabinet.
2. To prevent the laser from being exposed, do not remove
the cover. Refer servicing to qualified personnel.
"CLASS 1 LASER
PRODUCT"
CAUTION:
CAUTION:
SERVICE PROCEDURE
1. Replacing the fuses
REF. NO. PART NO. DESCRIPTION
This symbol located near the fuse indicates that the
fuse used is show operating type, For continued protection against
fire hazard, replace with same type fuse , For fuse rating, refer to
the marking adjest to the symbol.
Ce symbole indique que le fusible utilise est e lent.
Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu le present symbol est apposre.
F1 252252 or 1.6A-TL/T-ST2 <MDD>, <MDC>
252147 1.6A-TSC
LASER BEAM CAUTION LABEL
252273 or
252073
1.6A-SE-TL250V <MUA>F1
<MDD> : North American model
<MDC> : Canadian model
<MUA> : Australian model
www.denom.com

DPS-5.4
SERVICE PROCEDURES-2
Factory-shipped condition.
Push button "ON" (Mechanical SW)
Press the [STOP] and [STANDBY] same time with NO DISC condition.
Push button "STANDBY".
INITIALIZING
2. Safety-check out
(Only U.S.A. model)
After correcting the original service problem perform the
following safety check before releasing the set to the customer
Connect the insulating-resistance tester between the plug of
power supply cord and terminal GND on the back panel.
Specifications: More than 10M ohm at 500V
REMOVE THE SOLDER OF LASER DIODE SHORT
When replace the mechanism or DVD main PC board.
Shorting the solder of Shot-circuit land. (2 positions)
Short Land
Mechanism
www.denom.com

DPS-5.4
EXPLODED VIEW
A21
A51
Z10
Z12
Z13
Z15
Z15 Z15
A47
A48
A48
A48
P901A
P910
A52
A49
A48 A41
A43
A20
A22
03
03
A1
A3
A11
A5
A5
A11
A23
U2
A32
P702
F1
S731
U3
U4
U5
U20
A27 x 3
A3 A10
A11
A11
A12
A13
A13
A16
A16
A30
A35
A44
A46
A46
P501
P502
P503
P701
U6
A24
A24
A55
A56
Z14
A15
DPS-5.4
P910
d
A11
A11
A11 A11
A11
A11
A11
A11
A11
A11
A56
A56
A56
A56
A57
i
Z1
Z14
Z14
U1
A56
e
a
c
b
g
h
g
ac
b
ih
d
e
f
f
A11a
A11a
Z91A
DIRECTDIGITALPATH
VIDEO
U7
www.denom.com

DPS-5.4

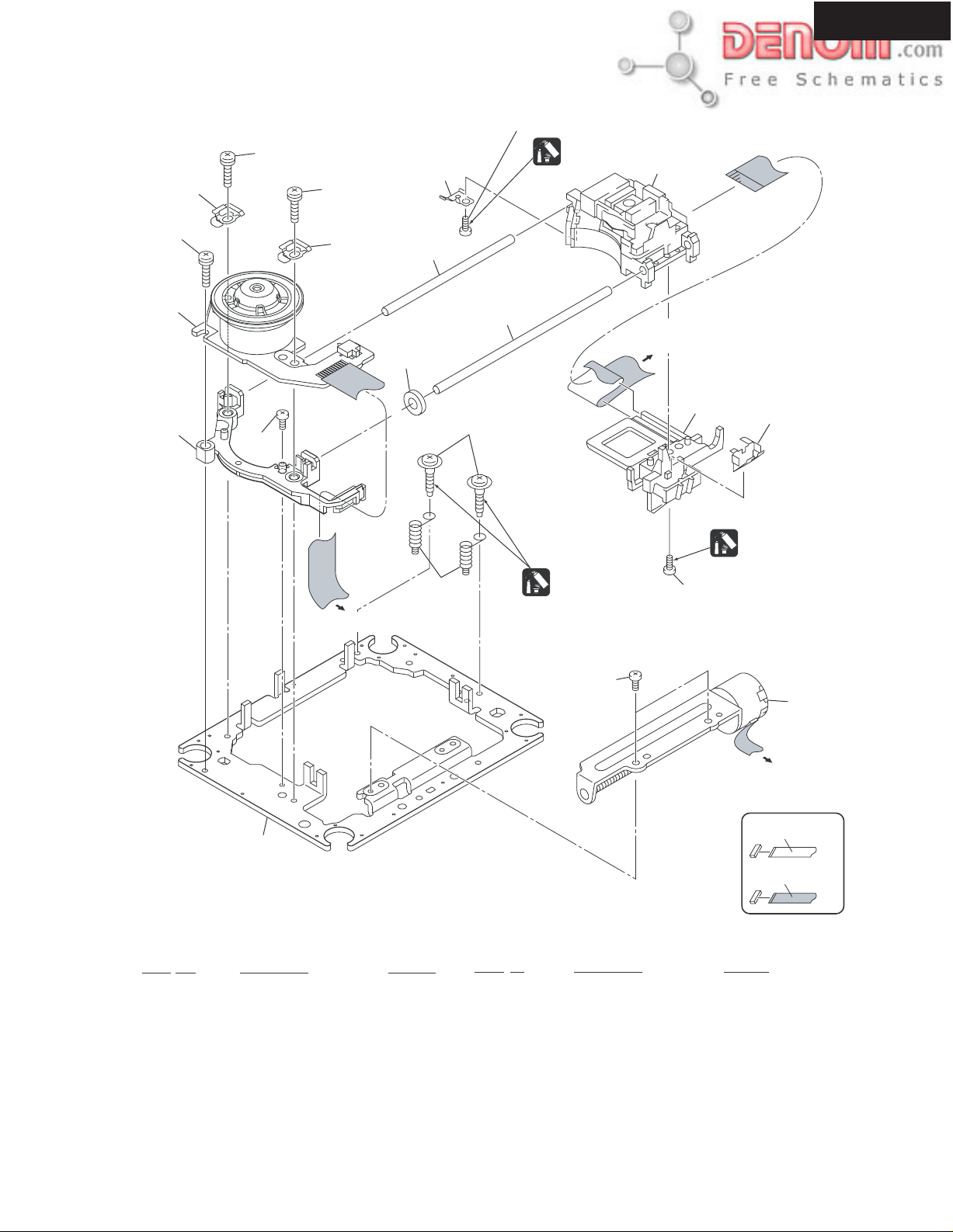

EXPLODED VIEW / PARTS LIST
TRAVERSE MECHANISM
To
DVDM CN104
(Stepping Motor)
To DVDM CN102
(Spindle Motor)
To
DVDM CN101
(Pickup Assy)
CONTACT SIDE
NON-CONTACT
SIDE
3
7
8
1
17
16
12
17
10
13
17
10
6
11
14
16
2
9
15 (Torque : 0.15 +/- 0.01 N m)
15 (Torque : 0.15 +/- 0.01 N m)
4 (Adjustment screw)
5
(Adjustment
spring)
Screw Tight
GYL1001
Silicone Adhesive
GEM1037
Silicone Adhesive
GEM1037
TRAVERSE MECHA. ASSY parts List
Mark No. Description Part No.
1 Spindle Motor VXM1099
2 Stepping Motor VXM1101
3 Pickup Assy-S OXX8005
4 Skew Screw VBA1080
5 Skew Spring VBH1335
6 Guide Bar VLL1514
7 Sub Guide Bar VLL1515
8 Leaf Spring VNC1023
10
NSP
9 Joint Spring VNC1019
Support Spring VNC1020
11 Mecha.Chassis VNE2248
12 Damper Sheet VEB1335
13 Spacer VNL1913
14 Joint 03 VNL1949
15 Tapping Screw OBA8016
16 Screw BBZ20P050FZK
17 Screw PMA26P100FMC
Mark No. Description Part No.
NSP : Not service parts
www.denom.com

DPS-5.4
EXPLODED VIEW / PARTS LIST
A
A
To DVDM CN101 (Pickup Assy-S)
To DVDM CN104 (Stepping Motor)
To DVDM CN102 (Spindle Motor)
2
3
5
4
12
23
13
17
21
16
22
15
14
22
22
22
20
18
19
91
7
10
11
6
8
8
8
8
Refer to
"2.5 TRAVERSE MECHA. ASSY-S".
Lubricating Oil
GYA1001
Daifree
GEM1036
Refer to
" Application of Lubricant".
Note :
Lubricating Oil
GYA1001
LOADING MECHA. ASSY parts List
Mark No. Description Part No.
NSP 1 LOAB Assy
2 Traverse Mecha. Assy-S VXX2871
3 Loading Motor Assy VXX2872
4 Motor Pulley
5 Motor
6 Flexible Cable (24P) VDA1945
7 Connector Assy 2P VKP2253
8 Floating Rubber VEB1351
9 Belt VEB1330
10 Stabilizer VNE2253
11 Loading Base VNL1917
12 Float Base DVD VNL1918
13 Drive Cam VNL1919
14 Gear Pulley VNL1921
15 Loading Gear VNL1922
16 Drive Gear VNL1923
17 SW Lever VNL1925
18 Clamper Plate VNE2251
19 Bridge VNE2252
20 Clamper VNL1924
21 Screw JGZ17P028FMC
22 Screw 801530
23 Tray VNL1920
Mark No. Description Part No.
NSP: Not service parts
LOADING MECHANISM
www.denom.com

Q806
UMG9N
53
12
4
P201
C
4
G1
1
G2
5
G3
2
G4
7
SIGNAL
8
Y
3
P205
8
1
4
Q607
HN1A01F-GR
25
6
3
1
4
Q608
HN1A01F-GR
25
6
3
1
4
Q463
DTC144YKA
Q603
DTC114EE
Q602
DTC114EE
P701A
D601 1SS226
D606 1SS226
D604
1SS226
D603 1SS226
D605 1SS226
D602
1SS226
Q601
TC4053BF
A11
B10
C9
EN6
GND8
VCC16
VEE7
X14
X012
X113
Y15Y02
Y11
Z4
Z05
Z13
Q460
DTA114YKA
P601
SCART
10
12
2
20
6
AGND4
AUDIO_L3
AUDIO_R1
B7
CV/Y19
F.SW8
G11
R/C15
RGB.SW16
VGND15
VGND29
VGND313
VGND414
VGND517
VGND618
VGND721
D924
1SS352
D921
1SS352
D923
1SS352
D922
1SS352
D460
1SS352
D801
1SS355
C483
104Z
C484
104Z
C602 104Z
C359
220
C358
220
C357 104K
C815
223
Q801
ON3131
P802
IR_IN/OUT
P901
CN901
ARK 20
CTS 30
DOUT 10
DVDMUTE 25
DVDPOWER 13
DVDTRKUP 24
GNDD 8
GNDD2 9
GNDD3 11
GNDD4 12
GNDD5 21
GNDD6 22
GNDM 6
GNDM2 7
MDATA 19
RTS 29
RXD 28
SCLK 17
SDATA 18
SYS_CS1 15
SYS_CS2 16
TXD 27
VDET 23
VDVD+12 1
VPR+8A1 3
VPR+8A2 2
VPR+8M1 5
VPR+8M2 4
XDVDRST 14
XVMUTE 26
CN902
C6
DVDA2 4
DVDL 3
DVDR 1
GND1 5
GND2 7
GND3 9
GND4 11
GNDA1 2
V8
Y10
CN903
ASPECT 14
C5
CB/B 9
CR/R 7
CY/G 11
DNG3 6
GND1 10
GND2 8
GND4 4
GND5 2
LETTER 15
P/XI 13
RGB 12
SQUEEZE 16
V3
VSEL1 18
VSEL2 17
Y1
P350
C482
C480
C481
C405
152
C406
152
C409
470
C410
470
C408
102
C407
102
C404
681
C403
681
P402
1
2
3
P203
2
3
1
4
P401
2
3
1
4
P351A
P702B
R431
470
R435
100
R432
470
R427
10K
R119 10K
R820
3.3K
R821
10K
R822
10K
R428
10K
R115
0
R116
R118
10K
R117
10K
P851A
P292A
P105
P201
C
4
G1
1
G2
5
G3
2
G4
7
SIGNAL
8
Y
3
Q404
NJM4580M-D
3
2
-B
4
1
Q403
NJM4580M-D
5
6
-B
4
7
Q401
NJM4580M-D
5
6
-B
4
7
Q402
NJM4580M-D
5
6
-B
4
7
Q604
2SC2712
Q605 2SC2712
Q920
2SC2712
Q407
HN1C03F
5
3
4
Q407
HN1C03F
2
6
1
Q405
HN1C03F
2
6
1
Q405
HN1C03F
5
3
4
Q406
HN1C03F
2
6
1Q406
HN1C03F
5
3
4
D101
UDZ5B
D901
UDZS5.1B
D920
UDZS11B
P104
CTS 4
DTR 3
GNDD 6
NC 7
RXD 2
TXD 1
V+5D 5
Q606
2SA1162
Q404
NJM4580M-D
5
+B
8
6
7
Q403
NJM4580M-D
3
+B
8
2
1
Q402
NJM4580M-D
3
+B
8
2
1
Q401
NJM4580M-D
3
+B
8
2
1
Q356 JFJ3000
OPTICAL_OUT
1
3
2
Q351 JFJ3000
OPTICAL_OUT
1
3
2
Q352
TC74VHCU04T
1 2 3 4 5 6
8 9
10 11 12 13
GND7
VCC 14
C364
223Z
C418
102
C416
102
C417
102
C101
104Z
C253 104K
C222 104K
C923 104Z
C363
223Z
C367
104Z
C360
104Z
C361 104Z
C355
020
C354
020
C356
020
C352 104Z
C351
C905 104Z
C903 104Z
C914 104Z
C909 104Z
C901 104Z
C907 104Z
C420
470/6.3
C419
47/50
C414
47/50
C411 220/6.3
C412
220/6.3
C911
100/16
C485
220/16
C486
220/16
C614
470/6.3
C615
470/6.3
C603
100/16
C601
100/16
C223
470/6.3
C221
470/6.3
C2241000/6.3
C2251000/6.3
C2261000/6.3
C251
470/6.3
C252
470/6.3
C612
470/6.3
C613
470/6.3
C415
47/50
C413
47/50
C2291000/6.3
C2281000/6.3
C2271000/6.3
C921
220/16
C922 220/16 C920
10/16
C906 220/16
C814
100/6.3
C362
100/6.3
C353 100/6.3
C402 47/16
C401
47/16
C904
220/6.3
C902
220/16
C910
1000/16
C908
1000/16
L210
L212
L211
L201
L203
L202
L204
L205
L206
L207
L208
L209
L603
L604
L601
L602
L354
BK1608LM182-T
L353 BK1608LM182-T
L352
BK1608LM182-T
L351 BK1608LM182-T
R463
1K
R482
2.2
(1/4W)
R458 150K
RR461
150K
R459 150K
R461 150K
R455 100K
R453
100
R454 2.2K
R452 2.2K
R433
100
R441 100K
R445 2.2K
R449 2.2K
R447 100
R444
270
R434
100
R442 100K
R450 2.2K
R448
100
R446 2.2K
R108 47
R406
0
R405
0
R401
1.5K
R481
2.2 (1/4W)
R421
22K
R257 10K
R224 10K
R611
R610
68
R626
0
R615
10K
R604
10K
R605
10K
R614
1K
R613
330 1/2W
R612
330 1/2W
R617
100
R616
100
R603
2.2K
R602
2.2K
R601
1.8K
R609
56K
R607
1.2K
R608
22K
R606
4.7K
R101 10K
R123 0
R223
75
R252
75
R254
75
R256
75
R251
0
R255
0
R253
0
R231
0
R233
0
R232
0
R234
0
R225
75 R236
0
R235
0
R227
75
R229
75
R246
75
R245
75
R244
75
R241
0
R242
0
R243
0
R621
75
R620
75
R624
0
R625
0
R618
75
R619
75
R622
0
R623
0
R443
270
R429 10K
R902
2.2K
R920
220
R823
100
R221
75
R357 470
R355
180
R356
180
R354
330
R352 100K
R353 470K
R351
0
R222
75
R422
22K
R430
10K
R415
22K
R423
1.5K
R418
22K
R414
22K
R413
22K
R419
1.5K
R417 22K
R424
1.5K
R420
1.5K
R416
22K
R412
1.5K
R410
10K
R408
10K
R411
1.5K
R407
10K R409
10K
R402
1.5K
R404
NC
R456
100K
R457
100K
R403
NC
R126 47
R124 47
R462
1K
R107 47
R106 47
R104 47
R103 47
R102 47
R127 47
R125 47
R122 47
R121 47
R135 10K R134 10K R137 10K R136 10K
P352
RI_OUT
1
2
3
4
232SCK
232SI
232SO
232RE Y Y
232RESET P/XI
232BU ASPECT
-27V
C C
RI
FLAC1
V
VDET
FLAC2
IRIN
EVER+5V
ACK
G/Y
GND
DEMO
B/CB
SYSRESET
DOUT
RESET GND_VIDEO
P_ON
XSCK R/CR
XRDY
Y
SI V
SO
GND
VSEL1
AGND
B/CB
VSEL2
SQUEEZE
ASPECT
R/C
P/XI
RGB
Y/V
G/Y
B/CB
R/CR
G/Y
GND
CSI
SO
V XSCK
MRESET V+12V V+12V
YSW+5V
EVER+5V
SQUEEZE
RGB
V+11V
IC
GND
VSEL2
232RE 232BU
232SCK
232SO
232SI
232RESET
RGBSW
V+12V
SW+5V SW+5V
R/C.DRV
Y/V.DRV
CTS VSEL1
DTR
RXD
R/C.DRV
TXD
RGBSW
Y/V.DRV
VDET
DVDMUTE DVDMUTE
ACK RESET
SI
SO
XSCK
XRDY
SYSRESET
P_ON
V+6V
DOUT
V+6V
AGND
TXD
FLAC1 FLAC2
GND
V+12V
GND
M+8V
MGND
SW+5V
GND
EVER+5V
P_ON
-27V
+8V
RXD
DTR
MUTE_R
CTS
DEMO
NAAR-7997
L ch
R ch
R ch
MONO
15 10 5 1
R115R116
CR
CB
Y
IR
DPS-5.4 only
RGB
-
-
0
0
OTHER
MUP2P
For Download
1mm Pich FFC
L ch
+12V +6V
NC
To Power supply unit (CN2)
From DVD Main circuit PC board
From DVD Main circuit PC board From DVD Main circuit PC board
To Display circuit PC board
To U7: RS-232C terminal PC board
NC
VIDEO OUTPUT
COMPONENT 1
COMPONENT 2
+12V
-27V
+8V For Mecha.
For FL tube
+8V
+5V
DPS-5.4
SCHEMATIC DIAGRAM-1 U1 : OUTPUT TERMINAL PC BOARD
A
1
2
3
4
5
BCDEFGH
NC
www.denom.com

Q806
UMG9N
53
12
4
P201
C
4
G1
1
G2
5
G3
2
G4
7
SIGNAL
8
Y
3
P205
8
1
4
Q607
HN1A01F-GR
25
6
3
1
4
Q608
HN1A01F-GR
25
6
3
1
4
Q463
DTC144YKA
Q603
DTC114EE
Q602
DTC114EE
P701A
D601 1SS226
D606 1SS226
D604
1SS226
D603 1SS226
D605 1SS226
D602
1SS226
Q601
TC4053BF
A11
B10
C9
EN6
GND8
VCC16
VEE7
X14
X012
X113
Y15Y02
Y11
Z4
Z05
Z13
Q460
DTA114YKA
P601
SCART
10
12
2
20
6
AGND4
AUDIO_L3
AUDIO_R1
B7
CV/Y19
F.SW8
G11
R/C15
RGB.SW16
VGND15
VGND29
VGND313
VGND414
VGND517
VGND618
VGND721
D924
1SS352
D921
1SS352
D923
1SS352
D922
1SS352
D460
1SS352
D801
1SS355
C483
104Z
C484
104Z
C602 104Z
C359
220
C358
220
C357 104K
C815
223
Q801
ON3131
P802
IR_IN/OUT
P901
CN901
ARK 20
CTS 30
DOUT 10
DVDMUTE 25
DVDPOWER 13
DVDTRKUP 24
GNDD 8
GNDD2 9
GNDD3 11
GNDD4 12
GNDD5 21
GNDD6 22
GNDM 6
GNDM2 7
MDATA 19
RTS 29
RXD 28
SCLK 17
SDATA 18
SYS_CS1 15
SYS_CS2 16
TXD 27
VDET 23
VDVD+12 1
VPR+8A1 3
VPR+8A2 2
VPR+8M1 5
VPR+8M2 4
XDVDRST 14
XVMUTE 26
CN902
C6
DVDA2 4
DVDL 3
DVDR 1
GND1 5
GND2 7
GND3 9
GND4 11
GNDA1 2
V8
Y10
CN903
ASPECT 14
C5
CB/B 9
CR/R 7
CY/G 11
DNG3 6
GND1 10
GND2 8
GND4 4
GND5 2
LETTER 15
P/XI 13
RGB 12
SQUEEZE 16
V3
VSEL1 18
VSEL2 17
Y1
P350
C482
C480
C481
C405
152
C406
152
C409
470
C410
470
C408
102
C407
102
C404
681
C403
681
P402
1
2
3
P203
2
3
1
4
P401
2
3
1
4
P351A
P702B
R431
470
R435
100
R432
470
R427
10K
R119 10K
R820
3.3K
R821
10K
R822
10K
R428
10K
R115
0
R116
R118
10K
R117
10K
P851A
P292A
P105
P201
C
4
G1
1
G2
5
G3
2
G4
7
SIGNAL
8
Y
3
Q404
NJM4580M-D
3
2
-B
4
1
Q403
NJM4580M-D
5
6
-B
4
7
Q401
NJM4580M-D
5
6
-B
4
7
Q402
NJM4580M-D
5
6
-B
4
7
Q604
2SC2712
Q605 2SC2712
Q920
2SC2712
Q407
HN1C03F
5
3
4
Q407
HN1C03F
2
6
1
Q405
HN1C03F
2
6
1
Q405
HN1C03F
5
3
4
Q406
HN1C03F
2
6
1Q406
HN1C03F
5
3
4
D101
UDZ5B
D901
UDZS5.1B
D920
UDZS11B
P104
CTS 4
DTR 3
GNDD 6
NC 7
RXD 2
TXD 1
V+5D 5
Q606
2SA1162
Q404
NJM4580M-D
5
+B
8
6
7
Q403
NJM4580M-D
3
+B
8
2
1
Q402
NJM4580M-D
3
+B
8
2
1
Q401
NJM4580M-D
3
+B
8
2
1
Q356 JFJ3000
OPTICAL_OUT
1
3
2
Q351 JFJ3000
OPTICAL_OUT
1
3
2
Q352
TC74VHCU04T
1 2 3 4 5 6
8 9
10 11 12 13
GND7
VCC 14
C364
223Z
C418
102
C416
102
C417
102
C101
104Z
C253 104K
C222 104K
C923 104Z
C363
223Z
C367
104Z
C360
104Z
C361 104Z
C355
020
C354
020
C356
020
C352 104Z
C351
C905 104Z
C903 104Z
C914 104Z
C909 104Z
C901 104Z
C907 104Z
C420
470/6.3
C419
47/50
C414
47/50
C411 220/6.3
C412
220/6.3
C911
100/16
C485
220/16
C486
220/16
C614
470/6.3
C615
470/6.3
C603
100/16
C601
100/16
C223
470/6.3
C221
470/6.3
C2241000/6.3
C2251000/6.3
C2261000/6.3
C251
470/6.3
C252
470/6.3
C612
470/6.3
C613
470/6.3
C415
47/50
C413
47/50
C2291000/6.3
C2281000/6.3
C2271000/6.3
C921
220/16
C922 220/16 C920
10/16
C906 220/16
C814
100/6.3
C362
100/6.3
C353 100/6.3
C402 47/16
C401
47/16
C904
220/6.3
C902
220/16
C910
1000/16
C908
1000/16
L210
L212
L211
L201
L203
L202
L204
L205
L206
L207
L208
L209
L603
L604
L601
L602
L354
BK1608LM182-T
L353 BK1608LM182-T
L352
BK1608LM182-T
L351 BK1608LM182-T
R463
1K
R482
2.2
(1/4W)
R458 150K
RR461
150K
R459 150K
R461 150K
R455 100K
R453
100
R454 2.2K
R452 2.2K
R433
100
R441 100K
R445 2.2K
R449 2.2K
R447 100
R444
270
R434
100
R442 100K
R450 2.2K
R448
100
R446 2.2K
R108 47
R406
0
R405
0
R401
1.5K
R481
2.2 (1/4W)
R421
22K
R257 10K
R224 10K
R611
R610
68
R626
0
R615
10K
R604
10K
R605
10K
R614
1K
R613
330 1/2W
R612
330 1/2W
R617
100
R616
100
R603
2.2K
R602
2.2K
R601
1.8K
R609
56K
R607
1.2K
R608
22K
R606
4.7K
R101 10K
R123 0
R223
75
R252
75
R254
75
R256
75
R251
0
R255
0
R253
0
R231
0
R233
0
R232
0
R234
0
R225
75 R236
0
R235
0
R227
75
R229
75
R246
75
R245
75
R244
75
R241
0
R242
0
R243
0
R621
75
R620
75
R624
0
R625
0
R618
75
R619
75
R622
0
R623
0
R443
270
R429 10K
R902
2.2K
R920
220
R823
100
R221
75
R357 470
R355
180
R356
180
R354
330
R352 100K
R353 470K
R351
0
R222
75
R422
22K
R430
10K
R415
22K
R423
1.5K
R418
22K
R414
22K
R413
22K
R419
1.5K
R417 22K
R424
1.5K
R420
1.5K
R416
22K
R412
1.5K
R410
10K
R408
10K
R411
1.5K
R407
10K R409
10K
R402
1.5K
R404
NC
R456
100K
R457
100K
R403
NC
R126 47
R124 47
R462
1K
R107 47
R106 47
R104 47
R103 47
R102 47
R127 47
R125 47
R122 47
R121 47
R135 10K R134 10K R137 10K R136 10K
P352
RI_OUT
1
2
3
4
232SCK
232SI
232SO
232RE Y Y
232RESET P/XI
232BU ASPECT
-27V
C C
RI
FLAC1
V
VDET
FLAC2
IRIN
EVER+5V
ACK
G/Y
GND
DEMO
B/CB
SYSRESET
DOUT
RESET GND_VIDEO
P_ON
XSCK R/CR
XRDY
Y
SI V
SO
GND
VSEL1
AGND
B/CB
VSEL2
SQUEEZE
ASPECT
R/C
P/XI
RGB
Y/V
G/Y
B/CB
R/CR
G/Y
GND
CSI
SO
V XSCK
MRESET V+12V V+12V
YSW+5V
EVER+5V
SQUEEZE
RGB
V+11V
IC
GND
VSEL2
232RE 232BU
232SCK
232SO
232SI
232RESET
RGBSW
V+12V
SW+5V SW+5V
R/C.DRV
Y/V.DRV
CTS VSEL1
DTR
RXD
R/C.DRV
TXD
RGBSW
Y/V.DRV
VDET
DVDMUTE DVDMUTE
ACK RESET
SI
SO
XSCK
XRDY
SYSRESET
P_ON
V+6V
DOUT
V+6V
AGND
TXD
FLAC1 FLAC2
GND
V+12V
GND
M+8V
MGND
SW+5V
GND
EVER+5V
P_ON
-27V
+8V
RXD
DTR
MUTE_R
CTS
DEMO
NAAR-7997
L ch
R ch
R ch
MONO
15 10 5 1
R115R116
CR
CB
Y
IR
DPS-5.4 only
RGB
-
-
0
0
OTHER
MUP2P
For Download
1mm Pich FFC
L ch
+12V +6V
NC
To Power supply unit (CN2)
From DVD Main circuit PC board
From DVD Main circuit PC board From DVD Main circuit PC board
To Display circuit PC board
To U7: RS-232C terminal PC board
NC
VIDEO OUTPUT
COMPONENT 1
COMPONENT 2
+12V
-27V
+8V For Mecha.
For FL tube
+8V
+5V
DPS-5.4
SCHEMATIC DIAGRAM-1 U1 : OUTPUT TERMINAL PC BOARD
A
1
2
3
4
5
BCDEFGH
NC
www.denom.com

P981A
AC INLET
C991
103M/250V
S991
CN2
P982BP982A
P982B P982A
AC H
CN1
AC G P981
E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER
ATTENTION
FOR CONTINUED PROTECTION AGAINST FIRE
AGAINST FIRE HAZARD, REPLACE
RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL.
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
THAT THE FUSE USED IS SLOW OPERATING TYPE
VA
ET CALIBRATION COMME INDIQUE.
D'INCENDIE, REMPLACER UNIQUEMENT
PERMANENTE CONTRE LES RISQUES
AFIN D'ASSURER UNE PROTECTION
PAR UN FUSIBLE DE MEME TYPE
VA
FOR CONTINUED PROTECTION
AND RATING INDICATED.
ONLY WITH FUSE OF SAME TYPE
CAUTION
R
100KX5
0
0
NC
NC
NC
1K
1K
NC
NC
NC
0
0
Region 4 1
MDD MUA
R738
R739
R740
R741
R742
R743
P701A
JL703B JL703A
Q703
S-80145
1
2
3
4
5
Q701
MPD780232GC
+5V 24
10G71 11G70 12G69 13G68 1G80
232SCK 31
232SO 32
2G79 3G78 4G77 5G76 6G75 7G74 8G73 9G72
ACK 14
AVSS 18
DISPKLAYMODE 13
FLON_OFF 39
IC 5
INIT0 35 INIT1 34 INIT2 33
IRIN 15
K0 22 K1 21
K2 20
MSO_0 38 MSO_1 37 MSO_2 36
NC1048
NC1149
42
NC543
NC644
NC745
NC846
NC947
OPEN67 P166
P1055
P1154
P1253
P1352
P1451
P1550
P265 P364 P463 P562 P661
P758
P857
P956
PON 11
R232BUSY 29
R232REQ 28
R232RES 40
R232SI 30
REMO 16
RESET 6
SI 8
SO 9
STBYLED
41
SYSIN 26
SYSOUT 27
SYSRESET 12
VCOFF 17
VDD0 25
VDD1 1
VDD259
VDET 19
VLOAD60
VSS0 23
VSS1 2
X1 3
X2 4
XRDY 10
XSCK 7
R708 0
P702A
Q707
2S Q706
2S
D702
UDZS5.6B
D701
D703
1SS352
Q704
RN2403
Q705
REMSENS
X701
5.00MHZ
C705
22/50
C706
100/6.3
C701
100/6.3
C703 104Z
C704 104Z
C702 104Z
P731
ENTER
S731
NPS-115-S673
5
3
4
2
1
6
7
S704
T.MENU
S706
MENU
S716
STANDBY
S715
DIMMER
S713
PLAY MODE
S712
CLEAR
S714
DISPLAY
S707
SETUP
S705
RETURN
S701
PAUSE
S702
STOP
S703
PLAY
S710
OPEN
S709
UP
S708
DOWN
R7170 R7180
R757
3.9K
R756
1.8K
R755
1K
R753
470
R754
820
R752
390
R739R738
R740 R741 R742 R743
R733
1K
R734
0
R737
1K
R736
R714 100
R715 100 R716 100
R727
0
R701
10K
R710 10K
R751 2.7K
R766
2.7K
R758 2.7K
R726
0
R724
0
R725
0
R719
10K
R720 10K R721 10K R722 10K
R723
10K
R772
3.9K
R773
10K
R764
3.9K R765
10K
R771
1.8K
R763
1.8K
R759
390
R760
470
R761
820
R767
390
R768
470
R769
820
R770
1K
R762
1K
R779
470
R713
220K
R709
R711 1M
R702 0
R703 100
R704 0
R705 0
R706 0
R707 0
R712
47K
Q708
RN1407
D721
STANDBY
Q702HNV-13SS12T
10G32 11G31 12G30 13G29
1G41 2G40 3G39 4G38
5G37 6G36 7G35 8G34 9G33
F11
F122 F245
F2244
P119
P1010
P119 P128 P137 P146
P155
P218 P317 P416 P515 P614
P713 P812 P911
K1 K1
MSO_0 MSO_1 MSO_2
INIT0 INIT1 INIT2
1G 2G 3G 4G 5G 6G 7G 8G 9G
10G 11G 12G 13G
P1 P2 P3 P4 P5 P6 P7 P8 P9
P10 P11 P12 P13 P14 P15
STB_L STB_L
K0 K0
SRESET MSO_0 MSO_1 MSO_2 INIT0 INIT1 INIT2 232SO 232SCK 232SI 232BU 232RE SYSOUT SYSIN K0 K1
REMO
K2
UP
RIGHT
FL_ON/OFF ENTER
DOWN
LEFT
SYSIN
STB_L K2 RI
VDET
SYSOUT
REMO
IRIN
ACK
DEMO -27V
SYSRESET GND
P15 PON
P14 XRDY
P13 SO FLAC1
P12 SI FLAC2
P11 XSCK
P10
SYSRESET
E+5V IRIN VDET XRDY
GND
DEMO GND ACK FLAC1 FLAC2 RI -27V 232BU SRESET 232RE 232SO 232SI 232SCK SO XSCK PON RESET SI
P9
P8
P7
13G 12G 11G 10G
9G 8G 7G 6G 5G 4G 3G 2G 1G
P6 P5 P4 P3 P2 P1
1
FLAC1
FLAC
-27V
NC
GND
EVRE+12V GND E+8V M+8V NC GND SW+5V
GND
EVER+5V P ON
NGPS-0041 AC100-240V 50Hz/60Hz
NGPS-0040 AC100-120V 50Hz/60Hz
Model Setup
R737 1K NC
20 10
R736 NC 0
DPS-5.4 Others
R709 NC 0
R708 0 NC
Integra Others
42: NC4
U3 : STANDBY SWITCH
PC BOARD NADIS-7999
To Output terminal PC board NAAR-7997
U20 : POWER SUPPLY UNIT
U4 : POWER SWITCH
PC BOARD NASW-8000
U5 : INLET TERMINAL
PC BOARD NAPS-8002
NC
: MARK
NC
+5V
+5V
NC NC
To Output terminal PC board NAAR-7997 (P901)
DPS-5.4

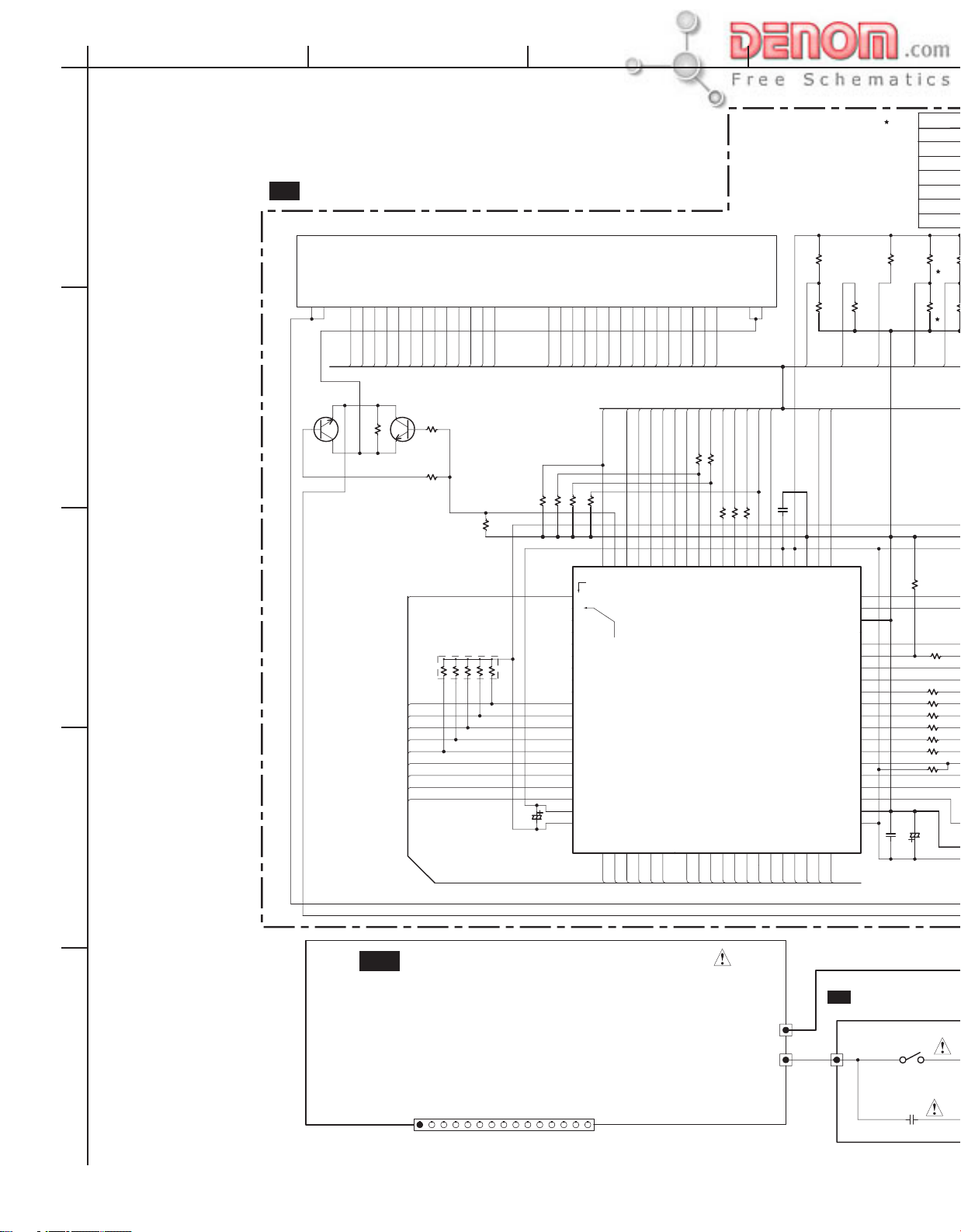

SCHEMATIC DIAGRAM-2
U2 : DISPLAY CIRCUIT PC BOARD NADIS-7998
A
1
2
3
4
5
BCDEFGH
www.denom.com

P981A
AC INLET
C991
103M/250V
S991
CN2
P982BP982A
P982B P982A
AC H
CN1
AC G P981
E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER
ATTENTION
FOR CONTINUED PROTECTION AGAINST FIRE
AGAINST FIRE HAZARD, REPLACE
RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL.
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
THAT THE FUSE USED IS SLOW OPERATING TYPE
VA
ET CALIBRATION COMME INDIQUE.
D'INCENDIE, REMPLACER UNIQUEMENT
PERMANENTE CONTRE LES RISQUES
AFIN D'ASSURER UNE PROTECTION
PAR UN FUSIBLE DE MEME TYPE
VA
FOR CONTINUED PROTECTION
AND RATING INDICATED.
ONLY WITH FUSE OF SAME TYPE
CAUTION
R
100KX5
0
0
NC
NC
NC
1K
1K
NC
NC
NC
0
0
Region 4 1
MDD MUA
R738
R739
R740
R741
R742
R743
P701A
JL703B JL703A
Q703
S-80145
1
2
3
4
5
Q701
MPD780232GC
+5V 24
10G71 11G70 12G69 13G68 1G80
232SCK 31
232SO 32
2G79 3G78 4G77 5G76 6G75 7G74 8G73 9G72
ACK 14
AVSS 18
DISPKLAYMODE 13
FLON_OFF 39
IC 5
INIT0 35 INIT1 34 INIT2 33
IRIN 15
K0 22 K1 21
K2 20
MSO_0 38 MSO_1 37 MSO_2 36
NC1048
NC1149
42
NC543
NC644
NC745
NC846
NC947
OPEN67 P166
P1055
P1154
P1253
P1352
P1451
P1550
P265 P364 P463 P562 P661
P758
P857
P956
PON 11
R232BUSY 29
R232REQ 28
R232RES 40
R232SI 30
REMO 16
RESET 6
SI 8
SO 9
STBYLED
41
SYSIN 26
SYSOUT 27
SYSRESET 12
VCOFF 17
VDD0 25
VDD1 1
VDD259
VDET 19
VLOAD60
VSS0 23
VSS1 2
X1 3
X2 4
XRDY 10
XSCK 7
R708 0
P702A
Q707
2S Q706
2S
D702
UDZS5.6B
D701
D703
1SS352
Q704
RN2403
Q705
REMSENS
X701
5.00MHZ
C705
22/50
C706
100/6.3
C701
100/6.3
C703 104Z
C704 104Z
C702 104Z
P731
ENTER
S731
NPS-115-S673
5
3
4
2
1
6
7
S704
T.MENU
S706
MENU
S716
STANDBY
S715
DIMMER
S713
PLAY MODE
S712
CLEAR
S714
DISPLAY
S707
SETUP
S705
RETURN
S701
PAUSE
S702
STOP
S703
PLAY
S710
OPEN
S709
UP
S708
DOWN
R7170 R7180
R757
3.9K
R756
1.8K
R755
1K
R753
470
R754
820
R752
390
R739R738
R740 R741 R742 R743
R733
1K
R734
0
R737
1K
R736
R714 100
R715 100 R716 100
R727
0
R701
10K
R710 10K
R751 2.7K
R766
2.7K
R758 2.7K
R726
0
R724
0
R725
0
R719
10K
R720 10K R721 10K R722 10K
R723
10K
R772
3.9K
R773
10K
R764
3.9K R765
10K
R771
1.8K
R763
1.8K
R759
390
R760
470
R761
820
R767
390
R768
470
R769
820
R770
1K
R762
1K
R779
470
R713
220K
R709
R711 1M
R702 0
R703 100
R704 0
R705 0
R706 0
R707 0
R712
47K
Q708
RN1407
D721
STANDBY
Q702HNV-13SS12T
10G32 11G31 12G30 13G29
1G41 2G40 3G39 4G38
5G37 6G36 7G35 8G34 9G33
F11
F122 F245
F2244
P119
P1010
P119 P128 P137 P146
P155
P218 P317 P416 P515 P614
P713 P812 P911
K1 K1
MSO_0 MSO_1 MSO_2
INIT0 INIT1 INIT2
1G 2G 3G 4G 5G 6G 7G 8G 9G
10G 11G 12G 13G
P1 P2 P3 P4 P5 P6 P7 P8 P9
P10 P11 P12 P13 P14 P15
STB_L STB_L
K0 K0
SRESET MSO_0 MSO_1 MSO_2 INIT0 INIT1 INIT2 232SO 232SCK 232SI 232BU 232RE SYSOUT SYSIN K0 K1
REMO
K2
UP
RIGHT
FL_ON/OFF ENTER
DOWN
LEFT
SYSIN
STB_L K2 RI
VDET
SYSOUT
REMO
IRIN
ACK
DEMO -27V
SYSRESET GND
P15 PON
P14 XRDY
P13 SO FLAC1
P12 SI FLAC2
P11 XSCK
P10
SYSRESET
E+5V IRIN VDET XRDY
GND
DEMO GND ACK FLAC1 FLAC2 RI -27V 232BU SRESET 232RE 232SO 232SI 232SCK SO XSCK PON RESET SI
P9
P8
P7
13G 12G 11G 10G
9G 8G 7G 6G 5G 4G 3G 2G 1G
P6 P5 P4 P3 P2 P1
1
FLAC1
FLAC
-27V
NC
GND
EVRE+12V GND E+8V M+8V NC GND SW+5V
GND
EVER+5V P ON
NGPS-0041 AC100-240V 50Hz/60Hz
NGPS-0040 AC100-120V 50Hz/60Hz
Model Setup
R737 1K NC
20 10
R736 NC 0
DPS-5.4 Others
R709 NC 0
R708 0 NC
Integra Others
42: NC4
U3 : STANDBY SWITCH
PC BOARD NADIS-7999
To Output terminal PC board NAAR-7997
U20 : POWER SUPPLY UNIT
U4 : POWER SWITCH
PC BOARD NASW-8000
U5 : INLET TERMINAL
PC BOARD NAPS-8002
NC
: MARK
NC
+5V
+5V
NC NC
To Output terminal PC board NAAR-7997 (P901)
DPS-5.4
SCHEMATIC DIAGRAM-2
U2 : DISPLAY CIRCUIT PC BOARD NADIS-7998
A
1
2
3
4
5
BCDEFGH
www.denom.com
