Firmware Update for the DTR-70.1/80.1 and DHC-80.1
We are pleased to offer this firmware update for the best possible performance of your AV
Receiver.
The firmware update may fail if an external HDMI control signal is input during the update
procedure. Please be sure to turn off the HDMI control function (RIHD) on your A/V receiver
before starting the update.
How to turn off RIHD:
In the Main menu select "7. Hardware Setup", then "7-4. HDMI".
Set "HDMI Control" to OFF.
•Please read the update instructions carefully before beginning.
•The firmware update should take 30 to 40 minutes. Once the update begins, don't turn off the
power supply to the A/V receiver until it is time to restart it.
•Depending on the conditions of the network, a firmware update via a network may take more
than one hour or even fail to finish. If the update is not completed within two hours, turn off
the power supply by pushing the ON/STANDBY button and then try updating again from
the beginning.
•Updating the firmware and adjusting the settings will be done automatically, but may take
some time to complete. Please follow the procedures as instructed when you update. Note
that the update may fail, or cause problems for your A/V receiver, if you do any of the
following:
• Pull out the A/V receiver’s power cord;
• Interrupt the power supply to the A/V receiver (e.g. if the breaker is tripped or if there is an
electrical outage);
• Insert or remove the LAN cable from a device in your network when updating over a
network;
• Insert or remove a USB memory device from the A/V receiver when updating via USB;
• Operate components connected to the A/V receiver via HDMI, such as a TV or a recording
device.
If your A/V receiver is damaged for any of the reasons above, an Integra service center will
repair the unit for a fee.

Firmware Update for the DTR-70.1/80.1 and DHC-80.1
A firmware update is now available through the Network or USB connection on the DTR-
70.1/80.1 and DHC-80.1.
The 10/1/10 update will:
1. Increase the stability of network operations
(Improves network operation when using the TCP/IP control)
2. Improve the playback of some particular files
(Corrects playback of mp3 files and some wav files may experience some noise)
3. Improve the processing of DSD for output to Subwoofer
(Corrects DSD 5.1 ch, Subwoofer volume level which is 10 dB higher than regular Direct mode)
The 6/15/10 update will:
1. Stabilizes operation immediately after power is turned on
(thereby avoiding problems of no sound output after the A/V receiver has been in Standby mode for an extended time with
network control enabled).
2. Improves the playback stability of selected WMA Internet radio stations
3. Reduces the delay of sound output for internet radio in Zone 2
The 2/24/10 update will:
1. Enhance S/N during 24bit/96kHz content playback from USB memory/DLNA server
2. Reduce speaker relay switching sound
The 12/22/09 update will:
1. Improve the functionality of auto speaker setup in Bi-amp mode and when a passive subwoofer
is connected
2. Improve the operation stability just after power-on (Depending on the timing, no sound comes out.)
3. Improves on screen display menus
The 11/19/09 update will:
1. Improved display of Chinese menus
The 10/16/09 update will:
1. Improve Internet Radio operability
2. Improve picture quality for iPod/iPhone through UP-A1
The latest update includes all prior updates.
We hope you enjoy the improved functionality this update provides to your AV Receiver.

Firmware Update for the DTR-70.1/80.1 and DHC-80.1
There are the following methods to update the firmware: via network and via USB storage.
Please choose either one that suits your condition. Before you start, carefully read the update
procedure.
It will take 30 to 40 minutes to update the firmware.
Update via network
You need a wired Internet connection to update the firmware.
For the update procedure, please refer to “Updating the Firmware via Network” on page 4.
Update via USB storage
Please prepare a USB storage device such as a USB flash memory stick. You need at least 32
MB of available space to update the firmware.
For the update procedure, please refer to “Updating the Firmware via USB” on page 6.
Precautions on the USB storage device:
•The storage media in the USB card reader may not work.
•If the storage device has been partitioned, each section will be treated as an independent
device.
•If the USB mass storage device contains a lot of data, the AV receiver/controller may
take a while to read it.
•Operation with all USB mass storage devices including the ability to power them is not
guaranteed.
•Integra accepts no responsibility whatsoever for the loss or damage to data stored on a
USB mass storage device when that device is used
•with the AV receiver/controller. We recommend that you back up your important music
files beforehand.
•If you connect a USB hard disk drive to the USB port, we recommend that you use its
AC adapter to power it.
•USB hubs and USB devices with hub functions are not supported. Do not connect your
USB mass storage device via a USB hub.
•USB memory devices with security functions are not supported.

Updating the Firmware via Network
DTR-70.1/80.1 and DHC-80.1 allow you to update
firmware using Network connection on rear panel.
* In this procedure, on-screen display may vary depending on the
model.
Note:
1. Make sure your AV receiver/controller and TV are turned
on and Ethernet cable is connected to rear panel of the AV
receiver/controller.
2. Never unplug or turn off the AV receiver/controller during
updating process.
3. It will take 30 to 40 minutes to update the firmware.
4. The AV receiver/controller will retain all your settings after
update is finished.
Step 1:
Push [RECEIVER] followed by [SETUP] on the remote
controller.
Main menu will be displayed on TV screen. Procedures
thereafter can also be performed on the AV
receiver/controller by using its SETUP, arrow, and
ENTER buttons.
Step 2:
Go to “7. Hardware Setup” menu.
Step 3:
Go to “7-6. Firmware Update” menu.
Note that the Firmware Update option will be grayed
out for 30 seconds after AV receiver/controller is
turned on.
Please wait.
Step 4:
Select “Via NET” and push [ENTER].
Step 5:
Select “Update” and push [ENTER].
Updating will begin.
As the updating progresses, the TV screen may
disappear depending on the program updated. In this
case, you can see the update progress on the front
display of the AV receiver/controller. The TV screen
will reappear when you finish the update and turn on the
AV receiver/controller.
Step 6:
Message “OK:Sum = ********” appears on the front
display of the AV receiver/controller, indicating that the
update has been completed. (Alpha-numeric characters
on the front display are denoted by asterisks.)
Step 7:
Using the [ON/STANDBY] button on the front panel,
turn off and on the AV receiver/controller.
Do not use the [ON] or [STANDBY] button on the
remote controller.
Congratulations!! Now you have the latest firmware on
your Integra AV receiver/controller.
(Go to the next page for troubleshooting.)

Troubleshooting
Error Code Description
*-10, *-20 Ethernet cable is not detected. Connect the cable
properly. See the instruction manual for the
network connection.
*-11, *-13,
*-21, *-28 Internet connection error. Check the following items:
• Make sure IP address, subnet mask, gateway
address, and DNS server are configured
properly.
• Make sure the router is turned on.
• Make sure the AV receiver/controller and the
router are connected with Ethernet cable.
• Make sure the setup configuration of the router
is set properly. See the instruction manual of the
router.
• If your network allows only one client
connection and there is any other device already
connected, the AV receiver/controller cannot
access the network. Consult your Internet
Service Provider (ISP).
• If your modem does not function as a router,
you will need a router. Depending on your
network, you may need to configure the proxy
server if needed. See the document provided by
your ISP. If you still cannot access the Internet,
DNS or proxy server may be temporarily down.
Contact your ISP.
Others Retry the update procedure from the beginning.
If the error persists, please contact Integra
Support (indicated at the end of this page) and
provide the error code.

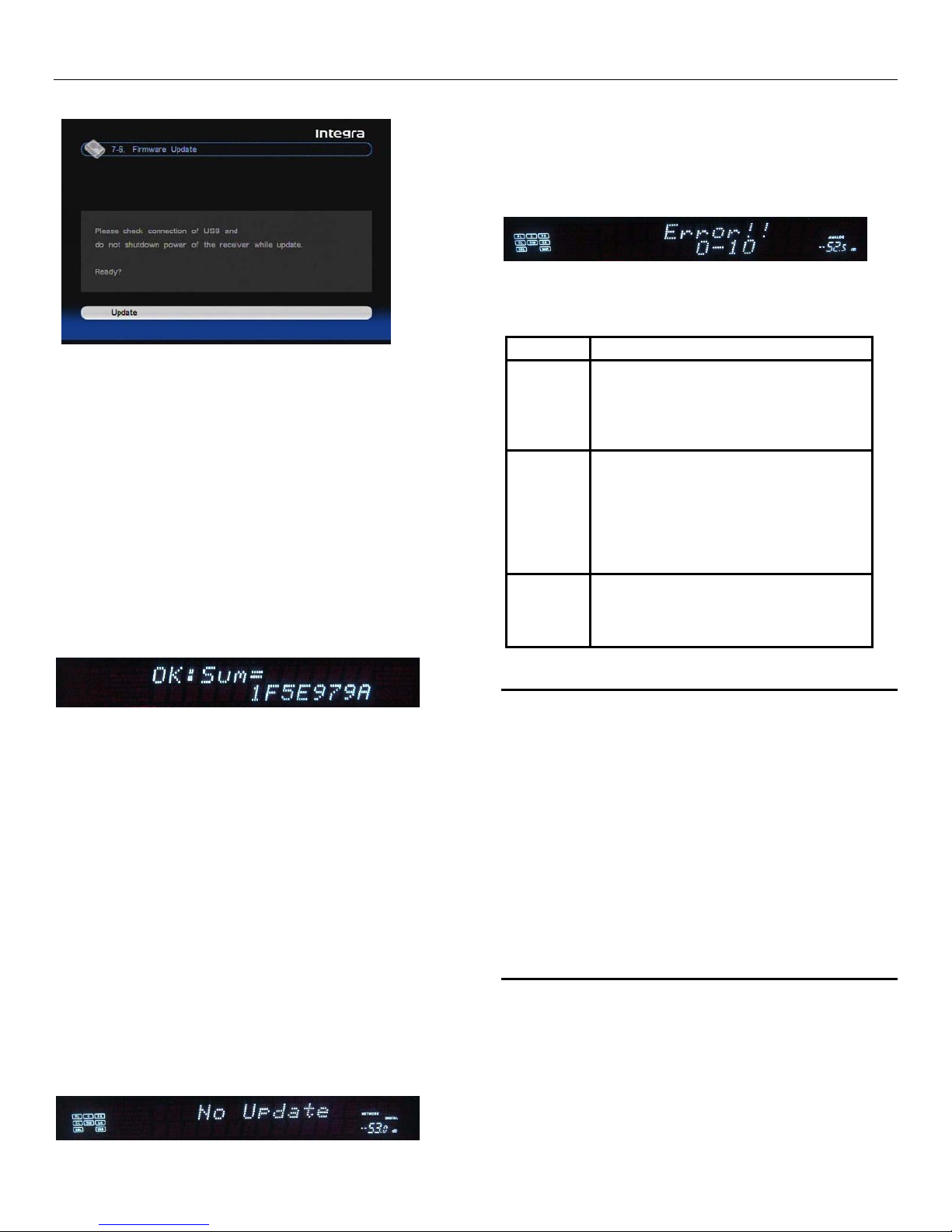

Case 1:
If “No Update” is displayed on the front display of the
AV receiver/controller as below, the firmware has
already been updated. You do not need to do anything
further.
Case 2:
If an error occurs, “Error!! *-**” is displayed on the
front display of the AV receiver/controller.
(Alphanumeric characters on the front display are
denoted by asterisks.) The example below is displaying
error code 0-10. See the following table and take
appropriate action.
Errors during update via Network
Case 3:
If you do not have a wired connection to the network,
please contact below.
ONKYO CORPORATION
2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
The Americas
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: [phone]
Fax: [phone]
http://www.us.onkyo.com/
Europe
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: [phone] Fax: [phone]
http://www.eu.onkyo.com/
China, Hong Kong
ONKYO CHINA LIMITED
Unit 1&12, 9/F, Ever Gain PlazaTower 1, 88, Container Port Road,
Kwai Chung, N.T., HONG KONG
Tel: [phone] Fax: [phone]
http://www.onkyochina.com/
Asia, Oceania, Middle East, Africa
Please contact an ONKYO distributor referring to Onkyo SUPPORT
site.
<http://www.intl.onkyo.com/support/local_support/index.html>
