Integra DRX-2.4 User manual

AV Receiver
En
DRX-2.4
Instruction Manual

Contents
2
Reducing the Power Consumption in Standby
State
When the following functions are enabled, the power consumption in
standby state increases. To reduce the power consumption in standby state,
check each setting and set the functions to "Off".
– HDMI CEC ( →p114)
– HDMI Standby Through ( →p114)
– USB Power Out at Standby ( →p121)
– Network Standby ( →p121)
– Bluetooth Wakeup ( →p122)
Table of contents
Detailed contents (Next page)
Firmware Update
Troubleshooting
Supplementary Information

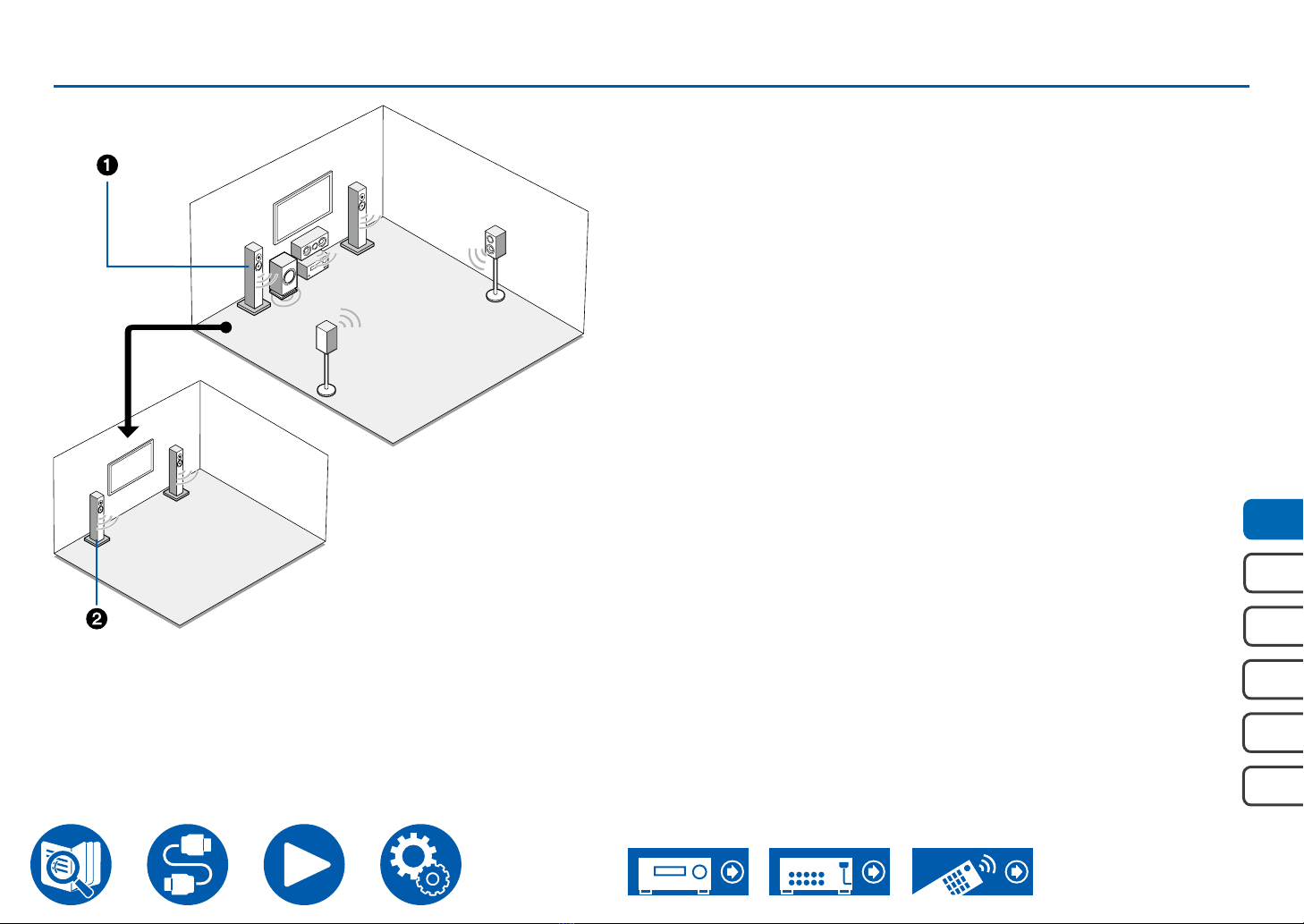

Zone 2Zone 2
Main Room
Z2
Z2
Z
one
2
Zone 2
Main Room
Roo
m

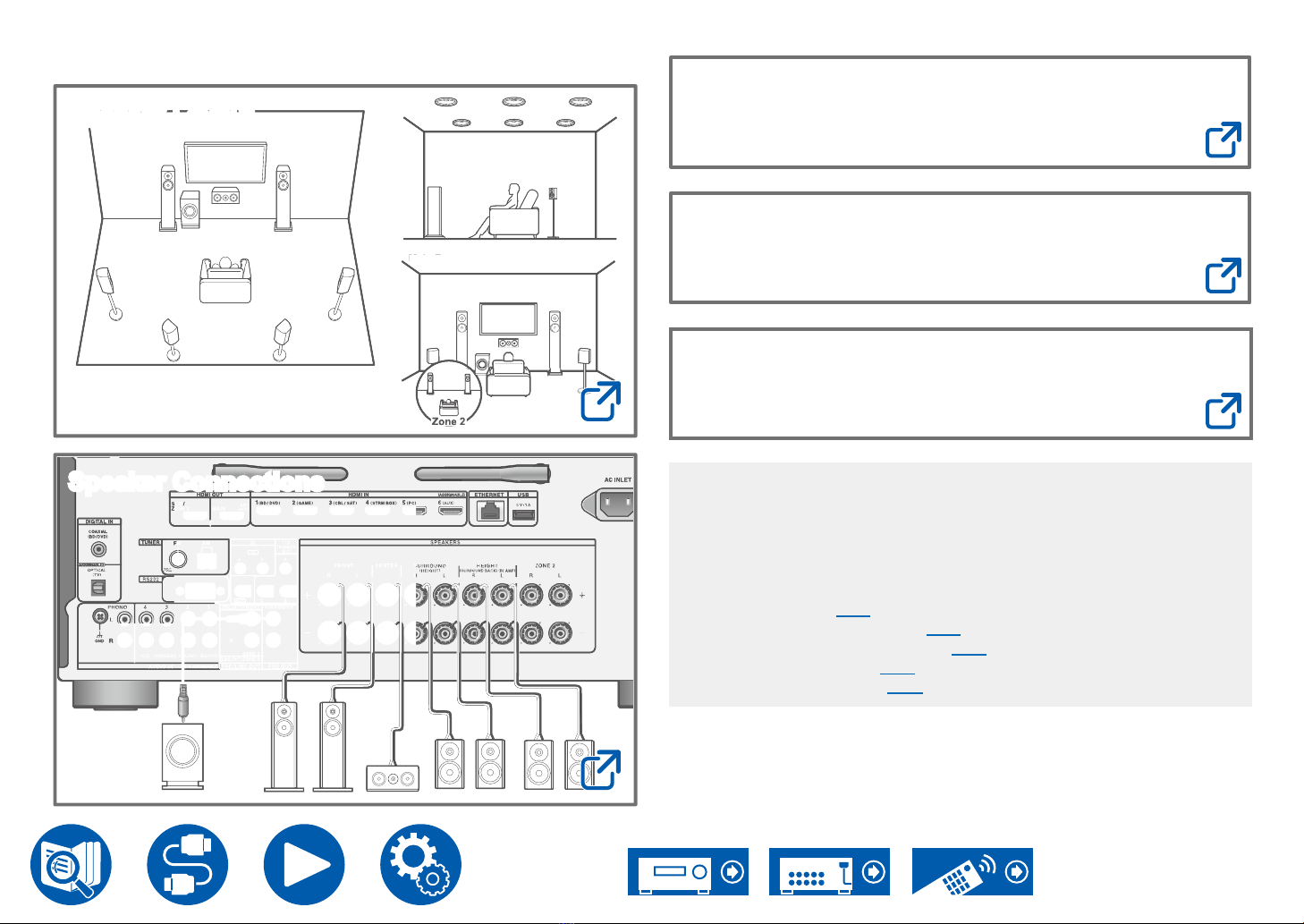

Speaker Layout
Speaker Connections

3
Before starting the procedure 6
Firmware Update 7
Update Information of the rmware 7
Firmware Update Procedure 7
Part Names 10
Front Panel 10

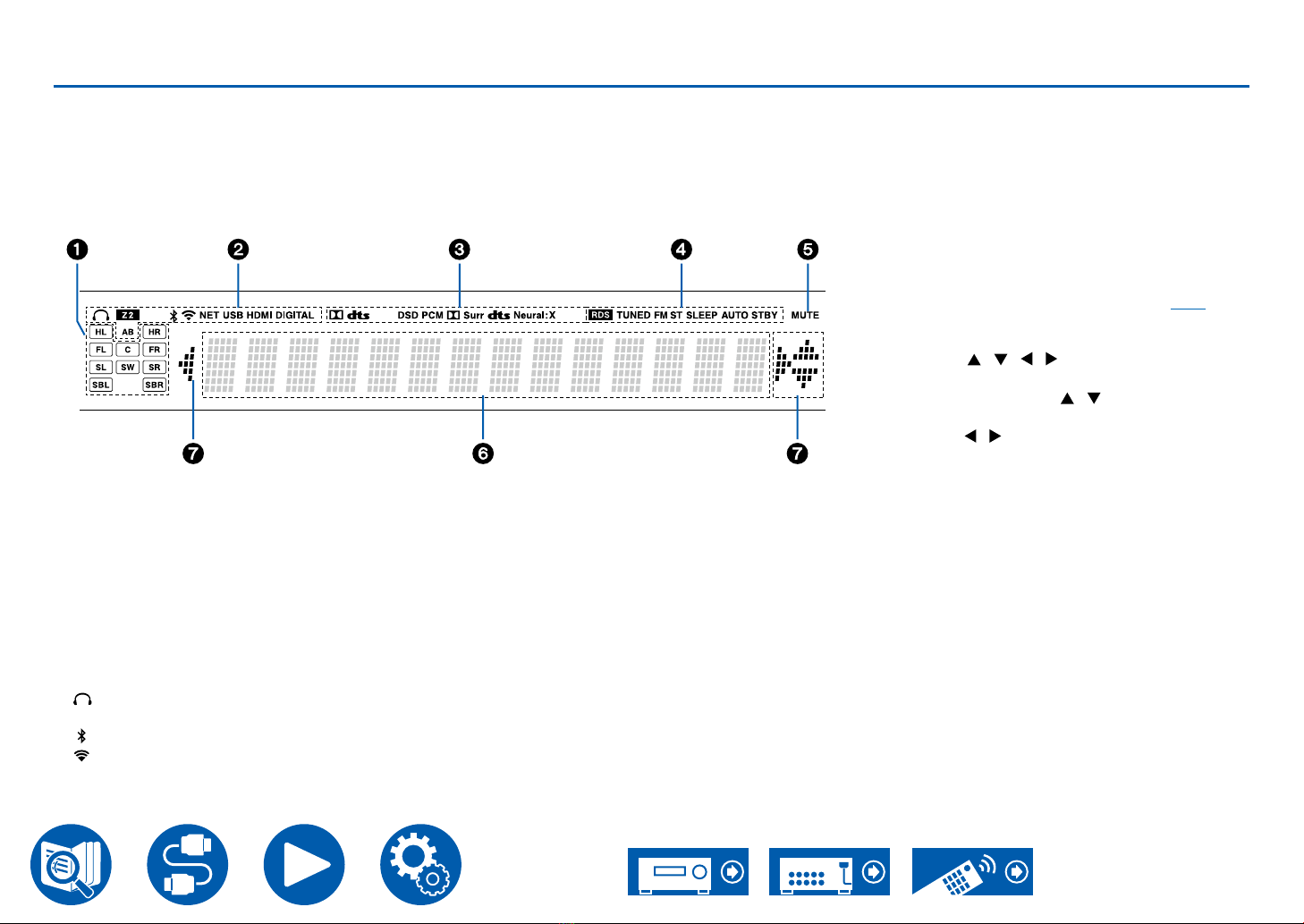

Display 12

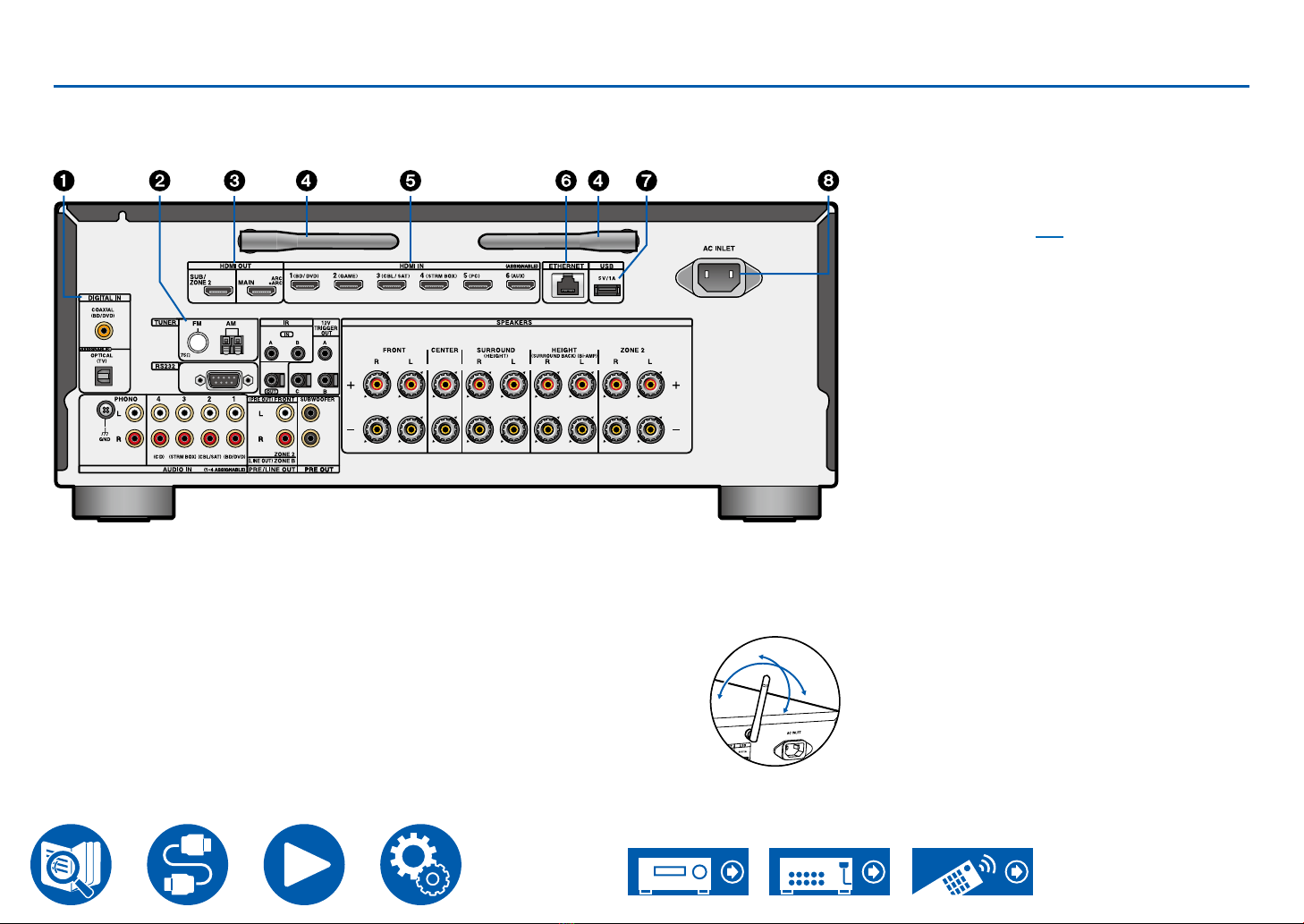

Rear Panel 13

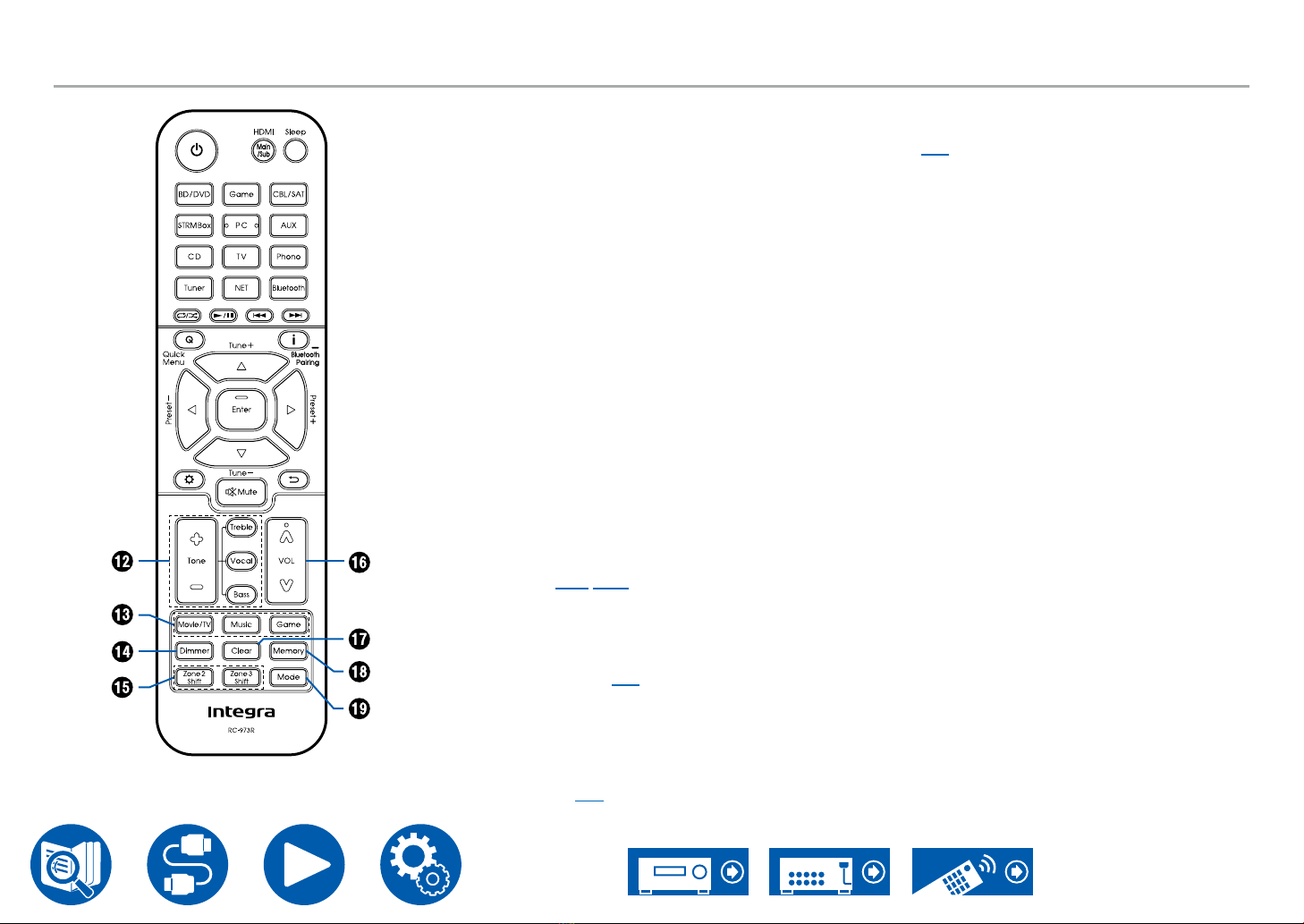

Remote Controller 15

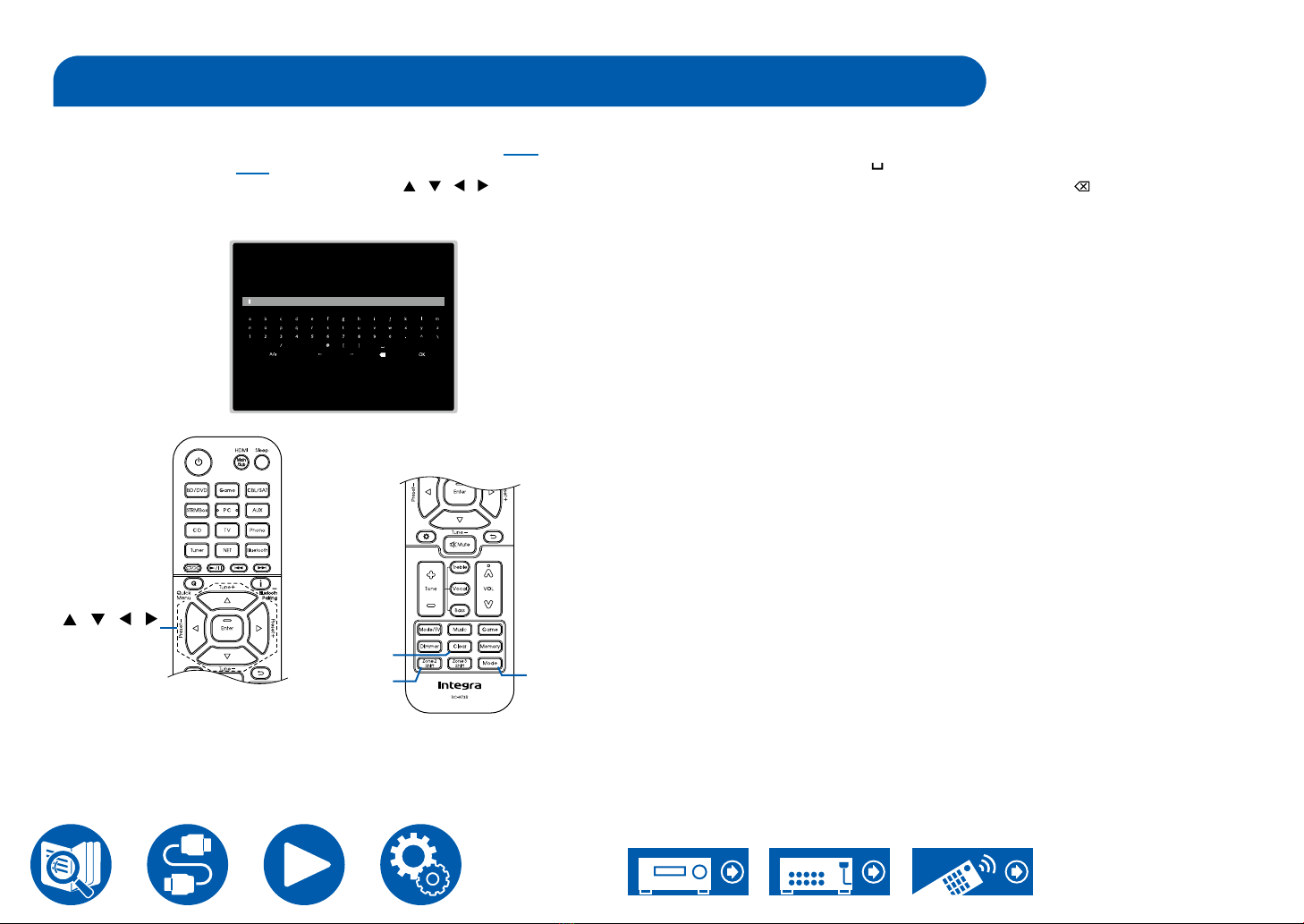

Inputting Characters 17
Speaker Layout
The listening room and the speaker layout 19
3.1 Channel System 20
5.1 Channel System 21
7.1 Channel System 22
3.1.2 Channel System 23
5.1.2 Channel System 24
Speaker Installation
Speaker Connections
Speaker Connections and "Speaker Impedance"
Settings 31
Connecting a Power Amplier 46
Connections
Connecting the TV 48
To ARC/eARC TV 48
To Non-ARC TV 48
Connecting the SUB Monitor 49
SUB Monitor 49
Connecting Playback Devices 50
Connecting an AV Component with HDMI Jack
Mounted 50
Connecting an Audio Component 51
Connecting an AV Component in a Separate Room
(Multi-zone Connection) 52
Connecting a TV (ZONE 2) 52
Connecting an Integrated Amplier (ZONE 2) 53
Connecting Antennas 54
Network Connection 55
Connecting External Control Devices 56
IR IN/OUT port 56
12V TRIGGER OUT jack 57
Connecting the Power Cord 58
Playback
AV Component Playback 60
Basic Operations 60

4
BLUETOOTH®Playback 61
Playing audio from BLUETOOTH wireless technology
enabled devices with this unit 61
Transmitting audio from this unit to BLUETOOTH
wireless technology enabled devices 62
Listening To the Radio 64
Listening To the AM/FM Radio 64
Presetting a Radio Station 67
Listening Mode 68
Selecting a Listening mode 68
Quick Menu 70
Menu operations 70
Spotify 72
AirPlay® 73
Basic Operations 73
Playing Back on multiple devices (AirPlay2) 74
DTS Play-Fi® 75
Playing Back 75
Amazon Alexa 76
Registering this unit with an Amazon account 76
Operating this unit 77
Amazon Music 78
Registering This Unit with Amazon Music 78
Playing Amazon Music using the Integra Control Pro 79
Playing Amazon Music using the remote controller 79
Connecting the Sonos System for Playback 80
Necessary Equipment 80
How to Connect This Unit and Sonos Connect 80
Setting Up 80
Playing Sonos on This Unit 81
Internet Radio 82
Playing Back 82
Multi-zone 84
Playing Back 85
Playing different audio and video 87
Displaying Your Favorite Video on TV While Playing
Music 87
USB Storage Device 88
Supported Audio Formats 88
USB Storage Device Requirements 88
Playing music les saved on a USB storage device 89
Music Server 91
Supported Audio Formats 91
Windows Media®Player 12 settings 91
Playing Back 92
Play Queue 94
Adding Play Queue Information 94
Sort and Delete 94

5
Playing Back 95
Connecting a transmitter for playback 96
Connections 96
Setting Up 96
Playing Back 96
Setup
Setup Menu 98
Menu list 98
1. Input/Output Assign 100
2. Speaker 104
3. Audio Adjust 109
4. Sourc e 111
5. Listening Mode Preset 113
6. Hardware 114
7. Multi Zone 125
8. Miscellaneous 126
Web Setup 128
Menu operations 128
Initial Setup with Auto Start-up Wizard 129
Operations 129
Integra Control Pro 132
Main features 132
Initial Setup 132
Troubleshooting
When the unit is operating erratically 134
Troubleshooting 135
Appendix
Speaker Layouts and Selectable Listening Modes 145
Listening Mode buttons and Selectable Listening
Modes 148
Input Formats and Selectable Listening Modes 150
Listening Mode Effects 154
Speaker Combinations 158
General Specications 159

6
Before starting the procedure
What's in the box
1. Main unit (1)
2. Remote controller (RC-973R) (1), Batteries (AAA/R03) (2)
3. Speaker setup microphone (1)
• Used during Initial Setup.
4. Indoor FM antenna (1)
5. AM loop antenna (1)
6. Power cord (1)
• Initial Setup Guide (1)
* This is an online user manual. This is not supplied with the product.
Note
• Connect speakers with an impedance of 4 Ω to 16 Ω.
• The power cord must be connected only after all other connections are
completed.
• We will not accept any responsibility for damage arising from the connection
with equipment manufactured by other companies.
• Network services and content that can be used may no longer be available
if new functions are added by updating rmware or the service providers
terminate their services. Also, available services may differ depending on
your area.
• Details on the rmware update will be posted on our website and through
other means at a later date.
• Specications and appearance are subject to change without prior notice.

7
Firmware Update
This unit is equipped with a function to update the rmware via network or USB
port when the rmware update is announced after purchase. This enables
various functions to be added and operations to be improved.
Depending on the manufacturing timing of the product, the rmware may be
switched to the updated one. In such a case, new functions may be added
from the start. For how to conrm the latest rmware contents and the rmware
version of your product, see the following section.
Update Information of the rmware
For the latest rmware contents and the rmware version, visit our company's
website. If the rmware version of your product differs from the latest one, it is
recommended to update the rmware.
To conrm the rmware version of your product, press the button on the
remote controller, and refer to "8. Miscellaneous" - "Firmware Update" -
"Version" ( →p126).
Firmware Update Procedure
The update may take approx. 20 minutes to complete via network or via USB
port. Existing settings are guaranteed in either updating method.
When this unit is connected to the network, notications of rmware updates
may be displayed. To update the rmware, select "Update Now" with the cursor
buttons of the remote controller and press Enter. The unit automatically enters
standby mode after "Completed!" is displayed, and the update is completed.
Disclaimer: The program and accompanying online documentation are
furnished to you for use at your own risk.
Our company will not be liable and you will have no remedy for damages for
any claim of any kind whatsoever concerning your use of the program or the
accompanying online documentation, regardless of legal theory, and whether
arising in tort or contract.
In no event will our company be liable to you or any third party for any special,
indirect, incidental, or consequential damages of any kind, including, but not
limited to, compensation, reimbursement or damages on account of the loss of
present or prospective prots, loss of data, or for any other reason whatsoever.
Updating the Firmware via Network
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device, speaker
setup microphone or headphones, or performing operations on the unit
such as turning the power off
– Accessing this unit from a PC or smartphone using their applications
• Check that the unit is turned on, and the connection to the Internet is secured.
• Turn off control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If the multi-zone function is active, turn it off.
• If "HDMI CEC" is set to "On", set it to "Off".
– Press . Next, select "6. Hardware" - "HDMI" and press Enter, then select
"HDMI CEC" and select "Off".
* The descriptions may differ from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Press .
The Setup menu is displayed on the TV screen.
2. Select "8. Miscellaneous" - "Firmware Update" - "Update via NET" with the
cursors in order, then press Enter.
• If "Firmware Update" is grayed out and cannot be selected, wait for a while
until it starts up.
• If there is no updatable rmware, "Update via NET" cannot be selected.
3. Press Enter with "Update" selected, and start update.
• During the update, the TV screen may go black depending on the program
to be updated. In such a case, check the progress on the display of the
unit. The TV screen will remain black until the update is completed and the
power is turned on again.
• When "Completed!" is displayed, the update is complete.
4. Press On/Standby on the main unit to turn the unit into standby mode. The
process is completed, and your rmware is updated to the latest version.
• Do not use on the remote controller.
If an Error Message is Displayed
If an error occurs, "- Error!" is displayed on the display of the unit. (""

8
represents an alphanumeric character.) Refer to the following descriptions and
check.
Error Code
• -01, -10:
Ethernet cable not found. Connect the Ethernet cable properly.
• -02, -03, -04, -05, -06, -11, -13, -14, -16, -17, -18, -20,
-21:
Internet connection error. Check the following:
– Whether the router is turned on
– Whether this unit and the router are connected via the network
Unplug and plug the power cords of this unit and the router. This may solve
the problem. If you are still unable to connect to the Internet, the DNS server
or proxy server may be temporarily down. Check the server operation status
with your Internet service provider.
• Others:
After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.
Updating via USB
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device, speaker
setup microphone or headphones, or performing operations on the unit
such as turning the power off
– Accessing this unit from a PC or smartphone using their applications
• Prepare a 256 MB or larger USB storage device. The format of USB storage
devices supports FAT16 or FAT32 le system format.
– Media inserted into a USB card reader may not be used for this function.
– USB storage devices equipped with the security function are not
supported.
– USB hubs and USB devices equipped with the hub function are not
supported. Do not connect these devices to the unit.
• Delete any data stored on the USB storage device.
• Turn off control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If the multi-zone function is active, turn it off.
• If "HDMI CEC" is set to "On", set it to "Off".
– Press . Next, select "6. Hardware" - "HDMI" and press Enter, then select
"HDMI CEC" and select "Off".
* Depending on the USB storage device or its content, long time may be required
for loading, the content may not be loaded correctly, or power may not be supplied
correctly.
* Our company will not be liable whatsoever for any loss or damage of data, or
storage failure arising from the use of the USB storage device. Please note this in
advance.
* The descriptions may differ from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Connect the USB storage device to your PC.
2. Download the rmware le from the our company's website to your PC and
unzip.
Firmware les are named as below.
ONKAVR_R.zip
Unzip the le on your PC. The number of unzipped les and folders varies
depending on the model.
3. Copy all unzipped les and folders to the root folder of the USB storage
device.
• Make sure to copy the unzipped les.

9
4. Connect the USB storage device to the USB port of this unit.
• If an AC adapter is supplied with the USB storage device, connect the AC
adapter, and use it with a household outlet.
• If the USB storage device has been partitioned, each section will be
treated as an independent device.
5. Press .
The Setup menu is displayed on the TV screen.
6. Select "8. Miscellaneous" - "Firmware Update" - "Update via USB" with the
cursors in order, then press Enter.
• If "Firmware Update" is grayed out and cannot be selected, wait for a while
until it starts up.
• If there is no updatable rmware, "Update via USB" cannot be selected.
7. Press Enter with "Update" selected, and start update.
• During the update, the TV screen may go black depending on the program
to be updated. In such a case, check the progress on the display of the
unit. The TV screen will remain black until the update is completed and the
power is turned on again.
• During the update, do not turn the power off, or disconnect or reconnect
the USB storage device.
• When "Completed!" is displayed, the update is complete.
8. Disconnect the USB storage device from the unit.
9. Press On/Standby on the main unit to turn the unit into standby mode. The
process is completed, and your rmware is updated to the latest version.
• Do not use on the remote controller.
If an Error Message is Displayed
If an error occurs, "- Error!" is displayed on the display of the unit. (""
represents an alphanumeric character.) Refer to the following descriptions and
check.
Error Code
• -01, -10:
The USB storage device cannot be recognized. Check if the USB storage
device or USB cable is securely inserted to the USB port of the unit.
Connect the USB storage device to an external power source if it has its own
power supply.
• -05, -13, -20, -21:
The rmware le is not present in the root folder of the USB storage device,
or the rmware le is for another model. Retry from the download of the
rmware le.
• Others:
After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.

10
Part Names
Front Panel
1. On/Standby button
2. Hybrid Standby indicator: Lights up when any
of the following functions is working or enabled
in standby state of this unit. When this indicator
is lighting, the power consumption in standby
state increases, however, the increase in power
consumption is minimized by entering the Hybrid
Standby mode where only the essential circuits
operate.
– HDMI CEC ( →p114)
– HDMI Standby Through ( →p114)
– USB Power Out at Standby ( →p121)
– Network Standby ( →p121)
– Bluetooth Wakeup ( →p122)
3. Tone button: You can adjust the sound quality of
the speakers. Press the Tone button to select an
item to adjust from "Bass", "Vocal" and "Treble",
and press + and - to adjust.
4. Remote control sensor: Receives signals from
the remote controller.
• The reception range of the remote controller
is within a distance of approx. 16´/5 m, and
an angle of 20° in vertical direction and 30° to
right and left.
5. Listening Mode button: Press "Movie/TV",
"Music" or "Game" button to change the listening
mode. ( →p68)
6. Display ( →p12)
7. Dimmer button: Switches the brightness of the
display with three levels. It cannot be turned off
completely.
8. Memory button: Used to register AM/FM radio
stations. ( →p67)
9. Tuning Mode button: Switches the tuning
mode. ( →p64)
10. Info button: Switches the information on the
display. ( →p69)
11. Setup button: You can display advanced setting
items on the TV and the display to have a more
enjoyable experience with this unit. ( →p97)
12. Cursor buttons ( / / / ) and Enter
button: Select an item with the cursors, and
press Enter to conrm your selection. When
using Tuner, use them to tune in to stations.
( →p64)
13. Return button: Returns the display to the
previous state while setting.
14. Master Volume

11
Front Panel
15. Zone 2 button: Controls the multi-zone function.
( →p85)
Off button: Switches the multi-zone function off.
( →p85)
16. Zone 2 Level / buttons: Adjust the volume
of the multi-zone function. ( →p85)
17. Phones jack: Connect headphones with a
standard plug (ø1/4″/6.3 mm).
18. Input selector buttons: Switches the input to be
played.
19. Setup Mic jack: Connect the supplied speaker
setup microphone. ( →p131)

12
Display
1. Speaker/Channel display: Displays the output
channel that corresponds to the selected
listening mode.
2. Lights in the following conditions.
: Headphones are connected.
Z2: ZONE 2 is on.
: Connected by BLUETOOTH.
: Connected by Wi-Fi.
NET: Lights when connected to the network with
the "NET" input selector. It will blink if incorrectly
connected to the network.
USB: Lights when the "NET" input selector is
selected, a USB device is connected and the
USB input is selected. It will blink if the USB
device is not properly connected.
HDMI: HDMI signals are input and the HDMI
input is selected.
DIGITAL: Digital signals are input and the digital
input is selected.
A: Audio is output only to ZONE A.
B: Audio is output only to ZONE B.
AB: Audio is output to both ZONE A and ZONE B.
3. Lights according to the type of input digital audio
signal and the listening mode.
4. Lights in the following conditions.
RDS (Australian and Asian models): Receiving
RDS broadcasting.
TUNED: Receiving AM/FM radio
FM ST: Receiving FM stereo
SLEEP: Sleep timer is set.
AUTO STBY: Auto Standby is set. ( →p121)
5. Blinks when muting is on.
6. Displays various information of the input signals.
7. Cursors ( / / / ): These may light when
performing operations while “NET” is selected
with the input selector. / light when there are
multiple folders or les that are available to be
selected. / light when text information does
not t with the range provided by “6”.

13
Rear Panel
1. DIGITAL IN OPTICAL/COAXIAL jacks: Input
TV or AV component digital audio signals with a
digital optical cable or digital coaxial cable.
2. TUNER AM/FM terminal: Connect the supplied
antennas.
3. HDMI OUT jacks: Transmit video signals and
audio signals with an HDMI cable connected to a
monitor such as a TV or projector.
4. Wireless antenna: Used for
WI-Fi connection or when
using a BLUETOOTH enabled
device. Adjust the angles
according to the connection
status.
5. HDMI IN jacks: Transmit video signals and audio
signals with an HDMI cable connected to an AV
component.
6. ETHERNET port: Connect to the network with
an Ethernet cable.
7. USB port: Connect a USB storage device to
play music les ( →p88). You can also supply
power (5 V/1 A) to USB devices with a USB
cable.
8. AC INLET: Connect the supplied power cord.
180°
90°

14
Rear Panel
9. GND terminal: Connect the ground wire of the
turntable.
10. RS-232 port: Connect a home control system
equipped with an RS-232C port. For adopting
a home control system, contact the specialized
stores.
11. AUDIO IN jacks: Input AV component audio
signals with an analog audio cable.
12. IR IN A/B, IR OUT jacks: Connect a remote
control receiver unit. ( →p56)
13. ZONE 2 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable connected
to an integrated amplier in a separate room
(ZONE 2).
ZONE B LINE OUT jacks: Simultaneously
output the same audio source as the speakers
(ZONE A) connected to this unit by connecting
this unit to wireless headphones, wireless
speaker transmitter, etc., using an analog audio
cable.
PRE OUT FRONT jacks: Connect to a power
amplier. ( →p46)
14. SUBWOOFER PRE OUT jacks: Connect a
powered subwoofer with a subwoofer cable.
Up to two powered subwoofers can be
connected. The same signal is output from each
SUBWOOFER PRE OUT jack.
15. 12V TRIGGER OUT A/B/C jack: Connect a
device equipped with a 12V trigger input jack to
enable power link operation between the device
and this unit. ( →p57)
16. SPEAKERS terminals: Connect speakers with
speaker cables. (North American models support
banana plugs. Use a plug 4 mm in diameter. Y
plug connection is not supported.)

15
Remote Controller
1. On/Standby button
2. Input selector buttons: Switches the input to be
played.
3. Play buttons: Used for playback operations
for the Music Server ( →p91) or USB device
( →p88). Also, switching to "CEC MODE" with
"19. Mode button" allows you to operate an HDMI
CEC function-enabled AV component. (Some
devices may not be operated.)
4. Q (Quick Menu) button: Pressing this button
during playback allows you to make settings
such as "HDMI" and "Audio" quickly on the TV
screen while playing. ( →p70)
5. Cursor buttons and Enter button: Select an
item with the cursors, and press Enter to conrm
your selection. Pressing / button allows you
to switch the screen when a music folder list or
le list is not displayed on one screen on the TV.
6. button: Displays advanced setting items on
the TV or the display to have a more enjoyable
experience with this unit. ( →p97)
7. Sleep button: You can allow the unit to enter
standby automatically when the specied time
has elapsed. Select the time from "30 min",
"60 min", "90 min" and "Off". When you do not
want to turn the unit to standby automatically,
select "Off". You can also set this by pressing
button and selecting "6. Hardware" - "Power
Management" - "Sleep Timer" ( →p121) on the
Setup menu.
8. HDMI Main/Sub button: Select the HDMI OUT
jack to output video signals from "MAIN", "SUB",
and "MAIN+SUB".
9. button: Switches the information on the
display and is used to operate RDS ( →p65).
Also, when the "BLUETOOTH" input selector is
selected, pressing and holding this button for 5
seconds or more will switch to the pairing mode.
10. button: Returns the display to the previous
state while setting.
11. button: Temporarily mutes audio. Press the
button again to cancel muting.

16
Remote Controller
12. Tone buttons: Adjusts the sound quality. Press
"Treble", "Bass", or "Vocal" to select what you
want to adjust, then adjust with + and -.
Treble/Bass button: You can adjust the sound
quality of the front speakers.
1.Press Treble or Bass to select the content to
adjust.
Treble: Enhances or moderates the high-tone
range of the front speakers.
Bass: Enhances or moderates the low-tone
range of the front speakers.
2. Press + or - to adjust.
Vocal button: Emphasizes movie dialogues
and music vocals to listen to them more easily.
It is effective to movie lines in particular. Also, it
exerts the effect even if the center speaker is not
used. Select a desired level from "1" (low) to "5"
(high).
1. Press Vocal.
2. Press + or - to adjust.
• Depending on the input source or listening
mode setting, selection is not possible, or the
desired effect may not be achieved.
13. Listening Mode buttons: Selects a listening
mode ( →p68,p148).
14. Dimmer button: Switches the brightness of the
display with three levels. It cannot be turned off
completely.
15. Zone 2 Shift button: Used to control the multi-
zone function ( →p84). (The Zone 3 Shift
button cannot be used with this unit.)
16. VOLUME buttons
17. Clear button: Deletes all characters you have
entered when entering text on the TV screen.
18. Memory button: Used to register AM/FM radio
stations. ( →p67)
19. Mode button: Switches between automatic
tuning and manual tuning for AM/FM stations
( →p64). Also, when an HDMI CEC function-
enabled AV component is connected to this unit,
you can switch "3. Play buttons" between "CEC
MODE" and "RCV MODE" (normal mode).

17
Inputting Characters
You can input characters or symbols on the keyboard displayed on the TV
screen such as when inputting a password for Wi-Fi Setup ( →p116) or naming
a preset radio station ( →p111).
1. Select a character or symbol with the cursors / / / on the remote
controller and press the Enter button.
2. When saving characters after input, select "OK" and press the Enter button.
, . ;/:], . ; :
Clear
Zone 2
Shift
Mode
/ / /
Enter
• Select "A/a" to switch between upper and lower cases. (Can also be switched
with the Mode button on the remote controller.)
• To enter a space, select " ".
• To delete a character on the left of the cursor, select " ".
• To delete all the input characters, press the Clear button on the remote
control.
• On the ZONE 2 playback screen, operate the remote controller while pressing
and holding the Zone 2 Shift button. To delete all the input characters, only
press the Clear button without pressing the Zone 2 Shift button.

Speaker Layout
7.1ch
3.1.2ch
5.1.2ch
3.1ch
5.1ch
18
Speaker Layout
Speaker Layout
This unit can be used in different ways, depending on the layout of the
speakers you are installing. Select the speaker layout that suits the installation
environment, then conrm the methods for installation and connection.
Speaker Layout
Speaker Layout ( →p20)
Speaker Installation ( →p25)
Speaker Connections ( →p30)
Speaker Combinations ( →p158)

7.1ch
3.1.2ch
5.1.2ch
3.1ch
5.1ch
19
Speaker Layout
The listening room and the speaker layout
1. ZONE A Speakers
The speaker system set up in the main room (where this unit is located).
2. ZONE 2 Speakers
The 2 ch speaker system set up in a separate room (ZONE 2). This enables you
to play the same source in the main room and the separate at the same time, or
to play separate sources.
ZONE A
(Main room)
ZONE 2

7.1ch
3.1.2ch
5.1.2ch
3.1ch
5.1ch
20
Speaker Layout
3.1 Channel System A 3.1 Channel System that combines front speakers with a center speaker and a subwoofer.
Basic system ( →p26)
Zone 2Zone 2
Main Room
3.1 ch + ZONE 2 ( →p26) 3.1 ch (Bi-Amping (Front)) ( →p26)
