Intel BI440ZX User manual

BI440ZX
Motherboard
Product Guide
Order Number: 726091-002

Revision History
Revision Revision History Date
001 First release of the BI440ZX Motherboard Product Guide. October 1998
002 Second release of the BI440ZX Motherboard Product Guide. Added
BIOS Setup Program Screen chapter. December 1998
If an FCC declaration of conformity marking is present on the board, the following statement applies:
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
For questions related to the EMC performance of this product, contact:
Intel Corporation
5200 N.E. Elam Young Parkway
Hillsboro, OR 97124
1-800-628-8686
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Compliance Statement:
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the
Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils
numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des
Communications du Canada.
Disclaimer
Intel Corporation (Intel) makes no warranty of any kind with regard to this material, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose. Intel assumes no responsibility for any errors that may
appear in this document. Intel makes no commitment to update nor to keep current the information contained in this
document. No part of this document may be copied or reproduced in any form or by any means without prior written
consent of Intel.
An Intel product, when used in accordance with its associated documentation, is "Year 2000 Capable" when, upon
installation, it accurately stores, displays, processes, provides, and/or receives date data from, into, and between the
twentieth and twenty-first centuries, including leap year calculations, provided that all other technology used in combination
with said product properly exchanges date data with it.
†Third-party brands and trademarks are the property of their respective owners.
Copyright 1998, Intel Corporation. All Rights Reserved

iii
Contents
1 Motherboard Features
Feature Summary.................................................................................................................7
Components......................................................................................................................... 8
Microprocessor..................................................................................................................... 9
Main Memory ....................................................................................................................... 9
PCI Enhanced IDE Interface .............................................................................................. 10
Input/Output (I/O) Controller............................................................................................... 10
Real-Time Clock.................................................................................................................11
USB Support ...................................................................................................................... 11
Accelerated Graphics Port (AGP)....................................................................................... 12
BIOS .................................................................................................................................. 12
Expansion Slots.................................................................................................................. 12
Power Management ........................................................................................................... 13
Battery................................................................................................................................ 13
Wake on Ring / Resume on Ring Technologies (Optional)................................................. 13
Wake on LAN Technology.................................................................................................. 14
Audio Subsystem (Optional)............................................................................................... 14
Speaker (Optional)............................................................................................................. 14
2 Installing and Replacing Motherboard Components
Before You Begin...............................................................................................................15
How to Install and Remove the Motherboard...................................................................... 16
How to Install a Celeron Processor .................................................................................... 17
How to Remove a Celeron Processor................................................................................. 20
How to Install Memory........................................................................................................ 20
How to Remove Memory.................................................................................................... 21
How to Replace the Battery................................................................................................ 22
3 Using the BIOS Setup Program
BIOS Setup Program Modes.............................................................................................. 25
Function Keys..................................................................................................................... 26
How to Access the BIOS Setup Program ........................................................................... 26
How To Upgrade the BIOS................................................................................................. 27
Obtaining the BIOS Upgrade File............................................................................... 27
Recording the Current BIOS Settings........................................................................ 27
Creating a Bootable Diskette..................................................................................... 28
Creating the BIOS Upgrade Diskette......................................................................... 28
Performing the BIOS Upgrade............................................................................................ 29
How to Recover the BIOS .................................................................................................. 29
How to Change the BIOS Language .................................................................................. 30
How to Clear the Passwords .............................................................................................. 31

BI440ZX Motherboard Product Guide
iv
4 BIOS Setup Program
Maintenance Menu............................................................................................................. 33
Main Menu ......................................................................................................................... 34
Advanced Menu ................................................................................................................. 35
Boot Setting Configuration Submenu......................................................................... 35
Peripheral Configuration Submenu............................................................................ 36
IDE Configuration ...................................................................................................... 38
IDE Configuration Submenus .................................................................................... 39
Diskette Configurations Submenu.............................................................................. 40
Event Log Configuration ............................................................................................ 40
Video Configuration Submenu................................................................................... 41
Resource Configuration Submenu............................................................................. 41
Security Menu.................................................................................................................... 41
Power Menu....................................................................................................................... 42
Boot Menu.......................................................................................................................... 43
Exit Menu........................................................................................................................... 44
5 Technical Reference
Motherboard Connectors.................................................................................................... 45
Back Panel Connectors ............................................................................................. 46
Midboard Connectors ................................................................................................ 47
Front Panel Connector............................................................................................... 48
Jumper Blocks.................................................................................................................... 49
BIOS Setup Configuration Jumper Block................................................................... 49
USB Port 0 Configuration Jumper Block (Optional).................................................... 50
A Error Messages
BIOS Beep Codes.............................................................................................................. 51
BIOS Error Messages ........................................................................................................ 51
B Regulatory and Integration Information
Regulatory Compliance...................................................................................................... 53
Installation Precautions ...................................................................................................... 54
Installation Instructions.......................................................................................................54
Ensure Electromagnetic Compatibility (EMC) ............................................................ 55
Ensure Chassis and Accessory Module Certifications ............................................... 55
Prevent Power Supply Overload................................................................................ 56
Place Battery Marking on the Computer .................................................................... 56
Use Only for Intended Applications............................................................................ 56
Figures

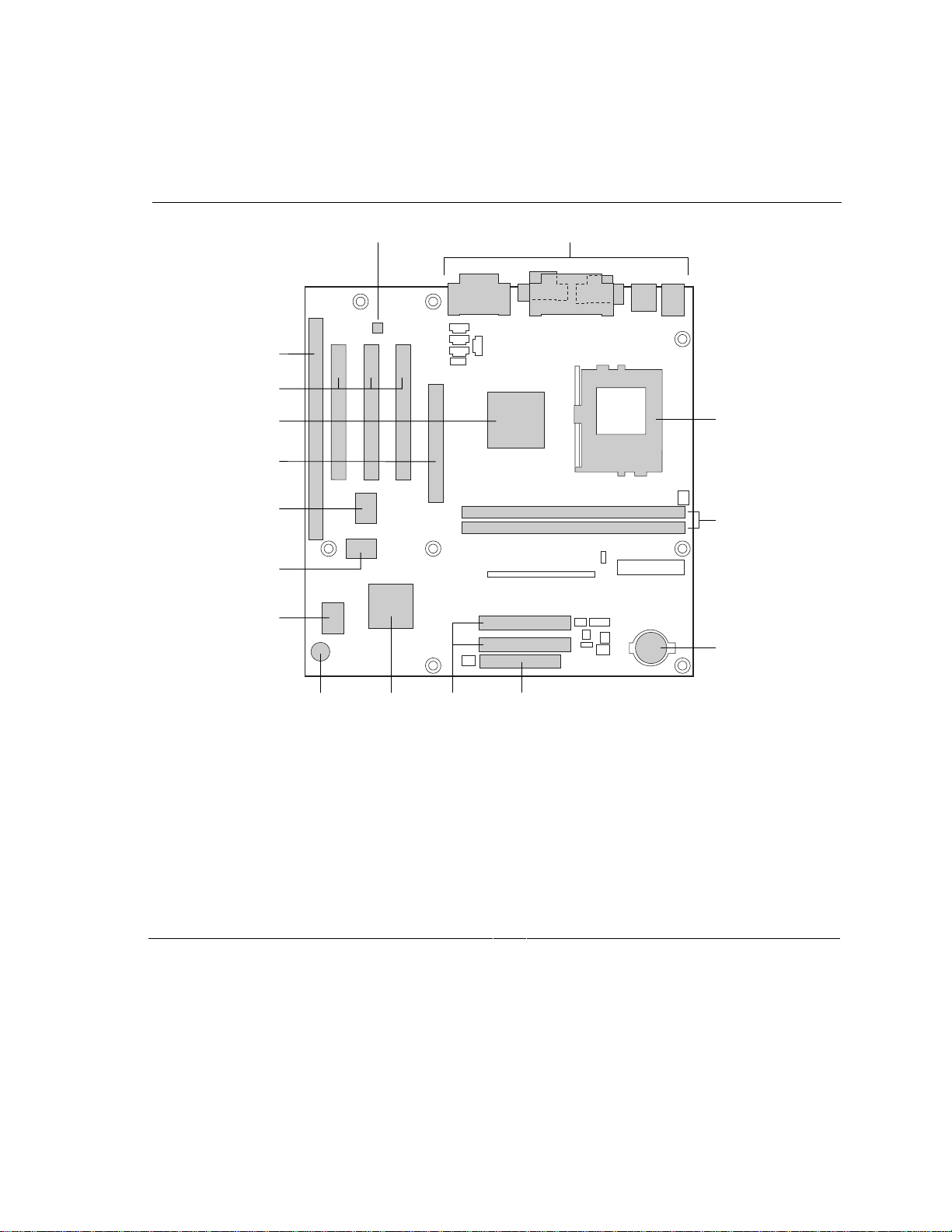

1. Motherboard Components........................................................................................... 8
2. Mounting Screw Holes............................................................................................... 16
3. Raising the Socket Handle......................................................................................... 17
4. Inserting the Processor Into the Socket..................................................................... 17
5. Closing the Handle .................................................................................................... 18
6. Attaching the Heatsink to the Processor.................................................................... 18
7. Attaching the Fan Heatsink Clip................................................................................. 19

Contents
v
8. Connecting the Processor Fan Cable to the Processor Fan Connector..................... 19
9. Installing a DIMM....................................................................................................... 21
10. Removing the Battery................................................................................................ 23
11. Connector Groups..................................................................................................... 45
12. Back Panel Connectors............................................................................................. 46
13. Midboard Connectors ................................................................................................ 47
14. Front Panel Connector............................................................................................... 48
15. Location of the Jumper Blocks................................................................................... 49
Tables
1. Processors Supported by the Motherboard ................................................................. 9
2. Supported Memory Sizes and Configurations.............................................................. 9
3. Jumper Settings for BIOS Setup Program Modes...................................................... 25
4. Setup Menu Bar......................................................................................................... 26
5. Setup Function Keys.................................................................................................. 26
6. BIOS Setup Program Menu Bar................................................................................. 33
7. Maintenance Menu.................................................................................................... 33
8. Main Menu................................................................................................................. 34
9. Advanced Menu......................................................................................................... 35
10. Boot Setting Configuration Submenu......................................................................... 35
11. Peripheral Configuration Submenu............................................................................ 36
12. IDE Device Configuration .......................................................................................... 38
13. IDE Configuration Submenus .................................................................................... 39
14. Diskette Configurations Submenu ............................................................................. 40
15. Event Log Configuration Submenu............................................................................ 40
16. Video Configuration Submenu................................................................................... 41
17. Resource Configuration Submenu............................................................................. 41
18. Security Menu............................................................................................................ 41
19. Power Menu.............................................................................................................. 42
20. Boot Menu................................................................................................................. 43
21. Exit Menu .................................................................................................................. 44
22. BIOS Setup Configuration Jumper Settings............................................................... 49
23. USB Port 0 Configuration Jumper Settings................................................................ 50
24. Beep Codes............................................................................................................... 51
25. BIOS Error Messages................................................................................................ 51
26. Safety Regulations .................................................................................................... 53
27. EMC Regulations....................................................................................................... 53

BI440ZX Motherboard Product Guide
vi

7

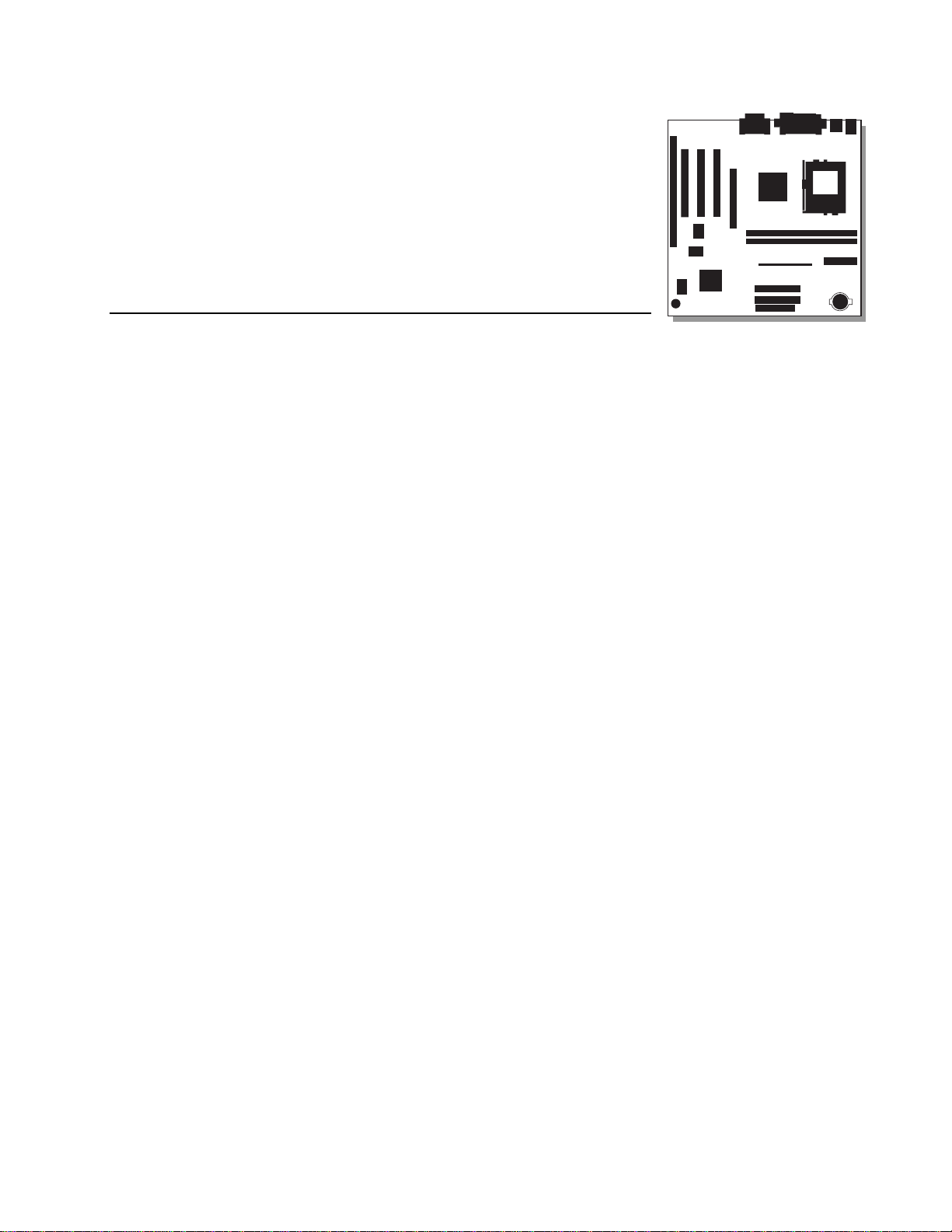

1 Motherboard Features
This chapter gives an overview of the BI440ZX motherboard. The remaining chapters discuss:
•How to add or upgrade components like processors or memory
•How to invoke the BIOS Setup program to modify the motherboard’s configuration
•How to upgrade the BIOS
•The contents of the BIOS Setup Program’s screens
•The locations of the connectors
Feature Summary
Form Factor microATX (9.6 inches by 9.6 inches)
Processor Support for socketed Intel®Celeron™processors with 66-MHz host bus speed
Memory •Two 168-pin dual inline memory module (DIMM) sockets
•Supports up to 256 MB of 66 MHz synchronous DRAM (SDRAM)
Chipset Intel®82440ZX AGPset, consisting of:
•Intel®82443ZX PCI/AGP controller (PAC)
•Intel®82371EB PCI ISA IDE Xcelerator (PIIX4E)
I/O Control SMSC FDC37M807 I/O controller
Peripheral
Interfaces •Two serial ports
•Two Universal Serial Bus (USB) ports
•One parallel port
•Two IDE interfaces with Ultra DMA support
•One diskette drive interface
Video One Accelerated Graphics Port (AGP) connector
Expansion
capabilities Three available add-in card expansion slots:
•Two dedicated PCI bus add-in card connectors
•One shared slot for either a PCI bus or an ISA bus add-in card
BIOS •Intel/AMI BIOS
•Intel®E28F200B5 2 Mbit flash memory
•Support for Advanced Power Management (APM), Advanced Configuration and
Power Interface (ACPI), Plug and Play, and SMBIOS
Audio (optional) AC ’97 compatible audio subsystem, consisting of:
•Creative Sound Blaster†AudioPCI 64V AC ’97 Digital Controller
•CS4297 audio codec
✏NOTE
For information about Intel
®
motherboards, including technical product specifications, BIOS
upgrades, and device drivers, see “Products” at the Intel World Wide Web site:
http://support.intel.com/support/motherboards/desktop

BI440ZX Motherboard Product Guide
8
Components
Figure 1 shows the major components on the motherboard.
OM07463
E
C
D
FI HG
BA
L
P
J
K
O
M
N
A CS4297 audio codec (optional) I Speaker
B Back panel connectors J SMSC FDC37M807 I/O controller
C Processor socket K Flash memory
D DIMM sockets L Creative Sound Blaster AudioPCI 64V AC ’97
Digital Controller (optional)
E Battery M AGP connector
F Diskette drive connector N Intel 82443ZX PAC
G IDE connectors O PCI bus add-in card connectors
H Intel 82371EB PIIX4E P ISA bus add-in card connector
Figure 1. Motherboard Components
✏NOTE
Components labeled optional do not come on all BI440ZX motherboards.

Motherboard Features
9
Microprocessor
The motherboard supports the socketed Celeron processors listed in Table 1. All supported
onboard memory can be cached.
Table 1. Processors Supported by the Motherboard
Processor Speed Host Bus Frequency Cache Size
300A MHz
333 MHz 66 MHz 66 MHz 128 KB 128 KB
For information about Refer to
Installing a processor Page 17
Processor support for the BI440ZX motherboard http://support.intel.com/support/motherboards/desktop
Main Memory
The motherboard has two sockets for installing DIMMs. Minimum memory size is 16 MB;
maximum memory size is 256 MB. The motherboard supports the following memory features:
•168-pin SPD or non-SPD DIMMs with gold-plated contacts
•66 MHz or 100 MHz unbuffered SDRAM
•64-bit (non-ECC) memory
•3.3 V memory only
•Single- or double-sided DIMMs in the sizes listed in Table 2
Table 2. Supported Memory Sizes and Configurations
DIMM Size Configuration
16 MB 2 Mbit x 64
32 MB 4 Mbit x 64
64 MB 8 Mbit x 64
128 MB 16 Mbit x 64
For information about Refer to
Installing memory Page 20
✏NOTE
The board is compatible with both 66 MHz and 100 MHz DIMMs, but installing faster speed
memory will not increase system performance (owing to the 66 MHz host bus frequency).

BI440ZX Motherboard Product Guide
10
PCI Enhanced IDE Interface
The PCI enhanced IDE interface handles the exchange of information between the processor and
peripheral devices like hard disks and add-in boards inside the computer. The interface supports:
•Up to four IDE devices (such as hard drives)
•ATAPI devices (such as CD-ROM drives)
•PIO Mode 3 and PIO Mode 4 devices
•Ultra DMA/33
•Logical block addressing (LBA) of hard drives larger than 528 MB and extended cylinder head
sector (ECHS) translation modes
•Support for laser servo (LS-120) drives
For information about Refer to
The location of the IDE connectors Figure 13, page 47
The PIIX4E PCI IDE controller BI440ZX Motherboard Technical Product Specification
available through:
http://support.intel.com/support/motherboards/desktop
Input/Output (I/O) Controller
The I/O controller handles the exchange of information between the processor and external devices
like the mouse and keyboard or a printer that are connected to the computer. The controller
features the following:
•Integrated keyboard and mouse controller
•Industry standard diskette drive controller
•One multimode bi-directional parallel port
Standard mode: Centronics-compatible operation
High speed mode: support for Extended Capabilities Port (ECP) and Enhanced Parallel
Port (EPP)
•Two serial ports
•Flexible IRQ and DMA mapping for Windows†95 and Windows 98
For information about Refer to
The location of the keyboard, mouse, parallel,
and serial ports Figure 12, page 46
The I/O controller device BI440ZX Motherboard Technical Product Specification
available through:
http://support.intel.com/support/motherboards/desktop

Motherboard Features
11
Real-Time Clock
The motherboard has a time-of-day clock and 100-year calendar that will rollover to 2000 at the
turn of the century. A battery on the motherboard keeps the clock current when the computer is
turned off.
✏NOTE
The recommended method of accessing the date in systems with Intel motherboards is indirectly
from the Real-Time Clock (RTC) via the BIOS. The BIOS on Intel motherboards and baseboards
contains a century checking and maintenance feature that checks the least two significant digits of
the year stored in the RTC during each BIOS request (INT 1Ah) to read the date and, if less than
80 (i.e., 1980 is the first year supported by the PC), updates the century byte to 20. This feature
enables operating systems and applications using the BIOS date/time services to reliably
manipulate the year as a four-digit value.
For information about Refer to
Proper date access in systems with Intel
motherboards http://support.intel.com/support/year2000/paper.htm
USB Support
The motherboard has two USB ports. You can connect two USB peripheral devices directly to the
computer without an external hub. To attach more than two devices, connect an external hub to
either of the built-in ports. The motherboard supports the standard universal host controller
interface (UHCI) and takes advantage of standard software drivers written to be compatible with
UHCI.
For information about Refer to
The location of the USB ports Figure 12, page 46
USB legacy support in the BIOS BI440ZX Motherboard Technical Product Specification
available through:
http://support.intel.com/support/motherboards/desktop
✏NOTE
Computer systems that have an unshielded cable attached to a USB port might not meet FCC
Class B requirements, even if no device or a low-speed USB device is attached to the cable. Use a
shielded cable that meets the requirements for a high-speed USB device.

BI440ZX Motherboard Product Guide
12
Accelerated Graphics Port (AGP)
The AGP is a high-performance bus for graphics-intensive applications, such as 3D graphics.
AGP is independent of the PCI bus and is intended for exclusive use with graphical display
devices.
For information about Refer to
The location of the AGP connector Figure 1, page 8
Features of the AGP interface BI440ZX Motherboard Technical Product Specification
available through:
http://support.intel.com/support/motherboards/desktop
BIOS
The motherboard’s system BIOS is contained in a flash memory device on the motherboard. The
BIOS provides the power-on self test (POST), the BIOS Setup program, and the PCI and IDE auto-
configuration utilities.
For information about Refer to
Accessing, upgrading, or recovering the BIOS Chapter 3, beginning on page 25
The contents of the BIOS Setup Program’s screens Chapter 4, beginning on page 33
BIOS support for:
•PCI and ISA Plug and Play
•System Management BIOS (SMBIOS)
•Power management
•Boot options
•USB legacy support
•Security features
BI440ZX Motherboard Technical Product Specification
available through:
http://support.intel.com/support/motherboards/desktop
Expansion Slots
The motherboard has four expansion slots for installing add-in boards, such as network cards, that
expand the capabilities of your computer. The expansion slots are as follows:
•One shared PCI/ISA slot
•Two PCI slots
•One AGP slot

Motherboard Features
13
Power Management
The motherboard supports two types of power management — Advanced Power Management
(APM) and Advanced Configuration and Power Interface (ACPI). If the board is used with an
ACPI-aware operating system, the BIOS provides ACPI support. Otherwise, it defaults to
APM support.
For information about Refer to
How the board supports APM and ACPI
BI440ZX Motherboard Technical Product Specification
available through:
http://support.intel.com/support/motherboards/desktop
Battery
A battery on the motherboard keeps the clock and the values in CMOS RAM current when your
computer is turned off.
For information about Refer to
The location of the battery Figure 1, page 8
How to replace the battery Page 22
Wake on Ring / Resume on Ring Technologies (Optional)
The board supports two technologies that enable telephony devices (such as modems) to access the
computer when it is in a power-managed state. The method used depends on the type of telephony
device (external or internal) and the power management mode being used (APM or ACPI). The
optional Wake on Ring connector is used to implement this feature.
For information about Refer to
The location of the Wake on Ring connector Figure 13, page 47
Wake on Ring and Resume on Ring technologies BI440ZX Motherboard Technical Product Specification
available through:
http://support.intel.com/support/motherboards/desktop

BI440ZX Motherboard Product Guide
14
Wake on LAN†Technology
Wake on LAN technology enables remote wakeup of the computer through a network.
Wake on LAN technology requires a PCI add-in network interface card (NIC) with remote wakeup
capabilities. The remote wakeup connector on the NIC must be connected to the onboard
Wake on LAN technology connector.
For information about Refer to
The location of the Wake on LAN technology
connector Figure 13, page 47
Wake on LAN technology BI440ZX Motherboard Technical Product Specification
available through:
http://support.intel.com/support/motherboards/desktop
CAUTION
For Wake on LAN, the 5-V standby line for the power supply must be capable of delivering
+5 V
± 5 % at 720 mA. Failure to provide adequate standby current when implementing
Wake on LAN, can damage the power supply.
Audio Subsystem (Optional)
The audio subsystem consists of these devices:
•Creative Sound Blaster AudioPCI 64V AC ’97 digital controller
•Crystal Semiconductor CS4297 stereo audio codec
•Back panel and onboard audio connectors
For information about Refer to
The locations of the audio connectors Chapter 5, beginning on page 45
Audio drivers and utilities http://support.intel.com/support/motherboards/desktop
The AudioPCI 64V AC ’97 digital controller and the
CS4297 stereo audio codec
BI440ZX Motherboard Technical Product Specification
available through:
http://support.intel.com/support/motherboards/desktop
Speaker (Optional)
A 47 Ωinductive speaker is mounted on the motherboard. The speaker provides audible error
code (beep code) information during the power-on self test (POST).
For information about Refer to
The location of the onboard speaker Figure 1, page 8
BIOS beep codes Table 24, page 51

15
2 Installing and Replacing Motherboard
Components
This chapter tells you how to:
•Install and remove the motherboard
•Install and remove the processor
•Install and remove memory
•Replace the battery
Before You Begin
CAUTION
Before you install this motherboard in a chassis, see Appendix B for regulatory requirements and
precautions.
•Always follow the steps in each procedure in the correct order.
•Set up a log to record information about your computer, such as model, serial numbers,
installed options, and configuration information.
•Use an antistatic wrist strap and a conductive foam pad when working on the motherboard.
WARNINGS
The procedures in this chapter assume familiarity with the general terminology associated with
personal computers and with the safety practices and regulatory compliance required for using
and modifying electronic equipment.
Disconnect the computer from its power source and from any telecommunications links,
networks, or modems before performing any of the procedures described in this chapter.
Failure to disconnect power, telecommunications links, networks, or modems before you open
the computer or perform any procedures can result in personal injury or equipment damage.
Some circuitry on the motherboard can continue to operate even though the front panel power
button is off.
CAUTION
Electrostatic discharge (ESD) can damage components. Perform the procedures described in this
chapter only at an ESD workstation. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer
chassis.

BI440ZX Motherboard Product Guide
16
How to Install and Remove the Motherboard
Refer to your chassis manual for instructions on installing and removing the motherboard. The
motherboard is secured to the chassis by eight screws. Figure 2 shows the locations of the
mounting screw holes.
✏NOTES
You will need a Phillips (#2 bit) screwdriver.
Refer to Appendix B for regulatory requirements and installation instructions and precautions.
WARNING
This procedure should be done only by qualified technical personnel. Disconnect the computer
from its power source before doing the procedures described here. Failure to disconnect the
power before you open the computer can result in personal injury or equipment damage.
OM07483
Figure 2. Mounting Screw Holes

Installing and Replacing Motherboard Components
17
How to Install a Celeron™Processor
To install a processor, follow these instructions:
1. Observe the precautions in “Before You Begin” (see page 15).
2. Raise the socket handle completely (see Figure 3).
Figure 3. Raising the Socket Handle
3. Aligning the pins of the processor with the socket, insert the processor into the socket (see
Figure 4).
Figure 4. Inserting the Processor Into the Socket

BI440ZX Motherboard Product Guide
18
4. Close the handle completely (see Figure 5).
Figure 5. Closing the Handle
5. Peel back the plastic cover from the thermal interface on the bottom of the fan heatsink. Place
the fan heatsink on top of the processor (see Figure 6).
Figure 6. Attaching the Heatsink to the Processor

Installing and Replacing Motherboard Components
19
6. Attach the fan heatsink clip to the processor socket (see Figure 7).
A
B
A Fan Heatsink Clip
B Processor Socket
Figure 7. Attaching the Fan Heatsink Clip
7. Connect the processor fan cable to the processor fan connector (see Figure 8).
OM07491
PGA370
B
A
B
A Processor Fan Cable
B Processor Fan Connector
Figure 8. Connecting the Processor Fan Cable to the Processor Fan Connector

BI440ZX Motherboard Product Guide
20
How to Remove a Celeron Processor
To remove the processor, follow these instructions:
1. Observe the precautions in “Before You Begin” (see page 15).
2. Disconnect the processor fan cable.
3. Detach the fan heatsink clip.
4. Raise the socket handle completely.
5. Remove the processor.
How to Install Memory
You can install from 16 MB to 256 MB of memory in the DIMM sockets. The board has two
DIMM sockets arranged as banks 0 and 1. As shown in Figure 9 on page 21, the DIMM socket
closest to the processor is for bank 0.
When adding memory, be aware that:
•You can install DIMMs in either of the two banks. That is, if only one DIMM is being
installed, it can be placed in either DIMM socket.
•You can use different sizes of DIMMs in different banks.
•The BIOS detects the size and type of installed memory.
✏NOTE
All memory components and DIMMs used with the BI440ZX motherboard must comply with the
PC SDRAM Specifications. These include: the PC SDRAM Specification (memory component
specific), the PC unbuffered SDRAM Specifications, and the PC Serial Presence Detect
Specification. These documents can be accessed through the Internet at:
http://www.intel.com/design/pcisets/memory
To install DIMMs, follow these steps:
1. Observe the precautions in “Before You Begin” (see page 15).
2. Turn off all peripheral devices connected to the computer. Turn off the computer.
3. Remove the computer cover and locate the DIMM sockets.
4. Holding the DIMM by the edges, remove it from its antistatic package.
5. Make sure the clips at either end of the socket are pushed away from the socket.
6. Position the DIMM above the socket. Align the two small notches in the bottom edge of the
DIMM with the keys in the socket.
