BIKE OWNER’S MANUAL
INTENZA RECUMBENT BIKE 550 RBe2/550 RBi/450 RBi2/450 RBi2S
INTENZA UPRIGHT BIKE 550 UBe2/550 UBi/450 UBi2/450 UBi2S

CONTENTS
1
Intenza Bikes Manual_____Contents
EN Bikes Owner’s Manual 2
EN

2
Intenza Bikes Manual_____Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
WARNING—
When using an electrical appliance, basic precautions
should always be followed, including those listed on
the right. Please read all instructions before
operation.
EN
WARNING
. The appliance should never be left unattended when plugged in.
. Do not carry this appliance by supply cord or use cord as a handle.
. The Bikes are designed for aerobic exercise in a commercial or consumer environment.
. Please check with your physician prior to begining any exercise program.
. Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death. If you feel faint stop exercising immediately.
. Stop exercising immediately and consult a physician if you feel any abnormal symptoms such as fainting, dizziness, chest pain, nausea or
shortness of breath.
. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved.
. Children should not play with the appliance.
. Cleaning and user maintenance should not be made by children without supervision.
. The appliance is to be used only with the unit adaptor provided.
DANGER
. Make sure all users see a physician for a complete physical examination before they begin any fitness program.
. Unsupervised children must be kept away from this equipment.
. Assemble and operate the equipment on a solid level surface.
. Set the equipment a few feet away from walls or furniture, and away from sources of heat such as radiators, heat registers and stoves.
Avoid extreme temperature changes.
. Do not place outdoors or in an enclosed swimming pool environment.
. Keep hands and loose clothing away from moving parts.
. Keep equipment away from water and moisture. Avoid dropping or spilling anything on/inside the equipment to prevent electric shock,
or damage to the equipment.
. Keep away from sources of heat such as radiators, heat registers and stoves. Avoid extreme temperature changes.
. Never leave the equipment unattended when it is plugged in. Unplug the equipment from its power source when it is not in use.
. The optional power adapter is considered a power source for self—powered equipment. Always unplug this equipment from the electrical
outlet immediately after use or before cleaning.
. Keep the optional power adapter and plug away from heated surfaces.
. Do not insert any object into any opening, or underneath the equipment.
. Do not attempt to remove the cover or modify the equipment. Service should only be conducted by an authorised service technician.
. Wear shoes with rubber or high—traction soles. Do not wear shoes with heels, leather soles, cleats or spikes.
Make sure no stones are embedded in the soles.
. Do not drop or insert any object, hands, or feet into any opening, or underneath the equipment.
. Do not operate the equipment until the defective components are repaired.

3
Intenza Bikes Manual_____Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
EN
DANGER
. The appliance should never be left unattended when plugged in.
. Do not use the equipment with bare feet.
. Stop operating the equipment until any defective components are repaired.
. Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.
. Do not operate equipment under a blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
. To disconnect, turn all controls to the “off” position, then remove plug from outlet.
. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
IMPORTANT OPERATION INSTRUCTIONS
. NEVER operate an Intenza bike without reading and completely understanding the results of any operational change you request from the
console.
. Understand that changes in resistance do not occur immediately. Set your desired resistance level on the console and release the adjustment
key. The console will execute the instruction gradually.
. Use caution while participating in other activities while pedaling on your bike, such as watching television, reading, etc. These distractions
may cause you to lose balance which may result in serious injury.
. Do not use excessive pressure on console control keys. They are precision set to function properly with light finger pressure.
. Always hold on to the handlebar while making control changes.
. Do not use excessive pressure on console control keys. They are precision set to function properly with little finger pressure. If you feel the
buttons are not functioning properly with normal pressure contact your dealer.
. Assemble and operate the equipment on a stable base which is properly leveled.
. Keep an area of 3 feet by 3 feet (1000 mm x 1000 mm) behind the bike clear of any obstructions, including walls, furniture and other equipment.
. Use the handlebars whenever additional stability is required. In case of emergency, such as tripping, the user should grab onto the
handlebars. Please remember that the handlebars may be held to enhance stability as needed, but are not for continuous use.

4
Intenza Bikes Manual_____Save These Instructions
WARNING
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding provides the path of least
resistance for an electric current to reduce the risk of electric shock. This product is equipped with a cord having a
grounding conductor and plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
This equipment will be wired for either 120V AC nominal power input or 220—240V AC nominal input. It is
factory—equipped with a specific electrical cord and plug to permit connection to the proper electric circuit. Make
sure that each piece of equipment is connected to a dedicated circuit inserted into an outlet with the same configuration
as that of the plug. If you are uncertain about the type of suitable power plug, please contact your distributor or a
qualified local electrician. Do not use an adapter or extension cord with this equipment.
SAVE THESE INSTRUCTIONS
EN
DANGER
Improper installation may result in risk of electric shock. Check with a qualified electrician or serviceman if you
are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product.
If it does not fit the outlet, have a proper outlet installed by a qualified electrician.
GROUNDING METHODS—
AMERICA AND OTHER COUNTRIES
USING 120 VOLTAGE
NEMA5—20R GROUNDING OUTLET
GROUNDING PIN
GROUNDING OUTLET
GROUNDING PIN
GROUNDING METHODS—
EUROPE AND OTHER COUNTRIES
USING 220—240 VOLTAGE

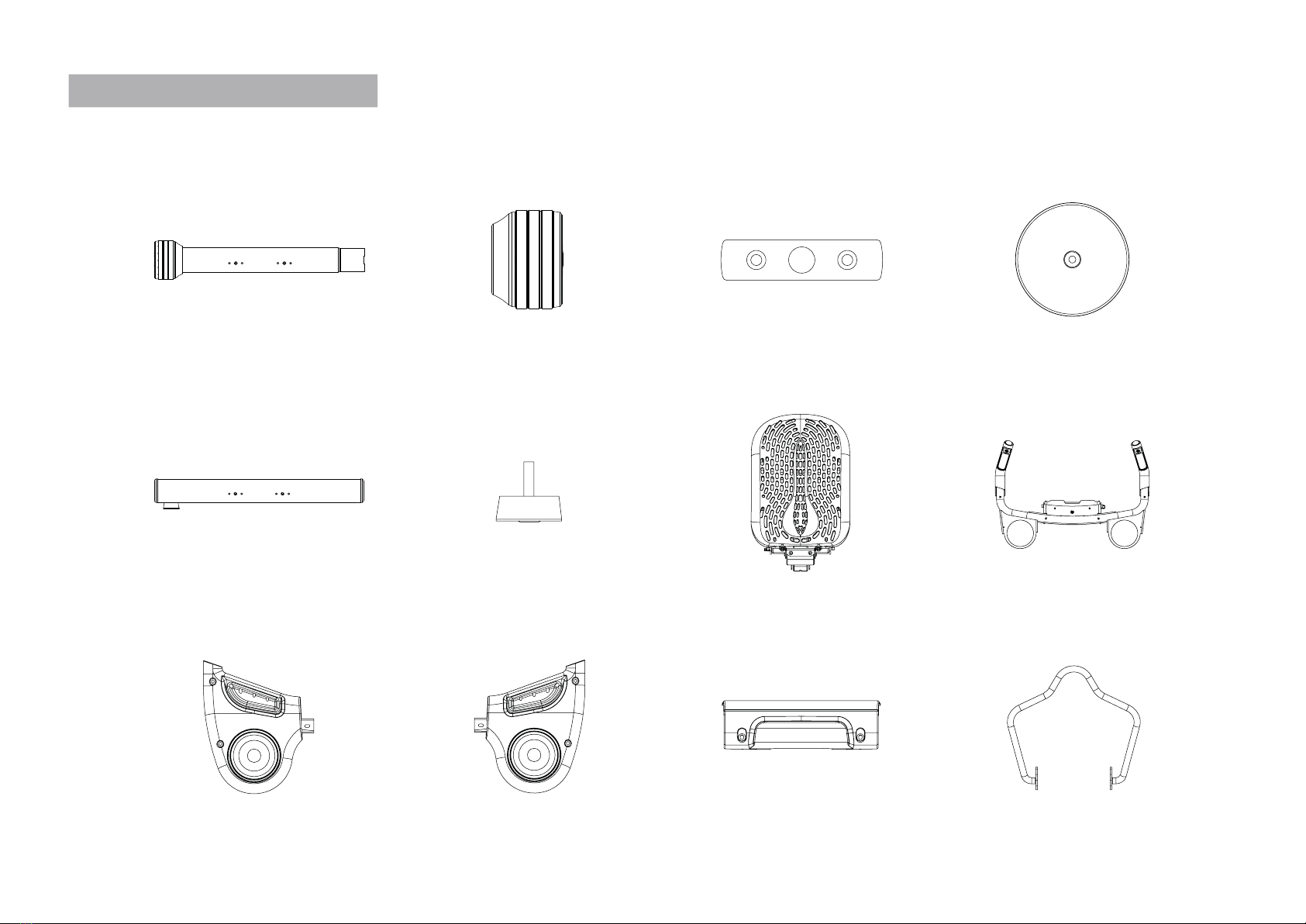

1. FRONT STABILISER
QTY 1
2. TRANSPORTATION WHEEL
QTY 1
3. WHEEL BRACKET
QTY 1
4. TRANSPORTATION WHEEL CAP
QTY 1
5. REAR STABILISER
QTY 1
6. ADJUSTMENT FOOT
QTY 1
7. SEAT FRAME
QTY 1
8. SIDE HANDLEBAR
QTY 1
9. CUP HOLDER, LEFT
QTY 1
10. CUP HOLDER, RIGHT
QTY 1
11. CAP OF SIDE HANDLEBAR
QTY 1
12. SEAT ADJUSTMENT HANDLE
QTY 1
Intenza Recumbent Bikes Part List
EN
Open the shipping carton. Remove all parts from the carton and cardboard inserts. Before beginning assembly, verify that the following
hardware items are packed with the equipment. Do not attempt to move the equipment off the pallet by yourself. At least two people are
required for safe moving or lifting. Please use safe lifting techniques.
Intenza Bikes Manual_____Intenza Recumbent Bikes Parts List 5

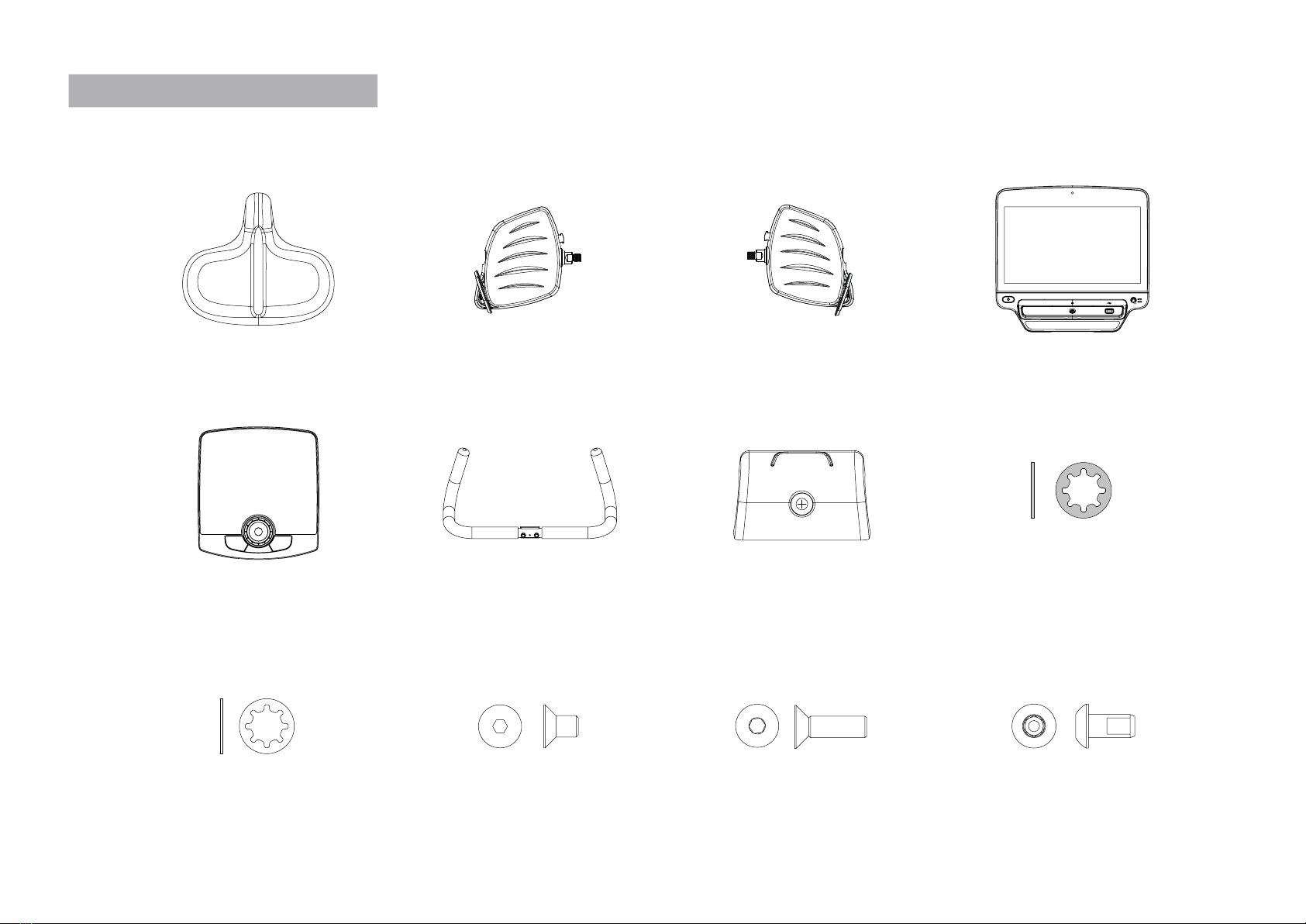

13. SADDLE
QTY 1
14. PEDAL, LEFT
QTY 1
15. PEDAL, RIGHT
QTY 1
16. CONSOLE FOR 550 RBe2
QTY 1
17. CONSOLE FOR 550 RBi
QTY 1
18. FRONT HANDLE BAR
QTY 1
19. CONSOLE CAP
QTY 1
20. STAR WASHER, BLACK, M8
QTY 19
21. STAR WASHER , WHITE, M8
QTY 4
22. COUNTERSUNK SCREW, M5 X 8L
QTY 2
23. COUNTERSUNK SCREW, M6 X 15L
QTY 1
24. DOME SCREW, M5 X 10L
QTY 7
Intenza Recumbent Bikes Part List
EN
Intenza Bikes Manual_____Intenza Recumbent Bikes Parts List 6

25. DOME SCREW, M5 X 15L
QTY 2
26. DOME SCREW, WHITE, M8 X 15L
QTY 4
27. DOME SCREW, BLACK, M8 X 20L
QTY 12
28. SCREW, SOCKET, M8 X 12L
QTY 6
29. SCREW, SOCKET, BLACK, M8 X 40L
QTY 2
30. SCREW, SOCKET, M5 X 10L
QTY 4

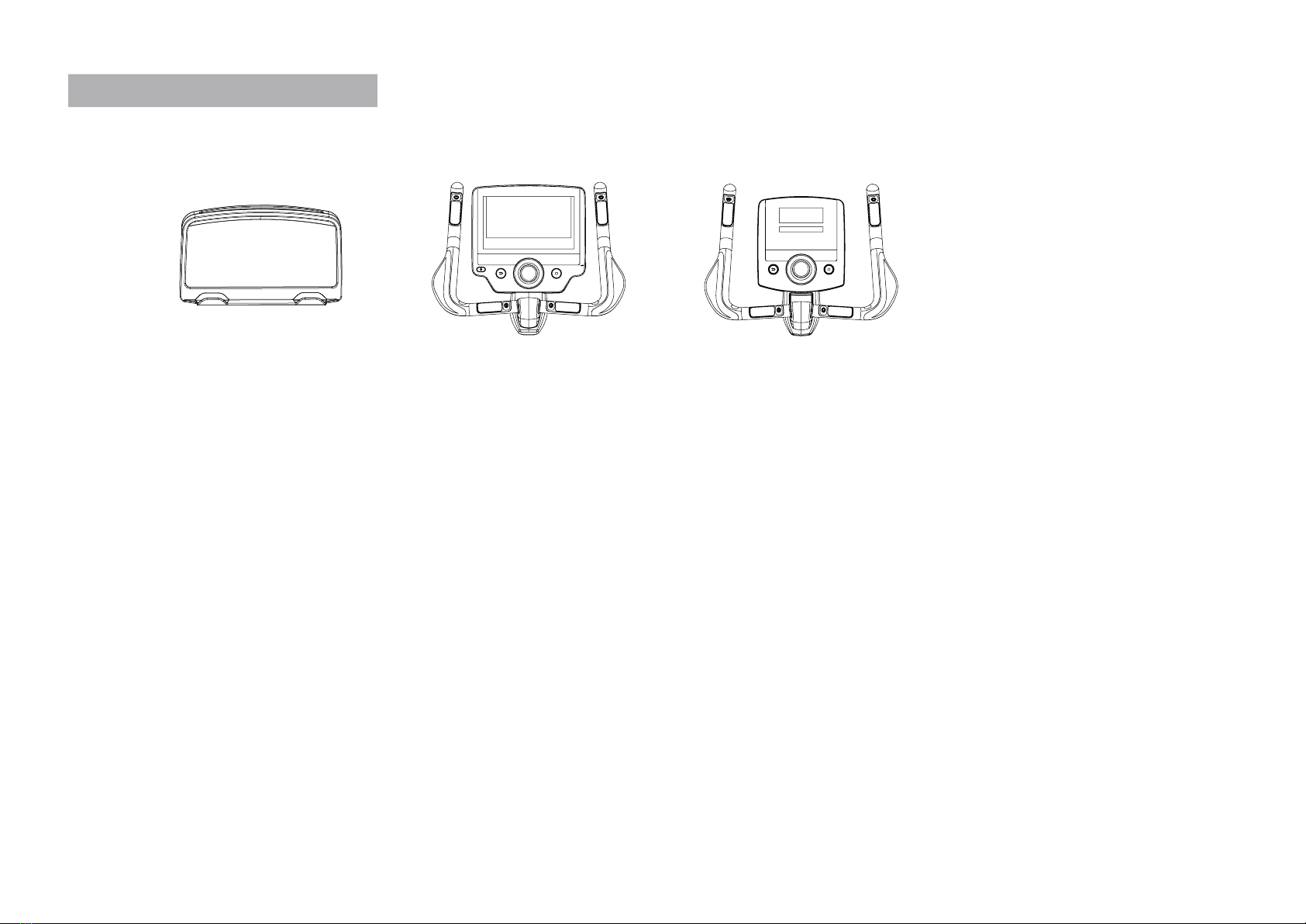

31. iPAD RACK FOR 550RBi/450RBi2S
QTY 1
32. 450 SERIES i2 CONSOLE ASSEMBLY
QTY 1
33. 450 SERIES i2S CONSOLE ASSEMBLY
QTY 1
Intenza Recumbent Bikes Part List
EN
Intenza Bikes Manual_____Intenza Recumbent Bikes Parts List 7

1
20
27
ASSEMBLE THE FRONT STABILISER.
PLEASE NOTE
Lift up the bike carefully to assemble the front stabiliser.
COMPONENTS AND TOOLS
Star washer, black, M8(20), Dome screw, black, M8 x 20L(27), Hex wrench— 6mm.
8
STEP 1 STEP 2
ASSEMBLE THE TRANSPORTATION WHEEL.
COMPONENTS AND TOOLS
Countersunk screw, M5 x 8L(22), Countersunk screw, M6 x 15L(23),
Hex wrench— 6mm, Hex wrench— 3mm
ASSEMBLE THE REAR STABILISER.
COMPONENTS AND TOOLS
Star washer, black, M8(20), Dome screw , black, M8 x 20L(27),
Hex wrench— 6mm
STEP 3 STEP 4
ASSEMBLE THE ADJUSTMENT FOOT.
EN
Intenza Bikes Manual_____Intenza Recumbent Bikes Assembly Instructions
Intenza Recumbent Bikes Assembly Instructions: Bike Frame
2
3
4
22
23
5
20
27
6

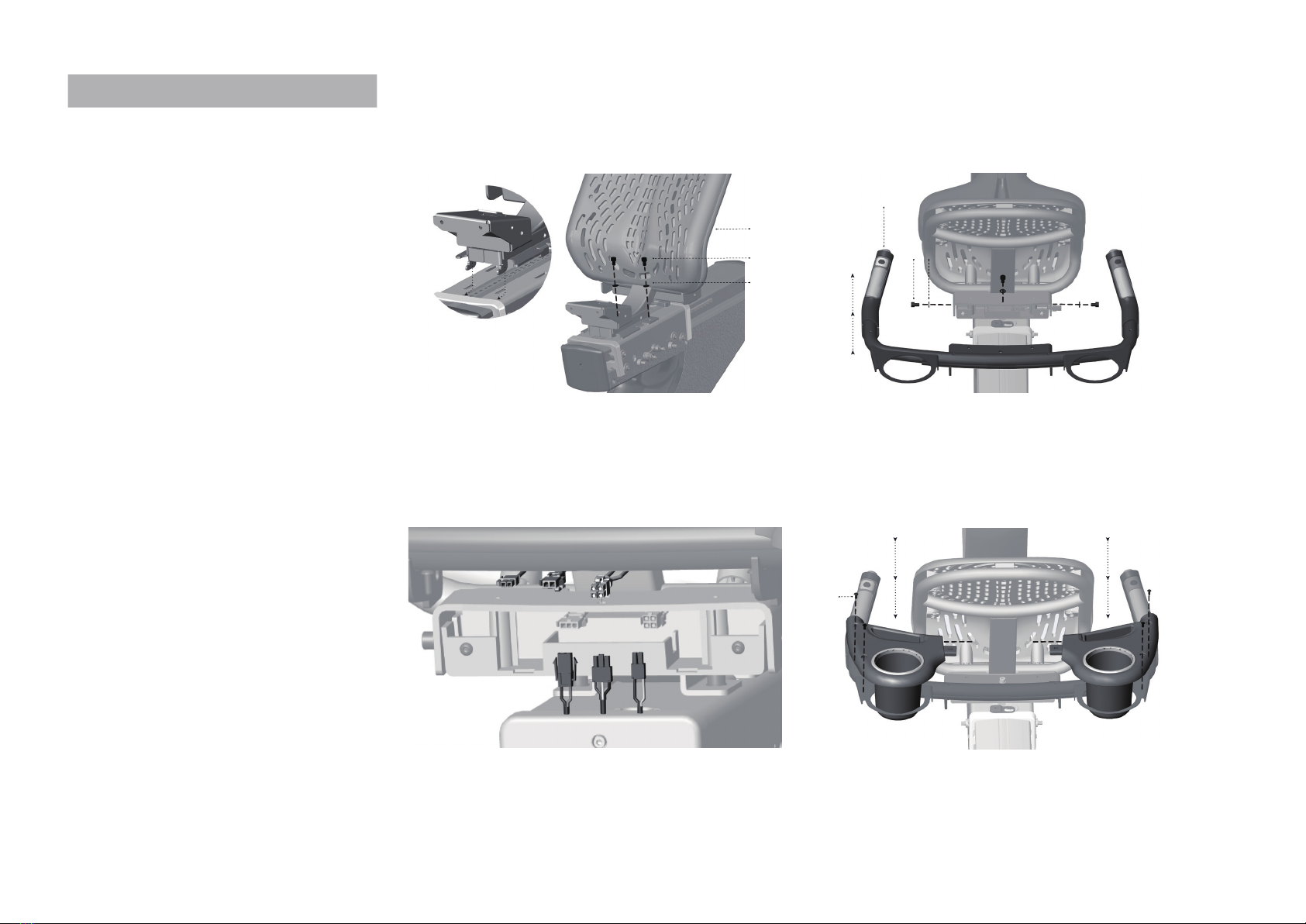

ASSEMBLE THE SEAT FRAME.
COMPONENTS AND TOOLS
Star washer, black, M8(20), Screw, socket, M8 x 12L(28),
Hex wrench— 6mm
9
STEP 5 STEP 6
ASSEMBLE THE HANDLEBAR.
COMPONENTS AND TOOLS
Star washer, black, M8(20), Screw, socket, M8 x 12L(28),
Hex wrench— 6mm
ASSEMBLE THE SIDE HANDLE BAR—CONNECT THE CABLES
PLEASE NOTE
Connect the cables with matched pin with the same colour.
STEP 7 STEP 8
ASSEMBLE THE L AND R CUP HOLDER.
COMPONENTS AND TOOLS
Dome screw, M5 x 10L(24), Hex wrench—4mm
EN
Intenza Bikes Manual_____Intenza Recumbent Bikes Assembly Instructions
Intenza Recumbent Bikes Assembly Instructions: Bike Frame
28
20
7
28
8
20
24
9 10

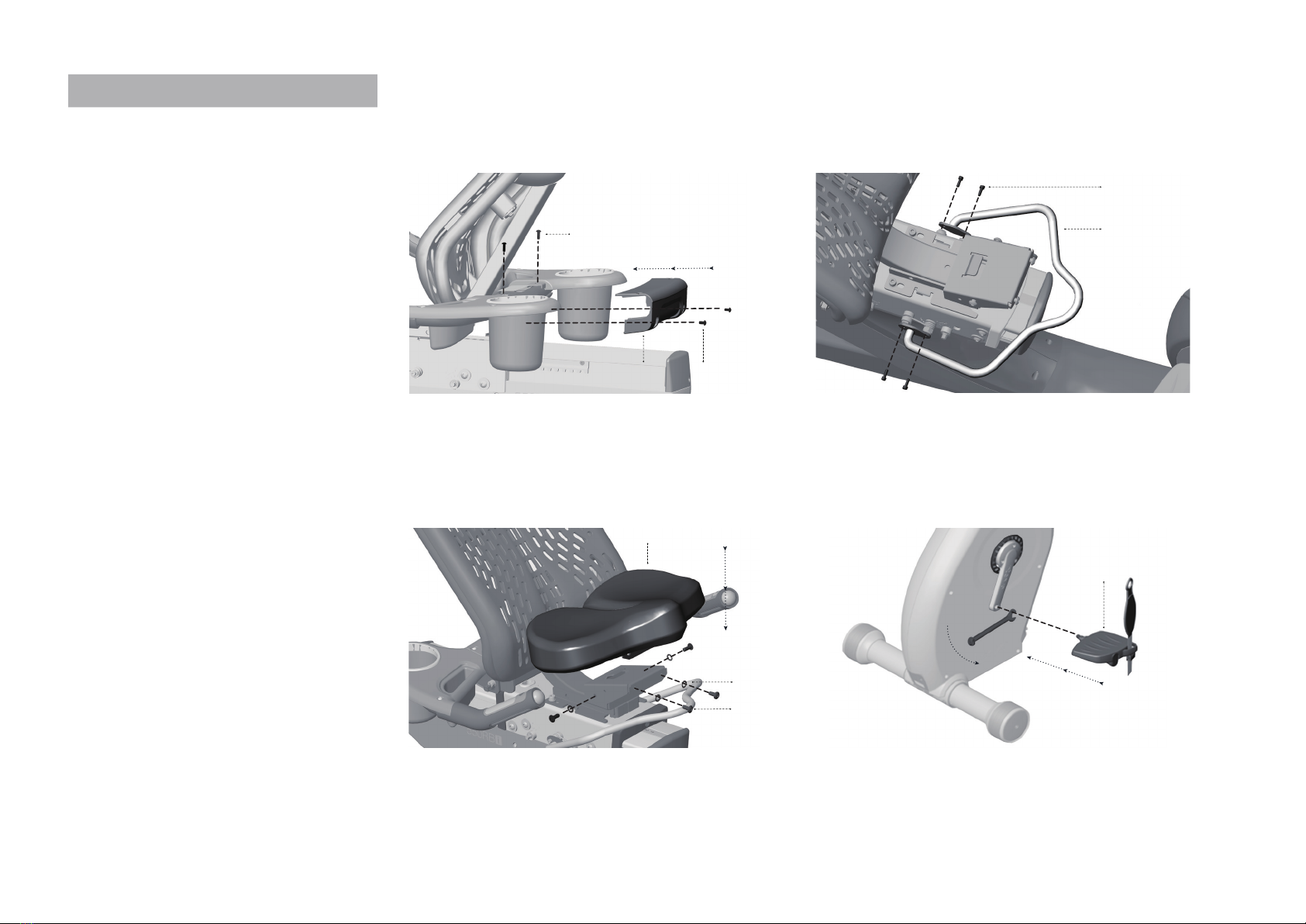

ASSEMBLE THE SIDE COVER OF SIDE HANDLEBAR.
COMPONENTS AND TOOLS
Dome screw, M5 x 10L(24), Dome screw white, M5 x 15L(25),
Hex wrench—4mm
10
STEP 9 STEP 10
ASSEMBLE THE SEAT ADJUSTMENT HANDLE.
COMPONENTS AND TOOLS
Screw, socket, M5 x 10L(30), Hex wrench— 3mm
ASSEMBLE THE SADDLE.
COMPONENTS AND TOOLS
Star washer, black, M8(20), Dome screw , black, M8 x 20L(27),
Hex wrench— 6mm
STEP 11 STEP 12
ASSEMBLE THE LEFT PEDAL.
COMPONENTS AND TOOLS
Open—end wrench— 15mm
PLEASE NOTE
Rotate the wrench according to instruction. Make sure the pedal is Left side.
EN
Intenza Bikes Manual_____Intenza Recumbent Bikes Assembly Instructions
Intenza Recumbent Bikes Assembly Instructions: Bike Frame
11
25
24
12
30
13
20
27
14

ASSEMBLE THE RIGHT PEDAL.
COMPONENTS AND TOOLS
Open—end wrench— 15mm
PLEASE NOTE
Rotate the wrench according to instruction. Make sure the pedal is Right side.
11
STEP 13
EN
Intenza Bikes Manual_____Intenza Recumbent Bikes Assembly Instructions
Intenza Recumbent Bikes Assembly Instructions: Bike Frame
15

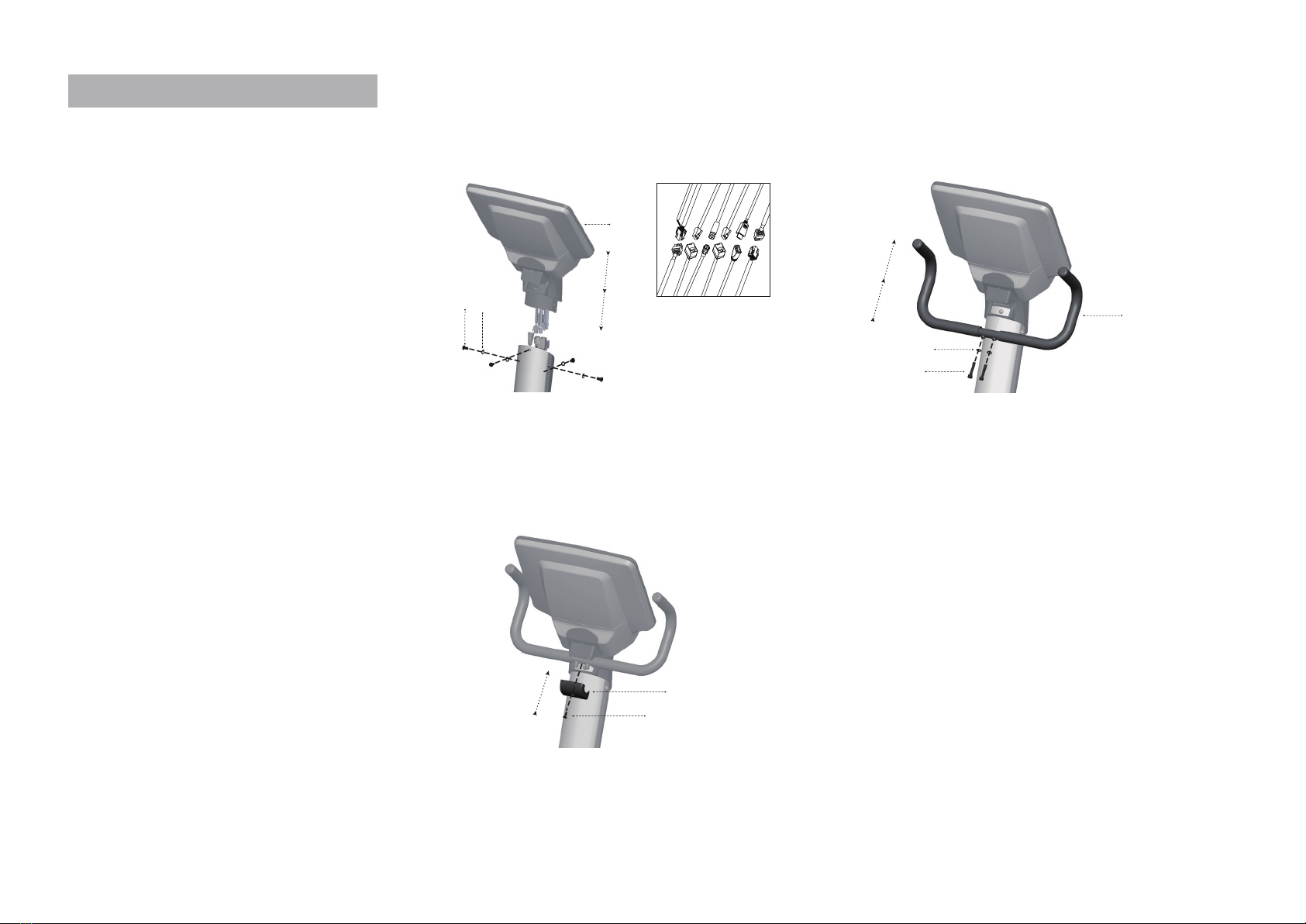

ASSEMBLE THE CONSOLE.
COMPONENTS AND TOOLS
Star washer, white, M8(21), Dome screw, white, M8 x 15L(26),
Hex wrench— 6mm
ASSEMBLE THE CONSOLE.
COMPONENTS AND TOOLS
Dome screw, M5 x 10L(24), Hex wrench—4mm
12
STEP 1
STEP 3
STEP 2
EN
Intenza Bikes Manual_____550RBe2 Assembly Instructions: Entertainment Console
550RBe2 Assembly Instructions: Entertainment Console
16
26 21
20
18
29
ASSEMBLE THE CONSOLE.
COMPONENTS AND TOOLS
Star washer, black, M8(20), Screw, socket, M8 x 40L(29),
Hex wrench— 6mm
19
24

ASSEMBLE THE CONSOLE.
COMPONENTS AND TOOLS
Star washer, white, M8(21), Dome screw, white, M8 x 15L(26),
Hex wrench— 6mm
ASSEMBLE THE CONSOLE.
COMPONENTS AND TOOLS
Dome screw, M5 x 10L(24), Hex wrench—4mm
ASSEMBLE THE iPAD RACK. (550RBi/450RBi2S)
13
STEP 1
STEP 3 STEP 4
STEP 2
EN
Intenza Bikes Manual_____550RBi&450RBi2&450RBi2S Assembly Instructions: Interactive Console
550RBi/450RBi2/450RBi2S Assembly Instructions: Interactive Console
ASSEMBLE THE CONSOLE.
COMPONENTS AND TOOLS
Star washer, black, M8(20), Screw, socket, M8 x 40L(29),
Hex wrench— 6mm
17 (32) (33)
26 21
20
29
18
19
24
31

1. FRONT STABILISER
QTY 1
2. MOVING WHEEL COVER
QTY 1
3. WHEEL BRACKET
QTY 1
4. REAR STABILISER
QTY 1
5. TRANSPORTATION WHEEL
QTY 1
6. ADJUSTMENT FOOT
QTY 1
7. PEDAL, LEFT
QTY 1
8. PEDAL, RIGHT
QTY 1
9. FRONT POST COVER
QTY 1
10. FRONT POST
QTY 1
11. CONSOLE FOR UBe2
QTY 1
12. CONSOLE FOR UBi
QTY 1
Intenza Upright Bikes Part List
EN
Open the shipping carton. Remove all parts from the carton and cardboard inserts. Before beginning assembly, verify that the following
hardware items are packed with the equipment.
Intenza Bikes Manual_____Intenza Upright Bikes Part List 14

13. SADDLE
QTY 1
14. LEFT CUP HOLDER
QTY 1
15. RIGHT CUP HOLDER
QTY 1
16. CUP HOLDER
QTY 1
17. SPRING WASHER, M8
QTY 3
18. STAR WASHER, WHITE, M8
QTY 8
19. STAR WASHER , BLACK, M8
QTY 8
20. COUNTERSUNK SCREW, M5 X 8L
QTY 2
21. COUNTERSUNK SCREW, M6 X 15L
QTY 1
22. DOME SCREW, BLACK, M8 X 20L
QTY 11
23. DOME SCREW, WHITE, M8 X 15L
QTY 8
24. DOME SCREW, M5 X 15L
QTY 8
Intenza Upright Bikes Part List
EN
Intenza Bikes Manual_____Intenza Upright Bikes Parts List 15

25. i—PAD RACK FOR 550UBi/450UBi2S
QTY 1
26. 450 SERIES i2 CONSOLE ASSEMBLY
QTY 1
27. 450 SERIES i2S CONSOLE ASSEMBLY
QTY 1
Intenza Upright Bikes Part List
EN
Intenza Bikes Manual_____Intenza Upright Bikes Parts List 16

ASSEMBLE THE FRONT STABILISER.
COMPONENTS AND TOOLS
Star washer, black, M8(19), Dome screw, black, M8 x 20L(22),
Hex wrench— 6mm
ASSEMBLE THE REAR STABILISER.
COMPONENTS AND TOOLS
Star washer, black, M8(19), Dome screw , black, M8 x 20L(22),
Hex wrench— 6mm
17
STEP 1
STEP 3 STEP 4
STEP 2
EN
Intenza Bikes Manual_____Intenza Upright Bikes Assembly Instructions: Bike Frame
ASSEMBLE THE TRANSPORTATION WHEEL.
COMPONENTS AND TOOLS
Countersunk screw, M5 x 8L(20), Countersunk screw, M6 x 15L(21),
Hex wrench— 6mm, Hex wrench— 3mm
Intenza Upright Bikes Assembly Instructions: Bike Frame
1
2219 5321 2 20
4 19 22
6
ASSEMBLE THE ADJUSTMENT FOOT.

ASSEMBLE THE SADDLE.
COMPONENTS AND TOOLS
Spring washer, black, M8(17), Dome screw, black, M8 x 20L(22),
Hex wrench— 6mm
ASSEMBLE THE RIGHT PEDAL.
COMPONENTS AND TOOLS
Open—end wrench— 15mm
PLEASE NOTE
Rotate the wrench according to instruction. Make sure the pedal is Right side.
18
STEP 5
STEP 7
STEP 6
EN
Intenza Bikes Manual_____Intenza Upright Bikes Assembly Instructions: Bike Frame
ASSEMBLE THE LEFT PEDAL.
COMPONENTS AND TOOLS
Open—end wrench— 15mm
PLEASE NOTE
Rotate the wrench according to instruction. Make sure the pedal is Left side.
Intenza Upright Bikes Assembly Instructions: Bike Frame
13
17
22
7
8

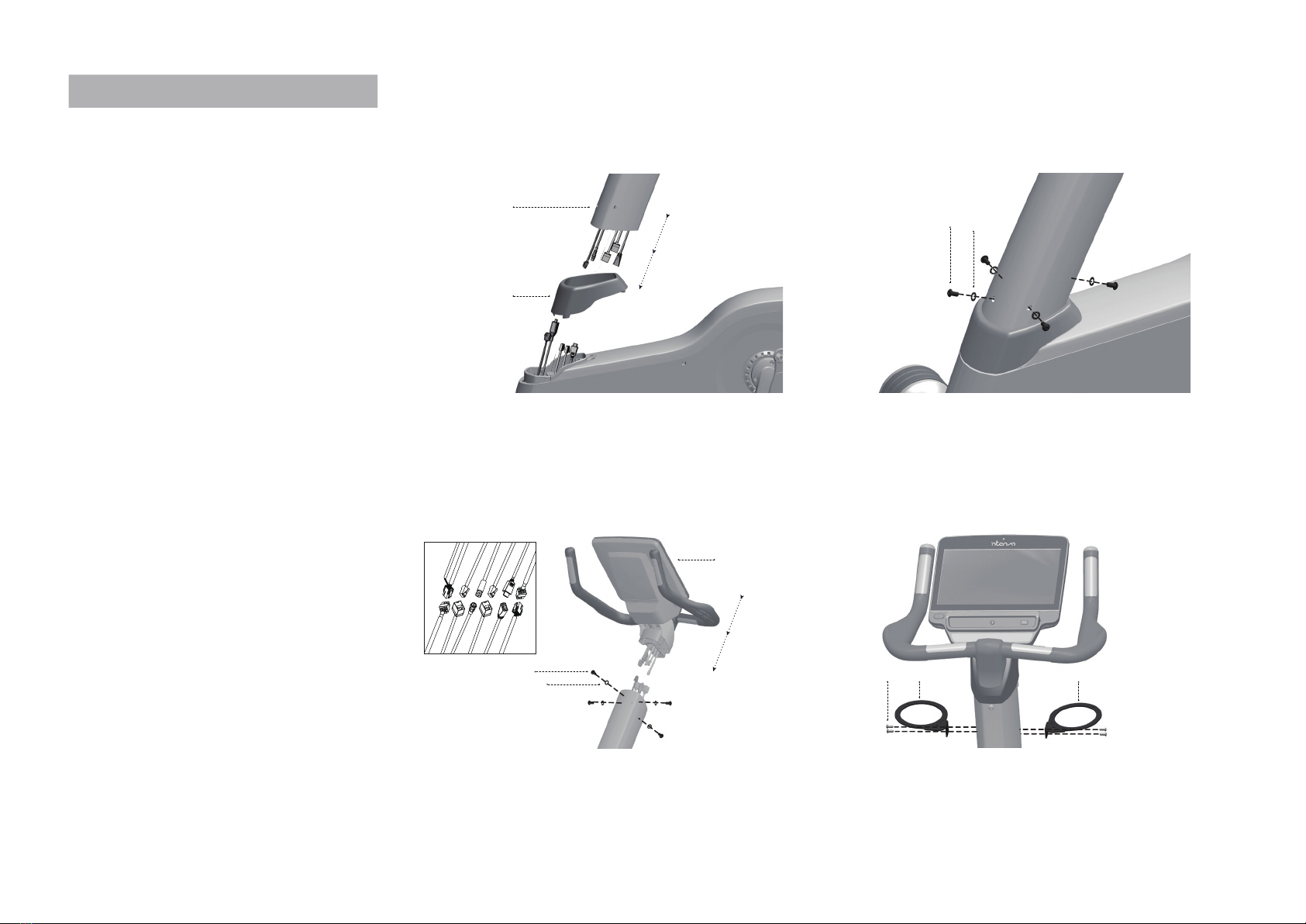

ASSEMBLE THE FRONT POST.
ASSEMBLE THE CONSOLE.
COMPONENTS AND TOOLS
Star washer, white, M8(18), Dome screw, white, M8 x 15L(23),
Hex wrench— 6mm
PLEASE NOTE
Make sure cables are not pinched and position them into front post before
assembling the console.
ASSEMBLE THE HOLDERS.
COMPONENTS AND TOOLS
Dome screw, M5 x 15L(24), Hex wrench—4mm
19
STEP 1
STEP 3 STEP 4
STEP 2
EN
Intenza Bikes Manual_____550UBe2 Assembly Instructions: Entertainment Console
ASSEMBLE THE CONSOLE.
COMPONENTS AND TOOLS
Star washer, white, M8(18), Dome screw, white, M8 x 15L(23),
Hex wrench— 6mm
550UBe2 Assembly Instructions: Entertainment Console
9
10
18
23
23
18
14 15
24
11
