PT-0050 STR INDOOR BIKE
OWNER’S MANUAL
ENGLISH
1

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
1. SAFETY INSTRUCTIONS
WARNING: To reduce the risk of serious injury, read the following safety instructions before using the equipment.
1. Read all warnings posted on the equipment.
2. Read this Owner's Manual and follow it carefully before using the equipment. Make sure that it is properly
assembled and tightened before use.
3. We recommend that two people be available for assembly of this product.
4. Keep children and pets away from the equipment. Do not allow children and pets to use or play on the equipment.
Always keep children and pets away from the equipment when it is in use.
5. It is recommended that you place this exercise equipment on an equipment mat.
6. Set up and operate the equipment on a solid level surface. Do not position the equipment on loose rugs or uneven
surfaces.
7. Inspect the equipment for worn or loose components prior to each use.
8. Tighten / replace any loose or worn components prior to using the equipment.
9. Consult a physician prior to commencing an exercise program. If, at any time during exercise, you feel faint, dizzy,
or experience pain, stop and consult your physician.
10. Follow your physician's recommendations in developing your own personal fitness program.
11. Always choose the workout which best fits your physical strength and flexibility level. Know your limits and train
within them. Always use common sense when exercising.
12. Before using this product, please consult your personal physician for a complete physical examination.
13. Do not wear loose or dangling clothing while using the equipment.
14. Never exercise in bare feet or socks; always wear correct footwear, such as running, walking, or cross-training
shoes.
15. Be careful to maintain your balance while using, mounting, dismounting, or assembling the equipment loss of
balance may result in a fall and serious bodily injury.
16. Keep both feet firmly and securely on the Foot Pedals while exercising.
17. The equipment should not be used by persons weighing over 120 kg.
18. The equipment should be used by only one person at a time.
19. The equipment is for home usage.
20. Maintenance: Replace the defective components immediately and / or keep the equipment out of use until repair
the equipment completely.
21. Make sure that adequate space is available for access to and passage around the equipment; keep at least a
distance of 1 meter from any obstruction object while using the machine
WARNING: Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam. This is especially important if you are over the age of 35, have never
exercised before, are pregnant, or suffer from any illness.
2

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH

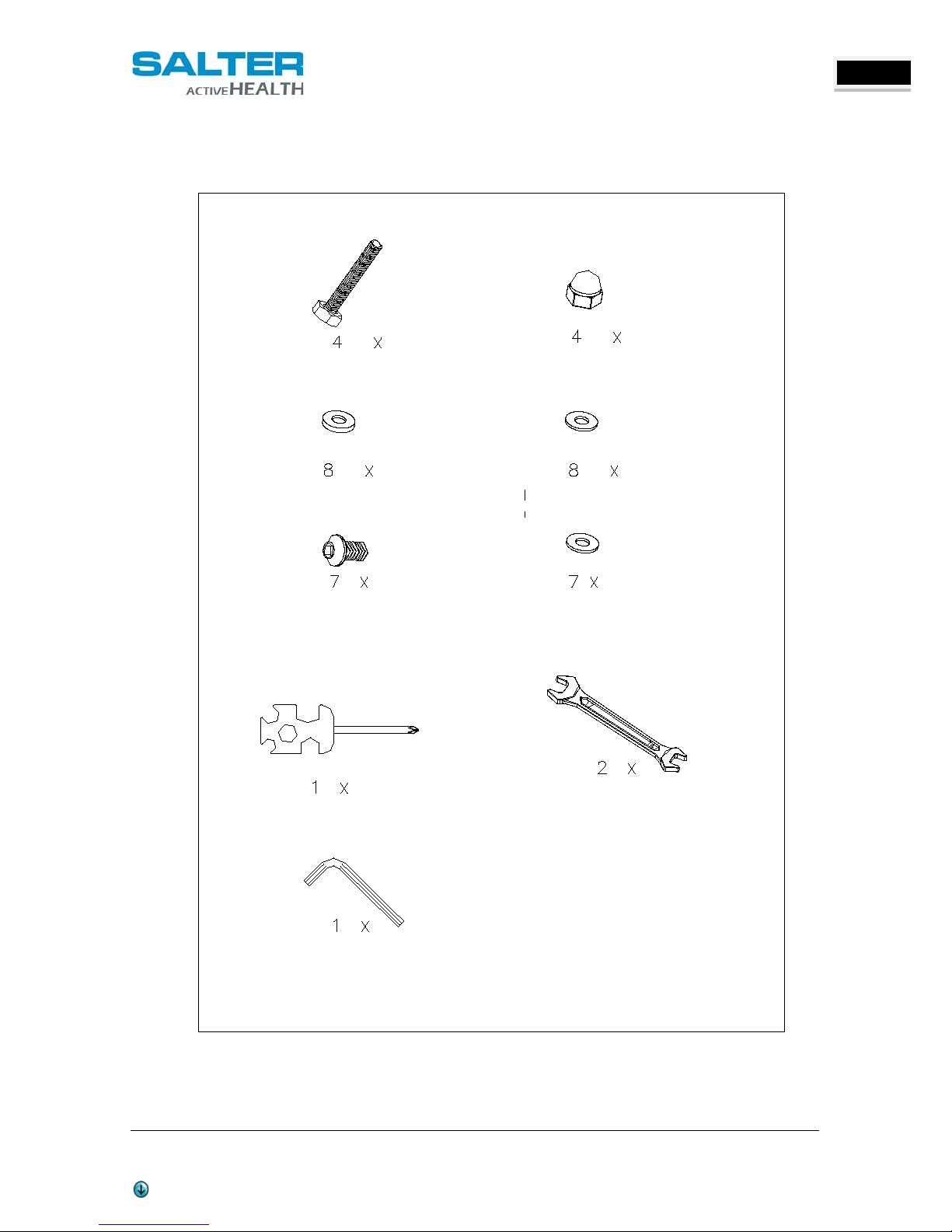

2. TOOLS LIST
WScerw
Screw Driver
Screw driver
M5 Allen wrench
Screw driver
Washer 8*19*1.5 (65)
Screw 8*15 (64)
Flat washer 10*26*2 (7)
Nut cap M10 (8)
Hex Head Bolt 10*60 (5)
Plastic washer 10*26*2 (6)
3

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH

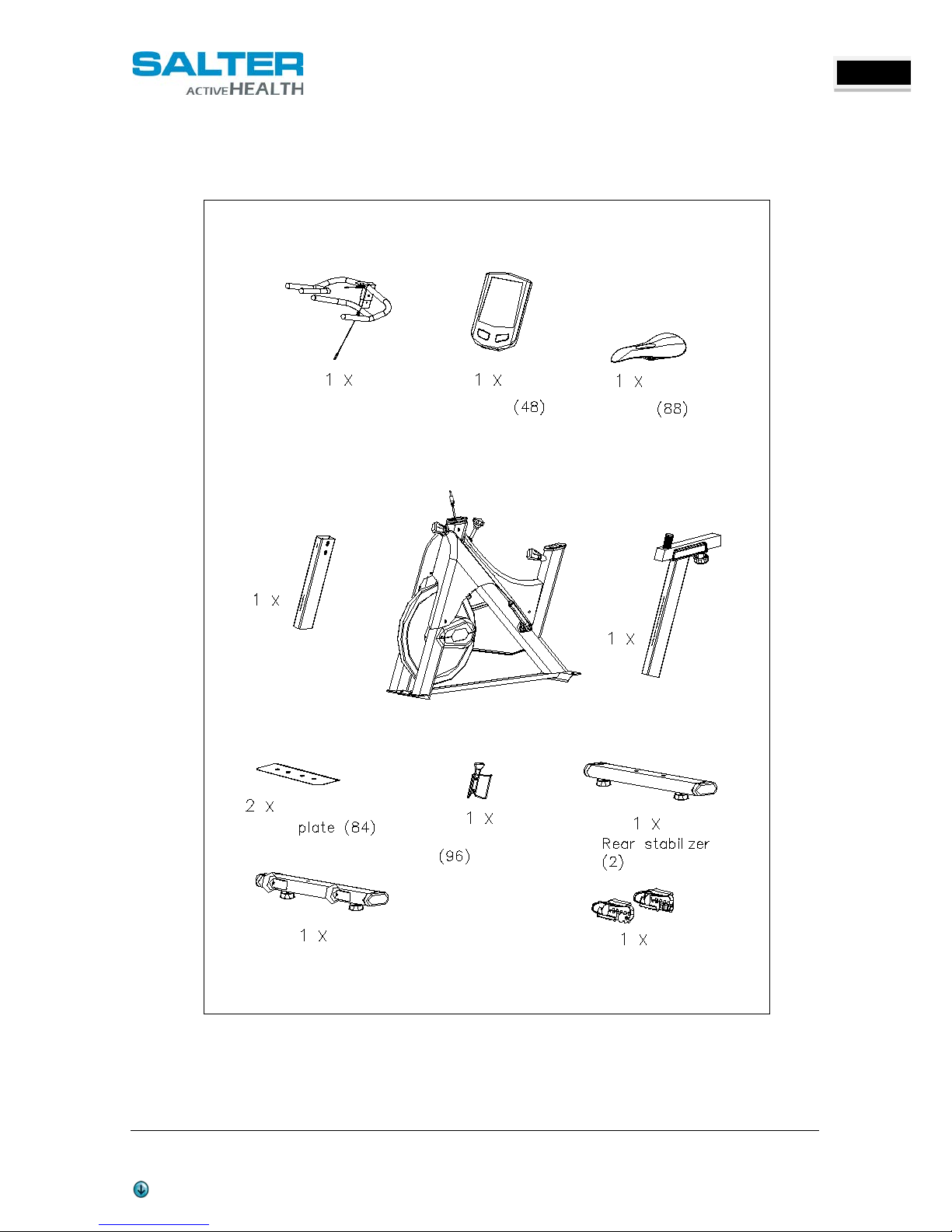

3. MAIN PARTS
Handle bar (45) Seat
Pvc i
Pedal (26&28)
Front stabilizer (9)
Upright post (47)
Seat post (50)
Main frame (1)
Computer
Hottle holder
4

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
4. ASSEMBLY INSTRUCTIONS

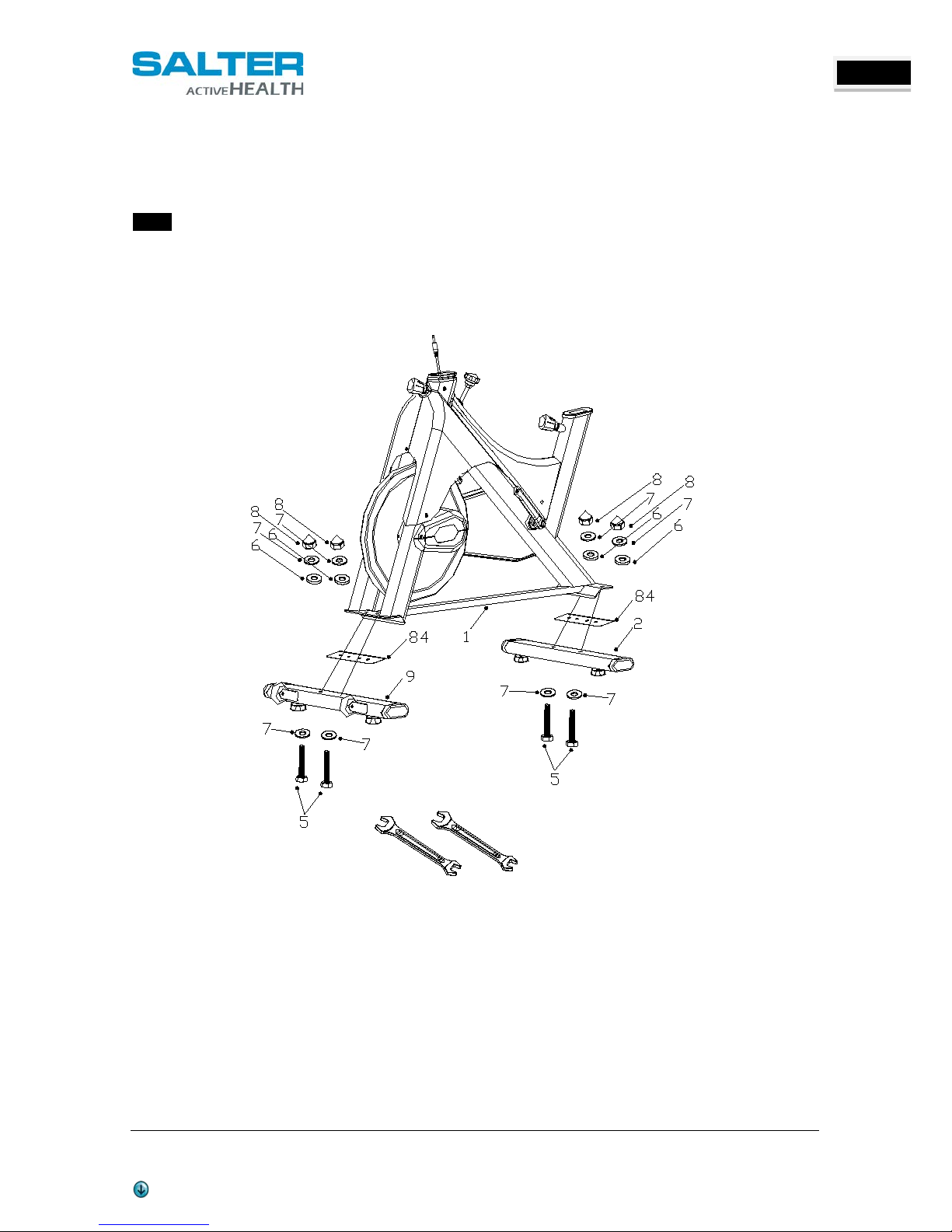

STEP 1
Attach the front stabilizer (9 ) and rear stabilizer (2) to the main frame (1) through the pvc plate (84) and fix with 4 hex
head bolts (5), 4 washers (7), 4 plastic washers (6) and 4 nut caps (8). Use the screw driver.
5

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH

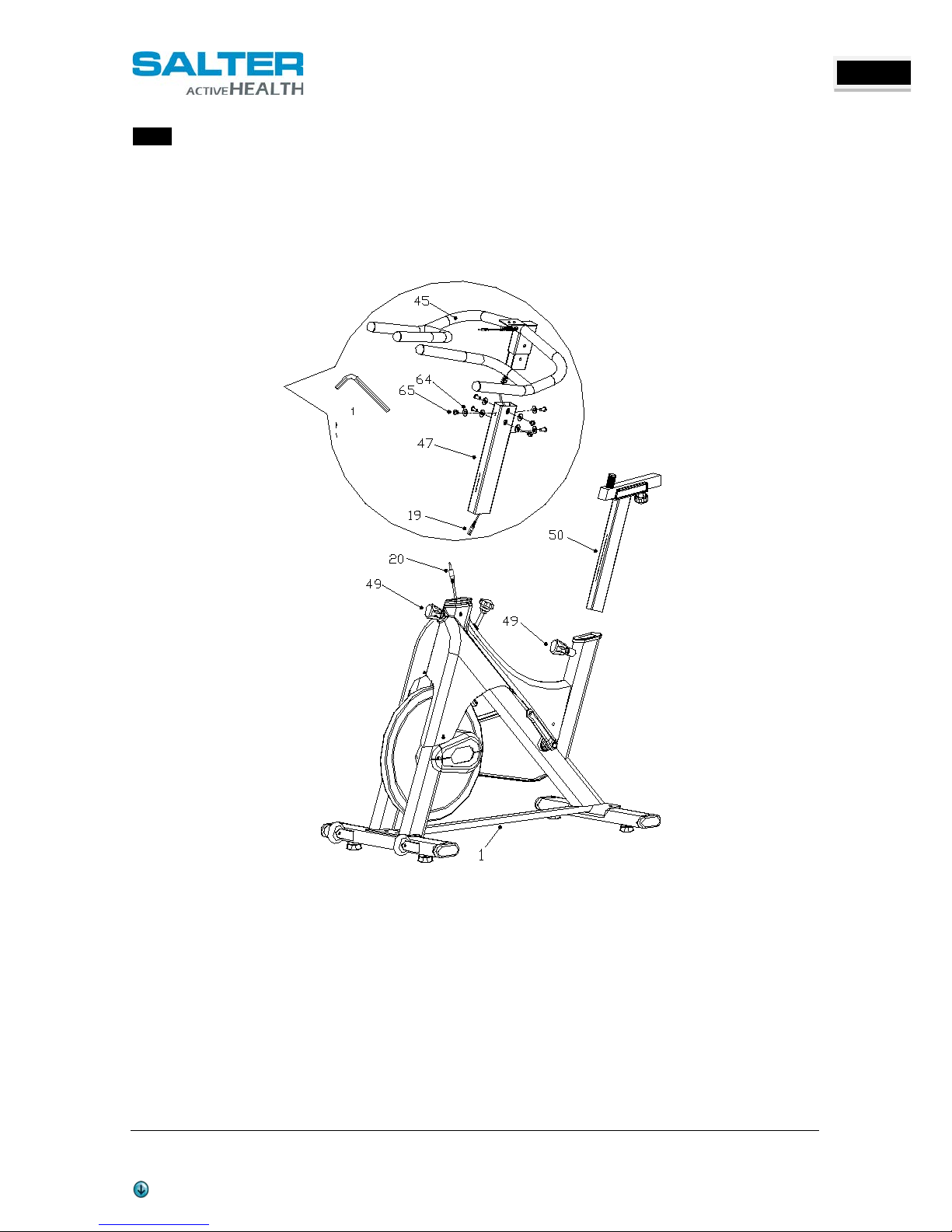

STEP 2
A. Put the extension wire (19) through the upper upright post (47). Insert the handlebar (45) into the upper upright
post (47) and ifx with 4 bolts (65) and 4 washers (65). Usen the Allen wrench.
B. Connect the extension wire (19) with the sensor wire (20) and loosen the adjustable knob (49); then attach the
upper upright post (47) and the seat post (50) to the main frame (1).
A
B
6

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH

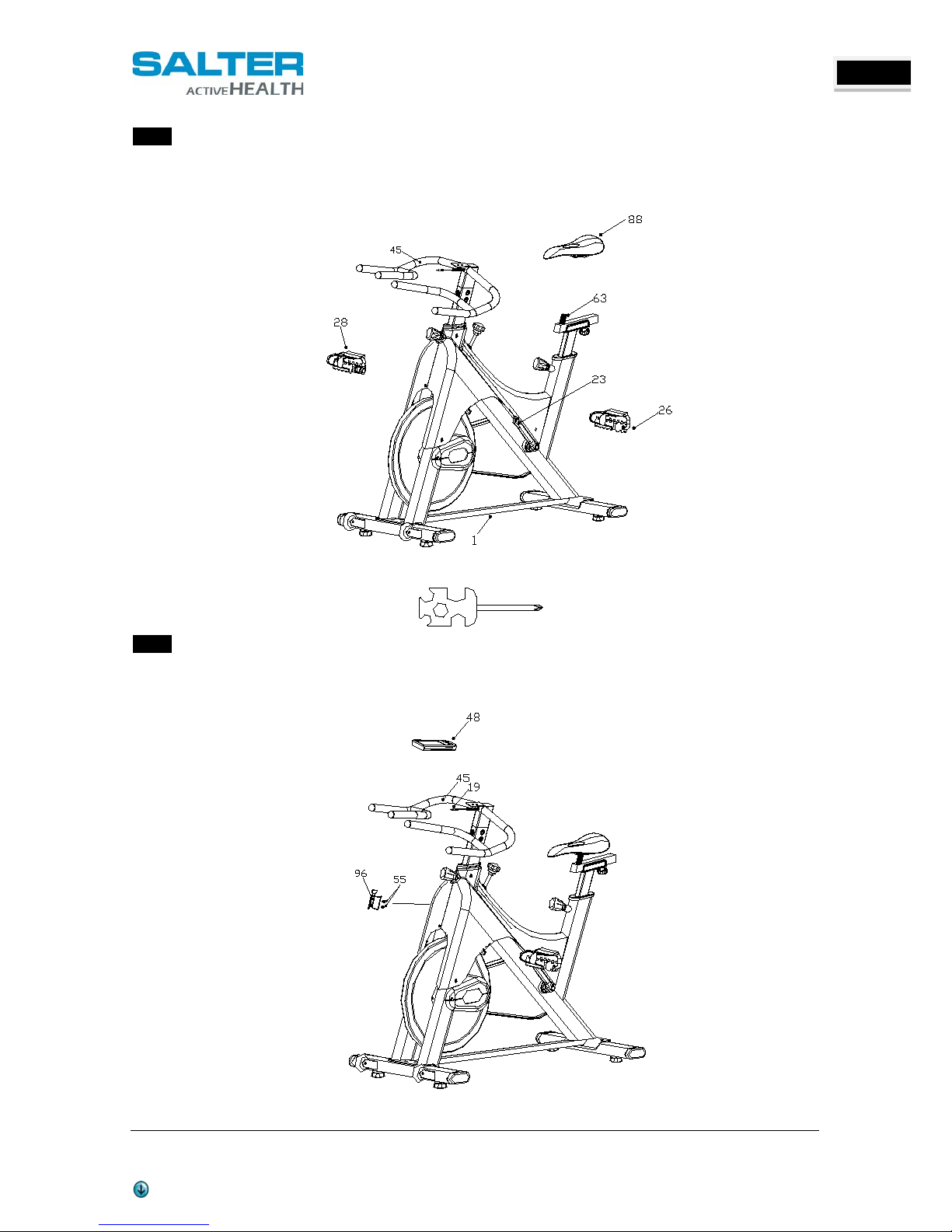

STEP 3
Attach the pedals (26&28) to the crank (23). Fix the seat (88) to the seat adjust tube (63). Use the screwdriver.
STEP 4
Attach the consoler (48) to the handlebar (45) and connect the extension wire (19) to the cable of the console (48).
Then, attach the bottle holder (96) to the main frame (1) with 2 bolts (55).
7

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
5. CONSOLE INTRUCTIONS
Console Battery Installation
1. Remove the battery cover from the back of the computer.
2. Insert 2 AAA batteries into the battery compartment and reinstall the battery cover.
3. When Battery working voltage is low, the ‘Low battery’ indicator will show up on the Console display.
Console Installation:
1. Insert the console in the support at the center of the handlebar.
8

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
5.1. CONSOLE FUNCTIONS
TIME
Time is the length of time (min. / sec.) The time will count up or count down during user peddling. When peddling
stopped, the time will stop to count up or count down after 3 seconds.
CADENCE & SPEED
Cadence is the measurement of how fast the cranks are rotating in RPM’s. The approximate speed of the bike can also
be display (MPH/KPH) in the section.
In addition to the MPH/KPH, the CADENCE will also display a bar graph that allows the rider to keep track of the
approximate cadence that has been achieved. Average Cadence or Speed will be automatically shown after the rider
stop the pedaling for 3 seconds.
DISTANCE
Distance is the measurement of the approximate distance achieved on the bike. This distance is based on the user
riding a bike with tires that are the same size as the bikes flywheel.
KCAL
Kcal is the approximation of calories burned during your work out. The calories are calculated by measuring the rider’s
instantaneous heart rate, age, and weight.
HEART RATE
This is the approximation of heart rate detect from the chest belt during the work out. Average Heart Rate will be
automatically shown after 3 seconds if the console cannot detect the current Heart Rate.
9

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
5.2. FUNCTION MODES
QUICK START
When the console is in Power Saving Mode, hold down any key to wake up the console and go to the start-up screen,
also called “QUICK Start” active state.
Power Saving Mode Quick Start mode
MODE SELECT
Press the left hand key to select the SPEED, DIST, TIME or CLOCK at the bottom of the display.
10

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
RESET/HEART RATE ALARM SELECT
1. Press the right hand key to activate the heart rate alarm. If the alarm is on, the alarm icon will flash and a beep will
sound to indicate that your heart rate is either above or below the selected target zone.
2. RESET: Press and hold the left hand key for 3 seconds. All the accumulated values for AVG SPEED, AVG PULSE,
TIME, DIST, KCAL will return to zero.
TIME OF DAY
1. If you want to change the time of day settings at any time press the left hand key until TIME OF THE DAY is
displayed; then press the right hand key for 3 seconds. The display will flash an indication of whether the clock is
set for 12H clock or 24H military time clock. Press the right hand key to change.
2. Press the left hand key to switch to the hour setting, use the right hand key to change hours.
3. Press the left hand key again to switch to minutes and use the right hand key to change the minutes.
4. When you are finished, wait a few seconds until the console returns to the start-up screen.
SETTING WORKOUT TIME
1. Press the left hand key until SPEED is displayed. Then press the right hand key for 3 seconds. The Minutes will now
be flashing. Press the right hand key to increase Minutes setting. Wait a few seconds until the console returns to
the start-up screen.
2. To clear the exercise Time press the right hand key until the time is displayed then hold the right hand key for three
seconds. Wait a few seconds until the console returns to the start-up screen.
11

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH

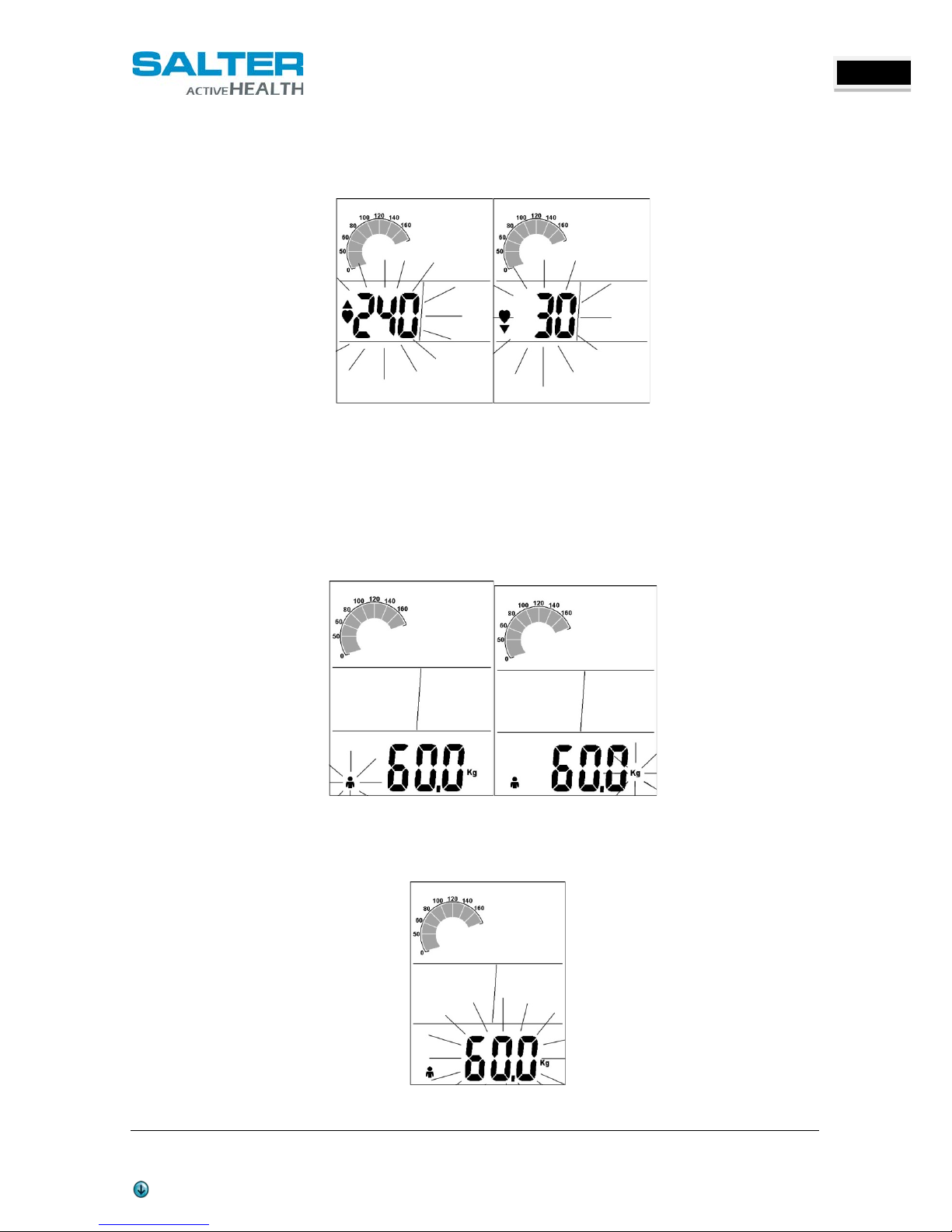

HEART RATE TARGET ZONES
Press the left hand key until ‘SPEED’ is displayed; then hold the right hand key for 3 seconds. The TIME will be flashing;
press the left hand key to select the heart rate target zone settings.
Press the right hand key to increase maximum heart rate limit. After setting the maximum heart rate, press the left
hand key to adjust the minimum heart rate limit. Wait a few seconds until the console returns to the start-up screen.
PERSONAL DATA SETTING
1. GENDER: Press the left hand key until SPEED is displayed then, press the right hand key for 3 seconds. The TIME
will be flashing, press the left hand key until the gender icon is blinking. Press the right hand key to select the
gender.
2. WEIGHT MEASURE: Press the left hand key to set the measuring value for weight (Lb or Kg), press the right hand
key to select.
3. BODYWEIGHT: Press the left hand key to set the bodyweight, press the right hand key to increase the weight.
Press and hold the right hand key for rapid advance. Wait a few seconds until the console returns to the start-up
screen.
12

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH

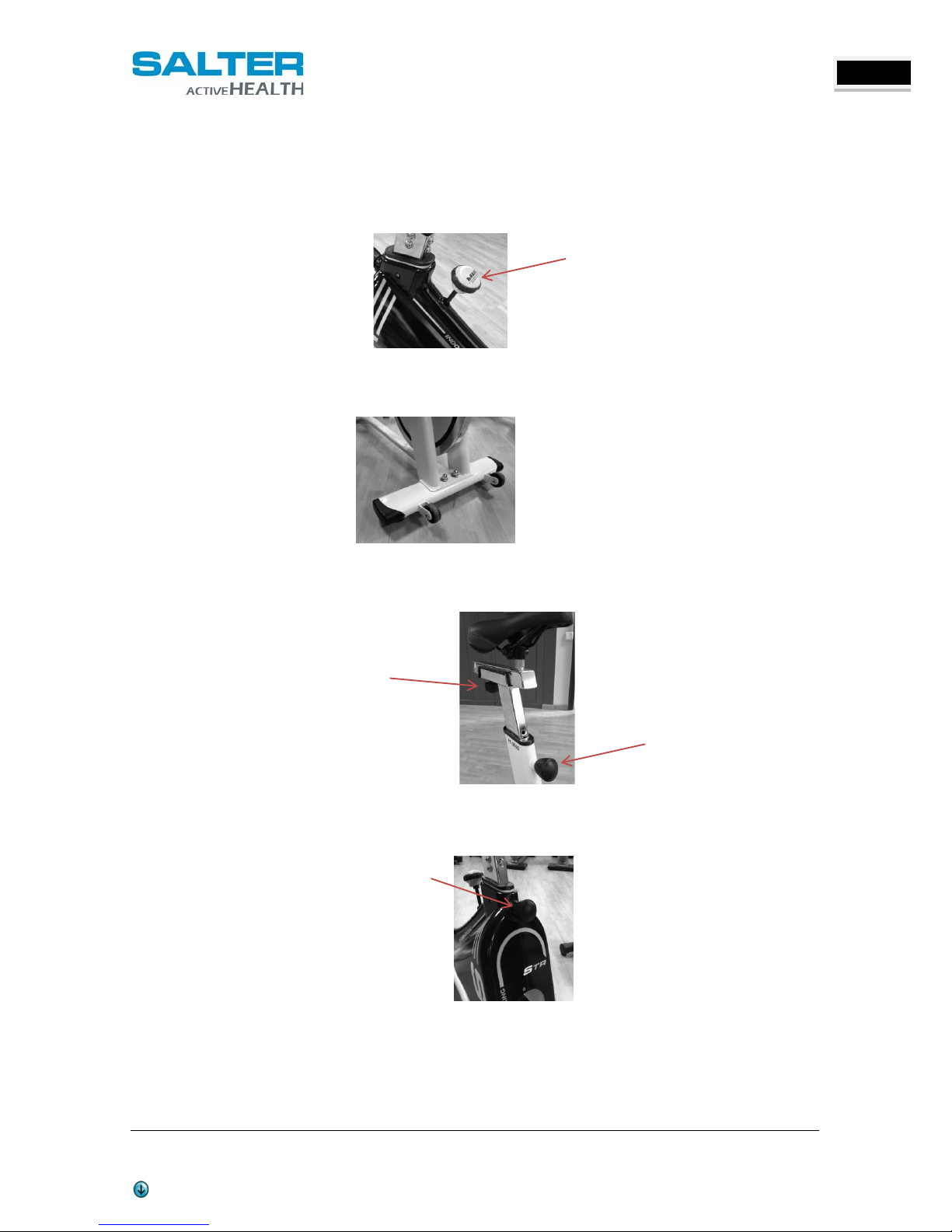

6. OPERATION INSTRUCTIONS
HOW TO ADJUST THE RESISTANCE
Use the knob on the main frame to adjust the level of resistance of the exercise.
HOW TO MOVE THE ITEM SAFELY
Hold the handlebar down with two hands and tow the item to the desired place carefully. Make sure the floor is level
while towing the item.
HOW TO ADJUST THE SEAT
Use the knob located in the post seat to adjust the height of the seat. Use the knob located in the post seat slide to
adjust the position of the seat horizontally.
HOW TO ADJUST THE HANDLEBAR
Use the knob located in the vertical post to adjust the position of the handlebar.
13

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
7. MAINTENANCE
The maintenance of the equipment is easy:
•Dry and clean those areas exposed to perspiration, especially the console. It is recommended to use towels in order
to avoid the sweat falling to the equipment.
•Dust and dirt may be the cause of functioning problems in the gears and the internal bearings. It is recommended
keeping the equipment casing and its different elements clean.
8. TROUBLESHOOTING
No Display on Console
1. Hold down any key to bring the console to “Quick Start” mode.
2. Ensure that the batteries are installed properly in the console and transmitter. If they are, install fresh batteries.
No Heart Rate signal displayed
1. Ensure that your chest strap is worn correctly and that there is moisture under the electrodes.
2. Relocate the bike away from any equipment that could potentially interrupt the radio frequency signal, such as a
DVD player or television, etc.
14

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH

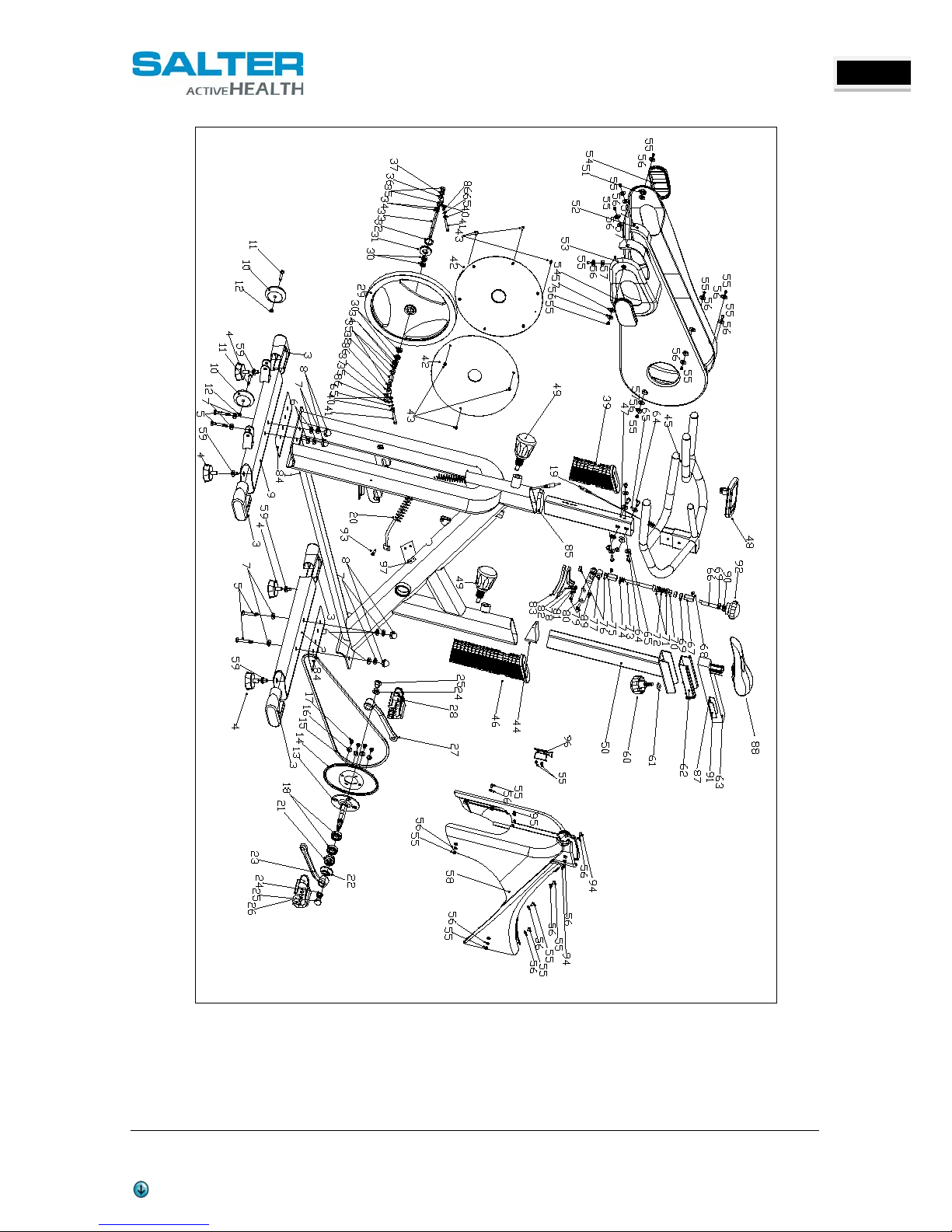

9. PARTS LIST
NO DESCRIPTION SPECIFICATION Q'TY
1 MAIN FRAME
1
2 REAR STABILIZER
40*80*2.0*500
1
3 REAR STABILIZER CAP
40*80 ABS
4
4 ADJUST RUBBER
M8
4
5 HEX HEAD BOLT
M10*60
4
6 NYLON WASHER
10*26*2
4
7 WASHER
10*26*2
8
8 CAP NUT M10
4
9 FRONT STABILIZER
40*80*2.0*500
1
10 SLIDE WHEEL Φ57*22 2
11 UMBRELLA BOLT 8*30*M6 2
12 UMBRELLA BOLT M6*12 2
13 AXLE OF PULLEY 25*134 1
14 IRON PULLEY Φ210 1
15 BELT 550EL 1
16 SPRING WASHER Φ10 4
17 UMBRELLA BOLT 10*15 4
18 BEARING 6004ZZ NBK 2
19 MIDDLE WIRE 1
20 SENSOR WIRE 1
21 NYLOCK NUT M20*P1.0 1
22 NYLOCK NUT CAP 1
23 CRANK ( L)
9/16'
1
24 FLANGE NUT M10 2
25 CRANK COVER 2
26 PEDAL ( L ) E003 1
27 CRANK ( R ) 9/16' 1
28 PEDAL ( R ) E003 1
29 FLYWHEEL 18KG Φ450*28
1
30 BEARING 6001ZZ NBK 4
31 BELT WHEEL 1
32 SKIDPROOF PLATE Φ42.5*4 SPHC 1
33 AXLE OF FLYWHEEL 14*185 SCM415
2
34 WASHER 12.2*16.6*1 4
35 NUT M12*P1.5
6
36 ADJUST PLATE OF ZIP
19*4
2
37 FLANGE NUT 13*20*2 2
15

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
38 SLEEVE OF FLYWHEE AXLE 12.25*16*11 1
39 POST BUSHING
1
40
NUT
M8*P1.25
4
41 ROUND BOLT M8*50*P1.25 2
42 FLYWHEEL PALTE 390*2 PP 2
43 SCREW M4*12 6
44 BELOW SEAT POST CUSHION
8*92
1
45 HANDLEBAR 1
46 SEAT POST CUSHION 36*93*259 2
47 TOP POST 30*60*1 1
48 COMPUTER DT-3261 1
49 ADJUST KNOW
2
50 TOP SEAT POST 30*60*1.8 1
51 CHAIN COVER ( L ) 709*261 1
52 CHAIN COVER ( R ) 715*269 1
53 FRONT COVER 248*138 ABS 1
54 TPR PROTECT COVER 53.5*118/TPR 2
55 UMBRELLA BOLT 5*16 18
56 WASHER 5*9 18
57 NYLON WASHER 6*12 4
58 PROTECT COVER 2
59 PULL NUT M8 4
60 ADJUST KNOB M10*30 1
61 WASHER 10*19*1.5 1
62 NYLON SLIDE BLOCK 59*3*158 1
63 SLIDE BLOCK OF SEAT
1
64 UMBRELLA BOLT M8*15 7
65 WASHER 8*19*1.5 9
66 BRAKE BOLT 10*133 1
67 BRAKE NUT 16.8*16.8*31 1
68 UMBRELLA BOLT M5*5 DIN 2
69 NUT M10*P1.5 2
70 NUT M8 1
71 ROUND MAGNETIC 16.8*3 2
72 SPRING 2*16*30 1
73 BRAKE SCREW 10*101.5 1
74 SPRING 2 1.5*15*25 1
75 BRAKE NUT 2 16.8*16.8*25 1
16

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
76 FLANGE M8*P1.25 2
77 BRAKE ADJUST POLE 20*30 1
78 NYLOCK NUT M6 1
79 ROUND MAGNETIC M6*20 2
80 U BASE 30*3*66.5 1
81 SLEEVE Φ6.2*Φ10*6.2 2
82 FIX NIP OF LOOMAGE 25*112 1
83 LOOMAGE 25*7*115 1
84 PLASTIC MAT 176*59*1.5 PVC 2
85 BELOW POST CUSHION 12*92 1
86 WASHER Φ8*Φ18*1.0 2
87 NUT M10 1
88 SEAT DD680 1
89 NUT M6 1
90 WASHER Φ11*Φ21*1.5 1
91 U SLIDE BLOCK 1
92 BRAKE KNOB 1
93 SCREW 4*16 1
94 UMBRELLA BOLT 5*10 2
95 SCREW 4*16 1
96 BOTTLE CAGE 1
17

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
18

OWNER’S MANUAL V.1 ENGLISH
PT-0050 STR INDOOR BIKE
This manual is available at www.salter.es
ENGLISH
10. ENVIRONMENTAL NOTE
The symbol with which is marked this unit (waste bin with wheels) indicates that it cannot be thrown
for any reason to the domestic waste. When disposing of the product should be taken to a proper
recycling point.
If properly dispose of the product may be reused and recycled, and it will help to conserve natural
resources, preserve the environment and significally reduce the potential negative impact on our
environment.
For more information about the return system, collection and recycling of these products contact your City Council or
the retailer.
11. WARRANTY
Consult the warranty of this equipment at www.salter.es
REF. PT- 0050
STR INDOOR BIKE
SALTER Design and quality
Made in: CHINA
Imported by Cial. SALTER, S.A.
Lluis Millet, 52
08950 Esplugues de Llobregat
Barcelona – Spain
N.I.F.: A-08544298
19
