Intersan SANIFOUNT Assembly instructions

SANIFOUNT
Sensor Operated
Repair Guide
INTERSAN MANUFACTURING COMPANY
1748 W. Fillmore St. - Phoenix, Arizona 85007 - Tel [phone] - Fax [phone]

IMPORTANT
Sanifount - Sensor Operated
Trouble - Shooting Guide
INTERSAN MANUFACTURING COMPANY
1748 W. Fillmore St. - Phoenix, Arizona 85007 - Tel [phone] - Fax [phone] - www.IntersanUS.com
NOTE: THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT FORMAL NOTICE REV1.2
- 1 -
Always reset the Microprocessor after
each intervention (reset button mounted
in the lid). After 35 seconds each station
should be operational.
PROBLEM 1: UNIT CONTINUOUSLY BEEPS WHEN ACTIVATED
Replace Battery-Pack
Step 1
Remove the stainless steel lid from the
distribution head by inserting the supplied
key and turning the lock counterclockwise.
The cover should move forward and gently
lift the front of the lid and remove.
Step 2
Disconnect the battery by depressing the
battery terminal lock and gently pulling the
two halves apart.
Step 3
a. Test the battery for the proper 10.8
voltage.
b. Look for possible loose leads or
connections to cause low voltage.
c. Replace or reinstall the battery. Reverse
steps 1 & 2. Push the reset button and
wait 35 seconds.

Check if:
INTERSAN MANUFACTURING COMPANY
1748 W. Fillmore St. - Phoenix, Arizona 85007 - Tel [phone] - Fax [phone] - www.IntersanUS.com
NOTE: THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT FORMAL NOTICE REV1.2
- 2 -
PROBLEM 2: INSUFFICIENT or NO WATER FLOW WITH CLICKING SOUND
1. Check Sensor Shipping Covers
1. Ball valves and angle stops are in the on position.
2. Stop-valve strainer screens and strainer screens at the entry of the solenoid valves assembly
are clean and debris free.
3. Supply lines are clean and pressure requirements are within the parameters.
4. Thermostatic mixing valve has the correct supply to the hot and cold inlets.
5. The check valves on the inlet of the thermostatic mixing valve are clean.
PROBLEM 3: INSUFFICIENT or NO WATER FLOW WITHOUT CLICKING SOUND
Check if the shipping covers on the lens are still installed. If so remove the gold opaque lens cover from the bottom of the
sensor lens.
If this doesn't help:
2. Check Battery
Follow steps 1,2 & 3 from the
battery pack replacement
(Problem 1 - page 1)
If this doesn't help : check the sensors
Sanifount®- Sensor Operated
INTERSAN®SANIFOUNT®REPAIR GUIDE

Sanifount®- Sensor Operated
INTERSAN®SANIFOUNT®REPAIR GUIDE
1. Check Sensor
Step 4
Remove the four screws from the
microprocessor and seperate the lid from the
base.
Step 6
Install the adjacent working sensor in the
non-working position
Step 5
Remove the defective sensor by
depressing the phone jack tab and
gently pulling the wire out of the slot.
The problem should travel with the non-working sensor and the adjacent sensor should activate the solenoid valve.
If not: see point 4. Check Solenoid Valve.
To reinstall, reverse the above process.
INTERSAN MANUFACTURING COMPANY
1748 W. Fillmore St. - Phoenix, Arizona 85007 - Tel [phone] - Fax [phone] - www.IntersanUS.com
NOTE: THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT FORMAL NOTICE REV1.2
- 3 -
Step 1
Remove the stainless steel lid from the
distribution head by inserting the supplied
key and turning the lock counterclockwise.
The cover should move forward and gently
lift the front of the lid and remove.
Step 3
Lift the head up and gently place the front
into the bowl.
Step 2
Remove mounting allen screws that secure
the head to the bowl.
3. Check Sensor

Sanifount®- Sensor Operated
INTERSAN®SANIFOUNT®REPAIR GUIDE
1. Check Sensor
Step 5
a. Activate the appropriate sensor
for testing the valves status.
b. If the above sequence
determines the solenoid valve is
inoperative then the valve must
be cleaned or replaced.
After the valve is cleaned
reinstall in the reverse order.
Make Sure the lead is facing the
brass !
Step 4
Swap the two leads for determining if
the problem is the valve or the lead
INTERSAN MANUFACTURING COMPANY
1748 W. Fillmore St. - Phoenix, Arizona 85007 - Tel [phone] - Fax [phone] - www.IntersanUS.com
NOTE: THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT FORMAL NOTICE REV1.2
- 4 -
4. Check Solenoid Valve
Step 1
Follow steps 1,2 & 3 from the sensor-
checking
Step 2
Remove the solenoid valve lead from
the suspected bad valve and an
adjacent working valve. This is done by
removing the screws from the center of
the solenoid valve leads at the
solenoid valve.
Step 3
Remove the solenoid valve leads from
the solenoid valve by gently pulling
straight up with pliers or prying up
between the solenoid valve and the
solenoid lead. Use caution not to
damage the gaket between the valve
and the lead.

Step 2
Remove the four screws that travel thru
the coil into the brass water body.
Step 1
Seperate the electrical
part of the valve from
the water part.
This is described above
in the solenoid valve
replacement (steps 1,2
& 3).
Step 2
Remove the core and the core
spring from the core housing.
Clean core, core spring, core
housing and water outlet from the
solenoid valve
Step 3
Replace core spring inside
core, and reposition both
elements inside the core
housing (core spring first).
Step 4
Place back O-ring, which joins the
electrical and the water part of the
valve, in its groove around the core
housing, and re-position the
electrical part on the water part of
the valve.
Insert 4 round head solenoid screws
and tighten firmly.
INTERSAN MANUFACTURING COMPANY
1748 W. Fillmore St. - Phoenix, Arizona 85007 - Tel [phone] - Fax [phone] - www.IntersanUS.com
NOTE: THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT FORMAL NOTICE REV1.2
- 5 -
Step 1
Follow steps 1,2 & 3 from the solenoid valve
checking (page 3 of the trouble shooting
guide)
Step 3
Turn the brass water body counter
clockwise and remove any remaining
thread sealant. After the valve is
replaced reinstall in the reverse order
making sure the brass water body is
properly sealed to the manifold.
Sanifount®- Sensor Operated
INTERSAN®SANIFOUNT®REPAIR GUIDE
4.1. Solenoid Valve Replacement
4.2. Solenoid Valve Cleaning

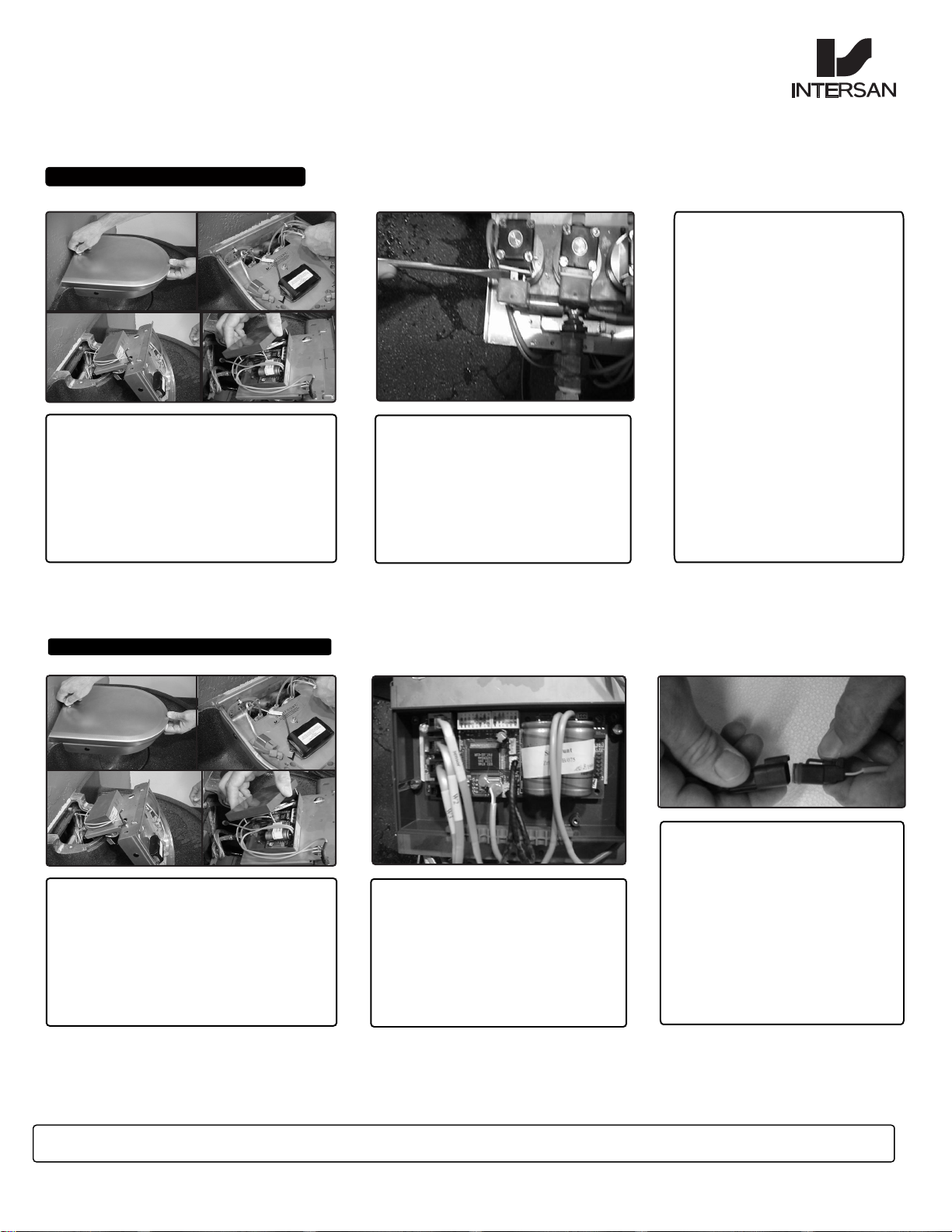

Step 1
Follow steps 1, 2, 3 & 4 from the sensor
checking.
1. Remove lid from distribution head;
2. Remove mounting allen screws;
3. Lift head up;
4. Open the microprocessor
Step 3
Disconnect the battery by depressing
the Battery terminal Lock and gently
pulling the two halves apart.
Make note that when reinstalling the
sensors and solenoid wires it is
imperative that each valve and
sensor is paired up correctly.
Step 2
Check that all connections are secure.
IF THIS DOESN'T HELP, CHECK THE MICRO-PROCESSOR
5. Check the Micro-Processor
INTERSAN MANUFACTURING COMPANY
1748 W. Fillmore St. - Phoenix, Arizona 85007 - Tel [phone] - Fax [phone] - www.IntersanUS.com
NOTE: THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT FORMAL NOTICE REV1.2
- 6 -
Step 1
Follow steps 1, 2, 3 & 4 from the sensor
checking.
1. Remove lid from distribution head;
2. Remove mounting allen screws;
3. Lift head up;
4. Open the microprocessor
Step 3
Use caution not to damage the
gasket between the valve and the
lead.
After the lead is replaced, reinstall
in reverse order.
Step 2
Remove the screws from the center of the
solenoid valve lead at the solenoid valve.
Unplug the solenoid valve leads from the
solenoid valve by gently prying up
between the solenoid valve and the
solenoid lead.
4.3. Replace Solenoid Lead
Sanifount®- Sensor Operated
INTERSAN®SANIFOUNT®REPAIR GUIDE

... Replace the Micro-Processor
Step 1
Unplug the solenoid valve wires from
the microprocessor by gently pulling
them straight out.
Use caution not to damage the
connection for the wire.
IF ALL OF THE ABOVE FIELD DIAGNOSTICS HAVE DETERMINED THE NECESSITY TO REPLACE THE MICROPROCESSOR ...
PROBLEM 4: CONTINUOUS WATER FLOW
Check Solenoid Valve
In some cases the filters may not be enough to eliminate the debris from jamming the solenoid valve in the
open or closed position.
In this case clean the solenoid valve (page 5 of the trouble shooting guide).
PROBLEM 5: REPETITIVE WATER FLOW
Check the Sensor
Some times when a unit has a bad sensor the water system will activate without someone present. To test this
in the field it is necessary to exchange the faulty station with one that is working correctly.
In this case follow the procedure on page 2 (check sensor) and replace the non-working sensor with a new
one
NOTE : In the above case the two components that are NOT defective are the battery and the solenoid
valve.
The battery because it has enough power to cycle the solenoid valve.
The solenoid valve because it opens and closes completely.
INTERSAN MANUFACTURING COMPANY
1748 W. Fillmore St. - Phoenix, Arizona 85007 - Tel [phone] - Fax [phone] - www.IntersanUS.com
NOTE: THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT FORMAL NOTICE REV1.2
- 7 -
Sanifount®- Sensor Operated
INTERSAN®SANIFOUNT®REPAIR GUIDE
Step 2
Remove the sensors by depressing
the phone jack tab and gently
pulling the wire out of the slot.
Step 3
Unscrew the four screws and nuts that
secure the microprocessor and replace
the microprocessor.
Reverse the above order to reinstall,
making sure the sensor wires and the
solenoid wires correspond for each

Sanifount®- Sensor Operated
INTERSAN®SANIFOUNT®REPAIR GUIDE
NOTE: THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT FORMAL NOTICE REV1.2
- 8 -
INTERSAN MANUFACTURING COMPANY
1748 W. Fillmore St. - Phoenix, Arizona 85007 - Tel [phone] - Fax [phone] - www.IntersanUS.com
IF THIS TROUBLE-SHOOTING DOESN'T SOLVE YOUR PROBLEM ...
1. You should be able to solve most electronic problems with this guide.
If the troubleshooting doesn't solve your problem, then please
contact Intersan at 1-800-999-3101.
2. In order to solve your problem quickly it is necessary to provide us
with as much information as possible.
- Serial number of Microprocessor
- Color of battery connector
- Date of installation
- Environment where unit is installed
- How the unit is used
3. To order replacement parts or to receive parts prices, please contact
your local rep.
4. Use only Intersan parts. The use of repair parts that are not
manufactured by Intersan will void any warranty.
5. When your unit has an integral electronic soap dispenser: use only
Intersan soap. The use of any other soap will void any warranty.
