Intertech Argus FlexATX FA-250 82+ User manual

Manual
FlexATX 250W
FA-250 82+

Manual FlexATX FA-250 82+ 2 of 12
05.04.2017
1Important information.......................................................................................................................3
1.1 Introduction.............................................................................................................................3
1.2 Scope of delivery....................................................................................................................3
1.3 General information................................................................................................................3
2Safety..................................................................................................................................................4
2.1 Intended use...........................................................................................................................4
2.1.1 Environment............................................................................................................4
2.1.2 Disposal ..................................................................................................................4
2.2 General instructions ...............................................................................................................4
2.3 Danger and protection............................................................................................................4
3Technical data ...................................................................................................................................5
3.1 Efficiency................................................................................................................................5
3.2 Input........................................................................................................................................5
3.2.1 Electric connection..................................................................................................5
3.2.2 Power Factor...........................................................................................................5
3.3 Output.....................................................................................................................................5
3.3.1 Performance ...........................................................................................................5
3.3.2Safeties...................................................................................................................6
3.3.3 Quantity of secondary connectors..........................................................................6
3.4 Miscellaneous.........................................................................................................................6
3.4.1 Fan..........................................................................................................................6
3.4.2 Dimension and weight.............................................................................................6
3.4.3 Environmental.........................................................................................................6
3.4.4 Life time ..................................................................................................................6
4Secondary connectors .....................................................................................................................7
4.1 P1 ATX-Mainboard connector 20+4-pin.................................................................................7
4.2 P4 Mainboard connector 4-pin...............................................................................................7
4.3 IDE connector 4pin.................................................................................................................7
4.4 PCIe connector 6+2 pin..........................................................................................................7
4.5 SATA connector 15-pin..........................................................................................................8
5Mounting and first use......................................................................................................................8
6FAQ.....................................................................................................................................................9
7Maintenance ......................................................................................................................................9
8Disposal ...........................................................................................................................................10
9Warranty...........................................................................................................................................10
10 Contact information........................................................................................................................10

Manual FlexATX FA-250 82+ 3 of 12
05.04.2017
1 Important Informationen
1.1 Introduction
Thank you for buying an Argus Power Supply.
This power supply is equipped with latest technology and supports all modern processors.
Argus power supplies meets RoHS II as well as the EU directive 2009/125/EC.
To join this power supply for a long time we recommend to read this manual carefully and
espacially paying attention for the security advices.
1.2 Scope of delivery
1x Power Supply
1x Power Cord 230V
4x Thumbscrews (Only retail version)
4x Cable straps (Only retail version)
1.3 General information
Symbols
Symbols
Meaning
Handling and effects of safety instructions
Dangerous Situation, which can retighten violations or death.
Possible damage of property and other important
informations.

Manual FlexATX FA-250 82+ 4 of 12
05.04.2017
2 Safety
2.1 Intended use
2.1.1 Environment
This product is only for indoor use and mounting in computer cases.
Don´t use and store it inside humid rooms or near water.
Don´t use it close to source of heat. The additional heat could lead to overheating
and fire.
2.1.2 Disposal
Don´t put this device to normal waste.
Please read the instruction at side 10 for disposal of packaging and device.
2.2 General instructions
Please read this manual carefully before installing or use this product.
Keep this manual and pass it by passing of the product.
Please follow the instructions and warning of this manual before using the
product.
The inobservance of this manual can effect violations and damage.
We disclaim liability for violations and damages caused by inobservance of this
manual.
2.3 Danger and protection
Don’t stick any sharp items into the power supply
Don´t damage the cable.
Don´t pull the plug by pulling at the cable.
Don´t use any patched or damaged cable or plug.
Don´t use the cable or product close to heat source.
In case of strange noise or smell pull the power cord out of the socket.
Don´t open the housing of the product. (fire hazard/ electric strike)
Don´t insert any items into the air holes. (fire hazard/ electric strike)
Please ensure, that all cables will be fixed permanently.
Keep the product away from children.
Don´t remove the cable with wet hands. (electric strike))
Don´t use the product with wet hands. (electric strike))
Please remove the power cord from socket in case of longer non-use (Could led
to overheating, fire hazard or electric strike)
Keep the product free of dust (Overheating or fire)
Look for sufficient airflow to avoid overheating and fire)

Manual FlexATX FA-250 82+ 5 of 12
05.04.2017
Leave service or cleaning only authorized qualified personnel.
3 Technical data
3.1 Efficiency
This power supply has an efficiency of at least 82%
at 20%, 50% and 100% load.
3.2 Input
3.2.1 Input voltage
Input: 100-240V, 50/60Hz
3.2.2 Power Factor
Active PFC > 0,95 at 100% load
3.3 Output
3.3.1 Performance
Min Max _____________
+3,3V 0,10A 16A ± 5%
+5V 0,20A 18A ± 5%
+12V 0,60A 20A ± 5%
-12V 0,00A 0,3A ± 5%
+5VSB 0,05A 2,0A ± 5%
Model
Total
12V
3,3V
5,0V
Combined
-12V
5VSB
FA-250 82+
250W
240W
16A
18A
100W
3,6W
10W
3.3.2 Safeties
OVP –Over Volt Protection
The power supply shuts down at following output voltages

Manual FlexATX FA-250 82+ 6 of 12
05.04.2017
OCP –Over Current Protection
The power supply shuts down when more than 120-160% total load.
SCP –Short Circuit Protection
The power supply shuts down at short circuit in +3,3V, +5V, +12V, -12V rail.
3.3.3 Quantity of secundary connectors
Model
ATX
24pin
EPS/
P4
4+4pin
IDE
4pin
SATA
15pin
FDD
4pin
PCIe
6+2pin
Fa-250 82+
1
1
2
2
0
1
3.4 Miscellaneous
3.4.1 Fan
Size: 40mm
Fan control: automatic
Speed: max. 5000rpm
3.4.2 Dimension and weight
Dimension: 80 x 150 x 40 mm (w/d/h)
Weight: 0,77 kgs
3.4.3 Environmental
Temperature at work 0 –50°C
Temperature at storage -40 –70°C
Humidity at work 10 –90% (not condensing)
Humidity at storage 5 –90% (not condensing)
3.4.4 Life time
MTBF > 100.000 hrs. at 80% load/ 230V
Voltage
Min.
Norm.
Max.
+5V
5,5 V
6,3 V
7,0 V
3,3V
3,76V
4,1V
4,5V
+12V
13,4 V
15.0 V
16,0 V
+
3
.
3
V
D
C
3
.
7
6
V
4
.
2
V

Manual FlexATX FA-250 82+ 7 of 12
05.04.2017

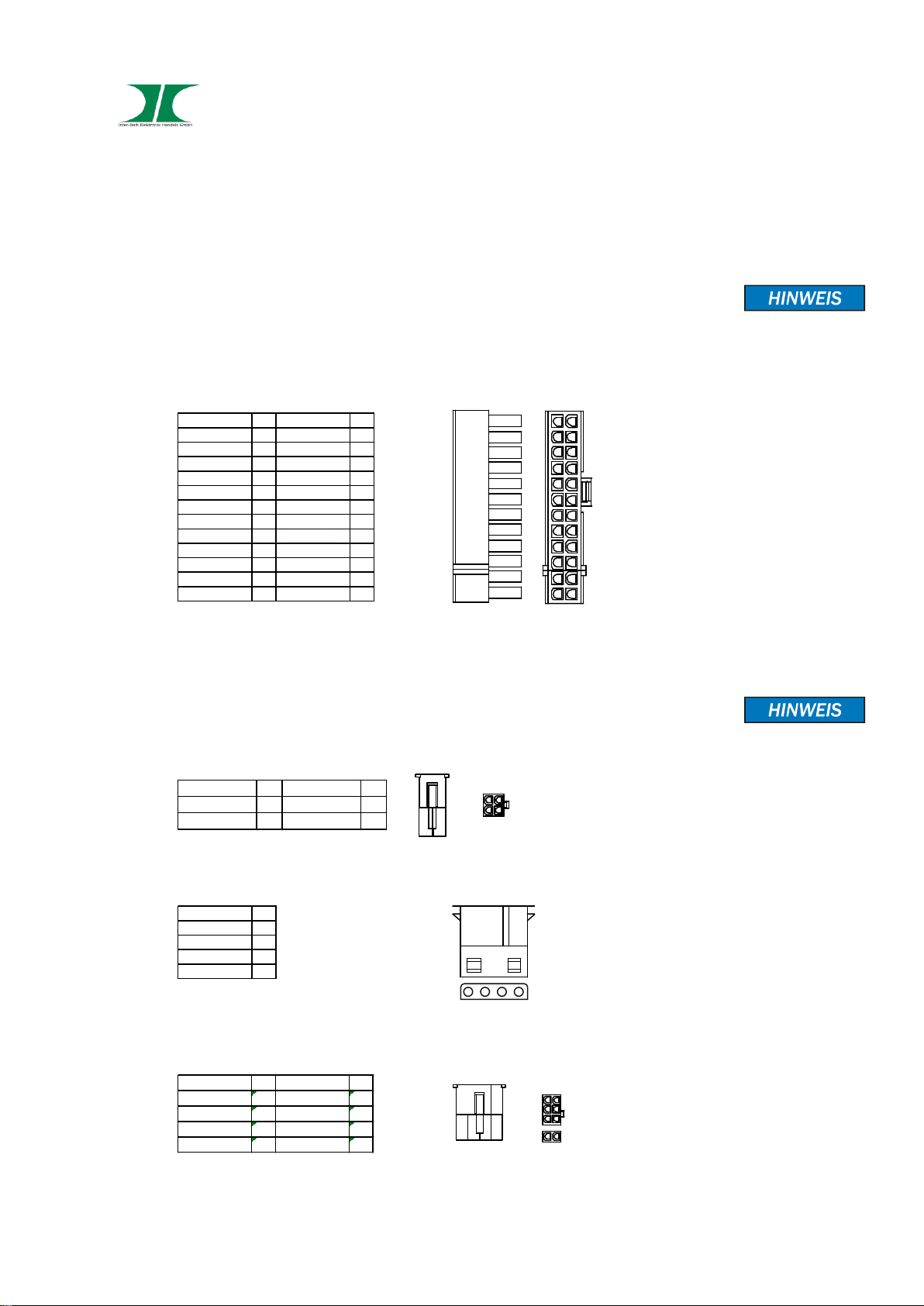

4 Secondary connectors
All connectors are standardized and made against reverse connection.
In case of difficulties during connection, please make sure to use the right
connector or rotate the connector by 180°.
4.1 P1 ATX-Mainboard connector 20+4-pin
Signal Pin Signal Pin
+3,3V 1 +3,3V DC 13
+3,3V 2 -12V DC 14
COM 3 COM 15
+5V DC 4 PS_ON 16
COM 5 COM 17
+5V DC 6 COM 18
COM 7 COM 19
PWR_ok 8 -5V DC 20
+5V SB 9 +5V DC 21
+12V DC 10 +5V DC 22
+12V DC 11 +5V DC 23
+3,3V 12 COM 24
1
Pins 11/ 12/ 23/ 24 are made as separate jack. It can be swung away in
case of using older mainboards.
Don´t remove it totally, to avoid a mix-up with the P4 connector.
4.2 P4 Mainboard connector 4-pin
1
Signal Pin Signal Pin
COM 1 +12V DC 3
COM 2 +12V DC 4
4.3IDE - connector 4-pin
Signal Pin
+12V DC 1
COM 2
COM 3
+5V DC 4
1
4.4 PCIe connector 6+2 pin
Signal Pin Signal Pin
+12V DC 1 COM 5
+12V DC 2 COM 6
+12V DC 3 COM 7
COM 4 COM 8
1

Manual FlexATX FA-250 82+ 8 of 12
05.04.2017
4.5 SATA connector 15-pin
Signal Pin #
+3.3VDC 1
+3.3VDC 2
+3.3VDC 3
Masse 4
Masse 5
Masse 6
+5VDC 7
+5VDC 8
+5VDC 9
Masse 10
Masse 11
Masse 12
+12VDC 13
+12VDC 14
+12VDC 15
1
5 Mounting and first use
1. Take out the power supply and check the package content for completeness
or damages.
2. In case of missing parts or external damages, please contact your local
dealer for replacement.
Please keep the original package for shipping in case of warranty case.
Please connect the power supply to the grid after connecting all other
devices.
Fix the power supply with the enclosed screws to the allocated place of the
computer case
3. Connect all components with the suitable cables.
Please follow also the instructions of the manufacturer of the
components.
Wrong connection of the components can cause damage.
In case of discrepancies or questions please contact your local dealer
or our Service-Hotline.
4. Place all cables in a way to avoid disturbing airflow or any rotating fan. Use
the enclosed cable strips.
5. Connect the power supply with the electric socket.
Use only the original power cord. In case of a damaged cable, please
change it against a proved power cord from your local dealer.
6. Switch on the power supply at the backside of the power supply. Your
Computer is ready now.
Das Netzteil befindet sich im StandBy-Modus um den Computer über den
Power-Schalter am Gehäuse starten zu können. Wenn Sie Ihren Computer
vollständig vom Stromnetz trennen wollen, ziehen Sie den Netzstecker.

Manual FlexATX FA-250 82+ 9 of 12
05.04.2017
6 Fehlersuche
Error
Possible reason
Help
The power supply runs shortly
and stops.
Short circuit on Mainboard,
HDD, FDD or CD-ROM
Check all connectors for right
connection
Eliminate short circuit or change
components
Power supply won´t start
Secondary connectors not
connected
Check all connectors for right
connection
Main-Switch on power supply is
off
Switch On the Main -Switch
Power cord isn´t connected
Check if power cord is
connected to power supply and
electric socket
Power cord defective.
Change power cord against
approved new power cord
Power socket
defective.
Let authorized expert check the
socket
Please unplug power cord generally when working inside the Computer.
In case of checking the electric socket exists risk of electric strike.
Leave work on mains supply only authorized experts.
7 Maintenance
The power supply needs no maintenance which requires opening of the housing
or working inside the power supply.
But cause of the intake of air, dust can collect inside the power supply. This can
lead overheating or fire.
You can remove this dust with compressed air by yourself. To do this, unplug the
power supply from mains supply, dismount the power supply in reversed way as
described before and blow the dust with compressed air through the fan grid out
of the housing.
Don´t use a wet or moist rag to remove dust. Hazard of electric shock.
Do not open the power supply in any circumstances. You will risk your life by an
electric shock, destroy any components and lose your warranty claim.
We recommend to let do the cleaning from authorized experts.

Manual FlexATX FA-250 82+ 10 of 12
05.04.2017
8 Disposal
Please dispose your product by using the special discharge point for electronic
waste. Please ask your municipality or disposal company in case of further
questions.
9 Warranty
In case of warranty please contact your local dealer or the dealer from which you
bought the product.
We will grant no warranty by:
- Missing or damaged warranty seal,
- Negligent behavior,
- Improper use,
- Nonobservance of the manual,
- External violence,
- Acts of god,
- Damages caused by manipulation, upgrading, updating or reconstruction of
hardware or software
- Damages caused by other harm,
In case of data loss Inter-Tech will only be liable at wanton negligence or deliberate intention
or, in all other cases, only for the recovery of data from a continous, daily backup. Inter-Tech
does not assume liability for all other matters.
Please look also at our complete warranty terms on our website.
10 Contact
Inter-Tech Elektronik Handels GmbH
Hainhäuser Weg 93
D-30855 Langenhagen
Germany
Tel: [phone]
Fax: [phone]
Email: [e-mail]
www.inter-tech.de

Manual FlexATX FA-250 82+ 11 of 12
05.04.2017

www.inter-tech.de
