Intex Prism 128712GN User manual

Zusammengeführte PDF Datei. Die Originale sind im folgenden Verzeichnis verlinkt. / Merged PDF File. Original files are linked in the following list. / Sloučený soubor PDF.
Originály jsou propojeny v následujícím adresáři. / Egyesített PDF fájl. Az eredetiek a következő könyvtárban találhatók. / Zlúčený súbor PDF. Originály sú prepojené v
nasledujúcom adresári. / Združena datoteka PDF. Izvirniki so povezani v naslednjem imeniku. / Spojena PDF datoteka. Izvornici su povezani u sljedećem imeniku.
128712GN - Frame Pool Set Prism Rondo Ø 366 x 76 cm
Above Ground Pool 2
058GS 15
Overview Pool Size vs Pump Running Time 27
Air Valve For Water Revitalization Set 29
FramePoolRondo 31

315A
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
OWNER’S MANUAL
Prism FrameTM
Pool
10' - 24' (305 cm - 732 cm) models
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for
future reference.
Don’t forget to try these other fine Intex products: Pools, Pool
Accessories, Inflatable Pools and In-Home Toys, Airbeds and Boats
available at fine retailers or visit our website listed below.
Due to a policy of continuous product improvement, Intex reserves the
right to change specifications and appearance, which may result in
updates to the instruction manual without notice.
For illustrative purposes only. Accessories may not be provided with pool.
©2017 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd.
- Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen
Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O
Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European
Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union
durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands
www.intexcorp.com
315-*A*-R0-1804

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 2
Warnings / Important safety rules................................................ 3-4
Parts References............................................................................ 5-6
Setup Instructions.......................................................................... 7-9
Pool Maintenance and Chemicals................................................ 10-11
Common Pool Problems............................................................... 10
Pool Draining.................................................................................. 11
Storage............................................................................................ 11-12
General Aquatic Safety.................................................................. 12
Limited Warranty............................................................................ 13
Special Introductory note:
Thanks for buying an Intex pool. Please read this manual before setting up your pool.
This information will help extend the pool life and make the pool safer for your family’s
enjoyment. View the video included before installation. A team of 2-3 people is
recommended for pool set up. Additional people will speed up the installation.
No tools are required for the assembly.
TABLE OF CONTENTS

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
•Continuous and competent adult supervision of children and the disabled is required at all times.
• Secure all doors, windows and safety barriers to prevent unauthorized, unintentional or unsupervised pool
entry.
• Install a safety barrier that will eliminate access to the pool for young children and pets.
• Pool and pool accessories are to be assembled and disassembled by adults only.
• Never dive, jump or slide into an above-ground pool or any shallow body of water.
• Failure to set up pool on flat, level, compact ground or over filling could result in the pool’s collapse and the
possibility that a person lounging in the pool could be swept out/ejected.
• Do not lean, straddle, or exert pressure on the inflatable ring or top rim as injury or flooding could occur. Do
not allow anyone to sit on, climb, or straddle the sides of the pool.
• Remove all toys and flotation devices from, in, and around the pool when it is not in use. Objects in the pool
attract young children.
• Keep toys, chairs, tables, or any objects that a child could climb on at least four feet (1.22 meters) away
from the pool.
• Keep rescue equipment by the pool and clearly post emergency numbers at the phone closest to the pool.
Examples of rescue equipment: coast guard approved ring buoy with attached rope, strong rigid pole not
less than twelve feet (12') [3.66m] long.
• Never swim alone or allow others to swim alone.
• Keep your pool clean and clear. The pool floor must be visible at all times from the outside barrier of the
pool.
• If swimming at night use properly installed artificial lighting to illuminate all safety signs, ladders, pool floor
and walkways.
• Stay away from the pool when using alcohol or drugs/medication.
• Keep children away from pool covers to avoid entanglement, drowning, or other serious injury.
• Pool covers must be completely removed before pool use. Children and adults cannot be seen under a pool
cover.
• Do not cover the pool while you or anyone else is in the pool.
• Keep the pool and pool area clean and clear to avoid slips and falls and objects that may cause injury.
• Protect all pool occupants from recreational water illnesses by keeping the pool water sanitized. Don’t
swallow the pool water. Practice good hygiene.
• All pools are subject to wear and deterioration. Certain types of excessive or accelerated deterioration can
lead to an operation failure, and can ultimately cause the loss of large quantities of water from your pool.
Therefore, it is very important that you properly maintain your pool on a regular basis.
• This pool is for outdoor use only.
• Empty pool completely when not in use for a longer period and safely store the empty pool in such a way
that it does not collect water from rain or any other source, and to prevent from being blown away by strong
wind. See storage instructions.
• While the swimming pool is in use, you will need to operate the filter pump to ensure that there is at least
one complete turnover of water a day. Consult your pump’s manual to calculate the necessary
operating hours.
POOL BARRIERS AND COVERS ARE NOT SUBSTITUTES FOR CONTINUOUS AND COMPETENT
ADULT SUPERVISION. POOL DOES NOT COME WITH A LIFEGUARD. ADULTS ARE THEREFORE
REQUIRED TO ACT AS LIFEGUARDS OR WATER WATCHERS AND PROTECT THE LIVES OF ALL
POOL USERS, ESPECIALLY CHILDREN, IN AND AROUND THE POOL.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY OR DEATH.
Advisory:
Pool owners may need to comply with local or state laws relating to childproof fencing, safety barriers, lighting,
and other safety requirements. Customers should contact their local building code enforcement office for
further details.
WARNING

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 4
IMPORTANT SAFETY RULES
Please read, understand, and follow all instructions carefully before installing and using this product. These
warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot
cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when
enjoying any water activity. Keep for future reference. Packaging must be read carefully and kept for future
reference. See product for additional warnings.
General
• Check pins, bolts and screws for rust; splinters or any sharp edges regularly, especially accessible surfaces,
to avoid injuries.
Non swimmers safety
• Continuous, active, and vigilant supervision of weak swimmers and non-swimmers by a competent adult is
required at all times (remembering that children under five are at the highest risk of drowning).
• Designate a competent adult to supervise the pool each time it is being used.
• Weak swimmers or non-swimmers should wear personal protection equipment when using the pool.
• When the pool is not in use, or unsupervised, remove all toys from the swimming pool and its surrounding to
avoid attracting children to the pool.
Safety devices
• It is recommended to install a barrier (and secure all doors and windows, where applicable) to prevent
unauthorized access to the swimming pool.
• Barriers, pool covers, pool alarms, or similar safety devices are helpful aids, but they are not substitutes for
continuous and competent adult supervision.
Safety equipment
• It is recommended to keep rescue equipment (e.g. a ring buoy) by the pool.
• Keep a working phone and a list of emergency phone numbers near the pool.
Safe use of the pool
• Encourage all users especially children to learn how to swim
• Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge regularly. This
can make a life-saving difference in the event of an emergency.
• Instruct all pool users, including children, what to do in case of an emergency
• Never dive into any shallow body of water. This can lead to serious injury or death.
• Do not use the swimming pool when using alcohol or medication that may impair your ability to safely use
the pool.
• When pool covers are used, remove them completely from the water surface before entering the pool.
• Protect pool occupants from water related illnesses by keeping the pool water treated and practicing good
hygiene. Consult the water treatment guidelines in the user’s manual.
• Store chemicals (e.g. water treatment, cleaning or disinfection products) out of the reach of children.
• Removable ladders shall be placed on a horizontal surface.
• Observe and follow the warnings and safety signs on the pool wall.

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 5
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
10' (305 cm), 12' (366 cm), 13' (396 cm), 14' (427 cm), 15' (457 cm) & 16' (488 cm) models
(The number of pieces will vary depending on the pool size)
18' (549 cm) & 24' (732 cm) models
(The number of pieces will vary depending on the pool size)
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to
scale.
1
2
3
4
5
10
8
7
6
11
12
13
9
1
2
3
4
5
10
13
8
7
612
9

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 6
REF
NO. DESCRIPTION
POOL SIZE & QUANTITIES
10’
(305cm)
12’
(366cm)
13’
(396cm)
14’
(427cm)
15’
(457cm)
16’
(488cm)
18’
(549cm)
24’
(732cm)
1PIN (WITH 2 EXTRA) 22 26 28 30 32 34 38 50
2 SEAL (WITH 2 EXTRA) 22 26 28 30 32 34 38 50
3T - JOINT 10 12 13 14 15 16 18 24
4SPRING PIN 10 12 13 14 15 16 18 24
5LEG CAP 10 12 13 14 15 16 18 24
6 HORIZONTAL BEAM 10 12 13 14 15 16 18 24
7 POOL LINER (DRAIN VALVE CAP INCLUDED) 11111111
8VERTICAL LEG (SPRING PIN INCLUDED) 10 12 13 14 15 16 18 24
9POOL COVER (OPTIONAL) 1 1 1 1 1
10 GROUND CLOTH (OPTIONAL) 1 1 1 1
11 STRAINER HOLE PLUG (WITH 1 EXTRA) 333333
12 DRAIN CONNECTOR 11111111
13 DRAIN VALVE CAP 1111112 2
REF
NO. DESCRIPTION
10’ X 30”
(305cm X 76cm)
12’ X 30”
(366cm X 76cm)
12’ X 33”
(366cm X 84cm)
12’ X 39”
(366cm X 99cm)
12’ X 48”
( 366cm X 122cm)
13’ X 39”
(396cm X 99cm)
14 X 42”
(427cm X 107cm)
SPARE PART NO.
1PIN (WITH 2 EXTRA) 10312 10312 10312 10312 10312 12136 12136
2 SEAL (WITH 2 EXTRA) 10648 10648 10648 10648 10648 10648 10648
3T - JOINT 12451 12452 12452 12452 12452 12462 12462
4SPRING PIN 12453 12453 12453 12453 12453 12464 12464
5LEG CAP 12454 12454 12454 12454 12454 12465 12465
6 HORIZONTAL BEAM 12118 12118 12118 12118 12118 12458 12458
7 POOL LINER (DRAIN VALVE CAP INCLUDED) 12448 12449 12532 12533 11984 12534 12468
8 VERTICAL LEG (SPRING PIN INCLUDED) 12450 12450 12537 12538 12539 12540 12460
9POOL COVER (OPTIONAL) 11054
10 GROUND CLOTH (OPTIONAL)
11 STRAINER HOLE PLUG (WITH 1 EXTRA) 10127 10127 10127 10127 10127 10127 10127
12 DRAIN CONNECTOR 10201 10201 10201 10201 10201 10201 10201
13 DRAIN VALVE CAP 10649 10649 10649 10649 10649 10649 10649
REF
NO. DESCRIPTION
15’ X 33”
(457cm X 84cm)
15’ X 36”
(457cm X 91cm)
15’ X 42”
(457cm X 107cm)
15’ X 48”
(457cm X 122cm)
16’ X 48”
(488cm X 122cm)
18’ X 48”
(549cm X 122cm)
24’ X 52”
(732cm X 132cm)
SPARE PART NO.
1PIN (WITH 2 EXTRA) 12136 12136 12136 12136 12136 12536 12536
2 SEAL (WITH 2 EXTRA) 10648 10648 10648 10648 10648 10648 10648
3T - JOINT 12463 12463 12463 12463 12463 12472 12474
4SPRING PIN 12464 12464 12464 12464 12464 12475 12475
5LEG CAP 12465 12465 12465 12465 12465 12476 12476
6 HORIZONTAL BEAM 12458 12458 12458 12458 12458 12470 12470
7 POOL LINER (DRAIN VALVE CAP INCLUDED) 12455 12535 12456 12457 12467 12468 12469
8 VERTICAL LEG (SPRING PIN INCLUDED) 12459 12541 12460 12461 12461 12471 12473
9POOL COVER (OPTIONAL) 18901 18901 18901 18901 10754 18937 18929
10 GROUND CLOTH (OPTIONAL) 18932 18932 18932 18932 18927 18933 18935
11 STRAINER HOLE PLUG (WITH 1 EXTRA) 10127 10127 10127 10127 10127
12 DRAIN CONNECTOR 10201 10201 10201 10201 10201 10201 10201
13 DRAIN VALVE CAP 10649 10649 11044 11044 11044 11044 11044

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 7
IMPORTANT
Before allowing anyone to use the pool, hold a family meeting. Establish a set of rules that
include, at a minimum, the important safety rules and general aquatic safety information in this
manual. Review these rules on a regular basis and with all users of the pool, including guests.
POOL SETUP
WARNING
IMPORTANT SITE SELECTION AND GROUND
PREPARATION INFORMATION
• Thepoollocationmustallowyoutosecurealldoors,windows,andsafetybarrierstoprevent 
unauthorized, unintentional or unsupervised pool entry.
 • Installasafetybarrierthatwilleliminateaccesstothepoolforyoungchildrenandpets.
 • Failuretosetupthepoolonflat,level,compactgroundandtoassembleandfillwithwater
in accordance with the following instructions could result in the pool’s collapse or the
possibility that a person lounging in the pool could be swept out/ejected, resulting in serious
injury or property damage.
 • Riskofelectricshock:connectthefilterpumponlytoagroundingtypereceptacleprotected
by a ground-fault circuit interrupter (GFCI) or residual current device (RCD). To reduce the risk
of an electrical shock, do not use extension cords, timers, plug adapters or converter plugs
to connect the pump to an electrical supply. Always provide a properly located outlet. Locate
the cord where it cannot be damaged by lawn mowers, hedge trimmers, and other equipment.
See the filter pump manual for additional warnings and instructions.
 • Riskofseriousinjury:donotattempttoassemblepoolinhighwindconditions.
Select an outdoor location for the pool with the following requirements in mind:
1. The area where the pool is to be set up must be absolutely flat and level. Do not set up the pool on a
slope or inclined surface.
2. The ground surface must be compacted and firm enough to withstand the pressure and weight of a fully
set up pool. Do not set up the pool on mud, sand, soft or loose soil conditions.
3. Do not set up the pool on a deck, balcony or platform, which may collapse under the weight of the filled
pool.
4. The pool requires at least 4 feet of space all around pool from objects that a child could climb on to gain
access to the pool.
5. Grass under the pool will be damaged. Splash out chlorinated pool water could damage the surrounding
vegetation.
6. Eliminate all aggressive grasses first. Certain types of grass such as St. Augustine and Bermuda, may
grow through the liner. Grass growing through the liner it is not a manufacture defect and is not
covered under warranty.
7. The area shall facilitate drainage of the pool water after each use and/or for long term pool storage.

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 8
POOL SETUP (continued)
You may have purchased this pool with the Intex Krystal Clear™ filter pump. The pump has its own
separate set of installation instructions. First assemble your pool unit and then set up the filter pump.
Estimated assembly time 30-60 minutes. (Note the assembly time is only approximate and individual
assembly experience may vary.)
1. Liner preparation
• Find a flat, level location that is free and clear of stones, branches or other sharp objects that may
puncture the pool liner or cause injury.
• Open the carton containing the liner, joints, legs, etc., very carefully as this carton can be used to store
the pool during the winter months or when not in use.
• Take out the ground cloth (10) and spread it over the
cleared area. Then take out the liner (7) and spread it
out over the ground cloth, with the drain valve directed
towards the draining area. Place the drain valve away from
the house. Allow the sun to warm up the liner before
inserting the beams (6) into the sleeve openings.
IMPORTANT: Always set up the pool unit with at least 2
persons. Do not drag the liner across the ground as
this can cause liner damage and pool leakage (see
drawing 1).
• During the setup of this pool liner, point the hose connections or openings in the direction of the electric
power source. The outer edge of the pool should be within reach of the pump’s electrical connection.
2. Frame assembly
• The frame pool’s legs (8) and beams (6) fall into two groups. The larger diameters are the horizontal
beams that are slid (pushed) into the sleeve openings at the top of the liner. The smaller diameters are
the vertical legs. Both these legs and beams fit into the T-joints (3).
• Starting at any location, but always working in the same direction, push
the horizontal beam into the sleeve. Once the beam is centered take
one of the T- joints and using the connection pin (1), attach the joint to
one end of the beam by inserting the pin through the seal (2) and in the
pre-drilled holes. Repeat this procedure in a circular fashion until all the
beams and joints have been connected (see drawing 2.1).
The last joint connection may be difficult to complete. You can do
it though, if you first simultaneously raisethe last joint and beam
about 2 inches (5 cm). Now insert the beam into the joint while
lowering the pieces into position. The beam will easily slide into
the joint (see drawing 2.2). Ensure that the last joint is fully
connected before proceeding to connecting the legs.
1
7
1
2
6
3
2.1
2.2
3

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 9
POOL SETUP (continued)

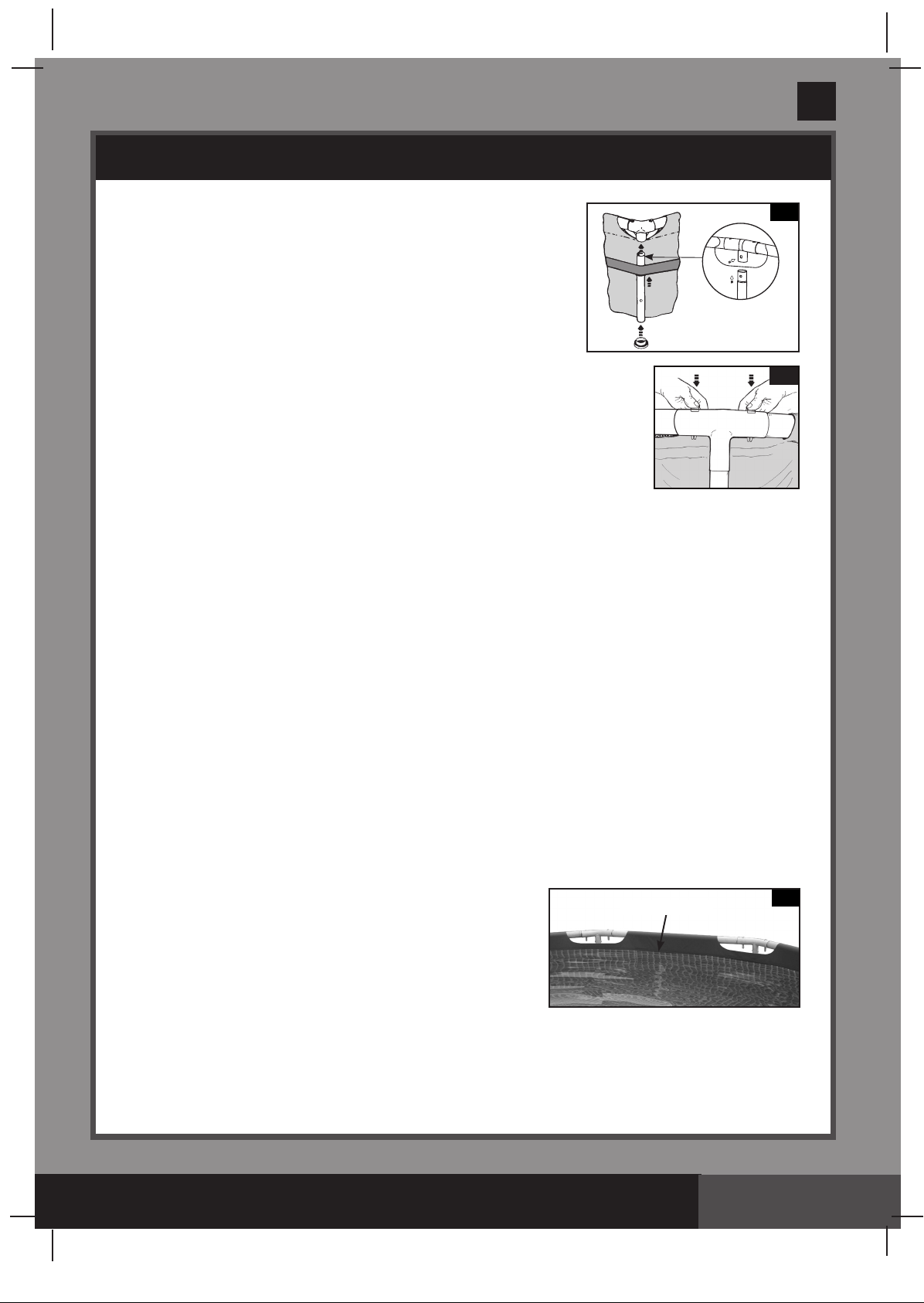

• Next slide the vertical legs into the belt loop located in the middle of
the pool liner. Carefully slide the leg into the belt loop and insert the
top of the leg into the bottom of the joint. Snap this leg into joint’s
holes by aligning the holes and the spring-loaded pin. Attach the
leg’s end cap (5) to the bottom of the leg (see drawings 3).
• Upon connecting the last leg, grab hold of the frame pool’s top beams
in 2 – 3 locations. Shake the pool to be sure that all the joints, legs
and beams fit into each other. Ensure that all pins are in position by
pushing them downwards through the holes (see drawing 4.1).
• Pull gently, in an outward direction, the bottom of the leg making sure
the leg is vertical and perpendicular to the level ground.
3. Filling of the pool
• The following applies to pool liners with hose connectors (16’ (488 cm) & below pools). If the pool was
purchased without a filter pump, insert two of the three plugs (11) into the black filter pump outlets. Do
this from the inside of the pool so that water will not run out when filling it. If the pool was purchased
with a filter pump, read the Krystal Clear™ Filter Pump Manual first and then proceed to next installation
step.
• Before filling the pool with water, ensure that the drain plug inside the pool is closed and that the drain
cap on the outside is screwed on tightly. Fill the pool with no more than 1 inch (2.5 cm) of water. Check
to see whether the water is level.
IMPORTANT: If the water in the pool flows to one side, the pool is not completely level. Setting
up the pool on unlevel ground will cause the pool to tilt resulting in the sidewall material bulging
and a potential collapse of the pool. If the pool is not completely level, you must drain the pool,
level the area or move the pool to a different area that is level, and re-fill the pool, following the
above directions.
• Smooth out the bottom liner wrinkles (from inside the pool) by pushing out where the pool floor and pool
sides meet. Or, (from outside pool) reach under the side of the pool, grasp the pool floor and pull in
an outward direction. If the ground cloth is causing the wrinkles, have 2 people pull from opposite sides to
remove all wrinkles. Use the properly assembled pool ladder when entering or exiting the pool during this
process.
• Fill the pool with water up to just below the sleeve line.
(see drawing 4.2).4.2
WATER LEVEL
3
8
5
3
4.1

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 10
PROBLEM DESCRIPTION CAUSE SOLUTION
ALGAE
COLORED
WATER
FLOATING
MATTER IN
WATER
CHRONIC LOW
WATER LEVEL
SEDIMENT ON
POOL BOTTOM
SURFACE DEBRIS
• Greenish water.
• Green or black spots
on pool liner.
• Pool liner is slippery
and/or has a bad odor.
• Water turns blue,
brown, or black when
first treated with
chlorine.
• Water is cloudy or
milky.
• Level is lower than
on previous day.
• Dirt or sand on pool
floor.
• Leaves, insects etc.
• Chlorine and pH level
need adjustment.
• Copper, iron or
manganese in water
being oxidized by the
added chlorine.
• "Hard water" caused by a
too high pH level.
• Chlorine content is low.
• Foreign matter in water.
• Rip or hole in pool liner
or hoses.
• Heavy use, getting in
and out of pool.
• Pool too close to trees.
• Super chlorinate with shock
treatment. Correct pH to your
pool store's recommended level.
• Vacuum pool bottom.
• Maintain proper chlorine level.
• Adjust pH to recommended
level.
• Run filter until water is clear.
• Replace cartridge frequently.
• Correct the pH level. Check with
your pool dealer for advice.
• Check for proper chlorine level.
• Clean or replace your filter cartridge.
• Repair with patch kit.
• Finger tighten all caps.
• Replace the hoses.
• Use Intex pool vacuum to
clean bottom of pool.
• Use Intex pool skimmer.
Water maintenance
The maintenance of a proper water balance through appropriate use of sanitizers is the single most
important factor in maximizing the life and appearance of the liner as well as ensuring clean, healthy
and safe water. Proper technique is important for water testing and treating the pool water. See your
pool professional for chemical, test kits and testing procedures. Be sure to read and follow the
written instructions from the chemical manufacturer.
1. Never let chlorine come in contact with the liner if it is not completely dissolved. Dissolve granular or
tablet chlorine first in a bucket of water, then add it to the pool water. Likewise with liquid chlorine; mix it
immediately and thoroughly with the pool water.
2. Never mix chemicals together. Add the chemicals to the pool water separately. Thoroughly dissolve each
chemical before adding another one to the water.
3. An Intex pool skimmer and an Intex pool vacuum are available to assist in maintaining clean pool water.
See your pool dealer for these pool accessories.
4. Do not use a pressure washer to clean the pool.
TROUBLESHOOTING
POOL MAINTENANCE & CHEMICALS
REMEMBER TO
• Protect all pool occupants from possible water-related illnesses by keeping the pool water
clean and sanitized. Do not swallow the pool water. Always practice good hygiene.
• Keepyourpoolcleanandclear.Thepoolfloormustbevisibleatalltimesfromtheoutside
barrier of the pool.
• Keepchildrenawayfrompoolcoverstoavoidentanglement,drowning,orotherserious
injury.
WARNING

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 11
EXCESSIVE RAIN: To avoid damage to the pool and over filling, immediately drain rain water that
causes the water level to be higher than the maximum.
How to Drain Your Pool and Long Term Storage
1. Check local regulations for specific directions regarding disposal of swimming pool water.
2. Check to make sure that the drain plug inside the pool is plugged in place.
3. Remove the cap from the drain valve on the outside pool wall.
4. Attach the female end of the garden hose to the drain connector (12).
5. Place the other end of the hose in an area where the water can be safely drained away from the house
and other nearby structures.
6. Attach the drain connector to the drain valve. NOTE: The drain connector will push the drain plug
open inside the pool and water will start to drain immediately.
7. When the water stops draining, start lifting the pool from the side opposite the drain, leading any
remaining water to the drain and emptying the pool completely.
8. Disconnect hose and adapter when finished.
9. Re-insert drain plug in drain valve on inside of pool for storage.
10. Replace drain cap on outside of pool.
11. Reverse set-up instructions to disassemble the pool, and remove all connecting parts.
12. Be sure that the pool and all parts are completely dry before storage. Air dry the liner in the sun until
completely dry before folding (see drawing 5). Sprinkle some talcum powder to prevent the vinyl from
sticking together and to absorb any residual missed.

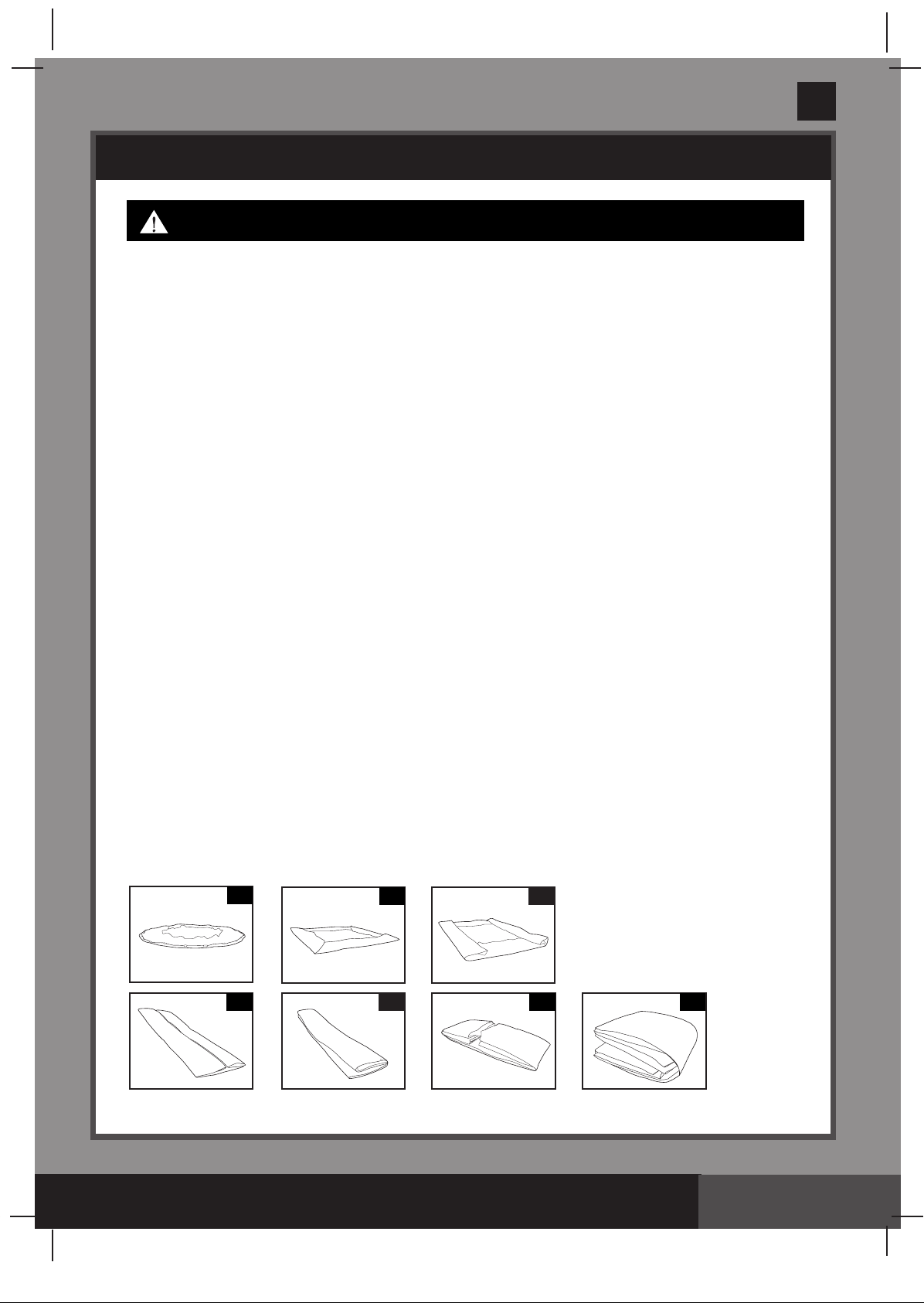

13. Create a square shape. Starting at one side, fold one-sixth of liner in on itself twice. Do the same on the
opposite side (see drawings 6.1 & 6.2).
14. Once you have created two opposing folded sides, simply fold one over the other like closing a book
(see drawings 7.1 & 7.2).
15. Fold the two long ends to the middle (see drawing 8).
16. Fold one over the other like closing a book and finally compact the liner (see drawing 9).
17. Store the liner and accessories in a dry, temperature controlled, between 32 degrees Fahrenheit
(0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius), storage location.
18. The original packing can be used for storage.
7.1
56.1 6.2
7.2 8 9
POOL MAINTENANCE & DRAINAGE
Do not add chemicals if the pool is occupied. This can cause skin or eye irritation. Concentrated
chlorine solutions can damage the pool liner. In no event is Intex Recreation Corp., Intex Development Co.
Ltd., their related companies, authorized agents and service centers, retailers or employees liable to the
buyer or any other party for costs associated with the loss of pool water, chemicals or water damage. Keep
spare filter cartridges on hand. Replace cartridges every two weeks. We recommend the use of a
Krystal Clear™ Intex Filter Pump with all of our above-ground-pools.
CAUTION ALWAYS FOLLOW THE CHEMICAL MANUFACTURER'S
DIRECTIONS, AND THE HEALTH AND HAZARD WARNINGS.

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 12
WINTER PREPARATIONS
Winterizing your Above Ground Pool
After usage, you can easily empty and store away your pool in a safe place. You must
drain, disassemble and properly store the pool when the temperature drops below 41
degrees Fahrenheit (5 degrees Celsius) to prevent ice damage to the pool and related
components. Ice damage can result in sudden liner failure or pool collapse. Also see the
section ‘’How To Drain Your Pool’’.
Should temperatures in your area not drop below 41 degrees Fahrenheit (5 degrees
Celsius), and you choose to leave your pool out, prepare it as follows:
1. Clean the pool water thoroughly. If the type is an Easy Set Pool or an Oval Frame Pool,
make sure that the top ring is properly inflated.
2. Remove the skimmer (if applicable) or any accessories attached to the threaded strainer
connector. Replace strainer grid if necessary. Be sure all accessories parts are clean and
completely dry before storage.
3. Plug the Inlet and Outlet fitting from the inside of the pool with the plug provided (sizes 16'
and below). Close the Inlet and Outlet Plunger Valve (sizes 17' and above).
4. Remove the ladder (if applicable) and store in a safe place. Be sure the ladder is completely
dry before storage.
5. Remove the hoses that connect the pump and filter to the pool.
6. Add the appropriate chemicals for the winter period. Consult your local pool dealer as to
which chemicals you should use and how to use them. This can vary greatly by region.
7. Cover pool with Intex Pool Cover. IMPORTANT NOTE: INTEX POOL COVER IS NOT A
SAFETY COVER.
8. Clean and drain the pump, filter housing and hoses. Remove and discard the old filter
cartridge. Keep a spare cartridge for the next season.
9. Bring pump and filter parts indoors and store in a safe and dry area, preferably between 32
degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius).
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves inherent risks of
injury and death. To reduce your risk of injury, read and follow all product, package and
package insert warnings and instructions. Remember, however, that product warnings,
instructions and safety guidelines cover some common risks of water recreation, but do
not cover all risks and or dangers.
For additional safeguards, also familiarize yourself with the following general guidelines
as well as guidelines provided by nationally recognized Safety Organizations:
• Demand constant supervision. A competent adult should be appointed as a “lifeguard” or
water watcher, especially when children are in and around the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards and about the use
of protective devices such as locked doors, barriers, etc.
• Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water activity.
• Supervise, supervise, supervise.

315A
SAVE THESE INSTRUCTIONS
English
(315IO) PRISM FRAMETM POOL ENGLISH 7.5” X 10.3” PANTONE 295U 04/17/2017
Page 13
LIMITED WARRANTY
Your Intex Pool has been manufactured using the highest quality materials and
workmanship. All Intex products have been inspected and found free of defects prior to
leaving the factory. This Limited Warranty applies to the Intex Pool only.
This limited warranty is in addition to, and not a substitute for, your legal rights and
remedies. To the extent that this warranty is inconsistent with any of your legal rights, they
take priority. For example, consumer laws across the European Union provide statutory
warranty rights in addition to the coverage you receive from this limited warranty: for
information on EU-wide consumer laws, please visit the European Consumer Center
website at http://ec.europa.eu/consumers/ecc/contact_en/htm.
The provisions of this Limited Warranty apply only to the original purchaser and are not
transferable. This Limited Warranty is valid for a period of 90 days from the date of the
initial retail purchase. Keep your original sales receipt with this document, as proof of
purchase will be required and must accompany warranty claims or the Limited Warranty
will be invalid.
If you find a manufacturing defect in the Intex Pool during the warranty period, please
contact the appropriate Intex Service Center listed in the separate “Authorized Service
Centers” sheet. If the item is returned as directed by the Intex Service Center, the Service
Center will inspect the item and determine the validity of the claim. If the item is covered by
the provisions of the warranty, the item will be repaired or replaced, with the same or
comparable item (at Intex’s choice) at no charge to you.
Other than this warranty, and other legal rights in your country, no further warranties are
implied. To the extent possibly in your country, in no event shall Intex be liable to you or
any third party for direct or consequential damages arising out of the use of your Intex Pool,
or Intex or its agents’ and employees’ actions (including the manufacture of the product).
If your country does not allow the exclusion or limitation of incidental or consequential
damages, this limitation or exclusion does not apply to you.
You should note that this limited warranty does not apply in the following circumstances:
• If the Intex Pool is subject to negligence, abnormal use or application, accident,
improper operation, improper maintenance or storage.
• If the Intex Pool is subject to damage by circumstances beyond Intex’s control, including
but not limited to, punctures, tears, abrasions, ordinary wear and tear and damage
caused by exposure to fire, flood, freezing, rain, or other external environmental forces;
• To parts and components not sold by Intex; and/or
• To unauthorized alterations, repairs or disassembly to the Intex Pool by anyone other
than Intex Service Center personnel.
The costs associated with the loss of pool water, chemicals or water damages are not
covered by this warranty. Injury or damage to any property or person is not covered by this
warranty.
Read the owner’s manual carefully and follow all instructions regarding proper operation
and maintenance of your Intex Pool. Always inspect your product prior to use. This limited
warranty will be void if use instructions are not followed.

58GS
(58GS) MODEL 604G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/07/2017
English
OWNER’S MANUAL
Don’t forget to try these other fine Intex products: pools, pool
accessories, inflatable pools and in-home toys, airbeds and boats
available at fine retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifications and appearance, which may result
in updates to the instruction manual without notice.
Krystal Clear™
Model 604G Filter Pump
12 V~, 50 Hz, 5 A
Hmax 1.0 m, Hmin 0.19 m, IPX7
Max. Water Temperature 35 °C
©2017 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd.
- Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen
Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O
Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European
Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union
durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands
www.intexcorp.com
058-*GS-R0-1809
For illustrative purposes only.
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for future
reference.

58GS
SAVE THESE INSTRUCTIONS
(58GS) MODEL 604G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/07/2017
English
Page 2
TABLE OF CONTENTS
Warnings.......................................................................... 3

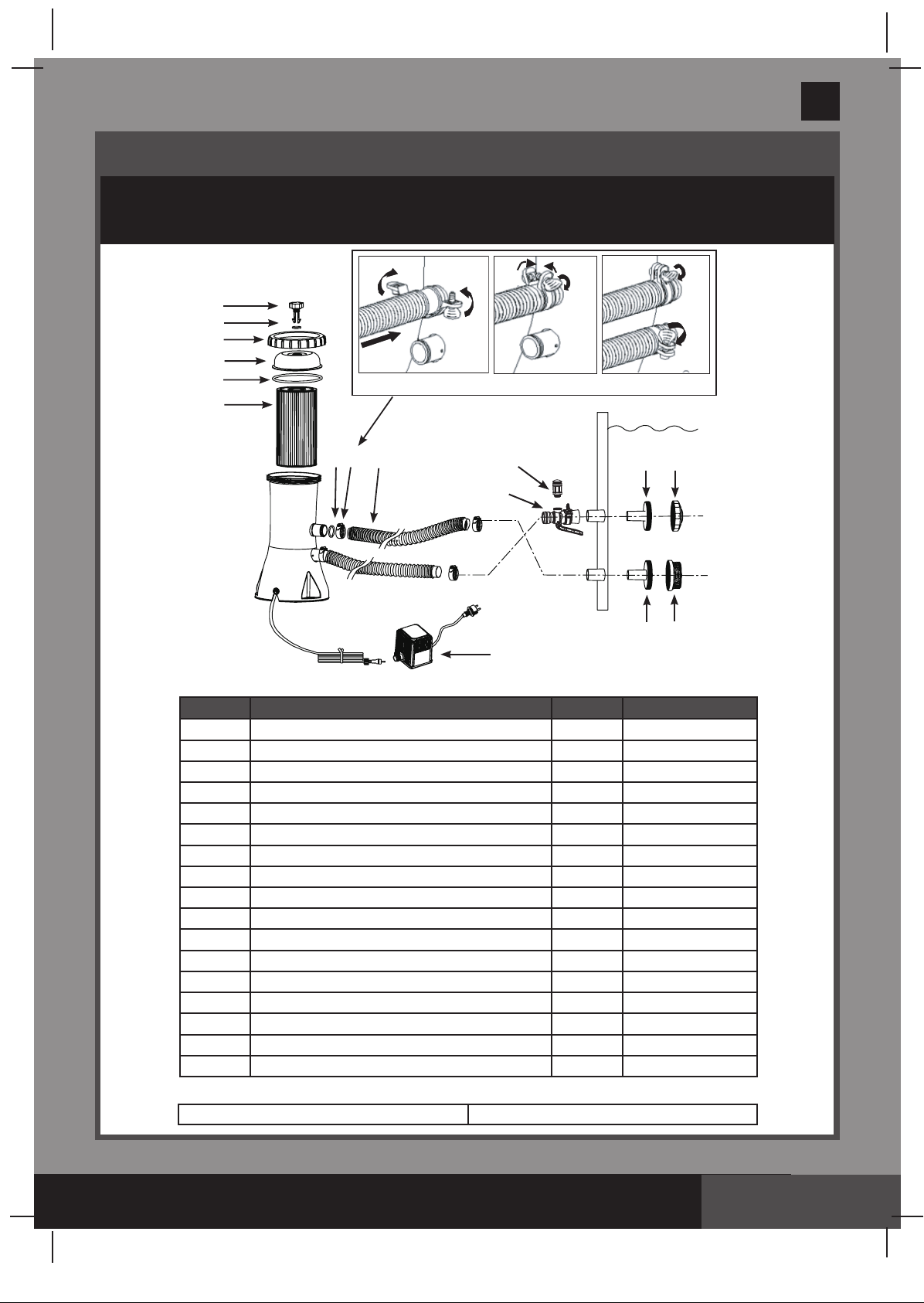

Parts Reference.............................................................. 4
Setup Instructions.......................................................... 5-7
Maintenance.................................................................... 8-9
Pool Care and Chemicals............................................... 8
Long Term Storage......................................................... 9
Troubleshooting Guide................................................... 10
Common Pool Problems................................................ 11
General Aquatic Safety................................................... 11
Limited Warranty............................................................. 12

58GS
SAVE THESE INSTRUCTIONS
(58GS) MODEL 604G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/07/2017
English
Page 3
• Always supervise children and those with disabilities.
• Children must stay away from this product and electrical cord(s).
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
• Assembly and disassembly by adults only.
• Risk of electric shock. Connect transformer only to a grounding type receptacle protected by a
ground-fault circuit interrupter (GFCI) or residual current device (RCD). Contact a qualified
electrician if you cannot verify that the receptacle is protected by a GFCI/RCD. Use a qualified
electrician to install the GFCI/RCD, which has a maximum rate of 30mA. Do not use a portable
residual current device (PRCD).
• Always unplug the transformer from the electrical outlet before removing, cleaning, servicing or
making any adjustment to the product.
• The plug must be accessible after produc t is installed.
• Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers,
hedge trimmers and other equipment.
• The supply cord cannot be replaced. If the cord is damaged the appliance or transformer should
be scrapped.
• To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or converter
plugs to connect unit to electric supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your hands are
wet.
• Keep the transformer more than 3.5m away from the product.
• Keep the plug of the transformer more than 4.0m away from the product.
• Position this product away from the pool, so as to prevent children from climbing on it and
accessing the pool.
• Do not operate this product when the pool is occupied.
• This product is for use with storable pools only. Do not use with permanently installed pools. A
storable pool is constructed so that it may be readily disassembled for storage and reassembled to
its original configuration.
• The appliance is intended only for household use.
• This product is intended to be used only for the purposes described in the manual!
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE, ELECTRIC
SHOCK, ENTANGLEMENT OR OTHER SERIOUS INJURY OR DEATH.
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
READ AND FOLLOW ALL INSTRUCTIONS
WARNING
These product warnings, instructions and safety rules provided with the product represent some
common risks of water recreation devices and do not cover all instances of risk and danger. Please
use common sense and good judgement when enjoying any water activity.

58GS
SAVE THESE INSTRUCTIONS
(58GS) MODEL 604G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/07/2017
English
Page 4
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
When ordering parts, be sure to quote the model number and part numbers.
No tools are required for the assembly.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1AIR RELEASE VALVE 110460
2VALVE O-RING 110264
3 FILTER HOUSING COVER 111868
4 COVER SEAL 110325
5FILTER CARTRIDGE (29000) 1
6 HOSE SEAL 210134
7HOSE CLAMP 4 11489
8HOSE 210116
9STRAINER CONNECTOR 1 11070
10 POOL INLET JET NOZZLE 112364
11 STRAINER GRID 1 12197
12 TRANSFORMER 111649
13 THREADED FILTER HOUSING COLLAR 111869
14 INLET STRAINER CONNECTOR 112365
*15 AIR JET VALVE 112363
*16 POOL INLET AIR ADAPTOR 112367
*17 AIR JET VALVE CAP (NOT SHOWN) 112373
Type of lter medium Synthetic cartridge #29000
" * ": Optional.
1
2
3
4
5
67814
9
12
11
10
ABC
13
15
16

58GS
SAVE THESE INSTRUCTIONS
(58GS) MODEL 604G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/07/2017
English
Page 5
SETUP INSTRUCTIONS
Be sure you have access to water to fill the pool and chemicals for the water.
IMPORTANT: This filter pump is shipped with the air release valve (1) open (open the air
release valve if necessary). DO NOT replace the air release valve until you reach STEP #8.
Failure to follow these instructions will result in air trapped inside filter housing; the motor
will run dry, be noisy and malfunction.
1.
Assemble above-ground-pool first. Carefully follow the pool’s installation instructions.
2.
Place the filter pump the length of the hose away from the pool wall where the lower black
protruding hose connection is "sticking-out". Ensure the filter pump is accessible at all time for
service and maintenance.
3. Insert the nozzle union (14 & 10) into the upper protruding hose connections, and then attach
the pool inlet air adaptor (16) to the upper protruding fitting. Screw the air jet valve (15) over
the pool inlet air adaptor (16). Then insert the strainer union (9 & 11) into the lower protruding
hose connections. The hoses (8) fit over the strainers inserted into the connections.
4. There are two hoses to be connected to the filter pump hose connections. With hose clamps (7),
fasten one of the hoses (8) to the lower protruding hose connection (marked "+" on the pool
liner) and to the upper pump connection (marked "+").
5. Connect the second hose to the pool inlet air adaptor (16) and to the lower pump connection.
Make sure all the hose clamps (7) are tight. NOTE: Make sure the air jet valve (15) is securely
tighten onto the pool inlet air adaptor (16) and facing up.
6. In a counter-clockwise motion unscrew the threaded filter housing collar (13) from the filter
housing. Grasp and remove the housing cover (3). Check to see if a cartridge is inside the
housing. If yes, replace the cover, finger tighten the housing collar (13) back onto the filter
housing.
7. Fill the pool to a level of at least 1-2 inches above the top connection. The water will
automatically flow down into the pump.
8. When water starts flowing out of the air release valve hole, screw in the air release valve back
into the filter housing cover. Do not over tighten the valve. NOTE: Venting the system is
necessary for air to escape as the filter housing fills with water.
9. Connect the filter pump power cord end to the transformer output receptacle and screw in the
cover. Plug the transformer power cord into a properly installed electrical socket.
10. Operate the filter pump until the desired water clarity is obtained.
NOTE: Never put pool chemicals directly into the filter pump. This may damage the pump
and void the warranty.
WARNING
Risk of electric shock. Connect transformer only to a grounding type
receptacle protected by a ground-fault circuit interrupter (GFCI) or residual
current device (RCD). Contact a qualified electrician if you cannot verify
that the receptacle is protected by a GFCI/RCD. Use a qualified electrician
to install the GFCI/RCD, which has a maximum rate of 30mA. Do not use a
portable residual current device (PRCD).

58GS
SAVE THESE INSTRUCTIONS
(58GS) MODEL 604G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/07/2017
English
Page 6
SETUP INSTRUCTIONS (continued)
WARNING
Position this product away from the pool, so as to prevent children from
climbing on it and accessing the pool.
It is essential to change any damaged element or set of elements as soon as possible.
Use only parts approved by the manufacturer.
To inspect and change the filter cartridge, disconnect line cord, unscrew the pool inlet nozzle (10)
and strainer grid (11) from the strainer connectors and insert the hat-like plugs into the strainer
connectors before servicing the filter. After service, open the air release valve, remove the plugs,
allow any air to escape through the valve before tightening the valve again and replace the pool
inlet nozzle (10) and strainer grid (11). The pump is now primed with water again and may be
turned on.
The installation instruction shall provide information on requirements specified for the electrical
installation and shall include reference to national wiring rules.
The power cord plug to the 220-240 volt electrical power source of the filter pump must be
positioned more than 3.5m away from the pool walls. Check your local authorities to determine the
appropriate standard and requirements for “electrical installation of swimming pools and basins
equipment”. The following table is for reference only:
International
France
Germany
The Netherlands
Country/Region Standard Number
IEC 60364-7-702
NF C 15-100-7-702
DIN VDE 0100-702
NEN 1010-702
(ILLUSTRATION NOT TO SCALE)
WATER LEVEL
HOSE CLAMP
INSIDE OF POOL
STRAINER GRID
(REMOVE)
POOL INLET
JET NOZZLE
(REMOVE)
PLUG
UPPER PUMP
CONNECTION
LOWER PUMP
CONNECTION
FILTER HOUSING
COVER
FILTER
CARTRIDGE
INSIDE
AIR RELEASE
VALVE
HOSE
W
A
T
E
R
D
I
R
E
C
T
I
O
N
W
A
T
E
R
D
I
R
E
C
T
I
O
N
TRANSFORMER
THREADED FILTER
HOUSING COLLAR
POOL INLET
AIR ADAPTOR
AIR JET
VALVE
