INTEX®OWNER'S MANUAL
RECHARGEABLE HANDHELD VACUUM
Model CL1704
MAX. WATER TEMPERATURE 35 °C
READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
• Assembly and disassembly by adults only. This is not a toy.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
• Do not use if unit is damaged in any way. Replace damaged components promptly.
• This vacuum creates suction. Keep hair, loose clothing, fingers, and any body parts away from openings and moving parts.
• Use only accessories and replacement parts specified in this manual.
• Never leave this product plugged into the main outlet for long term storage.
• Never leave this product in the water when it is OFF or has run out of battery power.
• Do not use this product for pool opening (start of the season). This product is design for routine general maintenance of your
pool or spa. Do not use for cleaning of longer accumulated heavy dirt such as at the start of the pool season.
•
This product is designed for underwater use: must be submerged to operate properly. Do not use this product as an all-purpose vacuum cleaner.
• Do not use this product without the filter bag and/or vacuum body cover.
• Do not vacuum sharp objects, as this may damage the filter bag.
• Do not vacuum toxic substances, flammable or combustible liquids such as gasoline, or operate in the presence of explosive
or flammable fumes.
• Never insert or drop objects into any opening on the device. Keep all openings free of leaves, debris, or anything that may
reduce the water flow.
• Always turn off and unplug the device before cleaning, servicing, changing the filter bag or any routine maintenance.
• Keep the charging USB cable away from sharp objects and hot surfaces.
• Do not charge the product with a damaged charging USB cable and/or a damaged plug charger.
• Charge the product indoors in a clean and dry place. Do not expose to rain or extreme temperature and do not handle with wet
hands during charging. Never charge the product while operating it.
• This product contains sealed nickel metal-hydride (Ni-MH) rechargeable batteries. Do not dispose of product in regular trash,
municipal waste stream or by fire as the built-in rechargeable battery may leak or explode. Always dispose of the batteries in
accordance with your local law and regulations.
• This product is intended to be used only for the purposes described in the manual.
FOLLOW THESE RULES AND ALL INSTRUCTIONS TO AVOID PROPERTY DAMAGE OR OTHER INJURY.
WARNING

(286IO) RECHARGEABLE HANDHELD VACUUM ENGLISH SIZE: 4.875” X 7.25” 05/23/2018
286
IO
SAVE THESE INSTRUCTIONS
Page 2

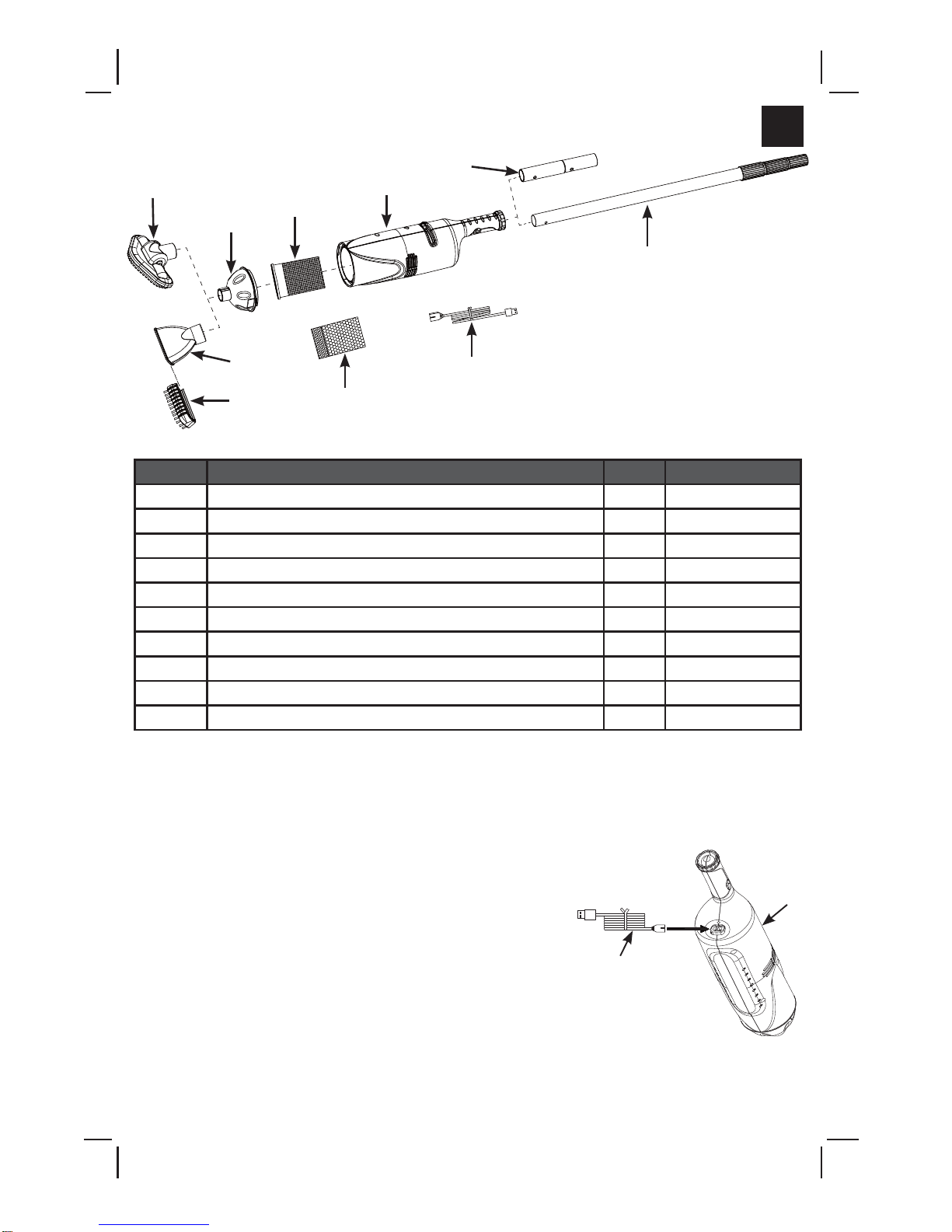

PARTS LIST
NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.
1
2
3
4
5
9
10
8
7
6
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 VACUUM BODY WITH NON-REPLACEABLE BATTERY 1 12271
2 FILTER BAG WITH GASKET 1 12278
3 VACUUM BODY COVER 1 12277
4 LARGE VACUUM BRUSH HEAD 1 12274
5 VACUUM NOZZLE 1 12275
6 VACUUM NOZZLE BRUSH 1 12276
7 MICRO-FILTER BAG 1 12279
8 VACUUM CHARGING USB CABLE 1 12269
9 TELESCOPING ALUMINUM POLE 1 10637
10 POLE ADAPTOR 1 12270
General:
• Plug charger not included. Only use a compatible standard female USB (smartphone or
tablet) plug charger with an output voltage of 5-5.2V DC, 1A.
• A full charge takes about 8-10 hours: provides about 40-50 minutes of operation.
• Make sure the charging receptacle on the product is dry before any recharging.
Charging the Battery:
1. Connect USB cable to plug charger USB receptacle and
plug the charger into the main electrical outlet.
2. Connect the small end of the USB cable (8) into the
vacuum body (1) charging receptacle. See fig 1. The
indicator light will turn on.
Installation:
1. Insert the filter bag with gasket (2) into the vacuum body
(1). See fig 2.1.
1
8
Fig 1

(286IO) RECHARGEABLE HANDHELD VACUUM ENGLISH SIZE: 4.875” X 7.25” 05/23/2018
286
IO
SAVE THESE INSTRUCTIONS
Page 3
For vacuuming fine-small particles, insert the micro-filter bag (7) into the filter bag (2)
before inserting the filter bag (2) into the vacuum body (1). See fig 2.2.
2. Install the vacuum body cover (3) onto the vacuum body (1). Turn the cover (3) clockwise
to securely lock it to the vacuum body. See fig 3.
3. Attach the desired cleaning head accessory to the vacuum body cover. See fig 4.
Note:
The ridge on the vacuum body cover (3) matches the groove on the end of the
vacuum brush head (4) or vacuum nozzle (5).
2
1
2
27
1
2
3
Fig 2.1 Fig 2.2 Fig 3
1
2
3
4
Fig 5
Fig 4
4. Attach the aluminum pole (9) by squeezing the spring buttons and inserting into handle
of the vacuum body (1). Check the buttons “pop” into the holes. Adjust the length of the
shaft by unlocking, extending and locking each section accordingly. See fig 5.
Optional:
The included pole adaptor (10) can be used with other sizes of extension
poles.

(286IO) RECHARGEABLE HANDHELD VACUUM ENGLISH SIZE: 4.875” X 7.25” 05/23/2018
286
IO
SAVE THESE INSTRUCTIONS
Page 4
Operation:
1. Place vacuum in water and slide switch to “1”.
2. Carefully “sweep” the surface of the spa or pool to remove debris.
3. Check and empty the filter bag/micro-filter bag regularly during and after each use.
4. Reverse the above installation steps to remove and empty the filter bag/micro-filter bag.
Note: Rinse vacuum body, cover and filter bags with a garden hose before reassembling.
Maintenance and long term storage:
1. Turn off the vacuum before cleaning, servicing and maintenance. Regularly check all
components for sign of damage. Discard and replace damaged components immediately.
2. Using the installation instructions in reverse, disassemble the vacuum. Clean all the
components with water, and make sure all components are thoroughly dry before storage.
3. Store the product and accessories in a dry, temperature controlled, between 0º – 40ºC
(32º – 104ºF), storage location.
4. The original packing can be used for storage.
TROUBLE SOLUTION
VACUUM DOESN’T
WORK • Charge the product then turn on the unit. Ensure the unit is switched to “1”.
• Keep the vacuum body under the water.
LOW SUCTION • Choose the suitable bag for filtering and install the filter
bag(s) correctly.
• Check and empty the filter bag(s) regularly during and after
each use.
• Check for any sand or deposits in the vacuum.
• Contact Intex Service Center.
CHARGING FAILED • Check the plug charger has an output voltage of 5-5.2V ± 0.1,
1A.
• Connect USB cable to plug charger USB receptacle and plug
the charger into the main electrical outlet first, then connect
USB cable into the vacuum body charging receptacle.
• Tighten USB cable, the indicator should be on.
The vacuum body will not operate unless it is submerged in water. Water flow
from sides of the vacuum body indicates the product is working.
IMPORTANT

(286IO) RECHARGEABLE HANDHELD VACUUM ENGLISH SIZE: 4.875” X 7.25” 05/23/2018
286
IO
SAVE THESE INSTRUCTIONS
Page 5
Limited Warranty
Your RECHARGEBALE HANDHELD VACUUM has been manufactured using the highest quality
materials and workmanship. All Intex products have been inspected and found free of defects
prior to leaving the factory. This Limited Warranty applies to the RECHARGEBALE HANDHELD
VACUUM only.
This limited warranty is in addition to, and not a substitute for, your legal rights and remedies. To
the extent that this warranty is inconsistent with any of your legal rights, they take priority. For
example, consumer laws across the European Union provide statutory warranty rights in addition
to the coverage you receive from this limited warranty: for information on EU-wide consumer laws,
please visit the European Consumer Center website at http://ec.europa.eu/consumers/ecc/
contact_en/htm.
The provisions of this Limited Warranty apply only to the original purchaser and are not
transferable. This Limited Warranty is valid for a period of one (1) year from the date of the initial
retail purchase. Keep your original sales receipt with this document, as proof of purchase will be
required and must accompany warranty claims or the Limited Warranty will be invalid.
If you find a manufacturing defect in the RECHARGEBALE HANDHELD VACUUM during the
warranty period, please contact the appropriate Intex Service Center listed in the separate
“Authorized Service Centers” sheet. If the item is returned as directed by the Intex Service Center,
the Service Center will inspect the item and determine the validity of the claim. If the item is
covered by the provisions of the warranty, the item will be repaired or replaced, with the same or
comparable item (at Intex’s choice) at no charge to you.
Other than this warranty, and other legal rights in your country, no further warranties are implied.
To the extent possibly in your country, in no event shall Intex be liable to you or any third party
for direct or consequential damages arising out of the use of your RECHARGEBALE HANDHELD
VACUUM, or Intex or its agents’ and employees’ actions (including the manufacture of the
product). If your country does not allow the exclusion or limitation of incidental or consequential
damages, this limitation or exclusion does not apply to you.
You should note that this limited warranty does not apply in the following circumstances:
• If the RECHARGEBALE HANDHELD VACUUM is subject to negligence, abnormal use or
application, accident, improper operation, improper voltage or current contrary to operating
instructions, improper maintenance or storage;
• If the RECHARGEBALE HANDHELD VACUUM is subject to damage by circumstances beyond
Intex’s control, including but not limited to, ordinary wear and tear and damage caused by
exposure to fire, flood, freezing, rain, or other external environmental forces;
• To parts and components not sold by Intex; and/or.
• To unauthorized alterations, repairs or disassembly to the RECHARGEBALE HANDHELD
VACUUM by anyone other than Intex Service Center personnel.
Injury or damage to any property or person is not covered by this warranty.
Read the owner’s manual carefully and follow all instructions regarding proper operation and
maintenance of your RECHARGEBALE HANDHELD VACUUM. Always inspect your product prior
to use. This limited warranty will be void if use instructions are not followed.
