Intraphex TD-BMW6PIN-v2 Manual

TD-BMW6PIN-v2
Install
MANUAL
APPLICATIONS:
2012 UP BMW MONITORS WITH
6 PIN LVDS CONNECTOR
1,3,5,6,7 SERIES

www.INTRAPHEX.com
[e-mail]
SUPPORT: 810.355.2266
EXT 4
Fax: [phone]
FACETIME VIDEO TECH SUPPORT:
[email protected]
Contacts

What’s In The Box
Contents
 RGB/GPS INTERFACE
 CANBUS INTERFACE
 MOMENTARY SWITCH
 8GB SD CARD WITH
INTRAPHEX NAV
SOFTWARE
 INSTALL/USERS
GUIDES
 AUDIO SWITCHER
RCA HARNESS
 GPS ANTENNA
 INTERFACE 6 PIN
HARNESS
 NAVIGATION BOX
 TOUCH LAYER

CANBUS BOX
 THE CANBUS INTERFACE CAN SUPPLY POWER AND GROUND TO THE
ADDED DEVICES SUCH AS THE REVERSE CAMERA. THE MAXIMUM
OUTPUT FOR THESE IS 1 AMP. IF THE DEVICE THAT YOU PLAN TO USE
DRAWS MORE CURRENT THAN THIS, IT WILL BE NECESSARY TO USE A
RELAY .
 *NOTE* SOME VERSIONS OF GMLAN BOX DO NOT SUPPORT REVERSE
TRIGGER FROM CANBUS. IN THIS CASE IT WILL BE NECESSARY TO
CONNECT THE INTERFACE SIDE OF THE GREEN WIRE TO VEHICLE’S
12 VOLT REVERSE TRIGGER TO USE A REVERSE CAMERA. IF YOUR GREEN
WIRE IS PRECUT, THEN YOU WILL NEED TO PERFORM THIS STEP IN
ORDER FOR REVERSE CAMERA TO TRIGGER. .
CAN INTERFACE 6 PIN HARNESS
RED CAN GENERATED 12V ACC (MAX 1amp)
YELLOW 12V BATTERY (MAX 1 amp)
BLACK GROUND
GREEN CAN GENERATED REVERSE 12V (MAX 1 amp)
GREY NOT USED
WHITE NOT USED

 NOT ALL HARNESSES WILL BE USED IN TYPICAL NAVIGATION
INSTALLATION, SUCH AS AUDIO RCA HARNESS AND MOMENTARY
SWITCH.

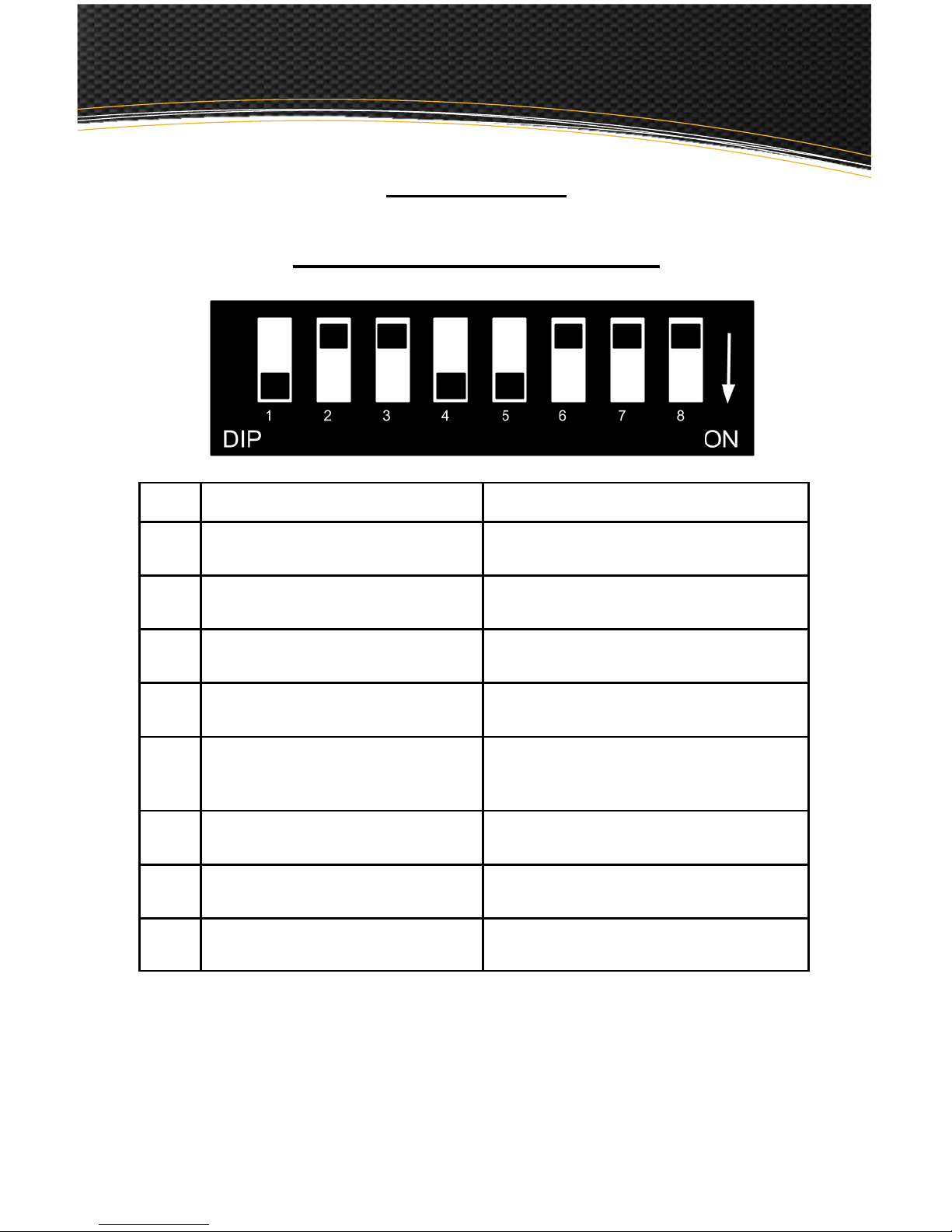

DIP DOWN UP
1RGB (NAVI) INPUT ON RGB (NAVI) INPUT OFF
2VIDEO 1 ON VIDEO 1 OFF
3VIDEO 2 ON VIDEO 2 OFF
4RGB RES 800X480 HD RGB RES 480X234
5GREEN WIRE TRIGGER TO CAMERA
INPUT
GREEN WIRE TRIGGER TO OEM DISPLAY
FACTORY CAMERA
6NO FUNCTION NORMAL OPERATION (DEFAULT)
7NO FUNCTION NORMAL OPERATION (DEFAULT)
8FULL SCREEN REVERSE IMAGE SPLIT REVERSE IMAGE (PDC)
INTERFACE
DIP SWITCH SETTINGS
 IF YOU ARE GETTING A BLACK SCREEN OR MULTIPLE IMAGES DISPLAYED
ON LCD SCREEN PLEASE CHECK DIP 7 AND 8 FOR PROPER SETTINGS.
THESE DIPS CONTROL THE PROTOCOL OUTPUT OF THE INTERFACE TO
THE FACTORY LCD SCREEN. IF YOU NEED HELP, PLEASE CALL TECH
SUPPORT, 810-355-2266 FOR ASSISTANCE SETTING YOUR DIP SWITCHES.

CANBOX INSTALLATION
 REMOVE THE MONITOR FROM THE VEHICLE. BECAUSE THE 6 PIN
INTERFACE WILL FIT ALL MODELS OF BMW 6 PIN SYSTEM, THIS WILL
VARY FROM CAR TO CAR.
 REMOVE CD PLAYER ASSEMBLY TO GAIN ACCESS TO THE MAIN
HARNESS. IT IS NOT NECISSARY TO UNPLUG THE HARNESS FROM THE
CD PLAYER ASSEMBLY.
 ONCE YOU HAVE GAINED ACCESS TO THE CD PLAYER HARNESS YOU
WILL NEED TO CONNECT THE 4 PIN HARNESS FOR THE CANBUS BOX.
USE A DIGITAL MULTIMETER TO TEST. SOLDER CONNECTIONS.
CANBOX 4 PIN HARNESS CAR HARNESS
RED 12V BATTERY (RED)
BROWN CHASSIS GROUND (BROWN)
BLUE CAN HI (YELLOW/RED)
GREY CAN LOW (YELLOW/GREY)

 ONCE THE PROPER CONNECTIONS HAVE BEEN MADE THE CANBOX LEDS
WILL LIGHT UP. ONE SHOULD REMAIN SOLID AND THE OTHER WILL BLINK
RAPIDLY. THIS IS NORMAL OPERATION. IF YOUR CANBUS WIRES ARE
INCORRECT, NO DAMAGE WILL OCCUR..

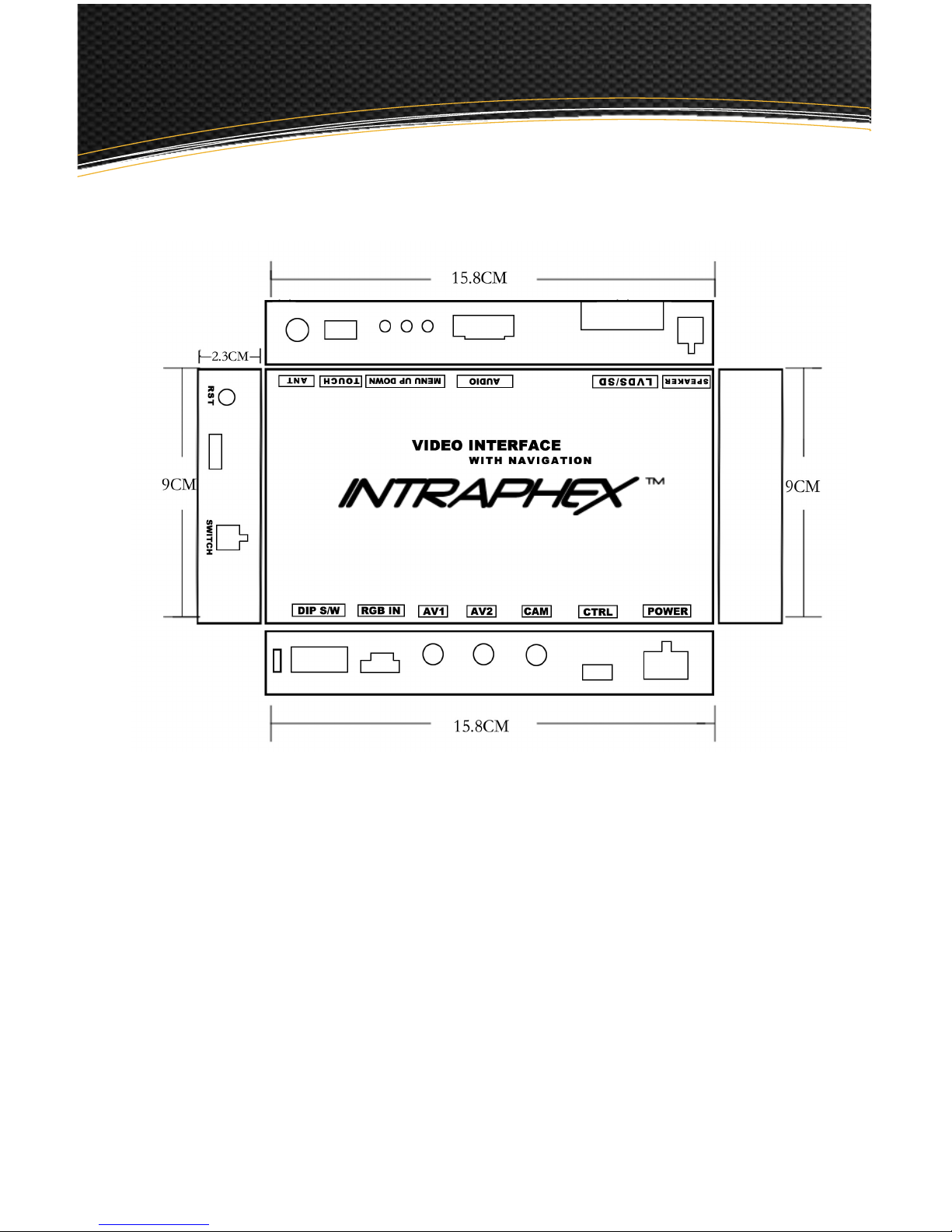

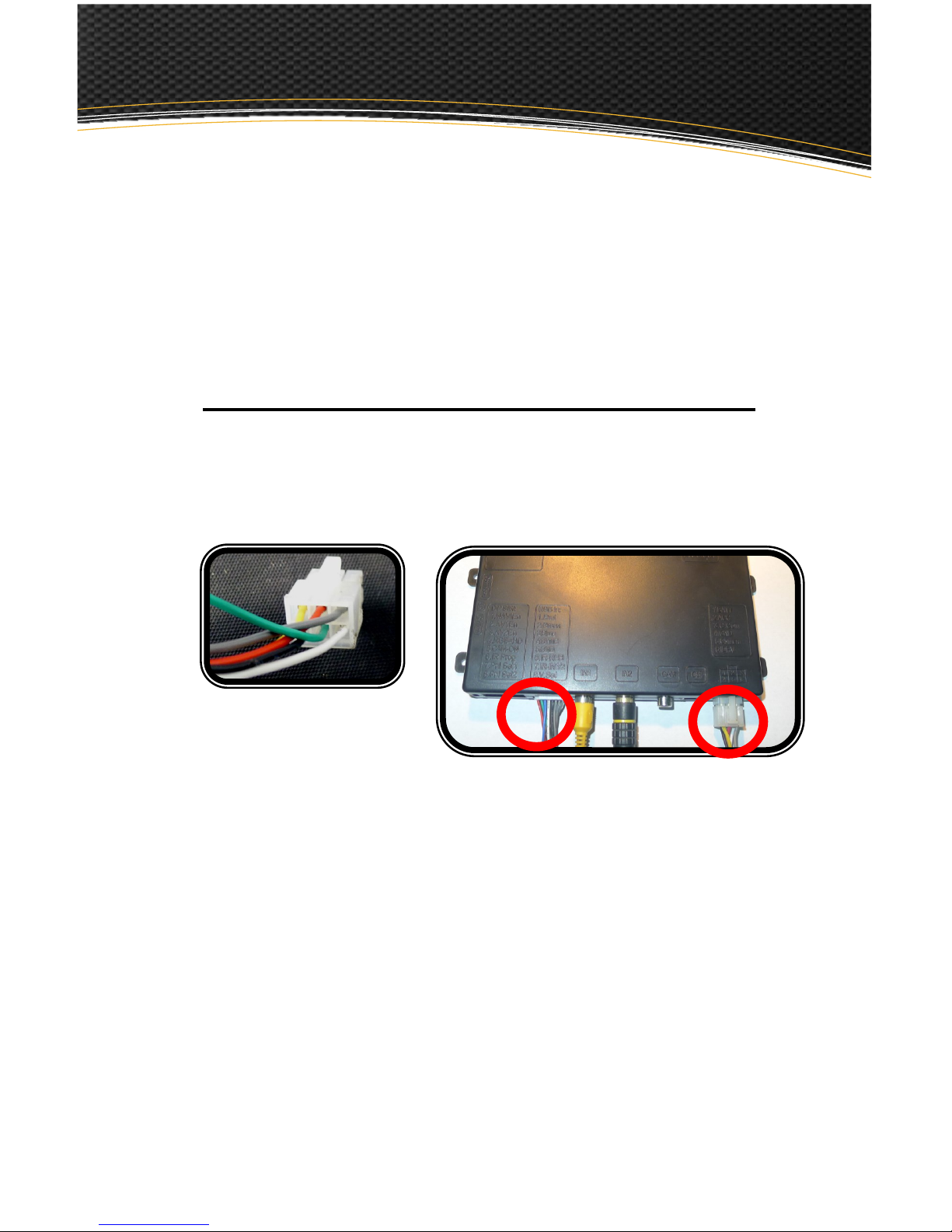

INTERFACE INSTALLATION
 PLUG IN THE 6 PIN WHITE MOLEX CONNECTOR TO THE INTERFACE. THE
OTHER END WILL PLUG DIRECTLY INTO THE CANBOX, BUT DO NOT PLUG
INTO THE CANBOX UNTILL THE INSTALLATION IS COMPLETED.
 PLUG NAVI BOX RGB CONNECTOR INTO THE INTERFACE INTO THE SOCK-
ET LABELED “RGB IN”.
 AT THIS PIONT IT WOULD BE A GOOD IDEA TO MAKE SURE YOUR
DIPSWITCHES ARE SET CORRECTLY. SEE THE CHART IN THE FRONT OF
THE MANUAL.
 ROUTE THE FACTORY 6 PIN LVDS CABLE (PREVIOUSLY UNPLUGGED
FROM THE MONITOR TO THE DESIRED LOCATION OF THE INTERFACE
AND PLUG INTO THE FEMALE 6 PIN LVDS SOCKET ON THE INTERFACE.
 ROUTE THE 6 PIN MALE LVDS CONNECTOR BACK TO MONITOR LOCA-
TION. YOU ARE JUST LOOPING THE 6 PIN LVDS CABLE FROM THE CAR-
>INTERFACE BOX->MONITOR.

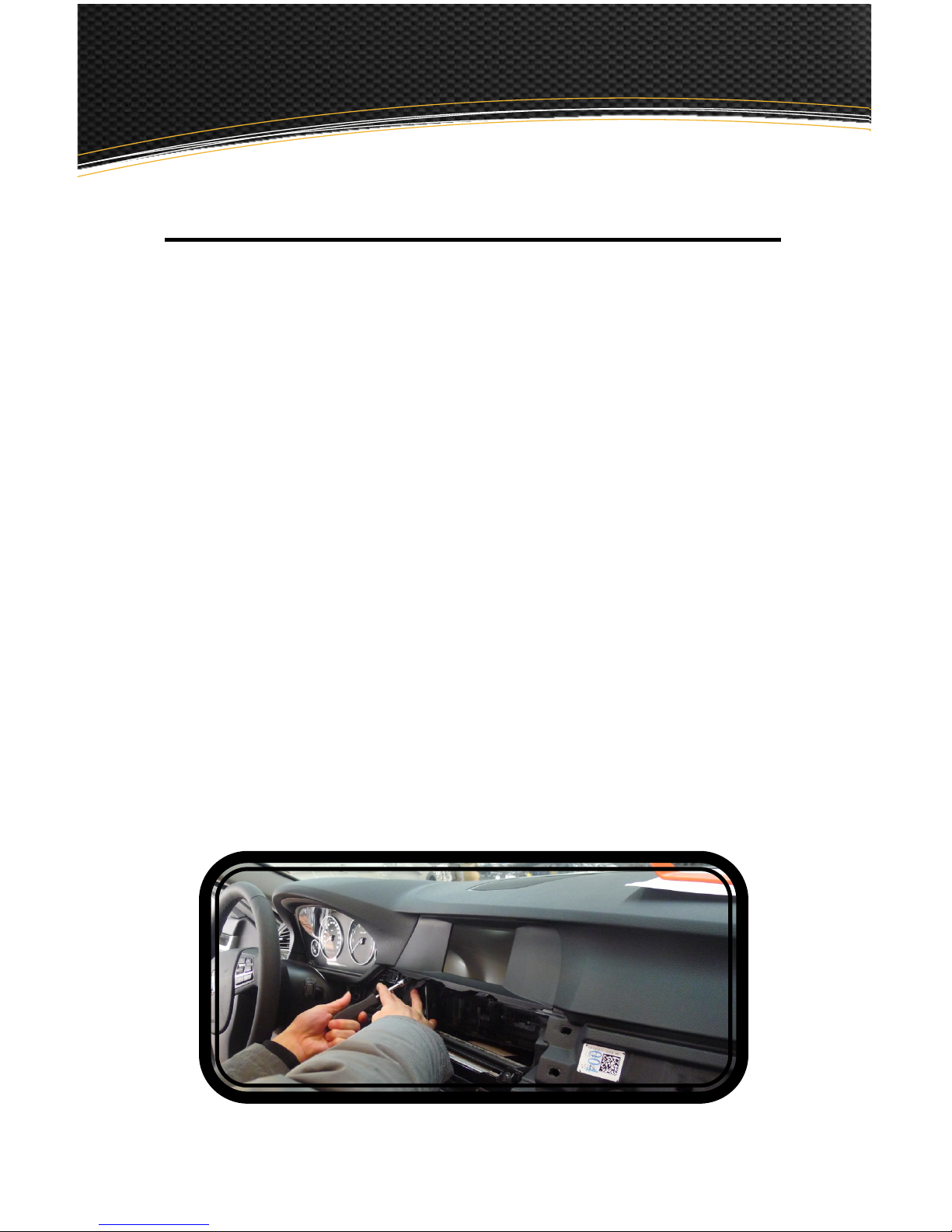

TOUCH LAYER INSTALLATION
 AGAIN, SINCE THIS PRODUCT FITS MUTIPLE VEHICLES AND THE
DISASSEMBLY OF THE PLASTIC FRAME DIFFERS FROM CAR TO CAR, YOU
WILL NEED TO REMOVE THE PLASTIC FRAME FROM THE MONITOR.
TYPICALLY IT IS JUST A COUPLE OF SCREWS AND CLIPS.
 ONCE SEPERATED YOU WILL NEED TO ALIGN THE TOUCH LAYER ON THE
MONITOR SO THAT IT IS CENTERED. USING A HIGH QUALITY CLOTH
TAPE, ATTACH THE LAYER TO THE MONITOR MAKING SURE THAT THE
CORRECT SIDE IS FACING OUT.
 YOU WILL NOW USE THE PROVIDED RIBBON CABLE TO 4 PIN HARNESS
LOCATED IN THE KIT, TO CONNECT THE TOUCHLAYER’S RIBBON CABLE
TO THE NAVIBOX. THIS IS SHOWN IN THE LAYOUT DIAGRAM IN THE
FRONT OF THIS MANUAL.
 SECURE THE RIBBON CABLE AND CONNECTION TO THE BACKSIDE OF THE
MONITOR WITH CLOTH TAPE.
 REASSEMBLE PLASTIC FRAME AND MONITOR ASSEMBLY.

 MOUNT GPS ANTENNA. IT CAN BE MOUNTED
UNDER DASH PANEL AS LONG AS IT HAS A CLEAR
VIEW OF THE SKY THROUGH PLASTIC ONLY.
MOUNT SPEAKER IN DESIRED LOCATION, AND
CONNECT GPS ANTENNA AND SPEAKER TO NAVI
BOX.
INTERFACE SETUP
 ONCE EVERYTHING IS PLUGGED IN AND POWERED ON. YOU CAN SWITCH
TO THE NAVIGATION SCREEN SIMPLY BY PRESSING THE “MENU” OR
“NAVI” UNTIL THE INTERFACE SWITCHES.
 YOU CAN NOW CALIBRATE THE TOUCH SCREEN. WHEN FINISHED PRESS
THE OK BUTTON.
 YOU CAN ADJUST THE CONTRAST AND BRIGHTNESS IN THE SCREEN
SETTINGS TO GET DESIRED SCREEN IMAGE.
 IT WILL NOW BE NECESSARY TO SET THE GPS PATH. INSERT YOUR SD
CARD AND PRESS THE GPS SET BUTTON, THEN SET THE PATH BY
SELECTING “SD CARD” > “MOBILENAVIGATOR.EXE” THEN PRESS OK.
CHECK THE BOX TO AUTORUN THE SOFTWARE AT STARTUP.
 PRESS THE “X” BUTTON AT THE TOP RIGHT CORNER AND THEN “YES” TO
SAVE.
 YOU CAN NOW PRESS THE NAVIGATION ICON TO LAUNCH THE
NAVIGATION SOFTWARE.
 IF YOU HAVE ANY QUESTIONS ABOUT THIS SETUP, PLEASE CONTACT TECH
SUPPORT 810-355-2266 MONDAY-FRIDAY 9-5 EST.

SCAN THE QR CODE FOR MORE INFORMATION
ON INTRAPHEX PRODUCTS
