INVENTOR A2VI-09 User manual

A2VI-09/A2VO-09
A2VI-12/A2VO-12
Your-conditions
Eπιτοίχια Μονάδα
Wall Mounted Unit
English/Ελληνικά/ Română

CONTENTS
This symbol stands for the items
should be forbidden. This symbol stands for the items
should be followed
■....................................1
■
■................................13
■....................................16
■ ..........................21
■..............................23
■.............................25
■..................26
■............... 27
■
■................................19
■.. ..................................14
Operation and maintenance
Notices for use ......................................4
Name of parts....................
....................... 6
■Operation of Remote Controller.............................7

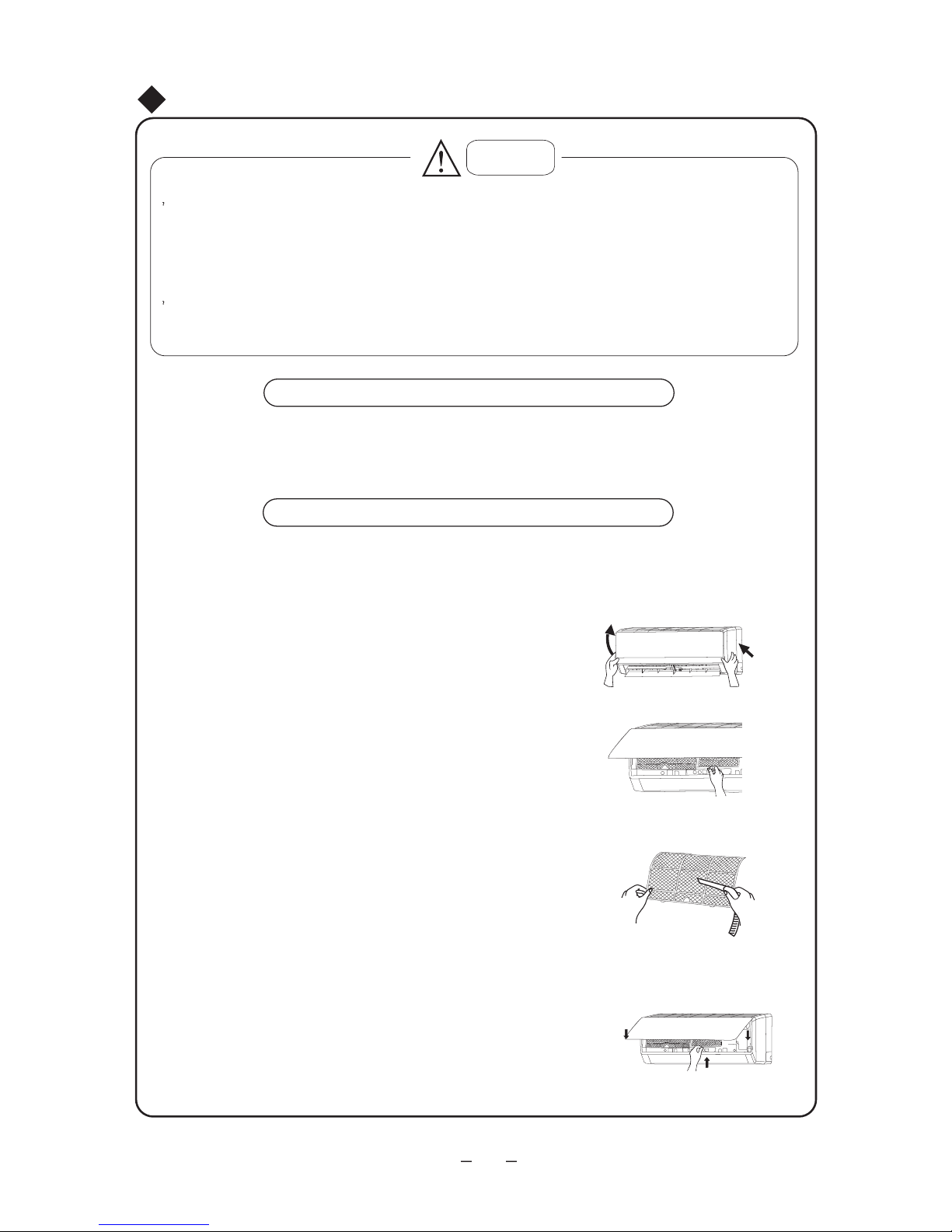

Clean and care

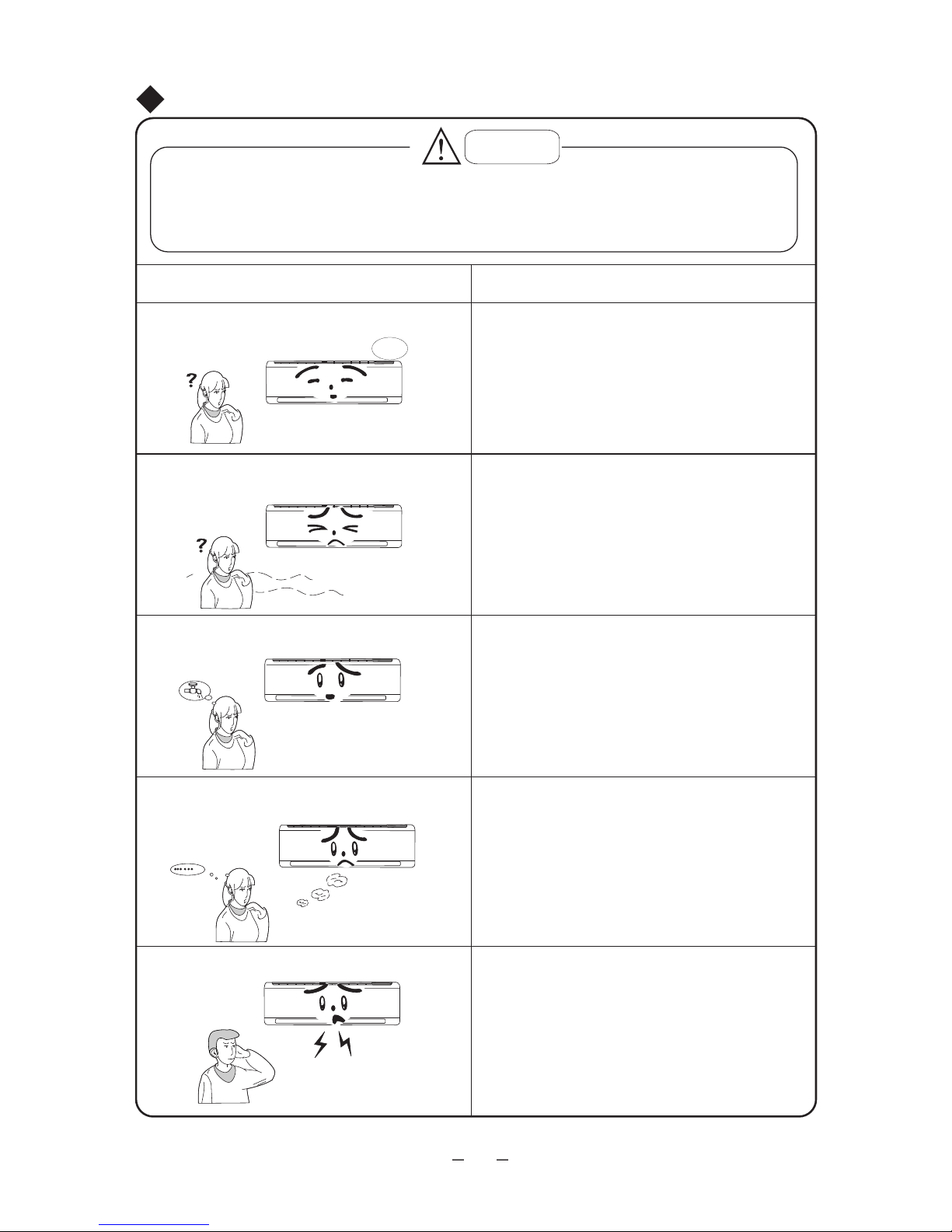

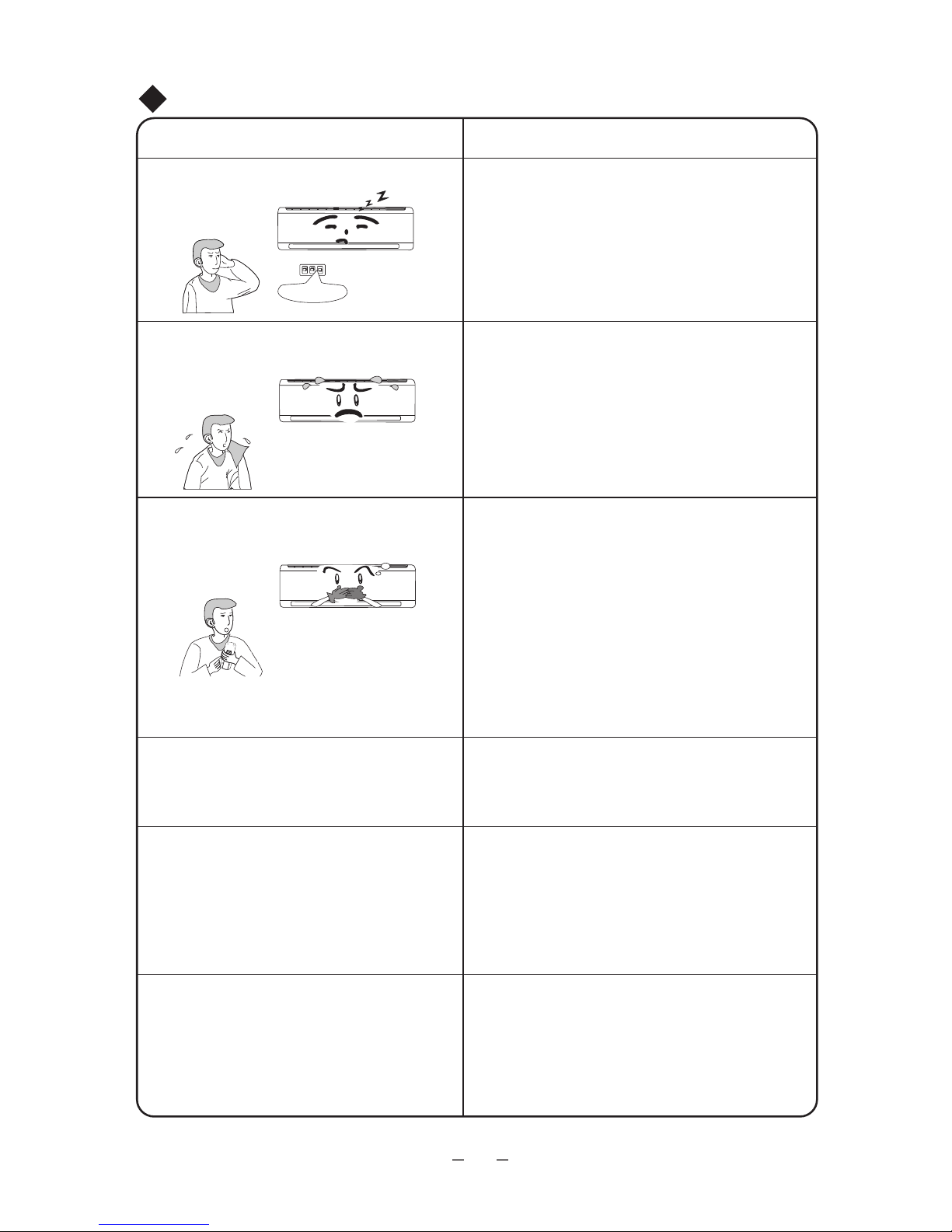

Troubleshooting
Installation service
Notices for installation
Installation dimension diagram
Installation of indoor unit
Installation of outdoor unit
Check after installation and test operation
Emergency operation
Installation and Maintenance of Healthy Filter
Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
is necessary.
The products in this manual may be different with the real one, according to different
models, some models have displayer and some models without displayer, the position
and shape of the displayer please refer to the real one.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Safety Precautions

WARNING
Please read the following notices before operation

cut o power
If there's abnormal pheno-
If this abnormal status is kept



Safety Precautions
it may
on,air conditioner may be
damaged or even cause
electric shock or re.
menon(like smell of burning),
please cut o the power imm-
ediately and then contact with
the authorized maintenance
center.
Do not operate the air cond-
itioner with wet hands.
Otherwise, it may cause electric
shock.
Do not cut o or damage the
power cord or signal control
wire. If the power cord or
signal control wire of air
conditioner is damaged,please
replace it by the professional
with specied power cord.
The special circuit must be
adopted for power supply to
avoid re.
Do not use octopus multipurpose
socket or mobile wiring board for
wire connection.
Please cutothepower supply
when the air conditioner won't
be used for an extended

period of time.
Otherwise, it will accumulate
dust and it may cause overhe -
ating, re and other accidents.
Do not damage the power
cord or use unspecied
power cord.
Otherwise, it may cause re
due to overheating of power
Before cleaning the air con-
ditioner,please cut o the

Otherwise, it will cause electric
shock or injury.
Power supply should adopt
the special circuitwith the
prote ction of air switch and
the capacity must be sucient.
Pease do not turn on or turn
o the air conditioner
Y-type connection is adopted
for the power supply of this
air conditioner. If the power
cord is damaged, it must be
replaced by the manuf acture,
maintenance center or a
similarly qualied person to
When the voltage is too high,
electric elements can be
damaged easily; if the voltage
too low, the compressor will
vibrate ercely, which may
damage the cooling system
or compressor and electric
1
power.

frequently.
avoid a hazard.

cord.

components can't operate.

★
★
★
２
★★Be sure to pull out the power
★
★★
★
Earth: The ground
be connected!
If not, please ask the qualified person-
nel to install. Furthermore, don't conn-
ect each wire to the gas pipe, water
pipe, drainage pipe or any other impr-
oper places.
plug when not using the air co-
nditioner for a long time.
Otherwise, the accumulated dust
may cause fire or electric shock.
Select the most appropriate tem-
perature.
Keep room cool-
er than outside
about 5 degree.
It can preclude the electricity wasted.
Don't leave windows and
doors open for a long time
while operating the air conditioner.
It can decrease the air conditioning
capacity.
Don't block the air intake or outlet
vents of both the outdoor and indoor
units.
It can decrease the air conditioning
capacity or cause a malfunction.
Keep combustible spray away
from the units more than 1m.
It can cause afire or explosion.
If it is damaged, it may lead to
the fall of the unit and cause
the injury.
Please note whether the installed
stand is firm enough or not.
Don't step on the top of the
outdoor unit or place something
on it.
As falling off the outdoor unit
can be dangerous.
Don't attempt to repair
the air conditioner by yourself.
The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.
Safety Precautions

３
★
Safety Precautions
Do not cut off or damage the power cords or
control cords. If they are damaged, please
contact the dealer or qualified service
personnel
To change the airflow direction, adjust the vertical
air flow direction by using the remote controller
or adjust horizontal air flow direction manually.
Vertical Louver Horizontal Louver
Do not insert your hands or objects into
the air inlet or outlet.
It may cause an accident.
Do not expose animals or plants directly to
the air flow.
Do not expose yourself to cold air directly
for a long time.
Do not use the unit for any other purpose, such
as preserving food or drying clothes.
Do not splash water on the air conditioner. Do not place a burner near the air conditioner.
It will cause CO toxicosis due to incomplete burning.
It may have a detrimental effect on them.
It's not good for your health.
It may cause electric shock or malfunction.
★
★★ ★★
★ ★★
★★

*
*
*
*
*
*
Notices for use
Working principle and special functions for cooling
Principle:
Anti-freezing function:
Working principle and special functions for heating
Principle:
Defrosting:
Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that
indoor ambient temperature decreased, its cooling capacity will increase or decrease by
outdoor ambient temperature.
If the unit is running in COOL mode and in low temperature, there will be frost formed on
the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the
indoor unit microcomputer will stop compressor running and protect the unit.
℃
Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase
room temperature. This is the heat pump heating principle, its heating capacity will be
reduced due to outdoor temperature decrease.
If outdoor temperature becomes very low, please operate with other heating equipments.
When out frost will
form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting
function will act, the heat running will stop for 8-10mins.
During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.
This is due to the defrosting, it isn't malfunction.
After defrosting finished,the heating will recover automatically.
４
door temperature is low but high humidity, after a long while running,
The climate type of this unit is according to the nameplate.
The external static pressures at which the appliance was tested should be zero Pa.

Notices for use
Anti-cool wind function:
In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't
arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within
2 mins):
1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature.
The operating temperature range (outdoor temperature) for cooling unit is -7℃~ 43℃；
for cooling and heating unit is -7℃~43℃.
Working temperature range
Maximum cooling
Minimum cooling
Maximum heating
Minimum heating
Indoor sideDB/WB(oC) Outdoor sideDB/WB(oC)
32/23
21/15
27/---
20/---
43/26
21/--
24/18
-5/-6

⑹
⑸
⑵
⑻
⑼
⑽
⑷
⑺
⑶
⑴Power cord
Remotecontroller
Front panel
Filter
Horizontal louver
Wall pipe
Binding tape
Connection wires
Drain hose
Drain connecter
ON OFF/
- +
MO DE FAN
SWING I FEEL
SLEEP
TEMP
TIMER-ON
CLOCK
T -OFFIMER
TURBO LIGHT
/
X-FAN
F
C
：
HOUR
ONOFF

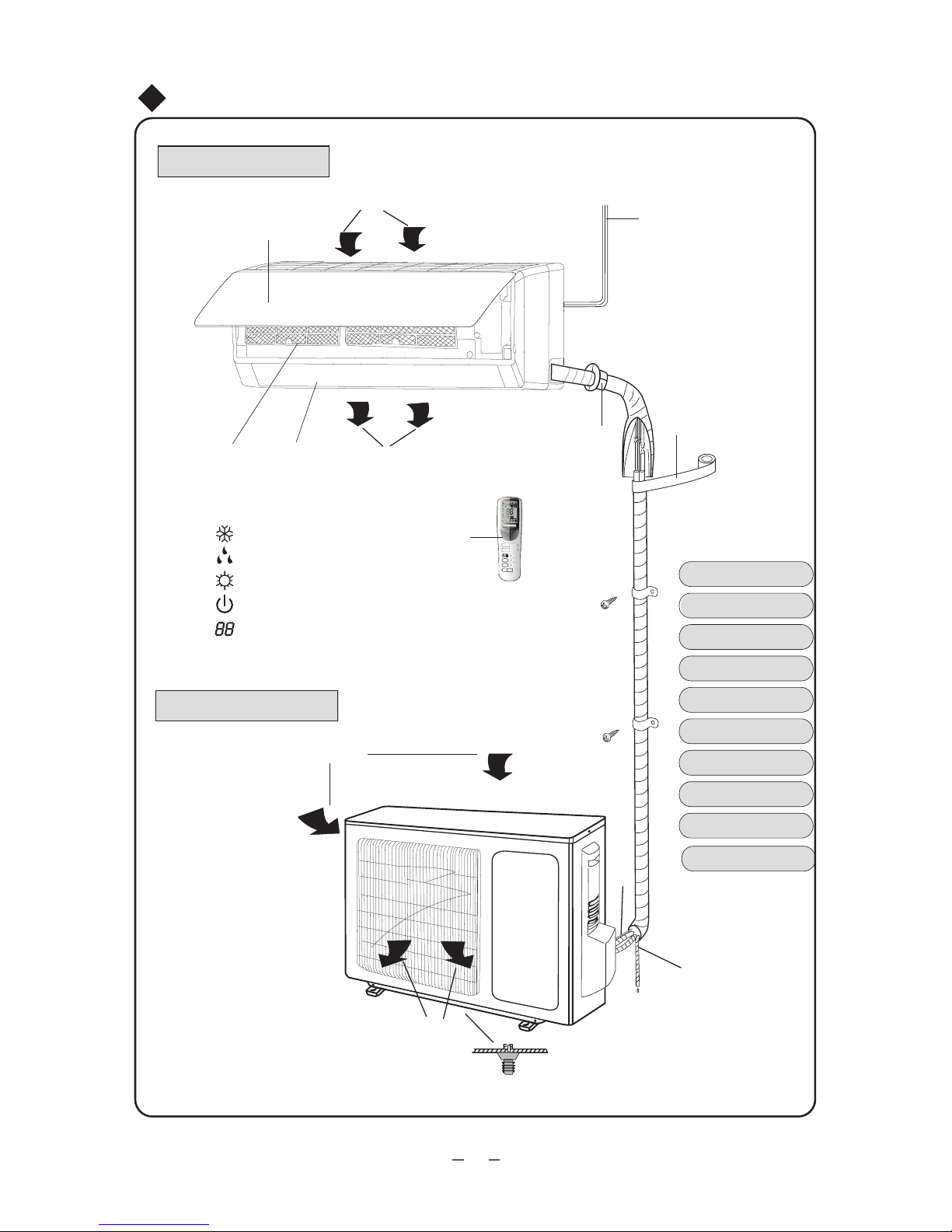

Name of Parts
⑸
⑻
⑶
⑼
⑽
⑴
⑵
Indoor unit
Air in
Air out
Outdoor unit
Air in
Air out
⑷⑹
⑺
：Cool
：Dry
：Heat
：Set temp.
：Power
The icons displayed:
６

ON OFF/
- +
M O D E FAN
SWING IFEEL
SLEEP
TEMP
TIMER-ON
CLOCK
T -OFFIMER
TURBO LIGHT
/
X-FAN
F
C
：
HOUR
ONOFF
７
Press it to start or stop operation.
ON/OFF
MODE
+
-
Press it to select operation mode
(AUTO/COOL/DRY/FAN/HEAT).
: Press it to increase temperature
setting.
: Press it to decrease temperature
setting.
FAN
Press it set swing angle.
TIMER ON
SWING
TIMER OFF
CLOCK
X-FAN ( page 11)
TEMP( page 11)
TURBO( page 11)
SLEEP( page 11)
LIGHT
Press it to set fan speed.
Press it to set auto-on timer.
Press it to set auto-off timer.
Press it set clock.
1
7
Press it to set HEALTH or AIR function.
8
I FEEL(Page 10)
/
4
3
2
5
6
11
13
12
16
10
14
9
15
Operation of Remote Controller
3
15
5
4
14
7
16
13
12
9
8
11
10
2
1
6
Press it to turn on/off the light.

is displayed when pressing the
AIR button.Press this button again
to clear the display.
AIR icon:
25
This area will show the set tempe-
rature. In SAVE mode,"SE" will be
displayed.
DIGITAL display:
24

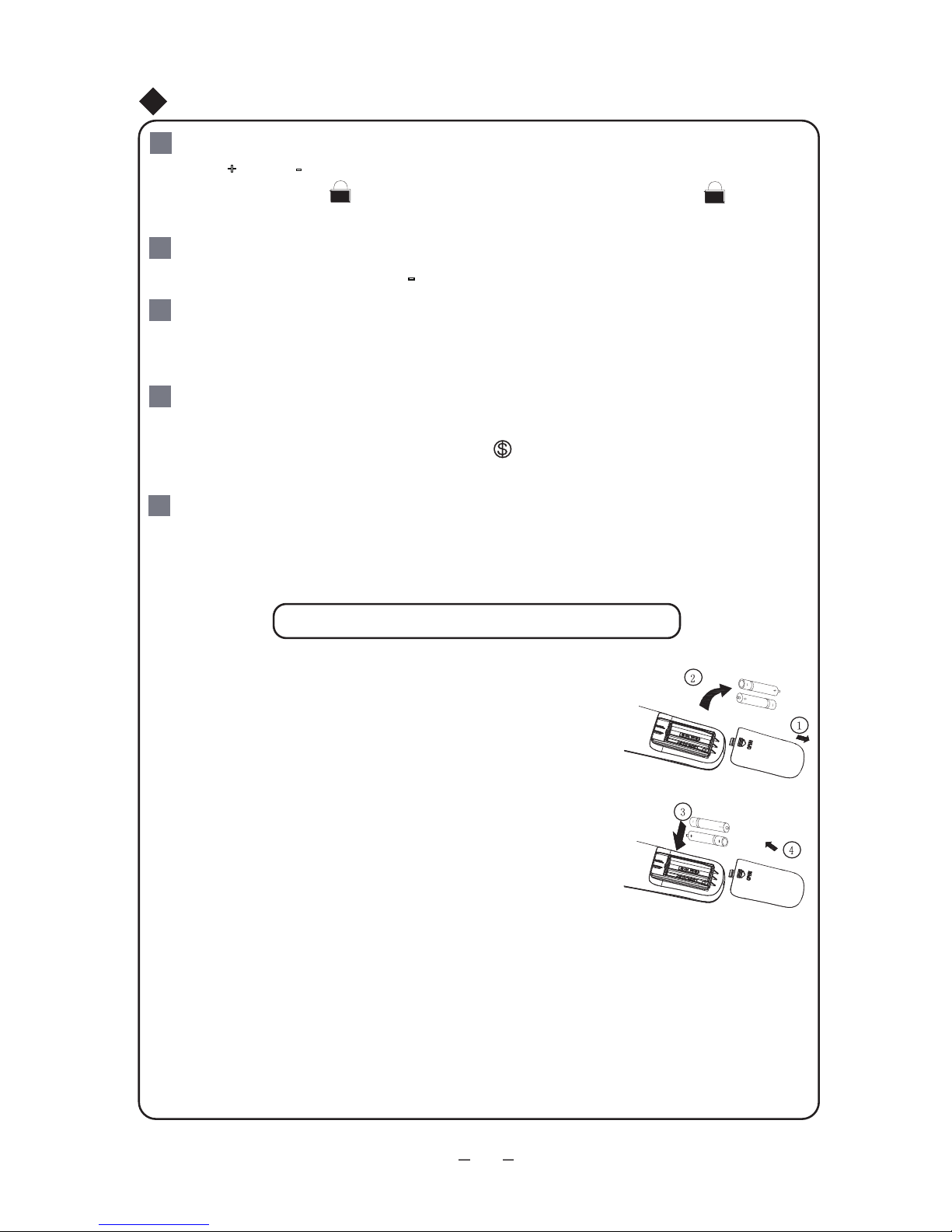

LOCK icon:
is displayed by pressing "+"
and “-” buttons simultaneously. Press
them again to clear the display.
22
LIGHT icon:
is displayed by pressing the
LIGHT button. Press LIGHT button
again to clear the display.
19
MODE icon:
If MODE button is pressed,
current operation mode icon
(AUTO), ( COOL),
(DRY), (FAN) or (HEAT
only for heat pump models) will show.
17
is displayed when pressing
the up & down swing down button.
Press this button again to clear the
display.
21
Up & down swing icon:
After pressing TIMER button, HOUR
ON or OFF will blink.This area will
show the set time.
SET TIME display:
23
Pressing TEMP button,
(set temperature),
ambient temperature)
(outdoor ambient temperature)
and blank is displayed circularly.
(indoor
TEMP icon:
20
SLEEP icon :
is displayed by pressing
the SLEEP button. Press this
button again to clear the display.
18
17
22
23
25
24
Operation of Remote Controller
18 19 20 21
８

９
is displayed when pressing
the
I FEEL button.Press this
button again to clear the display.
I FEEL icon:
30
is displayed when pressing the
HEALTH button.Press this button
HEALTH icon:
26
again to clear the display.
is displayed when pressing the
TURBO button.Press this button
again to clear the display.
TURBO icon:
28
is displayed when Pressing
“TEMP” and “CLOCK” simulta-
neously in Heat mode
8 ℃ Heating icon:
31
is displayed when pressing the
X-FAN button. Press this button
again to clear the display.
X-FAN icon:
27
Press FAN button to select the
desired fan speed setting(AUTO-
Low-Med-High).Your selection will
be displayed in the LCD windows,
except the AUTO fan speed.
FAN SPEED display:
29
2930
26
2731
28
Operation of Remote Controller

6
Press this button to set up &down swing angle, which circularly changes as below:
OFF
This remote controller is universal . If any command , or is sent out,
the unit will carry out the command as
indicates the guide louver swings as:
P ress this button to achieve the on and off of healthy and scavenging functions in
operation status.Press this button for the first time to start scavenging function;
LCD displays“ ”. Press the button for the second time to start healthy and scavenging
functions simultaneously; LCD displays“
”.Press this button for the third time to
quit healthy and scavenging functions simultaneously. Press the button for the fourth
time to start healthy function; LCD display “ ”. Press this button again to repeat the
operation above.(The function is optional)
/
8
Press this button to turn on I FEEL function. The unit automatically adjust temperature
according to the sensed temperature. Press this button again to cancel I FEEL function.
I FEEL:
SWING:
7
Remote Controller Description
ON/OFF :
MODE :
+:
This button is used for setting Fan Speed in the sequence that goes from AUTO,
to then back to Auto.
,
,,
FAN :
1
4
3
2
5
Operation of Remote Controller
Press this button to turn on the unit .Press this button again to turn off the unit.
Press this button to decrease set temperature. Holding it down above 2 seconds rapidly
decreases set temperature. In AUTO mode, set temperature is not adjustable.
Press this button to increase set temperature.Holding it down above 2 seconds rapidly
increases set temperature. In AUTO mode, set temperature is not adjustable.
Auto
Low speed Medium speed High speed
Each time you press this button,a mode is selected in a sequence that goes from AUTO,
COOL,DRY, FAN,and HEAT *, as the following:
AUTO COOL DRY FAN HEAT *
*Note:Only for models with heating function.
After energization, AUTO mode is defaulted. In AUTO mode, the set temperature will not
be displayed on the LCD, and the unit will automatically select the suitable operation
mode in accordance with the room temperature to make indoor room comfortable.

LIGHT:
15
Press LIGHT button to turn on the display's light and press this button again to turn off
the display 's light. If the light is turned on , is displayed. If the light is turned off,
disappears.
SLEEP:
9
Press this button to go into the SLEEP operation mode. Press it again to cancel this
function. This function is available in COOL , HEAT (Only for models with heating
function) or DRY mode to maintain the most comfortable temperature for you.
ehtstsujdanottub-ro+gnisserp,sdnoces5nihtiW.gniknilb,nottubKCOLCsserP
present time.Holding down either button above 2 seconds increases or decreases the
CLOCK :
time by 1 minute every 0.5 second and then by 10 minutes every 0.5 second. During
blinking after setting, press CLOCK button again to confirm the setting,and then
12
will be constantly displayed.
TIMER ON :
TIMER OFF :
11
13
TURBO:
10
14
Operation of Remote Controller
TEMP:
Press this button to initiate the auto-ON timer. To cancel the auto-timer program, simply
press this button again.
After press of this button, disappears and "ON "blinks
.00:00 is displayed for ON time
setting. Within 5 seconds, press + or - button to adjust the time value. Every press of either
button changes the time setting by 1 minute. Holding down either button rapidly changes the
time setting by 1 minute and then 10 minutes. Within 5 Seconds after setting, press TIMER
ON button to confirm.
X-FAN:
16
Pressing X-FAN button in COOL or DRY mode,the icon is displayed and the indoor
fan will continue operation for 10 minutes in order to dry the indoor unit even though you
have turned off the unit.
After energization, X-FAN OFF is defaulted. X-FAN is not available in AUTO,FAN or
HEAT mode.
Pressing TEMP button, (set temperature), (indoor ambient temperature) and
(outdoor ambient temperatur) and blank is displayed circularly .The unit defaults not to
display the icon. During operation of TEMP button, the set temperature is always displayed.
Note: Outdoor ambient temperature is only displayed for some models.
Press this button to activate / deactivate the Turbo function which enables the unit to
reach the preset temperature in the shortest time. In COOL mode, the unit will blow strong
cooling air at super high fan speed. In HEAT mode, the unit will blow strong heating air
at super high fan speed.
Press this button to initiate the auto-off timer. To cancel the auto-timer program, simply
press the button again.TIMER OFF setting is the same as TIMER ON.
１１

１２
★
●
●
●
●
●
1.Remove the battery cover plate from the rear of the remote controller.
(As shown in the figure)
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
4. Reinstall the battery cover plate.
When replacing the batteries, do not use old or different types of batteries,
If the remote controller will not be used for a long time, please
otherwise, it may cause malfunction.
remove batteries to prevent batteries from leaking.
The operation should be performed in its receiving range.
It should be kept 1m away from the TV set or stereo sound sets.
If the remote controller does not operate normally, please take the
batteries out and reinsert them after 30 seconds.If it still can't operate properly,
Notes:
replace the batteries.
Operation of Remote Controller
Sketch map for
replacing batteries
Replacement of Batteries
Press "+ " and "-" buttons simultaneously to lock or unlock the keypad. If the remote
controller is locked, is
displayed. In this case, pressing any button, blinks
three times.
At unit OFF, press "MODE" and"- " buttons simultaneously to switch between and .
℃℉
Combination of "+" and "-" buttons: About lock
17
About Back-lighting Function
21
Combination of "MODE " and "-" buttons :
18
AboutswitchbetweenFahrenheitandcentigrade
Press “TEMP” and “CLOCK” simultaneously in COOL mode to start energy-saving function.
Nixie tube on the remote controller displays “SE”. Repeat the operation to quit the function.
Combination of " TEMP " and "CLOCK" buttons : About Energy-saving Function
19
Press “TEMP” and “CLOCK” simultaneously in HEAT mode to start
The unit lights for 4s when energizing for the first time, and 3s for later press.
8℃Heating Function
.
Nixie tube on the remote controller displays “ ” and a selected temperature of “ 8℃”
(46 if Fahrenheit is adopted). Repeat the operation to quit the function.
Combination of " TEMP " and "CLOCK" buttons : About 8℃Heating Function
20
℉

Mode Model Temperature setting Airflow rate
AUTO COOLING 25 ( COOL,FAN) AUTO
AUTO HEAT
℃
℃
℃
PUMP 25 ( COOL,FAN) AUTO
AUTO HEAT PUMP 20 ( HEAT) AUTO
１３
Emergency Operation
When the remote controller is lost
or damaged, please use the manual switch
on the main unit. In that case, the unit will
operate in AUTO mode and the temperature
setting or fan speed can not be changed.
The manual switch can be operated as below:
Turn on the unit: Press AUTO/STOP button to
enter AUTO mode.
The microcomputer will select the mode
(COOL, HEAT, FAN) automatically according
to the room temperature for reaching comfortable
effect.
Turn off the unit: Press the AUTO/STOP button to
switch off the unit.
Emergency Operation
●
●
Manual switch
The operation mode is seen in the following table.
●
This switch is to be applied when the remote controller is missing.
●

℃
?
?
?
(Ｆｉｇ．a)
(Ｆｉｇ．b)
Caution
Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleaner (not with
volatile liquid such as thinner or gasoline).
Note:
Remove the front panel.
●
●
●
Disconnect the power supply before cleaning and maintenance.
Do not splash water on the units for cleaning, as electric shocks may occur.
Dip a piece of cloth into the water colder than 45 and dry it. Then wipe
the dirty part of front panel.
Note: Do not immerse the front panel into water so as to protect microcomputer components and circuit
diagram on the front panel.
Do not to touch the fin of indoor unit during cleaning to avoid personal injury.
Clean and Care
１４
℃
②Clean the air filter
③
①Take down the air filter
Lift up the front panel.
Pull the air filter downwards to take it off,
as shown in Fig.(a, b).
Use a vacuum cleaner to remove dust.
If the filter are dirty, wash them with warm water
and a mild detergent.
Dry the filters in the shade.
Note: Never use water above 45 to clean the air
filter or it can cause deformation or discoloration.
Reinstall the air filter
Reinstall the filters along the direction of arrowhead.
Close the panel.
Cleaning the Air Filter (every 3 months)
Cleaning the Front Panel

① Be sure that nothing obstructs the air outlet and intake vents.
②
③ Check that whether the batteries of air conditioner are
changed or not.
④ Check that whether the installation stand of the outdoor
unit is damaged or not. If damaged, please contact the dealer.
①
②
③
④
⑤
Clean and care
Check before use
Check that whether ground wire is properly connected or not.
Maintain after use
Turn main power off.
Clean the filter and indoor and outdoor units' bodies.
Clear dust and obstructions from the outdoor unit.
Repaint the rubiginous place on the outdoor unit to prevent it from spreading.
Adopt the special shield to cover the outdoor unit, avoid the rain water, dust enter into
the unit and get rust.
１５

Once the air conditioner is stopped, it will
not operate in approximately 3 minutes to
protect itself.
●
●
●
●
●
●
Troubleshooting
CAUTION
Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or
fire. Please check the following items before asking for repair, it can save your time and
money.
Phenomenon Troubleshooting
Not operate immediately when the air
conditioner is restarted.
There's unusual smell blowing from the outlet
after operation is started. The unit has no peculiar smell by itself. If has,
that is due to the smell accumulated in the
ambient.
Solution method: Cleaning the filter.
If problem still has, so need to clean air
conditioner. (Please contact with the authorized
maintenance center.)
Sound of water flow can be heard during
the operation. The air conditioner is started, when it is
running the compressor started or stopped
running, or the unit is stopped, sometimes
there is swoosh or gurgle, the sound is due
to refrigerant flowing they are not malfuncti-
ons.
In COOL mode, sometimes the mist emitted
from the air outlet vent. When the indoor temperature and humidity
are very high, this phenomenon would
happen. This is caused by the room air is
swiftly cooled down. After running for a while,
indoor temperature and humidity will fall
down, the mist will die away.
Creaking noise can be heard when start or
stop the unit. This is caused by the deformation of plastic
due to the changes of temperature.
Waiting
１６

●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Troubleshooting
Phenomenon Troubleshooting
The unit can not run.Has the power been shut down?
Is power plug loosed?
Is the circuit protection device tripped off or not?
Is voltage higher or lower?
(Tested by professionals)
Is the TIMER correctly used?
Cooling(Heating) efficiency is not good. Is Temp. setting suitable?
Were inlet and outlet vents obstructed?
Is filter dirty?
Are the windows and doors clothed?
Did Fan speed set at low speed?
Is there any heat sources in the room?
Wireless remote control is not available.The unit is interfered by abnormal or frequent
functions switchover occasionally the controller
cannot operate. At this time, you need to pull out
of the plug, and reinsert it.
Is it in its receiving range? Or obstructed?
To check the voltage in wireless remote control inside
is charged, otherwise to replace the batteries.
Whether the wireless remote control is damaged.
If water leakage in the room. The air humidity is on the high side.
Condensing water over flowed.
The connection position of indoor unit drainage
pipe is loosed.
If water leakage in outdoor unit.When the unit is running in COOL mode, the pipe
and connection of pipe would be condensed due
to the water cooled down.
When the unit is running in Auto Defrosting mode
the ice thawed and flowed out.
When the unit is running in HEAT mode, the water
adhered on heat exchanger dripped off.
Noise from indoor unit emitted. The sound of fan or compressor relay is switching
on or off.
When the defrosting is started or stop running,
it will sound. That is due to the refrigerant flowed
to the reverse direction.
Breaking off
１７

●
●
●
●
Troubleshooting
Phenomenon Troubleshooting
Indoor unit cannot deliver air.
Moisture on air outlet vent.If unit is running under the high humidity for
a long time, the moisture will be condensed
on the air outlet grill and drip off.
Immediately stop all operations and plug out, contact
the dealer in following situations.
There is harsh sound during operation.
The terrible odors emitted during operation.
Water is leaking in the room.
Air switch or protection switch often breaks.
Carelessy splash water or something into unit.
There is an abnormal heat in power supply cord
and power plug.
Stop running and pull out of the plug.
In HEAT mode, when the temperature of indoor
heat exchanger is very low, that will stop deliver
air in order to prevent cool air. (Within 2min)
In HEAT mode, when the outdoor temperature
is low or high humidity, there are much frost be
formed on the outdoor heat exchanger, that the
unit will automatically defrost, indoor unit stop
blowing air for 3-12min.
During the defrosting, there is water flowing out
or vapor be produced.
In dehumidifying mode, sometimes indoor fan will
stop, in order to avoid condensing water be vapo-
rized again, restrain temperature rising.
１８
