INVENTOR KF2-86MS User manual

• USER’S MANUAL
• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ
ENGLISH | ΕΛΛΗΝΙΚΑ
UPRIGHT FREEZER
MODEL:
KF2-86MS
FREEZER

1
Dear customer:
Thank you for buying this upright freezer. To ensure that you get
the best results from your new freezer, please take time to read
through the simple instructions in this booklet.
Please ensure that the packing material is disposed of in
accordance with the current environmental requirements.
When disposing of any Freezer equipment please contact your
local waste disposal department for advice on safe disposal.
This appliance must be only used for its intended purpose.
CAUTION :
The appliance is not intended for use by young children or infirm
persons without supervision.
Young children should be supervised to ensure that they do not
play with the appliance

2
General
This type of refrigerator is widely used in places such as hotels ,offices,
student dormitories and houses. It is mostly suitable for refrigerating
and preserving foods such as fruits and beverage. It enjoys the
advantages of small size, Lightweight, Low electric consumption and
easy use.
Main configuration：
1. Thermostat
2. Drawer
3. Leveler leg

3
UNPACKING YOUR FREEZER
WARNING: Use two or more people to move Freezer.
Failure to do so can result in back or other injury.
·Remove tape and any labels from your Freezer before using(except
the rating label).
·To remove any remaining tape or glue, rub the area briskly with your
thumb.
·Tape or glue residue can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with your fingers.
Wipe with warm water and dry.
·Do not use sharp instruments, rubbing alcohol, flammable fluids, or
abrasive cleaners to remove tape or glue. These products can
damage the surface of your Freezer.
·When moving the Freezer, do not tilt the Freezer beyond 45°from
upright position.
CLEANING BEFORE USE：
After you remove all of the packaging materials, （especially the
foam between outside condenser and cabinet should be removed）
clean the inside of your Freezer before using it.
SPACE REQUIREMENTS
WARNING: Keep flammable materials and vapors, such as
gasoline, away form Freezer.
Failure to do so can result in death, explosion, fine or burns.
·To ensure proper ventilation for your Freezer, allow for 200mm
space on each side between walls, 200mm space between back of
your Freezer and the wall, and 300mm space between counter top
and the roof or ceiling.

4
·If you are installing your Freezer next to a fixed wall, leave sufficient
space on the hinge side to allow for the door to swing open.
·Never install your Freezer near heat source and direct sun shins.
ELECTRICAL REQUIREMENT
WARNING: DO NOT REMOVE GROUND PRONG.
DO NOT USE AN ADAPTOR.
DO NOT USE EXTENSION CORD.
Failure to follow these instructions can result in death, fire or
electrical shock.
Before you move your Freezer into its final location, it is important
to make sure you have the proper electrical connection.
Recommended Earthing Method
A 220～240 Volt /50 Hz AC only 10 ampere fused and properly
earthed electrical supply is required. It is recommended that a
separate circuit serving only this appliance be provided. Use a
receptacle which cannot be turned off with a switch or pull chain. Do
not use an extension cord.
NOTE: Before performing any type of installation, disconnect the
Freezer from the electrical source. When you are finished, connect
the Freezer to the electrical source and reset the control to the
desired setting.
LEVELING
If the Freezer is not leveled during installation. The doors may not
close or seal properly, causing cooling, frost, or moisture problems. It
is very important of the Freezer to be level in order to function

5
properly.
To level your Freezer you may either turn the level leg clockwise to
raise that side to the Freezer or turn counter –clockwise to lower that
side.
NOTE: Having someone push against the top of the Freezer take
some weight off the leveling leg. This makes it easier to adjust the
leveling leg.
USE OF THE APPLIANCE
To obtain the best possible results form your Freezer, it is important
that you operate it properly.
Temperature Control
The temperature in the freezer is controlled by the thermostat control
knob.It is loaded in the top-front of the freezer. Turn the thermostat
control knob up or down to regulate the temperature inside the
freezer. The markings on control knob indicated the “1~4” for the
different temperature grades. The temperature decreases with
position “1”being the warmest and position “4”being the coldest.
Set the control to position between “1” and “4”for normal use, the
exact position is beyond the temperature in the freezer, generally ,
choose the number“2”。
Store Frozen Food
When using the freezer for the first time or after defrosting, turn the
temperature control to set “4”for at least two hours before
introducing the food to be stored.
All frozen food products you purchase should be placed in the
freezer as soon as possible to avoid the frozen food from defrosting.
Storage recommendation printed on the packaging of frozen food by
the manufacturers should be always be followed.

6
Be careful that the drawer mustn’t mangle the refrigeration pipeline
Freezing Fresh Food
Ensure that your freezing operations are carried out under the most
hygienic conditions as freezing alone does not sterilize the food. It is
advisable to freeze the food by packing it into separate meal portions
and not in bulk form. Never put hot or even warm foodstuffs into the
freezer. Prior to storing the frozen food, pack it in plastic bags,
aluminum sheets or freezing containers and place into the freezer.
See the data sheet at the rear of this booklet for the maximum
permissible amount in kilograms of fresh food that can be frozen in
any 24 hour period with a room temperature of 25℃. Never freeze
more than the maximum permissible.
Note: Never put bottled food or drinks in the freezer compartment.
.For best performance, leave enough space in the Freezer
compartment for air to circulate around the packages.
Notice：You can use it without drawer under some conditions.
Defrosting
Remove the mains plug from the wall socket, open the door and
remove all the food to a cool place. Defrost using a plastic scraper, or
let the temperature rise naturally until the frost melts. Then wipe
away the remaining ice and water, after this plug the freezer back
into the mains supply.
Note: To avoid damaging the freezing compartment wall, do not use
any sharp objects to remove the frost or separate the frozen
food.
Cleaning your freezer
Before you start to clean your freezer remove the mains plug from
the power supply.

7
Use a clean sponge or soft and a mild detergent in warm water. Do
not use abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces thoroughly.
Do not use cleaning waxes, concentrated detergents, bleaches or
cleaners containing petroleum on plastics and rubber parts.
Never use paper towels, window sprays, scouring cleansers or
flammable fluids on plastic parts as these can scratch or damage
material.
Clean with a cloth soaked in this solution and then dry with a soft
cloth.
PROLONGED OFF PERIODS
If the freezer is not in use for a long period of time, proceed as
follows:
Disconnect the freezer from the main supply by removing the plug
from the wall socket.
Clean and dry the inside as instructed under the heading of cleaning
the Freezer.
Leave the door open to prevent any unpleasant smells from building
up while the freezer is not in use.
TROUBLESHOOTING
In case of malfunction, you can solve many common problems
easily.
Your Freezer will not operate…Check if
-- The power supply cord is unplugged.
The doors will not close completely…Check if
-- The drawers are out of position.
-- The gaskets are dirty.

8
-- The Freezer is not level.
The freezer is noisy when running…Check if
-- Check the freezer is level and it is not in contact with another
appliance or kitchen furniture.
The freezer does not cool sufficiently…Check if
-- If the door has been opened too often, or it has been left open
for a while it will take time for the freezer to reach its set
temperature.
-- Check the airflow the rear of the freezer has not been reduced
due to insufficient clearance.
The following characteristics should not be looked upon as a
problem.
-- A gentle tricking sound caused by coolant flowing the pipe.
-- Compressor operating at high temperature.
WARNING
REQUESTING ASSISTANCE OR SERVICE
If the problem is not due to one of the items listed in Troubleshooting,
Contact the dealer or authorized Service Company.
RECOMMENDATIONS
1) WARNING –Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
2) WARNING –Do not use mechanical devices or other means
to accelerate the defrosting process, other than those recommended
by the manufacturer.
3) WARNING –Do not damage the refrigerant circuit.
4) WARNING –Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
5) The appliance has to be unplugged after use and before
carrying out user maintenance on the appliance.
6) This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.

9
7) Children should be supervised to ensure that they do not play
with the appliance.
8) If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
For EN standard: This appliance can be used by children aged from 8 years
and above and persons with reduce physical sensory or mental capabilities or
lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by children
without supervision. Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
To avoid contamination of food, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
– Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.（note 1）
– Store raw meat and fish in suitable containers in the refrigerator, so that it is
not in contact with or drip onto other food.
– Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice-cream and making ice cubes.（note 2）
– One-, two- and three-star compartments are not suitable for the freezing of
fresh food.（note 3）
– For appliances without a 4-star compartment: this refrigerating appliance is
not suitable for freezing foodstuffs.（note 4）
– If the refrigerating appliance is left empty for long periods, switch off, defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
Note 1,2,3,4: Please confirm whether it is applicable according to your product
compartment type.
For a freestanding appliance: this refrigerating appliance is not intended to be
used as a built-in
appliance.
Warning: To avoid a hazard due to instability of the appliance, it must be fixed
in accordance with the instructions.
Warning: Connect to potable water supply only. (Suitable for ice making
machine)
To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children
And Not In The Vicinity Of Freezer (Or Refrigerator). (Suitable for products
with locks)
to avoid a hazard.

10
9) Please abandon the refrigerator according to local regulators for
it use flammable blowing gas and refrigerant.
10）Please according to local regulations regarding disposal of the
appliance for its flammable refrigerant and blowing gas. Before you
scrap the appliance, please take off the doors to prevent children
trapped.
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Name Of Company: Hefei Hualing Co.,Ltd.

11
Refrigerator door install guidelines about swapping
left&right
1. Disassemeble the screws behind the fixed roof with cross-slot
screwdriver and remove the cover from the refrigerator
2. Remove the screws fixed the top-hinge with cross-slot screwdriver.
The screws
fixed the top-hinge
top-hinge

12
3. Replace the top-hinge and the door limit block and the door bearing
bush to the other side
A、replace the top-hinge.
B、replace the door bearing bush and the limit block.

13
4. Disassemble the screws fixed the bottom-hinge with cross-slot
screwdriver and replace the hinge to the other side then fix it with
screws。
note：the refrigerator incline angle less 45°.
5、replace the leveler to the other side and adjust it to make sure the
cabinet level
The screws
fixed the
bottom-hinge

14
6、Set the door right position,fix the top-hinge and then the roof cover.
Ensure theAppliance is unplugged and empty
Adjust the two leveling feet to their highest position
We recommend you have someone to assist you

12

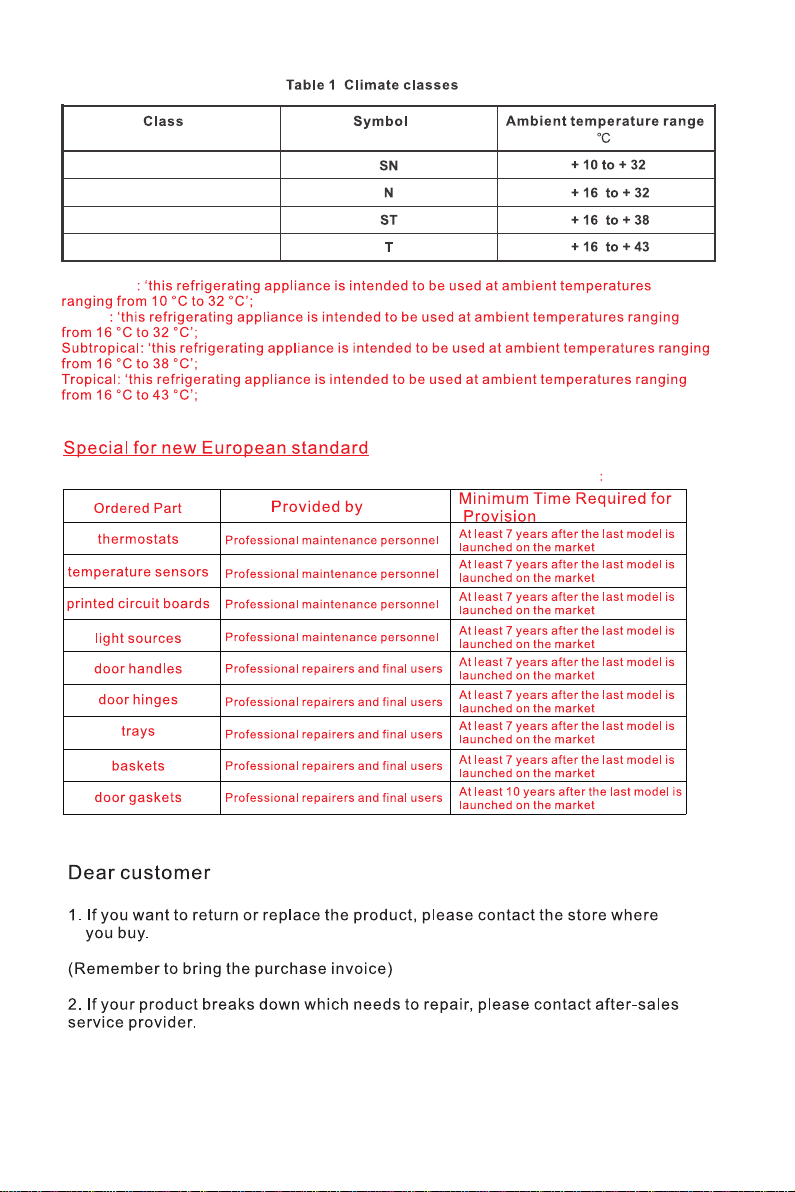

The ordered parts in the following table can be acquired from Inventor
SUB NORMAL
TROPICAL
Sub Normal
NORMAL
Normal
SUBTROPICAL

Activate your Warranty
l Visitourweb site and activate yourwarranty via the below link or by
scanning the QR code
https://www.inventorairconditioner.com/warranty-inventor
l
þ
essage will be
sent to your email
Full Name*
Address*
Postal Code*
Phone Number*
E-mail*
Unit Type*
Serial Number of the unit*
Date of Purchase*
Invoice Number*
Additional Details
Subscribe to Inventor's Newsletter
Owner details Unitdetails
s
With the current warranty card you accept the terms and conditions.
SEND

1
Αγαπητέ πελάτη:
Σας ευχαριστούμε που επιλέξατε το συγκεκριμένο ψυγείο. Για να
εξασφαλίσετε το καλύτερο αποτέλεσμα από το καινούριο σας
ψυγείο, διαθέστε λίγο χρόνο για να διαβάσετε τις απλές οδηγίες
αυτού του οδηγού χρήσης.
Βεβαιωθείτε ότι τα υλικά συσκευασίας του θα απορριφθούν
σύμφωνα με τις ισχύουσες περιβαλλοντικές απαιτήσεις.
Σε περίπτωση απόρριψης του ψυγείου ή εξοπλισμού αυτού,
επικοινωνήστε με το τοπικό γραφείο διαχείρισης απορριμάτων για
να λάβετε τις απαραίτητες σχετικές οδηγίες.
Η συσκευή αυτή πρέπει να χρησιμοποιείτε μόνο για τις χρήσεις
που αυτή προορίζετε.
ΠΡΟΣΟΧΗ :
Αυτή η συσκευή δεν πρέπει να χρησιμοποιείται από μικρά παιδιά
ή άτομα με ειδικές ανάγκες χωρίς επίβλεψη. Τα μικρά παιδιά θα
πρέπει να επιβλέπονται ώστε να μην παίζουν με τη συσκευή.

2
ΓΕΝΙΚΑ
Αυτός ο τύπος καταψύκτη χρησιμοποιείται σε μέρη όπως
ξενοδοχεία, γραφεία, φοιτητικές εστίες και σπίτια. Είναι κατάλληλο
κυρίως για τη κατάψύξη και συντήρηση τροφίμων όπως φρούτα
και λαχανικά. Έχει μικρό μέγεθος, είναι ελαφρύ, με χαμηλή
κατανάλωση ενέργεια και εύκολο στη χρήση.
Περιγραφή :
1.Θερμοστάτης
2. Συρτάρια
3. Πόδι ρύθμισης

3
ΑΠΟΣΥΣΚΕΥΑΣΙΑ ΤΟΥ ΚΑΤΑΨΥΚΤΗ
Προειδοποίηση: Μην μετακινείτε την συσκευή μόνοι σας.
Μπορεί να τραυματιστείτε σοβαρά.
·Αφαιρέστε τις ταινίες και τα υπόλοιπα υλικά συσκευασίας.
·Για να αφαιρέσετε κατάλοιπα από ταινία ήκόλλα τρίψτε το σημείο
καλά με τον αντίχειρα
·Για μεγαλύτερη ευκολία μπορείτε να τρίψετε το σημείο με μικρή
ποσότητα απορρυπαντικού για τα πιάτα. Ξεβγάλτε με ζεστό νερό και
στεγνώστε καλά.
·Μην χρησιμοποιείτε κοφτερα εργαλεία, οινόπνευμα ήεύφλεκτα
υγρά και γυαλιστικά καθαριστικά για να αφαιρέσετε τα κατάλοιπα
από ταινίες ήκόλλες. Αυτά τα προιόντα μπορεί να καταστρέψουν
την επιφάνεια του καταψύκτη σας.
·Μην γέρνετε τον καταψύκτη σε γωνία μεγαλύτερη των 45° κατά την
μετακίνηση του.
ΚΑΘΑΡΙΣΜΟΣ ΠΡΙΝ ΤΗΝ ΧΡΗΣΗ：
Αφού αφαιρέσετε όλα τα υλικά συσκευασίας (ειδικά το αφρολέξ
μεταξύ του συμπυκνωτήρα και του κυρίως μέρους του ψυγείου)
καθαρίστε καλά το εσωτερικό του καταψύκτη πριν να τον
χρησιμοποιήσετε.
ΤΟΠΟΘΕΤΗΣΗ ΤΟΥ ΚΑΤΑΨΥΚΤΗ
ΠΡΟΕΙΔΟΠΟΙΗΣΗ: Διατηρήστε τα εύφλεκτα υλικά και αέρια
όπως ηβενζίνη μακρυά από τον καταψύκτη. Υπάρχει κίνδυνος
έκρηξης και πρόκλησης εγκαυμάτων ήσοβατού τραυματισμο΄θ
·Για τον σωστό εξαερσιμό της συσκευής αφήστε τουλάχιστον 20 εκ
ελεύθερο χώρο από τις πλαίνές και την πίσω πλευρά του
καταψύκτη και του τοίχου και τουλάχισοτν 30εκ. Από το πάνω
