INVERTO.TV IDLV-5100P User manual

IDLV-5100P
Professional Multi-format HDTV Integrated Receiver Decoder

En
Professional Multi-format
HDTV Integrated Receiver
Decoder
User Manual
IDLV-5100P

En
1
Table of Contents
Notices 2
Before using the device 3
Overview 4
Control with display and keypad 6
Menu structure and operations 8
Remote management and control over web interface 18
Technical Specications 30
Default Device Parameters On Delivery 33
Safety 37
Warrenty, service and support 38

2
Notices
COPYRIGHT (Copyright © 2010 Inverto Digital Labs )
Not to be copied, used or translated in part or whole without Inverto prior consent in writing except approval of
ownership of copyright and copyright law.
WARRANTY
This warranty does not cover parts which may become defective due to misuse of the information contained in
this manual.
Read this manual carefully and make sure you understand the instructions provided. For your safety, be aware of
the following precautions.
WARNING! IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To• reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
To avoid explosion danger, do not dispose of batteries in an open re.•
CE MARK FOR EUROPEAN HARMONISED STANDARDS
The CE mark which is attached to these products means it conforms to EMC Directive (89/336/EEC) and
Low Voltage Directive (73/23/EEC).
IMPORTANT INFORMATION
Please retain the original packaging, should it be necessary at some stage to return the unit.
Disposal of Old Electrical and Electronic Equipment (Applicable in the European Union and other European
countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by inappropriate waste handling of this
product. The recycling of materials will help to conserve natural resources. For more detailed information about
recycling of this product, please contact your local Civic Ofce, your household waste disposal service, or the shop
where you purchased the product.
COPYRIGHTS
Television programmes, movies, video tapes, discs, and other materials may be copyrighted. Unauthorized
recording of copyrighted material may be against the copyright laws in your region. Also, use of this product with
cable television transmissions may require authorization from the cable television operator or transmitter/owner.
VENTILATION
Do not expose the product to high temperatures, such as placing it on top of other product that produce heat or•
in places exposed to direct sunlight or spot lights.
The ventilation slots on top of the product must be left uncovered to allow proper airow into the unit. •
Do not stand the product on soft furnishings or carpets.•
Do not stack electronic equipments on top of the product.•
Do not place the product in a location subject to extreme changes in temperature. The temperature gradient•
should be less than 10 degrees C/hour.
Place the product in a location with adequate ventilation to prevent the build-up of heat inside the product. The•
minimum ventilation space around the unit should be 7 cm. The ventilation should not be impeded by covering
the ventilation openings with items, such as newspapers, table cloth, curtains, etc.
POWER SOURCES
The product is not disconnected from the AC power source (mains) as long as it is connected to the power outlet•
or wall socket, even if the product is turned off.
If the product will not be used for a long period of time, disconnect it from the AC power outlet or wall socket.•

En
3
Before Using the device
Thank you for purchasing the IDLV-5100P Professional Multi-format HDTV Integrated Receiver Decoder. This
User Manual is written for operators/users of the IDLV-5100P to assist in installation and operation. Please read
this user manual carefully before installation and use of the devic.
FOR YOUR SAFETY
This equipment is provided with a protective earthing ground incorporated in the power cord. The main plug shall
only be inserted in a socket outlet provided with a protective earth contact. Any interruption of the protective
conductor, inside or outside the device, is likely to make the device dangerous. Do not remove the covers of this
equipment. Hazardous voltages are present within this equipment and may be exposed if the covers are removed.
Only Inverto trained and approved service engineers are permitted to service this equipment.
The supplied AC power cable must be used to power the device. If the power cord becomes damaged it must be
replaced. No operator serviceable parts inside. Refer servicing to Inverto trained and approved service engineers.
For the correct and safe use of the device, it is essential that both operating and servicing personnel follow
generally accepted safety procedures in addition to the safety precautions specied in this manual. Whenever it
is likely that safety protection is impaired, the device must be made in-operative and secured against unintended
operation. The appropriate servicing authority must be informed. For example, safety is likely to be impaired if the
device fails to perform the intended measurements or shows visible damage.
WARNINGS
The mounting environment should be relatively dust free, free of excessive vibration and the ambient•
temperature between 0C° to 40C°. Relative humidity of 20% to 80% (non-condensed) is recommended.
Avoid direct contact with water.•
Never place the equipment in direct sunlight.•
The outside of the equipment may be cleaned using a lightly dampened cloth. Do not use any cleaning liquids•
containing alcohol, methylated spirit or ammonia etc.
For continued protection against re hazard, replace line fused only with same type.•
Air intake for cooling is achieved via holes at the side of the device and the fans inside. The air ow should not •
be obstructed. Therefore, the device has to be placed on a at surface, leaving some space at the sides of the
device.
When in operation, the internal temperature should not exceed the limit of 70C°.•

4
Overview
The IDLV-5100P IRD provides operators an ideal solution for receiving, remultiplexing, descrambling and decoding
missions. The IDLV-5100P is equipped with a variety of inputs that ensures compatibility with all transmission
media.
The IDLV-5100P’s remultiplexing capabilities enable creation of new transport streams that are subsets of the
original stream. Customized services may be output as multiple SPTS or MPTS over IP, as well as over ASI.
Using the dual DVB common interfaces, IDLV- 5100P could decrypt multiple services in one transport stream or
two. IDLV- 5100P features a broadcast quality decoder for MPEG-2 and MPEG-4 AVC/H.264 in both Standard
Denition and High Denition formats, and provides a variety of industry standard digital and analog outputs,
including CVBS video, AES/EBU Audio, analog Audio, SD-SDI and HD-SDI. The unit also performs HD down-
conversion and aspect ratio adaptation of HD programs to generate professional quality baseband analog video
and audio outputs for easy integration with existing cable network infrastructure. This all-in-one architecture makes
the IDLV-5100P an ideal solution for video distribution and contribution networks.
CHARACTERISTICS
M• ultiple inputs DVB-T2/S2/S/C/T/T2, TS/IP, ASI and DS3/E3 (optional)
Supports DVB-S2 Input Stream Identier (ISI, optional) and DVB-T SFN MIP pass through •
Redundant backup among Tuner, ASI and TS/IP with congurable priority •
SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding•
Two Audio PIDs decode or pass through (compressed) in SDI output•
Multiple Analog and Digital Outputs, ASI, CVBS, YPbPr, HDMI, SD/HD-SDI, AES/EBU Audio, TS/IP•
Built-in TS re-multiplexer receives 2xASI, Tuner and TS/IP Inputs•
2x DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption•
Dynamic PMT detection and automatic updating•
Supports VBI TELETEXT, EBU/DVB Subtitle, Closed Caption•
UDP/RTP, Unicast/Multicast, and SPTS/MPTS over IP (full duplex, optional)•
Remote management by SNMP, HTTP WEB and PC HDMS software•
PCM audio embedded in SDI and HDMI outputs•
PCM audio output on two AES/EBU audio output ports•
On Site software update through IP•
RSSI, received Eb/No & BER monitoring•
The following table summarizes the main functionalities and availability for the different series:
Model IDLV 5100P
Interface
-10x -20x -30x -43x -44x -46x
Tuner T, T2, S/S2 or DS3/E3
ASI Input x2 x2 x2 x2 x2 x2
Common Interface x2 x2 x2 x2 x2 x2
Built-in Re-mux
ASI-Output x2 x2 x2 x2 x2 x2
HDMI x1 x1 x1 x1 x1 x1
SDI x1 x1 x1 x1
YPbPr x1 x1 x1 x1 x1 x1
Audio L/R x2 x2 x2 x2 x2 x2
AES-EBU x2 x2 x2 x2 x2 x2
CVBS x2 x2 x2 x2 x2 x2
10/100M extension board
(Dual 6 Ch)
10/100M extension board
(32 Ch)
GbE extension board
(Full duplex)
●standard
x = T, T2, S/S2 or DS3/E3

En
5

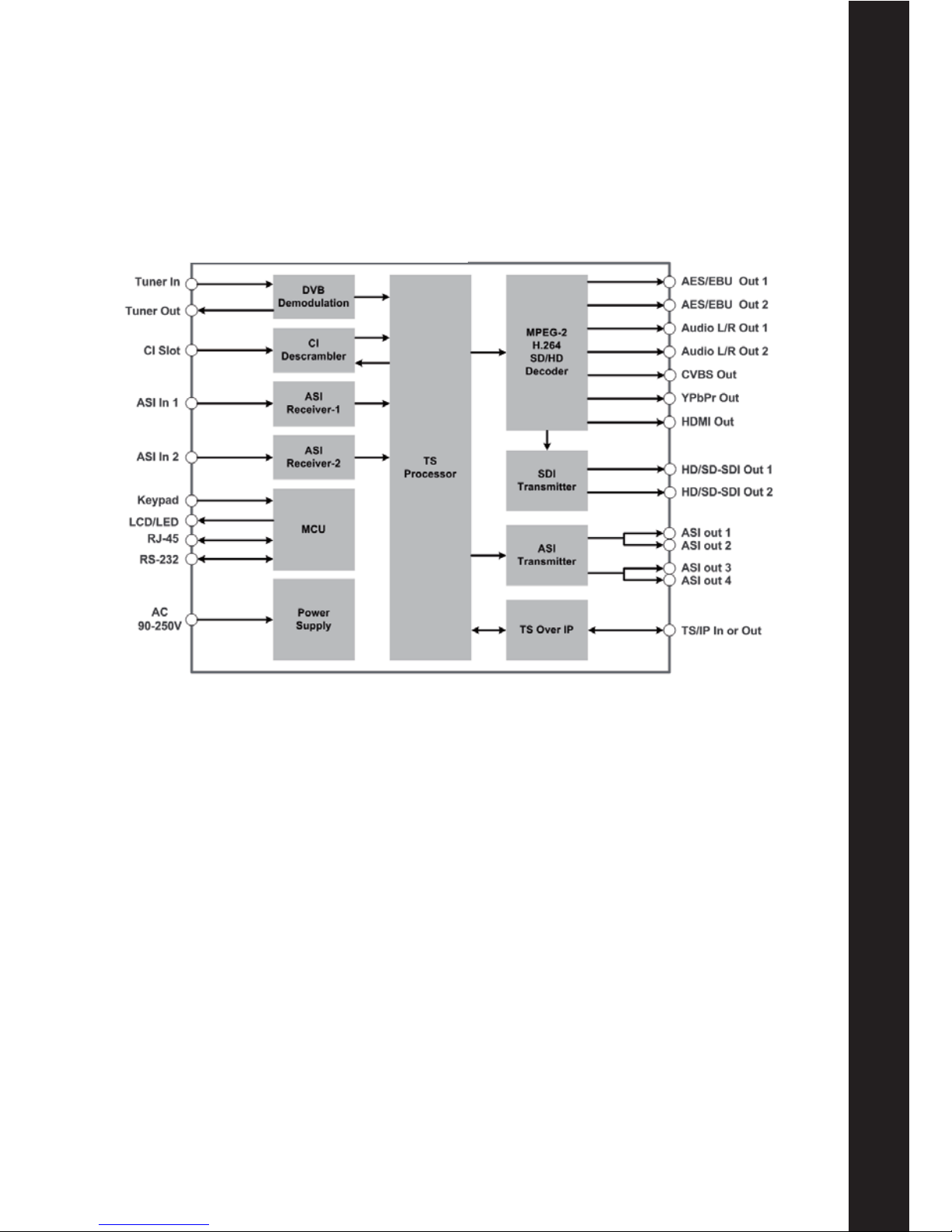

BLOCK DIAGRAM
The diagram below shows a top level architecture and functional block diagram of the IDLV-5100P IRD Platform:
IDLV-5100P Functional Block Diagram

6
Control with display and keypad
IDLV-5100P series can be controlled by the keypad on front panel.
FRONT PANEL
IDL V -5100P Professional Multi-format SD/HD Integrated Receiver Decoder
Enter Exit
Po werTuner Lock Alarm
OPERATION BUTTONS
LCD COMMON INTERFACE
Tuner LoCk
ALArm
power
POWER Power indicator, green light means power is OK
TUNER LOCK Tuner lock indicator, green light means signal is locked; no light means no
signal input or wrong parameters setting.
ALARM Alarm indicator.
LCD 2 × 20 character LCD.
Operation buttons [◄] [▲] [▼] [►].[ENTER] [EXIT] buttons
[▲][▼] are used to up/down pages of menu or increase/decrease value when
edit numbers.
[◄] [►] are used to move cursor
[ENTER] is used to enter sub menu or conrm operation
[EXIT] is used to return to the previous menu or cancel operation.
Common Interface PCMCIA Module slots

En
7
REAR PANEL
B4 B5 B6 B9B8B7 B10B2 B3 B11
B12 B14 B20B19B18B17B16B15 B21
B1
B13 B22
B1 TS/IP TSoIP interface (not available on IDLV-5100P -10x and -30x
models)
B2 RS-232 serial port for printing informationB3
B3 ASI OUT2 Group2 ASI output port (one for back-up)
B4 ASI OUT1 Group1 ASI output port (one for back-up)
B5 ASI1 IN ASI1 input port
B6 YPbPr YPbPr output port
B7 L-Audio-R1 Group1 RCA audio output port
B8 Audio1 AES/EBU and Balance Audio output port1 (need to use the RS232-
to-XRL converting cable in accessories)
B9 TUNER OUT Tuner signal loop through output port
B10 TUNER IN Tuner signal input
B11 SWITCH Power switch
B12 MANAGEMENT LAN port for software update
B13 ASI2 IN ASI2 input port
B14 SDI2 SDI2 output port
B15 SDI1 SDI1 output port
B16 HDMI HDMI output port
B17 CVBS CVBS BNC output port
B18 CVBS CVBS RCA output port
B19 L-Audio-R2 Group2 RCA audio output port
B20 AUDIO2 AES/EBU and Balance Audio output port2 (need to use the RS232-
to-XRL converting cable in accessories)
B21 GND Grounding terminal
B22 POWER SOCKET AC 90~250V 50-60Hz input

8
Menu structure and operations
Turn on the device and wait for 8 to 10 seconds. During this period, the device will complete self inspection and
conguration. The name of the device will be displayed on the top row of the LCD, and the local IP address will
be displayed on the bottom row of the LCD:
Digital TV Processor (factory default unit-name)
IP: 10.10.70.48 (factory default IP Address for LAN access)
If no message is presented or there is no light on the display, the device is defective and has to be returned for
servicing.
Note: The local IP address and unit name can be changed in the System Menu (refer to sections Optional
Function/External Board Type and Unit Name under System respectively). Use the <ENTER>-key to enter on the
Main Menu. The UP and DOWN keys are used to choose between the three main menus.
OUTPUTS SYSTEMINPUTS TS OVER IP
FOR IDLV 5100P-46X
MODELS ONLY
MAIN MENU
INPUTS
Under Inputs Menu, you can monitor and congure the parameters of the ASI, Tuner, and TS over IP inputs:
S TAT U S IP (ETHERNET
(OPTION)
DVB-S/S2
COFDM/
D V B -T 2 /
QAM/
RSSI
INPUTS

En
9
Main menu Sub-menu Description
Inputs
Status Displays the status of the input signals for ASI1, ASI2, TUNER and IP IN
DVB-S2 This menu is only displayed on IDLV-5100P-xxS2 models
LNB Frequency: Input LNB frequency
Satellite Frequency: Input downstream frequency of satellite
Symbol Rate: Input symbol rate of satellite
LNB Voltage: Select the correct LNB voltage output of the F-connector: Off, 13
V, 18 V. <13V for Vertical/Left hand polarization, 18V for Horizontal/Right hand,
OFF for LNB Power off.>
LNB 22KHz: Activate the LNB 22 kHz control signal to the LNB: On or Off.
<22KHz control signal switches the LNB to receive high band if any>
DISQEC: Select OFF/Port A/Port B/Port C/Port D
PLS Gold Code: N/A
Frequency Offset High: Set the frequency offset for signal lock. the range is
1000~5000KHz
Frequency Offset Low: The range is -5000KHz~-1000KHz
COFDM This menu is only displayed on IDLV-5100P-xxT models
Frequency: Enter the frequency of the COFDM signal in MHz.
DVB-T2 This menu is only displayed on IDLV-5100P-xxT2 models
Frequency: Input terrestrial frequency.
Bandwidth: Select bandwidth - 6Mhz, 7Mhz or 8Mhz.
QAM This menu is only displayed on IDLV-5100P-xxC model
Constellation: Enter the modulation mode of the QAM signal.
Frequency: Enter the frequency of the QAM signal in MHz.
Symbol Rate: Edit the symbol rate to the proper value in KBaud.
RSSI Display the quality of the received DVB-S2 signal.
Ethernet This menu is only displayed on IDLV-5100P-20x and -44x models which set TS/
IP streaming board as “100M Single IN”
Stream IP Addr: Enter the IP address for streaming IP input of the unit.
Stream Netmask: Enter the network sub mask for the subnet to which the unit
is connected for IP streaming trafc.
Stream Gateway: Set the gateway for the network to which the unit is con-
nected for IP streaming trafc.
Stream Mac Address: Ffactory-set MAC addresses are guaranteed to be
unique. Therefore you cannot congure the address.
Multicast IP Addr: Enter the IP address of the multicast stream for the trans-
port stream over IP.
Multicase UDP Port: Enter the UDP port number of the TS over IP stream.
Protocol: Select the protocol for multicast: UDP or RTP.
Output Smoothing: Set the quality of TS that is received via the TS/IP input.
Auto: The bit rate is variable.
Disable: The unit let the TS pass by.
Fixed Rate: The bit rate is xed.
TS Bit Rate: Set the bit rate of the TS received via the TS/IP input. The setting
is only valid when the output smoothing is congured as Fixed Rate.

10
OUTPUTS
Under Outputs Menu, you can monitor and congure the parameters of BISS, CI, AV decoder, ASI1/2 outputs,
SDI out, Ethernet (IP), Mux/Filter and Backup.
(A) The Mux/Filter menu is showed only if the functional block is enabled. Refer to Mux Function paragraph
under Optional Function section in System.
(B) The menu is showed only if the IP streaming in/out board is installed and the TS/IP streaming board is set to
“IP Out”. Refer to External Board Type paragraph under Optional Function section in System.
ouTpuTs
Asi1 ip (eTherneT)
(opTion)
sDiAsi2CiBiss DeCoDer muX BACkup
Outputs
BISS
BISS Mode: Set BISS mode, Select Mode 0, Mode E or Mode 1. Different BISS
modes have different sub-menus under BISS Menu.
BISS Source: select the BISS source from ASI1, ASI2, Mux TS and Tuner.
Mode 1 Key Enter: Set Biss 1, password is required.
Mode E Key Enter: Set Biss E, ID number and password are required
Program Setup: Press the <ENTER>-key to enter ‘Program Setup’ sub-menu. It
shows all programs detected by the IDLV-5100P. If there is no TS input, the front
panel will read “0-TS Invalid”.
CI
CI Source: Select Tuner, ASI1 input , ASI2 input or TS/IP input (only for IDLV-
5100P-20x and -44x models which set TS/IP streaming board as “100M Single
IN”) to set the signal source of descrambling, press <ENTER>-key to save or
press <EXIT>-key to scrap.
Setup: Under this sub menu, you can see all program names from the source
of CI that was set in ‘CI Source’ previously. All free-to-air programs are marked
with ‘Free’ in the rst row.
In order to select which program will be de-encrypted, press the <↑> or <↓>-key
to roll up and down the program names and press <ENTER>-key to change the
status of the corresponding program (only encrypted program could be selected).
Three different options can be set:
Slot 1 (de-encrypted with upper CAM inserted)
Slot 2 (de-encrypted with lower CAM inserted)
Bypass (no de-encryption).
The status will be shown in the rst row on the LCD display. Conrm this setup
when leaving this sub menu, press <ENTER>-key to save or press <EXIT>-key
to scrap.
CAM name: Under this sub menu, you can see the names of CAM modules.
Decoder
Status: OK or Alarms indicates the status of the decoder.
Source: select the signal source of SDI, HDMI, YPbPr and CVBS outputs, there
are 5 type of signal source optional:
CI De-encrypted: the de-encrypted transport stream from CI functional block will
be delivered to the ASI output port on the back panel.
TUNER: the transport stream from Tuner block will be delivered to the ASI output
port on the back panel.
ASI1 Input: The transport stream comes from ASI1 input port will be delivered to
the ASI1 output port on the back panel.
ASI2 Input: the transport stream comes from ASI2 input port will be
delivered to the ASI2 output port on the back panel.

En
11
Decoder
Mux TS: The transport stream comes from internal Mux functional block will be
delivered to the ASI output port on the back panel.
Program: Under this sub menu, you will see all program names detected by
IDLV-5100P. The programs could be coming from ASI input, Tuner, TS/IP input,
the internal CI de-encryption block, BISS De-encryption block or MUX TS. Use
the <↑> or <↓>-key to roll up or down between the program names, and use
<←>-and <→>-key to switch among input sources, where a number in front of
the program name indicates the input source:
0-xxxxx displays the program name, which comes from ASI1 input; 1-xxxxx
from TUNER input; 2-xxxxx from TS/IP input; 3-xxxxx from the CI; 4-xxxxx from
ASI2 input; 5-xxxxx from BISS De-encrypted input; 6-xxxxx from MUX TS.
Video: You can congure the video parameters of programs in this submenu.
Press the <ENTER>-key to conrm or press the <EXIT>-key to cancel.
Video Standard: you can select Auto/1920x1080i 60/1920x1080i
50/1280x720p 60/1280x720p 50/720x480p 60/720x576p 50/525x480i
60/625x576i 50 for the composite video output.
Screen: Select the screen mode: Auto, 4:3 Full, 16:9 Full or 4:3 Letterbox.
DVB Subtitle Lang: Select the language of DVB Subtitle.
EBU Subtitle Lang: Select the language of EBU Subtitle.
Subtitle Priority: Congure the priority of Subtitle; choose whether DVB or
EBU should be rst.
Fail Mode: Choose which kind of picture will appear when signal is fail. You can
select Black Screen or No Sync or Still Picture.
Closed Caption: Enable or disable the Close Caption function. This switch
controls both CC on CVBS and SDI.
VBI Mode: Enable or disable the VBI. VBI option only controls Closed Caption
over CVBS. To activate the CC over CVBS, enable the VBI option.
CVBS Sub PAL: Select PAL mode, including PAL-B/D/G/H/I, PAL-N, PAL-N_C
and SECAM.
CVBS Sub NTSC: Select NTSC Mode, including NTSC-M, NTSC-M_J, NTSC-
M_443 and PAL-M.
Note: The sub-menus VBI Mode, CVBS Sub PAL and CVBS Sub NTSC will
only show up when the Closed Caption option is on.
Audio: You can congure the audio settings in the submenu
Audio1 Level: modify the audio1 level within this range: 0~99.•
Audio1 Mode: select Stereo, Left, Right or Mono for soundtracks.•
Audio1 Priority: select the priority of the audio.•
Audio2 Level: modify the audio2 level within this range: 0~99.•
Audio2 Mode: select Stereo, Left, Right or Mono for soundtracks.•
Audio2 Priority: select the priority of the audio.•
HDMI/AES Embeded: select from PCM or Compressed. Select Compressed to
enable HDMI Dolby pass-through. Otherwise select PCM.
Mode: select from Manual Selection and First Service. First Service means
to select the program no. automatically, normally the rst program in the TS.
Manual Selection means to select the program manually.
A/V Alarm Switch: There are two switches control the alarm separately:
Video Alarm: enable or disable the video alarm.•
Audio Alarm: enable or disable the audio alarm.•
ASI1
ASI1 Source: There are 5 optional types for the signal source:
C• I De-encrypted: The de-encrypted transport stream received from the CI
functional block will be delivered to the ASI output port on the back panel.
TUNER: The transport stream received from Tuner block will be delivered to•
the ASI output port on the back panel.
ASI1 Input: The transport stream received from the ASI1 input port will be•
delivered to the ASI1 output port on the back panel.
ASI2 Input: the transport stream received from the ASI2 input port will be•

12
delivered to the ASI2 output port on the back panel.
Mux TS: The transport stream received from the internal Mux functional block•
will be delivered to the ASI output port on the back panel.
(Mux TS is only valid when the Mux function block is enabled and turned on).
Press <ENTER>-key to save or press <EXIT>-key to scrap. A few seconds after
the source was selected, the TS will be delivered to the ASI output port on the
back panel.
ASI2 The same conguration method as detailed for ASI1 above.
SDI
This menu not available on models IDLV-5100P-10x and -20x.
Embedded Audios: There are 2 options: On and Off.
Closed Caption Mode: Select from SMPTE 708,SMPTE 608, Line 21, and
Auto. The mode of closed caption needs to be selected based on the video res-
olution. SMPTE 708 and SMPTE 608 are more suitable for HD video, SMPTE
608 and Line 21 are for SD. When select Auto, the unit will choose SMPTE 608
for HD video, and Line 21 for SD video.
Note: Before doing the setup, be sure to enable the Closed Caption switch in
the menu Decoder->Video->Closed Caption.
AC-3 Pass Thru CH: Select the channel for AC-3 audio pass through.
You can select Channel 3-4 or Channel 5-6
Ethernet
(IP)
This menu is displayed only on IDLV-5100P-20x and -44x models which set TS/
IP streaming board as “100M Single IN” and IDLV-5100P-43x which set TS/IP
streaming board as “100M Dual Out”.
The parameters listed below must be set to appropriate values for the network
over which the transport stream over IP is broadcasted.
Stream IP Addr: Enter the IP address for streaming IP output of the unit.
Stream Netmask: Enter the network sub mask for the subnet to which the unit
is connected for IP streaming trafc.
Stream Gateway: Set the gateway for the network to which the unit is con-
nected for IP streaming trafc.
Stream Mac Address: Factory-set MAC addresses are guaranteed to unique.
Therefore you cannot congure the address.
Gateway Mac Address: Gateway MAC addresses need to be set if your
unicast target is in another network segment. If the unicast target is in the
same network segment of 5100P, the gateway MAC address should be set to
FF:FF:FF: FF:FF:FF.
If the unit is IDLV-5100P-43x which is set as “100M Dual Out” in the system
menu, two menus will appear and each contains above ve setups so you can
set the two IP output separately
TS/IP1: This sub-menu contains ve items: Stream IP Addr, Stream Netmask,
Stream Gateway, Stream Mac Address and Gateway Mac Address. The setup
method is the same as above.
TS/IP2: The same as TS/IP1.
Protocol: Select the protocol for multicast: UDP or RTP.
TS Pkts Per UDP: Set the number of the TS packages encapsulated in one
UDP package. The valid range goes from 1 to 7.
Time To Live: Set the number of the routers over which the TS over IP can be
transmitted. The valid range goes from 1 to 255.
Type of Service: Select the type of service. There are: Normal, Min Monetary
Cost, Max Reliability, Max Throughput or Min Delay optional.
Source: Select the source of the transport stream over IP streaming output.
There are 5 type of source optional: ASI1 Input, ASI2 Input, CI De-encrypted,
TUNER, and Mux TS
Mode: Select the mode of IP stream; you can select DVB or IPTV.

En
13
Ethernet
(IP)
DVB mode: The transport stream received from the ‘source’ selected in previ-
ous step will be packed into IP Stream directly. Therefore the IP stream carries
all programs and is delivered to the specied Multicast or Unicast IP address.
IPTV mode: The transport stream received from the ‘source’ selected in previ-
ous step will be de-Muxed to several single programs, and each program is
packed into one IP stream. Therefore each IP stream carries only one program
and is delivered to the specied Multicast or Unicast IP address. You can con-
gure maximum 32 IPTV channels.
Multicast Setup: Use <ENTER>-key to enter sub-menu. The sub-menu is dif-
ferent according to different ‘mode’ selected in previous step.
DVB mode
Multicast IP: Enter the IP address of the IP stream for the transport stream
over IP output. You can congure the IP stream output mode in Multicast or Uni-
cast. Multicast could be established by setting Multicast IP address in the range
of 224.0.0.0 to 239.255.255.255.
Unicast could be established with the same settings of Multicast, the only
differences are the Multicast IP address, and should NOT be in the range of
224.0.0.0 to 239.255.255.255, which is for Multicast. Although the display is
‘Multicast IP’ on the rst row, the stream itself is Unicast. The IP address of
receiver device (maybe PC with VLC) needed to be set to as the unicast ad-
dress on IDLV-5100P, please don’t use DHCP to get a dynamic IP address for
receiver device.
Multicast UDP Port: Enter the UDP port number of the TS over IP stream
output.
Target MAC address: Set the MAC address of your target device
IPTV mode
Max Channels (<=32): You can congure the number of IPTV channel. The
valid range goes from 1 to 32. Each channel could be congured independently.
Channel x: ‘x’ means the channel number. Press <ENTER>-key to go down to
the sub-menu. There are 6 sub-menus:
x-Multicast IP: Enter the IP address of the IP stream for the transport stream•
over IP output.
You can also congure the IP stream output mode in Multicast or Unicast by
setting Multicast IP address.
x-Multicast Port: Enter the UDP port number of the TS over IP stream output.•
x-Switch: each channel could be switched On/Off independently. The default•
value is ‘off’. To activate the channel, you should turn on.
x-Program: it shows all programs carried by the transport stream from the•
source selected. Press <ENTER>-key and use <↑> <↓>-keys to roll up and
down between the program names, where a number in front of the program
name indicates the input source:
0-xxxxx displays the program name, which comes from ASI input; 1-xxxxx
from TUNER input; 2-xxxxx from TS/IP input; 3-xxxxx from the CI; 4-xxxxx
from ASI2 input; 5-xxxxx from BISS De-encrypted input; 6-xxxxx from MUX
TS.
EIT Pass Through: Disable or enable the EIT Pass through function.•
TDT/TOT Pass Through: Disable or enable the TDT/TOT Pass through•
function.
All encrypted programs are labeled with a ‘$’ sign on the rst row. Press
<ENTER>-key to the program just be selected to be delivered to the specied
IPTV channel or to scrap by pressing <EXIT>-key.

14
Mux
This menu is shown only when the Mux function block is enabled and turned
on.
Mux Switch: The internal multiplexer could be switched On/Off. The default
value is ‘off’. To activate the re-Multiplexing function, you should turn on this
Mux functional block.
Bit Rate: Should be set to a specied value that doesn’t exceed the Maximum
physical limit of the output medium. For example, to deliver the multiplexed TS
to an 8MHz DVB 256QAM modulator, it should not exceed 55000Kb/s, other-
wise overow occurs. Output Bit Rate: set the total bit rate of the multiplexed
stream.
TS ID: You can congure the TS ID to mark the multiplexed TS. Default value
is 1.
Program List: Press the <ENTER>-key to enter ‘Mux List’ sub-menu. It shows
all programs detected by IDLV-5100P. The programs could be come from ASI
input, Tuner, TS/IP input or the internal CI de-encryption block. Use the <↑>
or <↓>-key to roll up or down between the program names, and use <←>-and
<→>-key to switch among input sources, where a number in front of the pro-
gram name indicates the input source:
0-xxxxx displays the program name, which comes from ASI input; 1-xxxxx from
TUNER input; 2-xxxxx from TS/IP input; 3-xxxxx from the CI; 4-xxxxx comes
from ASI2 input; 5-xxxxx from BISS De-encrypted input.
On ‘Program List’ sub-menu, on the rst row, all encrypted programs are
labeled with a ‘$’ sign. All programs that are being selected to be re-multiplexed
are labeled as ‘Pass’, otherwise, the un-selected programs are labeled as ‘Fo-
brid’. Use <ENTER>-key to selected or un-selected the program being shown.
When leaving the ‘Program List’ sub-menu, a new menu will be shown ‘Conrm
changed?’ Press <ENTER>-key to validate all programs just be selected to be
multiplexed or to scrap by pressing <EXIT>-key.
After a few seconds, the multiplexed TS will be generated and delivered to the
specied destination(s).
Backup
This menu is showed only when the Backup function block is enabled and
turned on.
Main channel: Select main channel from ASI1, ASI2 or Tuner.
Backup channel: Select backup channel from ASI1, ASI2 or Tuner.
Main CH Unlock Time: Set Main CH Unlock Time, ranging from 0 to 59 sec-
onds. When signal of the main channel remains the disconnected status over
this value, the unit will switch to the backup channel automatically.
Main CH Recover Time: set Main CH Recover Time, ranging from 0 to 59 sec-
onds. When the signal of the main channel recovers and remains stable over
this value, the unit will switch back to the main channel.
SYSTEM
The system menu provides information about the general functions, the surroundings equipment and the
hardware being used.
sYsTem
properTies mAChine TYpe
o p T i o n A L
FunCTion
FACTorY
seTTings
TrAp ip
ADDress
LoCAL seTup uniT nAme

En
15
System
Local Setup
IP Address: The IP address for the unit.
Network Mask: The network mask for the subnet to which the unit is con-
nected.
Gateway: The gateway for the network to which this unit is connected.
Trap IP
The IDLV-5100P provides a Monitor Center IP address. You can set this to be
the same IP address of the Monitor Center, which is typically a PC in order to
allow the device to send messages to the monitor center.
Unit Name
The IDLV-5100P allows you to edit the unit name which is displayed on the front
panel LCD. Default name is ‘Digital TV Processor”. The unit name should be
within 20 characters in ASCII format.
Properties
Main Version: Show software version of this device
MAC Address: Factory-set MAC address which is guaranteed to be unique.
You cannot congure this address.
Linux OS version: Show Linux OS version
ARM SW version: Show ARM software version
Decoder version: Show Decoder version
FPGA version: Show FPGA version
TS/IP IN (or OUT) NIOS: The mode of the TS/IP board - “IP Out” or “IP IN”.
TS/IP IN (or OUT) FPGA: The mode of the TS/IP board - “IP Out” or “IP IN”.
Factory
Settings
All the user congurable parameters will be set to the factory default settings,
including IP address and the unit name.
Optional
Function
External Board Type: Press <ENTER>-key to active the menu. After the opera-
tion, you need reboot the unit to valid the conguration.
100M Single In: The TS/IP port is congured as input, you can feed transport
stream over IP into the unit. The menu ‘Ethernet’ will be showed under the
inputs menu. This option is specialized for IDLV-5100P-44x model.
100M Single Out: The TS/IP port is congured as output, you can set the
transport stream over IP output to the IP network. The menu ‘Ethernet’ will
be showed under the outputs menu. This option is specialized for megabit
modelIDLV-5100P-44x model.
100M Dual Out: The TS/IP port is congured as output, you can set the
transport stream over IP output to the IP network. The menu ‘Ethernet’ will be
showed under the outputs menu. This option is specialized for IDLV-5100P-43x
model.
1000M In&Out: Select the option to enable the full duplex gigabit IP port. The
menu ‘Ethernet’ will be showed under the main menu. This option is available
for IDLV-5100P-46x model.
No Exist: The TS/IP port is invalid. Therefore the menu ‘Ethernet’ will not be
showed anywhere.
Mux Function: Press <ENTER>-key to active the menu, use < > < >-keys to
congure the Mux functional block as ‘Enable’ or or ‘Disable’. Press <ENTER>-
key to conrm or to scrap by pressing <EXIT>-key.
Backup Function: Press <ENTER>-key to active the menu, use <↑> <↓>-keys
to congure the Backup function as ‘Enable’ or or ‘Disable’. Press <ENTER>-
key to conrm or to scrap by pressing <EXIT>-key.
LCD Switch: There are two options: Always On and Power saving. Always On
option means the front panel will always be lightened. Power Saving means the
front panel will be off after a while if there’s no operation.
HTTP Login
Modify the username and password for the WEB management.
The default username: root
The default password: 12345
M a c h i n e
Type
Reserved.

16
This following menu is only available on IDLV-5100P-46x model:
TS over
IP
IP Out
IP Out switch: Enable or disable the IP output.
IP Out status: Show IP packets per second, UDP packets/s, Column FEC
packets/s, Row FEC packets/s
Protocol: You can select the transport protocol from UDP and RTP.
TS pkts per UDP: Set the number of the TS packages encapsulated in one
UDP package. The valid range goes from 1 to 7.
Time to Live: Set the number of the routers over which the TS over IP can be
transmitted. The valid range goes from 1 to 255.
Type of Service: You can select from normal, Min monetary cost, Max reliabil-
ity, Max throughput, Min delay
TS source: Select the source of the transport stream over IP streaming output.
There are 5 type of source optional: ASI1 Input, ASI2 Input, CI De-encrypted,
TUNER, Mux TS.
Uni/Multicast Address: Enter the IP address of the multicast stream for the
transport stream over IP.
Uni/Multicast UDP port: Enter the UDP port number of the TS over IP stream.
ProMPEG FEC: Enable/Disable: Enable or disable ProMPEG FEC function.
Column FEC UDP port: You can set Column FEC UDP port number
Row FEC UDP port: You can set Column FEC UDP port number
Mode(1D:column, 2D:row+column, 5X5: the size of matrix)
1D. 5X5 Support packet loss : 5/1000package
1D. 5X20 Support packet loss :20/1000package
1D. 10X10 Support packet loss :10/1000package
2D. 5X5 Support packet loss :5/1000package
2D. 5X20 Support packet loss :20/1000package
2D. 10X10 Support packet loss :10/1000package
FEC Alignment: You can select from Annex A or Annex B
Note: Only when this option is enabled and the IP Out protocol is set to RTP,
the following options are valid.
IP In
IP in status: You can check the IP In status of the unit in this option.
RTP/UDP: It will display the transport protocol.
Column FEC;Row FEC: it will display the Column FEC and Row FEC value.
Both value will be less than 20.
Packets per UDP frame: it will display Packets per UDP frame.
Received TS frames: it will display the TS frames received by the IP port. The
value is accumulated.
Fixed RTP frames: It will display the Fixed RTP frames.
Note: Above sub-menus only appears when the IP in status is set as Locked.
Uni/Multicast Address: Enter the IP address of the multicast stream for the
transport stream over IP.
Uni/Multicast UDP port: Enter the UDP port number of the TS over IP stream
Column FEC UDP port: Enter the Column FEC UDP port number
Row FEC UDP port: Enter Row FEC UDP port number
TS clock recovery: Select the TS clock recovery mode from Auto or Fixed rate.
Note: If the TS contains PCR, you can select Auto mode. If not, please select
Fixed rate.
TS Bit rate: Set the bit rate of the TS comes from the TS/IP input. The setting
range is 0—100Mbits/s.
Note: The setting TS Bit rate is only valid when the TS clock recovery is cong-
ured as Fixed Rate.
