INVERTO.TV Unicable IDLP-UST111-CU010-8PP User manual

Technical parameters
Inputs 4 x IF inputs from Quattro LNB
1 x UHF/VHF input from Terrestrial antenna
Outputs 4 x loopthrough satellite IF outputs
1 x loopthrough terrestrial output
1 x Legacy output to connect to legacy receiver with combined
terrestrial signal
1 x Unicable output to connect up to 8 receiver tuners with com-
bined terrestrial signal
Frequency range Satellite: 950-2150MHz
Terrestrial: 47-862MHz
Loopthrough loss Satellite: max -3dB
Terrestrial: max -3dB
Gain Satellite: 10dB (min)
Terrestrial: no amplification
Isolation Satellite-Satellite outputs: min 30dB
Satellite-Terrestrial : min 35dB
Control protocol DiSEqC™ commands extension according to CENELEC
prEN50494
Power consumption 20VDC, 380mA
Dimensions (W x H x D mm) W=138.82 H=203.2 D=18.74 mm
Temperature range -20C - +60C
AC/DC adaptor Input voltage: 90-265VAC, 50/60Hz
Output voltage: 20VDC
Output current: 600mA
Short circuit protection: None
Troubleshooting
Make sure the satellite antenna and LNB are properly fixed, connected and adjusted and that the
satellite receivers are installed, connected and switched on according to available instructions.
Ensure there is no short circuit on the product inputs. This will prevent power to the LNB. If this is the
case, disconnect the product from the main power, and then find and remove the short circuit on the
product inputs. Then re-connect the multiswitch to the main power.
Frequent defects are in connector joints i.e. if the central conductor is too short and fails to make
contact in the connector. Also the shielding braid should make proper contact with the connector
coat. Sometimes a reset to the multiswitch microprocessor is sufficient to remove a fault: simply
disconnect the multiswitch from main power for 30 seconds and then reconnect again.
If you are unable to remove the fault yourself, please contact your distributor.
Disposal
Following relevant EU directives, this device shall not be disposed of together with municipal waste.
Use local waste collection and recycling systems to dispose wore out products.
*DiSEqC™ is a registered trademark of Eutelsat
*For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be
referred to as detailed datasheets of the products. Inverto Digital Labs reserves the right to amend, omit or
add products, product-lines, and/ or features without notice.

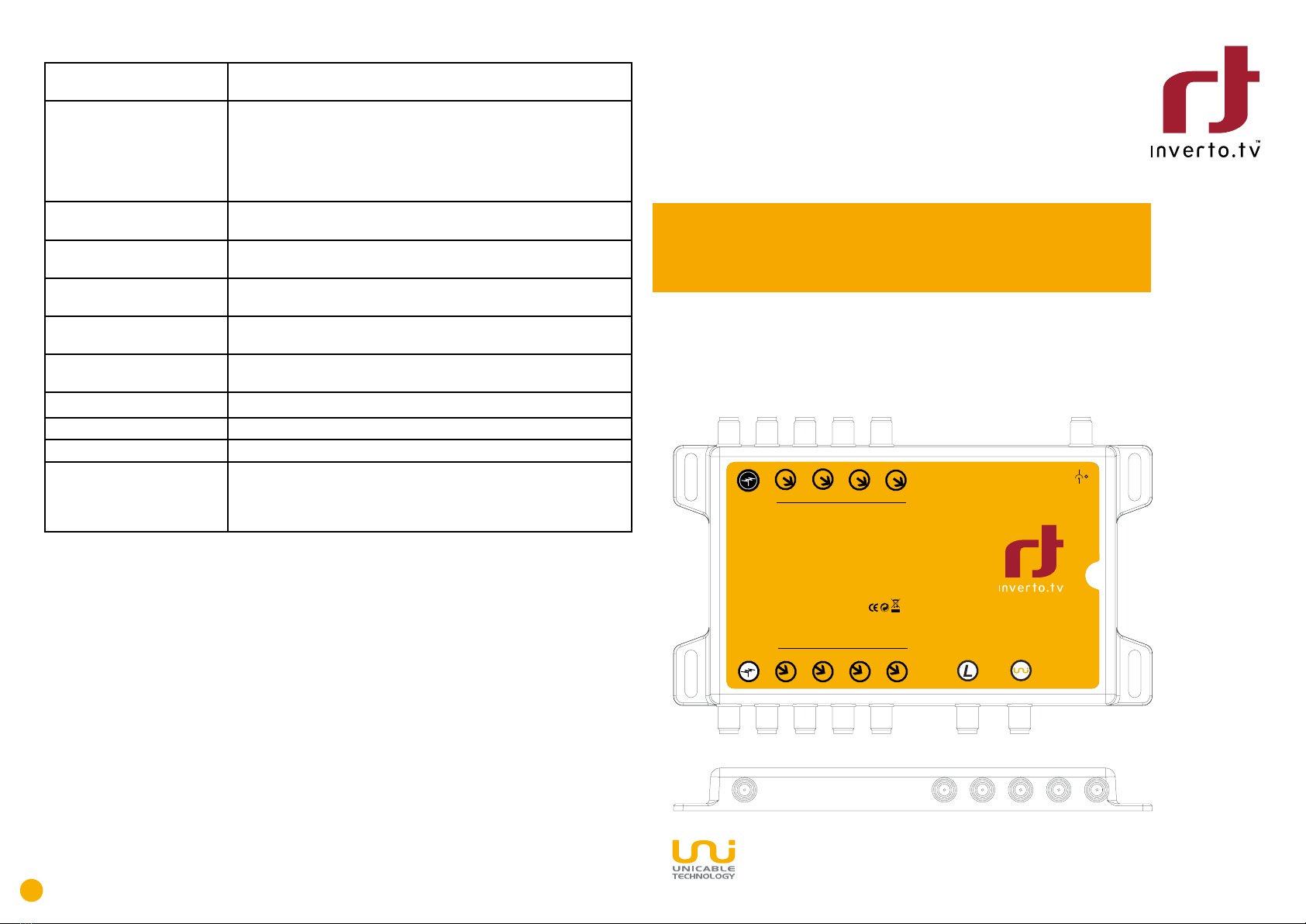

Installation manual
Unicable™Multiswitch
IDLP-UST111-CU010-8PP
4
V150709
Power In - 20V DC, 380mA
+
Unicable OutLegacy Out
V/LV/HH/L H/H
V/LV/HH/L H/H
T e rrestrial
loop through
output
T e rrestrial
input Satellite - Input
Satellite - loop-through output
TM
Unicable Cascadable Switch
IDLP-UST11 1 -CUO1O-8PP
User Bands:
0 : 1076.06MHz 4 : 1484.30MHz
1 : 1178.12MHz 5 : 1586.36MHz
2 : 1280.18MHz 6 : 1688.42MHz
3 : 1382.24MHz 7 : 1790.48MHz
Satellite inputs: IF 950-2150MHz
Satellite Loop-Through loss: -3dB
Terrestrial Loop-Through loss: -3dB

Connect the cables from the Quattro LNB to the input connectors marked with LNB V/L, V/H, H/L and
H/H inputs (pay attention to identification of the Quattro LNB connectors). The multiswitch is equipped
with Terrestrial input. Connect the Terrestrial antenna to this input:
Power In - 20V DC, 380mA
+
Unicable OutLegacy Out
V/LV/HH/L H/H
V/LV/HH/L H/H
Te rrestrial
loop through
output
Te rrestrial
input Satellite - Input
Satellite - loop-through output
TM
Unicable Cascadable Switch
IDLP-UST111 -CUO1O-8PP
User Bands:
0 : 1076.06MHz 4 : 1484.30MHz
1 : 1178.12MHz 5 : 1586.36MHz
2 : 1280.18MHz 6 : 1688.42MHz
3 : 1382.24MHz 7 : 1790.48MHz
Satellite inputs: IF 950-2150MHz
Satellite Loop-Through loss: -3dB
Terrestrial Loop-Through loss: -3dB
There are two output connectors: Legacy and Unicable.
The Legacy output is a standard Universal switching output that allows to connect a legacy receiver
that is not supporting the Unicable protocol.
The Unicable output allows to connect up to 8 receiver tuners – each needs to be allocated one of the
8 user bands supported by the multiswitch.
Each receiver tuner is assigned with 1 out of 8 communication channel frequencies (user band). The
frequencies are listed on the product sticker:
For optimized performance, please follow the recommendations below:
use the highest frequency for a wall socket located the nearest to the multiswitch and use the1.
lowest frequency for wall socket located farest to the multiswitch.
If you install less than 8 receiver tuners, use the lowest frequencies first. We also recommend2.
to keep record of the user bands allocated to the different connections as these user bands will
then have to be set in the receiver. The satellite receivers connected to the multiswitch have to
be Unicable-compatible (usually marked with Unicable™ logo).
Note: Loopthrough outputs that are not used should be terminated with 75ohm DC-blocked
terminations.
Safety
Never open a powered product. This may result in electrical hazard.
Never work on the product, TV set or other powered devices during or before a storm. A lightning
strike into the antenna may cause dangerous overvoltage over the product’s metallic/conductive
parts.
Make sure the local electricity network corresponds to the operating voltage of the AC/DC adaptor.
If the products gets into contact with liquid it must be disconnected from the main power.
It is recommended to disconnect the product from the main power if it is not used for long periods of
time.
When disconnecting the product don’t pull the cable but the plug to prevent damage of the cable
(wobbly plugs and outlets result in fire risk).
The product shall be serviced by qualified experts only.
Thank you for purchasing Inverto’s advanced Unicable multiswitch and we are certain it will meet your
expectations.
Before installing and operating the product, please read the following instructions and recommenda-
tions. We suggest that you keep this manual for future use.
Warranty
The Unicable multiswitch is designed for the distribution of satellite and terrestrial television and radio
signals in home installations. The warranty does not apply for products used for other purposes than
those specified herein. The user/installer shall be responsible for any damage incurred as a result of
not using the product according to the instructions in this manual.
Installation location
The product shall be installed on a wall or other hard inflammable surface.
The product shall be in no case held only with the connected cables.
Place the product in a dry environment where it is not exposed to rain or running water.
Do not install the product close to heat sources or in places exposed to direct sunlight.
Product installation
The following diagram may assist you when drilling the holes:
To connect the product inputs and outputs use high-quality coaxial cables designed for satellite recep-
tion and F-connectors. Use a high-shielding coaxial cables with minimum 90dB.
If you use wall sockets to loopthrough the 8 user bands, make sure the wall sockets were designed
for satellite reception compatible with Unicable technology and allows bidirectional signal propagation.

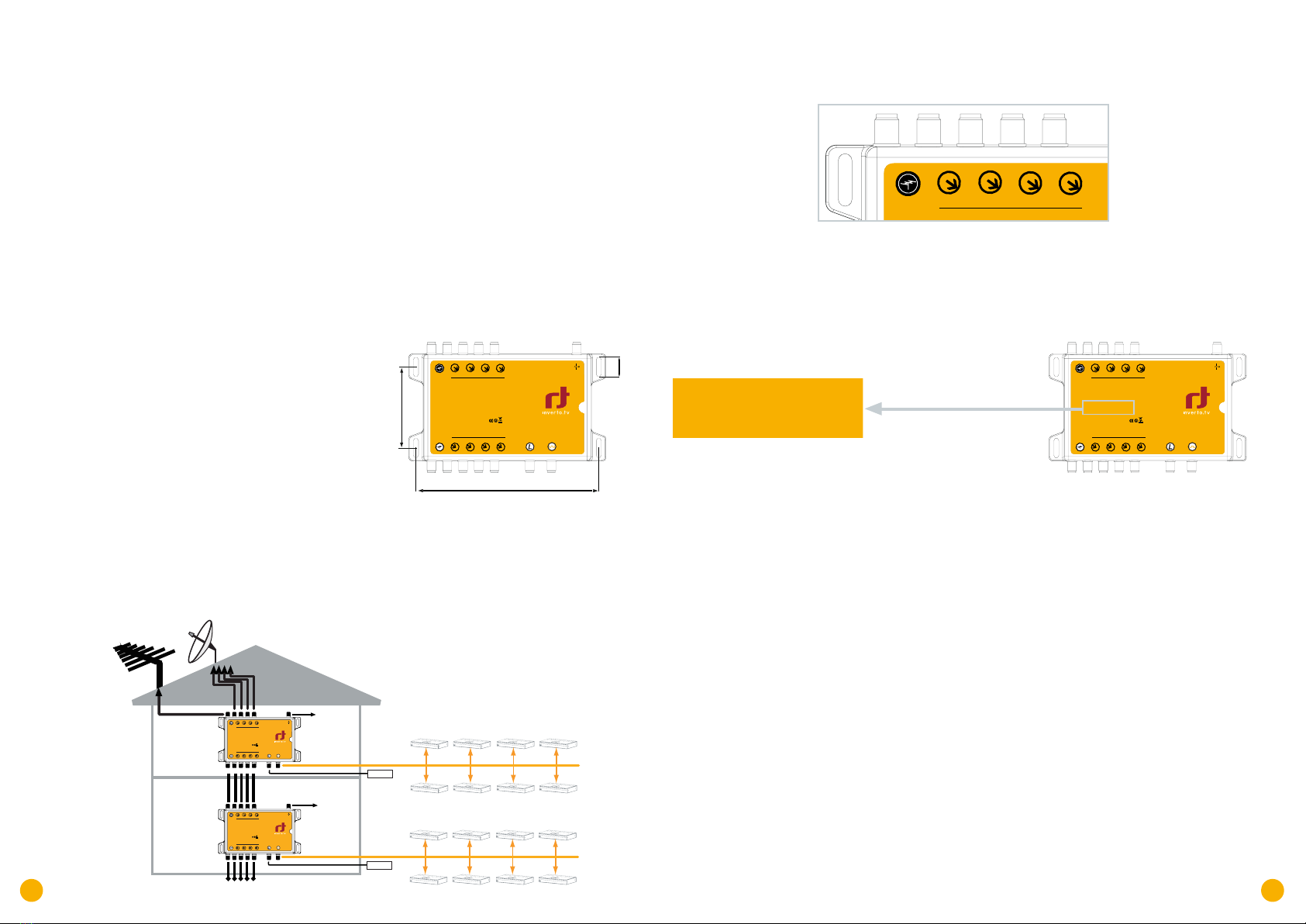

The following diagram describes the installation configurations supported by the product:
Quattro
LNB
Terminated
Outputs
AC
AC
Legacy
x8 User bands
UB 7 UB 5 UB 3 UB 1
UB 6 UB 4 UB 2 UB 0
Legacy
x8 User bands
UB 7 UB 5 UB 3 UB 1
UB 6 UB 4 UB 2 UB 0
PowerIn - 20V DC, 380mA
+
UnicableOutLegacyOut
V/LV/HH/L H/H
V/LV/HH/L H/H
Terrestrial
loopthrough
output
Terrestrial
input Satellite - Input
Satellite - loop-throughoutput
TM
Unicable Cascadable Switch
IDLP-UST111-CUO1O-8PP
UserBands:
0: 1076.06MHz 4: 1484.30MHz
1: 1178.12MHz 5: 1586.36MHz
2: 1280.18MHz 6: 1688.42MHz
3: 1382.24MHz 7: 1790.48MHz
Satelliteinputs: IF 950-2150MHz
SatelliteLoop-Through loss: -3dB
TerrestrialLoop-Through loss: -3dB
PowerIn - 20V DC, 380mA
+
UnicableOutLegacyOut
V/LV/HH/L H/H
V/LV/HH/L H/H
Terrestrial
loopthrough
output
Terrestrial
input Satellite - Input
Satellite - loop-throughoutput
TM
Unicable Cascadable Switch
IDLP-UST111-CUO1O-8PP
UserBands:
0: 1076.06MHz 4: 1484.30MHz
1: 1178.12MHz 5: 1586.36MHz
2: 1280.18MHz 6: 1688.42MHz
3: 1382.24MHz 7: 1790.48MHz
Satelliteinputs: IF 950-2150MHz
SatelliteLoop-Through loss: -3dB
TerrestrialLoop-Through loss: -3dB
