Inverto airscreen 5815 IDLA-DONO1-ANDOC-OGW User manual

Quick Guide
Digital TV receiver dongle
5815 IDLA-DONO1-ANDOC-OGW
5816 IDLA-DONO1-ANDOU-OGW

3
Contents
Notices.......................................................................................................................4
General info ............................................................................................................6
Select your country and search channels.....................................................7
Options ..................................................................................................................11
TV Channels .........................................................................................................11
Program Guide .....................................................................................................13
Video Recording & Playback .............................................................................13
Audio Track ...........................................................................................................15
Subtitle ...................................................................................................................15
Screen Scale ............. ............................................................................................16
PIP ...........................................................................................................................17
Share ......................................................................................................................17
Settings ..................................................................................................................18
FAQ .........................................................................................................................19
Specifications .......................................................................................................20
Notes ......................................................................................................................21

4
Notices
Copyright
No part of this manual may be copied, reproduced, used or translated
in part or whole without FTA Communication Technologies S.à r.l.’s
(hereinafter “FTA”) prior consent in writing.
CE Declaration of Conformity
Hereby, FTA Communication Technologies S.à r.l. declares that the
airscreen Mobile ™ digital TV receiver dongle for Android smartphones
and tablets conforms with the essential requirements of the European
Directives 2014/53/EU (RED), 2014/30/EU (EMC), and 2011/65/EU
(RoHS).
WEEE
The product you have purchased is subject to Directive 2012/19/EU
of the European Parliament and the Council of the European Union on
Waste Electrical and Electronic Equipment (WEEE) and, in jurisdictions
adopting that Directive, should not be disposed of as unsorted municipal
waste.
The disposal of wore out products, the device shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling
of this product, please contact your local civic office, your household
waste disposal service, or the shop where you purchased the product.
Safety instructions &
precautions
▪ Connect the dongle to your Android device and to
the antenna with caution in order not to damage
the connectors and disconnect the dongle from your
Android device when not in use when - Liability is not
accepted for damage caused by faulty connector or
inappropriate handling of the device.
▪ Do not expose the dongle to rain or spill liquid of any
kind into the dongle.
▪ Do not expose the dongle to direct sunlight and other

5
En
sources of heat.
▪ Use with the airscreen Mobile Android app only.
Warranty
FTA warrants the product as being free from defects in material and
workmanship for a period of 24 months starting from the date of
production indicated on it (encoded into the serial number printed
on the device). This product is designed for the reception of terrestrial
television and radio signals. The warranty does not apply for products
used for other purposes than those specified herein. The user shall be
responsible for any damage incurred as a result of not using the product
according to the instructions in this manual. This warranty does not cover
parts which may become defective due to misuse of the product, use
of non-suitable devices or external cause beyond FTA’s control such as
drops, accidents, lightning, fire, etc.. If during the warranty period, the
product proves defective, under normal use, due to defective materials or
workmanship, FTA, at its sole discretion, will either repair or replace the
product. For warranty claim, return the product to your local dealer for
reparation. Please retain the original packaging, should it be necessary
at some stage to return the device. ease retain the original packaging,
should it be necessary at some stage to return the device.
Product support
For any further product support and inquiries, please contact us at any
of the following options:
FTA Communication Technologies S.à r.l.
17 Route de Luxembourg L-6182 Gonderange
Luxembourg
Tel.: [phone]
Fax: [phone]
Mail: [email protected]
www.inverto.tv

6
Enjoy live TV without using mobile data
Thank you for purchasing our airscreen Mobile product.
The airscreen Mobile dongle lets you watch free-to-air DVB-T/T2 TV
anywhere you go using your Android phone or tablet. The airscreen
Mobile dongle works with an app that you will need to download to
your Android phone or tablet. The TV signals are received off air so no internet
connection or any subscription is required.
The airscreen Mobile app offers intuitive user interface, easy and quick
setup and supports HDTV. It provides Electronic Program Guide (EPG),
program information, recording of free-to-air TV shows and storing on
your mobile device, automatic TV channels search, creation of favorite
channel list and playback of your recorded TV shows. Its ultra compact
design and low power consumption makes it highly portable and ideal to
use whenever you are on the move.
Visit Google Play, download the free airscreen Mobile app to your Android
device and connect the airscreen Mobile dongle to your Android phone
or tablet. Launch the app and follow its setup wizard to start enjoying live
TV quickly and easily.
Box Conetnt
▪ airscreen Mobile™ digital TV receiver dongle
▪ 1x Ring antenna
▪ 1x Stick antenna
▪ 1x User manual
System Requirements
A dual core Android device with a 1GHz or up, USB host mode
functionality and Android 4.1 or later. MPEG-4/H.265 HEVC video
playback requires processor with NEON support.
Installations
Step1: download and install the airscreen Mobile™ app on your Android
device. You can find the application in the Google Play store by searching
for airscreen Mobile.

7
En
Note: your Android devices OS must be version 4.1 or higher to use
airscreen Mobile™ app.
Step2: plug the airscreen Mobile™ digital TV receiver dongle into the
mirco-USB or type-c port of your Android device. A pop-up message
will appear with the content “open airscreen Mobile™ when this USB
device is connected?” Tap on OK, afterwards the application will start.
By tapping on “use by default” the airscreen Mobile™ app will start
automatically whenever the dongle is inserted.
Main features
▪ Watch free-to-air DVB-T/T2 live HD TV on Android
phone/tablet
▪ No internet connection required
▪ TV Guide (Electronic Program Guide)
▪ Favorite channel list
▪ TV recording and time shifting
▪ Support for subtitles and audio tracks
▪ Picture-in-picture mode
▪ Share over a selection of social media apps
▪ Channel scan – TV and Radio channels
Select your country and search
channels
Once airscreen Mobile™ app is open with the welcome screen, select
your country and tap on Scan to start scan for TV/Radio channels.
Figure 1: Welcome screen

8

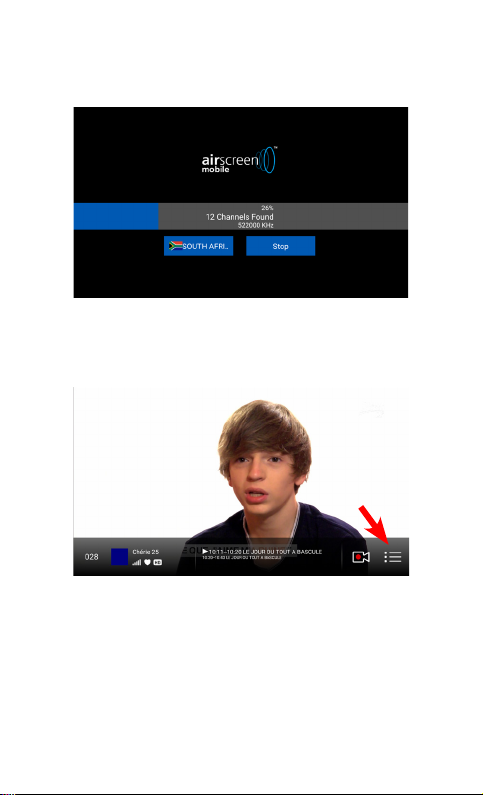

The app will start to scan for channels:
Figure 2: Channel scanning
You may scan for channels at any time from Menu / Settings / Scan
Channel:
Figure 3: Menu

9
En
Tap on the Menu icon, and then tap on Settings to open the settings
menu:
Figure 4: Settings
Then tap on Scan Channel and Choose your country / location and tap
on Scan as shown on Figure 1 above:
Figure 5: Scan Channels

10
At the next screen you can choose for HW decoding on or off. Make
your choice and tap on Watch TV Now to watch TV:
Figure 6: HW decoding on/off
Now you should see a TV channel. Information of the current channel
will be shown in the middle of the lower information bar:
Figure 7: Watch TV channel

11
En
Options
By taping on the menu icon at right on Figure 7 Watch TV channel, resp.
Figure 3 Menu, the main menu options will pop up:
Figure 8: Main menu options
TV Channels
Tap on TV Channels to see the list of the prior found TV channels:
Figure 9: Channel list

12

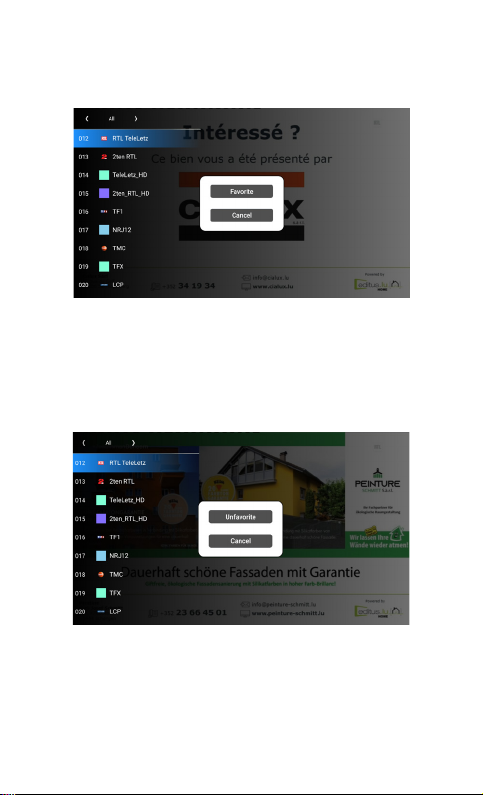

If you press and hold any channel name and then tap on Favorite, the
channel will be added to the favorites list:
Figure 10: Add to the favorite list
You can switch to different channel lists by taping at the top either on <
or > (switch between ALL/TV/Radio/Favorite).
You can remove a channel from the favorites list by pressing and holding
the channel name and then tapping Unfavorite:
Figure 11: Unfavorite channel

13
En
Program Guide
By taping on Program Guide you will see the EPG. Here you can check
the program guides of the TV Channels (To return you need to click on
your phone return button):
Figure 12: Program guide
Video Recording & Playback
You can click the Record button to record the TV channel on your mobile
phone:
Figure 13: Record TV Channels

14
Recorded videos can be found under the option Video Playback.
Figure 14: Video Playback
All recorded videos are listed there, with channel name and date as
filename:
Figure 15: Recorded videos

15
En
Audio Track

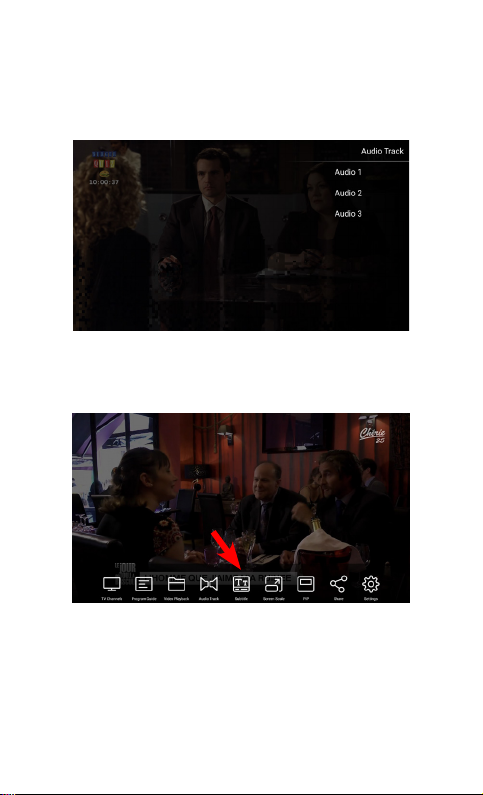

Some TV channels support different audio tracks (mostly different audio
languages). Tap on Audio Track to change. This function depends on if
the TV channel has more than 1 audio track or not.
Figure 16: Select Audio Track
Subtitle
By tapping on Subtitle you can switch on/off subtitles:
Figure 17: Subtitle on/of

16
Figure 18: Subtitle on
Screen Scale
You can change the screen scale by tapping on Screen Scale:
Figure 19: Screen Scale

17
En
PIP
By tapping on PIP you will enter the picture in picture mode. You can
drag and move the window around. The top left icon in the airscreen
Mobile™ PIP window can turn the screen back to full screen, the top
right icon will close the application (PIP support depends on the Android
OS version):
Figure 20: PIP mod
Share
By tapping on Share you can share the current TV content to other
social community applications. For example: WeChat, Facebook, Twitter.
This application must have been installed before you can share the
content through them:
Figure 21: Share content

18
Settings
By tapping on Settings you have direct access to listed items or
information as shown below:
Figure: 22 Settings

19
En
FAQ
Q: No or only few TV or radio programs are found, or TV programs show
a strong mosaic formation.
A: This is mainly due to a weak reception. In this case, we recommend
testing the reception outdoors first to see if there are better signal
conditions, resp. whether the problem no longer occurs. If the reception
outdoors gives the desired results, it is recommended to use an antenna
with better radio reception characteristics for indoor use.
Q: The TV channels playback is not smooth (for example: lag, video and
audio are not synchronizing) but the signal is pretty good.
A: These might be due to mobile specification/performance. You can
turn on Hardware decoding to improve the performance. To turn on (or
off) Hardware decoding: first click on the screen to bring up the menu,
tap on the menu button (see at Figure 3 Menu icon at the very right),
then tap on Settings and then tap on Hardware Decode. You can turn
ON the hardware decoding (see at Figure 23 Hardware decode on/off).
Afterwards tap on “Watch TV Now” to return to watch TV.
Figure 23: Hardware decode on/off
*The button on the left indicate the status of Hardware decoding. If
shown “ON” then it means hardware decoding is turned on, if shown
“OFF” it means hardware decoding is turned off.
(Some mobile might not support Hardware Decoding, if you got a black
screen when watching TV, please go to settings and turn off hardware
decoding).

20
Specifications
System OS
USB interface
Input power
Antenna interface
Input signals
Frequency range
DVB-T /T2
Video decoding
Audio format
Recording format
Video format
Audio format
Accessories
System Requirements
Android 4.1 or higher
Micro-USB IDLA-DONO1-ANDOU-OGW
(Item 5816)
Type-C IDLA-DONO1-ANDOC-OGW
(Item 5815)
5V 1.3A, supplied by the Android device
75 Ohm Digital TV Antenna Input, MCX
connector
177.5 MHz ~ 226.5 MHz (VHF)
474 MHz ~ 862 MHz (UHF)
DVB-T2 EN302 755, 1K to 32K FFT Size
DVB-T EN300 744, 2K to 32K FFT Size
Punctured Codes ½, 2/3, ¾, 4/5, 5/6 & 7/8
Bandwidth 1.7/5/6/7/8/10 MHz
Full HD, MPEG2 MP & ML / H.264 AVC /
H.265 HEVC
Audio Layer I & II
MPEG2 MP & ML / H.264
Audio Layer I & II
Loop antenna
Stick telescopic antenna
A dual core Android device with a 1GHz
or up, USB host mode functionality and
Android 4.1 or later. MPEG-4/H.265 HEVC
video playback requires processor with
NEON support.
