Basics
Part I.
1

Cautions
1.
3

4 | Cautions
IODD Inc. does not provide the HDD with the device.
Therefore if there are any issues with the HDD,
please contact the manufacturer or the place of purchase.
IODD Inc. assumes no responsibility for any problems
caused by use of the product outside of its intended use.
IODD Inc. assumes no responsibility for the loss of data stored on the device.
IODD Inc. assumes no responsibility for the loss of data due to the loss of the password,
nor is Iodd responsible for any other issues caused by the loss of the password.
Avoid leaving the device in high temperature or humid environments
because it can cause damage to it. In the case of damage,
due to being placed in these kinds of environments,
the warranty may become void. The repairs would be made at your expense.
Placing the device near strong magnetic objects may cause the device to malfunction or data error.
Removing or breaking the warranty label will void the warranty.
Using unstable powered PC USB ports, USB extension cables,
or non-powered USB hubs can cause unstable behavior in the device
and may even cause the loss of data or an outage.
Do not dismantle the device. Doing so will void the warranty.

Introduction
2.
5

6 | Introduction
This device functions as a 2.5" USB 3.0 external HDD enclosure with an AES256 XTS encryption. The
encryption provides security for your data by preventing it from being cracked. (iodd2541 only has Encryption
function, not iodd2531)
This device can also function as a virtual CD/HDD when plugged in through the USB cable.
It functions as a versatile tool for all iODD users.
In particular, Windows 8 released in October 2012 can support "Windows to Go!"
that can be installed to the USB external hard drive and it has been noted as a USB Bootable Windows
The addition of the data encryption security to the original virtualization capabilities
has transformed this device into an even greater tool for iODD users.
IODD Inc. will strive to continually develop innovative and superior products.

Components
3.
7

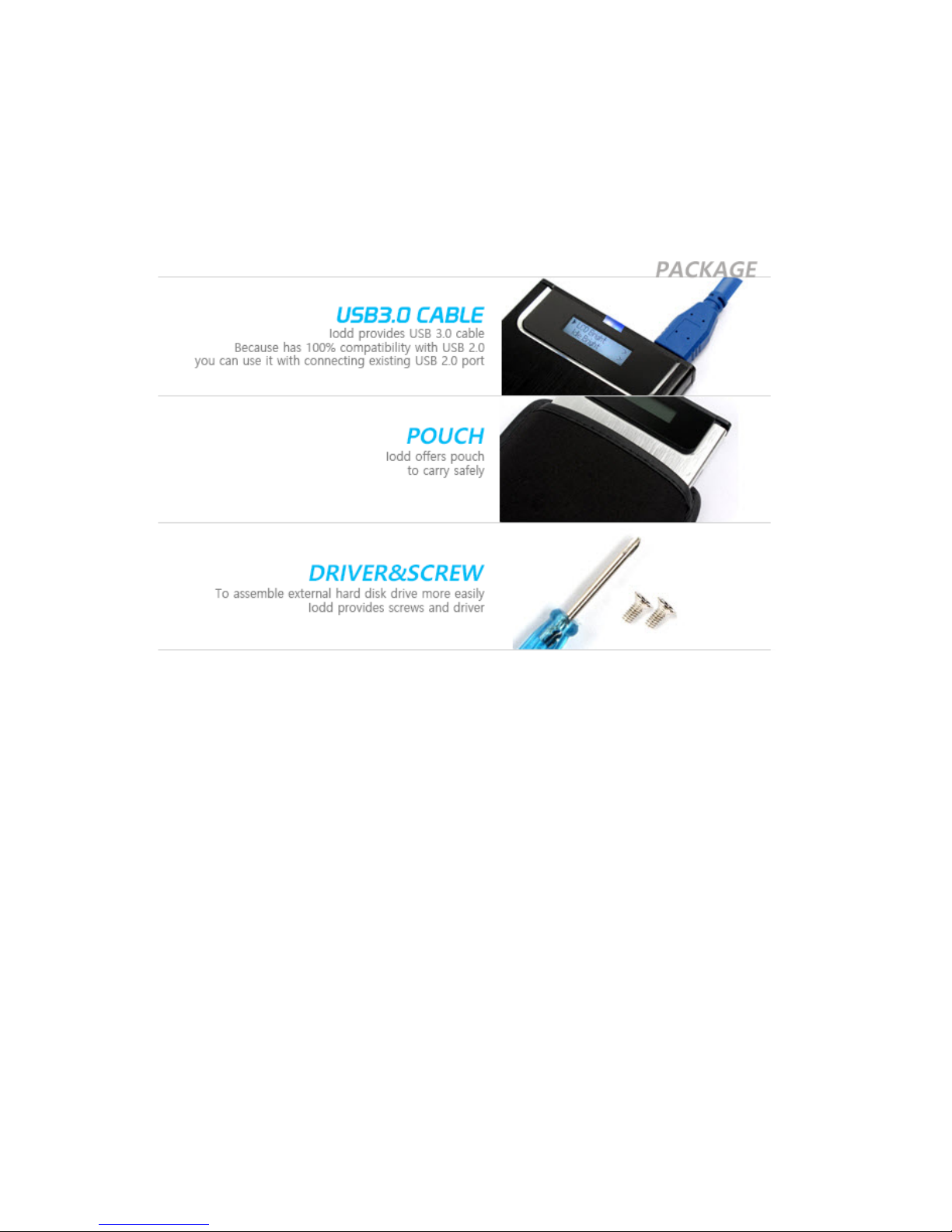

3.1 components of 2541
Following accessories can be changed for your convenience.

8 | Components
3.2 components of 2531
Following accessories can be changed for your convenience.

Check defects
4.
9
Are all the components listed on components chapter included?
Is the protective film on the front of the device well attached?
Are the product information and the bar code attached well on the inside of the product?
Is there an issue placing the cover back onto the device after connecting the HDD?
When the device is connected to a USB cable, does the connection appear to be strong?
After the device has made a USB connection, is there any defect on the LCD screen?

System Requirements
5.
11
A host system that can support USB 1.x/2.x/3.x interfaces.
USB 1.x does not support multi-device connections.
A system that can boot via USB-CDROM/USB-HDD from the BIOS.
A system with a USB port capable of holding voltages over 4.75V with a maximum current of 900mA.
A HDD that is less than 10mm thick and has a SATA interface.
A host system that has USB standby power capability.

Boot Requirements
6.
13
?When booting through the USB-CDROM, always use a bootable ISO file.
?When booting through the USB-CDROM, the OS installation (ISO)
?must include the USB host driver for the PC.
?When booting through the USB-HDD, always use a bootable VHD file.
?When booting through the USB-FDD, always use a bootable IMA file.
?The USB 1.X/2.0/3.0 recognition must be enabled in the PC BIOS.
The USB 1.0/2.0/3.0 recognition must be enabled in the PC BIOS.
Make sure your PC supports "USB booting."

How to assemble
7.
15
7.1 2541
Things you will need: a mini screw driver and two plate screws.
1Open the aluminum cover.
2Connect the HDD to the SATA connector.

16 | How to assemble
3Put the aluminum cover and fasten it using the two plate screws.
7.2 2531
