USER’S MANUAL
6224
IOtech
25971 Cannon Road
Cleveland, OH 44146-1833
[phone]
Fax: [phone]
[e-mail]
[e-mail]
www.iotech.com
High-speed, Strain Gauge Input Module
12 Channel 24-Bit Half/Full-Bridge Analog Input Ethernet
*372738A-01*
372738A-01 1172-0901 rev 1.0

Warranty Information
Your IOtech warranty is as stated on the product warranty card. You may contact IOtech by phone,
fax machine, or e-mail in regard to warranty-related issues.
Phone: [phone], fax: [phone], e-mail: [e-mail]
Limitation of Liability
IOtech cannot be held liable for any damages resulting from the use or misuse of this product.
Copyright, Trademark, and Licensing Notice
All IOtech documentation, software, and hardware are copyright with all rights reserved. No part of this product may be
copied, reproduced or transmitted by any mechanical, photographic, electronic, or other method without IOtech’s prior
written consent. IOtech product names are trademarked; other product names, as applicable, are trademarks of their
respective holders. All supplied IOtech software (including miscellaneous support files, drivers, and sample programs)
may only be used on one installation. You may make archival backup copies.
CE Notice
Many IOtech products carry the CE marker indicating they comply with the safety and emissions standards of the
European Community. When applicable these products have a Declaration of Conformity stating which specifications
and operating conditions apply. You can view our Declarations of Conformity at
Warnings, Cautions, Notes, and Tips
www.iotech.com/CE
Refer all service to qualified personnel. This caution symbol warns of possible personal injury or equipment damage
under noted conditions. Follow all safety standards of professional practice and the recommendations in this manual.
Using this equipment in ways other than described in this manual can present serious safety hazards or cause equipment
damage.
This warning symbol is used in this manual or on the equipment to warn of possible injury or death from electrical
shock under noted conditions.
This ESD caution symbol urges proper handling of equipment or components sensitive to damage from electrostatic
discharge. Proper handling guidelines include the use of grounded anti-static mats and wrist straps, ESD-protective
bags and cartons, and related procedures.
This symbol indicates the message is important, but is not of a Warning or Caution category. These notes can be of
great benefit to the user, and should be read.
In this manual, the book symbol always precedes the words “Reference Note.” This type of note identifies the location
of additional information that may prove helpful. References may be made to other chapters or other documentation.
Tips provide advice that may save time during a procedure, or help to clarify an issue. Tips may include additional
reference.
Specifications and Calibration
Specifications are subject to change without notice. Significant changes will be addressed in an addendum or revision to
the manual. As applicable, IOtech calibrates its hardware to published specifications. Periodic hardware calibration is
not covered under the warranty and must be performed by qualified personnel as specified in this manual. Improper
calibration procedures may void the warranty.

IOtech 6224 User’s Manual 949290
Table of Contents
F
Quick Start
Chapter 1 – General Information
Introduction …. 1-1
Front Panel …… 1-1
Rear Panel …… 1-2
Analog Circuitry …… 1-3 (note 1)
Synchronization …… 1-4
Stacking Plate and Handle Options …… 1-5
Quarter-Bridge Accessories(CN-269 & CN-270) …… 1-6

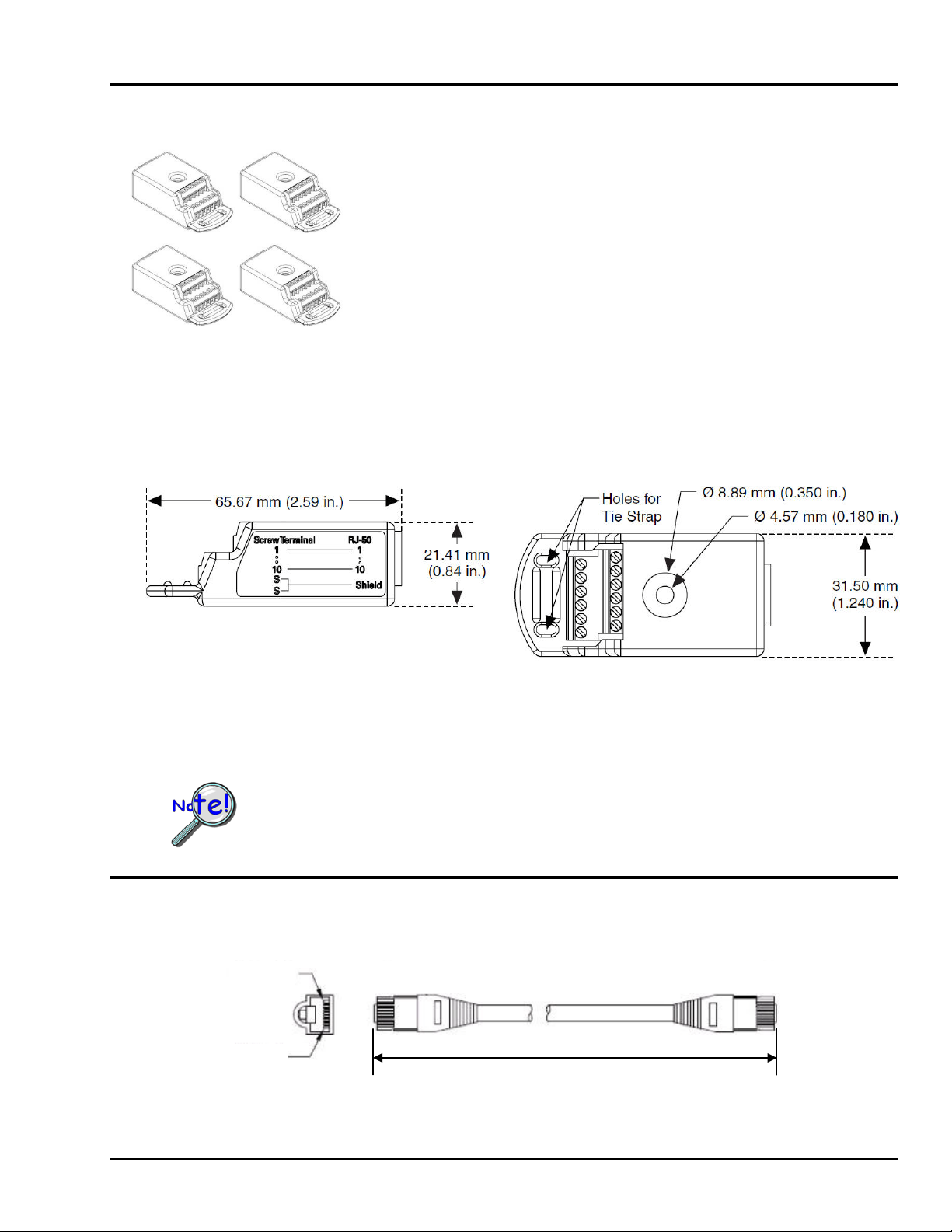

RJ50 12-Pin Screw Terminal Accessory (CN-268) …… 1-7
RJ50 Cables (CA-272-01) …… 1-7
Chapter 2 – Block Diagram
Chapter 3 – Pinouts and Connections
Strain Channels, RJ-50 Pinout …… 3-1
Half-Bridge and Full-Bridge Connections …… 3-2
Connecting TEDS Channels…… 3-2
Remote Sensing …… 3-2
Shunt Calibration …… 3-3
Internal Excitation Voltage Sources …… 3-3
External Excitation Voltage Sources …… 3-4
Where to Find Additional Information …… 3-5
Chapter 4 – CE Compliance and Noise Considerations
Overview …… 4-1
CE Standards and Directives …… 4-1
Safety Conditions ……4-2
Emissions/Immunity Conditions …… 4-3
CE Rules of Thumb …… 4-3
Noise Considerations …… 4-4
Chapter 5 – Software, IOtech Encore
Chapter 6 – Strain and Pressure Force
Chapter 7 – Product Care and Customer Support
Electrostatic Discharge (ESD), Handling Notice…… 7-1
Product Care …… 7-1
The Readme Files and the Install CD-ROM …… 7-2
Customer Support …… 7-2
Chapter 8 – Specifications, IOtech 6224
1For information regarding digital circuitry, refer to the Digital I/O section of the Specifications chapter.

1172-0940 rev 1.0 325130A-01
IOtech 6224 Quick Start
High-speed, Strain Gauge Input Module
Before you get started verify that you have the following items
and meet or exceed the minimum requirements listed.
•IOtech 6224
•TR-60U Power Supply and Cable
•Ethernet Crossover Cable*
•IOtech Encore Installation CD
•PC: Minimum Requirements:
CPU: Intel®Pentium®4, 2.4 GHz or equivalent
RAM: 1 GB
Monitor: 1024 by 768 screen resolution
PC: Recommended:
CPU: Intel®CoreTM 2 Duo Family
RAM: 2+ GB
Monitor: 1024 by 768 screen resolution
•
OS: Windows 2000 SP4 / XP SP2 (32-bit) / Vista (x86 or x64)
Step 1 - Connect the 6224 to the Ethernet and to the Power Supply
In this scenario an IOtech 6224 is connected directly to an Ethernet port on a host computer.
1. Connect the Ethernet cable to the Ethernet jack on the 6224. If connecting directly to the PC, as indicated
above (i.e., instead of connecting to a network hub) you must use an Ethernet crossover cable.
2. Connect the other end of the Ethernet cable to the Ethernet jack on the host computer or network hub.
3. Connect the power supply cable from the TR-60U Power Supply to the External Power connector on the 6224.
4. Connect the TR-60U to a standard AC outlet; and set the rear panel Power Switch to “I” to turn the unit on.
The 6224 Power LED will light up.
5. If Encore software is already installed, reboot the PC and skip to Step 3; otherwise proceed to Step 2, Install
Encore Software.
Step 2 – Install Encore Software
1. Close all running applications on the host PC.
2. Insert the Encore CD into your CD-ROM drive and wait for the CD to auto-run.
An Opening Screen will appear. If AutoRun is disabled: (a) right-click Windows Start menu,
(b) select Explore, (c) navigate to the CD ROM drive, and (d) double-click Autorun.exe
3. Follow the screen prompts.
*An
Ethernet crossover cable (provided) should only be used for direct network
connections. Standard Ethernet cables should be used for hub/switch connections.
IMPORTANT: You must use a crossover cable if
connecting a 6000 Series device directly to the PC.

Printed in Hungary
Step 3 – Use Encore to Configure the 6224
1. Run the Encore software application (Start>>All Programs>>IOtech>>Encore).
2. In Encore’s main toolbar, click the Hardware Configuration button. The Hardware Configuration window will open.
3. Select your device from the Detected Devices panel.
4. Click the top arrow button to set your device as a Project Device.
5. In Encore’s Hardware Configuration window, look in the Device Information panel to verify that your 6224 has an
IP Address. Note the following points regarding common connection scenarios. Both points assume that you have not
changed the 6224 from its default setting of Obtain an IP Address Automatically.
oDirect Connect – When a 6000 Series device is connected directly (via crossover cable or hub/switch) to a host PC
with no fixed IP Address, you will need to reboot the PC and the device to allow a default IP Address to be set. This
setting of an IP Address is automatic. No other action is needed. (See note.)
oNetwork Connect (Common scenario using existing network with DHCP server) – A 6000 Series device will
automatically request and received an IP Address. No user action is needed. (See note.)
Note - Encore will provide a message to indicate an IP Address problem if one exists. If you receive such a message,
consult your network administrator and also check Encore’s Comprehensive Help file (via the Help pull-down menu on
Encore’s main window). Look at the topic: Connection Scenarios and IP Addresses (under Configuring Hardware
>>Hardware Setup).
6. Click the Next button (at the bottom of the Hardware Configuration dialog) to access the Acquisition Setup tab.
7. Configure and enable channels as desired for your application. For detailed information refer to Encore’s Comprehensive
Help file (via the Help pull-down menu on Encore’s main window).
Make sure that each computer and each device on the dedicated network has a unique IP address.
Step 4 - Connect Signal Lines
CAUTION
Turn off power to the system devices and externally connected equipment before connecting
cables. Electric shock or damage to equipment can result even under low-voltage conditions.
Take ESD precautions (packaging, proper handling, grounded wrist strap, etc.)
The 6224 uses 10-pin RJ-50 jacks for strain connection. Do not connect RJ-45 plugs to these
RJ-50 jacks. Using RJ-45 plugs can cause permanent damage to RJ-50 pins 1 and 10, thus
disabling shunt calibration.
The 6224 has 12 analog channel inputs (CH1 through CH12) via front panel RJ-50 jacks and 8 digital I/O lines via
rear panel DB9 connector.
Prior to making signal connections review the Specifications chapter of your 6224 user’s manual to ensure that the input
signals do not exceed the specified limits. After you have installed Encore you can access the pdf manual by navigating
from the host PC’s Windows Start Menu as follows (location shown is the default):
Start>>All Programs>>IOtech>>6000 Series>>6224 User Manual
Reference Note: The Encore software application includes Context-sensitive Help, Comprehensive Help,
a Quick Start Video Tutorial, and a Getting Started pdf.
IOtech
25971 Cannon Road, Cleveland, OH 44146-1833
Phone: [phone], Fax: [phone] E-mail: [email protected]
E-mail: productsuppor[email protected] Internet: www.iotech.com
*325130A-01*
325130A-01

IOtech 6224 User’s Manual 949290 General Information 1-1
General Information 1
Introduction …… 1-1
Front Panel …… 1-1
Rear Panel …… 1-2
Analog Circuitry1 …… 1-3
Synchronization …… 1-4
Stacking Plate and Handle Options ….. 1-5
Quarter-Bridge Completion Accessories(CN-269 & CN-270) …… 1-6
RJ50 12-Pin Screw Terminal Accessory (CN-268)….. 1-7
RJ50 Cables (CN-272-01) …… 1-7
Introduction
IOtech 6224 is a twelve-channel, 24-bit resolution strain measurement device that connects to a host PC’s Ethernet
port. The device is used to measure half-bridge and full-bridge sensors and can be synchronized with other 6000
series devices.
The hardware provides the signal conditioning and acquisition engine, while the software defines the specific
configuration and analysis aspects of the system.
Note that the software includes both a context sensitive Help and a comprehensive Help file.
6224 Basic profile:
Model Interface Analog Input
Channels
SYNC
Ports Analog Output
Channels
Digital
I/O TEDS Support Supported Bridges
(Note 3)
6224 10/100BaseT
Ethernet
12 Strain
RJ-50
Jacks 20 1 port/
8 lines (Note 2)
Quarter-Bridge I
Quarter-Bridge II
Half-Bridge I
Half-Bridge II
Full-Bridge I
Full-Bridge II
Full-Bridge III
Front Panel
The front panel houses twelve channel signal input jacks and
three excitation voltage source connectors, one for each set of
four channels.
The input channel jacks are type RJ-50 (10p10c) and are
labeled CH1 through CH12. The 10-connector pinout for the
RJ-50 connectors is included in chapter 3.
Optional external voltage source connectors are available.For
additional information see the External Excitation Voltage
Sources section of chapter 3.
Do not connect an RJ-45 plug to an RJ-50 jack. Using RJ-45 plugs can cause
permanent damage to RJ-50 pins 1 and 10, thus disabling shunt calibration.
1For information regarding digital circuitry, refer to the Digital I/O section of the Specifications chapter.
2TEDS is supported by the 6224, but only if TEDS is supported by the software application.
3For information regarding the various bridge types, refer to chapter 6.

1-2 General Information 949290 IOtech 6224 User’s Manual
Rear Panel
The following items reside on the rear panel; from
left to right: 1st cable tie mount, Ethernet jack,
DB9-Digital I/O port, 2nd cable tie mount, #6-32
chassis ground screw, four status LEDs, two
synchronization jacks, a power input jack, and a
power switch. A description of each follows.
CABLE TIE MOUNTS: Two cable tie mounts are present to provide for strain relief of cables.
ETHERNET: The 10/100BaseT Ethernet port can connect to the Ethernet port of the host PC, or to an Ethernet
network. The Ethernet connector has two built in LEDs that indicate traffic flow on the network.
Refer to Accessories in the Specifications chapter for Ethernet cables available from IOtech.
When connecting the unit directly to a PC (i.e., when not connecting to a network hub) you
will need to use an Ethernet crossover cable.
Ethernet cable length must be <10m (32.8 ft) in order for the system to be CE Compliant.
DIGITAL I/O:Eight digital I/O lines are accessible via a 9-pin, female DSub connector. For details, refer to the
Digital I/O section of the Specifications chapter.
GROUND (#6-32): Provides a connection point for Chassis Ground via use of a #6-32 machine screw.
STATUS LEDS:
Power
‘ON’ when the device is connected to a sufficient power source and the power switch is
in the ‘l’ (On) position.
Boot
During initial power up, the Boot light will be On to signal the first stage boot process.
When this has completed successfully, the Boot light will remain Off. If an internal
error is detected during this first stage boot process, this light will be blinking. Contact
IOtech to arrange repair service.
Active
During initial power up, the Active light will be Off during the boot process, including
network configuration. The process will complete with a fast Blink, and then steady On
condition. With both the Power and Active lights On, the device is in the Ready state.
After this, the Active light will signal communications with a host computer at a slower
blink rate.
Data
The Data light will be On any time the device is acquiring channel data that is available
to the host PC control software.
Note: After turning on the device, it can take up to 2 minutes to reach ready state, depending on
network settings. This can be monitored by the LED sequence:
Power Light On Boot Light On then Off Active Light Off, then Blinking, then On.
SYNC: Two “synchronization ports” provide a means of synchronizing units regard to pre-trigger data and post-
trigger scanning. Note that each 6000 Series device is capable of being designated as a Master Unit, Slave Unit, or
Terminating Slave Unit. The assignment is made in Encore. Refer to the following section, Synchronization, for
details. Refer to Accessories in the Specifications chapter for SYNC cables available from IOtech.
Up to nine units can be synchronized. The total combined length of the SYNC cables is not
to exceed 2.438m (8 ft).
POWER INPUT: +19 VDC to +30 VDC, through a connector on the chassis. Power is typically supplied to the
device via a TR-60U, 24VDC universal power supply.
POWER SWITCH: A switch with a “0” label for Power Off, and a “ ” for Power On.

IOtech 6224 User’s Manual 949290 General Information 1-3
Analog Circuitry
The IOtech 6224 is isolated from earth ground. However, the individual channels, within their four-channel group,
are not isolated from each other. The EX+, EX–, and T– signals are common among the four channels in their group
as indicated by note 1 on page 3-1 and in the block diagram (page 2-1).
You can connect the IOtech 6224 to a device that is biased at any voltage within the unit’s rejection range of earth
ground. The Specifications chapter includes additional information.
If you connect floating signals to the IOtech 6224, connecting the EX– signal to the earth ground or shield will result
in better noise rejection.
Each of the twelve analog channels has its own 24-bit ADC and input amplifier. This allows you to simultaneously
sample signals from all twelve channels.
The 6224 includes anti-aliasing filters. Filtering is based on the sampling rate.
Filtering
The IOtech 6224 uses a combination of analog and digital filtering to provide an accurate representation of desirable
signals while rejecting out-of-band signals. The filters discriminate between signals based on the frequency range, or
bandwidth, of the signal. The three important bandwidths to consider are the passband, the stopband, and the alias-
free bandwidth.
The IOtech 6224 represents signals within the passband as quantified primarily by passband flatness and phase
nonlinearity. The filters reject frequencies within the stopband as quantified by stopband rejection. All signals that
appear in the alias-free bandwidth are either unaliased signals or signals that have been filtered by at least the
amount of the stopband rejection.
•Passband - The signals within the
passband have frequency-dependent gain or
attenuation. The small amount of variation
in gain with frequency is called the
passband flatness. The filters of the IOtech
6224 adjust the frequency range of the
passband to match the data rate. Therefore,
the amount of gain or attenuation at a given
frequency depends on the data rate. The
following figure shows typical passband
flatness for a range of data rates.
•Stopband - The filter significantly
attenuates all signals above the stopband
frequency. The primary goal of the filter is
to prevent aliasing. Therefore, the stopband frequency scales precisely with the data rate. Stopband rejection is
the minimum amount of attenuation applied by the filter to all signals with frequencies that would be aliased
into the alias-free bandwidth.
•Alias-Free Bandwidth - Any signal that appears in the alias-free bandwidth of the 6224 is not an aliased
artifact of signals at a higher frequency. The alias-free bandwidth is defined by the ability of the filter to reject
frequencies above the stopband frequency and equals the data rate minus the stopband frequency.

1-4 General Information 949290 IOtech 6224 User’s Manual
Synchronization
To synchronize from two to nine 6000 Series devices, link
them together with synchronization cables as indicated in the
example figure. Note that the first device (relative to the
circuit) will be the Master. The last device connected will be
the Terminating Slave. Thus the synchronized devices must
proceed sequentially from the Master to Terminating Slave, as
indicated in the figures.
After physically linking the devices via the sync cables, they must still be configured as a “Synchronized Device Group” in
the Encore software. To do this, use the Synchronize Devices page of Encore’s Hardware Setup tab.
Each Synchronized Group consists of one Master Device
and at least one Slave Device.By default, the first 6000
Series device added to the Synchronization Group will be
the Master and the last device added to the group will be the
Terminating Slave.
Encore’s Synchronized Device Group Configuration
panel includes a pull-down list which allows you to select
the device that you want to have function as Master and the
one you want to function as Terminating Slave, should this
be different than the default settings.
Encore will display a Synchronization Error icon if it
detects that a necessary synch cable is missing or not
properly connected.
Up to nine units can be synchronized. The total combined length of the SYNC cables is not
to exceed 2.438m (8 ft).
Unplug sync cables from devices that are not intended to be part of a “Synchronized Device
Group.” Leaving a sync cable connected to an independent device can lead to errors.
Leaving an un-terminated sync cable on a synchronized device can lead to errors.
Reference Note: For detailed information refer to the Encore software’s Comprehensive Help.
You can access the Help from within Encore. After doing so, navigate to the synchronization
related topic as follows from the Help’s Contents panel:
Configuring Hardware>>Hardware Setup>>Synchronizing Devices.

IOtech 6224 User’s Manual 949290 General Information 1-5
Stacking Plate and Handle Options
IOtech 6000 Series device chassis are equipped with feet (on the lower panel) and dimples (on the upper panel) to
allow for quick stacking of units.
A rigid securing of two or more units together is possible with the use of optional stacking plate kits (190658A-01).
Each kit contains two stacking plates and eight screws (8-32 x .500 in., Phillips Flat, 82 Degree). If needed,
additional kits can be used to stack and secure more devices.
An optional handle kit (HA-210-5-BK) is available to provide a convenient way of carrying a single 6000 Series
device or a secured stacked set of devices. Each handle kit includes one black molded plastic handle and two
mounting screws (1/4-20 x 7/8 in., Phillips Pan Head).
To attach two or more 6000 Series devices to each other using stacking plates:
1. Align the bottom two holes of a plate (hole tapers facing out) with the top two center holes of the lower
6000 Series device.
2. Secure the plate with two 8-32 x .500 in. Phillips screws (provided). Tighten the screws snug, but do not
over-tighten.
3. Repeat steps 1 and 2 for the second plate, on the other side of the 6000 Series device.
4. Attach the second 6000 Series device using the remaining four screws.
5. Repeat these steps with other stacking plate kits and devices as applicable.
To mount a handle:
Attach the handle to a 6000 Series device using the two outer holes on the device and the two 1/4-20 x 7/8 in.,
Phillips Pan Head screws (provided). Tighten the screws snug, but do not over-tighten.
Handle
(from kit HA-210-5-BK)
Stacking Plate (1 of 2)
(from kit 190658A-01)
6000 Series Devices

1-6 General Information 949290 IOtech 6224 User’s Manual
Quarter-Bridge Completion Accessories (CN-269 & CN-270)
The CN-269 and CN-270 are Quarter-Bridge Completion kits, with each kit
consisting of four components. A single component (each member of its
respective four-pack) can be used to add a Quarter-Bridge completion resistor
to a channel on the IOtech 6224.
The CN-269 components each house a 120 ohm resistor.
The CN-270 components each house a 350 ohm resistor.
You will need an RJ50 M/M cable to use any of the Quarter-Bridge
components with an IOtech 6224. IOtech offers a pack of four RJ50 M/M,
1 meter (3.28ft) cables (see upcoming RJ50 Cables section).
As indicated in the right-hand figure below, CN-269 and CN-270 components each have two holes that can be used to loop a
plastic tie-strap through, as a means of adding strain relief for the wire connections to the screw terminals.
If you want to mount a component, use a M4x20 screw (or similar hardware) that can fit into the 8.89 mm (0.350 in.) outer
clearance/4.57 mm (0.180 in.) inner clearance hole. See figure.
Specifications
(typical for the range -40 to 70 °C)
Weight ................................................ 32 g (1.1oz) per single component
Operating temperature .................... –40 to 70 °C
Resistor values:
CN-269 .......................................... 120 Ω
CN-270 .......................................... 350 Ω
Resistance drift:
CN-269 .......................................... 0.012 Ω/°C
CN-270........................................... 0.035 Ω/°C
Resistor tolerance (at 25 °C) ............... 0.1% max
Resistor power .....................................0.25 W max
Do not connect an RJ-45 plug to an RJ-50 jack. Using RJ-45 plugs can cause
permanent damage to RJ-50 pins 1 and 10, thus disabling shunt calibration.

IOtech 6224 User’s Manual 949290 General Information 1-7
RJ50 12-Pin Screw Terminal Accessory (CN-268)
This accessory is used for Half-Bridge or Full-Bridge completion. Because bridge
completion is built into the IOtech 6224, you will only need connectivity
accessories.
The CN-268 is a set of four female RJ50 to 12-pin screw terminal adapters. You
will need an RJ50 M/M cable to use a CN-268 component with an IOtech 6224.
IOtech offers a pack of four RJ50 M/M, 1 meter (3.28ft) cables (see following
RJ50 Cables section).
As indicated in the right-hand figure below, CN-269 and CN-270 components each have two holes that can be used to
loop a plastic tie-strap through, as a means of adding strain relief for the wire connections to the screw terminals.
If you want to mount a CN-268 component, use an M4x20 screw (or similar hardware) that can fit into the 8.89 mm
(0.350 in.) outer clearance/4.57 mm (0.180 in.) inner clearance hole. See figure.
Specifications:
Weight ...................................................... 43 g (1.5oz)
Operating temperature ............................ –40 to 70 °C
Do not connect an RJ-45 plug to an RJ-50 jack. Using RJ-45 plugs can cause
permanent damage to RJ-50 pins 1 and 10, thus disabling shunt calibration.
RJ50 Cables (CA-272-01)
When connecting a cable from an IOtech 6224 RJ50 jack to an associated IOtech accessory (CN-268, CN-269, or CN-
270), be sure to only use RJ50 M/M cables. Use of another cable type can damage RJ50 pins.
IOtech’s CA-272-01 includes four RJ50 to RJ50 M/M, 1 meter (3.28ft) cables.
Pin 10
Pin 1
P1 P2
1 m (3.28ft)

IOtech 6224 User’s Manual 959790 Block Diagram 2-1
Block Diagram 2

IOtech 6224 User’s Manual 949290 Pinouts and Connectors 3-1
Pinouts and Connections 3
Strain Channels, RJ-50 Pinout …… 3-1
Bridge Connections …… 3-2
Connecting TEDS Channels …… 3-2
Remote Sensing …… 3-2
Shunt Calibration …… 3-3
Internal Excitation Voltage Sources …… 3-3
External Excitation Voltage Sources …… 3-4
Where to Find Additional Information …… 3-5
Strain Channels, RJ-50 Pinout
The twelve RJ-50 (10p10c) jacks each have 10 pins with signal designations as indicated in the following table.
RJ-50 (10p10c) Modular Plug and Jack Pinout
Pin # Signal Name Signal Description
RJ-50
Front View
1 SC Shunt Calibration
2 AI+ Positive Input Signal
3 AI- Negative Input Signal
4 RS+ Positive Remote Sense Signal
5 RS- Negative Remote Sense Signal
6 EX+ Positive Excitation Signal (Note 1)
7 EX- Negative Excitation Signal (Note 1)
8 T+ TEDS DATA (Note 2)
9 T- TEDS Return (Notes 1 & 2)
10 SC Shunt Calibration
Note 1: The three channel blocks each share three signals [within their block], as follows:
•For CH1, CH2, CH3, and CH4, the signal values of pins 6, 7, and 9 are shared.
•For CH5, CH6, CH7, and CH8, the signal values of pins 6, 7, and 9 are shared.
•For CH9, CH10, CH11, and CH12, the signal values of pins 6, 7, and 9 are shared.
Note 2: IOtech 6224 only supports TEDS if the acquisition software being used supports TEDS.
Do not connect an RJ-45 plug to an RJ-50 jack. Using RJ-45 plugs can cause
permanent damage to RJ-50 pins 1 and 10, thus disabling shunt calibration.

3-2 Pinouts and Connections 949290 IOtech 6224 Users Manual
Bridge Connections
The following figures indicate how to connect bridges to an IOtech 6224. The manner in which these
signals correspond to the RJ-50 connector is shown on the preceding page.
Quarter-Bridge
Half-Bridge
Full-Bridge
Notes:
(1) When connecting a bridge to an IOtech 6224, the following connections are optional: RS+, RS-, SC, T+, T-.
(2) For the half-bridge and quarter-bridge, there is no AI- signal to connect.
(3) To create a quarter-bridge, place an external resistor across the two SC lines of a half-bridge. IOtech offers
two external Quarter-Bridge accessories, CN-269 (120 ohm) and CN-270 (350 ohm). See chapter 1 for
additional information regarding these accessories.
(4) Chapter 6 contains additional bridge information, including diagrams of the various bridge types that can be
selected in Encore and whether they apply to axial and/or bending strain.
Connecting TEDS Channels
Before connecting TEDS, be sure that your software supports TEDS. If it does, when connecting
TEDS ensure that neither TEDS data (T+) nor TEDS return (T–) is tied in common to any AI signals
on the IOtech 6224. See preceding schematics.
Remote Sensing
Wire resistance can create errors in bridge circuits. The
IOtech 6224 can correct for these errors using two
mechanisms: (1) Remote Sensing and (2) Shunt Calibration.
Remote sensing continuously and automatically corrects for
errors in excitation leads, and generally is most appropriate
for full- and half-bridge sensors.
Long wire and smaller gauge wire have greater resistance,
which can result in gain error. The voltage drop caused by
wire resistance in the wires, which connect the excitation
voltage to the bridge, is a source of gain error. The IOtech
6224 includes remote sensing to compensate for this error.
Remote sense (RS) wires are connected to the point where
the excitation voltage wires connect to the bridge circuit, as
seen in the figure.

IOtech 6224 User’s Manual 949290 Pinouts and Connectors 3-3
In the preceding figure, the actual bridge excitation voltage is smaller than the voltage at the EX+ and EX– leads.
If remote sensing of the actual bridge voltage is not used, the resulting gain error is as follows:
Error in Full-bridge sensors = 2RLead/RBridge
Error in Half-bridge sensors = RLead/RBridge
If the remote sense (RS) signals are connected directly to the bridge resistors, then the IOtech 6224 senses
the actual bridge voltage sense and eliminates the gain errors caused by the resistance of the EX+ and EX– leads.
Shunt Calibration
The second mechanism [aside from remote sensing] used to correct errors from wire resistance is Shunt
Calibration. This involves simulating the input of strain by changing the resistance of an arm in the bridge.
This is accomplished by shunting, or connecting, a large resistor of known value across one arm of the
bridge, creating a known strain-induced change in resistance. The output of the bridge can then be
measured and compared to the expected voltage value. The results are used to correct gain errors in the
entire measurement path, or to simply verify general operation to gain confidence in the setup.
Shunt calibration can be used to correct for errors from the resistance of both the excitation wiring and
wiring in the individual resistors of the bridge. Shunt calibration is most critical when measurements are
made on Quarter-Bridge sensors because there is no means to remotely sense around any IR drops in the
connection wiring.
The IOtech 6224 includes a precision 100kΩ resistor and a software-controlled switch for each channel.
You can leave the shunt calibration terminals connected to the sensor, and then apply or remove the shunt
calibration resistance in software.
While remote sensing corrects for resistances from the EX terminals on the 6224 to the sensor, shunt
calibration corrects for these errors and for errors caused by wire resistance within an arm of the bridge.
A stable signal, which is typically the unloaded state of the sensor, is used first with the shunt calibration
switch OFF, and then again with the switch ON. The difference in these two measurements provides an
indication of the gain errors from wiring resistances and corrections for offset errors.
Internal Excitation Voltage Sources
The IOtech 6224 houses three internal voltage sources; each serves 4 channels. The first source applies excitation
voltage to CH1 through CH4, the second to CH5 through CH8, and the third to CH9 through CH12.
The sensor industry does not recognize a single standard excitation voltage level. However, excitation voltage
levels residing in the range of 2.5V to 10 V are common. Encore’s selections for internal excitation are 2.5V, 3.3V,
5V, and 10V, and each of the three internal voltage sources can provide up to 150 mW of excitation power. The
6224 automatically reduces internal excitation voltages, as needed, to stay below 150mW.
Since channels are associated by groups of four, the excitation setting applied to one channel in a group will also be
applied to the other channels in that group. As an example: if channel 1 is set to have and internal excitation of
3.3V, then channels, 2, 3, and 4 will also have 3.3V excitation.
The 6224 measures the ratio of bridge output to bridge excitation, and as such does not require accurate excitation
voltage. For this reason the excitation voltage is not precisely regulated and may vary as much as
10% from the requested voltage, while still achieving accurate measurements.

3-4 Pinouts and Connections 949290 IOtech 6224 Users Manual
The power consumed by a single bridge is Vex
2/R
Where Vex is the excitation voltage and R is the total resistance of the bridge.
For a full bridge, R is equal to the resistance of each element. For a half or quarter bridge, R is equal to two times
the resistance of each element.
For each of the three voltage sources, the 150 mW limit allows you to power full and half bridges as follows:
•Four 350 Ω half bridges at 5.0 V, or
•Four 350 Ω full bridges at 3.3 V, or
•Four 120 Ω half bridges at 2.5 V
If you need an excitation voltage greater than 150 mW, use the four-position external excitation voltage connectors
(see following section). Each of the three external connectors can be used to provide external excitation to four
channels of the 6224; thus all twelve channels can receive external excitation.
External Excitation Voltage Sources
The 6224 front panel includes three 4-pin connectors which provide a means of connecting external excitation
voltage sources.
Each external voltage source serves 4 channels, as follows; the first source applies excitation voltage to CH1
through CH4, the second to CH5 through CH8, and the third to CH9 through CH12.Since channels are associated
by groups of four, what you set for one channel (in a group) will also be applied to other channels of that group.
Example: if you set channel 1 for 10V external excitation, channels, 2, 3, and 4 will also have 10V external
excitation.
The sensor industry does not recognize a single standard excitation voltage level. However, excitation voltage
levels residing in the range of 2.5V to 10 V are common.
Unless you supply external excitation voltage, we recommend that you set the excitation voltage
to a value that keeps the total power below 150 mW.
The pinout and manufacturing information for the external excitation voltage source connector follows.
Contact IOtech for more information.
Manufacturer Information
Molex Mating Connector
4-position housing (43025-0400)
Crimp terminal (43030-0007)
Also see the preceding section, Internal Excitation Voltage Sources.
-+
Silkscreen polarity orientation
markers visible on 6224 chassis
Top of Chassis

IOtech 6224 User’s Manual 949290 Pinouts and Connectors 3-5
Where to Find Additional Information
For detailed information, refer to the applicable software documentation, including software help files. Note
that the Encore software includes both a Context-sensitive Help and access to a Comprehensive Help
document.
In addition to software documentation, information regarding aliasing, anti-aliasing, sensors, accelerometers,
sound and vibration, and transducers may prove useful to your application. The internet is a great source for
this material.
In regard to TEDS (Transducer Electronic Data Sheet), you may find the IEEE 1451 standard to be
of interest.

User’s Manual 949290CE-Compliance & Noise Considerations 4-1
CE Compliance & Noise Considerations 4
Overview …… 4-1
Safety Conditions …… 4-1
Emissions/Immunity Conditions …… 4-2
CE Rules of Thumb …… 4-2
Noise Considerations …… 4-3
Overview
CE compliant products bear the “CE” mark and include a Declaration of Conformity stating the
particular specifications and conditions that apply. The test records and supporting documentation
that validate the compliance are kept on file at the factory.
The standards are published in the Official Journal of European Union under direction of CENELEC
(European Committee for Electrotechnical Standardization). The specific standards relevant to data
acquisition equipment are listed on the product’s Declaration of Conformity.
This product meets the essential requirements of applicable European directives, as amended for
CE markings in accordance with the product family standard for:
•electrical equipment for measurement, control, and laboratory use
•immunity requirements for equipment used in controlled EM environments
Refer to this product’s Declaration of Conformity (DoC) for any additional regulatory compliance
information. To obtain the DoC for this product, visit iotech.com/CE
Safety Conditions
Users must comply with all relevant safety conditions as stated in the user’s manual and in the pertinent
Declarations of Conformity. Both the documentation and the associated hardware make use of the
following Warning and Caution symbols. If you see any of these symbols on a product or in a document,
carefully read the related information and be alert to the possibility of personal injury and/or equipment
damage.
This WARNING symbol is used in documentation and/or on hardware to warn of
possible injury or death from electrical shock under noted conditions.
This WARNING/CAUTION symbol is used to warn of possible personal injury or
equipment damage under noted conditions.
This CAUTION symbol warns of possible equipment damage due to electrostatic
discharge. The discharge of static electricity can damage some electronic
components. Semiconductor devices are especially susceptible to ESD damage. You
should always handle components carefully, and you should never touch connector
pins or circuit components unless you are following ESD guidelines in an appropriate
ESD-controlled area. Such guidelines include the use of properly grounded mats and
wrist straps, ESD bags and cartons, and related procedures.
Unless otherwise stated our data acquisition products contain no user-serviceable
parts. Only qualified personnel are to provide service to the devices.

4-2 CE-Compliance & Noise Considerations 949290User’s Manual
The specific safety conditions for CE compliance vary by product; but general safety conditions include the
following bulleted items:
•The operator must observe all safety cautions and operating conditions specified in the
documentation for all hardware used.
•The host computer and all connected equipment must be CE compliant.
•All power must be off to the device and externally connected equipment before internal access to the
device is permitted.
•Ensure that isolation voltage ratings do not exceed documented voltage limits for power and signal
inputs. All wire insulation and terminal blocks in the system must be rated for the isolation voltage
in use. Voltages above 30 Vrms or ±60 VDC must not be applied if any condensation has formed on
the device.
•Current and power use must not exceed specifications. Do not defeat fuses or other over-current
protection.
Emissions/Immunity Conditions
The specific immunity conditions for CE compliance vary by product. General immunity conditions include the
following:
•Cables must be shielded, braid-type with metal-shelled connectors. Input terminal connections are to be
made with shielded wire. The shield should be connected to the chassis ground with the hardware provided.
•The host computer must be properly grounded.
•In low-level analog applications some inaccuracy is to be expected when I/O leads are exposed to RF fields
or transients, as noted on the Declaration of Conformity, if applicable to the device.
CE Rules of Thumb
The IOtech device is CE Compliant at the time it leaves the factory and should remain in compliance as long as the
conditions stated on the Declaration of Conformity continue to be met.
A few general rules of thumb:
•Use short cables.
•When assembling or disassembling components, take ESD precautions,
including the use of grounded wrist straps.
•Ensure that the host computer is CE Compliant.
•Review the most recent Declaration of Conformity.
•Ensure all system components are properly grounded.
