iPA IPA-1C240 User manual

OPERATION MANUAL
PUBLIC ADDRESS SYSTEM
POWER AMPLIFIER
IPA-1C240
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
ON
OFF
POWER
CLIP TEMP PROT SIGNAL
VOLUME
5
0
1
2
3
4 6
7
8
9
10
IPA-1 C 240
POW ER AM P LI F IE R

2
1. SAFETY PRECAUTIONS ........................................................................................ 3
2. GENERAL DESCRIPTION ..................................................................................... 5
3. FEATURES ............................................................................................................... 5
4. NOMENCLATURE AND FUNCTIONS
4. 1 Front Panel ..................................................................................................................6
4. 2 Rear Panel...................................................................................................................7
5. CONNECTIONS .........................................................................................................8
6. OPERATION GUIDANCE
6. 1 .......................................................................9
6. 2 ...........................................................9
6. 3 .................................................................................................... 10
6. 4 POWER SUPPLY INPUT .............................................................................................10
6. 5 SPEAKER OUTPUTS 4~16¦& 70V& 100V.................................................................... 11
7. ......................................................................................... 12
8. APPLICATIONS ...................................................................................................... 13
9. BLOCK DIAGRAM...................................................................................................14
10. SPECIFICATIONS .......................................................................... .....................15
11.DIMENSIONAL DIAGRAM .................................................................................. 16
POWER SWITCH & POWER INDICATOR
PHONE JACK LINE INPUT AND XLR LINE INPUT
XLR LINE OUTPUT
MACHINE OPERATION
TABLE OF CONTENTS

3
1. SAFETY PRECAUTIONS
Be sure to read the instructions in this section carefully before use.
Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
When Installing the Unit
Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the
unit. Using a voltage higher than that which is
specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the
power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in fire or
electric shock.
Be sure to replace the unit's terminal cover after
connection completion. Because high voltage is
applied to the speaker terminals, never touch these
terminals to avoid electric shock.
Be sure to ground to the safety ground (earth)
terminal to avoid electric shock. Never ground to a
gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down, causing personal injury and/or property
damage.
When the Unit is in Use
Should the following irregularity be found during
use, immediately switch off the power, disconnect
the power supply plug from the AC outlet and
contact your nearest dealer. Make no further
attempt to operate the unit in this condition as this
may cause fire or electric shock.
If you detect smoke or a strange smell coming
from the unit.
If water or any metallic object gets into the unit
If the unit falls, or the unit case breaks
If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
If it is malfunctioning (no tone sounds.)
To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
your nearest dealer.
IPA
IPA
Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a fire
or electric shock.
Do not insert nor drop metallic objects or
flammable materials in the ventilation slots of the
unit's cover, as this may result in fire or electric
shock.

SAFETY PRECAUTIONS
4
An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in
the electrical installation of the building.
When Installing the Unit
Never plug in nor remove the power supply plug
with wet hands, as doing so may cause electric
shock.
When unplugging the power supply cord, be sure
to grasp the power supply plug; never pull on the
cord itself. Operating the unit with a damaged
power supply cord may cause a fire or electric
shock.
When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
cause damage to the power cord, resulting in fire or
electric shock. When removing the power cord, be
sure to hold its plug to pull.
Do not block the ventilation slots in the unit's cover.
Doing so may cause heat to build up inside the unit
and result in fire.
Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.
When the Unit is in Use
Do not place heavy objects on the unit as this may
cause it to fall or break which may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.
Make sure that the volume control is set to
minimum position before power is switched on.
Loud noise produced at high volume when power is
switched on can impair hearing.
Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
Contact your dealer as to the cleaning. If dust
is allowed to accumulate in the unit over a long
period of time, a fire or damage to the unit may
result.
IPA
If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it
periodically. In addition, insert the plug in the wall
outlet securely.
Switch off the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.
Due to product upgrades, while some of the features and specification in the user manual does not
match the actual functions, sorry for any inconvenience and thanks for your kind understanding!

3. FEATURES
This range of power amplifiers are designed for general commercial and industrial public address ap-
plications. Rack mount design in 2U type, rated power ranges 240W which provides a wide selection
to meet different size sound system needs. Both balanced and unbalanced line inputs make it selec-
table for installer, balanced line output feeds to another power amplifier as well as secures the signal
transmission is less noise and longer distance. 70V, 100V and 4-16ohm speaker outputs are conveni-
ent for installation when selection different speaker matching. A master volume control is included.
Complete protection includes clip, short circuit, high temp and overload. Indications for power,
signal, clip, protection and temp.
2. GENERAL DESCRIPTION
1. Rack mount amplifier in 2U type
2. Rated power 240W
3. 70V, 100V and 4~16ohm speaker outputs
4. solated transformer for human safety operation
5. Balanced XLR type line input and unbalanced 1/4 inch TRS phone jack line input
6. Balanced XLR type line output feeds to another power amplifier
7. Reliable protection of over heat, over load, clip & short circuit.
8. Indications for power, signal, clip, protection and temp
9. Excellent device of radiator cooling fanner that ensures working effectively.
10. GND/lift switch to have two options: earth line grounded or lifted
5

1. POWER SWITCH
On top of the opening PowerЈPress the end, power shut down
2. VOLUME
Channel volume control
3. TEMP
The protection indicator will be light on when the inside temperature is over 90C, the output
will be
cut to protect the amplifier from damage. It will resume to work after cooling down
4. PROT
The protection indicator will be light on when the constant output is 160% higher than the rated
output, the output will be cut to protection the amplifier from damage. This indicator will be
extinguished when amplifier is under normal working conditions.
5. CLIP
Clip lit when max wattage output & output signal distortion.
6. SIGNAL
Signal indicator LED When lit input signal is detected.
7. POWER
Power indicator LED
1 2
4. NOMENCLATURE AND FUNCTIONS
4.1 FRONT PANEL
3
4
56
7
6

GND
LIFT
INPUTS LINK
COM
4-16¦70V 100V
OUTPUTS
COM COM
INPUTS LINK
12
3
XLR BAL
1-GND
2-HOT+
3-COLD-
NOMENCLATURE AND FUNCTIONS
8. ~230V 50Hz POWER INPUT
9. COMMON SPEAKER OUTPUT
Connectors for 4 ohms or 70V and 100V
speaker
10. LINE INPUT (XLR)
Music signal input balance
11. LINE INPUT (6.35TRS)
Balanced or unbalanced input music signal (unbalanced input, use of non-equilibrium
6.35TRS jack)
12. LINK OUTPUT (6.35TRS)
Balanced or unbalanced output music signal (unbalanced output, use of non-equilibrium
6.35TRS jack)
13. LINE CASCADE OUTPUT (CORLEONE SOCKET)
XLR, output signal of power amplifier
14. FAN
Equipment, exhaust vents, equipment work properly, you must wrap the hole can not have any
object covered, to avoid overheating protection
15. GROUND LIFTER
Earth line ground or lift switch. Enable the switch to "GND" position when one unit is used,
disable the switch "LIFT" when several units are used to avoid noise caused by several earth
line grounded.
4.2 REAR PANEL
8 9 10 11 13 14
15
7
12

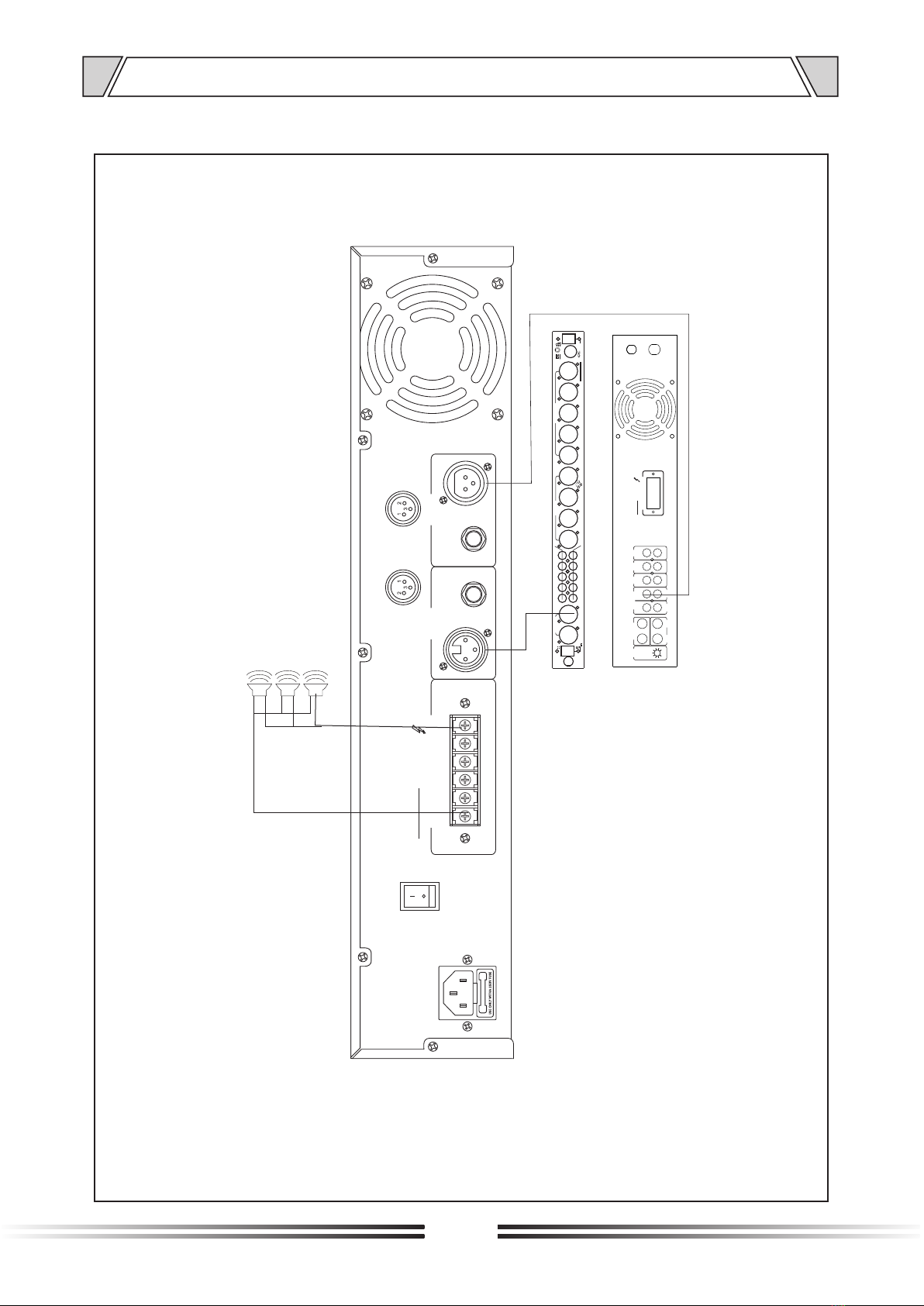

5. CONNECTIONS

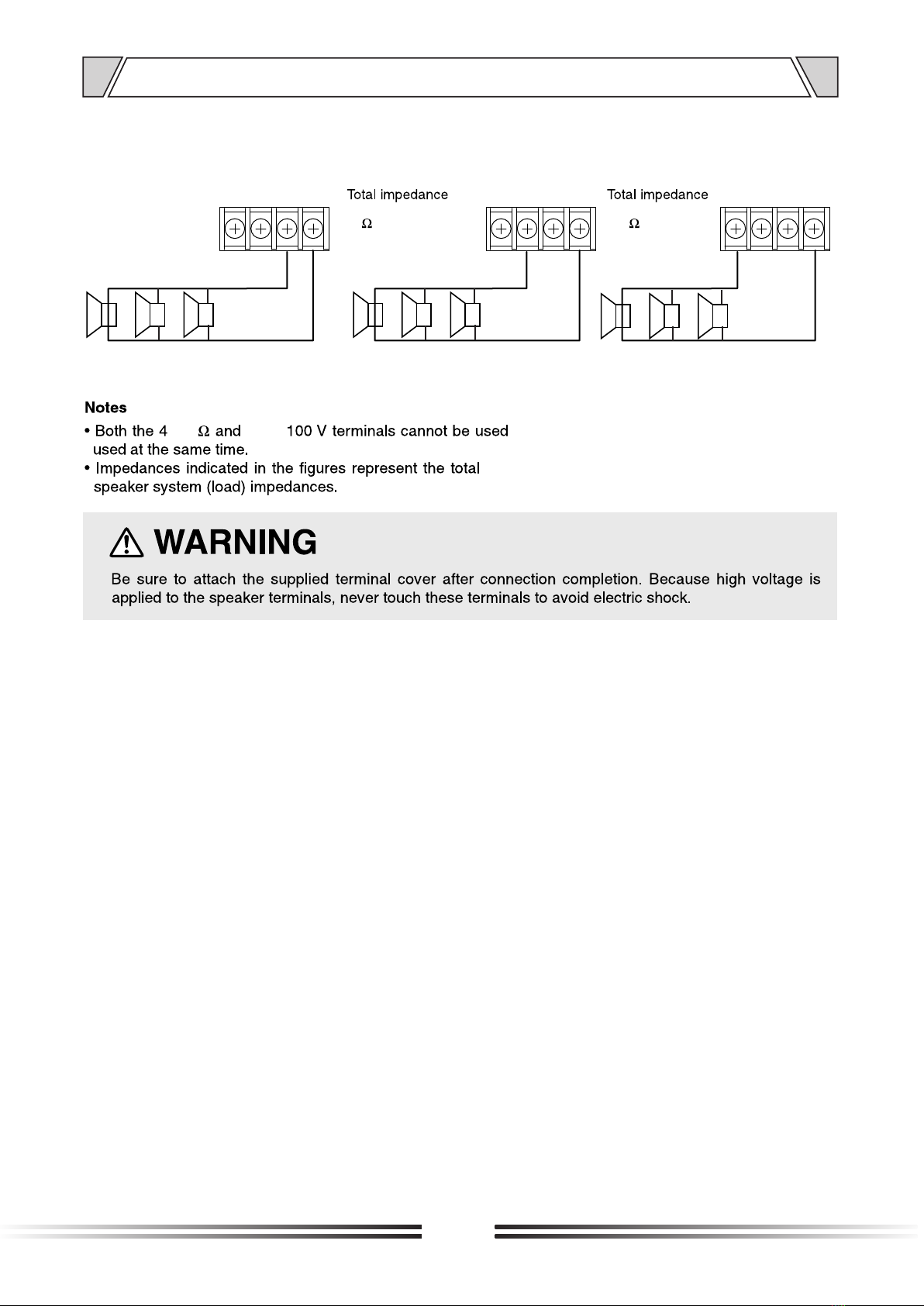

SPEAKER CONNECTIONS
70V/
4~16
100V
4~16¦ LINE
70V COM
70V LINE
20
100V LINE
(IPA-1C240) 42 (IPA-1C240)
100V 70V 4~16¦ COM 4~16¦ 100V 70V COM 4~16¦
8

INPUTS L INK
INP UTS LI NK
12
3
XLR B AL
1-G ND
2-H OT+
3-C OLD-
GND
LIF T
INP UTS LI NK
COM
4-16 ¦70V 1 00V
OUT PUTS
COM COM
INP UTS LIN K
12
3
XLR B AL
1-G ND
2-H OT+
3-C OLD-
Picture 1.1
Electricity power on when power switch is at ЎONЎ position and power indicator light in blue.
Electricity power off when power switch is at ЎOFFЎ position and power indicator extinguished.
T-1S60
POWER AMPLIFIER
Notice:
Please make sure amplifier operation is under well power supplied status. Please contact
professional technician from distributor for any repairment.

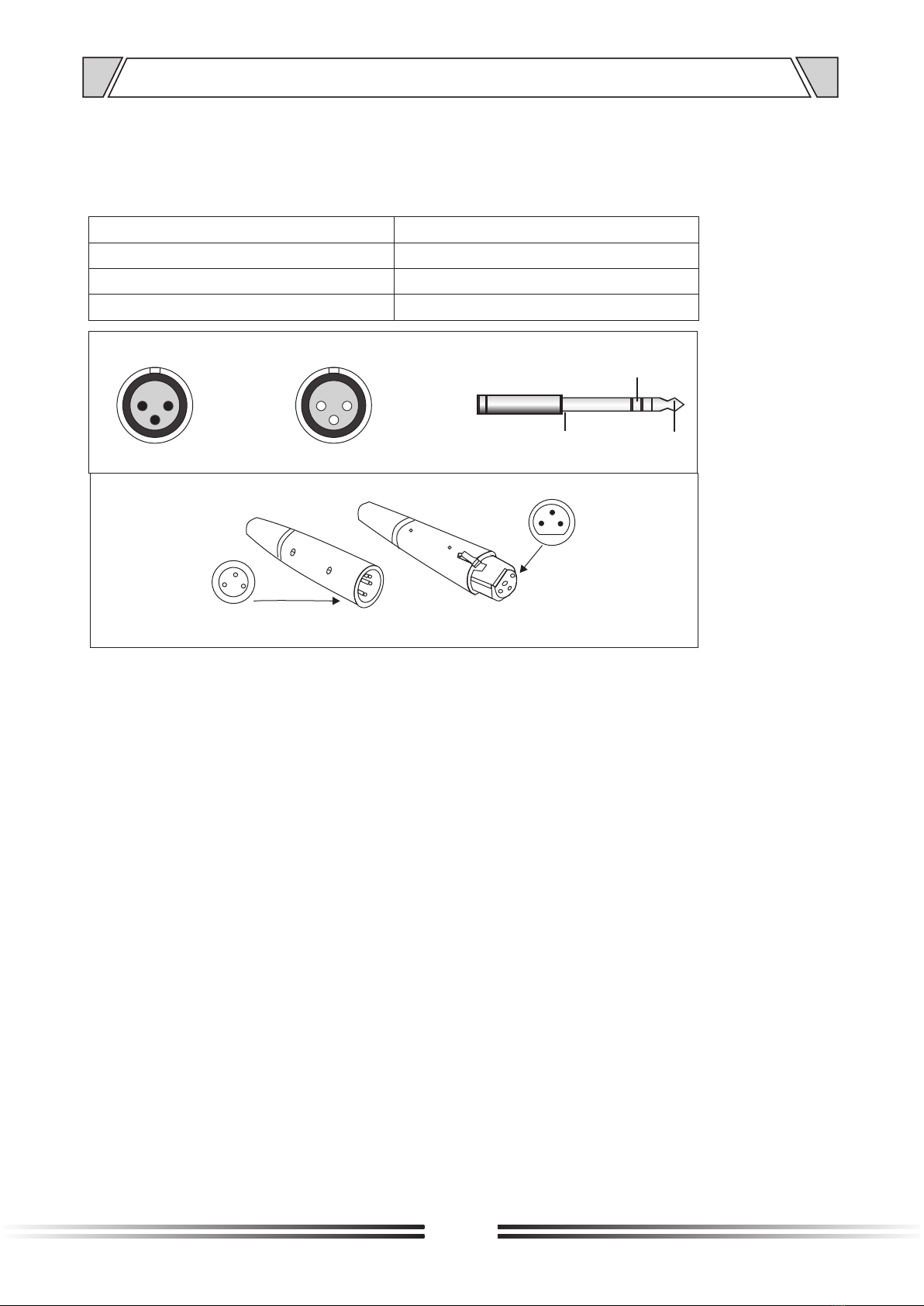

6.2 PHONE JACK LINE INPUT AND XLR LINE INPUT
70V,Speaker Output
+
-
1
2
3
456
7
8
9
10
0
POWER
ON
OFF
1
2
3
456
7
8
9
10
0
1
2
3
456
7
8
9
10
0
1
2
3
456
7
8
9
10
0
1
2
3
456
7
8
9
10
0
1
2
3
456
7
8
9
10
0
1
2
3
456
7
8
9
10
0
1
2
3
456
7
8
9
10
0
-4
-3
-2
-1 0+1
+2
+3
+4
+5-5
1
2
3
456
7
8
9
10
0
-4
-3
-2
-1 0+1
+2
+3
+4
+5-5
CHIME MIC1 MIC2 MIC3 MIC4 AUX1 AUX2 AUX3 BASS TREBLE MASTER
PRE-AMPLIFIER
6.3mm phono jack 180 3-pole XLR
1 foo t for the g round
2 S ign al Hot -si de (po sit ive)fee t
3 fee t signa l cold si de (n egat ive )
1 2
3
1 CH Pre-Amplifier
100V 70V 50V 4¦COM
LINK
OUTP UTS
INPU TS
Both phone jack and XLR inputs are balanced. Both are one of your options for line signal inputs from pre
amplifier or mixer. The line output volume level is controlled by front panel knobs
6. OPERATION GUIDANCE
6.1 POWER SWITCH & POWER INDICATOR
Picture 1.2
Notice:
please minimum the volume knob to "MIN" position when line input is operated to avoid electricity
shock to the amplifier.
9

INPUTS LINK
INPUTS L INK
12
3
XLR BAL
1-GND
2-HOT+
3-COLD -
GND
LIF T
INP UTS LI NK
COM
4-16 ¦70V 1 00V
OUT PUTS
COM COM
INP UTS LIN K
12
3
XLR B AL
1-G ND
2-H OT+
3-C OLD-
GND
LIF T
INP UTS LI NK
COM
4-16 ¦70V 1 00V
OUT PUTS
COM COM
INP UTS LIN K
12
3
XLR B AL
1-G ND
2-H OT+
3-C OLD-
+
-
6.3mm phono jac k 180 3-pole XLS
1 2
3
OUTP UTS
COM 4- 16¦ 7 0V 100VCOM COM
Ѕ Ё
РРµ»ЗОҐЇ
µЙ±·Й№Х КЈ·ЧТИФЗО
ЧРІ»ЈТГ ·Йµ»К№Ў
ЧТ :
№ЦК±ВµЧУП№Л
№ЦК·ШЗ ВЖЅ
ВПґВПµ Т№ТґC¶¶І
Power Amplifier
OUTPUT S
COM 4-1 6¦ 70V 10 0VCOM C OM
GND
LIFT
6.3 XLR LINE OUTPUT
Picture 1.3
The XLR input is balanced. The line output could link another amplifier for more loudspeaker connection. The
line output volume level is controlled by front panel knobs.
°ИРЦ
Notice:
please minimum the volume knob to "MIN" position when line output is operated to avoid electricity
shock to the amplifier.
6.4 POWER SUPPLY INPUT
COM
GND
LIF T
РРµ»ЗОҐЇ
µЙ±·Й№ ХКЈ·ЧТИФЗО
ЧРІ»ЈТ Г·Йµ»К№Ў
ЧТ :
Picture 1.4
70V,Speaker Output
1 foo t for the g round
2 Sig nal Hot -side (po sitive)fee t
3 fee t signa l cold si de (neg ative )
Power electricity to supply power to this amplifier. Please make sure suitable AC voltage inputs by guidance
of this equipments silk printing and specifications. Take off the power cord when non-use
°ИРЦ
Notice: Please input only suitable AC voltage to avoid any burn and damage to the amplifier.
10
OPERATION GUIDANCE

GND
LIF T
INP UTS LI NK
COM
4-16 ¦70V 1 00V
OUT PUTS
COM COM
INP UTS LIN K
12
3
XLR B AL
1-G ND
2-H OT+
3-C OLD-
6.5 SPEAKER OUTPUTS 4~16¦& 70V& 100V
4-16¦,SPEAK 70V,SPEAK 100V,SPEAK
+
-
+
-
+
-
OUTPUT S
COM 4-16¦ 70V 100VCOM COM
Ѕ Ё
РРµ»ЗОҐЇ
µЙ±· Й№ХКЈ·Ч ТИФЗО
ЧРІ» ЈТГ·Йµ» К№Ў
ЧТ :
№ЦК±ВµЧУП№Л
№ЦК·ШЗВЖЅ
ВПґ ВПµТ№Т ґC¶¶І
OUTPUTS
COM 4-16¦ 70V 100VCOM C OM
Ѕ Ё
РРµ»ЗОҐЇ
µЙ±· Й№ХКЈ· ЧТИФЗО
ЧРІ» ЈТГ·Йµ »К№Ў
ЧТ:
№ЦК±Вµ ЧУП№Л
№ЦК ·ШЗВЖ Ѕ
ВПґ ВПµТ№ ТґC¶¶ І
OUTPUT S
COM 4-16¦ 70V 1 00VCOM COM
Ѕ Ё
РРµ»ЗОҐЇ
µЙ±· Й№ХКЈ·Ч ТИФЗО
ЧРІ» ЈТГ·Йµ» К№Ў
ЧТ :
№ЦК±ВµЧУП№Л
№ЦК ·ШЗВЖ Ѕ
ВПґ ВПµТ№ ТґC¶¶І
High impedance and low impedance both speaker output for different application use. Only choose one of the
positive end from 4~16¦& 70V& 100V, then connect the negative end"COM" and one the positive end to the
speaker's according ends. High impedance speaker output only for high impedance speaker connection and
low impedance speaker output only for low impedance speaker connection. Speaker total power output shall
be no higher than 80% percent of the amplifier rated power output.
Notice:
No mixing connected the positive and negative ends between the amplifier and loudspeaker.
Never allowed to use more than one output among 4~16¦/70V/100V.
Speaker continuous power output never higher than 80% of the amplifier rated power output.
Never connect high impedance output to low impedance speaker nor connect low impedance output to
high impedance speaker.
Please cover the speaker output ends after wiring to avoid any touch. The speaker output are high
voltage, never touch by human body to avoid electricity shock.
11
Picture 1.5
OPERATION GUIDANCE

OPERATION ATTENTION
7. MACHINE OPERATION
MIC INPUT CHANNEL 1~3
These inputs are suitable to receive signal from microphones level devices.
This is a special connector which will accept 3-conductor XLR.
LINE JACK (TRS PHONE JACK)
Sleeve:GROUND
Tip:HOT(+)
Ring:COLD(-)
MIC JACK (XLR JACK)
Pin 1:GROUND
Pin 2:HOT(+)
Pin 3:COLD(-)
HOT
COLD
GROUND
1.GROUND
3.COLD
2.HOT
CH1/CH2 LINKS
2
3
1
CH1/CH2 INPUTS
1
3
21.GROUND
3.COLD
2.HOT
CH1/CH2 LINKS CH1/CH2 INPUTS
3
21
3
2
1
It indicate signal distortion when the panel's CLIP
LED is lighting red and it may caused by:
1. If there is excess signal input, the power LED
will light, in this case, please turn signal to the
minimum.
2. There is overload output if the LED is not ligh-
ting, please check the input circuit.
When you start the machine, it will run into auto-
checking condition, its protection LED (yellow)
will shine 3 seconds. If the protection time is too
long, please check the machine or contact with
our distribution of your local place.
=
=
=
=
=
=
=
=
Do not open and close the machine frequently.
Restart should be after 10 seconds
Power supply should match up to the machine.
The machine outfit with ground line, so please
plug on the connected-ground wire-net
As formidable shock or impact on machine s-
uch as (thunder shock, halfway signal pause,
excess rated signal input or other interference),
the machine will auto-check and restart auto-
matically.
Please switch off the switch till there is no noise
if there is a badly power abnormality or interfe-
rence.
Contact with our local distributions if machine
is failure to work.
12

8. APPLICATIONS
REAR PANEL CONNECTIONS
GND
LIFT
INPUTS LINK
COM
4-16¦70V 100V
OUTPUTS
COM COM
INPUTS LINK
12
3
XLR BAL
1-GND
2-HOT+
3-COLD-
Speaker
AUX 2 OUT
AUX 1
MIC 2 MIC3
MUT E EMC INP UT
MIC 2 MIC3
LIN E INPUT
OUT PUT
COM 4 -16¦ 70 V 100V
REC LINE 10 LINE 9 LINE 8 LINE 7
LEFT
RIGHT
MIC INPUTS MIC/LINE INPUTS
220V/50Hz
MAX 9.9W P.T.T 1 2
3
4
5
6
789
10
INSIDE AC/DC FUSE 220VAC DC POWER
24V MAX 0.6A
PUB LIC AD DRE SS SYS TEM SERIA L NO:
2 1
3
7
4
5
2
4
2
GND
PRIORITY
CHIME
LED PWR
MIC INPUT
1
3
5
6
7
1
3
6
CHIME
REMOT E
MODEL NO: IPA-SMP2
PRE AMP LIFIER
2--OUTPUTS--1
13

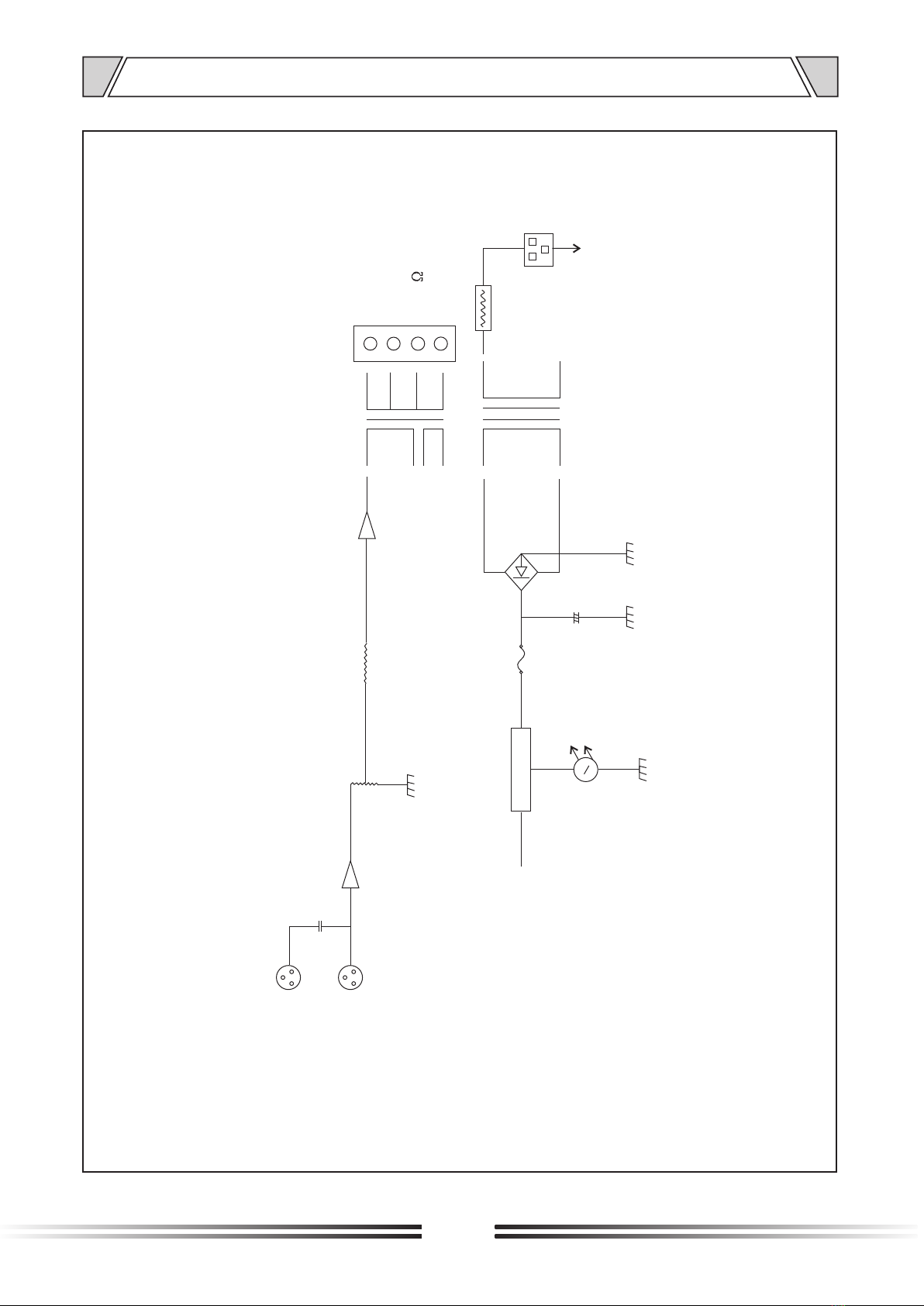

9. BLOCK DIAGRAM
EB
PA 100V
70V
CH1 LINK CH1 INPUTS TO
4~16
COM
POWER
Z ~ 50Hz
230V
PT
14

10. SPECIFICATIONS
MODEL
RATED POWER OUTPUT
SPEAKER OUTPUTS
PROTECTION
INPUT SENSITIVITY
FREQUENCY RESPONSE
S/N RATIO
T.H.D
CONTROLS
INDICATORS
4~16¦,70V/100V
775mV/0dB
50Hz~18KHz
Better than 105dB
Less than 1% at 1KHz, 1/3 rated power
Power switch, volume control
Power, clipping , Signal , protect and high
AC fuse, short-circuit , clipping and high temperature
DIMENSION(mm)
NET WEIGHT
GROSS WEIGHT
484X353X88
POWER CONSUMPTION
POWER REQUIREMENTS
~230V 50Hz
POWER AMLIFIER
IPA-1C240
240W
14.6Kg
13.2Kg
440W
15

100
Over
Over
100
94
11. DIMENSIONAL DIAGRAM
84
84
323
317
88
436
100
Over
6
25
484
UNIT :mm
UNIT :mm
16
GND
LIF T
INPUTS LINK
COM
4-1 6¦70V 100 V
OUTPUTS
COM C OM
INP UTS LINK
12
3
XLR B AL
1-G ND
2-H OT+
3-C OLD-

PUBLIC ADDRESS SYSTEM
PUBLIC ADDRESS SYSTEM
VersionV0.1
