iPA IPA-P8C User manual

Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
MIXER PRE-AMPLIFIER
IPA-P8C
OPERATION MANUAL
PUBLIC ADDRESS SYSTEM
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
POWER
ON
OFF
MIC
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
MICCH 2 CH 3 CH 4 CH 5 CH 6 CH 7
CH 1 CH 8
MIX E R P R E - A M P L I FIER
IPA - P 8 C

TABLE OF CONTENTS
1. SAFETY PRECAUTIONS .......................................................................................3
2. GENERAL DESCRIPTION ....................................................................................5
3. FEATURES ...............................................................................................................5
4. NOMENCLATURE AND FUNCTIONS
4.1 Front Panel ............................................................................................................ 6
4.2 Rear Panel..............................................................................................................7
5. OPERATING .............................................................................................................8
6. APPLICATIONS .......................................................................................................9
7.BLOCK DIAGRAM .................................................................................................10
8.SPECIFICATIONS ..................................................................................................11
9.DIMENSIONAL DIAGRAM ....................................................................................12
2

Be sure to read the instructions in this section carefully before use.
Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
When Installing the Unit
Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the
unit. Using a voltage higher than that which is
specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the
power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in fire or
electric shock.
Be sure to replace the unit's terminal cover after
connection completion. Because high voltage is
applied to the speaker terminals, never touch these
terminals to avoid electric shock.
Be sure to ground to the safety ground (earth)
terminal to avoid electric shock. Never ground to a
gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down, causing personal injury and/or property
damage.
When the Unit is in Use
Should the following irregularity be found during
use, immediately switch off the power, disconnect
the power supply plug from the AC outlet and
contact your nearest dealer. Make no further
attempt to operate the unit in this condition as this
may cause fire or electric shock.
If you detect smoke or a strange smell coming
from the unit.
If water or any metallic object gets into the unit
If the unit falls, or the unit case breaks
If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
If it is malfunctioning (no tone sounds.)
To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
your nearest dealer.
IPA
IPA
Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a fire
or electric shock.
Do not insert nor drop metallic objects or
flammable materials in the ventilation slots of the
unit's cover, as this may result in fire or electric
shock.
1. SAFETY PRECAUTIONS
3

An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in
the electrical installation of the building.
When Installing the Unit
Never plug in nor remove the power supply plug
with wet hands, as doing so may cause electric
shock.
When unplugging the power supply cord, be sure
to grasp the power supply plug; never pull on the
cord itself. Operating the unit with a damaged
power supply cord may cause a fire or electric
shock.
When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
cause damage to the power cord, resulting in fire or
electric shock. When removing the power cord, be
sure to hold its plug to pull.
Do not block the ventilation slots in the unit's cover.
Doing so may cause heat to build up inside the unit
and result in fire.
Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.
When the Unit is in Use
Do not place heavy objects on the unit as this may
cause it to fall or break which may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.
Make sure that the volume control is set to
minimum position before power is switched on.
Loud noise produced at high volume when power is
switched on can impair hearing.
Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
Contact your dealer as to the cleaning. If dust
is allowed to accumulate in the unit over a long
period of time, a fire or damage to the unit may
result.
IPA
If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it
periodically. In addition, insert the plug in the wall
outlet securely.
Switch off the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.
SAFETY PRECAUTIONS
4

3. FEATURES
The IPA-P8C has all the above feature with the addition of two more inputs for a total of eight line level
inputs and one MIC input.
2. GENERAL DESCRIPTION
1. 8 Channels level input,8 Channels output.
2. One MIC input.
3. Two EMC priority inputs.
4. EMC 1 has priority over all inputs (exception MIC 1).
5. Individual channel selectors.
5

4.1 FRONT PANEL
1. POWER SWITCH
On top of the opening Power
Press the end, power shut down
2. CH 1~CH8
(CH 1~CH8)Volume controls
3. MIC
MIC Volume controls
4. NOMENCLATURE AND FUNCTIONS
4. MIC
MIC balanced input
5. PRIORITY INDICATORS
MIC priority input indicators
6. ON/OFF
MIC priority input switch(CH1~CH8)
7. POWER
Power indicator
1
5
34
2
6
7
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
POWER
ON
OFF
MIC
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
MICCH 2 CH 3 CH 4 CH 5 CH 6 CH 7
CH 1 CH 8
6

9
11
4.2 REAR PANEL
8. EMC INPUT
EMC balanced input
9. INPUT (CH1~CH8)
(CH1 ~ CH8) signal input terminal
10.~230V 50Hz AC POWER INPUT
11.AC FUSE
12.OUTPUT (CH1~CH8)
(Ch1 ~ CH8) signal output terminal
108
CH 1CH 2CH 3CH 4CH 5CH 6CH 7CH 8EMC IN PUT
OUTP UTOUTP UTOUTP UTOUTP UTOUTP UTOUTP UTOUTP UTOUTP UT2 INPU TINPU TINPU TINPU TINPU TINPU TINPU TINPU T1
12
NOMENCLATURE AND FUNCTIONS
7

USAGE WAYS
5. OPERATING
The Pre-Amplifier match between broadcast
Pre-amplifier and broadcast power amplifier,
have emergency broadcast functions. It can
achieve broadcast system 8 areas call's matrix
control functions.
8

6. APPLICATIONS
+ ALARM I N -
ALAR M OUT
EMERGENCY PANEL
MIC LI NE
4-CHANNEL AMPLIFIER
OUT PUT 4 OUTP UT 3 OUTPU T 2 OUTPUT 1
COM 4 -16¦ 70 V 100V COM 4 -16¦ 70 V 100V COM 4 -16¦ 70 V 100V COM 4 -16¦ 70 V 100V
INP UT
4 3 21
OUT PUT 4 OUTP UT 3 OUTPU T 2 OUTPUT 1
COM 4 -16¦ 70 V 100V COM 4 -16¦ 70 V 100V COM 4 -16¦ 70 V 100V COM 4 -16¦ 70 V 100V
INP UT
4 3 2
4-CHANNEL AMPLIFIER
AUDIO
OUT
R L
AUDIO SOURCES
COM
ADRE SS TAG
AUDIO
OUT
R L
AUDIO SOURCES
COM
ADRE SS TAG
CH 1CH 2CH 3CH 4CH 5CH 6CH 7CH 8EMC IN PUT
OUTP UTOUTP UTOUTP UTOUTP UTOUTP UTOUTP UTOUTP UTOUTP UT2 INPU TINPU TINPU TINPU TINPU TINPU TINPU TINPU T1
9

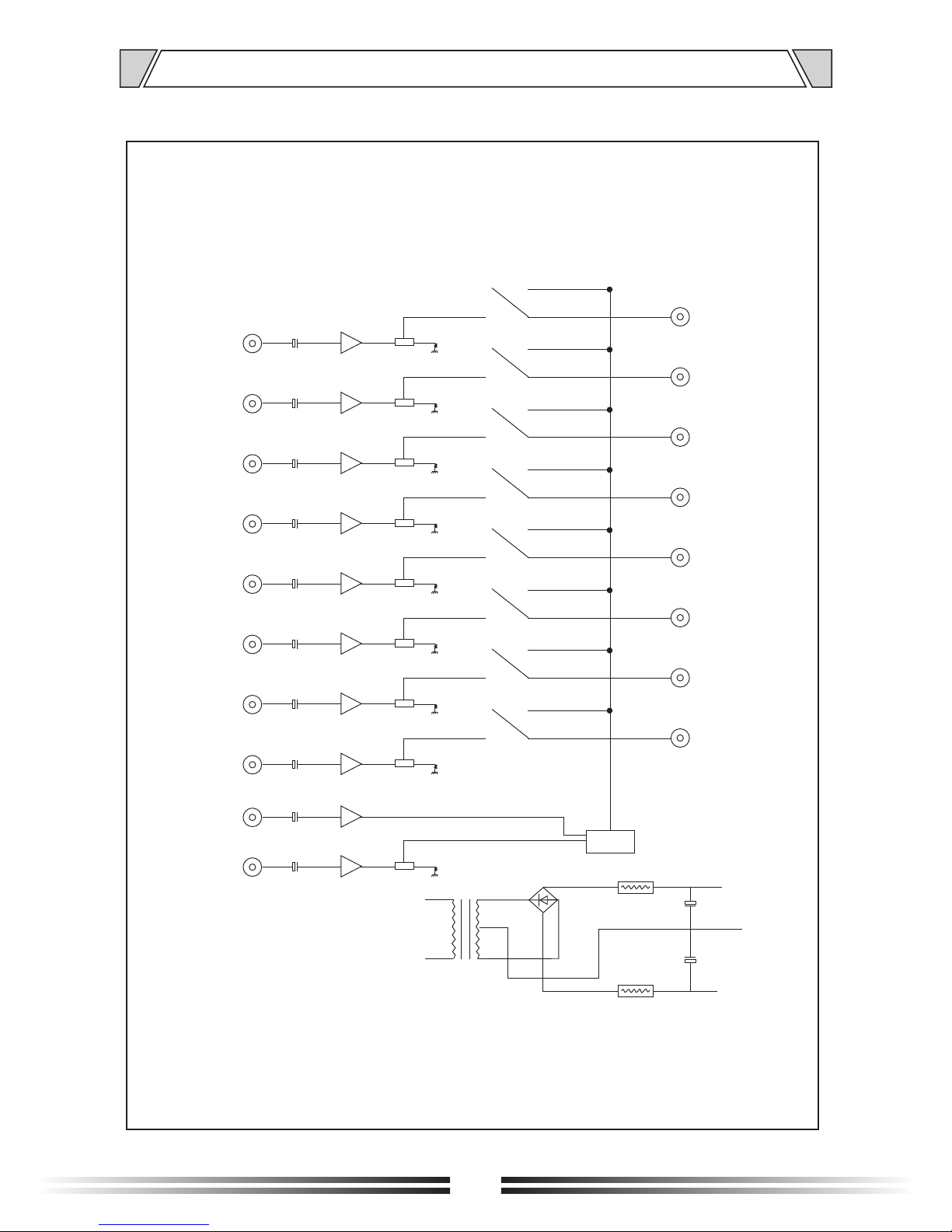

7. BLOCK DIAGRAM
MUTE
EB
IN
OUT
CH1
EB
EB
EB
EB
EB
EB
EB
IN
IN
IN
IN
IN
IN
IN
OUT
OUT
OUT
OUT
OUT
OUT
OUT
CH2
CH3
CH4
CH5
CH6
CH7
CH8
EB
EMC
EB
MIC1
220V
PT +12V
-12V
10

8. SPECIFICATIONS
MODEL
MIXER PRE-AMPLIFIER
IPA-P8C
PROTECTION
OUTPUT
INPUT
FREQUENCY RESPONSE
S/N RATIO
T.H.D
CROSSTALK
MUTING FUNCTION
CONTROLS
INDICATORS
MIC Ј 70mv/600 Ohms,Unbalanced
LINE Ј1V/10KOhms, Unbalanced
EMC Ј1.2V/10KOhms, Unbalanced
1V ,600 Ohms
100Hz~15KHz
MIC Ј66dB;LINE Ј80dB
0.1%
MIC : 80dB;LINE : 85dB
EMC 1 overrides other input signals
With 0~30 dB attenuation
LINE, MIC gain controls, channel selectors, power switch
Power LED, MIC channel LEDs
AC fuse: 1A
DIMENSION(mm)
NET WEIGHT
GROSS WEIGHT
484X353X88
POWER CONSUMPTION
POWER REQUIREMENTS
~230V 50Hz
5.9Kg
4.7Kg
35W
11

100
Over
100
Over
Over
100
UNIT :mm
9. DIMENSIONAL DIAGRAM
UNIT :mm
6
84
84
25
335
330
88
94
436
484
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
POWER
ON
OFF
MIC
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
MICCH 2 CH 3 CH 4 CH 5 CH 6 CH 7
CH 1 CH 8
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
POWER
ON
OFF
MIC
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
5
0
1
2
3
4 6
7
8
9
10
MICCH 2 CH 3 CH 4 CH 5 CH 6 CH 7
CH 1 CH 8
CH 1CH 2CH 3CH 4CH 5CH 6CH 7CH 8EMC I NPUT
OUT PUTOUT PUTOUT PUTOUT PUTOUT PUTOUT PUTOUT PUTOUT PUT2 INPU TINP UTIN PUTI NPU TINP UTIN PUTI NPU TINP UT1
12

PUBLIC ADDRESS SYSTEM
VersionV0.1
