1 Important and general information
1 Important and general information
1.1 Important information
Please follow these instructions before and during the use and application on any IPETRONIK product!
1.1.1 Safety and Warning instructions
Please follow the instructions and information as contained in the user manual!
1. The user can influence an electronic system by applying the IPETRONIK product. This might cause
risk of personal injury or property damages.
2. The use and application of the IPETRONIK product is permitted only to qualified professional
staff, as well as, only in appropriate manner and in the designated use.
3. Before using an IPETRONIK measurement system in the vehicle it has to be verified that no function
of the vehicle, which is relevant for secure operation, might be influenced:
- by the installation of the IPETRONIK measurement system in the vehicle,
- by an potential malfunction of the IPETRONIK system during the test drive.
In order to avoid possible danger or personal injury and property damages, appropriate actions are to be
taken; such actions have to bring the entire system into a secured condition (e.g. by using a system for
emergency stop, an emergency operation, monitoring of critical values).
Please check the following points to avoid errors:
- Adaption of sensors to components of the electrical system / electronics, brake system, engine and
transmission control, chassis, body.
- Tap of one or several bus systems (CAN, LIN, ETHERNET) including the required electrical
connection(s) for data acquisition.
- Communication with the vehicle’s control units (ECUs), especially with such of the brake system and/or
of the engine and transmission control (power train control system).
- Installation of components for remote data transmission (mobiles, GSM/GPRS modems, WiFi and
Bluetooth components).
The products can be operated in extended temperature ranges greater 70 ◦Cand therefore the ope-
rator has to take safety measures to avoid any skin burnings on hot surfaces while touching the
products.
4. Before directly or indirectly using the data acquired by an IPETRONIK measurement system to cali-
brate control units, please review the data regarding to plausibility.
5. With regard to the application of IPETRONIK products in vehicles during use on public roads the manu-
facturer and/or registered user of the vehicle has to ensure that all changes/modifications have no
influence concerning the license of the vehicle or its license of operation.
6. User does agree to the instructions and regulations as mentioned above. In case the user does
not agree with the instructions and regulations as mentioned above, he has to notify this expressly and
immediately in writing to IPETRONIK before confirming the sales contract.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 3/30

1.2 Terms and conditions
1.2 Terms and conditions
See IPETRONIK website for details: www.ipetronik.com
1.2.1 Legend of used icons
Tip This icon indicates a useful tip that facilitates the application of
the software.
Information This icon indicates additional information for a better understan-
ding.
Attention! This icon indicates important information to avoid potential error
messages.
1.2.2 Support
Headquarter:
IPETRONIK GmbH & Co. KG
Im Rollfeld 28
76532 Baden-Baden, Germany
Phone [phone]
Fax [phone]
inf[email protected]
Website: www.ipetronik.com
Limited commercial partnership with its head office in Baden-Baden, registry court HRA No. 201313
IPETRONIK Verwaltungs-GmbH Baden-Baden is an individually liable society, registry court Mannheim HRB
No. 202089
CEOs: A. Wocke, C. Buchholz
Technical support and product information e-mail: suppor[email protected]
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 4/30

2 Introduction
2 Introduction
The M-THERMO 96 is a thermocouple measurement device with 96 universal inputs. The unit support the TC
types E, J, K, N, R, S, T. The measurement system meets the requirements of the aerospace industry. The
primary use case is for test bench applications.
2.1 Hardware setup
2.1.1 Ethernet Interface via IPEhub2
To use the M-THERMP 96 with an Ethernet interface to the PC the following hardware is required.
ICable 620-233.xxx
ICable 620-680.xxx
IIPEhub2 interface device for Ethernet
The following diagram visualized the hardware wiring setup to power the unit and to send data to the test
bench PC or a tablet.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 5/30

2.1 Hardware setup
The following drawing shows interface cable for M-THERMO 96. It consists of 2 CAN interfaces represented
as LEMO 9-pole M-CAN connector and the second one in the SUB-D 9 format. The 2 CAN busses are
connected to the IPEhub2 which is then sending the data over Ethernet to the test bench PC.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 6/30

2.1 Hardware setup
As indicated below from the IPEhub2 an Ethernet cable is then connected to the PC.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 7/30

2.1 Hardware setup
2.1.2 CAN interface
The M-THERMO 96 can also operate with an CAN interface. In this setup it is recommended to uses a 2
channel CAN card like IPEcan FD Pro. With a CAN interface, you have the ability to use it in many
combinations with other CAN based measurement modules. The configuration of the device is supported in
the IPEmotion data acquisition software together with the IPETRON-X PlugIn from release V10.00.00. The
following diagram visualizes the cabling setup with a direct connection to a CAN card.
To use the M-THERMP 96 with an CAN card interface the following hardware is required.
ICable 620-233.xxx
ICable 620-502.xxx
IM-CAN T-Junction
IIPEcan FD Pro CAN card
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 8/30

2.1 Hardware setup
In the CAN card based set-up the cabling requirements are higher. The cable 520-502 is providing the SUB-D
interface to the CAN card and M-CAN T Junction is required to join the M-CAN 9-pole connectors.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 9/30

3 Device configuration via web interface
3 Device configuration via web interface
The intended standard use case is to use the M-THERMO 96 with an IPEhub2 over an Ethernet interface.
The configuration is done over a web interface with can be reached over the following address:
Iipe.connect.local
This web interface is a standard status interface where you have basic status information in the upper part. In
the lower pat you can define settings for the WiFi access point name (SSID) and password. Also, you can
define time zone and synchronize M-THERMO96 time stamps with your local PC time. The important button
is the Measurement View to configure the channels.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 10/30

3.1 Page Configuration - All channel overview
3.1 Page Configuration - All channel overview
The default view is the all channel table instrument which provides readings for each channel. In the factory
configuration the first reading in the thermocouple voltage in micro Volts and in the second channel the
resistance in mili Ohm is provided.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 11/30

3.2 Chanel Configuration
3.2 Chanel Configuration

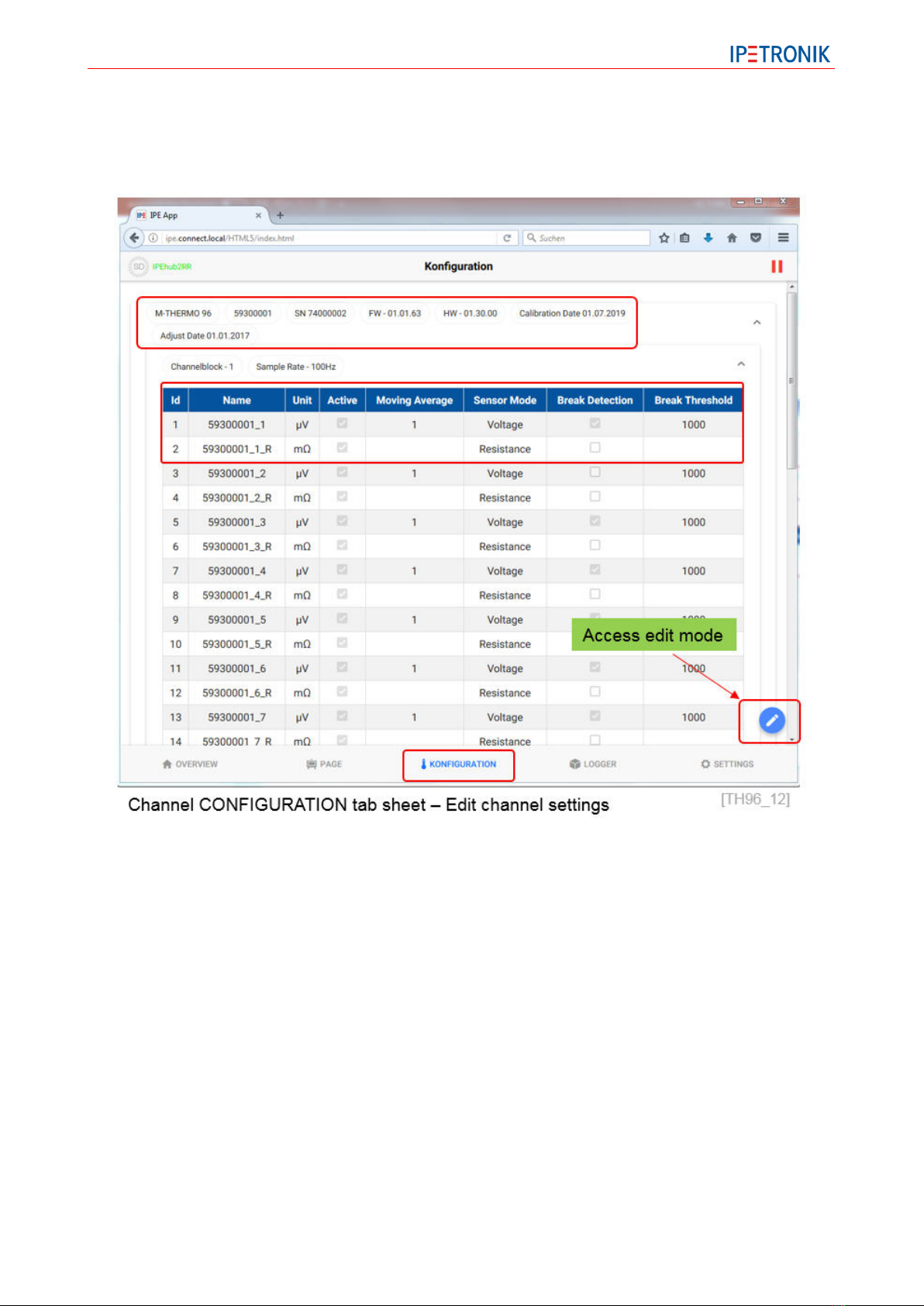

In bottom navigation bar you can switch to CONFIGURATION workspace to change channel measurement
modes, activate averaging etc.
In the CONFIGURATION workspace you have also access to device specific information like:
IDevice Type Name of the unit.
INumber The serial number printed on the name plate.
IFirmware Version of the firmware.
IHardware Version of the hardware.
ICalibration Date Date of the last calibration.
IAdjust Date Date of the last channel adjustment. Firmware updates, calibrati-
on and adjustments are provided by IPETRONIK.
ISample rate Can be configured for each block of 16 channels individually. The
sample rate can range 0.0167 up to 100 Hz.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 12/30

3.2 Chanel Configuration
In the example blow you can see the drop down list to edit the Sensor mode. You can switch from Voltage to
one of the different Thermocouple types.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 13/30

3.2 Chanel Configuration
In the example blow you can configure the Brake detection resistance. The takes the internal resistance of the
thermocouple line into account to adapter the brake detection sensitivity.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 14/30

3.2 Chanel Configuration
You save the settings with green confirmation button in the bottom line.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 15/30

3.2 Chanel Configuration
The system is organized in 6 separate blocks consisting of 16 channels each. You can expand and collapse
each block by sing the arrow buttons on the right-hand side.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 16/30

3.3 Logger Configuration
3.3 Logger Configuration
In the logger workspace no configuration is required. The system is configured to connect to the access point
of one Thermo scanner as defined in the setting of you mobile device. In the case you have several thermo
scanner online you need to switch in the mobile device settings to the Thermo scanner in concern.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 17/30

3.4 Settings Configuration - About
3.4 Settings Configuration - About
Tis work space is dedicated to check the software version of the web application and the build number in the
About dialog. All other functions are not relevant at this stage of the implementation.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 18/30

4 Web display page and instrument configuration
4 Web display page and instrument configuration
You can create within the web interface pages and different display instruments to visualize the data of your
device. The default page consists of a tabulated overview.
Information
All instrument and page configurations are stored on your local
PC. At this stage of implementation, you cannot save the confi-
guration settings under a specific file name and load and modify
the configuration later on.
Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 19/30

4 Web display page and instrument configuration
You need to navigate the PAGE work space in order to configure a page. With the pencil tool you can access
the Edit mode.
