IQCCTV IQC1920CC User manual

User Manual
Version 1
HD Megapixel
Pinhole Lens
Low Lux
Light Level
3D Digital
Noise Reduction
3D
Full HD (1080P) HD-SDI
Covert Pinhole Camera
HD SDI
1080P
Resolution
1080P
3D
Full HD (1080P)
Covert Pinhole Camera
S/N:
IQC1920CC
Model
HD SDI

1. Introduction .................................................................................... 4
2. Features ........................................................................................ 4
3. Package Content ........................................................................... 4
4. Overview ....................................................................................... 5
4.1 Connections ............................................................... 5
4.2 OSD Control ............................................................... 5
5. OSD Menu .................................................................................... 7
5.1 Exposure .................................................................... 7
5.2 White Balance ............................................................ 8
5.3 Day & Night ................................................................ 8
5.4 Back Light .................................................................. 8
5.5 3D-DNR ..................................................................... 9
5.6 Image ......................................................................... 9
5.7 Monitor ....................................................................... 9
5.8 System ....................................................................... 10
6. Specification ................................................................................... 11
Contents
User Manual
Version 1
HD Megapixel
Pinhole Lens
Low Lux
Light Level
3D Digital
Noise Reduction
3D
Full HD (1080P) HD-SDI
Covert Pinhole Camera
HD
SDI
1080P
Resolution
1080P
3D

3
Before using this product, please read this manual carefully to ensure that the
user can correctly use this product to avoid danger. Please save this instruction
manual in a safe place for future reference.
Input voltage should be both the SELV (Safety Extra Low Voltage) and the
limited power source with DC 12V.
• Keep away from liquid while in use.
• In the use of the product, you must be in strict compliance with the electrical
safety regulations of the nation and region.
• If the product does not work properly, please contact your dealer or the
nearest service center. Never attempt to disassemble the camera yourself.
• When the product is mounted on a wall or ceiling, the device will need to be
firmly fixed.
Safety Instructions
WARNING
CAUTIONS
• Make sure the power supply voltage is correct before using the camera.
• Do not drop the camera or subject it to physical shock
• If cleaning is necessary, please use a clean cloth to wipe it gently.
• Do not aim the camera at the sun or extra bright places. A blooming or smear
may occur otherwise (which is not a malfunction) and the endurance
of the device will be affected at the same time.
• To avoid over heating good ventilation is required for the operating
environment.
• Do not place the camera in extremely hot, cold temperatures (the operating
temperature should be 0ºC-45ºC), dusty or damp locations and do not
expose it to high electromagnetism radiation.

1. Introduction
4
Thank you for purchasing the IQC1920CC from IQCCTV.
The IQCCTV IQC1920CC HD-SDI Covert Camera offers FULL HD 1080P
resolution images in miniature form (up to 7x resolution of standard CCTV
systems and better than SKY HD).
2. Features
● 1080P (1920x1080) resolution
● 0.0003 lux light sensitivity
● 3.7mm HD Megapixel Pinhole lens for 78° viewing angle (can see through an
aperture of just 2mm)
● Wide Dynamic Range
● Digital Slow Shutter
● 3D Digital Noise Reduction
● High Light Suppression
● Additional Analogue BNC Video Output
● Designed for Wall or Ceiling mounting or fitting in your own enclosure for covert
use
3. Package Content
1x Camera 1x User Manual
User Manual
Version 1
HD Megapixel
Pinhole Lens
Low Lux
Light Level
3D Digital
Noise Reduction
3D
Full HD (1080P) HD-SDI
Covert Pinhole Camera
HD
SDI
1080P
Resolution
1080P
3D

5
4. Overview

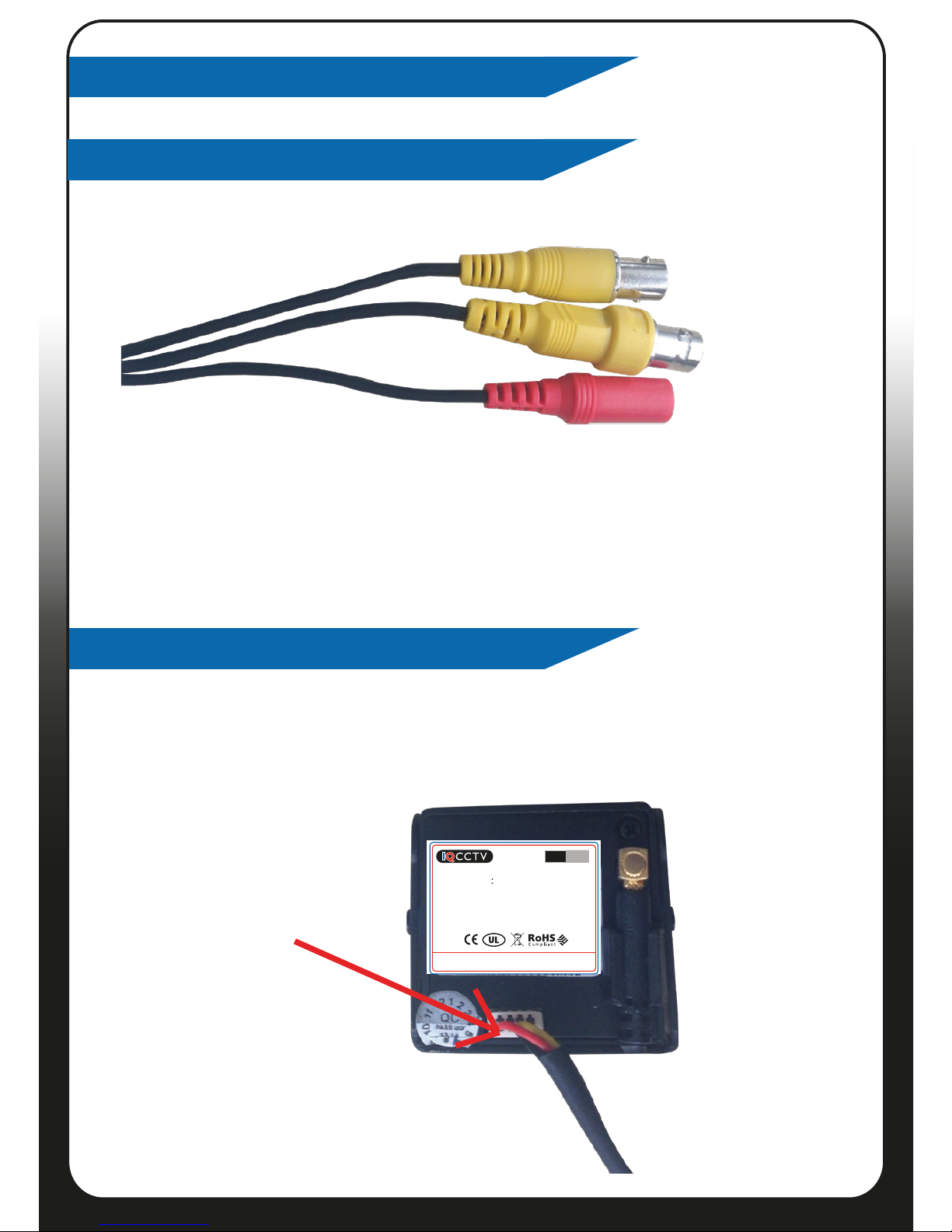

(1) BNC Video Connection
(2) HD-SDI Video Connection
(3) Power Supply Connector Socket (DC 12V)
1.
2.
4.1 Connections
4.2 OSD Control
To use the OSD on the camera, you will need to use the joystick, as shown in 4.1.
Below shows how the joystick, video and power wires are connected to the
camera.
3.
Full HD (1080P)
Covert Pinhole Camera
S/N:
IQC1920CC
Model
HD SDI

6
The OSD menu on the camera can be controlled using the joystick once
connected to the camera.
Then, connect the BNC connection to your HD-SDI DVR.
1. 2.
3.
4.
5.
(1) Up Direction
(2) Down Direction
(3) Right Direction
(4) Left Direction
(5) OK/Confirm Button

7
5. OSD Menu
To operate the OSD menu, you can use the joystick on the rear panel of the
camera cable (as shown in chapter 4). To go into the OSD menu, press the
‘Enter/Confirm’ button on the joystick.
In the OSD, you can configure the following;
1. Exposure 2. White Balance
3. Day & Night 4. Back Light
5. 3D DNR 6. Image
7. Monitor 8. System
5.1 Exposure
Exposure setup includes: Lens, Brightness, Shutter, AGC and Sense-up.
Lens: Select the lens type. The camera supports, manual IRIS, DC Lens and
Video Drive lens. Please setup according to the use of lens. The default setting is
‘MANUAL’.
Brightness: Push left/right to setup the value of brightness (0-20).
Shutter: Use the arrow buttons to adjust the shutter speed. Options include
1/25~1/60000, FLK and Auto. Please note that and other option than Auto or 1/25
will disable the DSS function.
AGC: When there is insufficient light, push left/right to setup its level. Adjust the
level from 0~10.
Sense-up: Extends the exposure time of camera. The higher the time, the lower
the frame will be. However the shadow created will be longer in dark conditions.
Please select OFF or Auto.

8
5.2 White Balance
Select WHITE BAL and push left or right to choose White balance mode
including AWB, Manual and Preset.
AWB: In this mode, the camera will constantly monitor the colour temperature
among about 2500-9500°K of colour temp and adjust white balance
automatically.
Manual: This option allows the user to manually set the White Balance Mode.
Select this mode and press the ‘Menu’ button to setup. User can adjust the level
of the blue and red by pushing left or right button to adjust the blue or red gain.
The gains are adjustable between (0-20).
Preset: This option will set a a pure white background to preset the white
balance value.
5.3 Day & Night
Select Day & Night and press the ‘Menu’ button to setup Day & Night mode and
to setup Smart IR. You can choose the mode, Smart IR option, AGC Threshold,
AGC Margin and Delay.
Mode: Select the Day/Night mode between auto, colour and Black & White.
AGC THRS: Adjust the AGC threshold from 0~20.
AGC MAR: Adjust the AGC Margin from 0~20.
Delay: Set up the time delay for switching between night and day mode. Adjust
time from 0,5,10 and 30 seconds.
5.4 Back Light
The Back Light option allows you to adjust; mode, Wide Dynamic Range
(WDR), Back Light Compensation (BLC) and High Light Compensation (HLC).
Mode: Select the back light mode between Off, BLC and WDR. Please note,
the WDR function will only work when the frame rate is 7.5.
WDR: Select the WDR function from Off, Low, Middle or High.
BLC: This option allows you to turn the BLC function on or off. If set to on, you
can adjust the BLC position and size.

9
HLC OSD: Turn the HLC on the camera on or off.
HLC Level: Adjust the level of the HLC from 0~20.
5.5 3D-DNR
This option allows you to set the 3D-DNR level on the camera. Select between
Off, Low, Middle or High.
5.6 Image
Enter this menu to adjust the image features on the camera. Here you can set,
mirror function, digital zoom, privacy function, D-WDR, defog and shading.
Mirror/Flip: Set the camera mode to mirror function or to flip the image.
D-Zoom: Adjust the zoom on the camera
Privacy: Turn the privacy function on or off. When turned on, you can set the
number of privacy zones, level and select the position of the zones.
Motion:Set the motion detection function on or off.
D-WDR: Set the D-WDR function to on or off.
Defog:Turn the defog function on or off.
Shading: Turn the shading function on or off.
5.7 Monitor
This option allows you to set the picture on the camera. You can set the colour
gain, red offset, blue offset, sharpness and Gamma.
Colour:Increase or decrease the colour gain on the image from 0~20.
R-Offset/B-Offset:Increase or decrease the red or blue offset from 0~20.
Sharpness: Adjust the sharpness of the image from 0~10.
Gamma: Adjust the gamma on the image from 0.45~0.75.

10
5.8 System
This menu allows you to adjust the system settings; RS-485, Image Range,
Cam ID, Output mode, frame rate, CVBD and Language.
RS-485: Set the RS-485 connection on the camera. You can select the ID,
baudrate, protocol and ID display.
CAM-ID: Input a camera ID to identify the camera. When turned on, you can
select the camera ID using the arrow keys.
Output Mode: Choose the output on resolution on the camera. Choose
between 4 options;
NTSC: 1080P 30fps, 720P 60fps
PAL: 1080P 25fps, 720P 50fps
Language: Select the language of the OSD text. Options include; English,
Chinese, Korean, Russian and Japanese.
Reset: Reset the settings back to factory default.
