Iqinvision IQeye Alliance-mini IQD30SV-F1 User manual

Supporting H.264 Main Profile, the Alliance-mini
offers exceptional image quality in a tiny, versatile
and attractive mini-dome package. It is available
in standard and interior vandal models from VGA to
1080p HD megapixel resolutions, making it one
of the smallest professional surveillance dome
cameras with the highest resolution available today.
At only 2.78 inches in height the Alliance-mini
camera is designed for discreet indoor use, ideal
for retail, office and healthcare environments. Each
camera includes black and beige trim rings to blend
into most indoor architectural installations. These
ultra lightweight cameras easily mount to ceilings
or walls, and the true 3-axis gimbal, locking shroud
and Power-over-Ethernet design saves time and
money on installation and maintenance. The Alliance-
mini also supports streaming audio, allowing 2-way
communication between the camera and remote/
monitoring locations. ONVIF and PSIA compliant APIs
provide the flexibility to ensure compatibility with
most popular VMS platforms. Optional accessory kits
include wall and pendant mount, wide and telephoto
lenses.
H.264 Megapixel Dome IP Camera
33122 Valle Road
San Juan Capistrano, CA
92675-4853
USA
toll free within US 877.850.0805
phone [phone]
fax [phone]
www.iqeye.com
Features
>Resolutions up to HD1080p
>H.264 Main Profile + MJPEG Compression
>30 fps @ SD480p, 15 fps @ HD1080p
>Two-Way Audio with Built-in Microphone
>3-Axis Gimbal
>Lightgrabber™ II Low-light Feature
>Power Over Ethernet
>Cast-Aluminum Tamper-proof Option
>Indoor mini Dome
>ONVIF and PSIA Compliant
>5 Year Warranty
IQeye Alliance-mini

H.264 Megapixel Dome IP Camera
IQeye Alliance-mini
Video
Compression H.264 and MJPEG
H.264 Profile Main
Sensor 1/3” CMOS
JPEG Compression User Configurable
Quality Settings
Shutter Speed Auto/Programmable/Fixed
Image Settings Saturation, Contrast, Brightness,
Sharpness, Lightgrabber™ II
Exposure User Configurable
White Balance Auto/Programmable
Backlight Compensation Auto
Features
Motion Detection User Configurable Windows
Time Lapse Recording User Configurable
Event Based Recording User Configurable
Flip and Rotate 90, Horizontal, Vertical
Audio Support Two-way G.711 PCM 8 kHz
On-Camera IQapps IQaccess
System Integration ONVIF, PSIA, IQfinder,
IQmanager, IQsentry
Network
Supported Protocols TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP,
DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP
multicast, SNMP, FTP, SMTP, Telnet, CIFS
Password Protection Secure Multi-level
Input/Output
Input Power Power over Ethernet 802.3af Class 1
Power Consumption < 3.8W (typical)
AC Lighting 50 Hz/60 Hz Selectable
Network Interface RJ45 10Base-T/100Base-TX
Audio I/O Built-in Microphone, Mic/Line in, Line out
Misc
Approvals FCC, CE
Temperature Range 32˚Fto104˚F,0˚Cto40˚C
Weight (grams) 253 g (SI), 298 g (SV)
Warranty 5 years
Lens Options F1 Wide Angle Lens 1/3” M12, 4.2 mm, F1.8
F2 Wide Angle Lens 1/3” M12, 2.8 mm, F2.6
F3 Telephoto Lens 1/3” M12, 8 mm, F1.8
F4 Wide Angle Lens 1/3” M12, 3.6 mm, F1.8
Accessories IQD4-PB Pendant Mount Black
IQD4-PG Pendant Mount Grey
IQD4-WB Wall Mount Black
IQD4-WG Wall Mount Grey
IQD-GBA Gang Box Adapter
Specifications
032211

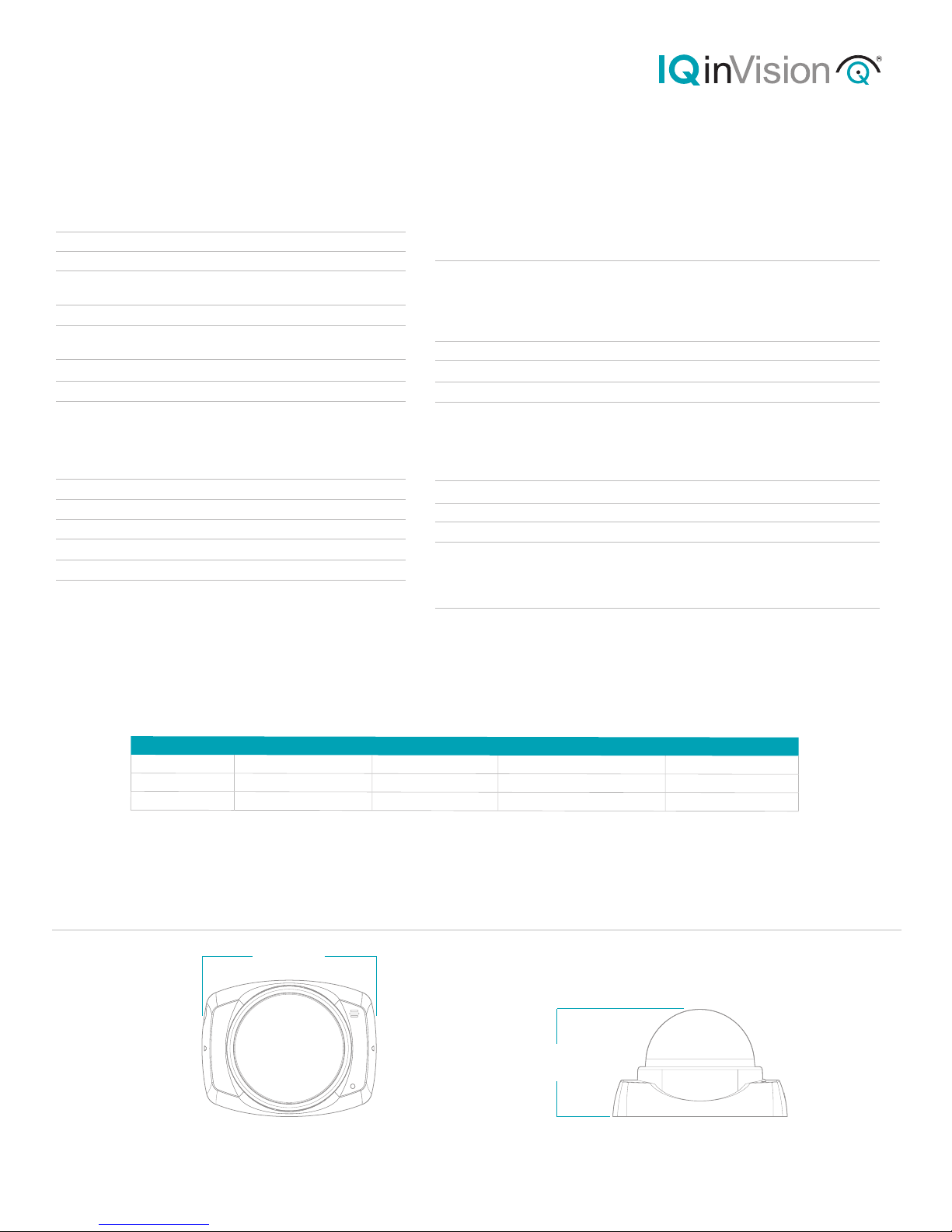

Dimensions
SideTop
©2010 IQinVision. IQinVision and the IQinVision logo are trademarks or registered trademarks of IQinVision, registered in the U.S. and other countries. All other trademarks are the property of their respective owners. All rights reserved.
Part Number Max Resolution Max Framerate Min Illumination Compatible Lens
IQD30Sx-F1 SD480p - 720 x 480 30 fps Color: 0.1 lux F1, F2, F3, F4
IQD31Sx-F1 HD720p - 1280 x 720 30 fps Color: 0.1 lux F1, F2, F3, F4
IQD32Sx-F1 HD1080p - 1920 x 1080 15 fps Color: 0.2 lux F1, F3, F4
2.78”
70.7 mm
4.52”
115.0 mm
I - Internal/Indoor V- Vandal Resistant
