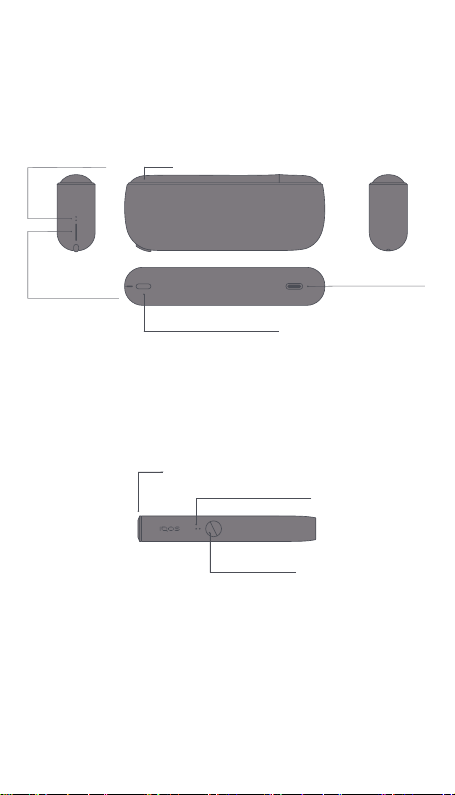

IQOS ILUMA™ Pocket Charger
IQOS ILUMA™ Holder
IQOS ILUMA™ is compatible only with SMARTCORE STICKS™
Holder Status
Lights Door
Pocket Charger Button
Charging Port
Pocket Charger
Status Lights
Ring
Holder Button
Holder Status Lights
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
Black

Charging
FEATURES
AND SETTINGS
Can be turned on or off
with the IQOS app*.
Please register by scanning
QR code or log in on
www.iqos.com/iluma
and follow the instructions.
* IQOS app may not be available in
your country.
Power AdaptorCharging Cable
For the full user guide,
Customer Care and
Extended support
services for IQOS users,
visit
www.iqos.com/myiqos
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
P3115
PCool Gray 11
Black

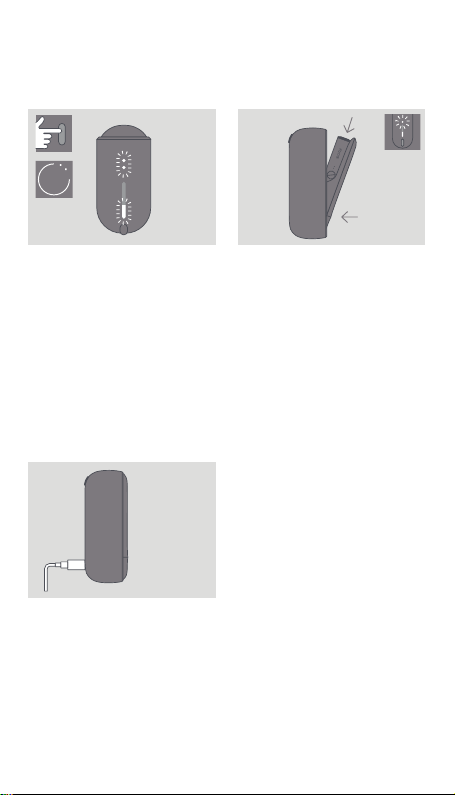

Getting Started
TURN ON
Press and hold Pocket
Charger Button for 4 seconds,
then release; Pocket Charger
Status Lights and Holder
Status Lights will turn on
slowly.
CHARGE HOLDER
Insert Holder into the
Pocket Charger, to charge.
Holder Status Light will
show Holder battery level.
CHARGE POCKET CHARGER
Before first use, fully charge
your device with Power
Adaptor and Charging Cable.
(approx. 135 min)
4"
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
PCool Gray 6
Black

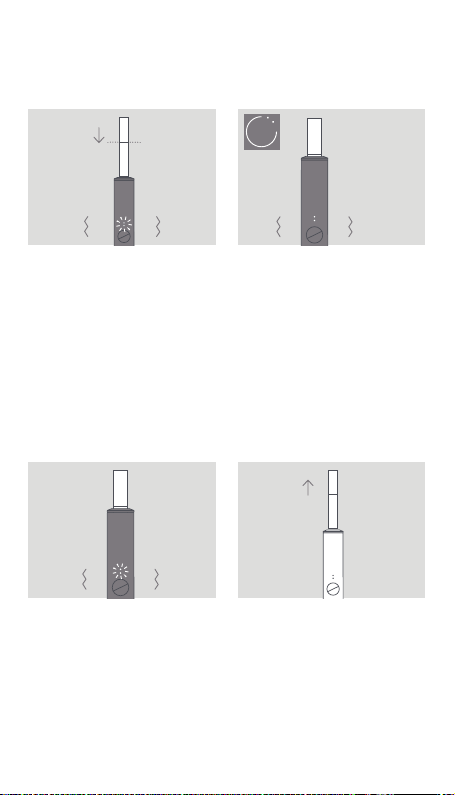

How to use your IQOS ILUMA™
1. INSERT SMARTCORE
STICK™
Insert the SMARTCORE
STICK™ to the line on filter
until Holder vibrates and
Light(s) pulse(s).
Heating starts automatically,
or by pressing Button for
1 second.
2. BEGIN USE
Start using once Holder
vibrates and Lights stay fixed.
3. NEARLY COMPLETE
To signal the last 30 seconds
or last 2 puffs, Holder will
vibrate with Light(s) pulsing
white.
4. REMOVE SMARTCORE
STICK™
Remove used SMARTCORE
STICK™ and dispose as
per Safety Warnings and
Instructions.
20"
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
PCool Gray 6
Black

How to use your IQOS ILUMA™

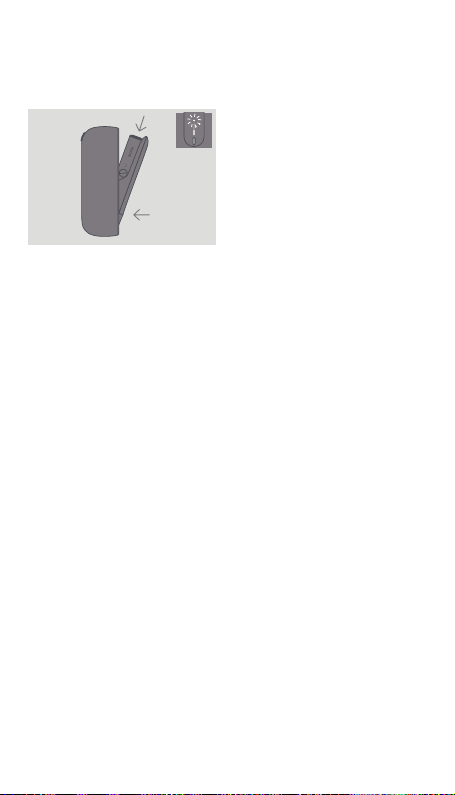

5. RECHARGE HOLDER
Insert the Holder in the
Charger for recharging.
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
PCool Gray 6
Black

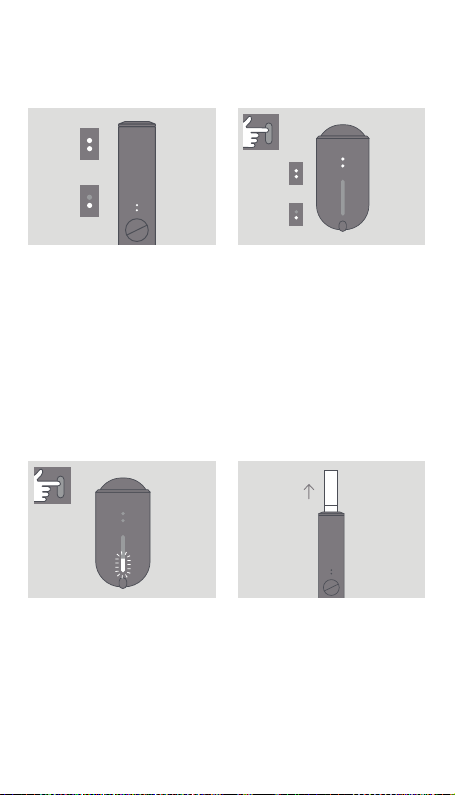

Quick Tips
CHECK HOLDER STATUS
Tilt Holder towards you or
short press Button, Holder
Lights indicate Holder
battery level.
CHECK HOLDER STATUS
ON THE POCKET CHARGER
Short press Pocket Charger
Button. Holder Status Light
will turn on.
CHECK POCKET
CHARGER STATUS
Short press Pocket Charger
Button. Pocket Charger
Status Lights will turn on
to indicate battery level.
AUTOSTOP
During use, the experience
will stop if the SMARTCORE
STICK™ is moved, or
removed from the Holder.
2 lights
ready for 2 uses
1 light
ready for 1 use
2 lights
ready for 2 uses
1 light
ready for 1 use
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
PCool Gray 6
Black

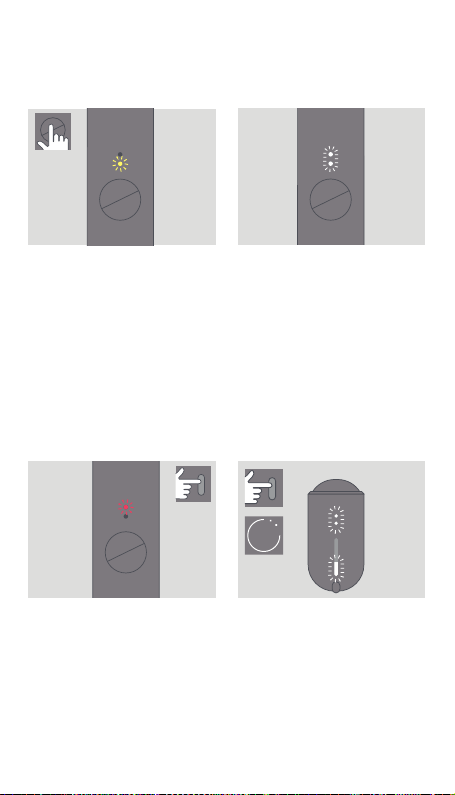

Quick Tips
LIGHT BLINKS YELLOW
Battery depleted, need to
charge.
LIGHTS BLINK WHITE TWICE
IQOS ILUMA™ is outside
operating temperature range
(0°C~40°C).
LIGHT BLINKS RED
Reset Pocket Charger.
If red light blinking persists,
contact Customer Care.
TO RESET
Place Holder in Pocket
Charger and press Button
for 10 seconds then release.
All Status Lights will turn OFF,
and turn ON, to confirm a
RESET.
10"
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
Yellow
New Color Swatch
PCool Gray 11
PCool Gray 6
Black

PLEASE READ ALL SAFETY WARNINGS AND INSTRUCTIONS BEFORE
USE TO AVOID INJURY.
These safety warnings and instructions cannot cover all possible
conditions that could occur and users should exercise care and
caution.
KEEP THESE SAFETY WARNINGS
AND INSTRUCTIONS FOR FUTURE
REFERENCE AS THEY CONTAIN
IMPORTANT INFORMATION.
These Safety Warnings and Instructions are applicable to IQOS ILUMA™ and IQOS ILUMA
PRIME™
Intended Users
•IQOS ILUMA™, IQOS ILUMA PRIME™ and SMARTCORE STICKS™ are for adult use only.
•IQOS ILUMA™, IQOS ILUMAPRIME™ and SMARTCORE STICKS™ are for adults who would
otherwise continue to use tobacco or nicotine-containing products.
•Children and adolescents should never use IQOS ILUMA™, IQOS ILUMA PRIME™
or SMARTCORE STICKS™ under any circumstances.
•This product should not be used by persons with reduced physical, sensory or mental
capabilities or lack of knowledge unless they have been given supervision or instruction
to use the product in a safe way and understand the hazards involved.
Tobacco and Nicotine
•SMARTCORE STICKS™ contain nicotine, which is addictive.
•IQOS ILUMA™, IQOS ILUMAPRIME™ and SMARTCORE STICKS™ are not risk-free. The best
way to reduce tobacco-related health risks is to quit tobacco and nicotine use altogether.
•Some users may experience abdominal pain, chest pain, choking sensation, cough,
difficulty breathing, dizziness, dry mouth, dry throat, gingivitis, headache, malaise, nasal
stuffiness, nausea, mouth irritation, palpitations, throat irritation, and vomiting.
•Nicotine-containing products should not be used by people who have or are at risk of
heart diseases, are diabetic, or are epileptic or are experiencing seizures.
•Nicotine-containing products should not be used during pregnancy or while breast-
feeding. If you are pregnant, breast-feeding or think you may be pregnant, you should
quit tobacco and nicotine use altogether.
• Stopping smoking or switching to IQOS ILUMA™ or IQOS ILUMAPRIME™ and SMARTCORE
STICKS™ or other nicotine-containing products may require the adjustment of the
dosing of certain medicines (e.g. theophylline, clozapine, ropinirole).
SAFETY WARNINGS AND INSTRUCTIONS
This is the safety alert
symbol. It is used to alert
you to potential physical
injury hazards.
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
Black

• If you have questions about whether you should use IQOS ILUMA™, IQOS ILUMAPRIME™
or SMARTCORE STICKS™ given an existing health condition, you should consult a health
care professional.
IMPORTANT SAFETY INFORMATION
WARNING Choking, Ingestion and Handling Hazard
Keep IQOS ILUMA™, IQOS ILUMAPRIME™ and SMARTCORE STICKS™ out of reach of children
and pets at all times.
•CHOKING HAZARD — SMARTCORE STICKS™ contain small metal parts with sharp edges.
•INGESTION HAZARD
•
Swallowed SMARTCORE STICKS™ can cause serious injury to internal organs due to
small metal parts with sharp edges.
•Swallowed SMARTCORE STICKS™ can pose a risk of nicotine intoxication.
•If SMARTCORE STICKS™ are swallowed, seek medical attention immediately.
•HANDLING HAZARD — Do not take apart SMARTCORE STICKS™ as they contain small
metal parts with sharp edges. Always dispose of SMARTCORE STICKS™ immediately after
use according to local waste disposal regulations.
WARNING Electronic and Battery Hazards
Electrical Risks
Failure to follow these Safety Warnings and Instructions could
result in fire, explosion, electric shock, injury, or damage to
the product or other property:
•Only Intended Users should use IQOS ILUMA™ and IQOS
ILUMA PRIME™.
•Do not use IQOS ILUMA™ or IQOS ILUMAPRIME™ where
the use of electronic devices is prohibited.
•Do not charge or use IQOS ILUMA™, IQOS ILUMAPRIME™
or accessories if damaged, tampered with or broken.
•Do not use IQOS ILUMA™ or IQOS ILUMAPRIME™ if the
battery appears to be leaking.
•Only charge IQOS ILUMA™ and IQOS ILUMA PRIME™
indoors, as indicated by symbol , using a manufacturer-
approved Charging Cable (supplied in the box) and
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
Black

Power Adaptor (supplied in the box), for charging
purposes. Do not use accessories not approved by
manufacturer. Refer to ‘Technical Data’ section and
www.iqos.com for details applicable to the mobility kit you
purchased.
•This product must only be charged using Safety Extra Low
Voltage. Refer to the Technical Data section of this User
Guide for details.
•Do not use, charge, or store IQOS ILUMA™ or IQOS ILUMA
PRIME™ in places with high temperatures (such as inside
a car in summer, or near heat sources such as radiators
or fires).
•Do not use IQOS ILUMA™ or IQOS ILUMAPRIME™ where
flammable materials, liquids and gases are present.
•IQOS ILUMA™, IQOS ILUMAPRIME™, Power Adaptor and
Charging Cable should not be exposed to any liquid. Do not
touch them if they become wet or have been immersed in
any liquid.
•Do not clean the device with any cleaning agent.
•Clean the USB charging port of the IQOS ILUMA™ and
IQOS ILUMAPRIME™ periodically to avoid accumulation
of foreign matters (such as dust particles), and inspect
USB port for foreign materials before using USB connector.
•Handle with care. Do not drop IQOS ILUMA™ or IQOS
ILUMA PRIME™ or subject them to strong shock.
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
Black

•This product contains no user-serviceable parts. Do not
attempt to open, modify, service, disassemble or repair
any component of IQOS ILUMA™ or IQOS ILUMAPRIME™
or to replace any of the components or batteries.
•IQOS ILUMA™ and IQOS ILUMAPRIME™ Pocket Charger
and Holder are not compatible with previous IQOS
generations (IQOS 2.4, IQOS 2.4 PLUS, IQOS 3, IQOS 3
DUO). Do not attempt charging IQOS ILUMA™ or IQOS
ILUMAPRIME™ Holder in any previous IQOS generation
Pocket Charger. Do not attempt to charge any previous
IQOS generation Holder in IQOS ILUMA™ or IQOS
ILUMAPRIME™ Pocket Charger.
•Do not use this product if it has been exposed to excessive
cold, heat or moisture.
•Do not touch IQOS ILUMA™ or IQOS ILUMAPRIME™ and/
or their accessories if they overheat, spark, fume, ignite, or
burn. If applicable and possible, use caution to shut off or
disconnect power supply.
•Do not attempt to insert any object in the heating chamber
other than SMARTCORE STICKS™.
•Device can only be operated >0°C/<40°C.
•SMARTCORE STICKS™ are single use only and should
never be re-used, lit with a match, lighter or any other
flame source.
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
Black

Battery Risks
IQOS ILUMA™ and IQOS ILUMA PRIME™ are powered with sealed Lithium-ion (Li-ion)
batteries. Under normal conditions of use, the battery is sealed. If you notice that battery
fluid leaks, follow these precautions:
•If fluid from leaked battery is swallowed, seek medical attention immediately. Do not
induce vomiting or ingest food or drink.
•If vapor from leaked battery is inhaled, get fresh air and seek medical attention.
•If fluid from battery is in contact with skin, wash the affected area, including hands and
do not touch eyes.
•If fluid from leaked battery is in contact with eyes, immediately flush with clean running
water for at least 15 minutes and seek medical attention.
CAUTION Thermal Burn Risk
Failure to follow these Safety Warnings and Instructions could result in thermal burns:
•Store IQOS ILUMA™ or IQOS ILUMA PRIME™ and SMARTCORE STICKS™ in a clean, dry, and
cool place.
•Do not expose IQOS ILUMA™ or IQOS ILUMA PRIME™ and SMARTCORE STICKS™ to high
humidity conditions or direct sunlight.
•Do not use SMARTCORE STICKS™ that have been exposed to excessive heat or moisture.
•Do not remove SMARTCORE STICK™ while in use.
CAUTION Allergic Reaction Risk
•Using IQOS ILUMA™ or IQOS ILUMA PRIME™ and SMARTCORE STICKS™ could cause
an allergic reaction, such as swelling of the face, lips, tongue, gums, throat, or body,
difficulty breathing, or wheezing.
•Stop using IQOS ILUMA™ or IQOS ILUMA PRIME™ and SMARTCORE STICKS™ and seek
medical attention immediately if you experience any of the symptoms above as they
may indicate a serious allergic reaction.
Use of SMARTCORE STICKS
•Only use IQOS ILUMA™ and IQOS ILUMAPRIME™ with SMARTCORE STICKS™ specifically
designed for IQOS ILUMA™ and IQOS ILUMAPRIME™ devices.
•Never use IQOS ILUMA™ or IQOS ILUMAPRIME™ with a cigarette or similar products.
•Do not use SMARTCORE STICKS™ with previous IQOS device generations (IQOS 3 DUO™
or earlier).
•Do not modify SMARTCORE STICKS™ in any way or add any substance to SMARTCORE
STICKS. Doing so may cause injury.
Storage
•Device must be stored in a clean, dry, and cool place. Do not store in temperatures above
60°C.
•Store in a place inaccessible to children.
Reporting of adverse events or incidents
•If you experience any unwanted health effect when using IQOS ILUMA™, IQOS ILUMA
PRIME™ and/or SMARTCORE STICKS, consult a health care professional.
•You can report any adverse event or incident directly by contacting your local Customer
Care (details can be found in the Customer Care & Warranty booklet). By reporting side
effects, you can help provide more information on the safety of this product.
•For more information please go to www.iqos.com
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
Black

TECHNICAL DATA
Holder:
IQOS ILUMA™ and IQOS ILUMAPRIME™
Model C1402
Battery type: Li-ion
rechargeable battery
Input: 5 V 1.6 A
Pocket Charger:
IQOS ILUMAPRIME™
Model C1502
Battery type: Li-ion
rechargeable battery
Input: 5 V 2 A
Bluetooth® 5.0
Pocket Charger:
IQOS ILUMA™
Model M0001
Battery type: Li-ion
rechargeable battery
Input: 5 V 2 A
Bluetooth® 5.0
The IQOS ILUMA™ and IQOS ILUMAPRIME™ Pocket Chargers are marked with the symbol
followed by “SxxAxx,” which indicates the IQOS ILUMA™ and IQOS ILUMAPRIME™
Pocket Chargers can only be charged using one of the approved Power Adaptor models
listed below.
Power Adaptor:
Model: S52A21, S21A20, S21A22, S21A23, S21A25, S21A27, S82A40, S82A41, S82A42,
S82A43, S82A45, S82A46
Input: 100 V-240 V~50-60 Hz 0.3 A
Output: 5 V 2 A
Output power: 10.0 W
Average active efficiency: 79.0%
No load power consumption: <0.09 W
Use with Charging Cable
INFORMATION FOR DISPOSING OF IQOS ILUMA™ AND IQOS ILUMA
PRIME™
Valid across European Union and EEA
This symbol on the product or on its packaging indicates that this product and its
individual parts (including batteries) must not be disposed of with your other
household waste. Instead, it is your responsibility to dispose of your waste
equipment by bringing it to a designated collection point for the recycling of waste
electrical and electronic equipment. In addition, waste batteries can be returned free of
charge at the point of sale. The separate collection and recycling of your waste equipment
(including batteries) at the time of disposal will help to conserve natural resources and
ensure that it is recycled in a manner that protects human health and the environment.
Disposing of waste equipment as unsorted municipal waste (e.g. by waste incineration or
land filling) can have negative effects on the environment and human health. For more
information about where you can drop off your waste equipment for recycling, please
contact your local city office, your local household waste disposal service or the shop
where you purchased the product. The local importer of the product will provide for the
financing of the treatment and recycling of waste equipment returned through these
designated collection points in accordance with local requirements.
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
Black

BATTERY REMOVAL INSTRUCTIONS
(FOR DISPOSAL AND RECYCLING)
Batteries must not be removed by the consumer. At end of product life, only an
authorized recycler may safely remove batteries by following the steps below.
IQOS ILUMAPRIME™ Pocket Charger (Model C1502):
Step 1: The device should be fully discharged before disassembling it.
Step 2: Remove/peel off the rubber pad from the Pocket Charger Wrap Cover.
Step 3: Remove the 2 screws.
Step 4: Remove Wrap Cover by sliding and wiggling vertically slowly away from Metal
Housing, then remove the 2 screws of the frame.
Step 5: Detach all Flexible Printed Circuits and connector to remove the charger Printed
Circuit Board.
Step 6: Remove battery by tilting it up and dispose of according to local regulations.
IQOS ILUMA™ Pocket Charger (Model M0001):
Step 1: The device should be fully discharged before disassembling it.
Step 2: Remove Door Cover with fingers.
Step 3: Open door and unscrew bottom and top screw.
Step 4: Remove Charger Housing.
Step 5: Unscrew the electronic circuit board (1 screw only).
Step 6: Unplug battery connector on the circuit board. Do not cut battery wires.
Step 7: Remove battery by tilting it up and dispose of according to local regulations.
IQOS ILUMA™ and IQOS ILUMAPRIME™ Holder (Model C1402):
Step 1: The device should be fully discharged before disassembling it.
Step 2: Open the Ring.
Step 3: Open the retainer cap, slide out the assembly out from housing.
Step 4: De-solder the battery tab and lifted it up.
Step 5: Remove battery and dispose of according to local regulations.
Confirmation of Compliance
Hereby, Philip Morris Products S.A. declares that IQOS ILUMA™ and IQOS ILUMAPRIME™
are in compliance with the essential requirements and other relevant provisions
of Directive 2014/53/EU. The official Declaration of Conformity may be found at:
www.pmi.com/declarationofconformity
IQOS ILUMA™ and IQOS ILUMAPRIME™ operate within 2.402 – 2.480GHz frequency band
with a maximum RF output power below 10.0 dBm.
This device complies with the RF exposure limits and has been evaluated in compliance
with portable exposure condition according to the EN 62311:2008.
Designed and manufactured under the authority of Philip Morris Products S.A.,
Quai Jeanrenaud 3, 2000 Neuchâtel, Switzerland.
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
Black

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.
and any use of such marks by Philip Morris Products S.A. and its affiliates is under license. Other
trademarks and trade names are those of their respective owners.
Further information regarding the firmware license for IQOS ILUMA™ and IQOS ILUMAPRIME™ is
available at www.iqos.com.
Not all devices listed in these Safety Warnings and Instructions are included in this mobility kit.
© 2021 Copyright Philip Morris Products S.A.
Hogarth Worldwide
CR13082_H201137_P410023
null
Philip Morris International
Global
140.00 x 80.00 mm
140.00 x 80.00 mm
23/08/2021 17:18
PCool Gray 11
Black
