BMS-1732K
19’’ Multiswitch for 4x SAT + 1x Terrestrial
This 19’’ 2 RU rackmount cascadable Multiswitch is designed for up to 4 SAT position
Inputs (+ Terrestrial) from standard quattro LNB’s or from optic-electric converters such
as BFR-41 via 1 CWDM –Fibre in a Headend and distribute up to 32 RF outputs to the
Headend receivers. 4-fibre solutions are coming soon...

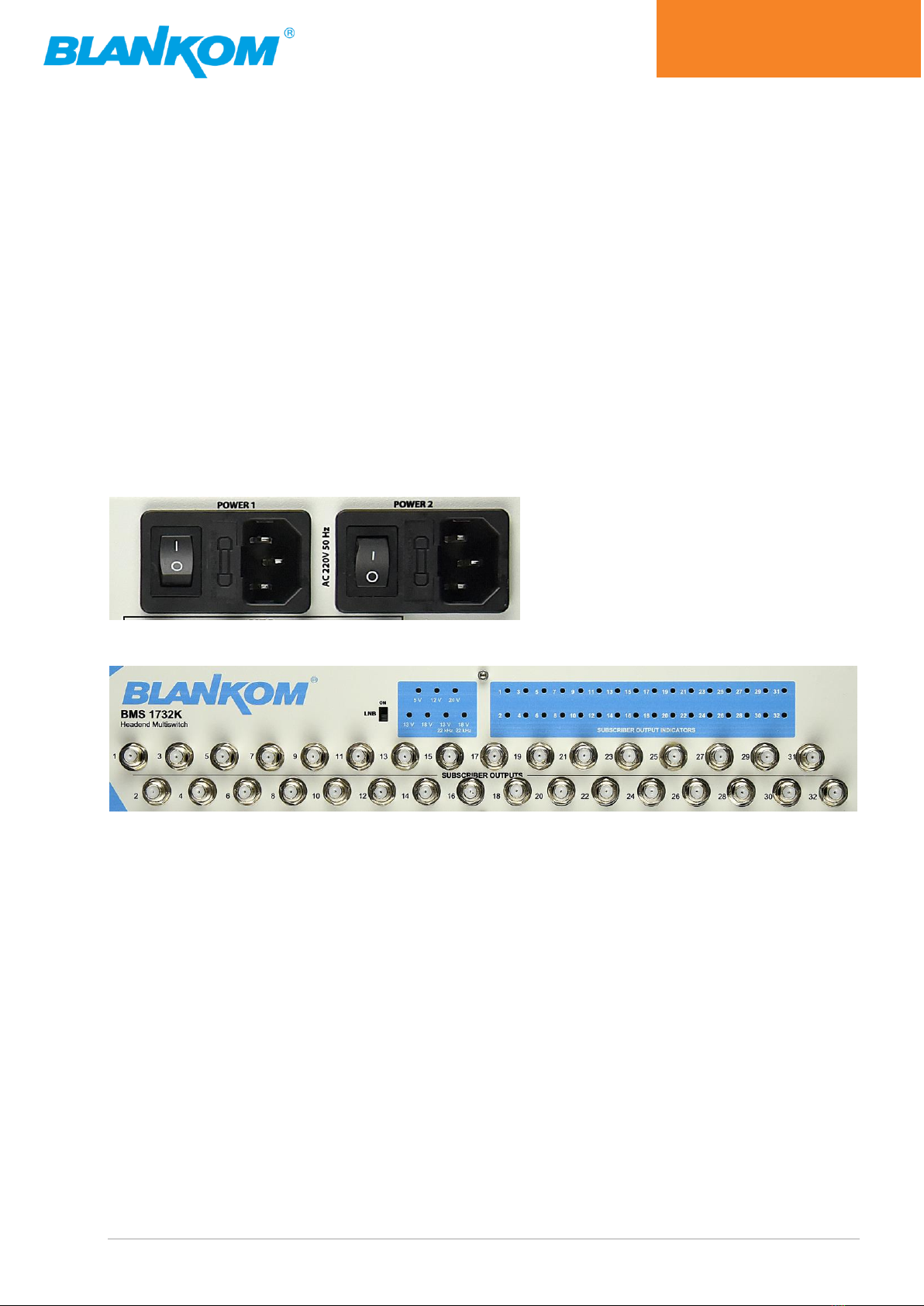

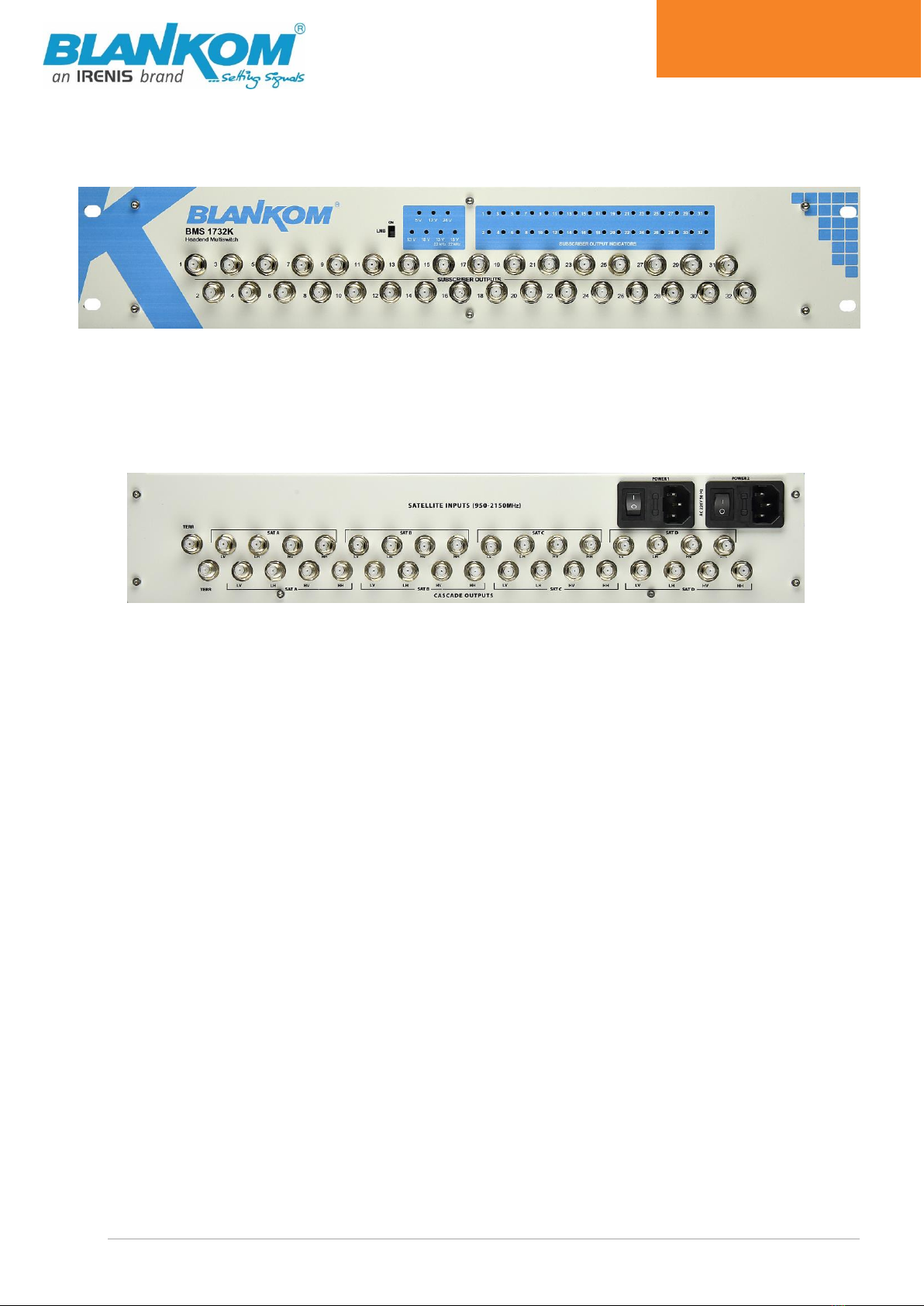

Rear view
Main Features
Dual redundant internal high isolated industrial Power supplies
Low power consumption, air circulation due to 2 separate fans
Active TERR input (passive input available), LNB On/Off switch
Tap loss 0,5dB , High isolation
Quad & Quattro LNB compatible
950-2150MHz and 47-870MHz lossless sharp filter for each subscriber outputs
Optimized RF design for the usage of DVB IPTV and Digital Headends
Low signal resistent due to high gain through the receiver outputs
Up to 8 consecutive cascadings possible
LED indicators for each receiver output
RF - output port protection up to 100 volts
+4dB equalizer range for each RF output compensating slope
Available for 2x SAT eltr. = BMS-0932K
www.blankom.de [email protected]e

Quickstart
Subjects to change w/o notification BMS-1732K-quick-start_EN_V1.2.docx
BMS-1732K
Technical Specifications
Corresponding products:
BPF-41, optical Transmitter for 4x SAT + 1x terr. / BFR-41 opt. Receiver-converter:
Inputs:
SAT / IF
TERR
16
1
Receiver Outputs
32
Cascadable loop-through
Outputs
SAT / IF
TERR
16
1
TERR Gain
23...25dB
Selection of LNB / Polarity 13V, 18V, 13V+22KHz, 18V
Frequency Range
SAT / IF
TERR
950-2150MHz
47-870MHz
Tap-loss Subscriber Outputs
SAT / IF @ 950MHz
SAT / IF @ 2150MHz
TERR. Rec / Out 1-8
TERR. Rec / Out 9-16
TERR. Rec / Out 17-24
TERR. Rec / Out 24-36
+1dB±1
+1dB±1
-4dB±2
-4dB±2
-4dB±2
-4dB±2
Max. Input Level
SAT / IF
TERR
98dBμV
88dBμV
Max. Output Level
SAT / IF IMA3
TERR
102dBμV
85dBμV
Return-loss
Input / Output
10dB / 14dB
Isolation
SAT-SAT
SAT-TV
>33dB
>37dB
Usable LNBs
Quad & Quattro
Max. Current from Subscriber
Output
41mA
Max. Current from System
960mA
Max. Current with LNB
920mA
Operating Temperature
-85...+50°C
Dimensions
320 x 320 x 90mm (2RU)

Quickstart
Subjects to change w/o notification BMS-1732K-quick-start_EN_V1.2.docx
BMS-1732K
Application example:

Quickstart
Subjects to change w/o notification BMS-1732K-quick-start_EN_V1.2.docx
BMS-1732K
We strongly recommend the installation by technical skilled people.
All needed connection to the LNB’s SAT-A...D as well as the cascading outputs are printed to the
rear and front-panel so that a mismatching usually cannot be done. Please assure the grounding of
every component (BMS, Coax cables as well as Antennas/dishes) to avoid voltage differences
between every device. The grounding should also be fit to earth potential to secure them against
lightning influences.
The BMS supports cascading to a following unit to double or even multiply the needed output
numbers. (32 -> 64 -> 96...) A cascading of more than 7 units is not recommended because of the
attenuations of each. The cascade units should disable the power
Before you connect the both power supplies to the power source by the power cords, please
connect all coax-cables and the max. 4 LNB’s or the optical – electrical fibre receiver to it.
Please take care about not making any Coax- shortages and check the cables before power
connecting. The device runs with only one PSU connected. The 2nd PSU is in standby just in case the
first one will fail –and will take over the power-loss job. So it is recommended not to connect them
both to the same power-line and fuse system:
AC 220V 50Hz supplying please!
Both have one small fuses –just in case something happens... control these.
Remark: The LNB-powering can be switched OFF (default is = ON) by the front panel switch.
Connected optical receiver -> electrical changer installed before the unit in between LNB’s and the
SAT Inputs of the BMS-1732K -like our BFR-41 or similar- do not need the LNB powering ON –so
you can switch it to OFF.
Active Terrestrial Input and distribution to every output:
The unit comes with an additional terrestrial Input F-Connector serving DVB-T/T2 frequencies to
pass through to the output receiver ports. The terrestrial output depends of course from the
amount of energy you provide into its Input. These needs to be carefully balanced and eventually
before the switch input: Attenuated or amplify to raise best conditions for the pathway of the
combined Terrestrial and satellite frequency range. As example for an active T-Version: 5dB
difference which means the terrestrial output signal is 78% less (remember: 3dB = 50%) at the
Multiswitch output by optimal Input values. So the signal quality -as a distribution component- to
all the end user wall-outlets is much better by the active internal T-Amplifier- but need to be balanced
to not overload it.

Quickstart
Subjects to change w/o notification BMS-1732K-quick-start_EN_V1.2.docx
BMS-1732K
Important!
Trunk lines (cascade outputs) -if not in use- should always be terminated with 75Ohm incl. DC-
Blocker !!! Example:
Now some parts in dual language:
Installationshinweis für den F-Anschluss: / Installation guide for F-
connectors:
Above are SAT-Inputs:
Below are outputs for cascading units. We assume that your technician nows about DiSEqC ….
Elektronische Geräte gehören nicht in den Hausmüll, sondern müssen - gemäß Richtlinie 2002/96/EG DES EUROPÄISCHEN
PARLAMENTS UND DES RATES vom 27. Januar 2003 über Elektro- und Elektronik-Altgeräte fachgerecht entsorgt werden.
Bitte geben Sie dieses Gerät am Ende seiner Verwendung zur Entsorgung an den dafür vorgesehenen öffentlichen
Sammelstellen ab.
Electronic equipment is not household waste - in accordance with directive 2002/96/EC OF THE
EUROPEAN PARLIAMENT AND THE COUNCIL dated 27th January 2003 on used electrical and
electronic equipment, it must be disposed of properly.
Die LNB-Anschlüsse sind entsprechend
gekennzeichnet
The LNC –connectors are marked as:
HH= High-Band Horizontal (18V/22KHz)
LH = Low-Band Horizontal (13V/22KHz)
LV = Low-Band Vertical (13V / 0KHz)
HV= High-Band Vertical (18V / 0KHz)
Bitte installieren Sie die Anschlüsse gemäß dem Aufdruck
Please install according to the sticker on the Multiswitch
Hinweis: Elektrische Installationen sollten nur durch geschultes Fachpersonal vorgenommen werden!
Note: Electrical installations should only be done by well-educated and skilled technicians!

Quickstart
Subjects to change w/o notification BMS-1732K-quick-start_EN_V1.2.docx
BMS-1732K
At the end of its service life, take this unit for disposal to an appropriate official collection point
Montage und Sicherheitshinweise / Installation and safety instructions
 Die beschriebenen Geräte dienen ausschließlich der Installation von Satelliten-Empfangsanlagen.
 The equipment described is designed solely for the installation of satellite receiver systems.
 Jegliche anderweitige Nutzung oder die Nichtbeachtung dieses Anwendungshinweises hat den Verlust der
Gewährleistung bzw. Garantie zur Folge.
 Any other use, or failure to comply with these instructions, will result in voiding of warranty cover.
 Die Geräte dürfen nur in trockenen Innenräumen montiert werden. Nicht auf oder an leicht entzündlichen
Materialien montieren.
 The equipment may only be installed in dry indoor areas. Do not mount on or against highly combustible
materials.
 Die Geräte sind mit einer Potenzial-Ausgleichsleitung (Cu, mindestens 4 mm
2
) zu versehen.
 The equipment must be provided with an earthing wire (Cu, at least 4 mm2).
 Die Sicherheitsbestimmungen der jeweils aktuellen Normen EN 60728-11 und EN 60065 sind zu beachten.
 The safety regulations set out in the current EN 60728-11 and EN 60065 standards must be complied with
 Verbindungsstecker: HF-Stecker 75 Ohm (Serie F) nach EN 61169-24
 Connector: HF plug 75 Ohm (series F) to EN 61169-24.
 Nicht benutzte Teilnehmerausgänge sollten mit 75-Ohm Widerständen (z. B. EMK 03) abgeschlossen
werden. (Verringerung der terrestrischen Signalwelligkeit)
 Unused subscriber ports should be closed off by 75 Ohm resistors (e.g. EMK 03).
 Nicht benutzte Kaskadenausgänge sind mit 75 Ohm Widerständen inkl. DC-Blocker abzuschließen. 75 Ohm
Widerstände ohne Gleichspannungssperren können das Gerät beschädigen!
 Unused trunk outputs must be terminated with 75Ohm resistors including DC Blocker. Otherwise the device
may be inoperable or damaged.
 Bitte überprüfen Sie die Anlage vor Inbetriebnahme auf evtl. Kurzschlüsse der Koaxial-Kabel. Es ist darauf zu
achten, dass die Eingangspegel der SAT-Ebenen möglichst gleich hoch sind. Power-LEDs zeigen den Betrieb
an. Falls die nicht leuchten, bitte die Stromzufuhr kontrollieren.
 Please check the installation against shortage in coax cables and connectors before switching on. The input
levels should be adjusted accordingly. Power-LED's showing operational mode. If this is not illuminated, please
check the power source.
 Stromführendes Gerät
 Current-carrying unit
 Nicht öffnen oder am Gerät manipulieren!
 Do not open or tamper with the unit!
 Bei Arbeiten an der Anlage immer die Netzstecker aus der Steckdose ziehen!
 When working on the system always unplug the mains plug from the wall socket!
 Auf ausreichenden Abstand achten! Nach allen Seiten mind. 5 cm!
 Ensure adequate clearance! Min. 5 cm to all sides!
 Nicht über Kopf montieren.
 Do not install overhead.
 Für die Gerätekühlung muß freie Luftzirkulation möglich sein. Überhitzungsgefahr!
 Free circulation of air must be possible to discharge the heat emitted by the unit. Risk of overheating!
 Zulässige Umgebungstemperatur -20 bis +50°C
 Permissible ambient temperature -20 to +50°C

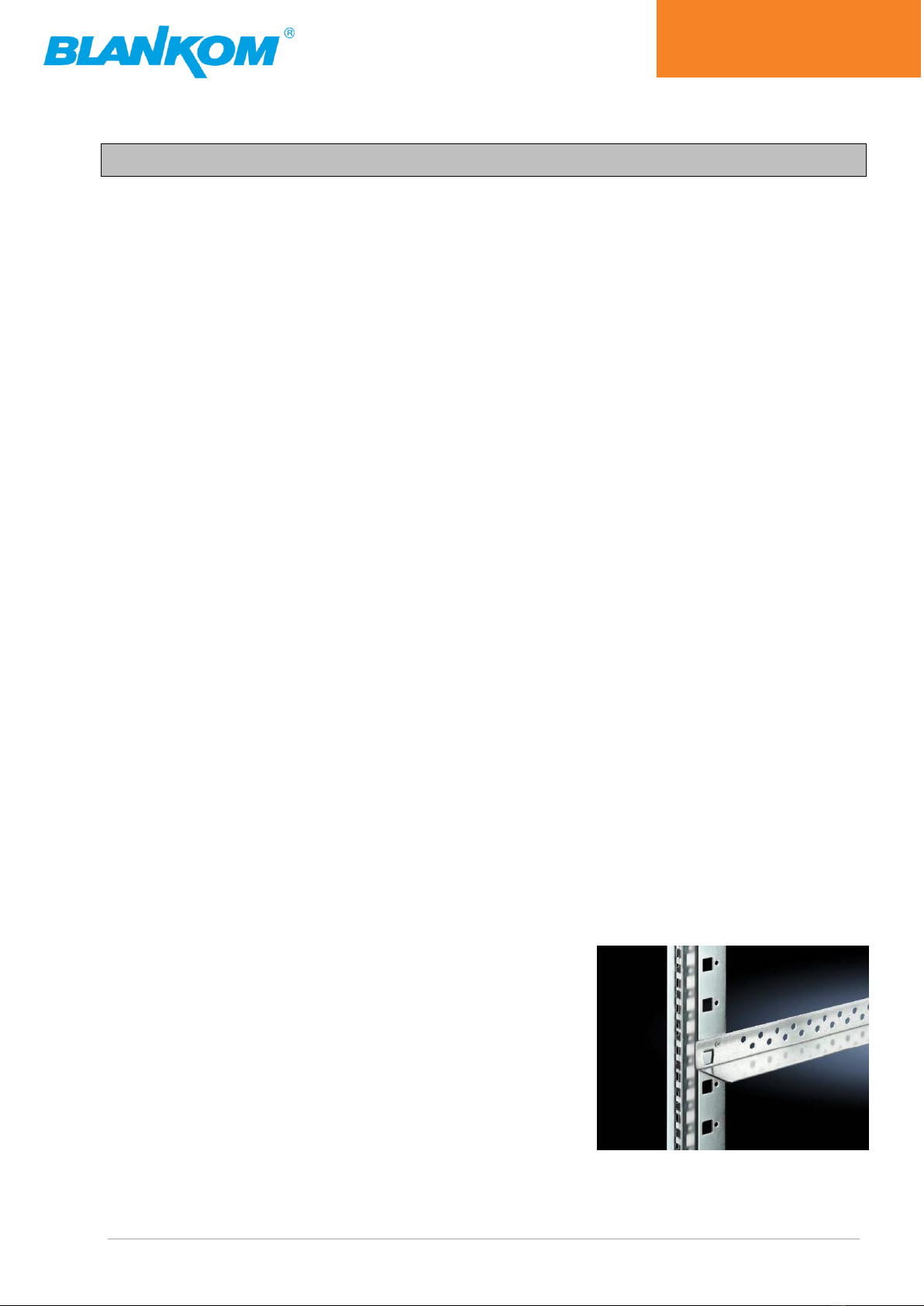

Wir empfehlen die Benutzung von Gleitschienen bevor der BMS
im 19 '' Schrank installiert und angeschlossen wird.
We recommend using and installing 19'' rails in your rack
before you mount the BMS and install the F-connectors
and cables.

Quickstart
Subjects to change w/o notification BMS-1732K-quick-start_EN_V1.2.docx
BMS-1732K
Zur Beachtung / Important notes :
 Auf das Netzgerät dürfen keine mit Flüssigkeit gefüllten Gegenstände gestellt werden.
 No liquid-filled items may be placed on top of the power supply unit.
 Das Netzgerät darf nicht Tropf- oder Spritzwasser ausgesetzt sein.
 The power supply unit must not be exposed to dripping or splashing water.
 Der Netzstecker muss ohne Schwierigkeiten zugänglich und benutzbar sein.
 The mains plug must be easily accessible and operable.
 Das Gerät kann nur durch Ziehen des Netzsteckers vom Netz getrennt werden.
 The only reliable method of disconnecting the unit from the mains is to unplug it.
 Bei größerem Durchmesser des Kabel- Innenleiters als 1,2 mm bzw. Grat können die Gerätebuchsen zerstört
werden.
 If the inner cable conductor diameter is greater than 1.2 mm or in case of burr, the device sockets may be
destroyed.
Please use appropriate measurement equipment when installing and do not use coax length > 50m
between Dish-Farm and the Multiswitch to secure signal quality and less slope.
Using a handy instrument from i.e. PROMAX or for the cheaper controlling an ALPSAT:
Professional and Semi-professional
Example Spectrums:

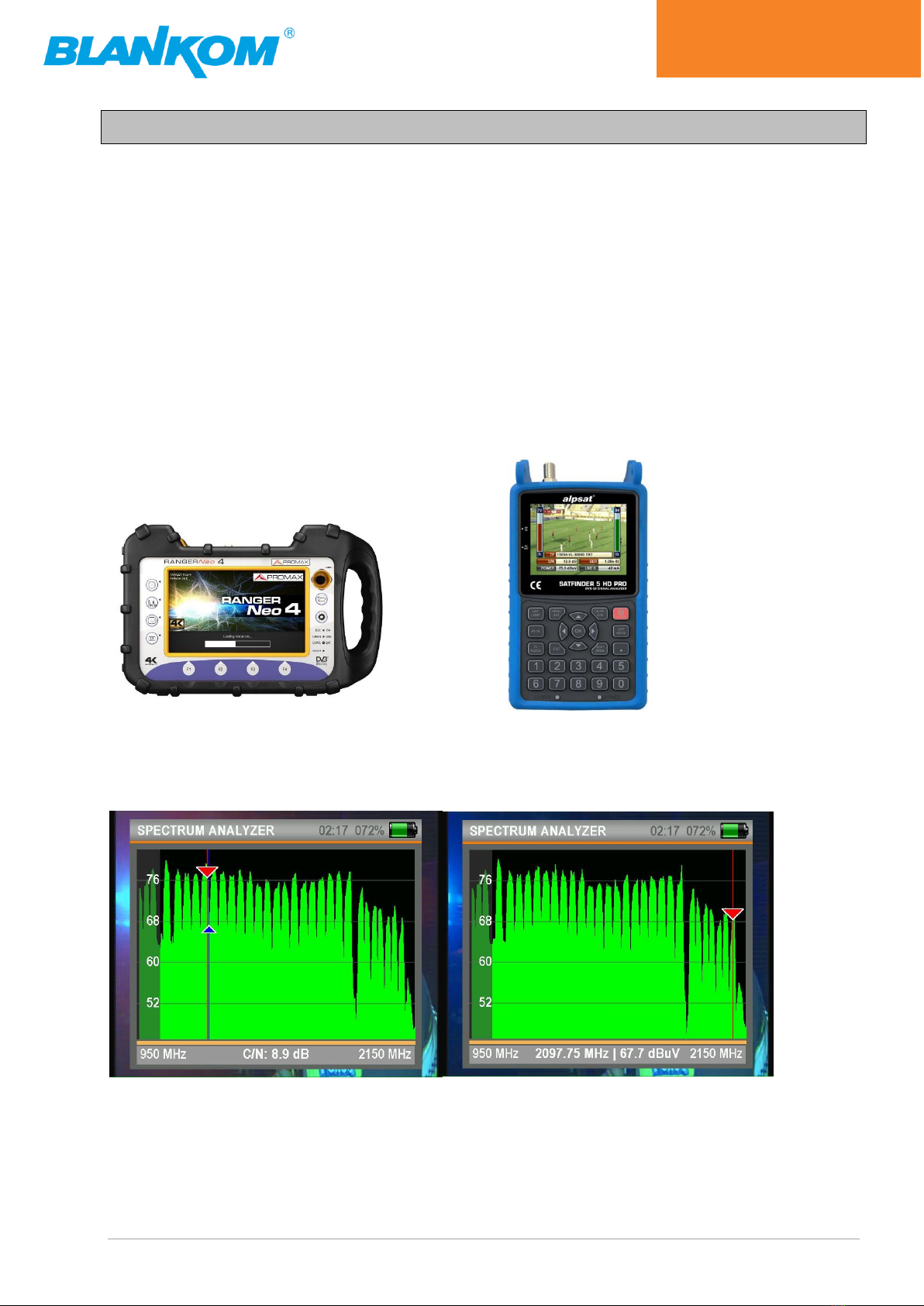

Left: C/N measuring. You see the SLOPE = higher attenuation on higher frequencies? Right: Level

Quickstart
Subjects to change w/o notification BMS-1732K-quick-start_EN_V1.2.docx
BMS-1732K
Shown is a good quality output level of 80 dBµV directly from a BLANKOM 32 -> 32 -Multiswitch
cascaded output. The first 2 showing ASTRA Satellite high band while the 3rd shows Eutelsat
Hotbird 13°E on DiSEqC SAT Pos. 2 with a better adjusted LNB at the dish(es). So your signal quality
depends on: Dish direction and angles, LNB focus and angle and also its LNB-quality and the cable
length and quality.

Quickstart
Subjects to change w/o notification BMS-1732K-quick-start_EN_V1.2.docx
BMS-1732K
Annex: Table for Conversions of Power @ 75Ω
dBmV
dBµV
dBm 75Ω
mVRMS
mW 75Ω
8
68
-40.75
2.51
8.4E-05
9
69
-39.75
2.82
1.1E-04
10
70
-38.75
3.16
1.3E-04
11
71
-37.75
3.55
1.7E-04
12
72
-36.75
3.98
2.1E-04
13
73
-35.75
4.47
2.7E-04
14
74
-34.75
5.01
3.3E-04
15
75
-33.75
5.62
4.2E-04
16
76
-32.75
6.31
5.3E-04
17
77
-31.75
7.08
6.7E-04
18
78
-30.75
7.94
8.4E-04
19
79
-29.75
8.91
1.1E-03
20
80
-28.75
10.00
1.3E-03
21
81
-27.75
11.22
1.7E-03
22
82
-26.75
12.59
2.1E-03
23
83
-25.75
14.13
2.7E-03
24
84
-24.75
15.85
3.3E-03
25
85
-23.75
17.78
4.2E-03
26
86
-22.75
19.95
5.3E-03
27
87
-21.75
22.39
6.7E-03
28
88
-20.75
25.12
8.4E-03
29
89
-19.75
28.18
0.011
30
90
-18.75
31.62
0.013
31
91
-17.75
35.48
0.017
32
92
-16.75
39.81
0.021
33
93
-15.75
44.67
0.027
34
94
-14.75
50.12
0.033
35
95
-13.75
56.23
0.042
36
96
-12.75
63.10
0.053
37
97
-11.75
70.79
0.067
38
98
-10.75
79.43
0.084
39
99
-9.75
89.13
0.106
40
100
-8.75
100.00
0.133
41
101
-7.75
112.20
0.168
42
102
-6.75
125.89
0.211
43
103
-5.75
141.25
0.266
44
104
-4.75
158.49
0.335

Quickstart
Subjects to change w/o notification BMS-1732K-quick-start_EN_V1.2.docx
BMS-1732K
dBmV
dBµV
dBm 75Ω
mVRMS
mW 75Ω
45
105
-3.75
177.83
0.422
46
106
-2.75
199.53
0.531
47
107
-1.75
223.87
0.668
48
108
-0.75
251.19
0.841
49
109
0.25
281.84
1.059
50
110
1.25
316.23
1.333
51
111
2.25
354.81
1.679
52
112
3.25
398.11
2.113
53
113
4.25
446.68
2.660
54
114
5.25
501.19
3.349
55
115
6.25
562.34
4.216
56
116
7.25
630.96
5.308
57
117
8.25
707.95
6.683
58
118
9.25
794.33
8.413
59
119
10.25
891.25
10.591
60
120
11.25
1000.00
13.333
61
121
12.25
1122.02
16.786
62
122
13.25
1258.93
21.132
63
123
14.25
1412.54
26.604
64
124
15.25
1584.89
33.492
65
125
16.25
1778.28
42.164
66
126
17.25
1995.26
53.081
67
127
18.25
2238.72
66.825
68
128
19.25
2511.89
84.128
IRENIS GmbH
Hauptstr. 29
31171 Nordstemmen- Germany
Phone: [phone]
IRENIS technical hotline VoIP [phone] or -8601
Managing Director: Dipl.Ing. Murad Önol
Commercial Register: HRB 206370 / District Court Hildesheim
Web: www.blankom.de E-Mail: [e-mail]
