Irrigatia Solar Automatic C60 User manual

WATERS EVERY
3 HRS
SOLAR
POWERED
MORE SUN =
MORE WATER
USE WITH A
WATER TANK
OR TAP
Instructions: Irrigatia Solar Automatic C60, C120 and C180 Watering Kits
Instructions: Kits d’arrosage automatiques Irrigatia Solar C60, C120 et C180
Anleitung: Irrigatia Solar Automatische C60, C120 und C180 Bewässerung Kits
Instrucciones: Irrigatia Solar Automatic C60, C120 y C180 Kits de Riego

2
Tank series controller
with main pump and
secondary feed pump
Water level sensor Solar Panel with 5m
lead (model shown is
the C120)

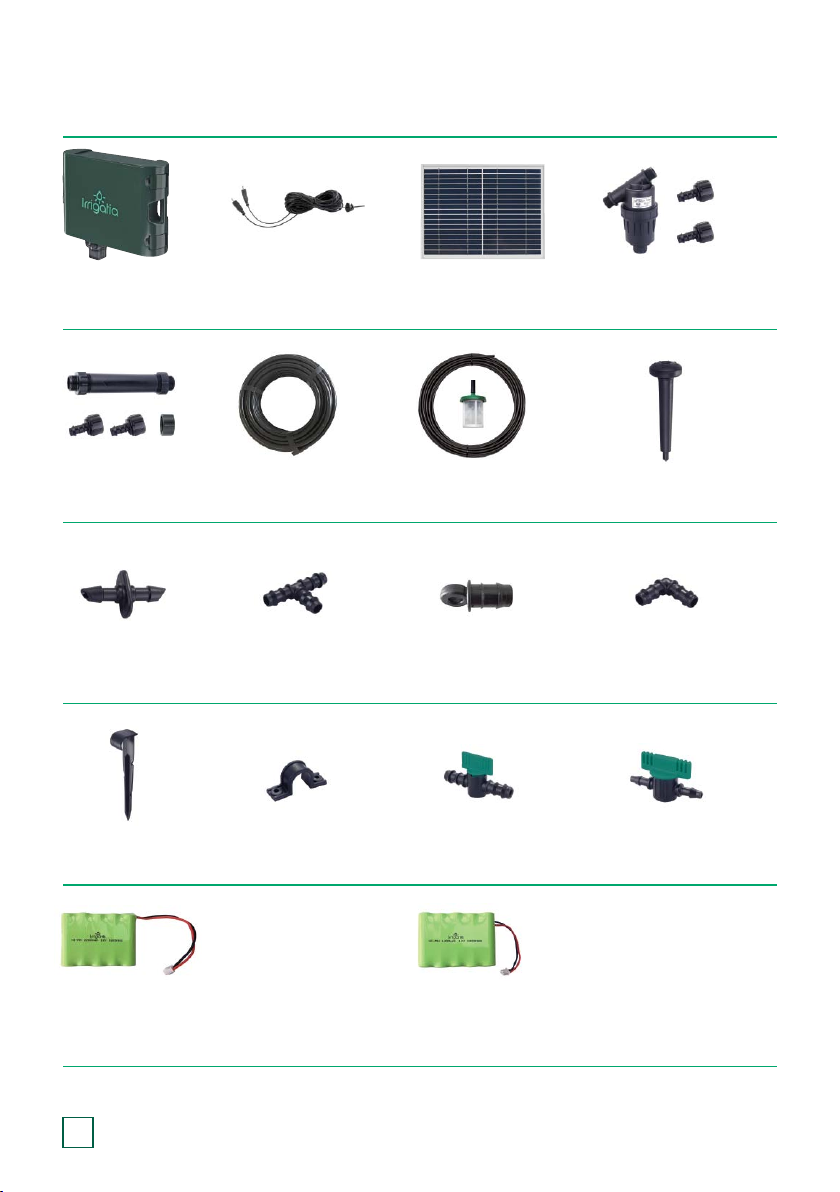

1 x inline filter +
2 x 13mm adaptors
1 x foot strainer +
2 x 13mm adaptors &
1 x 13mm end cap
1 x 25m roll of
13mm tube
6 x 13mm clamps 2 x 13mm valves 12 x 4mm valves
Battery pack containing 10 x AA
rechargeable batteries C60/C120:
Battery Pack 2200mAh
Battery pack containing 20 x AA
rechargeable batteries C180:
Battery Pack 4400mAh
1 x 4mm punch
12 x 4mm joiners 2 x 13mm T-piece 4 x 13mm end plug 4 x 13mm elbow
10 x 13mm stakes
1 x 2.5m 3.5mm tube
and inlet filter
Contents

1
6
2
34 5
7
8
3
User Instructions for Irrigatia Tank Series
Key
1. Tank
2. Foot strainer
3. Isolation valve
4. Pump
5. Inline filter
6. Solar panel
7. Regulating valve
8. Anti-siphon device
For video instructions: irrigatia.com/how-it-works/setuptank-series
Figure 1

Postioning
Using the fixing holes indicated by the green arrows,
mount the controller close to the water source and low
down so that the pump inlet (Standard or submersible)
is below the water line in the tank. The controller case is
weather resistant but can be mounted inside if desired.
The solar panel should be mounted, facing the midday
sun and has a 5m cable, a 5m extension can be added if
required. The panel can be connected and screwed tight
to the socket hanging from the base of the controller.
4
If using the standard pump screw in
the hose connectors to the pump.
Small tank gravity fed from main tank
Figure 3
Figure 2

Foot Strainer
Water Level Sensor
Water Outlet Tube & Filter
Anti-Siphon Device
The water level sensor should be secured so that the
higher probe is at least 3cm higher than the water inlet.
Secure it using cable ties.
During operation, if one of the sensors is out of the water
the pump will stop and the beeper will sound. If the beeper
is a nuisance it can be silenced by unplugging it from the
circuit board.
The water level sensor comes with a 5m cable – this can
be extended by purchasing an extension lead.
To protect the drippers from debris, there is a fine mesh
filter. This can be fitted on either side of the pump, (fig 2)
but a valve must be fitted between it and the tank to turn
off the water flow while cleaning. (Valve 3 in fig 1).
The anti-siphon is needed to stop the water flow when the
pump has stopped if the first emitter is lower than top of
the water source. It should be fitted in the delivery tube
to the emitters, (it is number 8 in fig1). It can be fitted by
making a hole with the punch provided and pushing the
blue part of the anti-siphon directly into the tube, threaded
end first. Anti-siphon device must be fitted higher than
the water source.
Standard Pump
Top entry
Vertical
Resting on tank bottom (see fig 4)
5
Figure 4
Figure 5

6
Supplement Feed Pump
Irrigation Kits
The C120 has 2 pumps. As well as the water pump there
is a small supplement pump which runs intermittently
to dose at a rate of about 1:100. (Your feed concentrate
needs to be 100x the strength you wish to apply to your
plants). This can be used to dose your water only with
100% soluble supplements. Connect a piece of small
bore tube with the filter on the end to the pump inlet and
connect the outlet tube to the delivery line before the first
off take (see fig 6). Use a valve for this connection. If not
needed supplement pump can be unplugged from the
circuit board (pump 2) and close valve. The feed container
must keep all light out.
The Tank Series can be used with up to 180 drippers.
The C180 will deliver up to 1 irrigation unit (equivalent to
a large tomato plant) per dripper, the C60 1/3 and C120
2/3 of that.
Use 13mm tees, elbows and end plugs with the 13mm
tube to make the distribution main. Use either 4mm joiners
or 4mm valves to connect the irrigation kits.
Dripper kits (12 or 20 each of drippers, tees and stakes,
and 15m of small bore tube.) Cut and join the pipe using
the tees to make a network which reaches all of the plants.
Remember the rules for even watering apply especially
where there are more than 12 drippers per outlet, see:
irrigatia.com/how-it-works/principles-of-good-installation
Seep hose can be plugged onto individual drippers with
a stopper at the other end in lengths of up to 1.2m, 2.4m
where connected to a dripper at both ends. They will not
change the water output, but they spread it out more
which is useful for seedlings and small plants. Works best
slightly buried.
Micro-porous hose emits water along its whole length,
but unlike seep hose is best used in long lengths. Follow
the kit instructions and use the punch and a connector
nipple to connect with the distribution pipe.
PLANT
FOOD
Figure 6

7
Starting up
Open regulating and isolation valves (3&7 in drawings)
fully – handle in line with tube. Ensure there is water flow
to the pump.
Open the case.
• Unplug the feed pump from the circuit board – marked
as pump 2 on the board.
• Make sure the switch is in the off position.
• Remove 2 screws, open the battery case, install battery,
replace lid and plug in connector to terminal marked
‘bat’ on the circuit board.
• Attach the solar panel in the socket on the bottom of
the case.
• Switch on to position 3. If it is reasonable daylight and
the water sensors are in water the pump should start.
• As the bypass valve (Valve 7 in fig 1) is wide open most
of the water pumped should return to the tank. Wait
until all the air has cleared from the system before VERY
SLOWLY starting to close the bypass valve. This will
push more water towards the drippers. The valve should
be gradually closed until the drippers are dripping about
once per second, or the microporous hose is full of
water but soft, like a soft bicycle tyre. If you are using
micro-porous tube, check the adjustment every few days
after installation as when it is wetted up it will emit less
water than when newly installed.
• Check whole system is working properly and for leaks.
• The duration of the first watering is likely to be long, the
pump will not switch off until the batteries fall to 10v,
this may take several hours, but after that proper control
should be established. If the excess watering is likely to
be a problem the bypass valve can be opened until this
has happened.
• The switch on the circuit board controls the solar panel.
This is charging the battery on a 5 minute cycle. On
switch positions 1,2,3,4,5, the solar panel is turned on
for 1,2,3,4,5 minutes respectively. Changing the switch
position will not affect the current run time or flow
rate, but will control the amount of charge available for
the subsequent watering cycle, thereby affecting the
pumping duration. The application can be fine-tuned
with small adjustments to the bypass valve.
Supplementary pump – if the main pump is running, this
should run intermittently to dose the water with feed.
After 24-48 hours the unit should have settled down.
Monitor the water application, turn the switch up or down
accordingly. Once it is set up it will adjust itself for light
intensity but you will need to readjust it for your plants as
they grow.
Battery case
Main
pump
Circuit board

For further information on this or any of the
other products in our range, please visit:
www.irrigatia.com
SOL-C60
60x 60x 120x 25x 60m
SOL-C120
120x 120x 240x 50x 120m
SOL-C180
180x 180x 360x 75x 180m
Detailed instructions can be found at: irrigatia.com/how-it-works/setuptank-series
