Owner’s
Manual
Media Gateway
PXAMG
add
iPod®
Expand Your Factory Radio
add
iPod®
Peripheral Electronics®,
a division of AAMP of America™
13160 56th Court Clearwater, Florida 33760
Ph. 800-477-2267 ext. 230
[email protected]
©2008 AAMP of Florida, Inc.
Rev. 05-06-08
INST014
VOLKSWAGEN
Owner’s Manual
Media Gateway
PXAMG
PGHVW2
R

Table of Contents
Pages
1. Introduction 1
2. Precautions 1
3. Compatibility Notes 1
4. Media Gateway Operation Modes &
Supported Features 2
5. Dipswitch Settings 2
6. Installation 3
7. Basic Mode 4
8. Advanced Mode 5
(Touareg Non-Navigation radio)
9. iPod Operation 5
10. HD Radio Operation 6
(if equipped)
11. Selecting AUX Input 7
12. Selecting Factory Satellite 7
(if equipped)
13. Troubleshooting 8
14. Warranty Information 9

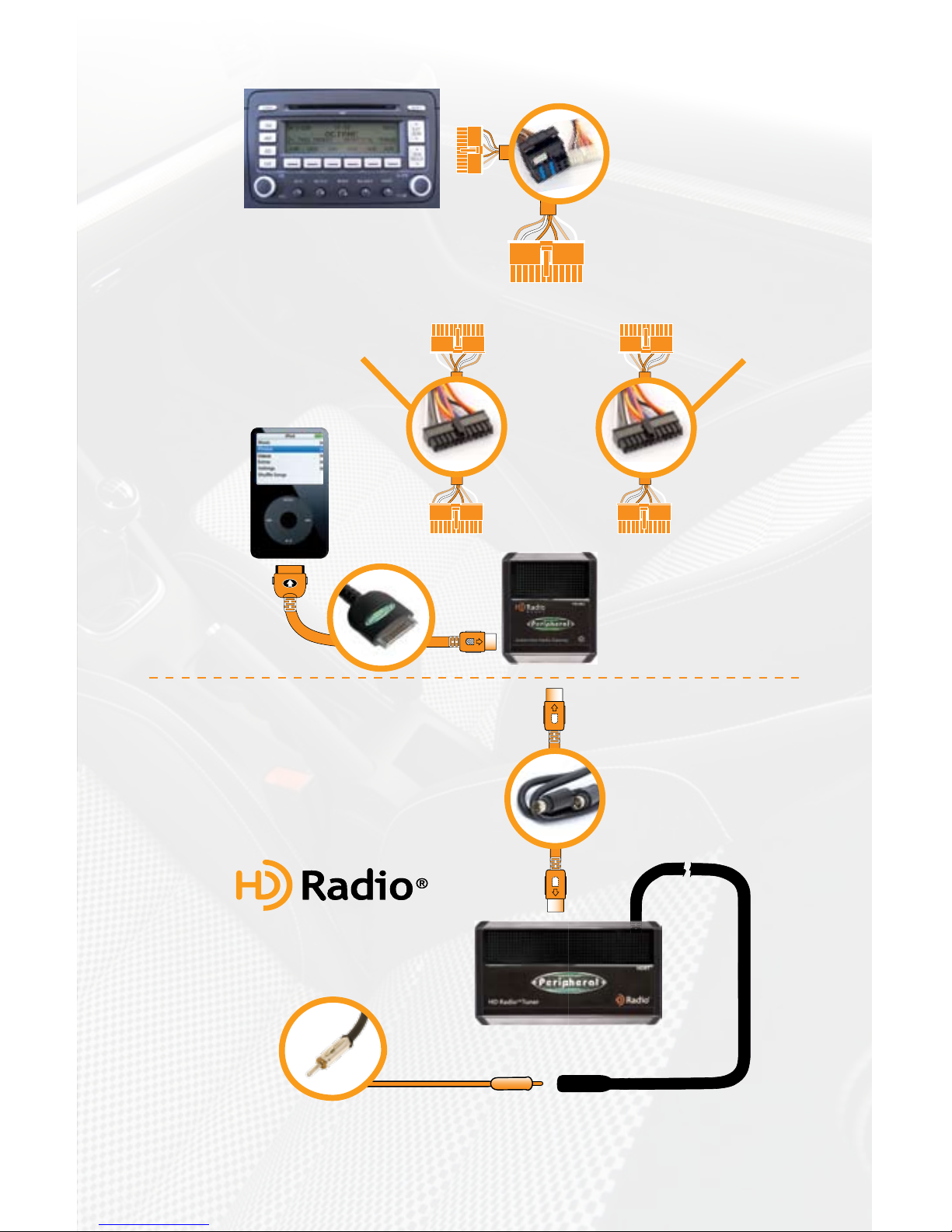

Media Gateway & Optional Add-ons
Media Gateway Harness
Part #: PGHVW2
PGHVW2A adapter
2008 Touareg with
non-navigation radio
featuring a “SAT” button
Factory Radio
Not Included
iPod
Not
Included
Media Gateway
Part #: PXAMG
3Ft. HD Radio Cable
11Ft. iPod Cable
HD RadioTM Tuner
(sold separately)
Part #: HDRT
Antenna Adapter*
* Required for most vehicles. (sold seperately)
PGHVW2B adapter
All other
Applications
Optional Add-on HD Radio tuner
Connectivity available only when using
PGHVW2A adapter harness and Media
Gateway in Advanced Mode.
OR

1
1. Introduction
Thank you for purchasing the Peripheral Electronics® Media Gateway.
The Media Gateway is designed to provide endless hours of listening
pleasure from your factory radio. To ensure that your HD Radio tuner or
iPod performs correctly with your radio, we recommend that you read this
entire manual before attempting installation of the Media Gateway. The
Media Gateway allows connectivity for iPod and HD Radio (HDRT sold
separately), enabling full control of these devices from the factory installed
radio. It also retains original system features such as satellite radio and
rear seat entertainment (if equipped).
2. Precautions
UPDATING iPod FIRMWARE
For proper operation of the Media Gateway, your iPod must be updated
with the most recent version of rmware from Apple. This is done on your
computer. To update the software on the iPod go to:
http://www.apple.com/ipod/download/.
Follow the directions on the website to complete the download. There is no
charge for this update.
PREVENTING DAMAGE TO YOUR VEHICLE OR iPod.
Some installations require you to make wiring connections. To eliminate the
risk of an electrical short, we recommend disconnecting the vehicle’s battery
prior to installation. If you do not feel comfortable making these connections,
we suggest you seek professional installation. We recommend that the iPod
be disconnected from the interface when the vehicle is not in use.
PROPER MOUNTING LOCATION
Securely install the interface in a location free from; heat, humidity, moving
parts, sharp metal edges or direct sunlight. We recommend securing
the interface to a suitable location using; double sided tape, VelcroTM or
zip-ties.
3. Compatibility Notes
2006-2008 Volkswagen Jetta, Rabbit, Passat, Eos, and GTI (all radios)
Basic Mode.
2008 Touareg (Navigation radio) Basic Mode.
2008 Touareg (Non-Navigation radio) Basic Mode or Advanced Mode
available.

2
4. Media Gateway Operation
Modes and Supported Features
Basic Mode – Available in all VW applications.
This mode offers basic control of the iPod (next track, previous track)
Also provides an auxiliary audio input
Basic Mode does not support HD Radio connectivity.
NOTE: if connecting the Media Gateway to operate in Basic Mode, the
Factory CD changer must be disconnected (if present) to add the Media
Gateway to the radio.
Advanced Mode – Available in Touareg with a Non-Navigation radio fea-
turing a “SAT” button.
This mode offers advanced control of the iPod (Browse by Playlist, Artist,
Album, Genre and Composer)
Also provides an auxiliary audio input
Advanced Mode supports HD Radio connectivity. To receive HD Radio
stations the Peripheral HD Radio Tuner must be connected. (HDRT sold
separately).
Refer to www.peripheralelectronics.com for most updated application
guide.

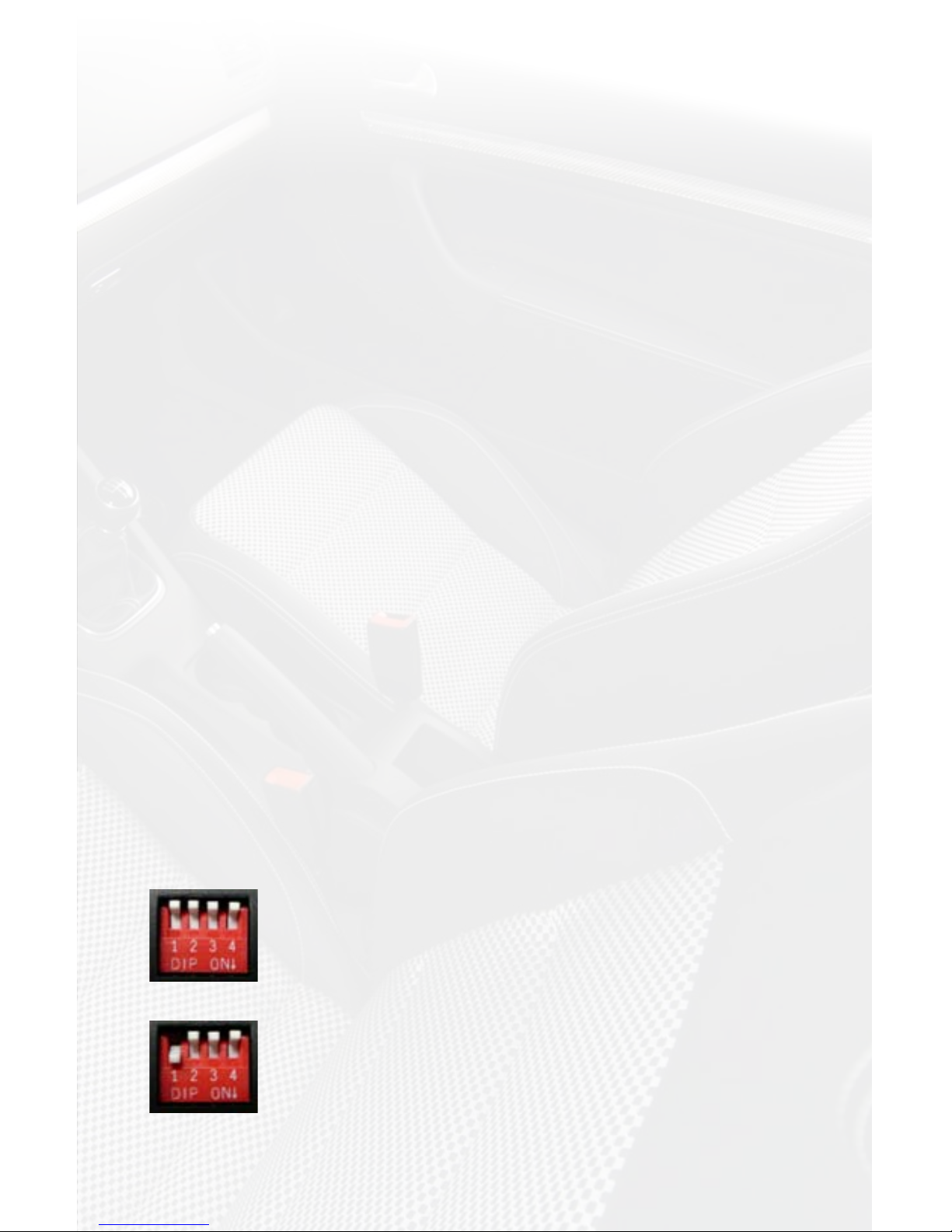

5. Dipswitch Settings
After removing the radio from the vehicle identify the manufacturer of the
radio. Two companies make the radios featured in VW vehicles. If the
model number sticker is on the SIDE of the radio it is a Delphi brand radio.
If the model number sticker is on the TOP of the radio it is a Panasonic
brand radio.
For all Delphi radios and Touareg Non-Navigation radios all dip
switches must be in the OFF position (up) for the Media Gateway
to function.
For Non-Navigation Panasonic radios that feature a “SAT” button,
turn on dipswitch # 1 to operate the Media Gateway in Basic Mode.

3
6. Installation
Before installing the Media Gateway, be sure you have correctly set
the dipswitches according to section ve.
NOTE: DO NOT disconnect the wiring from the “passenger airbag
light” on the dash bezel. Disconnecting this harness will cause an
airbag light to illuminate in the gauge cluster which needs to be
reset by a Volkswagen dealership.
1. When making electrical connections it is always recommended that
the vehicle’s battery be disconnected from the electrical system before
performing the installation.
2. Carefully remove the radio from the dash of the vehicle. This will pro-
vide access to the factory radio connectors where you will connect the
Media Gateway harness.
3. Disconnect the factory harness from the back of the radio.
4. Connect the 8-Pin iPod docking cable into the rst port on the Media
Gateway furthest away from dipswitches. Carefully run the 11 foot iPod
cable behind the dash to the location where the iPod will be mounted or
stored (for example; the glove box or center console). This location
will vary based on the vehicle, and customer’s preference. When running
this cable through the dash, be sure to secure it away from moving parts
or sharp metal edges that may damage the cable.
5. If you are connecting the Media Gateway in a Touareg with a Non-
Navigation radio featuring a “SAT” button, follow step 6 to connect the HD
Radio Tuner (HDRT sold separately). If you are not installing the HDRT
please skip step 6 and continue onto step # 7.
6. Plug the 3 foot HD Radio cable (8-Pin to 8-Pin) into the second port
(closest to the dipswitches) on the Media Gateway. Connect the other
end of this cable into the HD Radio tuner. Connect the factory WHITE
antenna cable into the antenna connection on the HD Radio tuner (HDRT).
If the Tan connector is connected into the HDRT it will not receive any AM
reception. For best performance of the HDRT use an amplied antenna
adaptor to make this connection. We recommend the use of a Best Kits
BAADIN22 or equivalent.
7. Plug the male connector on the PGHVW2 harness into the port on the
back of the radio. Next, connect the factory harness into the female con-
nector on the PGHVW2 harness. Be sure to make a rm connection but
do not force it.

4
a. If installing the Gateway into a non-navigation Touareg, then connect
the PGHVW2A adapter to the harness and media gateway.
b. All other applications, connect the PGHVW2B adapter to the vehicle
harness and to the media gateway.
Plug the black micro-t 24-pin connector on the PGHVW2 harness into
the PXAMG Media Gateway box.
8. To complete the installation secure the Media Gateway (PXAMG) and
HD Radio tuner (HDRT) (Touareg only) into the cavity behind the dash.
Be sure that the cables and interface modules are not near moving parts
or sharp metal edges as they may damage the cables. To prevent rattling
noises inside the dash, use zip ties, or electrical tape, or other fasteners
to mount the interfaces to the factory wiring or installed audio compo-
nents (for example under the factory Satellite tuner (if present).
9. With all connections made, reconnect the vehicle’s battery, insert the
key into the ignition, and turn the vehicle on. Check for proper operation
of the Media Gateway and HD Radio Tuner before
reinstalling the factory dash panels.
10. When rst powering up the vehicle with the radio reconnected,
“CODE” may appear on the screen. This is a safety feature of the VW
radio. If you see this message, DO NOT enter a code, simply let the
radio sit on this screen for about 10 seconds, then turn the vehicle off.
Disconnect the gateway harness from the vehicle. Reconnect the gate-
way harness to the vehicle. Normal operation should resume.
11. NOTE: The rst time that you access the Gateway, your radio may
display “DEV INIT” while the device is initializing. If this is displayed,
please wait one minute then cycle the ignition off and on. Access the
gateway again to begin normal operation.
7. Basic Mode
If you have congured your Media Gateway to operate in Basic Mode
by setting the dipswitches as described in section 5, read this section to
learn how to use the supported features. If not, please proceed to section 8.
Basic mode is accessed by pressing the “CD” button twice to switch the
radio to the CD changer source.
Use the iPod click wheel to access your favorite music. When the iPod
is playing, turn the tune knob Clockwise, or press the “SEEK▲” button
to change to the next track. Turn the tune knob Counter-clockwise to go
back to the previous track.

5
To select the auxiliary audio input on the Media Gateway, press Preset # 2.
To switch back to the iPod source press Preset # 1.
8. Advanced Mode
If you have congured your Media Gateway to operate in Advanced Mode
by setting the dipswitches as described in section 5, read this section to
learn how to use the supported features.
Advanced mode is accessed by pressing the “SAT” button to switch the
radio to the Satellite Radio source. In the Satellite Radio source, you will
have access to all the available Media Gateway sources.
Press the “▲” or “▼” button to cycle through the Media Gateway sources.
(AM, FM, IPOD, AUX input, SAT) when the desired option is displayed on
the screen, wait 3 seconds and the radio will select the displayed option.
9. iPod Operation
Press the “▲” button until “IPOD” is displayed. Wait 3 seconds, the radio
will automatically enter the iPod mode.
Touareg Radio controls
Next Track
Turn the Tune knob Clockwise to skip to the next track.
Previous Track
Turn the Tune knob Counter-clockwise to go back to the previous track.
Enter Browse menu / make a selection
To enter the Browse menu, press Preset # 2. While in the Browse menu
press the “▲” or “▼” buttons or turn the tune knob to cycle through
Browsing options. (Playlist, Artist, Album, Genre and Composer) when the
desired Browsing method is displayed, press Preset # 2 to select that op-
tion. When the radio displays “TR:” you are about to select a track to play,
when you press Preset # 2 and select a track, the iPod will play that song
through the audio system.
Menu back
Press “Preset # 1” to move back one folder in the menu. This allows you
to change the Browsing method. For example if you select to Browse by
album, and you decide to Browse by artist instead, press Preset # 1 to go
back.

6
Touareg Steering Wheel controls
The Multifunction display in the gauge cluster must be in “Audio mode” for
the steering wheel controls to operate the Media Gateway.
Next track
Roll up on the scroll wheel to advance to the next track.
Previous track
Roll down on the scroll wheel to go back to the previous track.
Enter Browse menu / make a selection
Press in the scroll wheel on the steering wheel controls to enter the
Browse menu, and to make selections when in the Browse menu.
While in the Browse menu, change your Browsing method by rolling the
scroll wheel up or down slowly.
10. HD Radio Operation
(if equipped)
Press the “▲” button until “HD-AM” or “HD-FM” is displayed. Wait 3 sec-
onds, the radio will automatically enter the HD Radio mode.
Touareg Radio Controls
Seek Up
Press the ”>” button to seek up to next available station.
Seek Down
Press the ”<” button to seek down to the next available station.
Manually Tune
Turn the Tune knob to manually tune. Clockwise will tune up, Counter-
clockwise will tune down.
Storing stations into Preset memory
Tune to a station you wish to save into Preset memory. Press and hold the
Preset button (1-6) where you want to store the preset. Holding the preset
button for two seconds will store the station into memory and “PR SAVED”
will be displayed.
Recall a station from Preset memory
Press the preset button (1-6) to recall the station stored in that location.

7
Touareg Steering Wheel controls
Scroll up on the scroll wheel to cycle up through stations stored in preset
memory, scroll down, to cycle down. When the desired preset is dis-
played, wait 3 seconds, the radio will auto select the station.
11. Selecting AUX
Press the “▲” button until “AUX” is displayed. Wait 3 seconds, the radio
will automatically enter the Auxiliary audio input mode.
12. Selecting Factory Satellite
Radio (if equipped)
Press the “▲” button until “SAT” is displayed. Wait 3 seconds, the radio
will automatically enter the Satellite Radio mode.
For instructions on the operation of the factory installed Satellite Radio
tuner, please reference the owner’s manual supplied with the vehicle.
NOTE: when in Factory Satellite radio mode, to change to another source,
iPod, HD Radio, etc. Press in the Tune knob twice (2X) then use the “▲”
and”▼” buttons to cycle through the available Media Gateway sources.
For Best Performance Have It
Professionally Installed.

8
Symptom Cause Remedy
Radio shows iPod
not connected
iPod cable is not
connected to iPod or
Gateway.
Verify the docking cable is connected
to the Media Gateway, and the iPod
I can not correctly
control the iPod
through the radio.
The iPod rmware
may be out of date.
Update iPod rmware for free at
http://www.apple.com/ipod/download
I have updated my
iPod’s rmware
and still have
control issues
Sometimes the
iPods needs to be
reset
Press and hold the click wheel (center
button) and the menu button for 10
seconds. This will reboot the iPod.
YOU WILL NOT LOSE MUSIC on the
iPod by doing this reset
I can’t use my
iPod’s click wheel
to select music
The iPod is in
external control
mode. This allows
text to be displayed
on the radio screen
Press the Aux / Sat button and select
AUX 2 source to control the iPod
manually using the click wheel
The Media
Gateway does
not recognize the
HD Radio tuner
(HDRT)
The HD tuner
was not properly
connected when
the PXAMG was
rst connected and
initialized.
HDRT must be connected before the
PXAMG is powered on. Disconnect
the PXAMG from the vehicles harness
for 5 minutes. Verify the 8 pin DIN
HDRT cable is securely connected
at both ends before reconnecting the
vehicle harness.
Radio shows
“DEV INIT”
Gateway device is
initializing
This only occurs the rst time the
PXAMG is powered on. Wait one
minute, cycle ignition off and on then
enter SAT Mode.
When I listen to
the factory AM or
FM radio there
is only static, no
audio.
Factory antenna
cable is connected
to the HD Radio
tuner.
Use Gateway to access HD Radio
source. This will provide all AM and
FM reception for your vehicle.
No AM or FM
reception using the
HD Radio source
Factory antenna
cable is not
connected to the HD
Radio tuner (HDRT)
Remove from factory radio, connect
into HDRT module. Note* We
recommend a Best Kits BAADin22
HD Radio station
quality uctuates
or is lost randomly
The HD Tuner is
temporarily losing
reception of the
Digital HD Radio
broadcast signal
This is expected performance. The
Digital HD Radio playback will resume
in areas of higher broadcast signal
strength.
I receive FM but
no AM stations
Poor antenna
connection
Verify that the WHITE antenna
connector is connected to the HDRT,
using a BAADin22 or equivalent
adapter.
My radio displays
“iPod Connected”
but I don’t hear
any music playing
The iPod audio
is muted while
browsing for music
Once a track is selected, the audio will
resume.
13. Troubleshooting

14. Warranty Information
One Year Limited Warranty
The quality controls used in the manufacture of this product will ensure your satisfac-
tion. This warranty applies only to the original purchaser of this product from an autho-
rized Peripheral Elecronics dealer. This warranty covers any supplied or manufactured
parts of this product that, upon inspection by Peripheral Electronics authorized person-
nel, is found to have failed in normal use due to defects in material or workmanship. This
warranty does not apply to installation expenses. Attempting to service or modify this
unit, operating this unit under conditions other than the recommended voltage will render this
WARRANTY VOID.
Unless otherwise prescribed by law, Peripheral Electronics shall not be liable for any per-
sonal injury, property damage and or any incidental or consequential damages of any kind
(including water damage) resulting from malfunctions, defects, misuse, improper installation
or alteration of this product. All parts of this Peripheral Electronics product are guaranteed
for a period of 1 year as follows:
Within the rst 12 months from date of purchase, subject to the conditions above, Peripheral
Electronics will repair or replace the product at their discretion, if it is defective in material
or workmanship providing it is returned to an Authorized Peripheral Electronic’s Dealer, with
PROOF OF PURCHASE from an authorized Peripheral Elecronics dealer.
Warning:
This equipment may be reset by unintentional electrostatic discharge during op-
eration. Exposure to direct sunlight or extreme heat may cause damage or mal-
function.
FCC Class B Radio Frequency
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment gener-
ates, uses, and can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television recption, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorientate or relocate the receiving antenna.
2. Increase the separation between the equipment and reciever.
3. Connect the equipment into an outlet on a circuit differant from
that of which the reciever is connected.
4. Consult the dealer or an experienced radio / television technical
for help.
Notice : The changes or modications not expressly approved by the party responsible for
compliance could void the user authority to operate the equipment.
www.peripheralelectronics.com
Peripheral Electronics®,
a division of AAMP of America™
13160 56th Court Clearwater, Florida 33760
Ph. 800-477-2267 ext. 230
[email protected]
©2008 AAMP of Florida, Inc.
