Isolite MAX-C User manual

INSTRUCTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Disconnect power before performing work on electrical equipment.
3. Do not let power cords touch hot surfaces and do not mount near gas or electric heaters.
4. Equipment should be mounted in locations and at heights where unauthorized personnel will not readily subject it to tampering.
5. The use of accessory equipment not recommended by Isolite Inc., may cause an unsafe condition, and
will void the unit’s warranty.
6. Do not use this equipment for other than its intended purpose.
7. Servicing of this equipment should be performed by qualified service personnel.
8. Consult building code for approved wiring and installation.
9. SAVE THESE INSTRUCTIONS!
WALL MOUNT INSTALLATION:
1. Remove torx screws (1) to release clear cover. There are 4 O-rings (2) inserted to the clear cover screw holes. Release
the black stencil (3) from the clear face cover. Knockout to remove the chevron as necessary from the stencil. Peel off
backing paper from the tape on the back of the stencil (3) and carefully position and stick the colored fibre to the stencil.
2. Remove the back mounting plate (27) knockout applicable knockout holes in back plate (27). Install the gasket
(26) and bushing (32). Feed the lead wires through back plate then secure the back plate and housing to the wall.
Connect wire per wiring diagram provided. Connect battery. Caution! Failure to insulate unused wire may result in a
shock hazard or unsafe condition as well as equipment failure.
3. Replace inside mounting plate (24), faceplate, clear cover, torx screws, and O-rings.
4. Apply power.
CEILING/END MOUNT INSTALLATION
1. Remove torx screws (1) to release clear cover. There are 4 O-rings (2) inserted to the clear cover screw holes. Release
the black stencil (3) from the clear cover. Knockout to remove the chevron as necessary from the stencil. (3) Peel off
backing paper from the tape on the back of the stencil and carefully position and stick the colored fibre to the stencil.
2. Remove the inside mounting plate (24).
3. To install canopy kit (29), 3 knockout on the top (for ceiling mount) or the 3 knockout on the side (for end mount).
Position canopy gasket (28) and the canopy (29). Install the cap screws (19) and the washers. Attach canopy nuts
and then tighten. Install the liquid tight (32) bushing. Install the canopy mounting base (31) to the octagon box (10)
(not supplied). Connect wires per diagram provided. Caution! Failure to insulate unused wire may result in a
shock hazard or unsafe condition as well as equipment failure. The mounting base can be rotated for the desired
mounting angle. Install the canopy (29) to the mounting base (31) with the supplied screws (13). Feed the lead wires
through the bushing and tighten to complete the liquid tight seal.
4. Connect battery.
5. Replace cover, torx screws, and O-rings.
6. Apply power.

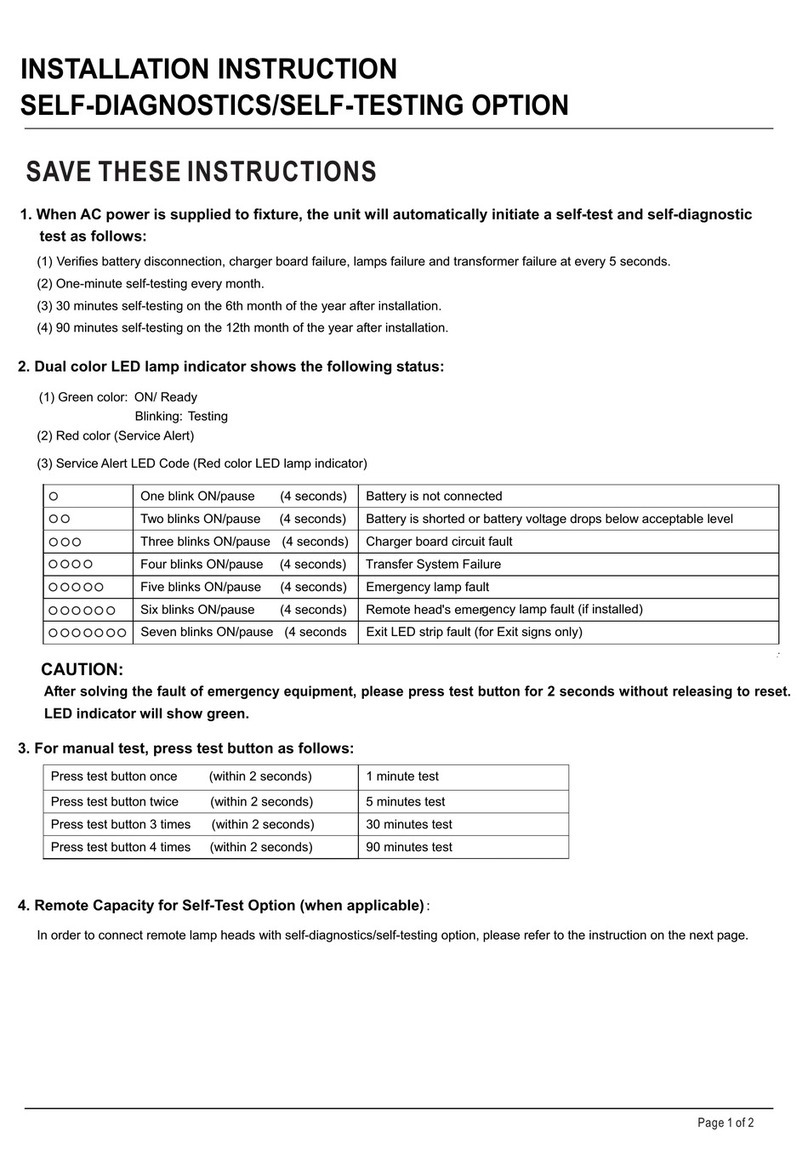

MAINTENANCE
The equipment is to be tested once a year in accordance with the code requirements. The equipment is to be repaired
whenever the equipment fails to operate as intended during the duration test. Written records of test results and any
repairs made must be maintained. Isolite Inc. strongly recommends compliance with these code requirements.
The lamps listed herein when used according to the instructions with this unit are in accordance with the requirements of
CSA Standard C22.2, No. 141 – Unit Equipment for Emergency Lighting.
NOTE: The servicing of any parts should be performed by qualified service personnel only. The use of replacement parts
not furnished by the manufacturer may cause equipment failure and will void the warranty.
MAX-C
Isolite 31 Waterloo Avenue, Berwyn, PA, 19312 Phone: [phone] Fax: [phone]

WIRING DIAGRAM
26
19
21
1
2345
13
19
10
32
31
30
29
28
24
23
22
14
11
15
16
12
25
32
26
27
20
18
89
17
7
6
33
Figure 1
Figure 2
TEST
CHARGE
AC ON
WHITE - Neutral / Common
GREEN - Ground
BATTERY
NEG
-
POS
+
BATTERY+
BATTERY -
LAMP +
LAMP -
CHARGER PC BOARD
ASSEMBLY
LAMPS
STANDARD TRIPLE INPUT VERSION
RED - 347V Line / Hot
FUSE
CHARGER BOARD
BLACK - 120V Line / Hot
ORANGE - 277V Line / Hot
PARTS LIST
1. Torx tamper proof screw 8-32 x 1
2. “O” ring 1/16 wide x 5/32 ID x 9/32 OD
3. Stencil
4. Red fiber
5. Frame gasket
6. LED holder
7. LED light
8. Weld nuts
9. LED board
10. Not supplied
11. Base
12. Torx tamper proof screw 8-32-1/2”
13. 8-32 x 1/2 inch oval head screw, Phillips
14. Test switch
15. MR16 holder
16. MR16 lamps
17. Cover
18. Socket
19. Capscrews
20. MAX combo lens
21. Battery
22. Switch cover
23. MAX frame
24. Inside mounting plate
25. Circuit board
26. Back plate gasket
27. MAX back plate
28. Gasket for canopy to frame sealing
29. Canopy for exit
30. Canopy gasket
31. Mounting base for canopy
32. Bushing
33. Lens
Isolite 31 Waterloo Avenue, Berwyn, PA, 19312 Phone: [phone] Fax: [phone]
