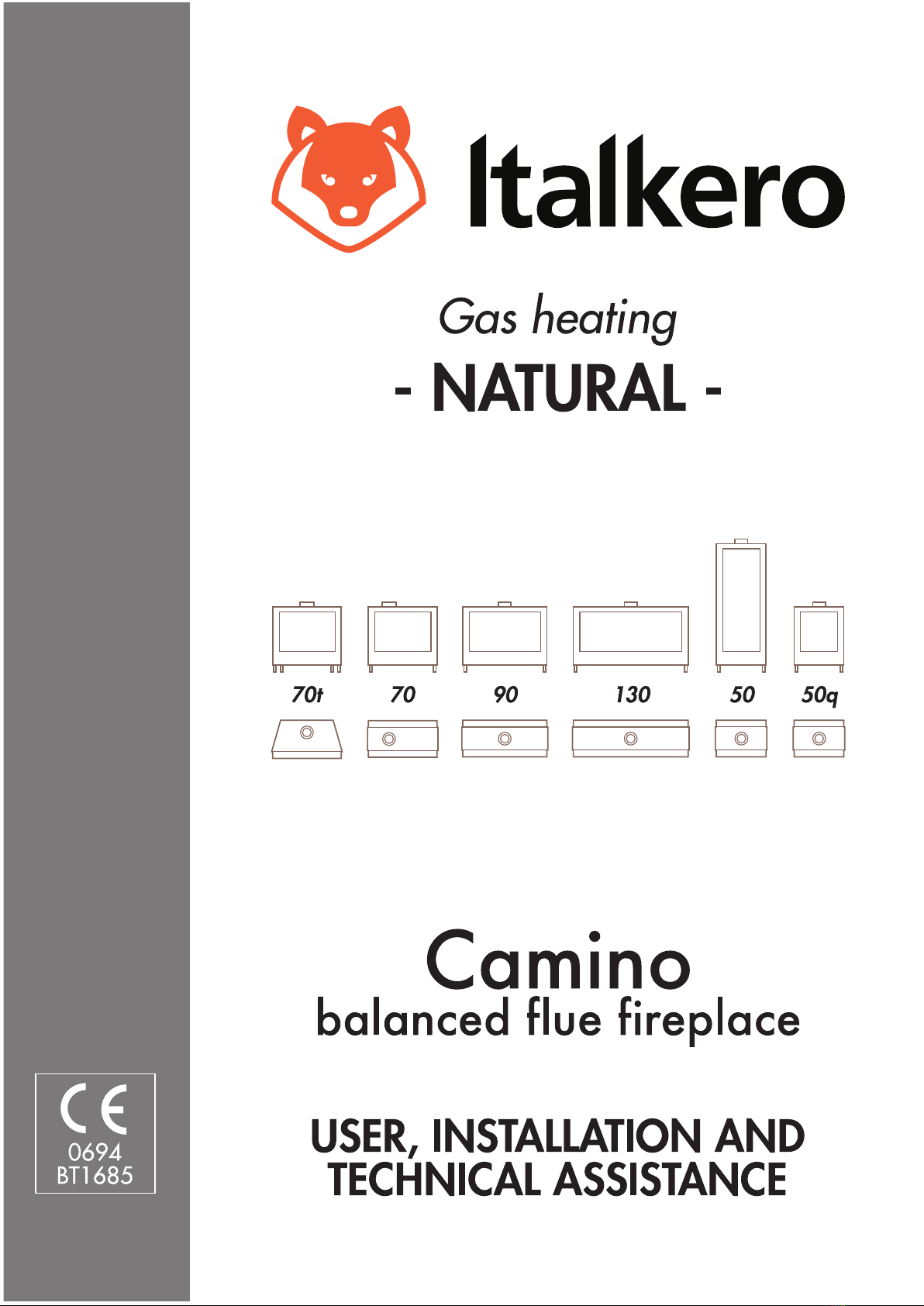

Italkero 70t Owner's manual

2GENERAL
COMPLIANCE
Our appliances are compliance at:
Gas directive 2009/142/CE (ex. 90/396/CEE)
Electromagnetic directive compatible 2004/108/CE
Low-tension directive 2006/95/CE 0694
RANGE
501309070
IN07A3 M0000
70t
IN07A1 M00001 side insert
IN07A2 M0000-2 sided insert
IN09A3 M0000
IN09A2 M0000
IN13A3 M0000
IN13A2 M0000
IN05A3 M0000
IN05A2 M0000
50q
IN04A3 M0000
IN04A2 M0000

Dear Technician,
Congratulations on having chosen our appliance. This unit is able to provi-
de many years of well-being with extremely high standards of efficiency,
reliability, quality and safety.
By means of this booklet, we intend providing you with all the information
we consider necessary for correct and easy installation.
Thank you once again
The Manufacturer
3
GENERAL
WARRANTY
Our appliances are covered by a SPECIFIC WARRANTY starting on the date of validation by the
Authorised After-Sales Service of your area, whose address you can find on our website or by
directly contacting the manufacturer.
Please promptly contact this After-Sales Service which
FREE OF CHARGE:
- will commission the appliance and
- validate the attached WA ANTY CE TIFICATE.
Please read this certificate carefully.

GENERAL
General information pag.5
Fundamental safety rules 5
Description of the appliance 6
Identification 6
Structure 7
Technical data 8
Accessories 8
Wiring diagram 9
Control panel 10
INSTALLATOR
Receipt of product 11
- Dimensions 12
Installation 15
- Positioning the appliance 15
- Wall exhaust 16
- Roof exhaust 17
- Types of fume exhaust 18
- Positioning the appliance 19
- Dimensions of pipes and curves for fume exhaust 19
- Safety distances 20
- Irradiation area 21
- Installation 22
- Wall lining (coverings) 23
- Frames 24
- Arrangino log set, pebbles and small wood 25
TECHNICAL SERVICE
- Manual control 26
- Remote control 27
- Manual control, cutout of automatic control 29
- Remote control programming 30
- Frequency channels 33
- Replacing the batteries 33
- Power supply 34
- Maintenance 34
- Routine maintenance 35
- Faults and solutions 35
Useful tips 36
4GENERAL
In same parts of the book there are used these symbols:
Attention: it used to underline particular caution or actions.
Prohibited: it used to underline the actions that don’t half to
be executed.
CONTENTS

Please remember that the use of products involving
fuels and electricity requires the enforcement of a
number of fundamental safety rules such as:
Children and unassisted disabled persons must not
use the appliance.
Do not start electric appliances or equipment, such as
switches, household appliances etc in case of a smell
of fuel or of combustion fumes.
In this case:
• ventilate the premises by opening the doors and
windows;
• close the fuel opening/closing device;
• immediately call the Manufacturer's After-Sales
Service or professionally skilled personnel.
Do not touch the appliance with wet or damp parts of
the body or if your feet are wet.
Cleaning is forbidden without first disconnecting the
appliance from the power mains by turning the
master switch, if fitted, to "OFF" or taking out the
plug.
Do not pull, disconnect or twist the power cables exi-
ting from the appliance even when this is disconnec-
ted from the power mains.
Do not place objects, such as towels, rags, etc., on
the appliance which could cause malfunctions or
prove to be a hazard.
Never leave packaging material (cartons, plastic
bags, etc.) within reach of children as this could be a
potential hazard source.
After removing the packaging, check the integrity
and completeness of the supply and in case of any
discrepancies, contact the Agency that sold the
appliance.
The appliance must be installed by companies
approved pursuant to Law no. 46 dated 5 March
1990. Upon completing the installation, such compa-
nies must issue a declaration of installation confor-
mity in accordance with applicable national laws and
the instructions provided by the Manufacturer in the
installer's booklet attached to the product.
The appliance must only be used for the purpose
intended by the Manufacturer and for which it has
been expressly designed. The Manufacturer
disclaims any contractual and non-contractual liabi-
lity for injuries caused to people or animals and
damage to things, due to installation errors, wrong
settings, bad maintenance or improper use.
- If the appliance is not used for a long period of
time, the following operations must be performed:
* position the master switch of the appliance on "off”
* position the master switch of the system on "off" or
disconnect the plug from the power mains (if fitted) ;
• close the gas tap.
This booklet is an integral part of the appliance and
must therefore be looked after carefully and must
ALWAYS accompany the appliance, even when this
is transferred to another owner or user, or else tran-
sferred to another system.
In case of damage or loss, ask the Technical
Assistance Service of your Area Manufacturer for
another copy.
The glass and frame act as fire-protection devices
and must not therefore ever be removed from the
appliance except for maintenance purposes, and
never during appliance operation. The Manufacturer
disclaims all liability for injuries to persons and ani-
mals and damage to things in the case of such faulty
installation.
This appliance features a hearth with ashes and
ceramic billets containing refractory ceramic fibre
made up of artificial vitreous silicate fibres.
When handling these materials therefore, avoid crea-
ting excess dust. Prolonged exposure to these mate-
rials can cause irritation of the eyes and skin and
breathing problems. If one of the ash or billet compo-
nents is replaced, always seal the removed parts in a
bag and dispose of them through authorised chan-
nels.
Do not use the Appliance in the event of the glass
being broken or with the hearth door open. This is a
sealed-chamber appliance and no combustion resi-
dues must be allowed to escape or oxygen burned in
the place of installation.
IMPORTANT! BEFORE LIGHTING THE APPLIAN-
CE, CAREFULLY READ ALL THE INSTRUCTIONS
AND PRECAUTIONS IN THIS BOOKLET.
5
GENERAL
GENERAL INFORMATION
FUNDAMENTAL SAFETY RULES

The appliance can be identified by means of:
- the packaging label
showing the name of the product, the code, the serial
number and the type of gas that can be used.
- The Technical Plate
showing the serial number, the model and the main
technical-performance data.
- The gas type plate
Showing the name of the gas for which the appliance
has been set and regulated. If the type of gas is
changed, this plate must be replaced with that of the
new gas!
Spare parts and/or technical jobs require the
exact identification of the associated model
of appliance.
Tampering with, removing or the absence of the
Technical Plate, etc. does not allow the exact
identification of the product, making any installa-
tion and maintenance job difficult.
Independent gas appliances for heating environ-
ments.
They feature an atmospheric burner with combustion
chamber TYPE C11 and C31, sealed with respect to
the installation premises, utmost guarantee of safety
because no exhaust or fuel fumes enter the premi-
ses.
The suction of the combustion air and discharge of
combustion products occurs outside the installation
premises.
In view of their small size, they can be installed in
very compact spaces and ensure a greater well-
being of the heated environment.
The natural convective movement permits quick hea-
ting of the environments from when the appliance is
switched on. This type of appliance can of course be
channelled for better heat distribution.
An electronic board controls all the main functions of
the appliance and automatically interrupts the gas
supply in case of a fault.
The control panel features: appliance On/Off supply,
manual or automatic start/stop, daily Timer program-
ming, heat output setting, room temperature setting
and operating condition reset after a fault.
The fume inlet and exhaust pipes including the
wall terminal (type C11) or roof terminal (type
C31), the bends, pipes, coaxial connector and
other accessories, all Listed by the manufacturer
(see examples in INSTALLATION chapter).
The appliances are factory set, to operate
with Natural Gas, but are also available for
LPG (G30/G31).
This type of appliance can be transformed from
Natural Gas to LPG and vice versa.
The gas type and pressure used for operation are
shown on the technical data plate affixed to the
appliance.
Do not change the factory settings of the gas
control unit or receiver before installation. The
burner and pilot light are factory set by the
Manufacturer.
The fireplace must be connected to the gas type
shown on the burner. Never ever connect a
Natural Gas burner to the LPG supply or vice
versa.
6GENERAL
DESCRIPTION OF THE APPLIANCE
IDENTIFICATION

7
GENERAL
1 - Structure 1 side (painted steel)
2 - Fume exhaust - 100mm
3 - Air inlet - 150mm
4 - Connection box
5 - Height-adjustable feet
6 - ecess and relief frame supporting structure
7 - Cover grille
8 - Valve control unit
9 - Door (mod. 1 side)
10 - Heat-resistant glass
11 - Structure 2 sides (painted steel)
12 - Vermiculite top (mod. 70t and 70 only)
13 - Thermocouple pilot cover
14 - Lower surside (painted steel)
15 - Front door (mod. 2 sided)
16 - Background elements
17 - Back door (mod. 2 sided)
18a - Standard remote control
18b - emote control with Display (optional)
19a - Air flow casing (mod. 70t)
19b - Air flow casing (mod. 70 - 90 - 130 - 50)
1
19a 19b
18a 18b
2 3 4
5
6
7
8
9
10
11
12
13
14
15
16 17
STRUCTURE

8GENERAL
u.m.
Technical data
Supply
Nominal heat input. (Qn)
Red. heat input.
Nominal heat output (Pn)
Red. heat output
Efficiency
Nominal supply pressure
Nominal nozzle pressure
Reduced nominal nozzle pressure
Gas consumption (15∞C)
Type of appliance
Fuel category
Efficiency class / NOx
Burner nozzles
Pilot nozzles
MAX/MIN heated volume (approximate)
Quantity of heated air (approximate)
Power supply: 3 batteries A
Power input in operation
Degree of protection
reduced Gas consumption G20 (15∞C)
reduced Gas consumption G30/G31 (15∞C)
Gas connection pipe
Gas valve to burner supply pipe
Coaxial exhaust pipe (inside/outside)
Batteries
- Remote control
- Receiver unit
-
kW
kW
kW
kW
%
mbar
mbar
mbar
m
3
/h
kg/h
nr
mm
nr
mm
m
3
m
3
/h
V -
W
-
m
3
/h
kg/h
-
-
Ø mm
nr
nr
methane
G20
7
3
5,6
2,4
80
20,0
12,0
2,1
0,740
C11 - C31
I 2H - I 3P
2 / 5
1
2,30
1
0,35
4,50
IP20
0,317
propane
G31
7
3
5,6
2,4
80
37,0
36,8
5,7
0,552
C11 - C31
I 2H - I 3P
2 / 5
1
1,35
1
0,25
4,50
IP20
0,236
70t - 70
3/8” / Ø 12mm
Ø 8mm - L max 1 m
100/150
1 x 9V PP3
4 x 1,5V AA
methane
G20
6,3
2,4
4,85
1,65
77
20,0
12,0
2,0
0,666
C11 - C31
I 2H - I 3P
2 / 5
1
2,10
1
0,35
4,50
IP20
0,253
propane
G31
6,3
2,4
4,85
1,65
77
37,0
36,8
6,0
0,489
C11 - C31
I 2H - I 3P
2 / 5
1
1,25
1
0,25
4,50
IP20
0,189
90
methane
G20
10
4
7,60
2,67
76
20,0
12,0
2,0
1,057
C11 - C31
I 2H - I 3P
2 / 5
1
1,98
1
0,35
4,50
IP20
0,423
propane
G31
10
4
7,60
2,67
76
37,0
36,5
6,2
0,776
C11 - C31
I 2H - I 3P
2 / 5
1
0,95
1
0,25
4,50
IP20
0,310
130
methane
G20
8,3
3,3
6,30
2,18
76
20,0
12,0
2,0
0,878
C11 - C31
I 2H - I 3P
2 / 5
1
2,50
1
0,35
4,50
IP20
0,348
propane
G31
8,3
3,3
6,30
2,18
76
37,0
36,6
6,5
0,664
C11 - C31
I 2H - I 3P
2 / 5
1
1,45
1
0,25
4,50
IP20
0,256
50
Model 1 side
Model 2 sided
IN07A1 - IN07A3
IN07A2
IN09A3
IN09A2
IN13A3
IN13A2
IN05A3
IN05A2
methane
G20
3,95
1,7
2,96
1,10
75
20,0
12,0
2,0
0,417
C11 - C31
I 2H - I 3P
2 / 5
1
1,65
1
0,35
4,50
IP20
0,180
propane
G31
3,95
1,7
2,96
1,10
75
37,0
36,9
6,9
0,306
C11 - C31
I 2H - I 3P
2 / 5
1
0,95
1
0,25
4,50
IP20
0,132
50q
IN04A3
IN04A2
Log set
River pebbles
FRAME recessed
FRAME relief
CASING hot air flow (outlet Ø130)
Remote DISPALY
CURVE coaxial 30∞(Outside = Ø150, Inside = Ø100)
CURVE coaxial 45∞(Outside = Ø150, Inside = Ø100)
CURVE coaxial 60∞(Outside = Ø150, Inside = Ø100)
CURVE coaxial 90∞(Outside = Ø150, Inside = Ø100)
CURVE coaxial 90∞with inspection (Outside = Ø150, Inside = Ø100)
PIPE coaxial 50cm (Outside = Ø150, Inside = Ø100)
PIPE coaxial 100cm (Outside = Ø150, Inside = Ø100)
PIPE coaxial ìTî with inspection (Outside = Ø150, Inside = Ø100)
PIPE telescopic 35,4 - 44cm (Outside = Ø150, Inside = Ø100)
PIPE coaxial, can be shortened 50cm (Outside = Ø150, Inside = Ø100)
END PIECE wall exhaust 60cm (Outside = Ø150, Inside = Ø100)
END PIECE roof exhaust 136cm (Outside = Ø150, Inside = Ø100)
CLAMP quick lock Ø150
CLAMP wall fastening Ø150
FLANGE universal wall fastening Ø150
FLANGE aluminium roof closing (converse)
TILE inclination exit 20∞- 45∞
DESCRIPTION Code
See price list
See price list
See price list
See price list
See price list
70006049 00
70006020 00
70006021 00
70006022 00
70006023 00
70006024 00
70006025 00
70006026 00
70006027 00
70006028 00
70006029 00
70006035 00
70006040 00
70006050 00
70006051 00
70006055 00
70006060 00
70006065 00
-
-
-
-
-
1
2a
2b
2c
2d
2e
3a
3b
3c
3d
3e
4a
4b
6a
6b
7a
7b
8
pos.
TECHNICAL DATA
ACCESSORIES

9
GENERAL
AE Optional external supply (6 V DC) CA Ignition plug CC Control unit I On/Off switch C Control panel (optional) R Receiver RGM Magnet unit T Remote control TC Thermocouple T rotection thermostat V Valve unit 1 8-wire connection cable 2 Control panel connection cable (optional) 3 On/Off switch wiring harness 4 RGM connector black wire 5 RGM connector red wire 6 Thermocouple wiring harness 7 CC connector red wire 8 CC connector yellow wire 9 Batteries AA 1.5V
T
I
On/Off
CC
C
T
2
1
3
4 5
7
8
V
RGM
TC
6
9
R
CA
AE
9
9
9
ELECTRICAL SCHEME

1 - Adjustment knob
2 - MAX gas adjustment screw
3 - Wireless flame control Valve/Board connector
4 - iezoelectric ignition button (emergency)
5 - O-1 switch
6 - Magnet stem for manual operation (emergency)
7 - Manual operation position knob
8 - iezoelectric connector wire
9 - Flame control board
10 - Flame control Valve/Board connector
11 - ower socket - 6V DC
MANUAL Operation position
Automatic operation position with REMOTE CONTROL
6
7
8
1 4 52 3
91011
MAX
OFF
10 GENERAL
CONTROL PANEL
