User Guide
ITECH100S
SLIMLINE 100 AH LITHIUM
BATTERY

Pre-installed Redback Operating System.
Pre-installed Battery Management System.
Pre-installed Cell balancing.
Heavy-duty ABS casing
Unlimited parallel connection.
Can be connected in a series 48-volt system.
High discharge current max 250A.
Heavy-duty removable M8 Bolt Battery terminals
Maintenance-free
Lithium LiFePO4 Prismatic Cells
Liftinghandlefitted toensure a secure hold when
moving
Over-discharge protection (safe mode)
Australian design & development
Australian lithium
The iTECH100S is the pinnacle of slimline lithium battery
design. The iTECH100S charges from almost every charging
system making it perfect for use in boats, caravans, motor-
homes, RVs, and more.
KEY FEATURES
USER GUIDE

Nominal Voltage: 12.8v
C20 Rating usable amps 10v: 100Ah
Short Circuit Protection: Yes
Optimum Temperature Range: +5 to +60°C
BMS Operational Temperature Range: -40 to 80°C
Safety Protection Isolator: 80°C
Recommended Charge Current: 10 - 50A
Maximum Charge Current: 100A (5sec)
Recommended Charge Voltage: 14.2 -14.6v
BMS Charge Cut Off Voltage: 15.6v
BMS Low Voltage Cut Off: 8v
Continuous Discharge: 100A (175A 5 mins)
Peak Discharge: 250A 5 sec
Life Cycles 65%: 5000
Life Cycles 55%: 8000 +
UL certified 1642
CE Certified
Rohs Certified
UN38.3 Certified
ISO 9001 Certified
ISO 1400 Certified
Dimensions (LxWxH): 394*110*286mm
Weight approx: 11.7kg
Terminal Type: M8
Case Material: ABS
SPECIFICATIONS
USER GUIDE

Please follow and understand these instructions before using the
iTECH100S, failure to do so can cause the battery to fail. It is
strictly prohibited to disassemble the iTECH100S battery.
Inside the battery are electrolytes. These electrolytes can be skin
and eye irritant. Don't touch the battery directly if you see any
liquid on the battery. If there is electrolyte on your skin, please
use soap and water to wash; if there is electrolyte on your eyes,
please use lots of water to wash it and go to the hospital
immediately.
ITECH100S SAFETY
USER GUIDE

Do not cross the polarity of the battery.
Never plug the battery directly into 240V mains power.
Do not open the casing.
Do not throw, squeeze, puncture, strike, contort, heat, burn,
or disassemble battery.
Keep children and animals away from the battery.
Battery should be stored in a dry environment away from
water.
Battery operates best if kept above 12.8V.
Unlimited parallel connection. When connecting in parallel all
batteries voltage must be the same before connection.
When charging do not exceed 15V input. A battery charger
with cut out of 14.7V and under is required.
Do not use this battery in series or parallel with a lead acid
battery, calcium battery or other brand battery.
Exposure to sunlight can increase discharge rate of battery.
If battery shows any shape change, colour change or any
liquid seeping from battery stop using immediately and
contact iTechworld.
If the battery terminal screws are corroded, be careful not to
bend the terminals when tightening or loosening.
Do no short-circuit the battery by directly connecting the
positive and negative terminals together or with metal
conductive objects.
Do not transport the battery together with metal objects that
are conductive.
Do not leave the battery in safe mode for any longer than 7
days.
DO'S AND DON'TS
USER GUIDE

When creating a bank of iTECH100S batteries, all the
batteries must be of the same voltage. When drawing a
load from the bank it should be split as follows:
2 battery bank
Positive to battery number 1
Negative to battery number 2
3 battery bank
Positive to battery number 1
Negative to battery number 3
4 battery bank
Positive to battery number 1
Negative to battery number 4
And so on and so forth.
The charging system should be connected to the iTECH100S
battery bank in the same manner.
WIRING
USER GUIDE

The iTECH100S has a sophisticated Battery Management System,
Cell Balancing and the Redback Operating System pre-installed.
This hardware allows the iTECH100S to be charged from almost
all non-lithium charging profiles. For charging systems in which
the parameters can be changed we suggest following our
guidelines below to optimise the system.
If your charger has a dedicated lithium charge profile use that
profile.
OPTIMISING YOUR CHARGING
USER GUIDE

Please note that the iTECH100S discharge curve will be different
from your previous lead-acid batteries. Please study the
discharge curve provided below to give you a better
understanding of how the iTECH100S will perform.
DISCHARGE CURVE
USER GUIDE
iTECH100S

The iTECH100S has numerous safety features pre-installed inside
the battery to make it the safest lithium battery available in
Australia. One such feature is "safe mode". If you draw too much
power from your battery (over-discharge) your iTECH100S
battery will enter safe mode to protect itself. The iTECH100S will
enter safe mode at a voltage of 9v or less, the terminals have
been shorted or too much current has been drawn. Once the
battery is in safe mode it will appear to be an open circuit. No
voltage( or a low voltage) will be detected on the battery
terminals and there will be no current output. There are
numerous ways to bring your iTECH100S battery out of safe
modes, such as using jumper cables, our iTechworld jump
starter, iTechworld battery charger and the iTechworld Lithium
bypass cable, each method will be explained in the following
pages.
The battery shown in the following photos is the iTECH120X;
however, the methods demonstrated are relevant to all
iTechworld lithium batteries.
SAFE MODE
USER GUIDE

JUMPER CABLE RESET METHOD
USER GUIDE
Connect the red coloured jumper lead to the (+) positive
terminal of the battery which has gone into safe mode and the
other end of the red jumper lead to the (+) positive terminal of
another 12V battery (this can be an AGM, Gel or lead acid as it is
only a temporary connection).
1.

JUMPER CABLE RESET METHOD
USER GUIDE
2. Connect the black jumper lead to the (-) negative terminal of the
charged battery and the other end of the black jumper lead to the
(-) negative terminal of the flat battery, take care as some sparking
may occur. Leave the batteries connected for maximum of 60
seconds. Then disconnect the negative clamps from both batteries,
followed by the positive clamps, do not allow the positive and
negative clamps to touch and cause a short circuit. Once the
battery has reached approximately 10.8volts, the BMS will reset
and allow current to flow and be detected by your charger.

ITECH2000A JUMPSTARTER
RESET METHOD
USER GUIDE
Use an iTECH2000A jump starter by following the steps below.
You can purchase our iTECH2000A jump starter
here: https://bit.ly/itech2000a
Connect the jump starter clamps into the iTECH2000A jump
starter, then locate the jump start button on the clamps and
press and hold the button until the countdown timer is initiated.
1.

ITECH2000A JUMPSTARTER
RESET METHOD
USER GUIDE
2. Within the 60-second countdown, connect the positive clamp to
the positive terminal of the battery then followed by the negative
clamp to the negative terminal, take care as some sparking may
occur. Leave the jump starter connected until the countdown timer
ends. Repeat these steps if the battery was not successfully reset

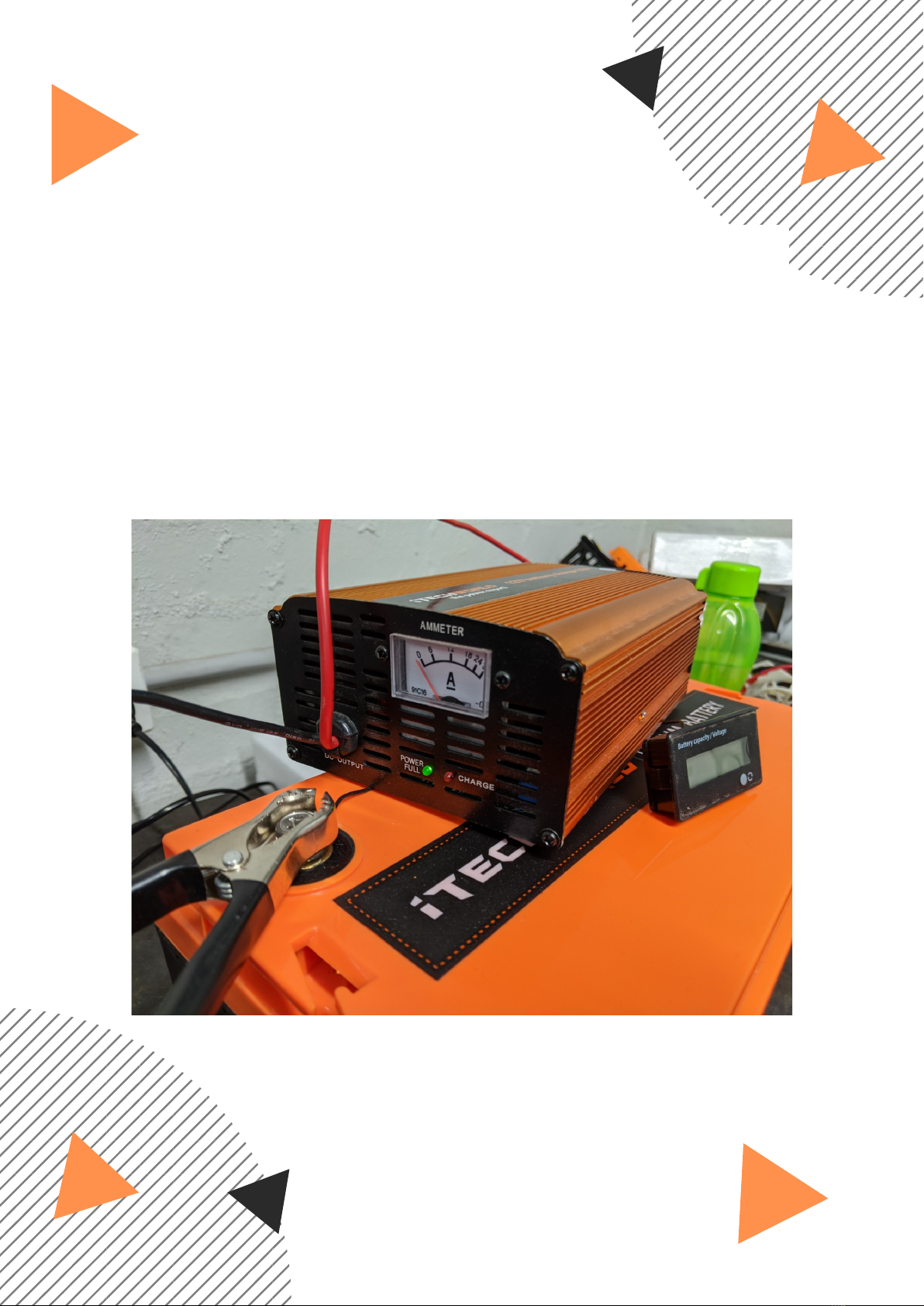

ITECHWORLD BATTERY CHARGER
USER GUIDE
Connect the charger positive battery clamp to the battery
positive terminal and the negative battery clamp to the negative
terminal, then turn on the battery charger. The battery charger
may not start charging when turned on, this would be indicated
on the charger by only a Green led illuminating and the
ammeter on 0 proceed to step 2 if this is the case.
1.
The battery can also be reset with our battery charger by following
the steps below.

ITECHWORLD BATTERY CHARGER
USER GUIDE
2. With the charger still powered on, remove the negative battery
clamp from the battery momentarily then reconnect it take care as
some sparking may occur. The charger will now turn on and start
charging.
Reconnected charger clamp and charger is now outputting power
Temporarily removing the negative charger clamp

ITECHWORLD LITHIUM BATTERY
BYPASS SWITCH
USER GUIDE
With the bypass switch, this allows the reset mechanism
to be permanently wired to your battery and allows for remote BMS
resetting,
both batteries must be on the same negative ground:
You can purchase the lithium battery bypass switch here:
https://bit.ly/itechbypass
Install the bypass switch connecting only the positive terminals
of the iTECH100S battery and your main starting battery, or any
other battery. Both batteries must share the same negative
ground, the arrow indicated on the switch must point to the
battery.
Once the cable is installed you can simply press and hold the
button for a few seconds to reset the BMS.
1.
2.

Long-time storage in a hot or wet environment will damage the
battery. The battery should be stored in dry and ventilated
environment. The ideal storage temperature is below 25℃
if stored this way, it will extend the battery life. If the
storage temperature surpasses 40℃ for a long period of
time (more than 30 days), battery life may be shortened; if
the storage temperature surpasses 55℃, the battery can be
damaged. When the battery is being stored for more than
50 days the preferred charge storage capacity should be
between 70% and 80% this should be a reading of 13.2V.
Checking the voltage and charging when required should be
done every 30 days.
STORING YOUR ITECH100S
USER GUIDE

The iTECH100S battery should always be carefully handled. Don't
throw the battery and avoid squeezing it i.e do not pack heavy
objects on top of the battery otherwise your battery casing will
warp.
The battery is robust and designed to handle off-road bumps.
Ensure the battery is in a secure spot where it cannot be
punctured. Do not store the battery with flammable, explosive
goods of sharp metals. Upon delivery of battery from iTechworld
please inspect for openings in the casing or other damage that
could have been caused in transit. Contact iTechworld
immediately if the battery does not seem right after taking
delivery.
TRANSPORTING THE ITECH100S
USER GUIDE

3 years for automotive applications in cycling and non-
cycling applications
iTechworld warrants its iTECH100S Lithium battery to be
free of defects in material and workmanship for the
following Applicable Warranty Period:
Three Year Limited Warranty
Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure. You are also
entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not
amount to a major failure.
The limited warranty program is the only one that applies
to this unit, and it sets forth all the responsibilities of
iTechworld. There is no other warranty, other than those
described herein. Any implied warranty of merchantability
or fitness for a particular purpose on this unit is limited in
duration to the duration of this warranty.
iTechworld does not warrant the battery for use in any
residential system sold with the intent or purpose of a
“Tariff Adjustment Program” of any type.
The warranty does not cover a battery reaching its normal
end of life which may occur prior to the warranty period
stated above. Depending on the application a battery can
reach its normal end of life before the end of the warranty
period.
WARRANTY
USER GUIDE

A battery can deliver only a fixed number of usable cycles /
amp-hours over its lifetime and is considered to have
reached its normal end of life if the application uses up all
of these cycles / amp-hours, regardless of the time the
battery has been in service. Therefore, iTechworld reserves
the right to deny a warranty claim if it determines the
battery to be at its normal end of life, even if the claim is
lodged within the applicable warranty period.
The Applicable Warranty Period begins from the date of
purchase with the original receipt.
Batteries determined to meet the conditions of this
warranty will be replaced free of charge if, at the sole
discretion of iTechworld, adjustment is necessary due to a
defect in material or workmanship. Batteries for warranty
replacement consideration are to be returned to
iTechworld, PO BOX 223 BURSWOOD WA 6100.
Batteries replaced under the warranty provisions will be
shipped with a replacement warranty sticker and carry only
the remainder of the original applicable Warranty Period.
WARRANTY
USER GUIDE
