iTechworld iTECH120 User manual

LITHIUM
120AH
iTECH120
L i g h t W e i g h t  1 1 k g
LATEST TECHNOLOGY

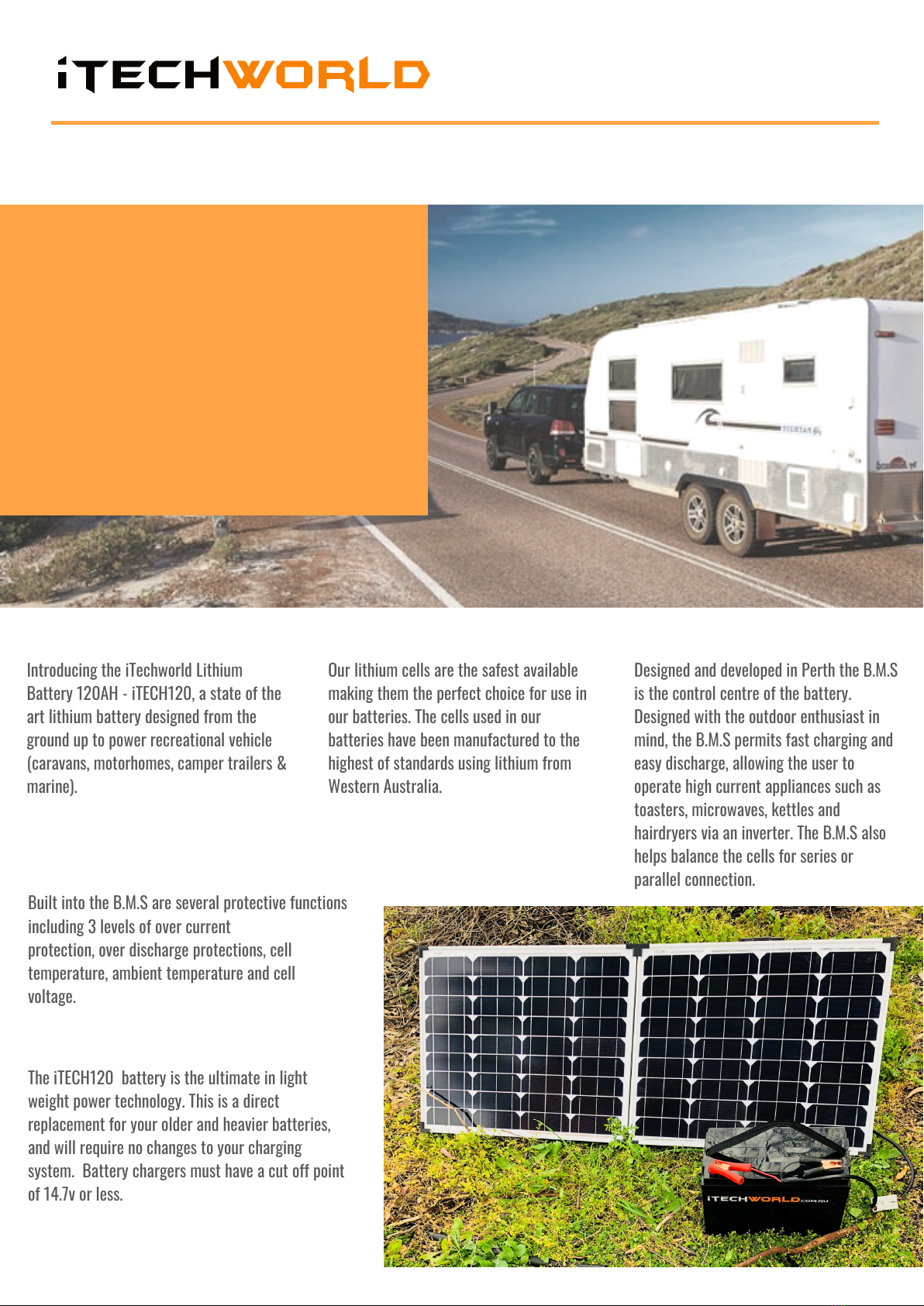

Introducing the iTechworld Lithium
Battery 120AH - iTECH120, a state of the
art lithium battery designed from the
ground up to power recreational vehicle
(caravans, motorhomes, camper trailers &
marine).
ADVANCED B.M.S
Designed and developed in Perth the B.M.S
is the control centre of the battery.
Designed with the outdoor enthusiast in
mind, the B.M.S permits fast charging and
easy discharge, allowing the user to
operate high current appliances such as
toasters, microwaves, kettles and
hairdryers via an inverter. The B.M.S also
helps balance the cells for series or
parallel connection.
SAFETY IS THE PRIORITY
Our lithium cells are the safest available
making them the perfect choice for use in
our batteries. The cells used in our
batteries have been manufactured to the
highest of standards using lithium from
Western Australia.
*
PROTECTIVE FUNCTIONS
Built into the B.M.S are several protective functions
including 3 levels of over current
protection, over discharge protections, cell
temperature, ambient temperature andcell
voltage.
CHARGING
TheiTECH120 battery is the ultimate in light
weight power technology. This is a direct
replacement for your older and heavier batteries,
and will require no changes to your charging
system. Battery chargers must have a cut off point
of 14.7v or less.

INSTRUCTIONS
iTECH120 120AH
Please follow and understand these instructions before using the
iTECH120, failure to do so can cause the battery to fail. It is
strictly prohibited to disassemble battery. Inside the battery are
electrolytes. These electrolytes can be a skin and eye irritant.
Don’t touch battery directly if you see any liquid on the battery.
If there is electrolyte on your skin, please use soap and water to
wash; if there is electrolyte on your eyes, please use lots of
water to wash it and go to hospital immediately.
Do not cross the polarity of the battery.
Never plug the battery directly into 240v mains power.
Do not open the casing.
Do not throw, squeeze, puncture, strike, contort, heat, burn, or
disassemble battery.
Keep children and animals away from the battery.
Battery should be stored in a dry environment away from water.
Battery operates best if kept above 12.8v.
When charging do not exceed 15v input. A battery charger with
cut out of 14.7v and under is best.
Can connectin series, up to 4 batteries, max 48V
Can connect in parallel up to 4 batteries.Whenconnecting in
parallel all batteries voltage must be the same.
Do not use this battery with lead acid battery or other brand
battery in series or parallel.
Exposure to sunlight can increase discharge rate of battery.
If battery shows any shape change, colour change or any liquid
seeping from battery stop using immediately and contact
iTechworld.
If the battery terminal screws are corroded, be careful not to
bend the terminals when tightening or loosening.
Do no short-circuit the battery by directly connecting the
positive and negative terminals together or with metal
conductive objects.
Do not transport the battery together with metal objects that
are conductive.

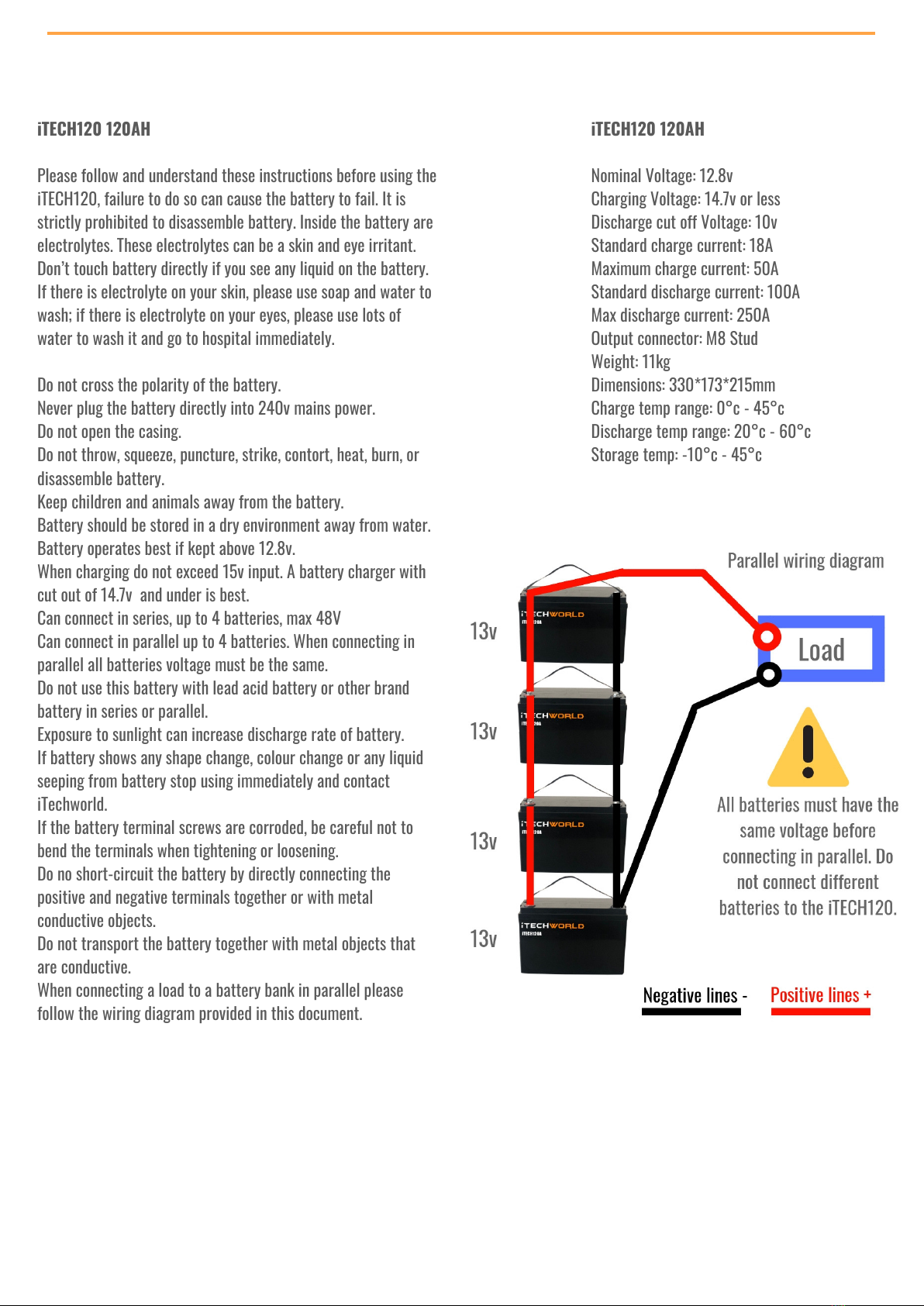

When connecting a load to a battery bank in parallel please
follow the wiring diagram provided in this document.
SPECIFICATIONS
iTECH120 120AH
Nominal Voltage: 12.8v
Charging Voltage: 14.7v or less
Discharge cut off Voltage: 10v
Standard charge current: 18A
Maximum charge current: 50A
Standard discharge current: 100A
Max dischargecurrent:250A
Output connector: M8 Stud
Weight: 11kg
Dimensions: 330*173*215mm
Charge temp range: 0°c - 45°c
Discharge temp range: 20°c - 60°c
Storage temp: -10°c - 45°c

INSTRUCTIONS
Storing the Battery when not using it
Long-time storage in a hot or wet environment will damage the
battery. The battery should be stored in dry and ventilated
environment. The ideal storage temperature is below 25℃ if
stored this way it will extend the battery life. If the storage
temperature surpasses 40℃ for a long period of time (more
than 30 days), battery life may be shortened; if the storage
temperature surpasses 55℃, the battery can be damaged.
When the battery is being stored for more than 50 days the
preferred charge storage capacity should be between 70% and
80% this should be a reading of 13v on the digital display.
Putting a charge into the battery every three month will prolong
the battery life.
Transporting the Battery
The Battery should always be carefully handled. Don’t throw
battery, and avoid squeezing it i.e do not pack heavy objects on
top of the battery otherwise your battery casing will be
deformed. The battery is robust and should be able to
handlelight off road bumps. Ensure the battery is in a secure
spot where it cannot be punctured.
Do not store battery with flammable, explosive goods or sharp
metals. Upon delivery of battery from iTechworld please inspect
for openings in the casing or other damage that could have been
caused in transit. Contact iTechworld immediately if the battery
does not seem right after taking delivery.
Returns
You must follow the advised instructions from
themanufacturerwhen using iTECH120, failure to do so will
affect your warranty. Your receipt should be retained at all
times. In order to claim warranty, you must return the product to
iTechworld with your iTechworld receipt. Prior to returning your
product for warranty please telephone our customer service
helpline 08 9472 7200.
If your existingbattery charger does not cut out
automatically at 14.7 or below then please contact
iTechworld on 08 9472 7200. We have the correct
battery chargers available
WARRANTY
2 Year Warranty
Your product is guaranteed for a period of 24 months from the
date of purchase. If a product is defective it will be repaired in
accordance with the terms of this warranty. The benefits
provided under this warranty are in addition to other rights and
remedies which are available to you under law. The warranty
covers manufacturer defects in materials, workmanship and
finish under advised use(in accordance with manufactuers
instructions). Our goods come with guarantees that cannot be
excluded under Australian Consumer Law and Consumer
Guarantees act 1993 (NZ). You are entitled to a replacement if
there is a major failure. You are also entitled for the goods to be
repaired if there is a minor fault.
