Itian Square One User manual

Square One
User’s Guide
This User’s Guide is needed for general use and installation.
Please keep it for your future reference.

User’s Guide
2
Copyright
Copyright © 2007 ITian Corporation. All rights reserved. This user manual shall not be
copied, stored in a search system, applied or transmitted in whole or in part in any form or
method (electronically, mechanically, copy through photocopier, disk copy, or other
methods) without an expressed permission from ITian Corporation in a form of a
document. ITian Corporation and Square One are trademarks or registered trademarks of
ITian Corporation. Microsoft Windows 98, Windows ME, Windows 2000, Windows XP are
registered trademarks of Microsoft Corporation. Other product names are trademarks or
registered trademarks of their owners. One gigabyte, or GB, equals one billion bytes when
referring to hard drive capacity. Accessible capacity may vary. ITian Corporation reserves
the right to change product specifications without notice.

User’s Guide
3
Safety Instructions and Precautions
Please read the safety instructions and precautions below carefully before using Square
One.
Installation Safety Precautions
xUse grounded socket/outlet.
xUse rated voltage as indicated in the manual.
xPlace Square One where there is good ventilation condition (At least 3.9
inches away from a wall).
xDo not place Square One where it could be exposed to high temperature or
direct sun light.
xInstall where there is no electromagnetic interference.
xDo not put wet or heavy objects on Square One.
xDo not install or leave Square One, power cable, or LAN cables in pass
through areas.
xDo not install Square One where there is moisture (eg. bathroom, rain, or
splashes of water).
xDo not place Square One near any magnetic objects.
xKeep Square One out of reach from infants or children.
xOnly use good quality standard cables.
xInstall on a level and stable surface.
xDo not install where the product may fall.

User’s Guide
4
Hard Disk Drive Handling Precautions
xThe Hard Disk Drive is a very sensitive device that may become faulty due
to external environments or impact during use.
xAny damages to or loss in data resulting from damages to Hard Disk Drive
caused by user negligence or external environment will be the sole
responsibility of the user and ITian Corporation will not be responsible for
any such damages or loss.
xMake sure to back up important data from Hard Disk Drive as ITian
Corporation will not be responsible for any damages or loss caused by data
loss.
Power Precautions
xDo not use multiple power plugs on a single socket and make sure that the
plugs are inserted fully so they may not move.
xDo not touch power plug with wet hands.
xMake sure power cable is not forcefully bent, pulled, or pressed by heavy
objects.
xUnplug the power cable and store it separately when not in use for a
prolonged period of time
xUnplug the power cable and disconnect the power during lightening and
thunder strikes.
xDo not use damaged power cable, plug, or worn out socket.

User’s Guide
5
Handling Precautions
xDo not insert foreign object through product vents and holes.
xKeep product packaging materials out of reach of children.
xDo not place containers of liquids such as water, juice, or coffee on the
product.
xDisconnect power plug before cleaning, and do not splash with water
directly, or wipe with benzene, thinner, or alcohol
xIf you detect smoke or any abnormal smell from the product, immediately
disconnect and remove the power cable from the product and contact our
customer service center.
xDo not block the product’s vents.
xKeep product packaging materials out of reach from infants and children.
xBe careful in handling product packaging materials, there are sharp corners.
xPower off the product and disconnect power cable before moving the
product, and do not move the product during use.
xDo not drop product and do not apply any impact to the product.
xDo not disassemble, repair, or modify the product.
xDo not use within a vehicle.

User’s Guide
6
FCC Notice – Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
xReorient or relocate the receiving antenna.
xIncrease the separation between the equipment and receiver.
xConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
xConsult the dealer or an experienced radio/TV technician for help.
WARNING
While installing and operating this transmitter and antenna combination the radio frequency
exposure limit of 1mW/cm2 may be exceeded at distances close to the antennas installed.
Therefore, the user must maintain a minimum distance of 20 cm from the antenna.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance
couldvoid the user's authority to operate the equipment.

User’s Guide
7
Table of Contents
1. SQUARE ONE PRODUCT OVERVIEW....................................................................8
1.1. INTRODUCTION......................................................................................................8
1.2. FEATURES.............................................................................................................8
1.3. SPECIFICATIONS.................................................................................................. 11
1.4. PACKAGE CONTENTS...........................................................................................13
1.5. PRODUCT EXTERIOR ...........................................................................................14
2. PREPARING YOUR PCS ........................................................................................16
2.1. PCSRUNNING WINDOWS 95/98/ME....................................................................16
2.2. PCSRUNNING WINDOWS 2000/XP .....................................................................19
3. CONNECTING SQUARE ONE................................................................................23
4. CONFIGURING SQUARE ONE ..............................................................................24
4.1. USING THE SETUP WIZARD ..................................................................................24
4.1.1. Connecting to the Square One Administrator Interface..................................25
4.1.2. Setting Up for DSL/Cable Internet..................................................................27
4.1.3. Setting Up for DSL with PPPoE .....................................................................33
4.1.4. Setting Up for Internet Connection with Static IP Address .............................39
4.1.5. Setting Up for a PPTP Connection.................................................................46
4.2. ADMINISTRATOR INTERFACE ................................................................................53
5. USING SQUARE ONE ............................................................................................55
5.1. USING NETWORK STORAGE.................................................................................55
5.2. USING WEB SERVER............................................................................................59
5.3. USING PRINT SERVER .........................................................................................61
5.4. USING MEMORY CARD READER ...........................................................................66
5.5. USING WIRELESS LAN .....................................................................................667
6. TECHNICAL INFORMATION ..................................................................................73

User’s Guide
8
1. Square One Product Overview
1.1. Introduction
Square One Personal Internet Server is a revolutionary network appliance that
combines network storage, broadband router, hardware firewall, print server, and
Web server—all in one compact, easy-to-manage box. Square One gives you
everything you need to share an Internet connection among several computers,
backup and share files on the network, share a USB printer, access your files from
the Internet, and even host your own Web site or blog. Square One also features a
built-in memory card reader, and the included Memeo AutoBackup software backs
up your precious files to Square One continuously and transparently while you work.
1.2. Features
xHigh Capacity Network Drive
Square One’s internal large capacity hard drive provides convenient backup
and storage for Windows, Linux, and Mac OS clients through an industry-
standard Samba interface. Administrators can define folder access
permissions for individual users and groups. Award-winning Memeo software
is included for instant, automatic backup from Windows PCs.
xBroadband Router
Square One also acts as a Network Address Translation (NAT) router and
hardware firewall, allowing a single public IP address to provide secure
Internet connectivity for up to 250 computers. In addition to the integral 4-port
10/100 Mbps switch, a special DMZ port lets advanced users run public
servers behind the Stateful Packet Inspection (SPI) firewall without
compromising the security of the rest of the network.
xPrinter Sharing
With its USB port and integral print server, Square One turns an inexpensive
USB printer into a shareable IP-based printer. Print from any computer on the
network as if the printer were directly attached to it.

User’s Guide
9
xWeb Server
Despite its small size, Square One is a potent Web server. With Apache HTTP
Server, PHP, and MySQL all preinstalled, Square One is ready to serve up the
most advanced Web sites, right out of the box. And with Square One’s built-in
router directly connected to the Internet, there’s no need to set up port
forwarding to make your Web site visible to the world.
xNetwork Card Reader
Insert a memory card into Square One’s built-in card reader, and its contents
appear as a shared folder on the network drive. CompactFlash (Type I & II),
SD/MMC, xD, Memory Stick, MS Pro, and SmartMedia formats are all
supported.
Figure 1-1 Networking with Square One

User’s Guide
10

User’s Guide
11

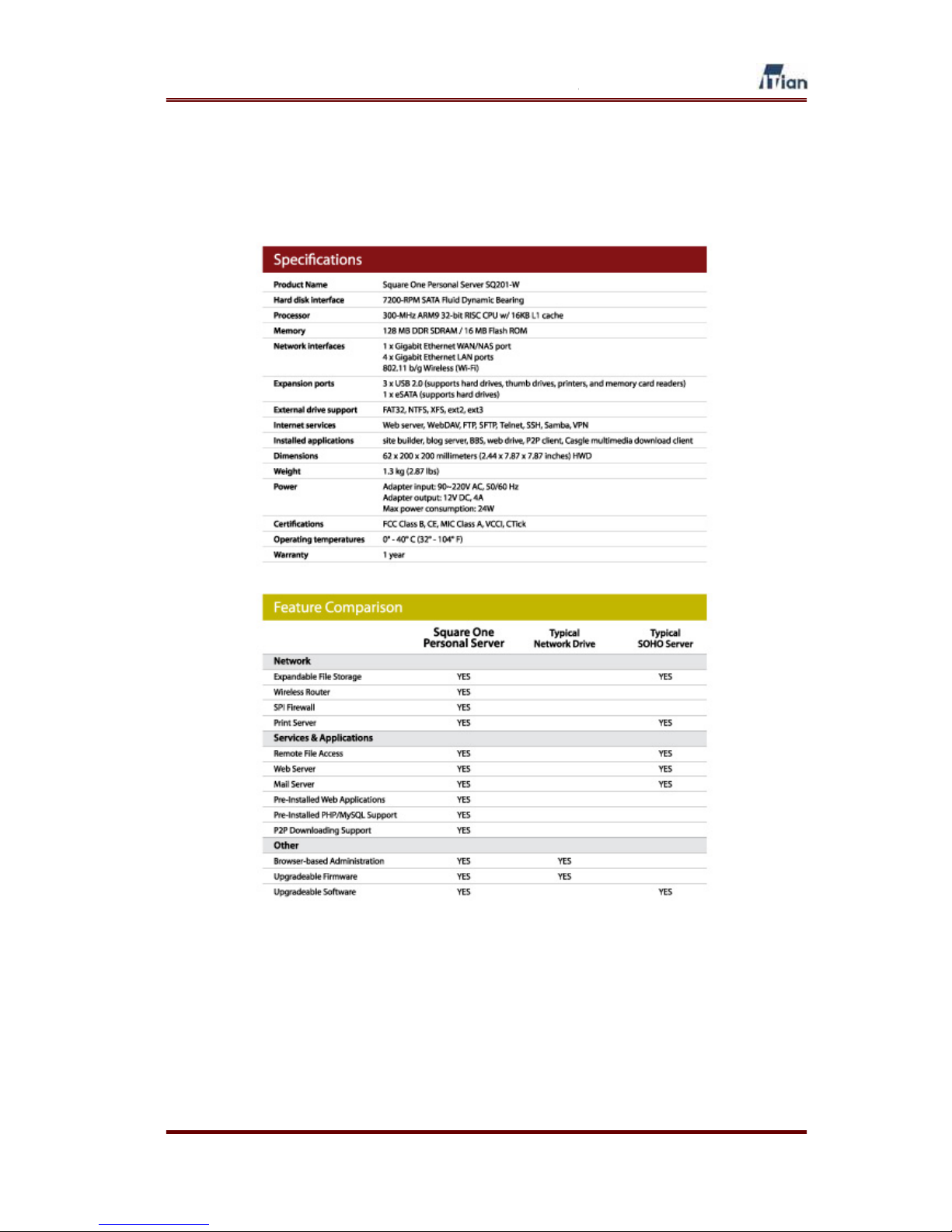

1.3. Specifications
Table 1-1 Square One Specifications

User’s Guide
12
Your Square One’s performance may vary depending on the quality of your
Internet connection type, bandwidth, transmission length, line
characteristics, and other environmental characteristics.

User’s Guide
13
1.4. Package Contents
The Square One package contains the following. If any of the contents shown below are
missing, inquire at the place of purchase.
Square One Main Body –1EA LANCable–1EA PowerAdapter–1EA
USB Cable –1EA PowerCable–1EA Antenna–2EA
(Wireless model only)
Square One User’s Guide - 1EA

User’s Guide
14
1.5. Product Exterior
Front View
Figure 1-2 Front
ཛWireless LAN Activity Indicator (Used only in the wireless version)
ཛྷHard Disk Activity Indicator
ཝPower Activity Indicator
ཞMemory Card Indicator
ཟNetwork Status Indicator
འPower Button (Press to power on; hold down for 5 seconds and release to
power off.)
Indicator Solid Blinking
Wireless LAN Wireless client(s) connected Wireless LAN transmitting data
Hard Disk - Accessing HDD
Power System is on -
Memory Card Memory card inserted Memory card transmitting data
Network Status Connected to a network Connecting to network
Table 1-2 LED Indicator Meanings

1 2 3 4 5

6

User’s Guide
15
Rear View
Figure 1-4 Rear
ཛWAN port
ཛྷSystem Reset Button
ཝLAN port
ཞE-SATA
ཟG USB Hub port
འG Power connector(12V/4A)
ཡG Wireless LAN Antenna GG
ཝ
ཛ
ྚཞ
ཟ
འ
Gཡ

User’s Guide
16
2. Preparing Your PCs
Before you can install Square One to your network, you should make sure that each
computer that will connect to Square One has an Ethernet network adapter. You may
choose to connect a Wi-Fi wireless access point to Square One and connect your
PCs to Square One wirelessly via the access point.
You should configure each computer that will connect to Square One to obtain an IP
address automatically from a DHCP server. The instructions below are for computers
running Microsoft Windows and networking with an Ethernet adapter. If your
computer runs Mac OS or Linux, or connects to the network wirelessly, please refer
to appropriate networking documentations.
2.1. PCs Running Windows 95/98/Me
1. Click Start > Settings > Control Panel > Network.

User’s Guide
17

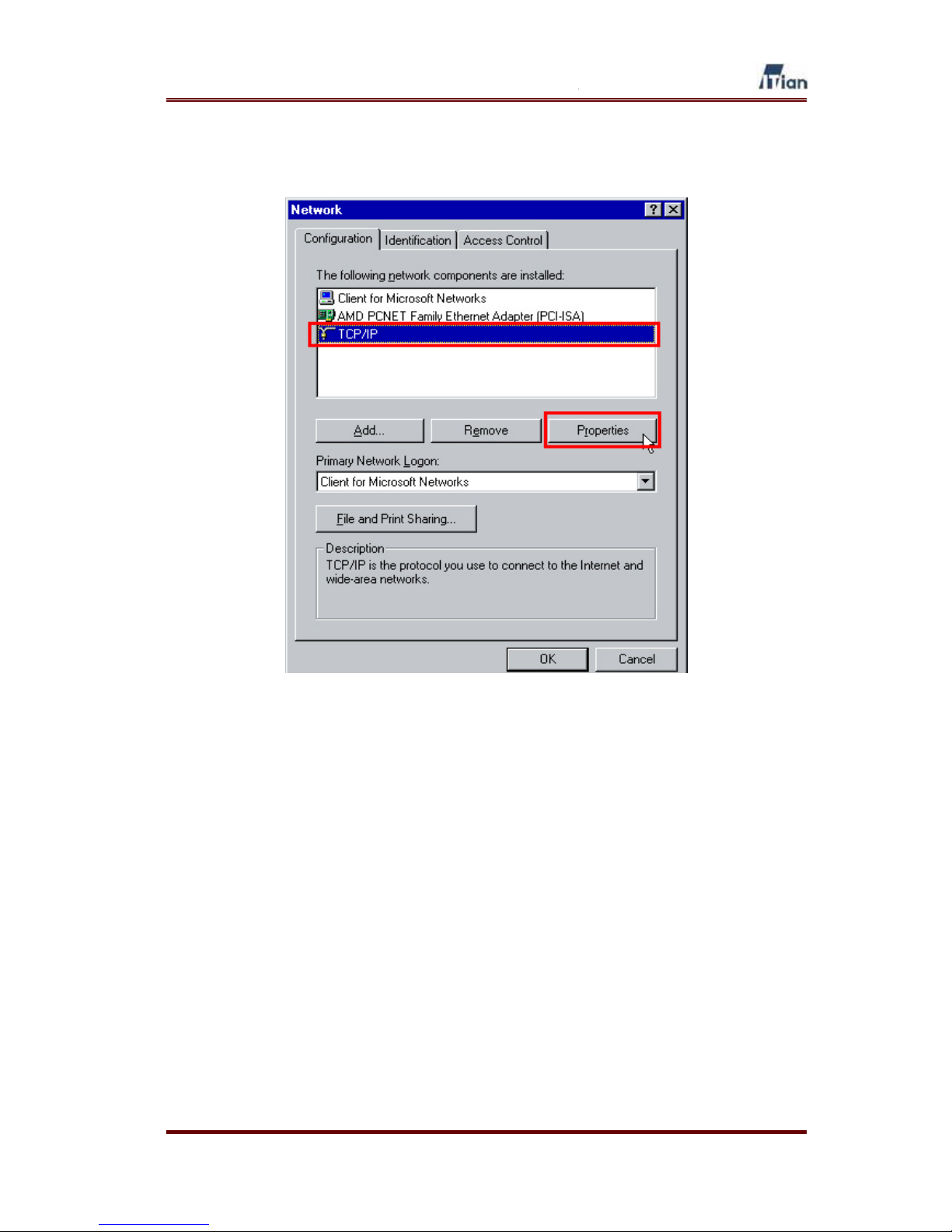

2. Select TCP/IP and click on the Properties button as shown below.

User’s Guide
18
3. Select the IP Address tab and select Obtain an IP address
automatically, then click OK as shown below.
4. Restart the computer. Go to Section 3 to install Square One.

User’s Guide
19
2.2. PCs Running Windows 2000/XP
1. Click Start > Control Panel > Network Connections.
2. Right-click Local Area Connection.
3. Click on the Properties button as shown below.

User’s Guide
20
4. Select Internet Protocol (TCP/IP) and click on the Properties button as
shown below.
