OPERATOR’S MANUAL
MINI SPIDER
PART NO. WA-SPIDER
TO PREVENT SERIOUS INJURY OR DAMAGE TO YOUR WELDING CARRIAGE,
READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS BEFORE USE
! !
ul. Elewatorska 23/1, 15-620 Białystok, Poland
Phone: [phone], Fax: [phone]
www.promotech.eu e-mail: [e-mail]
OPERATOR’S MANUAL
WELDING CARRIAGE
Mini Spider

MINI SPIDER
OPERATOR’S MANUAL
TABLE OF CONTENTS
LIMITED WARRANTY
Industrial Tool & Machinery Sales (hereinafter referred to as ITMS) will, within twelve (12) months from the original date
of purchase, repair or replace any goods found to be defective in materials or workmanship.
This warranty is void if the item has been damaged by accident, neglect, improper service or other causes not arising
out of defects in materials or workmanship. This warranty does not apply to machines and/or components which have
been altered, changed, or modified in any way, or subjected to overloading or use beyond recommended capacities and
specifications. Worn componentry due to normal wear and tear is not a warranty claim. Goods returned defective shall
be returned prepaid freight to ITMS or agreed repair agent, which shall be the buyer’s sole and exclusive remedy for
defective goods. ITMS accepts no additional liability pursuant to this guarantee for the costs of travelling or transportation
of the product or parts to and from ITMS or the service agent or dealer, such costs are not included in this warranty.
Our goods come with guarantees which cannot be excluded under the Australian Consumer Law. You are entitled to
replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
THE MANUFACTURER RESERVES THE RIGHT TO MAKE IMPROVEMENTS AND MODIFICATIONS
TO DESIGN WITHOUT PRIOR NOTICE.
PRODUCTS IMPORTED AND DISTRIBUTED NATIONALLY BY:
INDUSTRIAL TOOL & MACHINERY SALES
11 EASTERN SERVICE ROAD, STAPYLTON, QLD, 4207
T: 07 3287 1114 E: [email protected]
F: 07 3287 1115 W: www.itmtools.com.au
TRADEMASTER
Magnetic Base Drilling Machines
Tools and Machinery
AIR
1. GENERAL INFORMATION............................... 3
1.1. Application ............................................... 3
1.2. Technical data ........................................... 3
1.3. Equipment included..................................... 4
1.4. Dimensions............................................... 5
1.5. Design..................................................... 6
2. SAFETY PRECAUTIONS ................................. 7
3. STARTUP AND OPERATION ............................ 9
3.1. Checking the battery charge level .................... 9
3.2. Operating ................................................. 10
3.3. Changing the speed unit................................ 12
3.4. Troubleshooting ......................................... 13
4. MAINTENANCE ........................................... 14
5. ACCESSORIES............................................ 14
5.1. Battery 4.0 Ah............................................ 14
5.2. Charger ................................................... 14
5.3. Auxiliary magnet blocks................................ 15
5.4. Cable anchor ............................................. 16

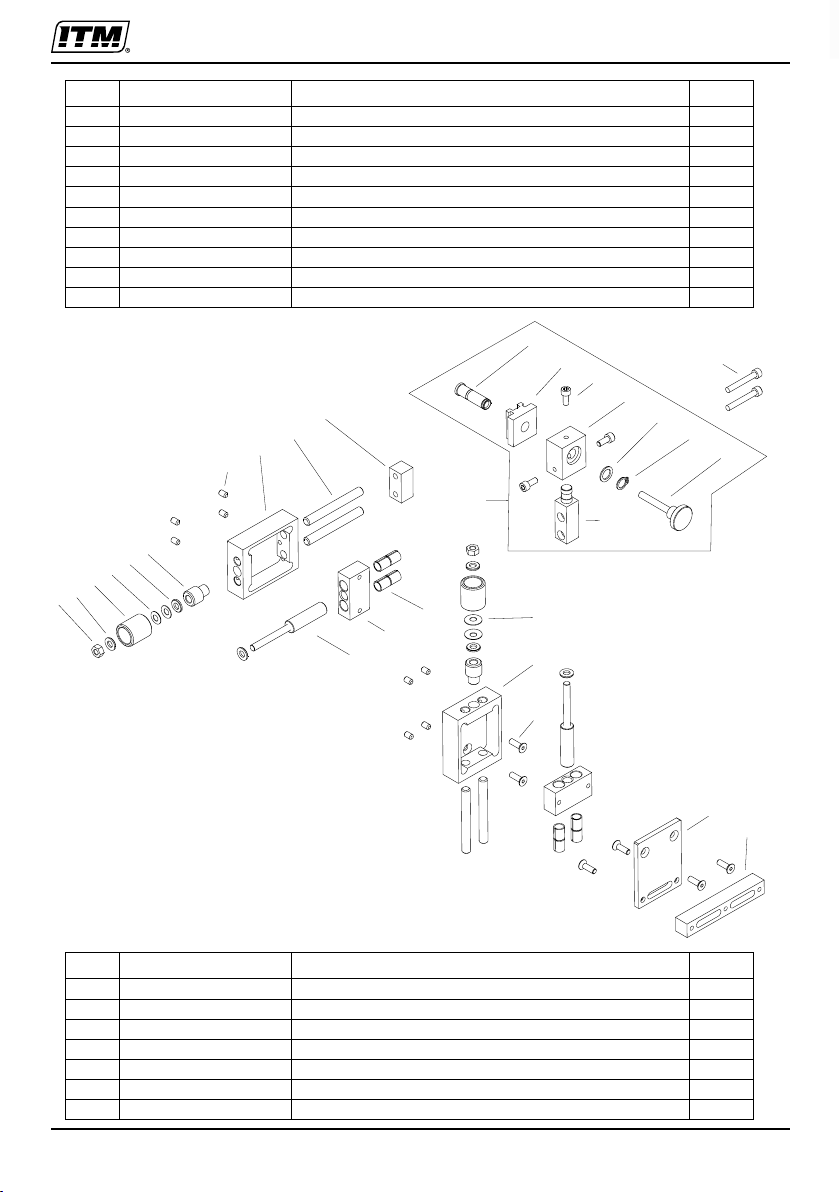

6. PARTS LIST............................................... 17
7. WIRING DIAGRAM....................................... 23
2www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
3
1. GENERAL INFORMATION
1.1. Application
The Mini Spider is a carriage designed to weld fillet joints with MIG/MAG torches. The
carriage is battery-powered and clamped with permanent magnets.
Optional magnet blocks increase the clamping force.
The machine is designed for use by a professional operator only.
1.2. Technical data
Voltage
18 V DC, 4.0 Ah
Power
25 W
Welding position (according to EN ISO 6947 and AWS/ASME)
PA/1F
PB/2F
Torch type
MIG/MAG
Torch diameter
16–22 mm (0.63–0.87″)
Maximum allowed cable weight for horizontal work
8 kg (18 lbs)
Minimum workpiece thickness
4 mm (0.16″)
Ground clearance
4 mm (0.16″)
Horizontal pulling force
150 N
Cross slides adjustment range
0–21 mm (0–0.83″,
up-down, left-right)
Horizontal speed*
5–110 cm/min
(2–44 in/min)
Weight (without the battery)
7.6 kg (16.8 lbs)
* The maximum speed depends on the battery charge level.
3
www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
4
1.3. Equipment included
1
Carriage
1 unit
2
Cardboard box
1 unit
3
Battery 4.0 Ah
2 units
4
Hex wrench 4 mm
1 unit
5
Hex wrench 3 mm
1 unit
–
Operator’s Manual
1 unit
5
2
3
4
1
4www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
5
1.4. Dimensions
350 mm (13.8″)
194 mm (7.6″)
192 mm (7.5″)
5
www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
6

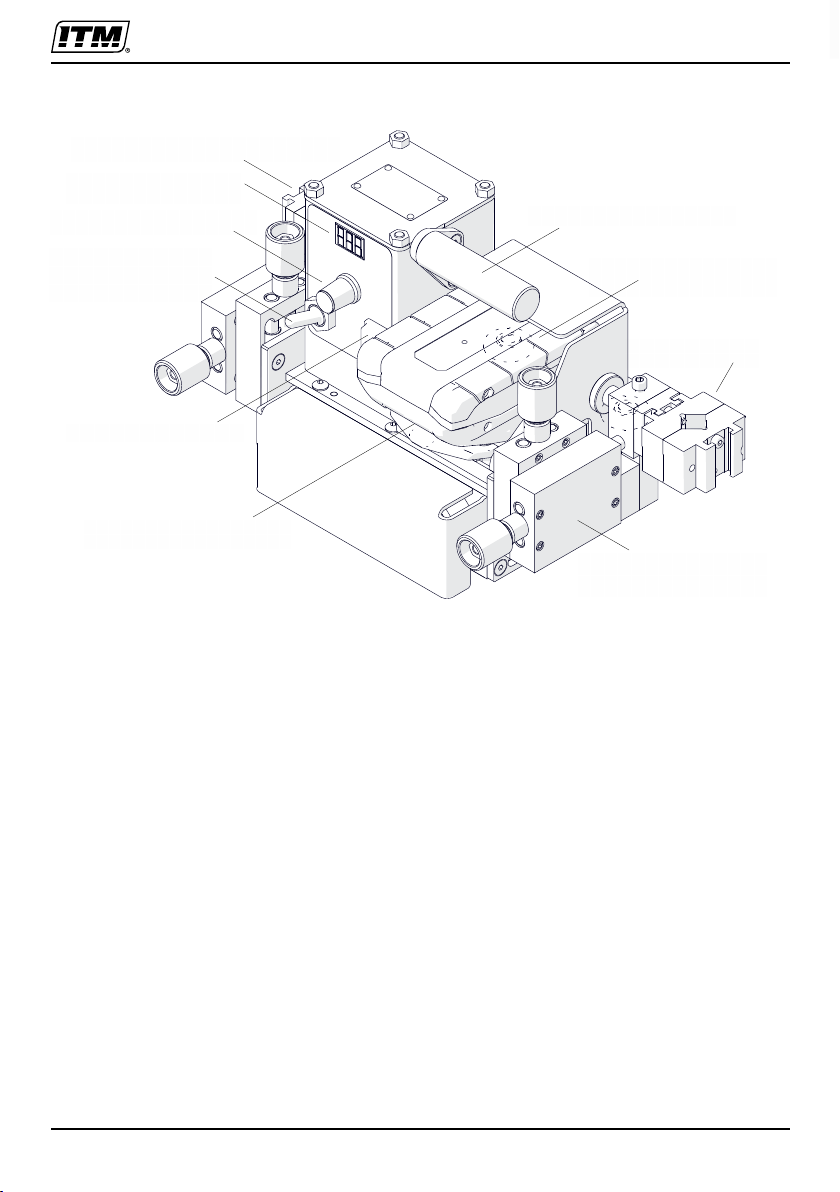

1.5. Design
Charge indicator
Direction switch
(Left / O / Right)
Roller (×2)
LED display
Carrying handle
Cross slide (×2)
Speed knob
Torch holder
Torch holder bracket (×2)
Power switch
6www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
7
2. SAFETY PRECAUTIONS
1. Before use, read this operator’s manual and complete a training in occupational
safety and health.
2. Use only in applications specified in this operator’s manual.
3. Make sure that the carriage has all parts and they are genuine and not damaged.
4. Keep untrained bystanders away from the carriage.
5. Before each use, ensure the correct condition of the carriage, battery, cables, con-
trol parts, rollers, and wheels.
6. Before each use, make sure that no part is cracked or loose. Make sure to maintain
correct conditions that can have an effect on the operation of the carriage.
7. Keep the carriage and battery dry. Do not expose the carriage to rain, snow, or frost.
8. Do not expose the machine and the battery to fire or excessive temperature.
9. Keep the work area well-lit, clean, and free of obstacles.
10. Do not use in explosive environments or near flammable materials.
11. Transport and position the carriage by using the carrying handle.
12. Put the carriage so that four wheels are on the surface. Make sure that no contact
is between the surface and chassis.
13. Install the battery only after you set the direction switch to the middle position.
14. Install only MIG/MAG torches whose diameter is the same as the diameter of the
torch holder.
15. Keep the torch cables away from the surface. Hang the cables to decrease the
load applied on the carriage. Use only cables whose weight is not more than 8 kg
(18 lbs).
16. At heights, use a fall arrester not to let the carriage fall.
17. Do not stay below the carriage that is put at heights.
18. Use eye protection (helmet, shield, and screen), ear protection, gloves, and pro-
tective clothing. The clothing must not be loose.
19. Do not stop the carriage with your hand. To stop, set the direction switch to the
middle position.
20. Remove the battery before you do maintenance or install/remove parts.
21. Repair only in a service center appointed by the seller.
22. If the carriage falls, is wet, or has any damage, stop the work and immediately
send the carriage to the service center for check and repair.
23. Do not leave the carriage unattended during work.
24. Store the machine and battery in a safe and dry place. Do not store discharged
battery.
7
www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
8
25. Do not remove the battery during operation of the machine.
26. Use a battery and charger compatible with the machine, listed in the
ACCESSORIES chapter.
27. Use only CAS (Cordless Alliance System) batteries and chargers. Batteries and
chargers marked with CAS are compatible with CAS devices. Only use genuine
batteries and chargers.
28. Do not open the battery and do not short-circuit its contacts.
29. Do not allow the battery to be fully discharged. Do not leave the battery in the
machine.
30. Acid flammable liquid may leak from defective battery. If the liquid comes in contact
with your skin or eyes, rinse them immediately with clean water and seek medical
attention.
31. When you transport the battery, familiarize yourself with hazardous goods carriage
regulations (UN 3480 and UN 3481).
8www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
9
3. STARTUP AND OPERATION

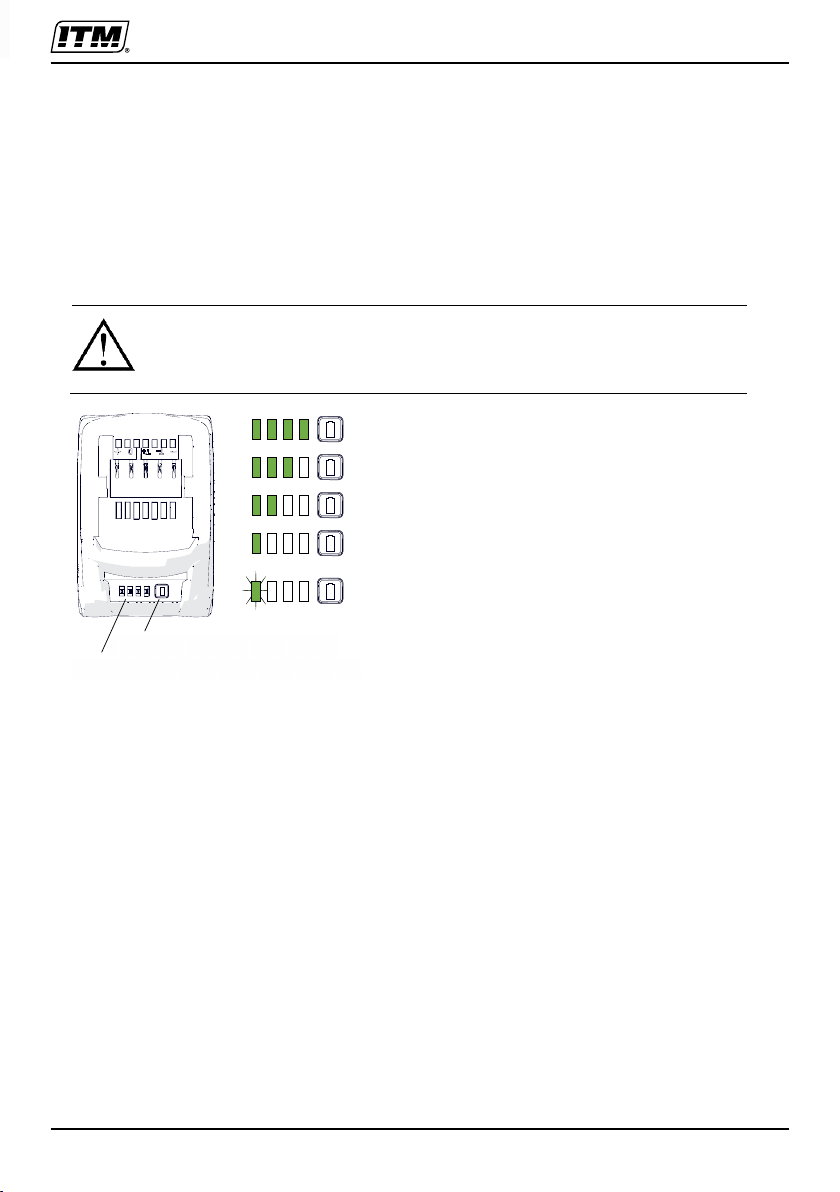

3.1. Checking the battery charge level
Charge the battery before first use.
To check the charge level, press the charge status button. If only one LED on the
charge indicator flashes green, charge the battery.
Do not charge fully charged battery.
Before charging the
battery, read the charger manual.
4 LEDs light up green ≤ 100%
3 LEDs light up green ≤ 75%
2 LEDs light up green ≤ 50%
1 LED lights up green ≤ 25%
1 LED flashes green charging required
Charge status button
Charge indicator
9
www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
10

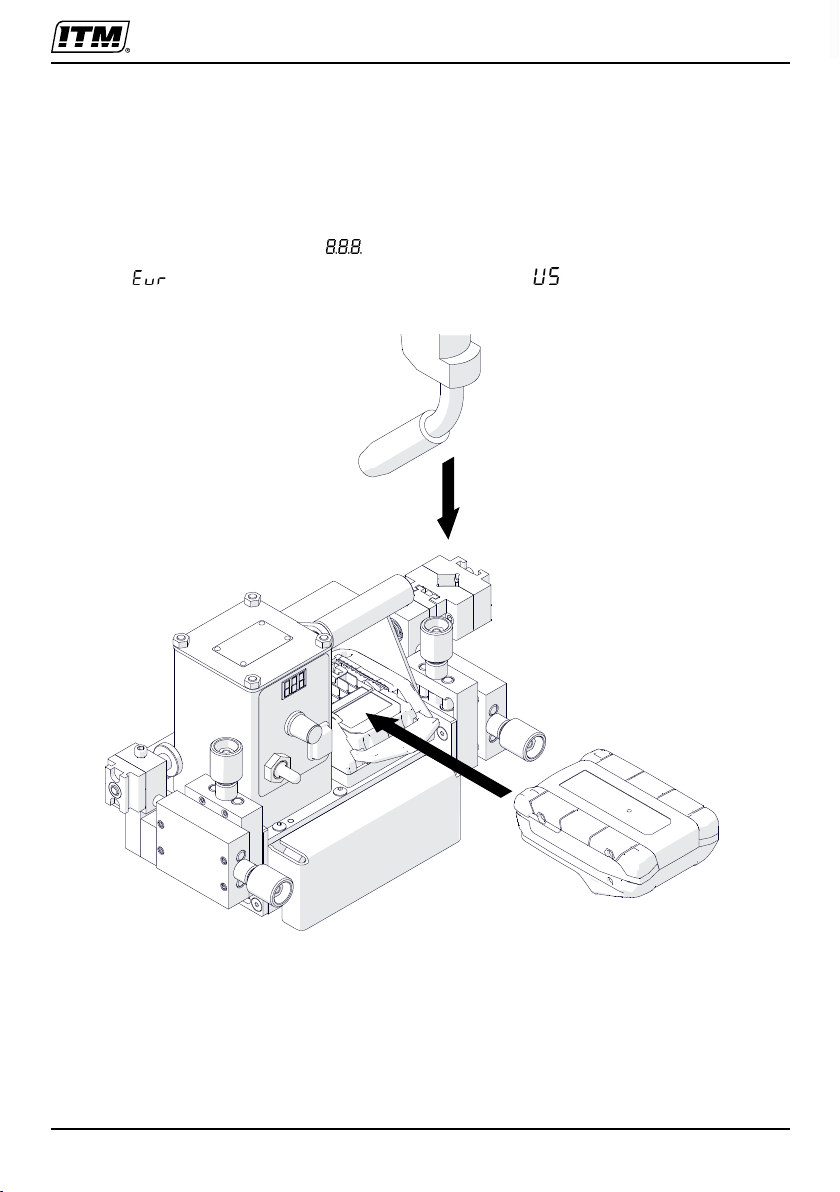

3.2. Operating
Use the carrying handle to move the carriage to the work area. Set the direction
switch to the middle position (1) and put the battery into the carriage (2). Set the power
switch to ‘I’ (3).
Then the display comes on ( ). Next, if the speed unit is set to centimeters per
minute, shows. If the unit is set to inches per minute, shows.
Use the 3 mm and 4 mm hex wrenches to tighten the torch in the holder (4).
4
2
1
3
10 www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
11

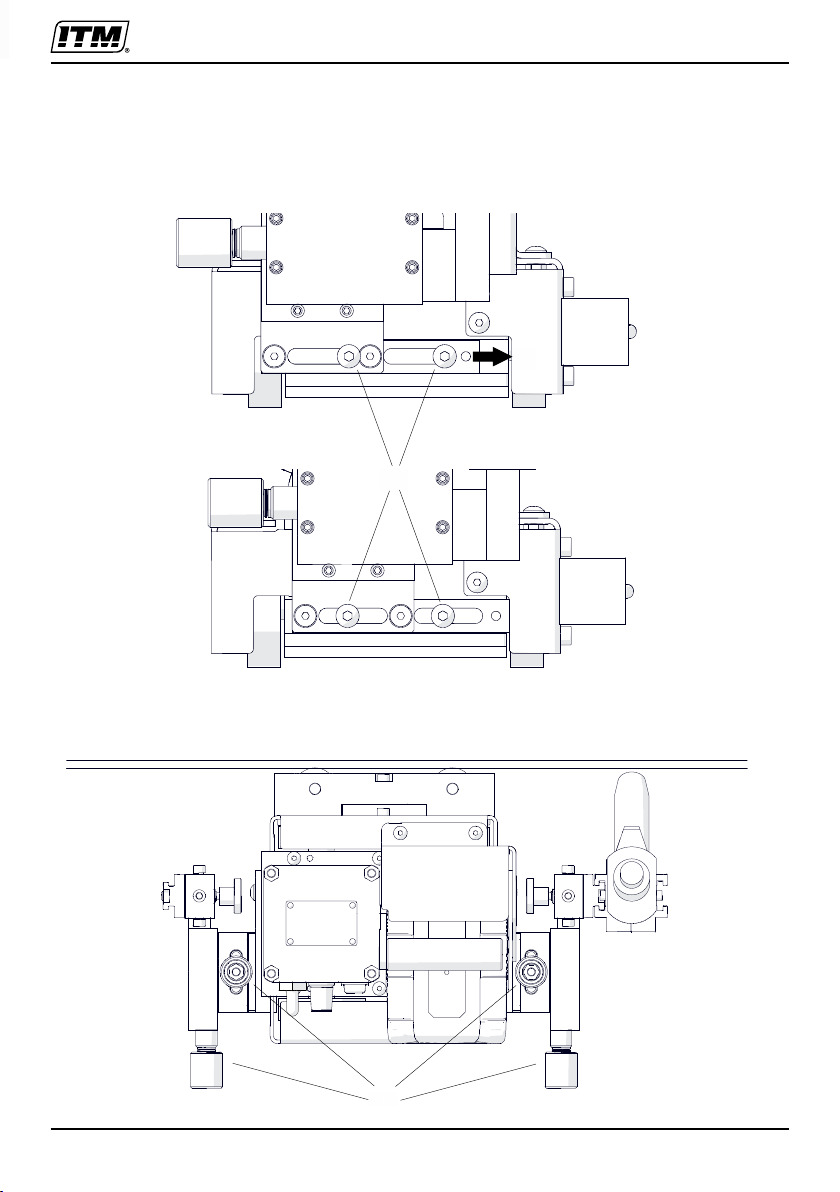

To allow work in narrow spaces, adjust the position of the cross slides. On the two
sides, loosen the screws (5). Then, move the cross slides (6) and tighten the screws
(5).
Put the carriage so that the rollers are on the workpiece. Then, use the knobs (7) to
put the torch in the weld joint.
7
5
6
11
www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
12
Use the speed knob to set the required speed. Use the direction switch to select a
travel direction. Then, the carriage travel starts with the speed shown.
To stop the movement, set the switch to the middle position.
If you do not use the carriage for 45 seconds, it turns off. To turn on the carriage
then again, set the power switch to ‘O’ and then to ‘I’. When the battery is discharged,
the carriage stops. Then, charge the battery.
After use, set the power switch to ‘O’ and remove the battery.

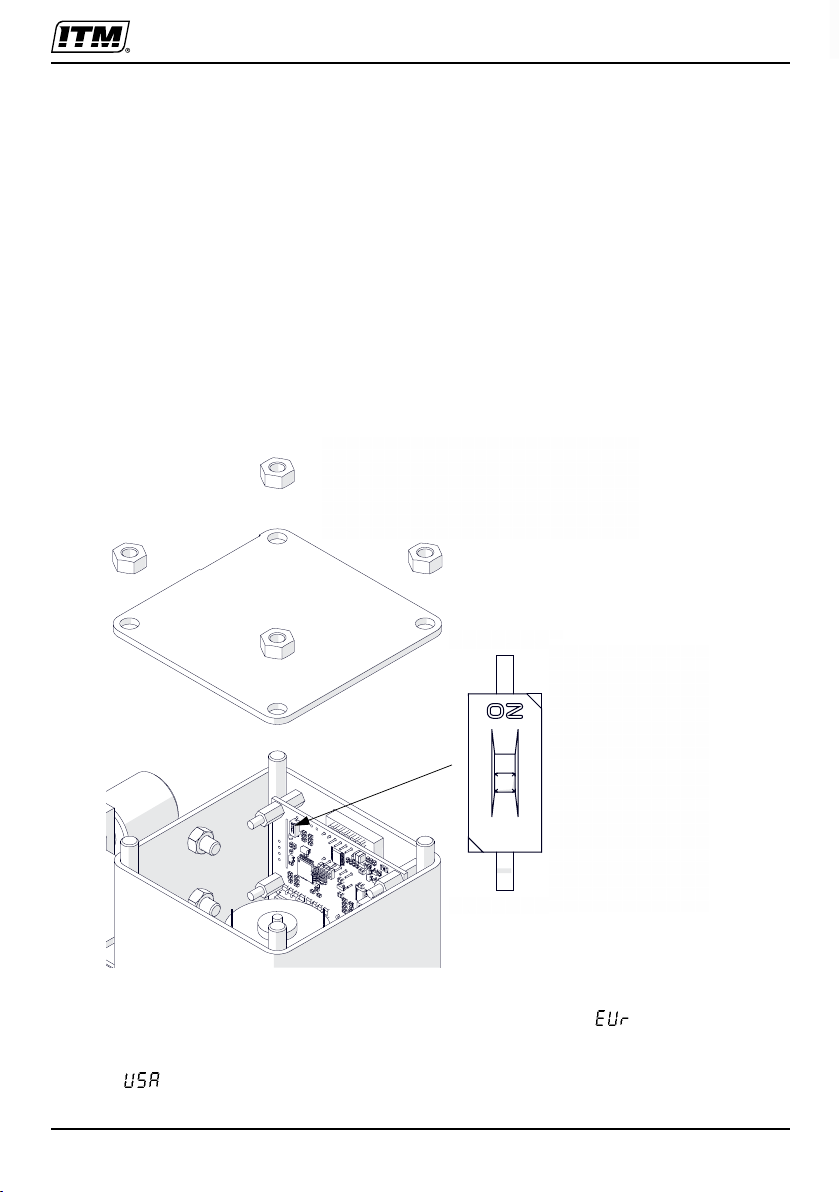

3.3. Changing the speed unit
To change the unit of speed between centimeters per minute and inches per minute,
remove the battery and follow the steps shown in the figure below.
After you change the unit and supply the power to the carriage, the current unit of
measure shows. When the switch is set to ‘CM’, the display shows and the speed
is shown in centimeters per minute. When the switch is set to ‘INCH’, the display
shows and the speed is shown in inches per minute.
Use the 10 mm hex wrench (not included) to
remove the nuts and get access to the back
side of the control panel.
CM
INCH
Set the switch to the
position that
matches the
required unit.
12 www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
13

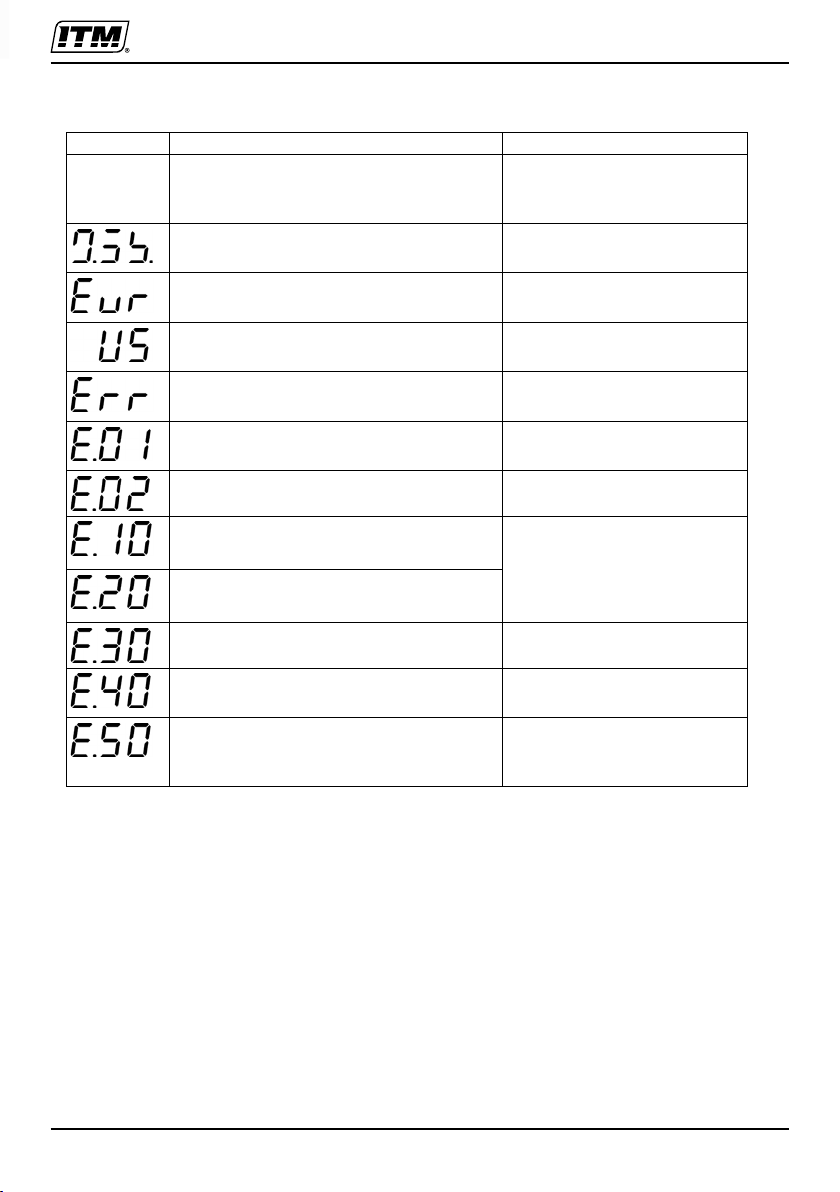

3.4. Troubleshooting
Message
Problem
Solution
–
Black display even though that the power
switch is set to ‘I’. The carriage was not
used for 45 seconds and then it turned off.
Set the power switch to ‘O’ and
then to ‘I’.
Display not fully on when powering. Contact the service center for
check and repair.
Speed shown in centimeters per minute in-
stead of inches per minute.
Contact the service center.
Speed shown in inches per minute instead
of centimeters per minute.
Contact the service center.
Direction switch not set to the middle posi-
tion when powering.
Set the direction switch to the
middle position.
Battery voltage too low. Charge the battery or replace to
a fully charged.
Battery voltage too high. Replace the battery.
Short circuit. Clean the battery contacts.
If the error continues, replace
the battery. If the error contin-
ues after replacement, contact
the service center.
No electrical connection.
Battery internal error. Replace the battery.
Battery overheated. Wait until the temperature of the
battery decreases.
Battery temperature too low. Move the battery to a warmer
place and wait until the temper-
ature of the battery increases.
13
www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
14
4. MAINTENANCE
Each day:
1. Clean the chassis, rollers, and wheels.
2. Make sure that the rollers turn freely.
3. Clean the torch nozzle and replace if damaged.
4. Examine the battery and replace if damaged.
Each month:
1. Make sure that the knob and the switches work as intended. Replace if they are
loose or damaged.
2. Examine cables and replace if damaged.
3. Tighten screws if loose.
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
15
5. ACCESSORIES
5.1. Battery 4.0 Ah
5.2. Charger
Charges the battery from the power source.
Part number:
AKM-0738-10-00-01-0
Part number:
LDW-0738-06-00-30-0 (AUS/NZ)
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
15
5. ACCESSORIES
5.1. Battery 4.0 Ah
5.2. Charger
Charges the battery from the power source.
Part number:
AKM-0738-10-00-01-0
Part number:
LDW-0738-06-00-30-0 (AUS/NZ)
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
15
5. ACCESSORIES
5.1. Battery 4.0 Ah
5.2. Charger
Charges the battery from the power source.
Part number:
AKM-0738-10-00-01-0
Part number:
LDW-0738-06-00-30-0 (AUS/NZ)
14 www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
16
5.3. Auxiliary magnet blocks
The blocks increase the clamping force of the carriage to the surface.
Use the 2.5 mm hex wrench to tighten the blocks to the carriage.
Part number:
ZST-0655-09-00-00-0
(clamping force: 2×50 N)
15
www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Mini Spider
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
17
5.4. Cable anchor
Attaches the gas cables to decrease the load applied on the torch holder. Install on the
carrying handle.
Part number:
PDT-0526-21-00-00-0
16 www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Parts list Mini Spider v.0.04
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 1
5
1
7
8
2
3
4
6
ITEM
PART NUMBER
DESCRIPTION
Q-TY
1
LDW-0738-06-00-30-0
BATTERY CHARGER (AUS/NZ)
1
2
AKM-0738-10-00-01-0
BATTERY LiHD 18 V - 4.0 Ah
1
3
KLC-000007
4 MM HEX WRENCH
1
4
KLC-000006
3 MM HEX WRENCH
1
5
ZST-0655-09-00-00-0
MAGNET SET ASSY
1
6
PDT-0526-21-00-00-0
WIRE HOLDER
1
7
KST-0466-43-04-00-0
HOLDER BLOCK
1
8
RKJ-000036
ADJUSTABLE HANDLE
2
6. PARTS LIST
17
www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Parts list Mini Spider v.0.04
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 2
74
55
7
32
68
23
16
36
38
37
62
69
70
60 61
57
56
58
54
30
63
52
65
64
31
67
29
53
51
28
25
48
47
66
44
49
45
26
50
27
43
46
42
24
41
40
39 33
35
34
72
8
9
11
6
73
22
12
4
21
18
10
15
5
20
71
7
17
13
3
14
19
2
1
ITEM PART NUMBER DESCRIPTION Q-TY
1
WKR-000566
TORX HEAD SCREW 3X14
4
2
NKR-000017
HEX M6 NUT
4
3
PKR-0735-02-04-00-0
COVER
1
4
WSP-0735-02-03-00-0
CAMTILEVER
4
5
RKJ-0735-02-02-01-0
HANDLE
1
6
NKR-000016
HEX M5 NUT
4
7
WKR-000136
HEX SOCKET COUNTERSUNK HEAD SCREW M5x16
2
8
TLJ-000110
MOUNTING SLEEVE
8
9
MDL-0735-80-01-00-0
ELECTRONIC MODULE
1
Parts list Mini Spider v.0.04
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 2
74
55
7
32
68
23
16
36
38
37
62
69
70
60 61
57
56
58
54
30
63
52
65
64
31
67
29
53
51
28
25
48
47
66
44
49
45
26
50
27
43
46
42
24
41
40
39 33
35
34
72
8
9
11
6
73
22
12
4
21
18
10
15
5
20
71
7
17
13
3
14
19
2
1
ITEM PART NUMBER DESCRIPTION Q-TY
1
WKR-000566
TORX HEAD SCREW 3X14
4
2
NKR-000017
HEX M6 NUT
4
3
PKR-0735-02-04-00-0
COVER
1
4
WSP-0735-02-03-00-0
CAMTILEVER
4
5
RKJ-0735-02-02-01-0
HANDLE
1
6
NKR-000016
HEX M5 NUT
4
7
WKR-000136
HEX SOCKET COUNTERSUNK HEAD SCREW M5x16
2
8
TLJ-000110
MOUNTING SLEEVE
8
9
MDL-0735-80-01-00-0
ELECTRONIC MODULE
1
18 www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Parts list Mini Spider v.0.04
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 3
ITEM PART NUMBER DESCRIPTION Q-TY
10
WKR-000372
CROSS SOCKET COUNTERSUNK HEAD SCREW M3x5
4
11
WZK-0526-02-02-03-0
TRAVEL DIRECTION SWITCH WIRE SET
1
12
OSL-000036
SWITCH COVER
1
13
PKT-000040
POTENTIOMETR KNOB
1
14
OSL-000196
KNOB LID
1
15
PRS-000119
SEAL
1
16
WZK-0735-02-02-06-0
POTENTIOMETR WIRE SET
1
17
PKR-000053
KNOB COVER
1
18
WZK-0735-02-02-05-0
POWER SWITCH WIRE SET
1
19
GNZ-0734-01-05-01-0
BATTERY SOCKET
1
20
MDL-0734-80-02-00-0
BATTERY SOCKET MODUL
1
21
SRB-000078
HEX SOCKET HEAD CAP SCREW M5X12
6
22
ADT-0734-01-06-00-0
BATTERY SOCKET ADAPTER
1
23
SLN-0735-02-06-00-0
MOTOR ASSY
1
24
PLY-0735-02-01-00-0
MOTOR PLATE
1
25
WKR-000131
HEX SOCKET COUNTERSUNK HEAD SCREW M4x12
4
26
WKR-000292
HEX SOCKET BUTTON HEAD SCREW M4X6
1
27
OBJ-000004
WIRE CLAMP FI 4MM
1
28
WKR-000026
HEX SOCKET SET SCREW WITH FLAT POINT M5X8
1
29
KLK-000033
DOWEL PIN 4n6x12
2
30
WKR-000104
HEX SOCKET BUTTON HEAD SCREW M6x30
4
31
PRW-0655-04-00-00-0
LEFT GUIDE ASSY
1
32
KOL-0270-02-02-00-1
BEVEL GEAR Z17
1
33
PRW-0655-03-00-00-0
RIGHT GUIDE ASSY
1
34
ZCS-0270-42-00-00-0
CLAMPING BLOCKS
1
35
OSL-0655-06-00-00-0
LEFT COVER
1
36
SRB-000062
HEX SOCKET HEAD CAP SCREW M4x12
4
37
PDK-000042
SPRING WASHER 4.1
4
38
PDK-000108
ROUND WASHER 4.3
4
39
KOL-0752-01-04-00-0
DRIVE WHEEL ASSY
4
40
PRS-000018
INTERNAL RETAINING RING 28w
4
41
PDK-000301
WASHER
4
42
LOZ-000038
BALL BEARING 12x28x8
4
43
TLJ-0655-01-04-00-0
SLEEVE
2
44
WLK-0655-01-02-00-0
FRONT SHAFT
1
45
WPS-0170-00-22-00-1
KEY 3x5x13
1
46
WLK-0655-01-03-00-0
REAR SHAFT
1
47
NKR-0270-01-08-00-1
ADJUST NUT
2
48
KOL-0270-01-13-00-0
PULLEY I
1
49
KOL-0270-01-14-00-0
PULLEY II
1
50
WKR-000014
HEX SOCKET SET SCREW WITH DOG POINT M5x12
1
51
KOL-0270-01-06-00-1
BEVEL GEAR z=32
1
52
SLP-0270-00-06-00-0
BAR
1
53
PRS-000040
INTERNAL RETANING RING 8W
1
54
WKR-000098
HEX SOCKET HEAD CAP SCREW M5x16
4
55
ZSP-0270-07-00-00-2
FOLLOWER ASSY
1
56
WKR-000134
HEX SOCKET COUNTERSUNK HEAD SCREW M5x12
1
57
MGT-0270-07-02-00-1
MAGNET PLATE
1
58
KLK-000045
DOWEL PIN 5n6x12
2
60
RLK-0270-07-03-00-1
GUIDE ROLLER
2
61
KLK-000071
DOWEL PIN 8n6x26
2
62
SRB-000089
HEX SOCKET HEAD CAP SCREW M5x30
2
19
www.itmtools.com.au

MINI SPIDER
OPERATOR’S MANUAL
Parts list Mini Spider v.0.04
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 4
ITEM PART NUMBER DESCRIPTION Q-TY
63
ZSP-0270-11-00-00-0
PLATE ASSY
1
64
NPR-0270-14-00-00-0
TIGHTENER
1
65
SPR-0270-11-05-00-0
SPRING
2
66
PAS-000003
TOOTHED BELT
1
67
KRP-0735-01-01-00-0
HOUSING
1
68
OSL-0735-03-01-00-0
LOWER COVER
1
69
OSL-0735-03-02-00-0
TOP COVER
1
70
WKR-000096
HEX SOCKET BUTTON HEAD SCREW M5x10
10
71
GNZ-0734-01-05-00-0
BATTERY SOCKET ASSY
1
WZK-0735-02-05-00-0
BATTERY SOCKET WIRE SET
1
23
14
15
16
22
18
19
17
20
13
21
12
7
8
11
10
6
5
4
9
3
2
1
25
26
24
27
28
ITEM PART NUMBER DESCRIPTION Q-TY
1
NKR-000017
HEX NUT M6
2
2
PDK-000021
ROUND WASHER 6.4
2
3
PKT-0247-01-05-00-0
HANDWHEEL
2
4
SPR-000010
DISC SPRING 6.2x12.5x0.6
2
5
PDK-000020
ROUND WASHER 6.4
4
6
TLJ-0247-01-04-00-0
SLEEVE
2
7
WKR-000026
HEX SOCKET SET SCREW WITH FLAT POINT M5x8
8
Parts list Mini Spider v.0.04
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 4
ITEM PART NUMBER DESCRIPTION Q-TY
63
ZSP-0270-11-00-00-0
PLATE ASSY
1
64
NPR-0270-14-00-00-0
TIGHTENER
1
65
SPR-0270-11-05-00-0
SPRING
2
66
PAS-000003
TOOTHED BELT
1
67
KRP-0735-01-01-00-0
HOUSING
1
68
OSL-0735-03-01-00-0
LOWER COVER
1
69
OSL-0735-03-02-00-0
TOP COVER
1
70
WKR-000096
HEX SOCKET BUTTON HEAD SCREW M5x10
10
71
GNZ-0734-01-05-00-0
BATTERY SOCKET ASSY
1
WZK-0735-02-05-00-0
BATTERY SOCKET WIRE SET
1
23
14
15
16
22
18
19
17
20
13
21
12
7
8
11
10
6
5
4
9
3
2
1
25
26
24
27
28
ITEM PART NUMBER DESCRIPTION Q-TY
1
NKR-000017
HEX NUT M6
2
2
PDK-000021
ROUND WASHER 6.4
2
3
PKT-0247-01-05-00-0
HANDWHEEL
2
4
SPR-000010
DISC SPRING 6.2x12.5x0.6
2
5
PDK-000020
ROUND WASHER 6.4
4
6
TLJ-0247-01-04-00-0
SLEEVE
2
7
WKR-000026
HEX SOCKET SET SCREW WITH FLAT POINT M5x8
8
Parts list Mini Spider v.0.04
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 4
ITEM PART NUMBER DESCRIPTION Q-TY
63
ZSP-0270-11-00-00-0
PLATE ASSY
1
64
NPR-0270-14-00-00-0
TIGHTENER
1
65
SPR-0270-11-05-00-0
SPRING
2
66
PAS-000003
TOOTHED BELT
1
67
KRP-0735-01-01-00-0
HOUSING
1
68
OSL-0735-03-01-00-0
LOWER COVER
1
69
OSL-0735-03-02-00-0
TOP COVER
1
70
WKR-000096
HEX SOCKET BUTTON HEAD SCREW M5x10
10
71
GNZ-0734-01-05-00-0
BATTERY SOCKET ASSY
1
WZK-0735-02-05-00-0
BATTERY SOCKET WIRE SET
1
23
14
15
16
22
18
19
17
20
13
21
12
7
8
11
10
6
5
4
9
3
2
1
25
26
24
27
28
ITEM PART NUMBER DESCRIPTION Q-TY
1
NKR-000017
HEX NUT M6
2
2
PDK-000021
ROUND WASHER 6.4
2
3
PKT-0247-01-05-00-0
HANDWHEEL
2
4
SPR-000010
DISC SPRING 6.2x12.5x0.6
2
5
PDK-000020
ROUND WASHER 6.4
4
6
TLJ-0247-01-04-00-0
SLEEVE
2
7
WKR-000026
HEX SOCKET SET SCREW WITH FLAT POINT M5x8
8
Parts list Mini Spider v.0.04
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 4
ITEM PART NUMBER DESCRIPTION Q-TY
63
ZSP-0270-11-00-00-0
PLATE ASSY
1
64
NPR-0270-14-00-00-0
TIGHTENER
1
65
SPR-0270-11-05-00-0
SPRING
2
66
PAS-000003
TOOTHED BELT
1
67
KRP-0735-01-01-00-0
HOUSING
1
68
OSL-0735-03-01-00-0
LOWER COVER
1
69
OSL-0735-03-02-00-0
TOP COVER
1
70
WKR-000096
HEX SOCKET BUTTON HEAD SCREW M5x10
10
71
GNZ-0734-01-05-00-0
BATTERY SOCKET ASSY
1
WZK-0735-02-05-00-0
BATTERY SOCKET WIRE SET
1
23
14
15
16
22
18
19
17
20
13
21
12
7
8
11
10
6
5
4
9
3
2
1
25
26
24
27
28
ITEM PART NUMBER DESCRIPTION Q-TY
1
NKR-000017
HEX NUT M6
2
2
PDK-000021
ROUND WASHER 6.4
2
3
PKT-0247-01-05-00-0
HANDWHEEL
2
4
SPR-000010
DISC SPRING 6.2x12.5x0.6
2
5
PDK-000020
ROUND WASHER 6.4
4
6
TLJ-0247-01-04-00-0
SLEEVE
2
7
WKR-000026
HEX SOCKET SET SCREW WITH FLAT POINT M5x8
8
Parts list Mini Spider v.0.04
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 4
ITEM PART NUMBER DESCRIPTION Q-TY
63
ZSP-0270-11-00-00-0
PLATE ASSY
1
64
NPR-0270-14-00-00-0
TIGHTENER
1
65
SPR-0270-11-05-00-0
SPRING
2
66
PAS-000003
TOOTHED BELT
1
67
KRP-0735-01-01-00-0
HOUSING
1
68
OSL-0735-03-01-00-0
LOWER COVER
1
69
OSL-0735-03-02-00-0
TOP COVER
1
70
WKR-000096
HEX SOCKET BUTTON HEAD SCREW M5x10
10
71
GNZ-0734-01-05-00-0
BATTERY SOCKET ASSY
1
WZK-0735-02-05-00-0
BATTERY SOCKET WIRE SET
1
23
14
15
16
22
18
19
17
20
13
21
12
7
8
11
10
6
5
4
9
3
2
1
25
26
24
27
28
ITEM PART NUMBER DESCRIPTION Q-TY
1
NKR-000017
HEX NUT M6
2
2
PDK-000021
ROUND WASHER 6.4
2
3
PKT-0247-01-05-00-0
HANDWHEEL
2
4
SPR-000010
DISC SPRING 6.2x12.5x0.6
2
5
PDK-000020
ROUND WASHER 6.4
4
6
TLJ-0247-01-04-00-0
SLEEVE
2
7
WKR-000026
HEX SOCKET SET SCREW WITH FLAT POINT M5x8
8
20 www.itmtools.com.au
