iTON XJ-WB60 User manual

XJ-WB60
DISCLAIMER AND COPYRIGHT NOTICE
Information in this document, including URL references, is subject to change without notice.
This document is provided “As if” with no whatsoever, including any warranty of merchantability, noninfringement, fitness for any purpose,
or any warranty otherwise arising out of any proposal, specification or samples.
All liability, including liability for infringement of any proprietary rights, relating to use of information in this document is disclaimed. No
licenses express or implied, by estoppel or otherwise, to any intellectual property rights are granted herein.
The Bluetooth logo and symbol belong to the Bluetooth SIG Inc.
The Wi-Fi Alliance Member Logo is a trademark of the Wi-Fi Alliance.
All trade names, trademarks and registered trademarks mentioned in this document are property of their respective owners, and are
hereby acknowledged.
Copyright ITON Technology Corp. All rights reserved
TGW206-16 Module
.

1.3 1.
1. summary..................................................................................................................................................................... 3
1.2 function............................................................................................................................................... 3
1.1.1 1.1.1Product characteristics......................................................................................................3
1.1.2 1.1.2Application scenario..........................................................................................................3
1.2 1.2describe.........................................................................................................................................
Catalogue
3
3 Functional
block diagram.................................................................................................................................... 3
2. 2. PIN Foot definition............................................................................................................................................... 4
2.1 2.1modelg r o u p PIN Interface diagram.................................................................................4
2.2 2.2Pin function................................................................................................................................. 4
3. 3. Module characteristics and specifications..................................................................................................5
3.1 3.1WiFi RF specification................................................................................................................. 5
3.2 3.2BLE RF specification...................................................................................................................5
3.3 3.3Module electrical parameters................................................................................................ 6
4. 4. Reference application and PCB Layout........................................................................................................ 6
4.1 4.1Application schematic reference......................................................................................... 6
4.2 4.2PCB Layout reference resources.......................................................................................... 6
5.5. reference resources PCB encapsulation......................................................................................................... 7
5.1 5.1Package size: .............................................................................................................................. 7
5.2 5.2Recommended pads.................................................................................................................7
6.6. Revision history.................................................................................................................................................... 8

1.summary
1.2 function
1.1.1Product characteristics
 802.11b/g/n，Wi-Fi+Bluetooth LE5. 0 combo, supports STA, soft AP and sniffer
 Open source self controllable risc-v CPU, 1-160mhz adjustable, 276KB SRAM
 Ultra low power consumption: sleep power consumption is only 0.5ua, networking standby power
consumption is only 40ua (dtim10)
 Super fast connection: cold start fast connection only 70ms
 Ultra long distance: maximum transmission power dBm, sensitivity - 98dbm, more than one wall
 High security: support safe startup, safe debugging, AES 128 / 192 / 256 encryption engine, WPA3, MD5,
SHA-1 / 224 / 256, PKA
(RSA / ECC) encryption engine
 Support the coexistence of Wi Fi and Bluetooth le
1.1.2 Application scenario
 Intelligent lighting
 Smart switch
 Smart socket
 Smart home appliances
 Monitoring and remote control
1.2 describe
XJ-WB60 is an intelligent new generation of highly integrated Wi Fi and Bluetooth Le chip. The wireless
subsystem includes 2.4G RF, Wi Fi 802.11b/g/n and ble baseband / MAC design. The microcontroller
subsystem includes a low-power 32-bit RISC CPU, cache and memory. The power management unit
provides flexible settings to realize low power consumption mode and supports multiple security functions.

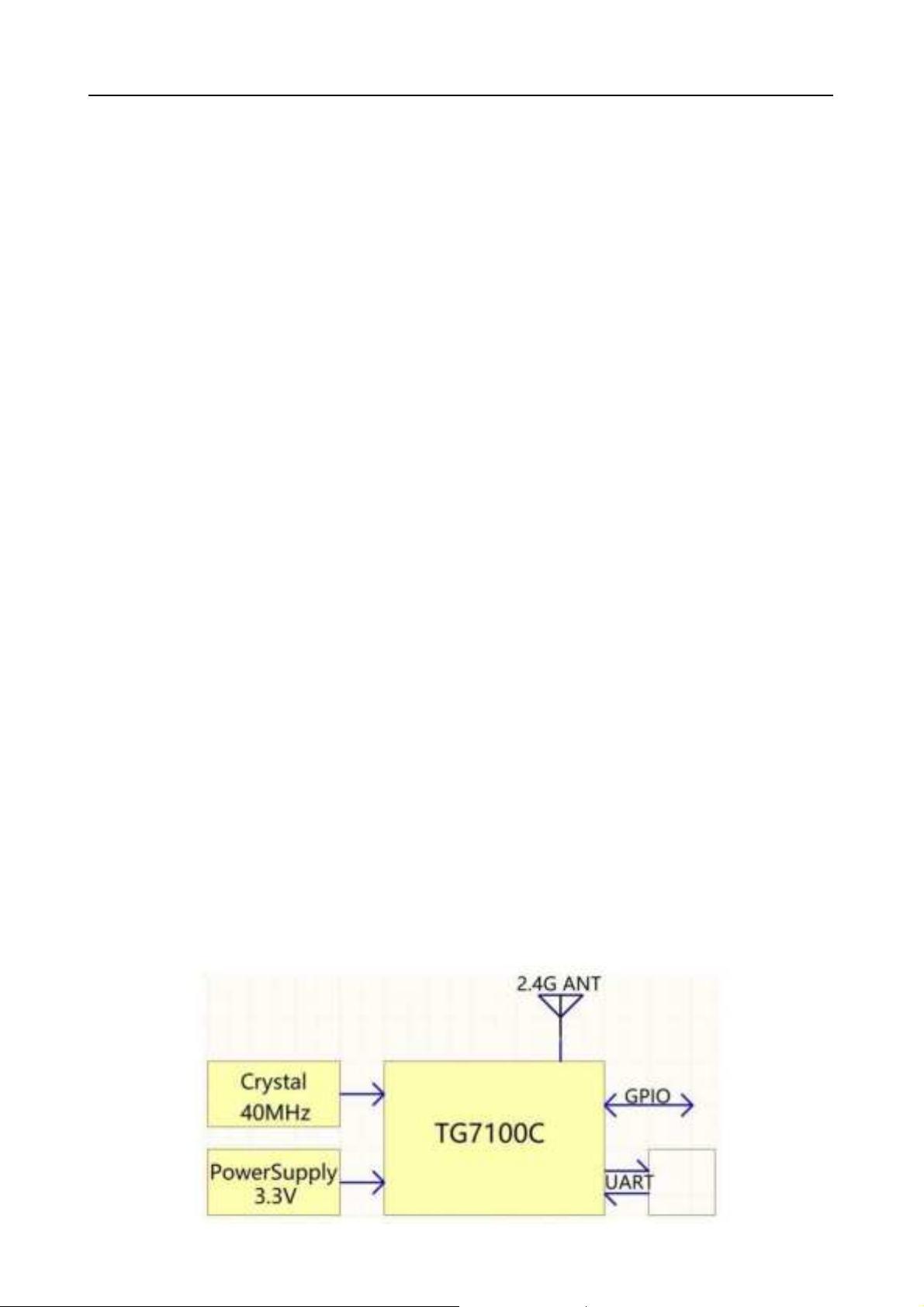

1.3 Functional block diagram
(Bluetooth LE5.0 Only support BT/BLE 1M)
15.05

2.Pin pin definition
1. 1ModulePIN Interface diagram
2.2Pin function
NO Name IO Type Description Configurable Functions
1 CHIP_EN I/O Chip enable pin (active high)
2 GPIO5 I/O GPIO5 SDIO,SPI, I2C, UART, PWM0, ADC,ACOMP
3 GPIO2 I/O GPIO2 SDIO, SFLASH, SPI, I2C, UART, PWM2
4 GPIO11 I/O GPIO11 SPI, I2C, UART, PWM1, ADC,
5 GPIO12 I/O GPIO12 SPI, I2C, UART, PWM2, ADC, ACOMP
6 GPIO14 I/O GPIO14 SPI, I2C, UART, PWM4, ADC, ACOMP, DAC
7 GPIO17 I/O GPIO17 SPI, I2C, UART, PWM2,
8 VCC P Power supply. 3.3V is required
9 GND P Ground connections
10 GPIO0 I/O GPIO0 SDIO, SFLASH, SPI, I2C, UART, PWM0
11 GPIO8 I/O GPIO8 (Boot option). SPI, I2C, UART, PWM3
12 GPIO1 I/O GPIO1 SDIO, SFLASH, SPI, I2C, UART, PWM1
13 GPIO3 I/O GPIO3
SDIO, SPI, I2C, pwm3, user communication
serial port RXD
14 GPIO4 I/O GPIO4
SDIO, SPI, I2C, pwm4, ADC, acomp, user
communication
Serial port TXD
15 RXD I/O UART RX This serial port can only be used as a
serial port for burning and log output
16 TXD I/O UART TX
Description: 1.The standard transparent firmware uses gpio3 (user communication serial port RXD) and gpio4 (user communication
serial port TXD) as communication serial ports with MCU.
2.The module supports up to five PWM outputs, and only one GPIO port can be set for thePWM of the same group.

3. Module characteristics and specifications
3.1WiFi RF specification
Product Name TGW206-16 Module
Standard IEEE 802.11b/g/n
Frequency Band 2.4~2.4835GHz ISM Band
Modulation Type DSSS,OFDM(WIFI)
Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,65,72.2Mbps
Spread Spectrum
IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum)
IEEE802. 11g/n: OFDM (Orthogonal Frequency Division Multiplexing)
RX Sensitivity
11b-1Mbps: -98dBm
11b-11Mbps: -91dBm
11g-54Mbps: -77dBm
11n HT20-MCS0: -92dBm
11n HT20-MCS7: -73dBm
Maximum Input Level
11b: 5dBm
MCS0: -4dBm
MCS7: -13dBm
Output Power
11b: 11.92dBm
11g: 14.89dBm
Interfac
11n: 15.05dBm
e UART
Power Supply DC3. 3V
Operating Temperature -30℃ to +85℃
Size: 24mm×16mm×2.75mm
3.2 Ble RF specification
Parameter Conditions Minimum Typical Maximum Unit
Frequency range 2402 2480 MHz
RX sensitivity 1 Mbps
- -93 - dBm
Initial carrier frequency offset -24 5 24 KHz
Output power BLE 1M
- dBm
4.06
-

3.3 Module electrical parameters
parameter minimum
value
Typica
l value
Maxi
mum
Com
pany
VDD 2.2 3.3 3.6
V
Distribution
network
current
- 120 - mA
Working
electric
current
- 55 -
Standby
current
- 23 -
4.Reference application and PCB layout

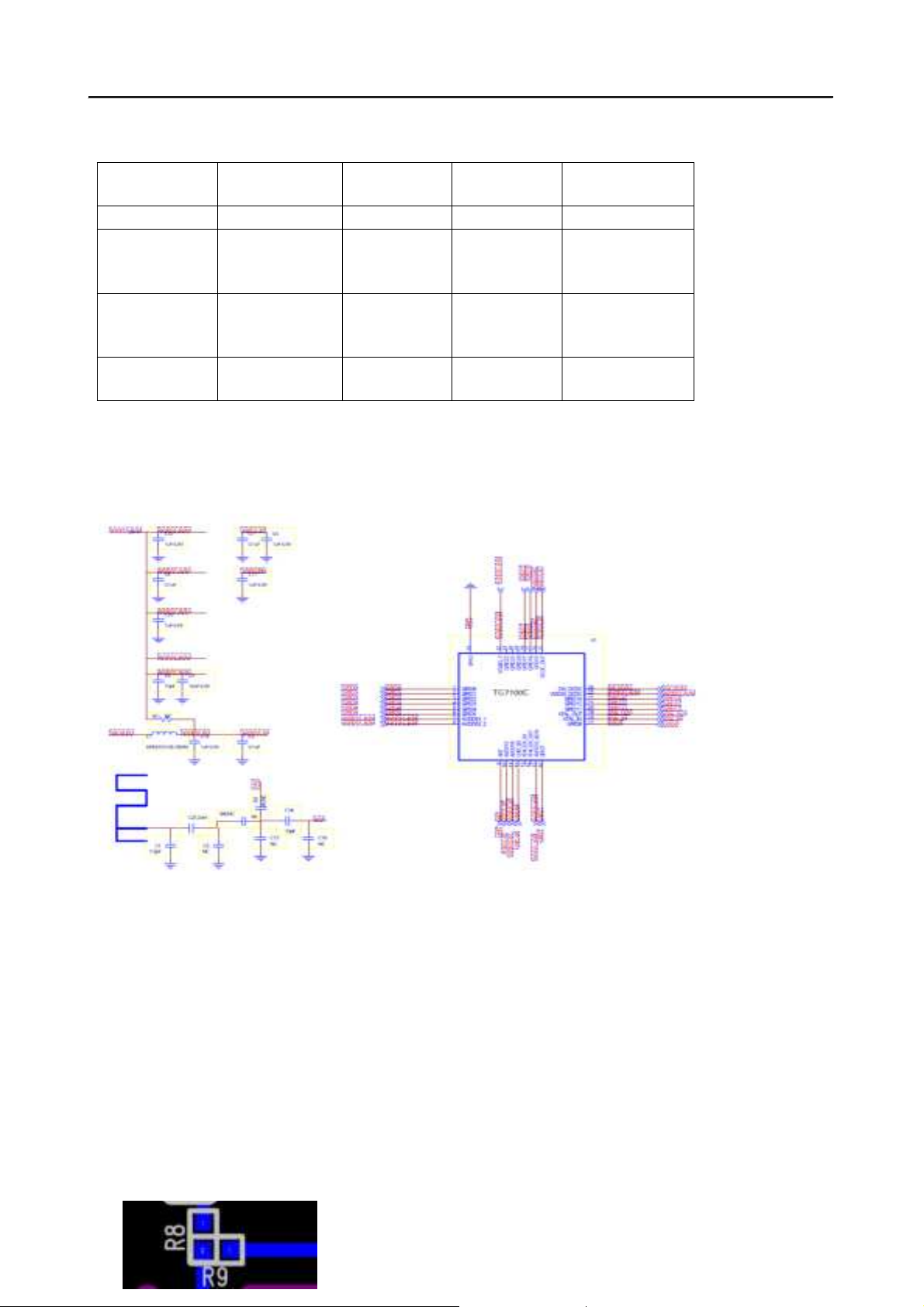

4.1Application schematic reference
4.2PCB layout reference
4.2.1 Keep clearance at the module antenna
4.2.2 The module is far away from strong interference sources
4.2.3 The capacitance shall be increased at the power supply, and the wiring shall be short and
thick
4.2.4 The module can be pasted on the PCB board or welded on the PCB board with 2.0 rows of pins
4.2.5 PCB can use on-board antenna or IPEX base to connect external antenna (as shown below). This version is
on-board antenna
  Onboard antenna: R8 (0r) / R9 (NC)
  PEX sub external antenna: R8 (NC) / R9 (0r)

4.2.6 The module layout is recommended as follows:
5.Reference PCB package
5.1 Package size:
5.2 Recommended pads

6
edit
ion
Modifica
tion:
Modifi
ed by:
date
V0.
one
First edition Zhong
Yongwu
2020.08.09
V0.
two
Update series naming Zhong
Yongwu
2020.10.27
V0.
three
Update GPIO function description MJ 2022.01.13
. Revision history

FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.

Integration instructions for host product manufacturers according to KDB 996369 D03
OEM
Manual v01
2.2 List of applicable FCC rules
CFR 47 FCC PART 15 SUBPART C has been investigated. It is applicable to the modular.
2.3 Specific operational use conditions
This module is stand-alone modular. If the end product will involve the Multiple
simultaneously transmitting condition or different operational conditions for a
stand-alone modular transmitter in a host, host manufacturer have to consult with
module manufacturer for the installation method in end system.
2.4 Limited module procedures
Not applicable
2.5 Trace antenna designs
Not applicable
2.6 RF exposure considerations
To maintain compliance with FCC’s RF Exposure guidelines.
2.7 Antennas
This radio transmitter FCC ID: has been approved by Federal
Communications Commission to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a
gain greater than the maximum gain indicated for any type listed are strictly prohibited
for use with this device.
Antenna Description
Antenna
Type
Frequency Range (MHz)
Maximum antenna
gain(dBi)
BT/WiFi Antenna
PCB
2402-2480MHz/2412-2472MHz
2.0dBi
2.8 Label and compliance information
The final end product must be labeled in a visible area with the following"
Contains FCC ID: 2AXSO-XJ-WB60”
2.9 Information on test modes and additional testing requirements
Host manufacturer is strongly recommended to confirm compliance with FCC
requirements for the transmitter when the module is installed in the host.
2AXSO-XJ-WB60
2.10 Additional testing, Part 15 Subpart B disclaimer
Host manufacturer is responsible for compliance of the host system with module
installed with all other applicable requirements for the system such as Part 15 B
