Itouchless AV002A Instruction Manual

INTELLIGENT CLEANER
AV002A
Auto Cleaner With Remote Controller
OPERATING MANUAL
Register Today to Protect Your Product
www.iTouchless.com/register

OPERATING MANUAL
INTELLIGENT CLEANER
- 1 -
INTELLIGENT CLEANER
Dear customers,
Thank you for using our Intelligent Vacuum Cleaner!
The Intelligent Vacuum Cleaner is our creation and manufactured by
using our advanced mechanical electronic technology. It can be used
widely in your home, office and entertainment areas, and can also
easily clean hard to access areas. With the help of the intelligent
Cleaner, your quality of life is sure to be enhanced.
The Cleaner is only recommended for indoor use. It can be used to
clean floor surfaces including hardwood, linoleum, tile and low pile
carpets. If you want your hardwood or tile floors to shine brighter,
clean the brush after it finishes cleaning, and then apply some liquid
wax with the included spoon and start the Cleaner again. The
fashionable flat design extends its reach under the sofa, table, beds,
etc. The included remote control function facilitates hands-free
operation.

OPERATING MANUAL
INTELLIGENT CLEANER
- 2 -
INTELLIGENT CLEANER
1. Battery Charger x 1
2. Rechargeable Battery Pack (Installed) x 1
3. Spoon x 1
4. Filter Mesh x 1
5. Remote Controller x 1
6. Side Brush x 1
7. Dust Brush x 1
8. Operating Manual x 1
Intelligent Cleaner Remote Controller Rechargeable Battery Pack
Dust Brush Charger Side Brush
Spoon Filter Mesh

OPERATING MANUAL
INTELLIGENT CLEANER
- 3 -
INTELLIGENT CLEANER
***When unit is in operation, the side with sensor should move forward.
Infrared
sensor
Easy to grab handle
Start button
Battery life
indicator
Removable
particle bin
Surface
Rechargeable
battery
Sensors
Sensors
Side brush
Power switch Battery
charger socket
Vacuum inlet lid
Filter
Main brush
Bottom

OPERATING MANUAL
INTELLIGENT CLEANER
- 4 -
INTELLIGENT CLEANER
1. Please ensure the battery is fully charged before starting the Cleaner.
2. Please tidy unfixed articles on the floor before using the Cleaner, and keep
it from the edge of the carpet and power lines, etc.
3. Turn on its main power start button, there are three start buttons: Spot,
Clean and Max, representing three different cleaning modes.
1. Spot mode (I ): The Cleaner is capable of spot-type cleaning within
a 3-foot diameter, focusing the cleaning area to a
single spot for 4 minutes. It’s ideal for cleaning
rooms with dirt in partial places.
2. Clean mode( II ): The Cleaner will automatically clean the room it’s in
for 30 minutes. The mode is applicable for cleaning
a small room.
3. Max mode ( III ): The Cleaner won’t stop running until the battery
has drained. The maximum working is 60 minutes
4. If the wrong start button is pressed, the other start switches need to be
pressed twice before it will switch to the correct mode.
5. The max working time for the Cleaner is about 45-60 minutes, which will
generally meet the requirements for cleaning a normal sized room. If the
battery power is about to run out, the battery life indicator will become red,
and it will stop working. Please recharge the unit when this occurs.

OPERATING MANUAL
INTELLIGENT CLEANER
- 5 -
INTELLIGENT CLEANER
Note on charging:
a. Firstly confirm whether the using voltage of charge confirms to the local
one for unconformity will result in damage to the unit.
b. The power indicator on the panel will keep flashing during charging, and
turn solid green from flashing green upon fully charging. The charging will
cease automatically to prevent damage to the charger. Generally, the
charging time is about 4-5 hours.
c. The charger should be stored in a dry and well-ventilated area, and can’t
be used in wet environments such as the bathroom, etc.
d. Mistreatment of the charger (i.e.: pulling it out of the power socket by its
cable) may result in damage to the unit and pose a potential electrical
hazard.
e. In order to extend the life of the battery, it should initially be charged for 8-
9 hours or when being used again after a long time. It will reach its best
performance after 2-3 circles for charging and discharging.
Battery charger socket

OPERATING MANUAL
INTELLIGENT CLEANER
- 6 -
INTELLIGENT CLEANER
Clean key
Indicator
Power key
The cleaner can be controlled by the infrared remote controller. As shown in
the diagram above, there are three mode keys: Spot, Clean and Max, which
will activate the respective three working modes. By using the directional keys,
the remote can control the cleaners’ movement. The “P”key is used to power
the unit on/off. If you press the P key, the indicator light on the unit will turn off,
and the Cleaner will enter Sleep mode, which will save energy while in its non-
operating state. If you press the P key again, indicator light on the unit will turn
on, and the Cleaner will enter the Standby mode, while waiting for the next
command.
The Intelligent cleaner is user-friendly with very little maintenance required
after use. To ensure optimal performance please observe the following
procedures:
Max key
Direction key

OPERATING MANUAL
INTELLIGENT CLEANER
- 7 -
INTELLIGENT CLEANER
1. Empty the bin
a. Turn off the power switch.
b. Press down the bin clip and pull out the bin as shown in the following
illustrations below:
c. Clear the bin.
d. Press down the clip on the bin to insert the bin back to the unit.
2. Clean the filter mesh
a. Turn the bin upside down
b. Press the bottom slightly, take the filter mesh out as shown in the
following illustration:
c. Clear the dirt on the filter mesh.
d. Fit the filter mesh back to the bin.
Press the clip slightly and put the bin back to the Cleaner.

OPERATING MANUAL
INTELLIGENT CLEANER
- 8 -
INTELLIGENT CLEANER
Clean the main brushes of the Cleaner
1. Turn off the power switch and put the Cleaner on a flat surface with its
bottom side up.
2. Use cross head screwdriver to remove the fixing screw on the right, and
then take out the main brush, rubber brush and brush coupler together
as shown in the following drawing.
3. Clean the chamber where the brush is located as well as the debris on
brush and rubber brush.
4. Wipe out dirt on the metal shaft and bearing of the brush coupler and
the brushes (this may not be necessary after every use) as per the
following illustrations. If necessary, you may add a little lubricant to it.
5. Put the brush coupler and brushes back and tighten the screw.
Brush
Coupler

OPERATING MANUAL
INTELLIGENT CLEANER
- 9 -
INTELLIGENT CLEANER
Clean the vacuum inlet lid
Method for replacement of side brush
The side brush is replaceable. See the following picture for the
replacement method.
Fig. 1 Fig. 2
1. Remove the two screws as per the Fig.1.
2. Turn the side brush to the extent that the screwdriver can be inserted
as per the Fig.2, loosen the screw, take off the old brush and replace
with new one.
3. Install the side brush and bottom housing in reverse order.
1. Turn off the power switch; turn the Cleaner upside down on a flat
surface.
2. Take the Vacuum Inlet Lid out as per the illustration below.
3. Clean the Vacuum Inlet Lid and the fan-shaped mechanism to ensure
good ventilation.
4. Guide the hinge tabs on the Vacuum Inlet Lid back into their holes
carefully.

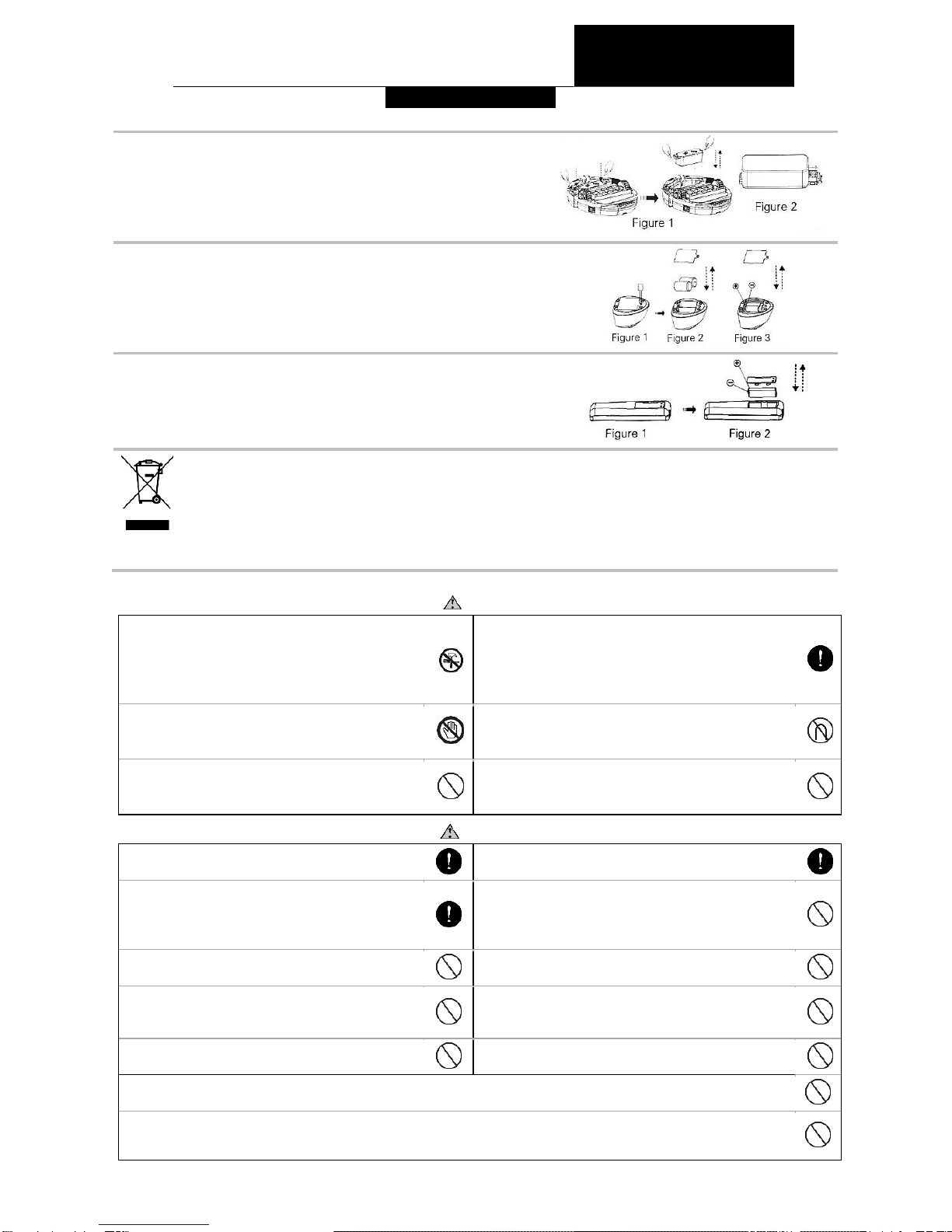

Bottom
