iTronics iPASS BLACK ITB-70 User manual

User Manual
Distinctive Feature of each model : ITB-70 has no GPS / ITB-70G has built-in GPS
Vehicle Driving Recorder
ITB-70 / 70G User Manual

• This product is supplementary device to bring a driver an awareness for safe driving and accident prevention, and
reference about the circumstance of an accident. So, this product and it’s recorded data can not be used to legally
judge any party’s liability of the accident.
• If the level of impact is so light even in the case of an accident, the impact senor may not recognize it and fails to
sort out the data as event le automatically. In this case, press the event button manually.
• The manufacturer shall not be liable for any damages due to the loss of data or any other malfunction occurred by
the use of this product.
• This user manual is applied to both ITB-70 and ITB-70G. If there is any sole feature corresponding to ITB-70G
only, a remark of ‘ITB-70G only’ is added on it.
<Warranty & Scope of Liability of Video Recording>

Table of contents
01
Main features
Safety instruction – Warning
Safety instruction - Caution
Attention to SD memory card
Attention to GPS
Components
Name of the product details
Installation
Operation of the product
Installation of the PC player
How to play the video
Function keys in the PC player
How to change the user settings
How to change the time setting
How to manage the recorded les
how to update the product rmware
How to format the SD memory card
Product specications
02
04
05
06
07
08
09
10
12
14
16
20
24
26
28
30
32
34

Main features
1. The video and audio data are continuously recorded by H.264 high eciency data compression method.
Recording coverage is wide view angle 120 degree and recording resolution is 640x480.
2. When impact of collision, lightning acceleration or sudden brake is detected by the built-in impact sensor, the
recorded data is marked as event le and stored in SD memory card.
3. If a driver needs to record any specic view and press the event button, the recorded data is also marked as
event le and stored in SD memory card.
4. 3-axis log-in data captured by the built-in impact sensor is also recorded and a driver can see and analyze it in
the PC player.
5. When the memoty capacity of SD card has been lled, the lastest data overwrite the older les and continues
to record.
6. The audio ( in-vehicle sound or noise of collision) is also recorded along with video data and playback in the
PC player. In order to protect privacy , the audio recording can be also turned o.
7. The data stored in the SD memory card can be played back easily at the computer using the iPASS BLACK PC
player program.
02

Main features
03
8. The front-view camera lens can be tilting up to 180 degrees and record the inside of the vehicle if necessary.
9. This Product is certied by major worldwide type approvals such as CE, E11 (Europe), FCC (USA), VCCI ( Japan).
10. Compact round shape design and luxury SF coating on the product is harmonized with vehicle interior.
11. Built-in GPS ( ITB-70G only )
Built-in GPS records the driving speed and display it in the PC player. It records the driving coordinates
also and match it to the PC map.

Safety instruction - Warning
1. Do not try to operate the product when driving.
2. Do not disassemble, repair or modify the product. This void the warranty and the manufacturer
takes no responsibility for the damage or problems to the product.
3. Do not clean the product with water or volatile solvents. This may cause the damage, re or
electrical shock to the product.
4. Use only genuine parts or accessories supplied and recommended by the manufacturer.
If not, this may cause the damage or problems to the product.
5. Ensure to connect the product into stable power source in a vehicle. ( DC 12~24V).
6. If the product is connected to the battery of the vehicle at all times, please check the battery
status regularly in order to avoid the electric discharge.
7. Do not place the product inside of a vehicle for a long time especially in the summer or
winter season. This may cause the damage or problems to the product.
04
Warning

Safety instruction - Caution
05
1. Please remove any excessive window tinting or obstacles of windshields. This may cause
poor recording quality.
2. Please clean the lens of camera regularly.
3. If you need to re-install or change the location of the product, please ensure of the direction
and angle of the camera lens for the proper recording position and conrm its recording
status on playback.
4. Make a routine check on the position and angle of the camera lens. Especially check these
items after driving on wild road or no use for a long time.
5. Recording quality is aected by lighting condition and may be poor or distorted under the
sudden change of brightness level ( ex : right after passing through the tunnel ), no light in
the night or against the light.
6. If the product is broken by huge impact like accident or disconnected from power source, it
may stop proper operation.
Caution

Attention to SD memory card
06
1. Check the SD Memory card regularly in order for its normal and right operation.
2. Do not remove the power source or pull out the SD Memory card from the product when recording the
data into the SD Memory card. This may cause the loss of data and damage to the SD Memory card.
3. Do not disassemble , repair or modify the SD Memory card. This may cause the loss of data and damage to
the SD Memory card.
4. Please keep the SD Memory card into the hard case if you need to carry it alone for a long time.
5. Please use recommended SD Memory cards by the manufacturer. If not, this cause the loss of data or
damage to the product.
6. Generally, a SD Memory card has limited lifetime and may be unable to store new data after certain period
of time. In such case, please purchase new SD Memory card and replace the old one.
7. Please back up any important data in other storage device like hard disk drive, CD and so on.

Attention to GPS (ITB-70G only)
07
1. A certain amount of time (minimum 5 minutes to maximum 30 minutes) may take until the GPS reception
starts. This is the processing time of the GPS receiver to communicate with GPS satellites oating in the
sky and may vary depending on weather condition and surrounding circumstances.
2. Even though the GPS reception signal is unstable, it is nothing to do with the basic function of the product
and you can continue to record normally.
3. Please make sure to keep the GPS receiver fully exposed through the windshield and avoid to install the
product to any position like tinted part of windshield.
4. If the camera lens tilts to backward for in-vehicle recording, the GPS reception may become poor. (The
built-in GPS receiver faces down to the ground and may be unstable to communicate with GPS satellite.)
Please revert back the direction of camera lens to the front after in-vehicle recording.
5. Do not use with other products that generate electromagnetic waves. This may interfere with a GPS and
reduce the performance of GPS reception.

08

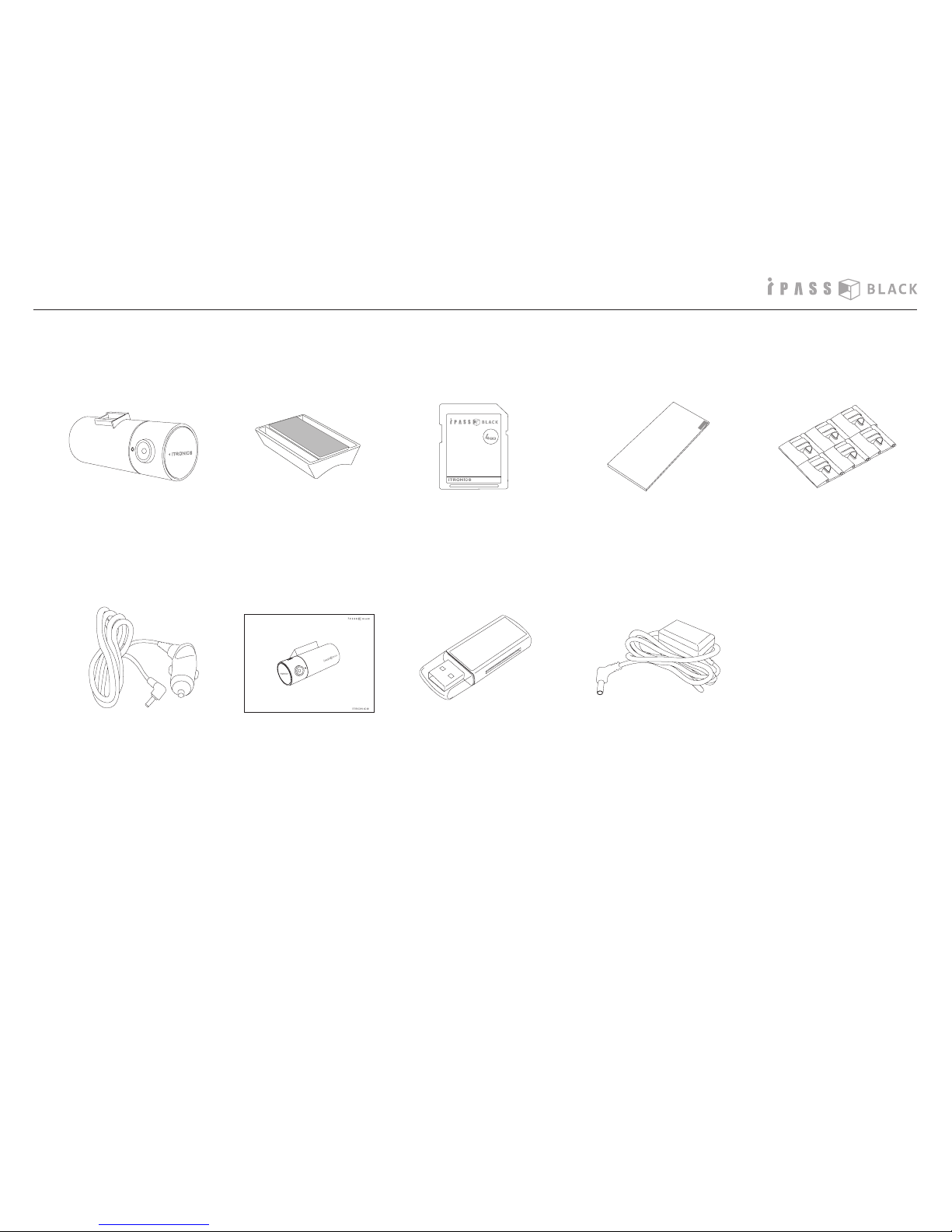

Main unit Cable holder
Power cable Constant power source
connection cable
(Option)
Mounting cradle SD memory card
SDHC
SD card reader
(Option)
SD/MMC
Adhesive tape
(spare)
3M
3M
3M
3M
User manual
Components
User Manual
Distinctive Feature of each model : ITB-70 has no GPS / ITB-70G has built-in GPS
Vehicle Driving Recorder
ITB-70 / 70G User Manual

①
②
③④
⑤
⑥
⑦
⑧ ⑨
09
DC IN
REC
MIC
DC IN
OPEN
DC IN
Name of the product details
① Power-on LED Indicator
( common use for Event-recording,
formatting and GPS status indicator
button)
② Microphone
③ Sliding guide rail to mounting Cradle
④ SD memory card protection cover
⑤ Power connection port
⑥ SD memory card slot
⑦ Camera lens
⑧ Recording status LED Indicator
⑨ Camera direction alignment guide

Installation
10
REC

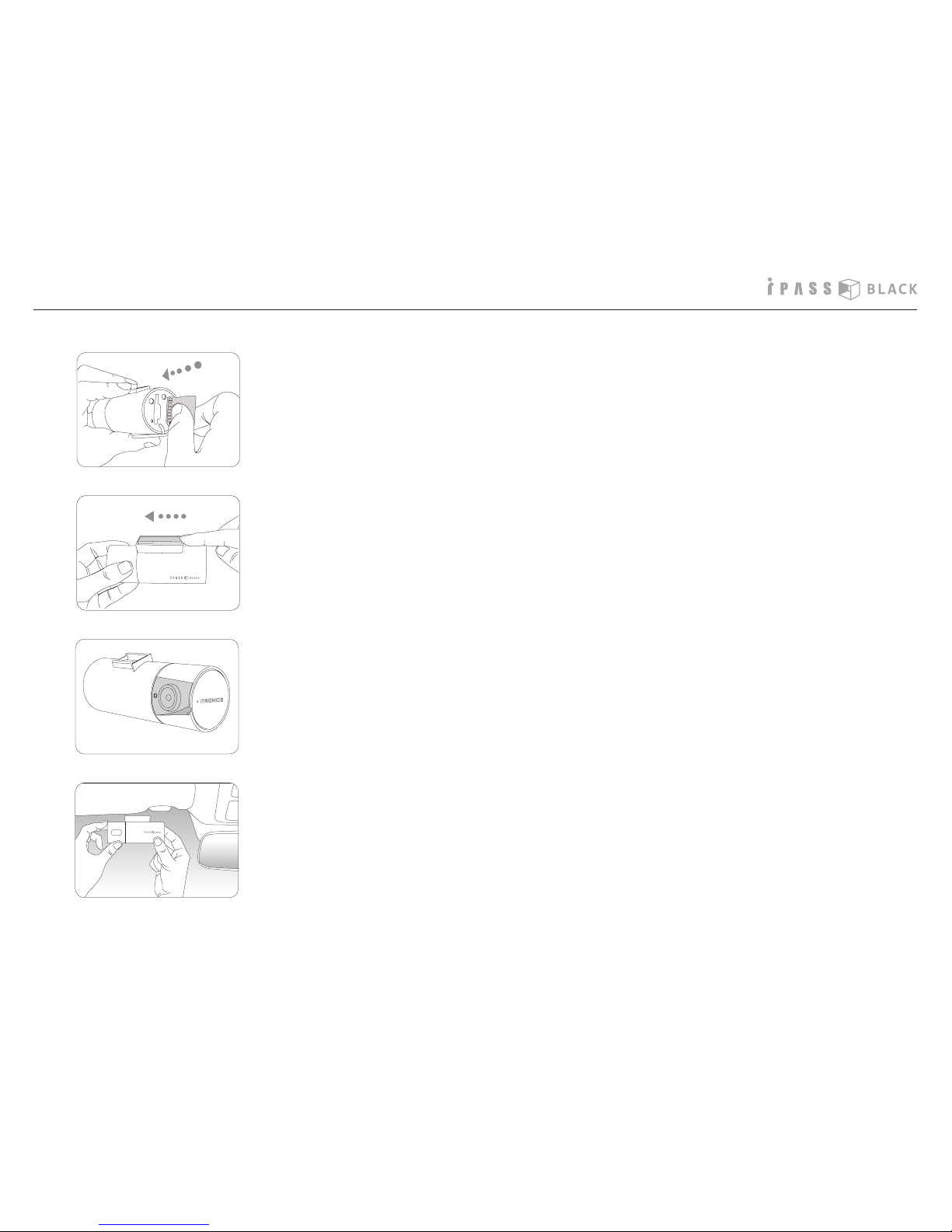

3. Remove the protection lm attached on the camera lens.
2. Put the mounting cradle on the main unit and push forward it as shown on the
left picture. You can hear the click sound if the mounting cradle xed properly.
4. Remove the lm of the adhesive tape on the cradle and take a proper posi-
tion on the windshield temporarily as shown on the left picture. If it is ne for
recording, x the cradle tightly with more pressure.
1. Open the SD memory card protection cover and insert the SD memory card
into the slot. Then close the cover.

Installation
11
REC
5. Align the direction of camera lens to the front referring to the arrow mark
printed on the main unit.
6. Connect the power cable to the cigarette lighter jack of the vehicle.
7. Arrange the cable with cable holders. The installation is completed.

12
REC
REC
REC
REC

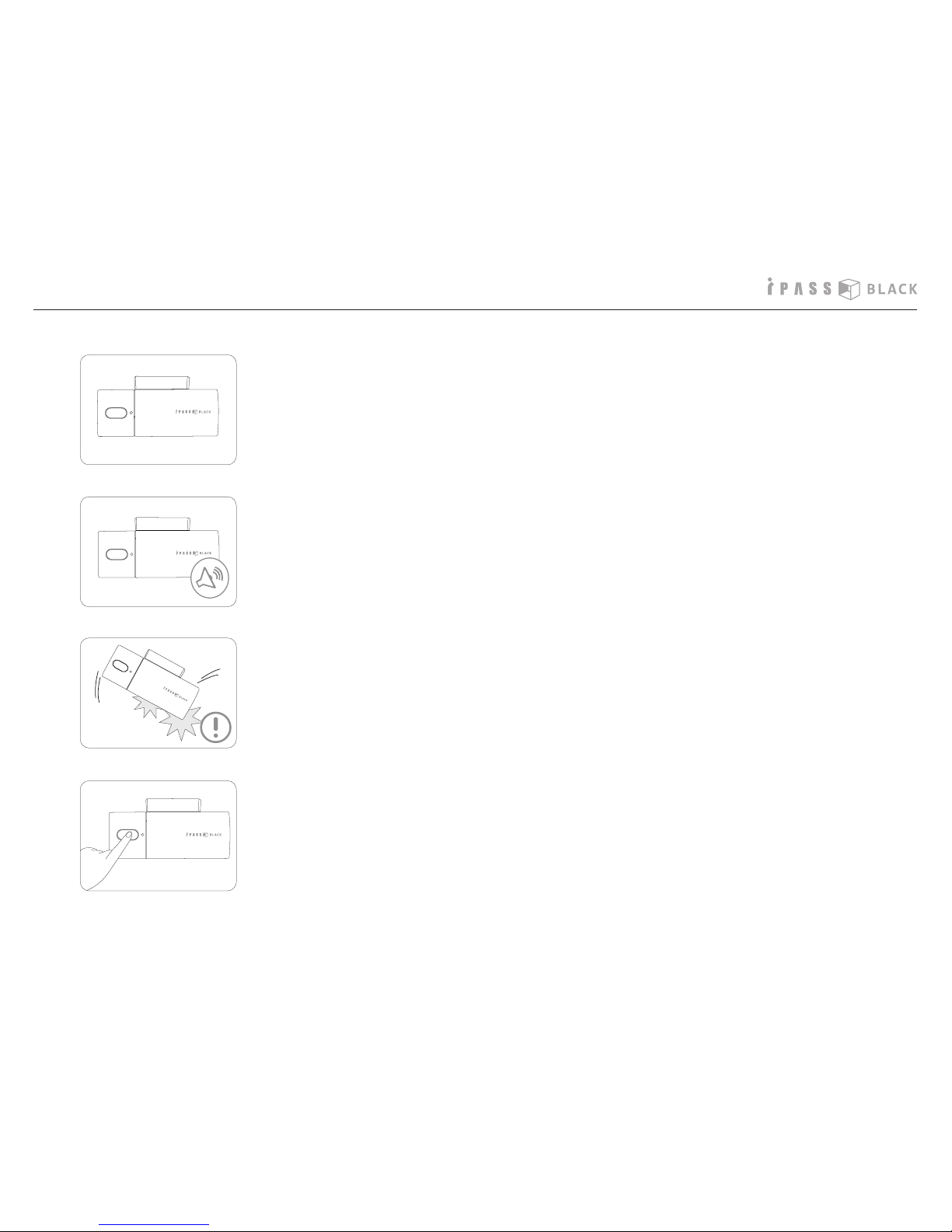

1. Turn on the power of a vehicle, the POWER LED turns on. The POWER LED also
indicates the status of the GPS connection for ITB-70G and it will blink with
2 seconds interval and stop to blink once the GPS is successfully connected.
2. 3 scales beep sound will be heard after 10 seconds since the POWER LED turns
on, and the product starts recording. The video and audio data are continuously
recorded and stored into SD memory card.
3. When impact of collision, lightning acceleration or sudden brake is detected
by the built-in impact sensor, the recorded data is marked as event le and
stored in SD memory card.
4. If a driver needs to record any specic view and press the event button, the
recorded data is also marked as event le and stored in SD memory card.
Operation of the product

Insert the SD memory card
Type of beep Root cause
Single scale 3 times beep
Trouble shooting
• Table of error beeps
13
REC
5. When turning o the power of a vehicle, the product process the last data for
5~10 seconds and turns o with the 3 scale beep sound. Please do not remove
the SD memory card before you hear 3 scale beep sound.
Operation of the product
4 scales beep
( repeatedly )
2 scales beep
(one time after power on)
Format the SD memory card or replace with new one
Contact the local service provider
No SD memory card detected in the SD
memory card slot
SD memory card related error
Error in the time management of the
main unit

You can play back the recorded video and audio data on the PC via PC player supplied by the manufacturer. This PC player
program is most optimized to run in Windows XP (32 bit) or Windows Vista (32 bit).
14
SD/MMC
Installation of the PC player
1. Pull out the SD memory card from the main unit and insert it into the
memory card reader as shown on the left picture. Then put the memory
card reader into the USB port of the PC.
2. Search the USB disc and double click the installer le named by
ITBPCPlayuerSetup.exe.

15
Installation of the PC player
3. Click the start button and the installation will start.
4. If the installation is nished, click the nish button.
5. If shortcut icon appears on desktop screen, the installation is
completed.

16
SD/MMC
How to play the Video
1. Pull out the SD memory card from the main unit and insert it into
the memory card reader as shown on the left picture. Then put the
memory card reader into the USB port of the PC.
2. Double-click the shortcut icon of the PC player.
3. Then, the PC player pops up.

17
How to play the Video
4. Select the appropriate SD memory card and click the OK button.
5. All les in the SD memory card will be loaded on the right window
and playback one by one in the sequential order of recording date and
time (older comes rst ).
6. Just press the le directly if you want to move another le.

18
How to play the Video
7. The graph shown under the playback screen means the degree of
X axis ( front and back), Y axis (left and right), and Z axis ( up and
down) impacts when an event occurs.
8. The driving speed and GPS status displays on the top of the playback
screen. (ITB-70G only)
※ If the level of impact is so light even in the case of an accident, the
impact senor may not recognize it and fails to sort out the data as
event le automatically. In this case, press the event button manu-
ally.
Left &
Right
Up & Down
1. X : Red
2. Y : Green
3. Z : Blue
Z
Front &
Back
Y
X
