1 General
1.1 Intended use
The EcoCooler cooling unit is designed for cooling supply air in buildings (com-
fort cooling). The unit is designed to be installed together with IV Produkt AB air
handling units.
When installed indoors, the air handling unit must be installed in an area that
maintains a temperature between +7 and +30°C, and with a moisture content of
<3.5 g/kg in the fan room in winter. The unit can also be equipped for outdoor
installation.
Any other use and installation in other environments is prohibited unless specifi-
cally permitted by IV Produkt AB.
1.2 Safety regulations
For safety regulations relating to the cooling unit installed together with the En-
vistar Flex air handling unit, see Operation and Maintenance for Envistar Flex,
under order-specific documentation at docs.ivprodukt.com.
1.3 Manufacturer
The EcoCooler cooling unit is manufactured by:
IV Produkt AB
Sjöuddevägen 7
SE-350 43 VÄXJÖ
1.4 Designations
The EcoCooler comes with a model rating plate placed on the front.
The model type plate shows the series number and the requisite designations to
identify the unit.
0409
Cooling unit
Order number
Code Key
Model
Name of project
Date of manufacture
PS Max allowable pressure
PT Test pressure
TS Temperature range
Protection level - low
Protection level - high
Refrigerant / Fluid group
GWP
Refrigerant charge Circuit 1
Refrigerant charge Circuit 2
IV Produkt AB
VÄXJÖ, SWEDEN
Contains fluorinated greenhouse gases
covered by the Kyotot protocol.
bar (e)
bar (e)
°C
bar (e)
bar (e)
kg
kg
ton CO2e
ton CO2e
Typical model identification label

Page 4
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
1.5 CE marking and EU Declaration of Conformity
The cooling unit is CE-marked, which means that upon delivery, it conforms to
applicable provisions in EU Machinery Directive 2006/42/EC as well as to the EU
Directives applicable to the type of unit, e.g. Pressure Equipment Directive (PED)
2014/68/EU.
As certification confirming that the requirements have been met, we pro-
vide an EU Declaration of Conformity, which is available under Documenta-
tion at ivprodukt.docfactory.com, or under Order Unique Documentation at
docs.ivprodukt.com.
0
1
Art. Nr. 19194-0001_01
12 3
180
s
Typical CE label for air handling units
For units without integrated control equipment
The EC declaration applies only to units in the condition in which they have been
delivered and installed at the facility in accordance with the enclosed installation
instructions. The declaration does not include components that were subse-
quently added or measures subsequently taken on the unit.
1.6 Maintenance
Regular maintenance of cooling units should be performed by a certified refrige-
ration technician.

Page 5
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
1.7 Handling of refrigerant
The following information summarises the requirements and guidelines for hand-
ling the refrigerant used in cooling units. For further information, see the F-gas
Regulations (517/2014). The purpose of the regulations is to contribute to achie-
ving EU goals for reduced climate impact in accordance with the Kyoto Protocol.
Operator responsibilities
By operator, we refer to the European Parliament’s definition: “...the natural or
legal person exercising actual power over the technical functioning of the equip-
ment and systems...”.
Generally speaking, the unit operator must:
• Minimise and prevent leakage
• Take corrective action to repair any leakage that arises
• Ensure that the service and repair of the refrigerant circuit is carried out by a
certified refrigeration technician
• Ensure that refrigerant is handled in an environmentally secure manner and
in accordance with national regulations.
The levels for the various actions to be taken for a system are calculated using
carbon dioxide equivalents, CO₂ e(ton). This figure is calculated by multiplying
the refrigerant’s GWP value (Global Warming Potential) by the charge in kilos.
GWP for R410a is 2088. A charge of 5.0 kg R410a therefore corresponds to
(5.0×2088)/1000 = 10.44 CO₂ e(tons).
The unit is marked with refrigerant quantity and carbon dioxide equivalent.
Leakage inspection and registration
• Leakage inspection must be carried out by a certified refrigeration techni-
cian:
– when installing/commissioning the unit, size 300-980
– periodically at least once every 12 months,
i.e. no more than 12 months between inspections, size 300-980
– within one month of any work being performed (e.g. sealing a leak, repla-
cing a component), size 300-980
• The operator must record events, such as the volume and type of refrigerant
topped up, recovered refrigerant, results of inspections and work done,
person and company who carried out service and maintenance, size 300-
980.
If a unit has been assembled on site or supplied in sections, the rules for recor-
ding, installing and periodic leakage inspection are applicable to size 150-240 as
well.

Page 6
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
1.8 Extended warranty
In cases in which the equipment delivered falls under a 5-year warranty, in ac-
cordance with ABM 07 with supplement ABM-V 07 or in accordance with NL 09
with supplement VU13, the IV Produkt Service and Warranty Manual is supplied
with the product.
In order to lay claim to an extended warranty, a complete, documented and sig-
ned IV Produkt Service and Warranty Manual must be presented.
1.9 Spare parts
Spare parts and accessories for this unit are ordered from your nearest IV
Produkt sales representative. When ordering, state the order number and
designation. These are stated on a model type plate, affixed to each component.
There is a separate spare parts list for the unit, refer to Order Unique
Documentation at docs.ivprodukt.com.
1.10 Dismantling and decommissioning
When an air handling unit is to be dismantled, separate instructions must be fol-
lowed, see Dismantling and decommissioning the AHU under Documentation at
ivprodukt.docfactory.com.

Page 7
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
2 Technical description
2.1 Cooling unit, EcoCooler
EcoCooler is a range of integrated speed controlled cooling units with stepless
cooling power.
Two different versions of EcoCooler are available:
• without cooling recovery (without rotary heat exchanger), code ECO
• with cooling recovery (with rotary heat exchanger), code ECX. Cooling
recovery means that the thermal wheel starts up when the extract air/room
temperature drops below the outdoor temperature and cooling is required.

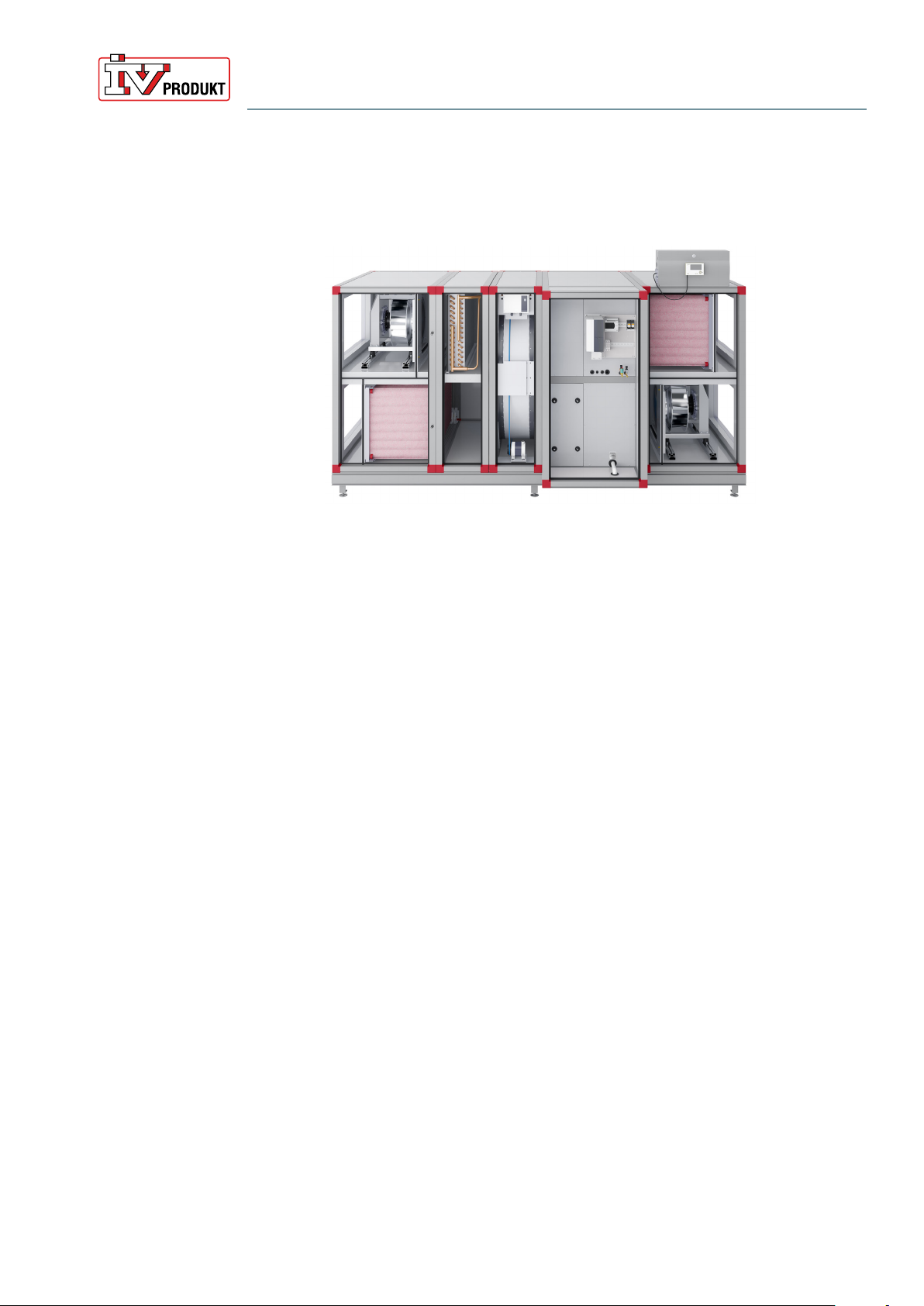

EcoCooler cooling unit
(with cooling recovery, code ECX)
Fan and filter section
(extract air fan)
Fan and filter section
(supply air fan)

Page 8
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
Cooling circuit function
A cooling system has four basic components: evaporator, condenser, expansion
valve and compressor.
The compressor carries out the work required to run the cooling process.
The evaporator is located in the supply air for the unit. The heat from the outdoor
air is taken up in this coil, thereby cooling the supply air.
The energy supplied to the cooling system from the evaporator and the com-
pressor leaves the unit via the condenser. The condenser is located in the ex-
tract air (ECO) or the exhaust air (ECX). This means that the exhaust air becomes
hot when the cooling unit is running.
It is important to ensure that the air volumes are above the specified minimum
flow on both the outdoor air and extract air side. The process cannot work if
these air volumes are not available.
14
12
13
8
39
15
10
411
16
17
1
7
5
6
2

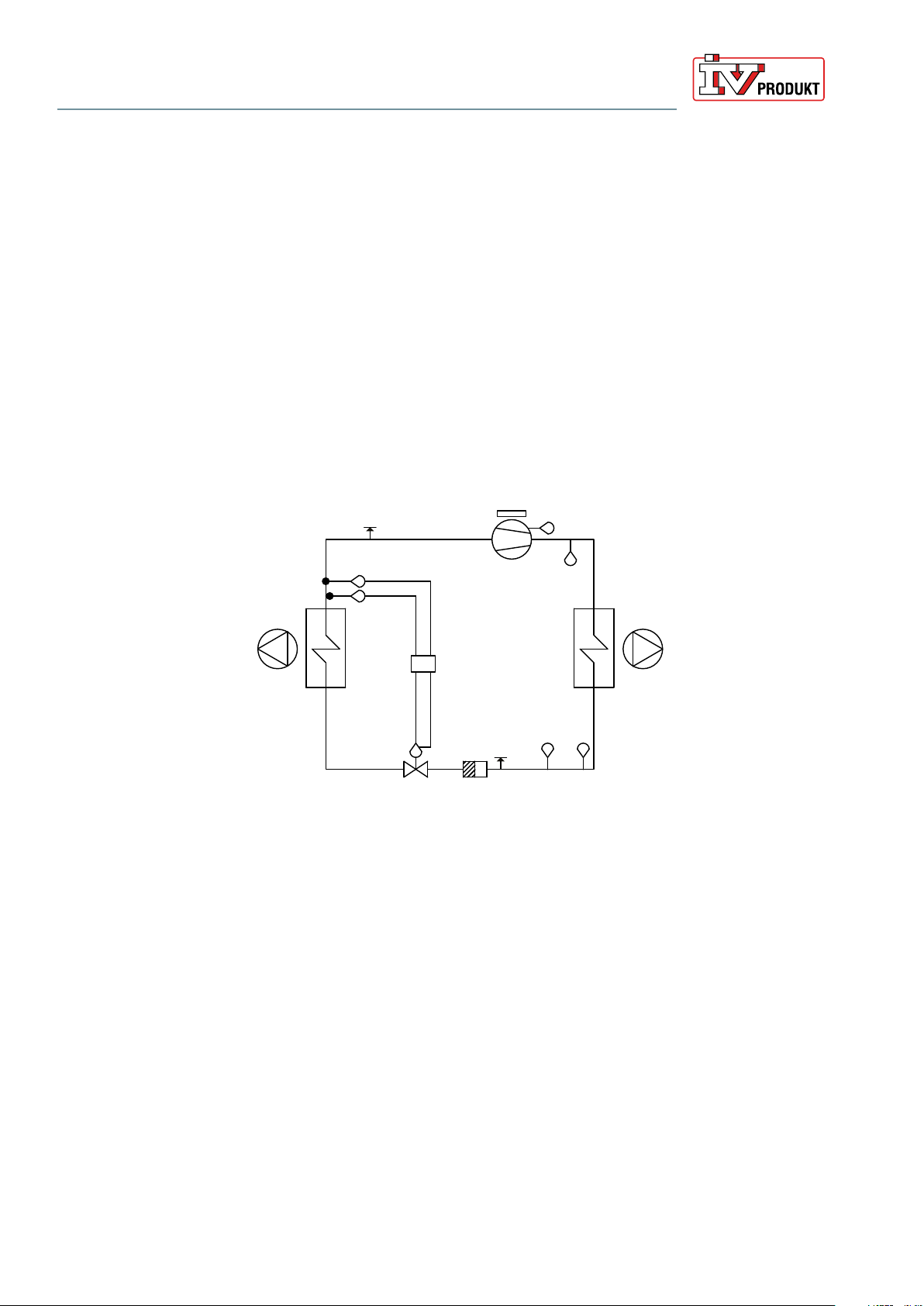

Flow chart for EcoCooler refrigerant system
1 Compressor 10 Measurement outlets – low pressure
2 Condenser 11 Liquid line sensor
3 Extract air fan 12 Control unit
4 Pressure switch – high pres-
sure
13 Temperature sensor suction gas
5 Measurement outlet – high
pressure
14 Pressure sensor – low pressure
6 Drying filter 15 Hot gas sensor
7 Expansion valve 16 Temperature sensor sump
8 Evaporator 17 Frequency inverter
9 Supply air fan

Page 9
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
Compressor
EcoCooler is equipped with a speed-controlled PM scroll compressor. Depen-
ding on its size, the unit may be equipped with another fixed compressor.
When cooling is required, the frequency inverter increases the speed of the
compressor.
If the EcoCooler is equipped with two compressors, the fixed compressor will
engage in when the speed-controlled compressor has reached its maximum
speed. The speed-controlled compressor returns to its minimum speed and can
then adjust back up to maximum speed. This achieves infinitely adjustable coo-
ling power.
The function is reversed where less cooling is needed.
Compressor protection
In the event of an alarm initiated by the control equipment or the high pressure
switch, the compressor stops and an alarm indication is given. If the unit is
equipped with integrated control equipment, the alarm can be read on the Cli-
matix display.
In the event of an alarm, correct the fault and then reset the alarm. If the high
pressure alarm trips repeatedly, an authorised refrigeration service company
must be called in.
The high pressure switch is tripped when the system is at high pressure and has
a manual reset button. To avoid accidental stoppages at high pressure, the unit
will lower the power using the high pressure sensor.
Cooling function
For internal control (MX), the cooling unit is interlocked across the air handling
unit. If any of the fans stop, the cooling unit will also stop. The interlock and de-
mand signal is sent via Modbus.
For external control (US, UC and MK), the interlock signal must be sent via a
potential-free relay. The demand signal must be sent via 0–10 V.
Circuit board
The circuit board for the cooling unit contains the following:
• Main switch
• Fuse
• Control unit with integrated control for expansion valve next to speed control-
led compressor
• Control unit for expansion valve next to fixed speed compressor
The circuit board is installed inside the unit and is internally prewired and tested
at the factory.

Page 10
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
Current limiting
The control unit for EcoCooler is equipped with a function that measures the
cooling unit’s power consumption. The power consumption can be limited to an
adjustable value. If the unit is connected to a fuse that is less than the one re-
commended in Chapter 3, this function should be used.
To activate the function, do the following in the control unit:
IV Produkt
%
000
Demand:
083%
Status: OFFbyKEY
Inv
OFF
1. Press the circle button.
2. Press the down arrow to highlight “Status – I/O”.
3. Press the enter arrow button.
4. Press the up arrow to access the “Current limit” menu.
5. Press the enter arrow button so that the cursor starts flashing.
6. Press the up arrow to change “NO” to “YES”.
7. Press the enter arrow button so that the cursor starts flashing on the row
below.
8. Use the up/down arrows to set the fuse size.
9. Press the enter arrow button.
10.Press the back arrow button twice to return to the start menu.

Page 11
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
3 Wiring instructions
For connection instructions for the cooling unit, plus any associated electrical air
heater, see the separate wiring diagram under order-specific documentation at
docs.ivprodukt.com.
For connection of the rotary heat exchanger, see Operation and Maintenance for
Envistar Flex, under order-specific documentation at docs.ivprodukt.com.

Page 12
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
4 Operation
4.1 Commissioning
Commissioning of the cooling unit must be carried out by competent personnel
according to the commissioning procedure, see
EcoCooler, Commissioning record, which is available to download from
ivprodukt.docfactory.com.
The commissioning procedure applies to units that are supplied with control
equipment (code MX).
The validity of the product warranty is conditional on the system having been
commissioned correctly. Working on the cooling unit during the warranty period
without the approval of IV Produkt shall render the warranty void.
NB!
It is important that the oil is warm inside the speed controlled compres-
sor crankcase before starting the cooling unit. The crankcase heating
must be switched on long enough before the unit begins operating so
that the oil maintains a temperature of at least 30 ºC. The maximum
warm-up time is approximately 2–3 hours. The temperature can be
measured externally at the bottom of the compressor.
Prior to commissioning, the contractor must:
NB!
Wiring of connections and other electrical work may only be carried out
by a qualified electrician or by service personnel recommended by IV
Produkt.
1. Connect the unit to the power supply via a lockable safety switch.
2. Connect all ducts.
WARNING!
Rotating fan impeller. The unit must not be energised until all
ducts have been connected.
Follow the troubleshooting instructions in the troubleshooting chart before
contacting a service representative for servicing a unit under warranty. This will
prevent any unnecessary service calls.

Page 13
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
4.2 Cooling status
Status information is read on the Climatix display.
Information Value Explanation
Cooling unit status UnitOn Status of cooling unit
Cooling x% Cooling load from Climatix cooling regu-
lator.
Freq. inv. output x.x% Frequency to the compressor.
Compr. no Comp1
Compr. Sum alarm Normal
Alarm management >The alarm is displayed if there is a fault
with the inverter or compressor. In the
event of an alarm, see "Alarm information
for inverter and compressor" page 16.
****************************************
Compressor C1 On/O Compressor operating mode.
Suction gas temp C1 x.x°C Measured suction gas temp.
Evaporation temp C1 x.x°C Calculated evaporation temp based on
low pressure.
Low pressure C1 x.x bar Relative pressure from low pressure sen-
sor.
Overheating C1 x.xK Measured overheating.
High pressure C1 x.x bar Relative pressure from high pressure sen-
sor.
Expansion valve 1 x.x% Expansion valve position.
Condensation temp C x.x°C Calculated condensation temperature ba-
sed on high pressure.
Hot gas temperature x.x°C Temperature of output from compressor
Liquid line tempera-
ture
x.x°C Temperature downstream of condenser
Supercooling x.x°C Measured supercooling

Page 14
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
5 Maintenance instructions
5.1 Service schedule
For a service schedule, see Operation and Maintenance for Envistar Flex, under
order-specific documentation at docs.ivprodukt.com.
5.2 Periodic inspection
The operation parameters for the cooling unit must not be changed unless
a check is first made to ascertain that the changes will be within the unit’s
operating range.
Leakage inspection and registration
For information on the operator’s responsibility with regards to leakage inspec-
tion and registration, see "1.7 Handling of refrigerant" page 5.
Visual check
Check:
1. The fins on the condenser and evaporator to detect mechanical deforma-
tions
2. The drip tray and drain with water trap (clean if necessary)
3. That the water trap (without non-return valve) is filled with water.
Cleaning
If the fins on the condenser and evaporator are fouled, they should be vacuumed
from the inlet side. Alternatively, you can blow them clean with compressed air
from the outlet side. If they are severely fouled, you can clean them with warm
water mixed with dishwashing detergent that will not corrode aluminium.
For more information, refer to Cooling coil, cleaning under Documentation at
ivprodukt.docfactory.com.
Function
Check that the cooling unit operates as it should by temporarily lowering the
temperature setting (setpoint).

Page 15
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
6 Alarm management and troubleshooting
For units with control equipment (code MX), alarm information can be read on the
Climatix display. For units without control equipment (code UC, MK, US), alarm
information can be read on the Carel display. Press the alarm symbol to view
alarms.
6.1 Troubleshooting in the event of an alarm
Inspection Possible cause Corrective action
Is the alarm
“94 Drive oine”displayed?
YES
⇒
The frequency inverter does
not have supply voltage
3×400V
Connect the supply voltage to the frequen-
cy inverter
Check fuses
Check cabling for communication between
frequency inverter and Carel
NO ⇓
Has the high pressure switch tripped?
Is the alarm
“121 Compr 1, High pressure switch”
or
“180 Compr 1,
High pressure switch” displayed?
YES
⇒
No or too low air flow across
the condenser
Defective high pressure
switch
Check the air flow across the condenser.
Reset the pressure switch manually
Check/replace
NO ⇓
Is the alarm
“118 Compr 1,
Low evaporation pressure” or
“176 Compr 2, LowEvapPressure”
displayed?
YES
⇒
Insucient refrigerant vo-
lume
Look for leakage, seal the leak and top up
with refrigerant
No or too low air flow across
the evaporator
Check/adjust the flow
Defective expansion valve or
low pressure control
Check/replace
NO ⇓
Is the LED flashing red on the fre-
quency inverter? YES
⇒
Phase failure/voltage failure Check the 3-phase supply, measure the in-
coming voltage. Reset the frequency inver-
ter by switching o the voltage for 1 minute
or more. Check that the compressor is run-
ning without dissonance.
Overload/defective stepless
compressor
Reset the frequency inverter by switching
o the voltage for 1 minute or more. Check
that the compressor is running without dis-
sonance.
Is the alarm
“189 Phase Rotation order”displayed?
YES
⇒
Incorrect phase sequence
for supply voltage on
compressor 2
Shut o voltage and switch two of the in-
coming phases
NO ⇓
Is the alarm
“AL 120 Compr 1 Low pressure di.”
displayed?
YES
⇒
No pressure dierence
between the high-pressure
and low-pressure side
Contact service
NO ⇓
Is the alarm
“AL 59 Compr 1 Low Cond Temp” dis-
played?
YES
⇒
Condensation temperature
too low
Contact service

Page 16
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
Alarm information for inverter and compressor
Alarm Climatix Explanation and corrective action
Cooling unit
Sum alarm Sum alarm, check alarm in Carel, see table below.
Alarm C1 R. pressure switch High pressure switch tripped or alarm for frequency inverter.
Alarm C1 EEV motor fault Fault on electrical connection to expansion valve.
Alarm C1 low pressure sensor Power cut or short circuit to low pressure sensor. Check EVD, cabling and
sensor.
Alarm C1 suction gas sensor Power cut or short circuit to suction gas sensor. Check EVD, cabling and
sensor.
Alarm C1 high pressure sensor Power cut or short circuit to high pressure sensor. Check EVD, cabling and
sensor.
Alarm C1 low overheating Compressor stoppage caused by low overheating.
Alarm C1 LOP Compressor stoppage caused by low evaporation temperature.
Alarm C1 MOP Compressor stoppage caused by high evaporation temperature.
Alarm C1 communication EVD Fault on communication to EVD (expansion valve control).
Alarm C1 low suction gas temp Low suction gas temperature.
Alarm Carel Explanation and corrective action
76 Drive MainsPhaseLoss
Check that all three phases are connected to the frequency inverter.
81 Drive U_phaseLoss
82 Drive V_phaseLoss
83 Drive W_phaseLoss
94 Drive oine No communication with the frequency inverter. Check that the frequency
inverter is energised with 3-phase 400V.
118 Compr 1, Low evaporation pressure Circuit 1, low evaporation temp/pressure. Check leakage in cooling circuit.
121 Compr 1, High pressure switch Circuit 1, high pressure switch tripped. Check air flow.
172 Compr 2, Motor protector Circuit 2, motor protection alarm
174 Compr 2, High pressure switch Circuit 2, high pressure switch tripped. Check air flow.
176 Compr 2, LowEvapPressure Circuit 2, low evaporation temp/pressure. Check leakage in cooling circuit.
180 Compr 1, High pressure switch Circuit 1, high pressure switch tripped. Check air flow.
189 Phase rotation order Incorrect phase sequence gives incorrect rotation direction. Switch two of
the incoming phases.

Page 17
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
6.2 Troubleshooting via symptoms
Symptom Possible cause Corrective action
Low cooling power - too
high temperature in the
cooled object
The power supply has been interrupted. Check the control/safety switches and
fuses.
No air flow or too low air flow across eva-
porator.
Check that nothing is inhibiting the air
flow.
The control equipment is incorrectly pre-
set/defective
Adjust the settings or replace the
equipment.
Compressor is not ope-
rating
The power supply has been interrupted. Check the control/safety switches and
fuses.
The compressor has tripped the high
pressure switch.
Check and reset, if needed.
Defective compressor Check/replace
Frost on the evaporator The expansion valve is incorrectly preset/
defective
Check/replace
Insucient refrigerant volume Search to detect leakage, seal the leak
and charge with refrigerant
Low supply air flow Adjust the flow
Alarm reset
In the event of an alarm initiated by the frequency inverter or the high pressure
switch, the compressor stops and the sum alarm relay is energised. The alarm
is displayed in the control unit menus “Operating information, compressors” and
“Status: Alarm”.
In the event of an alarm, take corrective action to correct the fault, and then
press the “Alarm reset” button on the control unit for 3 seconds. If the high pres-
sure alarm trips repeatedly, an authorised refrigeration service company must be
called in.

Page 18
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
7 Technical data
7.1 EcoCooler without cooling recovery (code ECO)
Cooling unit EcoCooler for Envistar Flex and Flexomix (ECO)
Size 100 150 190 240 300 360 400
Power variant 2V 2V 2V 2V 2V 2V 2V
Air flow min. (a) m3/s 0.22 0.33 0.42 0.49 0.57 0.74 0.8
max. (a) m3/s 1.01 1.63 2.09 2.44 2.87 3.71 4.00
Max cooling power (b) kW 13.8 20.8 27.5 28.7 40.0 47.0 51.6
Power need compressor kW 3.1 4.8 5.7 5.7 8.5 11.3 12.0
No. of compressors units 1 1 1 1 1 1 1
Max. operating current A 7.2 10.7 13.5 13.5 21.4 26.1 28.2
Rec. fuse protection,
3x400V+N 50Hz A 10 16 20 20 25 32 32
Refrigerant
R410a circuit 1 kg 1.9 3.3 4.1 4.6 5.7 6.7 7.3
Cooling unit EcoCooler for Envistar Flex and Flexomix (ECO)
Size 480 600 740 850 980
Power variant 1V 2V 1V 2V 3V 2V 3V 1V 2V 3V 1V 2V
Air flow min. (a) m3/s 0.93 0.93 1.16 1.16 1.16 1.42 1.42 1.61 1.61 1.61 1.95 1.95
max. (a) m3/s 4.66 4.66 5.78 5.78 5.78 7.08 7.08 8.06 8.06 8.06 9.77 9.77
Max cooling power (b) kW 55.7 66.5 57.3 69.5 82.2 74.6 102.2 78.8 94.8 118.7 81.3 127.4
Power need compressor kW 11.8 16.7 11.5 16.3 18.3 15.6 22.2 14.9 16.5 24.8 14.8 25.4
No. of compressors units 1 1 1 1 2 1 2 1 2 2 1 2
Max operating current A 28.2 36.7 28.2 36.7 45.9 36.7 56.3 36.7 45.9 60.5 36.7 63.6
Rec. fuse protection,
3x400V+N 50Hz A 32 40 32 40 50 40 63 50 50 63 50 80
Refrigerant
R410a
circuit 1 kg 9.0 9.0 8.4 8.4 6.9 11.2 10.3 12.8 10.3 10.3 16.2 11.6
circuit 2 kg – – – – 4.0 – 4.6 – 6.5 6.5 – 8.2
a) For units with dampers, ePM1-50% (F7) filter supply air, ePM10-60% ( M5) filter extract air, SFPv values with NP rotor,
supply air temp 20°C and duct pressure 200 Pa (170+30 Pa). Max. air flow calculated with a minimum 10% spare capa-
city for fans.
b) With outdoor temp 26°C, 50% RH and extract air temp 22°C.

Page 19
Operation and Maintenance
NEW EcoCooler
DSKE.191101.01.EN
Continuous product development may give rise to specification changes without notice.
7.2 EcoCooler with cooling recovery (code ECX)
Cooling unit EcoCooler for Envistar Flex and Flexomix (ECX)
Size 100 150 190 240 300 360 400
Power variant 1V 2V 2V 2V 2V 2V 2V
Air flow min. (a) m3/s 0.22 0.33 0.42 0.49 0.57 0.74 0.8
max. (a) m3/s 1.01 1.63 2.09 2.44 2.87 3.71 4.00
Max cooling power (b) kW 18.1 26.7 36.1 37.2 47.9 60.4 67.3
Power need compressor kW 3.2 4.9 6.1 6.0 8.5 11.6 11.3
No. of compressors units 1 1 1 1 1 1 1
Max. operating current A 7.2 10.7 13.5 13.5 21.4 26.1 28.2
Rec. fuse protection,
3×400V+N 50Hz A 10 16 20 20 25 32 32
Refrigerant
R410a
circuit
1kg 1.9 3.2 4.1 4.6 5.7 6.7 7.3
Cooling unit EcoCooler for Envistar Flex and Flexomix (ECX)
Size 480 600 740 850 980
Power variant 1V 2V 1V 2V 3V 2V 3V 1V 2V 3V 1V 2V
Air flow min. (a) m3/s 0.93 0.93 1.16 1.16 1.16 1.42 1.42 1.61 1.61 1.61 1.95 1.95
max. (a) m3/s 4.66 4.66 5.78 5.78 5.78 7.08 7.08 8.06 8.06 8.06 9.77 9.77
Max cooling power* (b) kW 52.2 85.9 65.7 90.4 106.2 97.1 131.8 102.5 123.3 153.7 107.1 164.5
Power need compressor kW 12.2 17.2 11.9 16.1 19.0 16.2 23.1 15.4 17.3 25.7 15.2 25.4
No. of compressors units 1 1 1 1 2 1 2 1 2 2 1 2
Max operating current A 28.2 36.7 28.2 36.7 45.9 36.7 56.3 36.7 45.9 60.5 36.7 63.6
Rec. fuse protection,
3x400V+N 50Hz A 32 40 32 40 50 40 63 50 50 63 50 80
Refrigerant
R410a
circuit
1kg 9.0 9.0 8.4 8.4 6.9 11.2 10.3 12.8 10.3 10.3 16.2 11.6
circuit
2kg – – – – 4.0 – 4.6 – 6.5 6.5 – 8.2
a) For units with dampers, ePM1-50% (F7) filter supply air, ePM10-60% ( M5) filter extract air, SFPv values with NP rotor,
supply air temp 20°C and duct pressure 200 Pa (170+30 Pa). Max. air flow calculated with a minimum 10% spare capa-
city for fans.
b) With outdoor temp 26°C, 50% RH and extract air temp 22°C.

© IV Produkt AB DSKE.191101.01.EN
You are welcome to contact us
Switchboard: + 46 (0)47 075 88 00
Control support: [phone] [e-mail]
Service: [phone] [e-mail]
Spare parts: [phone] [e-mail]
Visit us at: www.ivprodukt.com
Documentation for your unit: docs.ivprodukt.com
Technical documentation: [e-mail]
