Assembly Instructions
Envistar Top
Size 04-21
Translation of the original instructions

Assembly Instructions
Envistar Top
Ver 2_en_2022-06-27
TABLE OF CONTENTS
1 SAFETY ................................................................................................................................ 5
1.1 Intended use.................................................................................................. 5
1.2 General safety ............................................................................................... 5
1.3 Product liability ............................................................................................. 7
1.4 Receive, unpack ........................................................................................... 8
1.5 Storage, transport......................................................................................... 8
1.6 Lifting the unit, unit parts ............................................................................. 8
1.7 After the lifetime of the product .................................................................. 8
2 GENERAL INFORMATION .................................................................................................. 9
2.1 IV Produkt’s order portal, support............................................................... 9
2.2 Information messages, not safety-related ................................................. 9
2.3 Tools for assembly ........................................................................................ 9
2.4 Spare parts .................................................................................................... 9
2.5 Symbols on drawings and in manual ........................................................ 10
3 DESCRIPTION OF THE UNIT............................................................................................ 11
3.1 Configuration of the unit ............................................................................ 11
3.2 Orientation of the unit’s sides/parts.......................................................... 13
4 LIFT THE UNIT................................................................................................................... 14
4.1 Lifting with forklift....................................................................................... 15
4.2 Lifting brackets, pre-mounted lifting lugs, spreader bar ........................ 15
4.3 Lift with lifting bracket, EMMT-08, for 50 profile...................................... 16
5 PREPARE ASSEMBLY ....................................................................................................... 17
5.1 Sectioned configuration (Easy Access) .................................................... 17
5.2 Create service area, electrical safe distance ........................................... 17
6 ASSEMBLY, GENERAL ..................................................................................................... 18
6.1 Assemble adjuster foot (accessory), adjust the height........................... 18
6.2 Fit sealing strip ........................................................................................... 19
6.2.1 Join with screw joints.................................................................................................19
6.3 Quick connectors........................................................................................ 20
6.4 Disassemble/Reassemble/Refit Fan ......................................................... 21
6.4.1 Disassembling the fan................................................................................................21
6.4.2 Reassemble/Refit fan.................................................................................................22
6.5 Fit cover detail on join ................................................................................ 22
7 ASSEMBLE, VERSIONS .................................................................................................... 23
7.1 Before assembly ......................................................................................... 23
7.2 Assemble Envistar Top thermal wheel (TER, TXR) .................................. 24
7.3 Assemble Envistar Top thermal wheel/EcoCooler (TEC) ........................ 25

Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
7.4 Assemble Envistar Top thermal wheel/ThermoCooler HP (TTC)............ 26
7.5 Assemble Envistar Top counter-flow exchanger (TEM, TXM)................. 27
7.6 Assemble Envistar Top with counter-flow exchanger, EcoCooler
(TEC-M) ........................................................................................................ 28
7.7 Assemble counter-flow exchanger in sectioned configuration.............. 29
8 CONNECT COIL, WATER .................................................................................................. 30
8.1 Connect coil to pipelines............................................................................ 30
8.2 Connect heating coil, water....................................................................... 30
8.2.1 Heating coil, water (ETAB-VV) in unit .........................................................................30
8.2.2 Heating coil, water (ETAB-TV) in unit..........................................................................31
8.3 Connect cooling coil, water ....................................................................... 31
8.3.1 Cooling coil, water (ETKB-VK) in duct .......................................................................31
8.4 Connect frost protection sensor ............................................................... 32
8.4.1 Contact clamp on detector........................................................................................32
8.5 Connect bleeding and drainage ................................................................ 32
8.6 Assemble valve actuator ............................................................................ 33
8.7 Assemble pump, pipework package ........................................................ 33
9 CONNECT COIL, ELECTRIC............................................................................................. 34
9.1 Connect heating coil, electric (ETKB-EV), (ETAB-SV).............................. 34
9.1.1 Heating coil, electric (ETKB-EV), (ETAB-SV) in duct ..................................................34
10 CONNECT CONTROL EQUIPMENT................................................................................. 35
10.1 Connect quick connectors between unit parts........................................ 35
10.2 Connect hoses for pressure control ......................................................... 35
10.3 Connect supply air temperature sensor ................................................... 36
11 CONNECT DRAINAGE, WATER TRAP ............................................................................. 37
11.1 Connect water trap MIET-CL-04 (accessories) ........................................ 37
11.2 Connect water trap (site built) ................................................................... 37
11.3 Connect drainage pipe to floor drain ........................................................ 38
12 DUCT CONNECTION, DUCT ACCESSORIES.................................................................. 39
12.1 Connect to ducts......................................................................................... 39
12.1.1 Connect to rectangular duct ......................................................................................39
12.1.2 Connect to circular duct ............................................................................................39
12.1.3 Connect sleeve (accessories) ....................................................................................39
12.2 Connect duct coils...................................................................................... 40
12.3 Connect damper (ETSP-UM, ETSP-TR)..................................................... 40
12.4 Connect sound attenuator (ETET-LD) ....................................................... 40
13 AFTER ASSEMBLY ............................................................................................................ 41
13.1 Subsequent inspection and maintenance ................................................ 41
14 SUPPORT........................................................................................................................... 41

Page 5 (44)
Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
1 SAFETY
This section addresses important safety aspects of assembly, with the aim of raising safety
awareness and avoiding personal injuries and damage to surroundings and units.
00177
This manual contains important instructions. Read it carefully and follow
the instructions.
Pay special attention to warning and information messages, as well as
markings on the product.
Keep the manual for future use.
•
•
•
1.1 Intended use
Intended use
The product is intended to be used air handling unit for comfort ventilation in properties.
Intended users
The contents of this manual are intended for personnel assembling the unit on site.
Intended user environment
• The unit is usually placed indoors, but is also available as an outdoor version.
• When installed indoors, the unit must be installed in a ventilated area that maintains a tempe-
rature between +7 and +30 °C, and that maintains a moisture content of <3.5 g/kg in dry air
in the winter.
• The unit can also be equipped for assembly in cold attics.
Unintended uses
Any use other than specified in Intended use is prohibited unless specifically permitted by IV
Produkt. It is not permitted to use the unit in potentially explosive environments.
1.2 General safety
Failure to comply with the safety precautions may result in injury to persons or damage to air
handling units. To avoid personal injuries and damage to surroundings or units:
• Follow national and local laws/regulations for safe work, e.g. fall protection when working at
a height.
• Do not wear loose clothing or jewellery that may get fasten.
• Do not step or climb on the unit.
• Use appropriate tools.
• Use appropriate personal protective equipment.
Note the unit’s markings: product signs, information and warning stickers.
Personal protective equipment
Personal protective equipment must always be used based on the risks present in the work-
place. For example, wear protective shoes with steel toecaps, hearing protection, protective
helmet, gloves, safety glasses or goggles, fully-covering clothing, safety overalls, mouthguard/
protective mask and/or fall protection where the work and work environment requires it.

Page 6 (44) Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
ivprodukt.docfactory.com
Order Portal
Warning notices
Warning notices in the instruction warn of risks when handling and assembling the product.
Carefully follow the instructions contained in warning notices.
The warning symbol indicates that a risk exists.
WARNING! indicates a potential risk that, if not avoided, can cause life-threatening or
serioussituations that can lead to death or personal injury.
CAUTION! indicates a potential risk that, if not avoided, could cause material damage
to the product or surroundings as well as impairment of product function.
"Risk of xxxxxx." Indicates the risk in a short risk title.
A description in italics provides more detailed information about what the risk entails.
• The bullet points indicate how the user avoids harm.
General warning notices
00176
Electrical voltage can cause electric shock, burns and death. The product
must not be energised during assembly.
Electrical connection and electrical work may only be carried out by a
qualified electrician.
For initial start-up of the unit, see Operation and Maintenance of the unit
on IV Produkt's order portal.
•
•
Risk of life-threatening or serious personal injury.
WARNING!
00178
Art. Nr. 19194-0013
Follow the lifting and assembly instructions in this manual.
Use lifting equipment where available.
Use appropriate protective equipment.
Exercise caution when working between unit parts.
•
•
•
•
High unit parts, as well as unit parts with a high or oset centre of gravity,
mean a greater risk of tipping.
Risk of life-threatening or serious crushing or compression
injury.
WARNING!
00179
Follow the lifting and assembly instructions in this manual.
Use lifting equipment where available.
Use appropriate protective equipment.
•
•
•
The unit parts are often heavy and cannot be lifted by hand. See weights
indicated on the layout drawing.
Risk of life-threatening or serious crushing or compression
injury.
WARNING!

Page 7 (44)
Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
00180
Follow the instructions for lifting in this manual.
Never exceed the specified weight for the respective lifting method or
lifting equipment.
Slide stops must be fitted when lifting, if bracket is used.
Replace used T-bolts and nuts with new ones after each lift.
•
•
•
•
A falling unit when lifting can cause crushing injuries.
Risk of serious crushing injury.
WARNING!
00181
Use appropriate personal protective equipment when the work
requires it.
•
Sharp edges can cause cuts.
Risk of cutting.
WARNING!
Safety symbols, signs on the unit
Keep signs and stickers free of dirt. Replace missing, damaged or unreadable signs and
stickers on the machine. Contact IV Product for replacement stickers by specifying the article
number.

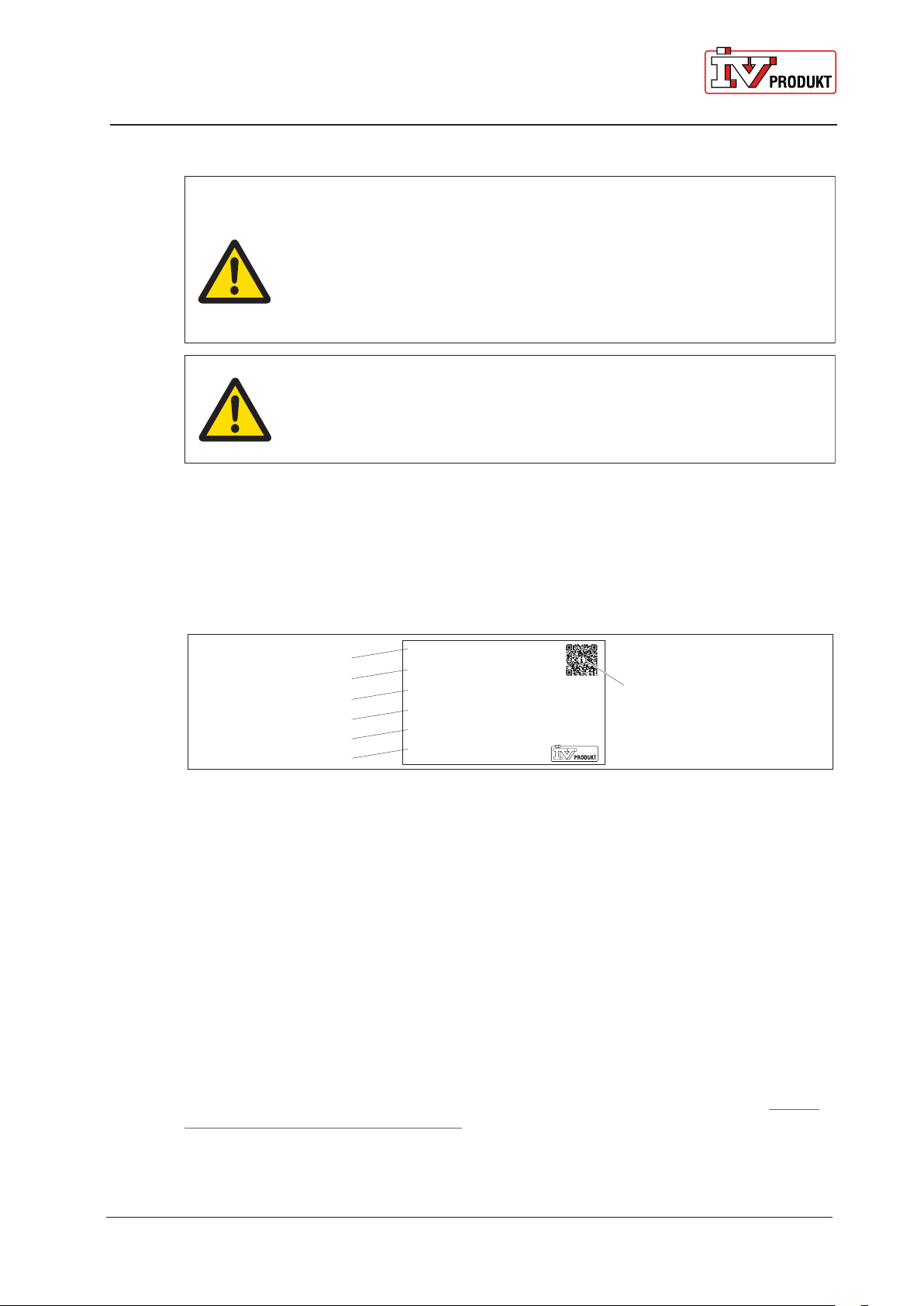

Type plate
The unit and any associated cooling unit/reversible heat pump have a type plate affixed to the
front. The type plate is used, among other things, for identification of the product.
00043
Ordernr / Order No / Tilaus nr / Nr zam / Auftragsnr.
Modell / Model / Malli / Model / Modell
Produktkod / Product code / Tuotekoodi / Kod produktu / Produktcode
Aggregatbeteckning / Project / Kohde / Agregat / Bezeichnung
Tillv.ort / Made in / Valmistettu / Produkcja / Herst.Ort
Tillv.m / Manuf.m. / Valmistus. k / Miesiav pr / Herst.Monat
XXXX-XXXX
Envistar
XXX-X-01-XX-XX-X-XX
XX-LAXX
VÄXJÖ, SWEDEN
YYMM
1
2
3
4
5
6
7
Figure: Example of a unit type plate
1. Order number
2. Product name/model
3. Product code
4. Unit designation
5. Place of manufacture
6. Date of manufacture
7. QR code
Report accidents, incidents
Accidents or incidents are reported to IV Produkt.
1.3 Product liability
The unit complies with industry requirements for quiet air handling units with high-efficiency
recovery systems for heating and cooling.
Declaration of conformity (CE marking)
The air handling unit and any associated cooling unit or reversible heat pump are CE marked
and meet the applicable requirements of the related directives under the declaration of
conformity. The declaration can be downloaded from IV Produkt’s order portal. See "2.1 IV
Produkt’s order portal, support”, page 9. The declaration applies only to the unit in the
configuration in which it was delivered and assembled according to this assembly instruction.
The declaration does not include components added later or modifications to the unit.

Page 8 (44) Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
ivprodukt.docfactory.com
Order Portal
Nor does the declaration apply to other plant in which the unit forms a part. The product may
not be put into service until the plant in which it is included complies with the requirements for
CE marking.
Manufacturer
The air handling unit is manufactured by:
IV Produkt AB, Sjöuddevägen 7, SE-350 43 VÄXJÖ
Warranty
For proper function and for the warranty to be valid, the assembly instructions must be
followed.
Extended warranty
Extended warranty is a supplement to the order and to claim extended warranty (5 years),
according to ABM 07 with Appendix ABM-V 07 or according to NL 17 with Appendix VU 20, a
complete documented and signed IV Produkt Service and Warranty book must be presented.
Disclaimer
Continuous product development may give rise to specification changes without notice.
1.4 Receive, unpack
Check the goods on arrival, to ensure that no damage has occurred during transport.
When delivered, the product is packaged with plastic to protect against rain and dirt. The
packaging should be kept on as long as possible to avoid penetration of dirt and dust into the
unit. Duct connections on outdoor units are protected with a sheet metal covering.
1.5 Storage, transport
For temporary storage, the product should be placed on a flat surface, in a dry environment.
The original packaging should be unbroken. Condensation water, which can occur during
storage in fluctuating temperatures, normally dries up when the unit is installed and in opera-
tion. For extended periods of storage outdoors, the packaging should be opened to ensure
ventilation inside the parts. The parts of the unit should be protected from rain, snow and
sunlight.
1.6 Lifting the unit, unit parts
Lifting should be carried out according to lifting instructions in this document, "4 LIFT THE
UNIT”, page 14 as well as according to markings and signs on the unit. If there are no lifting
instructions or markings, lifting must be carried out according to lifting methods prepared by
the transport industry.
1.7 After the lifetime of the product
For dismantling and decommissioning of air handling units, follow the instruction “Air handling
unit, dismantling and decommissioning” on IV Produkt’s order portal. See "2.1 IV Produkt’s
order portal, support”, page 9.

Page 9 (44)
Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
2 GENERAL INFORMATION
This section contains general information that is not safety-related. For safety-related informa-
tion, see "1 SAFETY”, page 5.
2.1 IV Produkt’s order portal, support
All documentation associated with an order can be downloaded from
IV Produkt’s order portal. If possible, wait 2 weeks after delivery for full documentation. If
the order is not found, it may undergoing processing. If you have any questions, contact the
appropriate department for support. See contact details on the last page of the manual.
1. Enter ivproduct.docfactory.com in the browser or scan the QR code in the top left corner
of the manual.
2. Select “YOUR UNIT”.
3. Enter order number.
4. Click the magnifying glass.
General documentation that is not specific to order is retrieved under “ALL DOCUMENTA-
TION”.
2.2 Information messages, not safety-related
00182
Symbol together with information text highlights diculties and also gives
tips and recommendations.
2.3 Tools for assembly
A bag of screws, nuts, corner fittings and other items to be used for assembly is supplied with
each unit. The following tools are suitable for assembly:
• Power screwdriver with
16-socket, 13-socket,
1/4-inch bit and star bit
• Screwdriver
• Spirit level
• Putty syringe
• Rubber mallet
• Scissors
• Polygrip pliers
• Ring Keys 13, 16,18, 19
• Wooden blocks to lay
between support and
road
• Pop riveter
• Lubricating grease in
spray bottle
• Pipe cutter
2.4 Spare parts
Spare parts and accessories for this unit are ordered from IV Produkt's nearest sales
office. State the order number and unit designation. These can be found on a model iden-
tification label, affixed to each part/component. Download separate spare parts list on
IV Produkt’s order portal. See "2.1 IV Produkt’s order portal, support”, page 9.

Page 10 (44) Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
ivprodukt.docfactory.com
Order Portal
2.5 Symbols on drawings and in manual
00128
Figure: Example of a layout drawing
Outdoor air Extract air
Supply air Exhaust air
Fan Filter
Shut-off damper Trim damper
H
O
2
Cooling coil water
H
O
2
Heating coil water
00209
Heating coil electric Sound attenuator
Rotary heat exchanger Cross-flow heat exchanger
Counter-flow heat exchanger Compressor
Cooling unit DX
DX
Cooling/heating pump
Media section Quick connector

Page 11 (44)
Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top

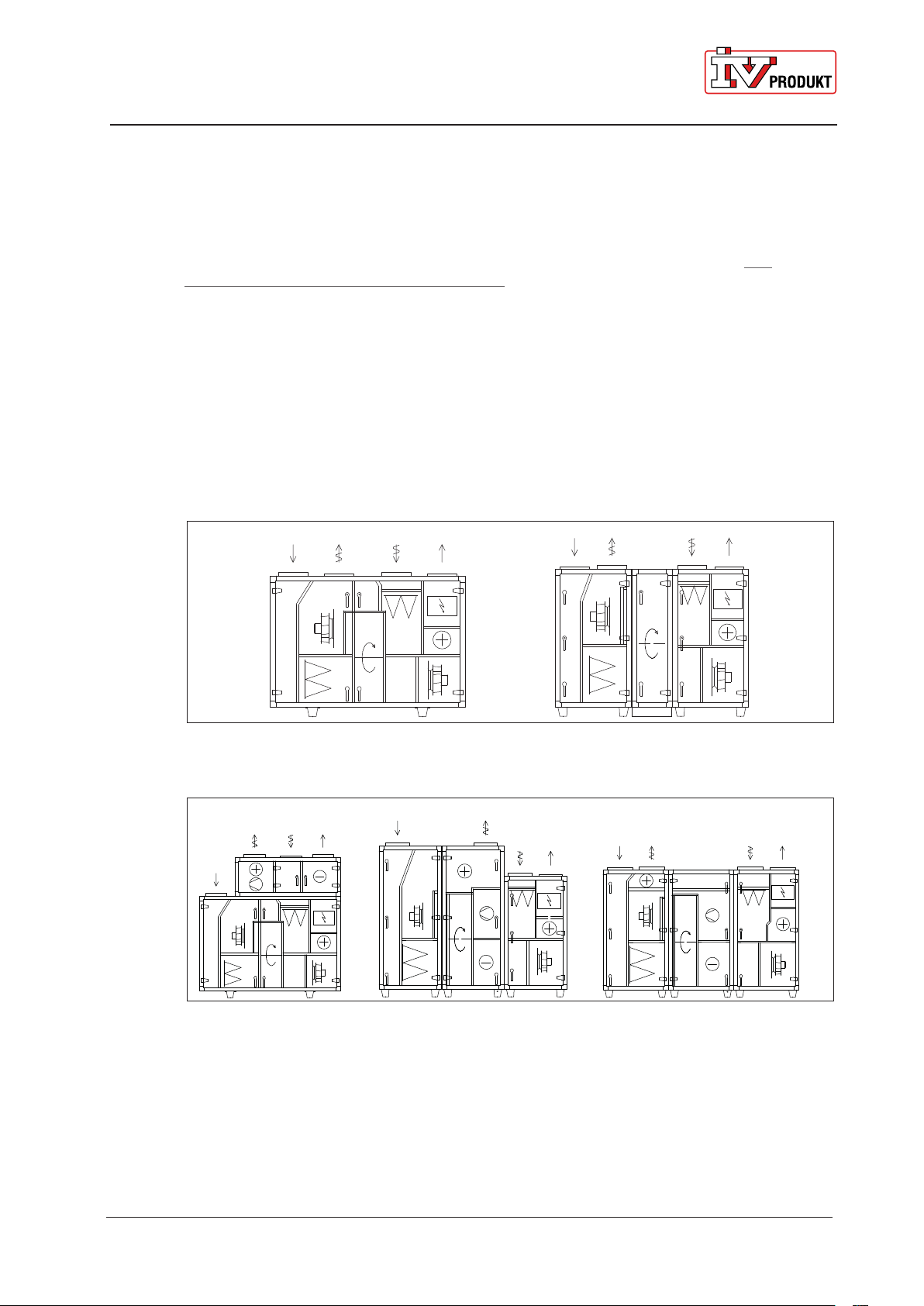

3 DESCRIPTION OF THE UNIT
3.1 Configuration of the unit
The unit can be supplied with or without control and adjustment equipment. See "10
CONNECT CONTROL EQUIPMENT”, page 35.
The unit is supplied as a complete unit (unit version) or in blocks/parts (block version) in sizes
04-21. Units in block version require assembly.
The units are on legs (hat profiles) that can be equipped with adjustable feet (accessories),
adjustable to different heights.
The unit’s framework consists of aluminium profiles, 50 x 50 mm (50 profile).
The counter-flow exchanger (TXM) can be delivered in block form (sectioned configuration)
and must be assembled before being put in place with the other unit parts.
Envistar Top thermal wheel (TER, TXR)
00131
04, 06, 10 (TER) 09, 12, 16, 21 (TFF, TXR, TFT)
One-piece configuration: 04, 06, 10 Block configuration (3 parts): 09, 12, 16, 21
Envistar Top thermal wheel/EcoCooler (TEC)
00132
04, 06, 10 (TER, TEC) 09, 12 (TFF, TEC, TFT) 16, 21 (TFF, TEC, TFT)
One-piece configuration: 04, 06, 10 Block configuration (3 parts): 09, 12, 16, 21

Page 12 (44) Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
ivprodukt.docfactory.com
Order Portal
Envistar Top thermal wheel/ThermoCooler HP (TTC)
00133
06, 10 (TEC, TTC) 09, 12, 16, 21 (TFF, TXR, TTC, TFT)
One-piece configuration: 06, 10 Block configuration (4 parts): 09, 12, 16, 21
Envistar Top counter-flow exchanger (TEM)
00134
04, 06, 10 (TEM) 09, 12, 16, 21 (TFF, TXM, TFT)
04, 06, 10 (TFF, TXM, TFT)
One-piece configuration: 04, 06, 10 Block configuration (4 parts): 04, 06, 10 , 09, 12, 16, 21
Envistar Top counter-flow exchanger/EcoCooler (TEC-M)
00151
04, 06, 10 (TFF-K, TXM-EC, TFT-K)
04, 06, 10 (TEM-EC)
One-piece configuration: 04, 06, 10 Block configuration (4 parts): 04, 06,10

Page 13 (44)
Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
3.2 Orientation of the unit’s sides/parts
00050
1
4
3
5
2
Figure: Parts of the unit
1. Access side
2. Back
3. Gable side
4. Corner fitting
5. Covers

Page 14 (44) Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
ivprodukt.docfactory.com
Order Portal
4 LIFT THE UNIT
00178
Art. Nr. 19194-0013
Follow the lifting and assembly instructions in this manual.
Use lifting equipment where available.
Use appropriate protective equipment.
Exercise caution when working between unit parts.
•
•
•
•
High unit parts, as well as unit parts with a high or oset centre of gravity,
mean a greater risk of tipping.
Risk of life-threatening or serious crushing or compression
injury.
WARNING!
00179
Follow the lifting and assembly instructions in this manual.
Use lifting equipment where available.
Use appropriate protective equipment.
•
•
•
The unit parts are often heavy and cannot be lifted by hand. See weights
indicated on the layout drawing.
Risk of life-threatening or serious crushing or compression
injury.
WARNING!
00180
Follow the instructions for lifting in this manual.
Never exceed the specified weight for the respective lifting method or
lifting equipment.
Slide stops must be fitted when lifting, if bracket is used.
Replace used T-bolts and nuts with new ones after each lift.
•
•
•
•
A falling unit when lifting can cause crushing injuries.
Risk of serious crushing injury.
WARNING!
00186
Use spreader bars when lifting with bracket.
Follow instructions for working with spreader bars.
•
•
Chains/straps that are lying against the unit when lifting may damage the unit.
Risk of damage to the product
CAUTION!

Page 15 (44)
Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top

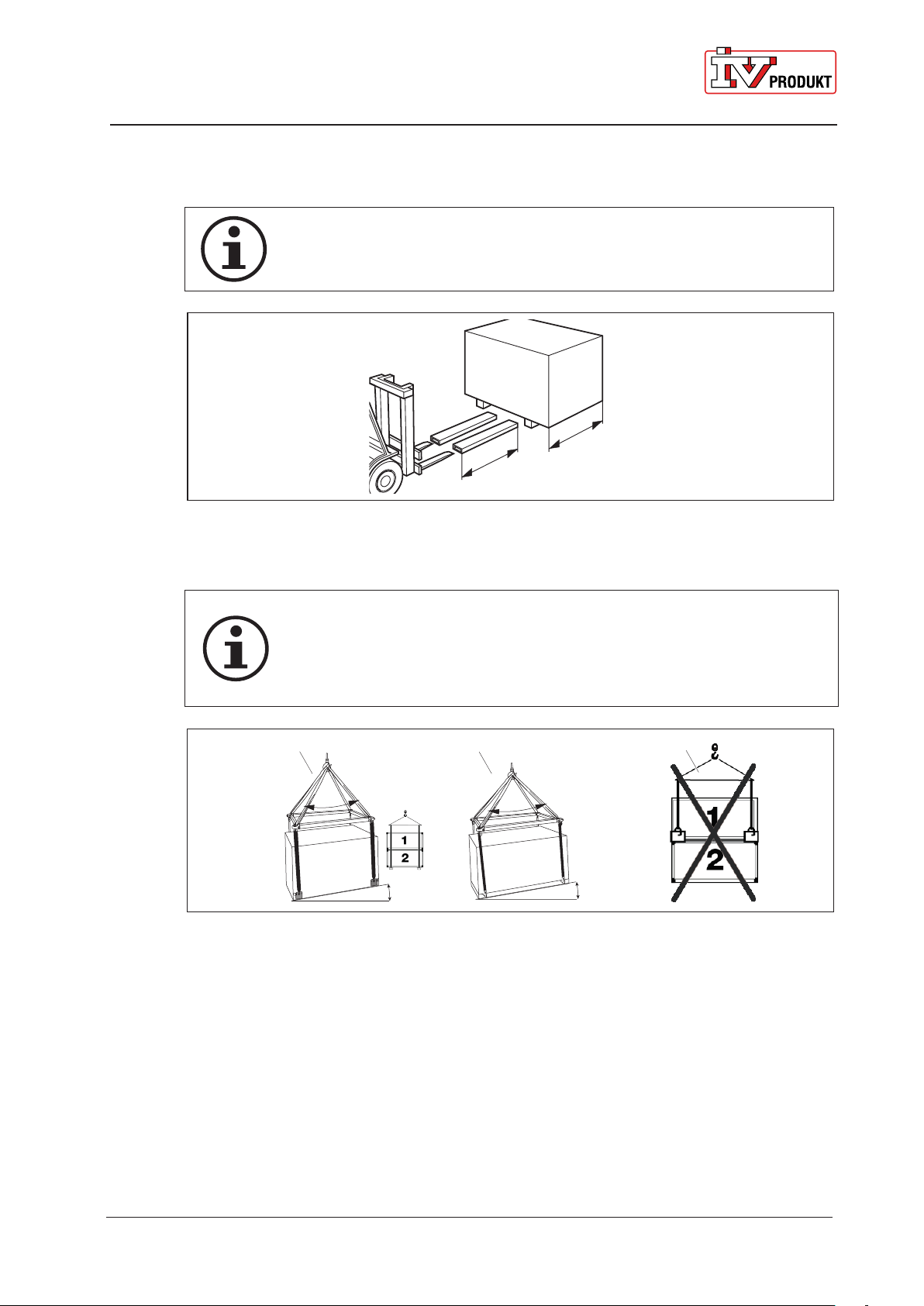

4.1 Lifting with forklift
The lifting forks (1) must be the same length as the unit packaging (2) or long-
er.
00053
1
2
Figure: Lifting with forklift
4.2 Lifting brackets, pre-mounted lifting lugs, spreader bar
• The maximum angle at the lift hook is 80º
• The inclination slope of unit parts when lifting is 15º. If the inclination is
greater than 15º, the chains/straps must be shortened or extended until
the angle is less than 15º.
• The spreader bar must be 100—400 mm wider than the unit.
00145
max 80°
max 15°
max 15°
max 80°
123
Figure: Illustration of lift with spreader bar and inclination
1. Lift with EMMT-08 with spreader bar
2. Lift in base frame with spreader bar
3. Incorrectly mounted lifting brackets in the centre
profile

Page 16 (44) Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
ivprodukt.docfactory.com
Order Portal
4.3 Lift with lifting bracket, EMMT-08, for 50 profile
• Load per lifting bracket ≤ 400 kg.
• Load if all four brackets are used ≤ 1600 kg.
• A safety factor of 1.6 has been utilised in static testing of the lifting
bracket.
• Use shackle with safety factor 6:1.
• Brackets must not be mounted downwards or sideways.
• Lifting brackets must not be mounted in the middle profile of double
stacked parts.
00097
1
5
3
2
4
6
Figure: Lifting bracket EMMT-08
1. Lifting bracket EMMT-08
2. Lifting lug
3. Lift stop sticker
4. Wing nut
5. Slide stop sticker
6. Slide stop
EMMT-08 is delivered in a set of four.
1. Place the lifting brackets in the bottom four corners of the unit or unit part (on the longest
sides of the part), with the lifting lug upwards.
2. Push the brackets into the horizontal track in the unit’s aluminium profile.
3. Push the slide stop into the vertical track in the unit’s aluminium profile.
4. Lock by tightening the wing nut.

Page 17 (44)
Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
5 PREPARE ASSEMBLY
When setting up the unit, it shall be horizontal at the longitudinal leading
edge, as well as slightly inclined forward (towards the inspection side) to
create proper drainage of condensation water. See "6.1 Assemble adjus-
ter foot (accessory), adjust the height”, page 18.
Inlet grilles and duct systems shall be designed and installed so that:
• water is prevented from penetrating into the unit.
• recirculation and short-circuiting between the exhaust air and outdoor air is prevented.
• drainage cannot run backwards to the unit.
The duct system shall be designed and the control system configured to prevent pressure
increase through filter/air ducts, for example by soft-starting fans and opening dampers when
fans are operating. See "12 DUCT CONNECTION, DUCT ACCESSORIES”, page 39.
Water trap is mounted as indicated. See "11 CONNECT DRAINAGE, WATER TRAP”, page
37.
5.1 Sectioned configuration (Easy Access)
The counter-flow exchanger (TXM) can be delivered in pieces and must be assembled before
being put in place on the support. See "6 ASSEMBLY, GENERAL”, page 18 and ."14. Ensure
everything is properly iassembled.”, page 28
5.2 Create service area, electrical safe distance
• The service area in front of the unit should be about 1.5 x the depth of
the unit so as to allow for service, replacement of parts and cleaning.
• Follow the National Electrical Safety Board's recommendations regar-
ding the free service space to be located in front of electrical connecting
equipment.
00048
1
23
4
Figure: Service area on the inspection side
1. Service area
2. Service area width (width of the unit)
3. Service area depth (1.5 x depth of the unit)
4. Depth of the unit

Page 18 (44) Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
ivprodukt.docfactory.com
Order Portal
6 ASSEMBLY, GENERAL
Read and follow each step carefully to avoid making errors and causing personal injury or
damage to surroundings or unit. See "1 SAFETY”, page 5, "4 LIFT THE UNIT”, page 14,
"5 PREPARE ASSEMBLY”, page 17 and "7 ASSEMBLE, VERSIONS”, page 23.
For example of set-up drawing and explanations of drawing symbols, see "2.5 Symbols on
drawings and in manual”, page 10.
00176
Electrical voltage can cause electric shock, burns and death. The product
must not be energised during assembly.
Electrical connection and electrical work may only be carried out by a
qualified electrician.
For initial start-up of the unit, see Operation and Maintenance of the unit
on IV Produkt's order portal.
•
•
Risk of life-threatening or serious personal injury.
WARNING!
00178
Art. Nr. 19194-0013
Follow the lifting and assembly instructions in this manual.
Use lifting equipment where available.
Use appropriate protective equipment.
Exercise caution when working between unit parts.
•
•
•
•
High unit parts, as well as unit parts with a high or oset centre of gravity,
mean a greater risk of tipping.
Risk of life-threatening or serious crushing or compression
injury.
WARNING!
6.1 Assemble adjuster foot (accessory), adjust the height
The unit should tilt slightly forward (towards the inspection side) for con-
densation runoff and drainage. The inclination may be a maximum of 3
mm/m.
1. Tighten the lower locking nut (3) on the support foot (4).
00130
12
3
4
2. Insert the top of the support foot into the hole of the hat profile and tighten the upper
locking nut (2). The distance between the floor and the bottom (1) shall be 120 to 160 mm.
3. Use a spirit level and make sure that the unit is level along the inspection side/back.
4. Adjust the height and inclination of the support by turning the upper and lower nuts.
5. Secure all support feet by tightening both the top and bottom nut.

Page 19 (44)
Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
6.2 Fit sealing strip
• For correct assembly of sealing strip on different parts, see also "7
ASSEMBLE, VERSIONS”, page 23.
• The sealing strip is only fitted on one of two opposite parts.
• The sealing strip is not fitted on the rotary heat exchanger.
• For units in sectioned configuration, sealing strip must also be fitted in
the division. Does not apply to ThermoCooler HP/EcoCooler.
3 mm
2
3
14
00052
Figure: Sealing strips, location.
1. Sealing strip of type D-profile
2. Sealing strip in corner
3. Sealing strip joint
4. Profile in cross section
1. Divide the strip into two.
2. Fit the strip in the middle surfaces of the unit, about 3 mm from the inner edge. Remove
the protective layer over the adhesive, after which the strip is glued on. Bend the strip in
the corners and join it on vertical sides.
6.2.1 Join with screw joints
1. Remove any cover plugs to access the screw joints.
2. Screw together the unit parts with bolts through each corner strut.
00149
Figure: Screw joint

Page 20 (44) Ver 2_en_2022-06-27
Assembly Instructions
Envistar Top
ivprodukt.docfactory.com
Order Portal
6.3 Quick connectors
See "10 CONNECT CONTROL EQUIPMENT”, page 35 and order-specific documentation
(control diagram) on IV Produkt’s order portal.
Quick connectors to be joined are marked with the same designation.
Quick connector, signal feed
1. Press together quick connectors according to marking (arrows or other).
00075
2. Screw together as hard as possible by hand.
00076
Quick connector, power supply
1. Press together quick connectors according to marking (arrows, dashes or similar).
00077
2. Turn the arrow on the white cuff to the mark for closed (padlock).
00078
