Ivation IVASC301B User manual

Multipurpose Canister
Steam Cleaning System
User Guide
Thank you for purchasing the Ivation Multipurpose Canister Steam Cleaning System.
This User Guide is intended to provide you with guidelines to ensure that operation of
this product is safe and does not pose risk to the user. Any use that does not conform
to the guidelines described in this User Guide may void the limited warranty.
Please read all directions before using the product and retain this guide for reference.
This product is intended for household use only.
This product is covered by a limited one-year warranty. Coverage is subject to limits
and exclusions. See warranty for details.

IMPORTANT SAFEGUARDS
To reduce the risk of fire, electrical shock, or injury, the following basic safety precautions should
always be followed when using an electrical appliance.
DANGER
Any appliance is electrically live even when switched off. To reduce risk of electrical shock:
1. Always unplug power cord immediately after using.
2. Do not place or store unit where it can fall or be pulled into a sink or tub.
3. Do not place in, or drop into water or other liquid.
4. If unit falls into water, immediately unplug power cord. Do not reach into the water.
WARNING
To reduce risk of burns, electrocution, fire, or injury to persons:
1. Use Multipurpose Steam Canister only for its intended purpose as indicated in this manual.
2. If an extension cord is necessary, use a properly rated cord (15 ampere, 14 gauge). Use care
to position extension cord where it is least likely to be damaged or tripped over during use.
3. Before plugging power cord into electrical outlet, be sure that all electrical information on
rating label matches your power supply.
4. To reduce likelihood of circuit overload, DO NOT operate another high wattage appliance on
the same circuit as this unit.
5. To protect against risk of electrical shock, do not immerse unit in water or other liquids. Do
not use the power cord as a handle, or let it hang over edges of counters. Do not crimp or
squeeze the cord.
6. Never yank power cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
7. Do not operate unit with a damaged power cord or if the unit has been dropped or damaged.
To avoid risk of electrical shock, do not disassemble unit. Incorrect reassembly can cause a
risk of electrical shock when unit is used.
8. Close supervision is required for any appliance being used near children, pets and plants. Do
not leave unit unattended while plugged in.
9. This unit is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the unit by a person responsible for
their safety.
10. Do not use unit where aerosol-based products are being used, or where oxygen is
being administered.
11. Unit is only meant to be used with the included or recommended accessories. Using other
types of attachments may cause damage to unit or injury.
12. If lighted on/off switch does not illuminate when set to “On” position while power cord is
plugged in, unit is not operating normally. Immediately disconnect cord from power supply,
then refer to troubleshooting guide on page 10 of this manual for assistance.
13. Always turn unit off and unplug power cord before filling water reservoir with water. Do not
attempt to use unit without properly filling reservoir.
14. Use only water in the reservoir. Use of cleaning agents could damage unit or cause injury.
Distilled or de-mineralized water is highly recommended in order to minimize potential
build-up of mineral deposits. Do not fill reservoir with more than 48 oz. (1,420 ml.) of water.
2

15. To avoid burns from escaping steam when removing the reservoir cap:
• Always allow unit to cool for 20 minutes.
• Press and hold Steam Button to release ALL remaining steam.
16. To reduce risk of contact with hot water emitting from steam nozzle, check appliance before
each use by positioning it away from body and turning it on. Do not operate unit if steam
nozzle is blocked.
17. Burns can occur from touching hot metal parts, hot water, or steam. Do not touch main
nozzle or attempt to connect accessories while unit is in use. Do not touch bottom of mop
head or attempt to attach a microfiber pad by hand while unit is in use. Use caution when
you turn unit upside down – there may be hot water in water reservoir.
18. Use caution when using unit on uneven surfaces, such as stairs.
19. When steaming any surface for the first time, it is recommended that you consult the
manufacturer’s guidelines for material being steamed. For items in question, test on an
inconspicuous area before proceeding.
20. Steaming unsealed hardwood or unglazed ceramic surfaces is not recommended, and may
result in warping or damage to the surface. Steam may remove the sheen from surfaces
treated with wax.
21. When steam mopping, never leave unit resting in one spot on any surface for any period of
time – prolonged exposure to heat and moisture may damage floor surfaces.
22. Do not allow power cord to touch hot surfaces during use. Bundle cord loosely when storing.
23. Always allow the unit to cool completely (at least 30 minutes) and empty water reservoir
before storing. Do not store unit with a damp microfiber pad still attached.
FOR HOUSEHOLD USE ONLY! SAVE THESE INSTRUCTIONS
IMPORTANT ADDITIONAL SAFEGUARDS
1. Users of this appliance must read and understand these instructions before operating or
cleaning this appliance.
2. The cord to this appliance should be attached to a 120V AC electrical outlet ONLY.
3. Do not use or attempt to repair a malfunctioning appliance.
4. If this appliance falls or accidentally is immersed in water, unplug it immediately. Do not
reach into the water!
5. Do not use this appliance after it has fallen into or becomes immersed in water.
6. To reduce the risk of injury to persons or property, never use this appliance in an
unstable position.
NOTES ON THE CORD
The short power-supply cord provided should be used in a way that reduces the risk resulting
from becoming entangled in or tripping over a longer cord. Do not use an extension cord with
this product.
NOTES ON THE PLUG
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of
electric shock, this plug will only fit in a polarized outlet one way. If the plug does not fit fully
into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not
modify the plug in any way.
ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your appliance may not operate
properly. It should be operated using a separate electrical circuit from other appliances.
3

15
13
12 11 10 9
8
7
6
5
4
3
2
1
14
Specifications
APPLIANCE: Steam Cleaner
WATTAGE: 110~120V~, 60Hz
POWER CONSUMPTION: 1500W Nominal
STEAM PRESSURE: Max. 4 Bar
WATER VOLUME: Max. 1.4L
STEAM DURATION: Max. 40 minutes/tank
HEATING TIME: Approx. 10 minutes
STEAM FLOW RATE: Max. 40g/Min.
DIMENSIONS: 360 x 240 x 250mm
Controls and Features
Product may vary slightly from illustration
1. Funnel
2. Measuring jug
3. Steam gun with hose
and connector
4. Accessory adapter
5. Detail nozzle
6. Jet nozzle attachment
7. N y l o n b r u sh
8. Nylon brush
9. 2-in-1 attachment
(window wiper)
10. Cotton cover
11. 2-in-1 attachment
(window wiper)
12. Large cleaning cloth
13. Floor nozzle
14. Extension tubes (x3)
15. Steam cleaner with mains
plug and connection cable
4

Getting Started
1. Unpack the Ivation Multipurpose Canister Steam Cleaning System carefully, removing all
packaging materials. Check the contents to ensure that all parts and accessories are
present, and are in good condition.
2. Keep box and package materials for moving and transport of appliance.
3. Contact your retailer immediately if there is damage to equipment.
4. Do NOT use this product is any part or parts are damaged, broken or missing.
WARNING: To avoid suffocation risk, keep packaging material (plastic film, etc.) out of
reach of children
5. Connect steam gun and hose to the main appliance before use.
6. The accessories compartment houses all accessories. Open accessories compartment by
pressing the yellow button on the side near the wheels. Lift the handle of the unit upwards,
separating the top and bottom of the unit (see illustration below).
7. Remove the desired accessory and replace the top part (cover) by pressing down until
there is a “click.”
8. Connect the hose to the steam socket by flipping the black flap down and pushing the
steam hose firmly into the socket until it clicks into place (see illustration below).
9. To remove the steam hose, press both release buttons (left and right) and pull out from
steam socket (see illustration below).
5

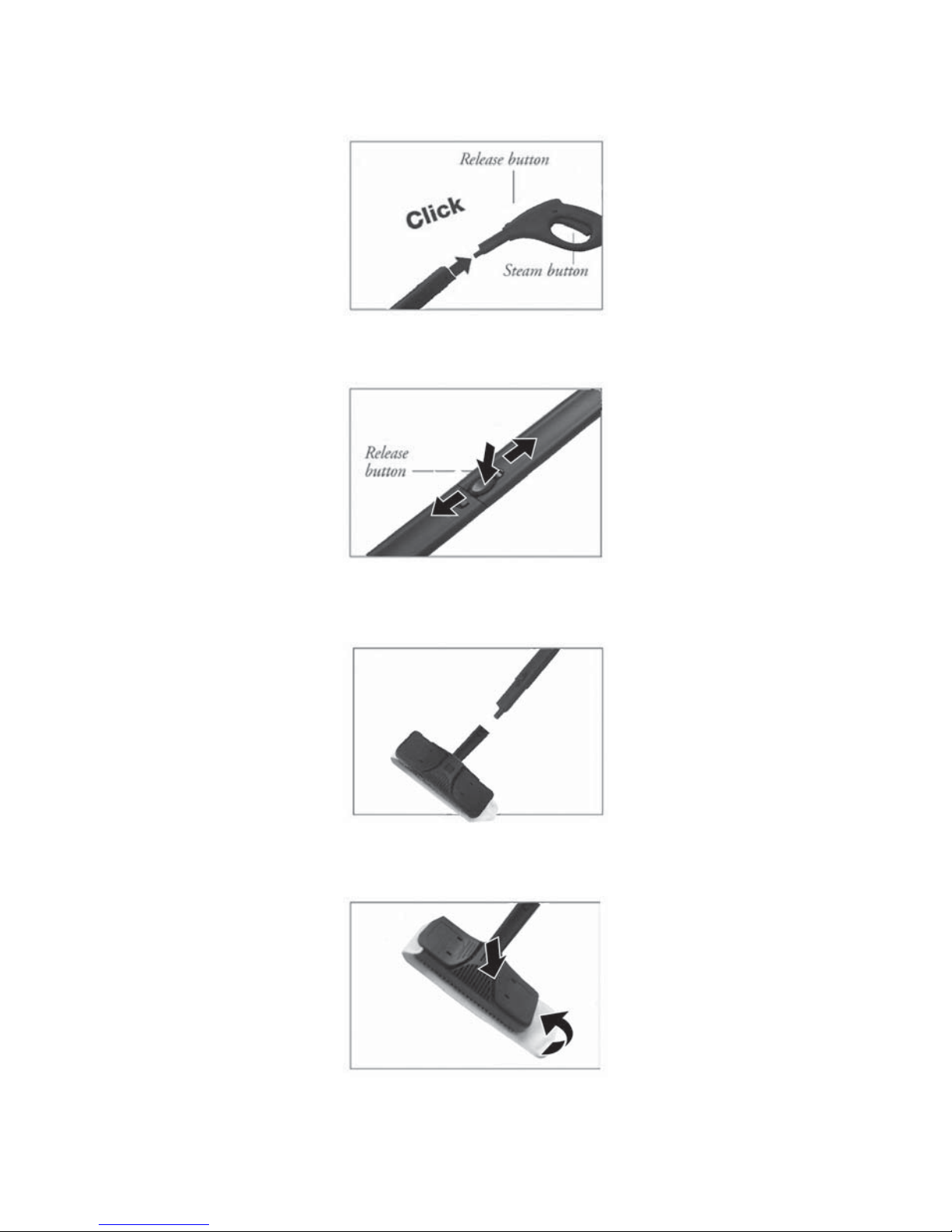

10. Assemble the extension hoses for cleaning floors or difficult to reach places. To do this
push the open end of the tube into the steam gun until the release button clicks into
place (see illustration below).
11. To remove extension, press release button on the steam gun and pull apart (see
illustration below).
13. To attach the cloth covering, press the inner sides of the yellow holder to open clips and
secure cloth cover into place.
12. Attach floor nozzle to the end of the extension tube as shown below. (For cleaning
washable wall and floor coverings). Use cloth covering to protect wood and linoleum or
other sensitive surfaces.
6

14. The accessory adapter can be attached to both the steam gun and the end of one of the
extension tubes. Push adapter until it clicks into place (see illustration below).
15. The detail nozzle can be used with one of the brush nozzles, the jet nozzle or the 2-in-one
nozzle. Push the detail nozzle into the accessory adapter turning it in the direction of the
arrow stamped on the side (see illustration below).
17. The nylon brush nozzles are attached the same way as the jet nozzle. Use brush nozzles for
stubborn stains.
16. To attach the jet nozzle, push firmly into the detail nozzle as shown. This nozzle is used to
clean hard to reach places such as corners, joints and toilets.
7

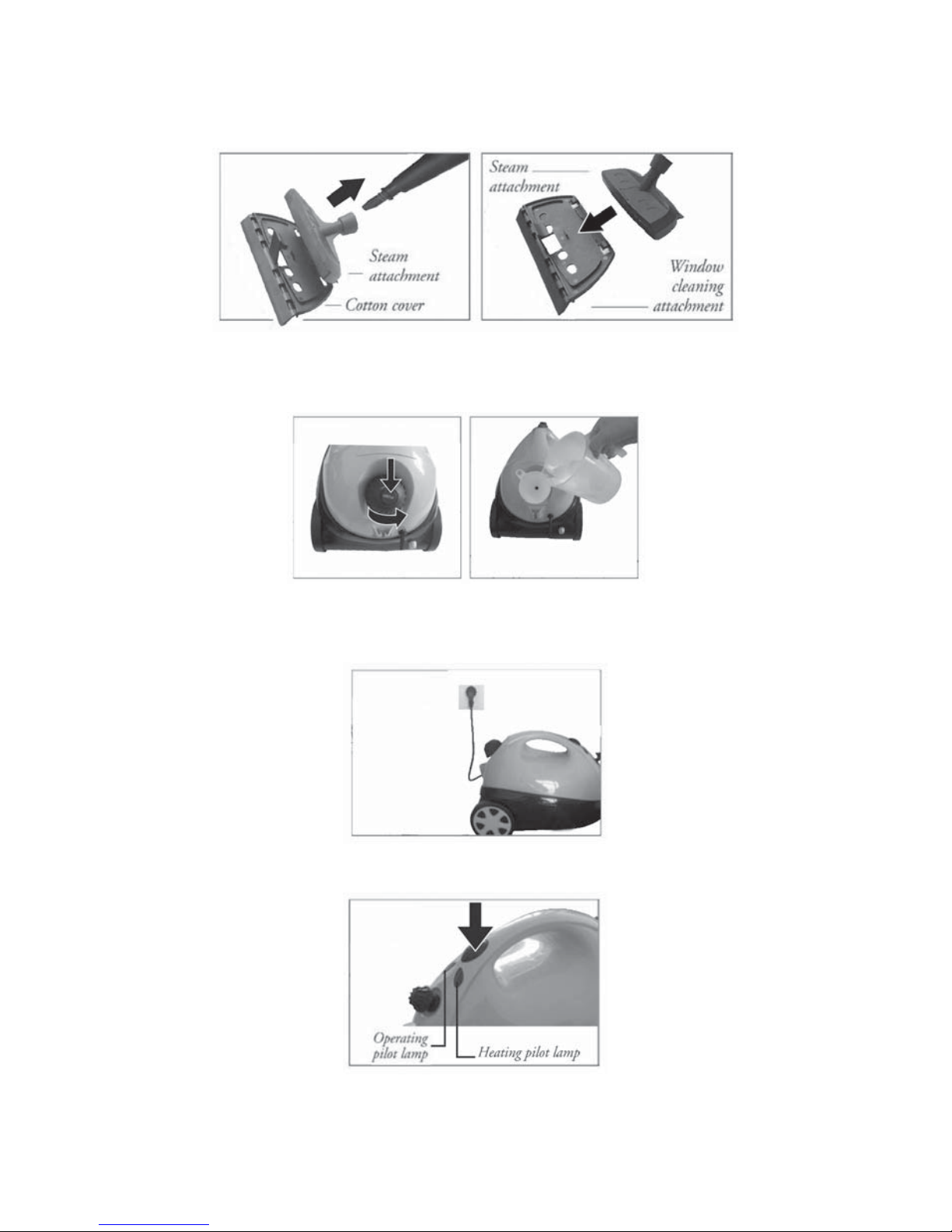

18. The 2-in-1 nozzle has a right angle steam attachment for the window cleaning attachment.
Push the right angle steam attachment into the detail nozzle to attach. Use the cloth cover
for more thorough cleaning or to protect the work surface. Use the window cleaner with
the rubber blade when cleaning mirrors, windows or tiles.
19. Fill the water tank using the funnel and measuring jug. The tank holds 1.4 liters of water.
Warning: Unit must be turned off and unplugged when filling the water tank. Do NOT exceed
the maximum capacity of the water tank.
General Operation
1. Connect the main plug to a wall outlet.
2. Turn appliance on using the ON/OFF switch. The heating indicator light will illuminate.
8

3. Release the lock (childproof device) by pushing the yellow triangular pin on the steam gun
to the left. Hot steam will now escape through the steam gun. Use the steam button to
distribute steam evenly.
Caution: Do not aim steam in one direction too long to avoid damage to cleaning surface.

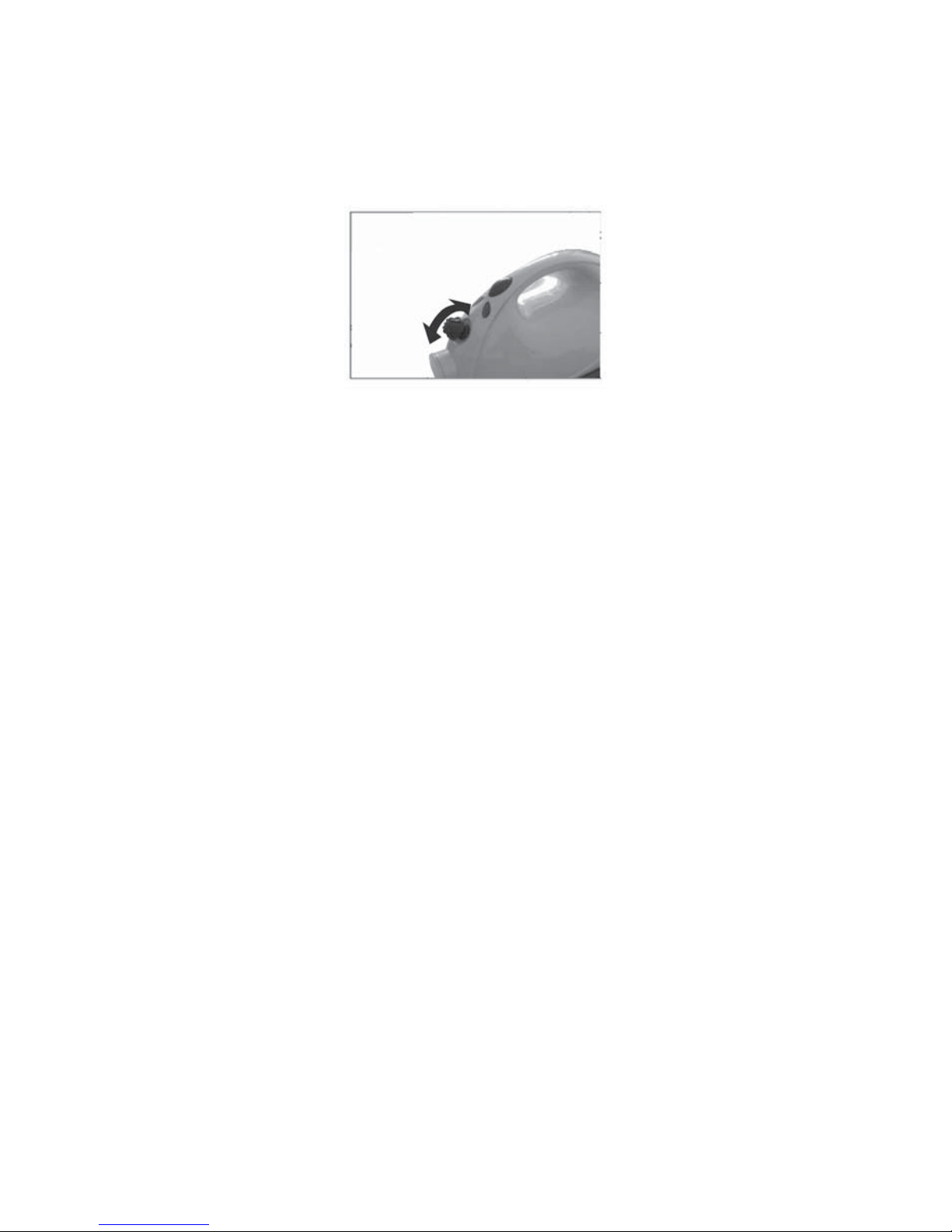

4. Adjust the steam flow using the steam flow dial as shown below. Turn clockwise for less
steam and counterclockwise for more steam.
5. If steam flow decreases, the water tank must be topped off. Switch the appliance off,
unplug from the AC outlet and fill tank as instructed earlier in this manual.
6. When cleaning is complete, switch the appliance off. Press the steam button on the steam
gun to release the remaining steam pressure. Disconnect from main and allow to cool.
Empty water tank to avoid moisture deposits. Ensure that the tank is completely dried out
before replacing the tank cover. Do NOT store unit until it has completely cooled down.
Accessory Parts
• Floor nozzle with connector
• 2-in-1 attachment (including window wiper)
• Extension tubes
• Accessory adapter and detail nozzle
• Circular brushes (x2) and jet nozzle attachment
• Measuring jug and funnel
• Accessory set (1 floor cloth / 1 cotton cover)
• Accessory compartment cover
• Tank safety tank
• Steam gun and hose
Cleaning and Maintenance
1. Clean housing ONLY with lightly moistened cloth. Do not use harsh abrasives or alcohol as
they may damage the housing.
2. It is recommended to rinse out the water tank after five (5) uses.
3. To dispose of this appliance at the end of its useful life, check with local authorities for
proper instructions.
User Maintenance
This appliance requires little maintenance. It contains no user-serviceable parts. Any servicing
requiring disassembly other than cleaning must be performed by a qualified appliance
repair technician.
9

Troubleshooting Guide
Issue Possible Cause Solution
Pilot light does not illuminate.
Appliance is not plugged in,
switched on, or is connected to
a faulty outlet.
Insert plug into wall outlet and
switch the appliance ON. If the
light still does not turn on,
unplug the appliance and plug
in another appliance to check
the power in the outlet. If
cable is faulty, call customer
service for replacement cable.
No steam emits when steam
button is pressed.
Childproof lock is enabled.
Water tank is empty.
Release the childproof lock
(Push yellow pin on the steam
gun to the left).
Fill water tank as instructed.
Steam flow is weak. Steam controller is on
minimum
Turn the steam controller
counterclockwise until
sufficient steam is emitted.
This product is covered by a limited one-year warranty. Coverage is subject to limits and
exclusions. See warranty for details.
Customer Service:
[e-mail]
866-849-3049
Distributed by
C & A Marketing
2 Bergen Turnpike
Ridgefield Park, NJ 07660
[e-mail]
Made in China
Ivation is a trademark of
C&A IP Holdings, LLC
©2015 All right reserved
10
