GridBee GF10000
Owner's Manual
Safety 1
Operation 4
Features 5
Assembly 13
Maintenance 20
Electrical 26
Technical Specifications 27
Troubleshooting 28
Parts Diagram 31
Dimension Drawing 32
Warranty 33
Customer Service 34
O&M_GF10000_10492_20201020

Carefully read safety information when you see
any safety symbols.
Be sure you have read all installation, operation, maintenance and safety instructions before
you install, service or begin to operate this unit.
Accidents occur every year because of careless use of industrial equipment. You can avoid hazards
by following these safety instructions, and applying some ordinary common sense when operating or
servicing this unit.
Keep in mind that full operator attention and alertness are required when operating or servicing
this unit.
USE COMMON SENSE!! Most accidents can be avoided by using common sense and
concentration on the job being done.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Safety
Safety
1949_10036_20200528 O&M_GF10000_10492_20201020 - 1

IMPORTANT!!!
Follow all federal and state laws in regards to
safety regulations of working at heights, conned
spaces, rescue, etc. as required by the U.S.
Department of Labor, Occupational Safety and
Health Administration. Use necessary PPE when
placing and servicing this unit.
Identify all possible hazards. Determine what
safeguards are needed and implement them.
Only you, the user, understand your product
and system characteristics fully. The ultimate
responsibility for safety is with you. Your
safety ultimately rests in your hands. Do
your part and you will enjoy safe, trouble free
operation for years to come. This instruction
manual is not intended to include a
comprehensive listing of all details for all
procedures required for placement, operation
and maintenance. If you have a question about
a procedure or are uncertain about any detail,
Do Not Proceed. Please contact Ixom
Customer Service at 866-437-8076 to speak
to a representative.
ELECTRICAL HAZARD
WARNING: THIS EQUIPMENT CONTAINS
HIGH VOLTAGE! ELECTRICAL SHOCK CAN
CAUSE SERIOUS OR FATAL INJURY. ONLY
QUALIFIED PERSONNEL SHOULD ATTEMPT
PLACEMENT, OPERATION AND MAINTENANCE
OF ELECTRICAL EQUIPMENT. REMOVE ALL
SOURCES OF ELECTRICAL POWER BEFORE
PERFORMING ANY SERVICE WORK TO THE
MACHINE. USE PROPER LOCKOUT TAGOUT
(LOTO) PROCEDURES TO ENSURE A SAFE
WORK ENVIRONMENT.
Rotating Hazard
CAUTION: KEEP BODY APPENANDAGES OR
LOOSE CLOTHING AWAY FROM EQUIPMENT
WHILE OPERATING. ENSURE EQUIPMENT IS
OFF BEFORE ATTEMPTING SERVICE.
Crush Hazard
WARNING: DO NOT REMOVE ANY FLOAT
ASSEMBLY BOLTS OR PINS WHILE EQUIPMENT
IS FLOATING IN WATER. EQUIPMENT MUST BE
SECURELY SUPPORTED BEFORE PERFORMING
SERVICE.
Laceration Hazard
CAUTION: EDGES MAY BE SHARP AND CAUSE
LACERATION IF PROPER CARE IS NOT USED.
Entanglement Hazard
WARNING: ENSURE THAT PERSONNEL ARE
CLEAR OF THE ELECTRIC CORD AND CHAIN TO
AVOID ENTANGLEMENT.
Thin Ice Hazard
WARNING: ICE SURROUNDING MACHINE MAY
NOT SUPPORT WEIGHT, KEEP CLEAR OF THIN
ICE.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Safety
Safety
1949_10036_20200528 O&M_GF10000_10492_20201020 - 2

Permit-Required
Conned Spaces
A conned space has limited openings for
entry or exit, is large enough for entering and
working, and is not designed for continuous
worker occupancy. Conned spaces include
underground reservoirs, ground storage tanks,
elevated tanks, silos, manholes, and pipelines.
Conned Space Tips
• Do not enter permit-required conned spaces
without being trained and without having a
permit to enter.
• Review, understand and follow employer’s
procedures before entering permit-required
conned spaces and know how and when
to exit.
• Before entry, identify any physical hazards.
• Before and during entry, test and monitor for
oxygen content, ammability, toxicity or
explosive hazards as necessary.
• Use fall protection, rescue, air monitoring,
ventilation, lighting and communication
equipment according to entry procedures.
• Maintain contact at all times with a trained
attendant either visually, via phone, or by
two-way radio. This monitoring system
enables the attendant and entry supervisor
to order you to evacuate and to alert
appropriately trained rescue personnel to
rescue entrants when needed.
Refer to 29 CFR 1910.146 for complete
regulations set by OSHA. Refer to your state's
regulations if your state established and operates
their own safety and health programs approved
by OSHA.
Protect Yourself
It is important that you comply with all relative
OSHA and local regulations while installing
and performing any maintenance to the mixer
circulation equipment.
Key OSHA Compliance Standards that must
be followed (and not limited to) are:
• 1910.146 Permit-required conned spaces
• 1910.147 Lockout/Tagout
• 1926.500 Fall Protection
Fall Protection Tips
• Identify all potential tripping and fall hazards
before work starts.
• Look for fall hazards such as unprotected
oor openings/edges, shafts, open hatches,
stairwells, and roof openings/edges.
• Inspect fall protection and rescue equipment
for defects before use.
• Select, wear, and use fall protection and
rescue equipment appropriate for the task.
• Secure and stabilize all ladders before
climbing.
• Never stand on the top rung/step of a ladder.
• Use handrails when you go up or down stairs.
• Practice good housekeeping. Keep cords,
welding leads and air hoses out of walkways
or adjacent work areas.
Refer to 29 CFR 1926.500 for complete
regulations set by OSHA. Refer to your state's
regulations if your state established and operates
their own safety and health programs approved by
OSHA.
Lockout Tagout
When the On/Off switch is in the "ON" position,
the mixer may start up at any time if not already
operating. The mixer's On/Off switch can be
locked out by placing a pad lock thru the door latch
of the controller after the switch has been turned
to the "OFF" position. The On/Off switch is to be
used as the emergency stop.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Safety
Safety
1949_10036_20200528 O&M_GF10000_10492_20201020 - 3

The GridBee is designed to circulate water by
bringing water from below and sending it out
across the top in a thin layer causing a mixing
effect. The laminar layer ows outward radially, in
diverging “stream lines” from the distribution dish.
As it does, vertical ow is induced in between the
water being drawn below and the water above. At
the level of the ow intake, water is drawn from
all corners of the pond. As this lower layer of uid
makes its way inward with converging streamlines
to the GridBee, the water is forced upward, toward
the surface, providing gentle mixing,
de-stratication, and surface renewal.
The GF series GridBee requires a minimal amount
of AC grid-power. The grid provides power
to the onboard AC:DC power box and motor
controller that drive the brushless motor. The GF
Technology allows the GridBee to operate during
day and night while drawing minimal amount of
power from the grid.
During operation, a visible ow can be observed
coming off the distribution dish and spreading
outward. The motor and impeller is designed to
operate at the same full speed as the
solar-powered SolarBee models.
GridBee Flow Pattern
Flow Coming Off Distribution Dish
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Operation
Operation
GF Series
10181_20200326 O&M_GF10000_10492_20201020 - 4

Anchoring Systems
The GridBee uses a tethering system to secure
the machine into position. The tethering system
uses cable that spans across the pond or reservoir
connecting to tethering anchors on the shoreline.
Tethering System - The tethering system consists
of 2 duckbill anchors set into the shoreline across
from one another. A stainless steel cable is strung
across the pond or reservoir and tied to both
tether anchors. The GridBee has 2 short chains
running from two of the oat arms through the oat
plates on the machine out to the cable line running
across the pond or reservoir.
Following severe weather conditions (greater than
80-mph (129 km/hr) wind, higher than 4-ft (1.2m)
waves, or ice thaw), it is possible for the duckbill
anchors to pull partly or completely out of the
ground, or the tether cable span across the pond
to break loose from the duckbill anchors. If this
should happen, the pond or reservoir operator
will need to re-locate the machine to its original
position.
Movement of machine - For a GridBee anchored
by a tether system, the machine will have limited
movement, however slack will be left to allow for
water uctuation. The tether line slack will be
eld determined based on tether line span and
expected water uctuation. The GridBee will not
rotate when it is anchored using the tether system.
Tethering System
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
GF Large Frame Mixers Anchoring Systems
10302_20200326 O&M_GF10000_10492_20201020 - 5

SCADA outputs offering machine operation parameters
reside within the digital controller. Please contact us if
you are interested in receiving these parameters.
Motor Controller - The motor controller is located near
the motor just below the top plate of the Machine. The
motor controller is sealed in line with the electrical cord
that runs to the brushless motor.
The motor controller on the Machine receives power
and signals from the main control center located inside
the external enlosure. These signals are used to
operate the brushless motor at the commanded speed.
The motor controller also sends feedback signals back
up to the main control center.
Due to the high frequency of communication between
the motor controller and brushless motor, the two
components need to be located close to one another.
This is the primary reason for having the motor
controller located directly on the Machine.
All electronic connections on the Machine equipment
should only be used for the inputs or outputs that they
are labeled and designed for. If any of the leads going
into the electronic controller are disconnected, be
sure when re-connecting to place them in the proper
position.
Wiring - All electric wiring includes corrosion-resistant,
industrial cords with molded, weather and watertight
connectors. The connectors are indexed to prevent
improper wiring. A general electrical schematic can
be found in the Maintenance and Field Adjustment
section.
Motor Control Cord
Durable Wiring And Connectors
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB and GF Large Frame Mixers
10267_20200220 O&M_GF10000_10492_20201020 - 6

Brushless Motor / Impeller
Brushless Motor - The brushless motor is located
directly below the Top Deck. 4 bolts run down through
the Top Deck and into the housing of the brushless
motor fastening it onto the machine.
The brushless motor is built to be very durable. The
housing is constructed of casted aluminum. The
brushless motor runs very quietly and smoothly. It
does not require any maintenance. A drive shaft
extends through the bottom center of the housing.
CAUTION: THE BRUSHLESS MOTOR WEIGHS
APPROXIMATELY 80 LBS (36KG). DO NOT
REMOVE WITHOUT DISCUSSING THE
PROCEDURES AND EQUIPMENT NECESSARY
WITH A SERVICE TEAM MEMBER.
Shaft Coupling - The shaft coupling connects the
brushless motor drive shaft to the impeller shaft. The
shaft coupling is located directly below the brushless
motor and is made up of 3 main components. These
components are called the upper coupling, lower
coupling, and coupling sleeve. The shaft coupling is
designed to allow quick disconnect for removal of the
impeller assembly. Disconnecting the impeller shaft
from the brushless motor shaft is simply accomplished
by pulling out a pin and requires no tools. The upper
coupling remains attached to the brushless motor while
the lower coupling and coupling sleeve remain on the
impeller shaft.
Brushless Motor
Upper Coupling
Lower Coupling
Coupling Sleeve
Clevis Pin
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB and GF Large Frame Mixers
10267_20200220 O&M_GF10000_10492_20201020 - 7

Impeller Assembly - The impeller assembly is made
up of the stainless steel impeller shaft, stainless steel
ag indicator, freeze sleeve, stainless steel impeller
blades, and plastic impeller bushing. The impeller
assembly is easily removed by pulling a pin on the
shaft coupling.
CAUTION: KEEP BODY APPENDAGES OR
LOOSE CLOTHING AWAY FROM THE IMPELLER
ASSEMBLY WHILE THE MACHINE IS OPERATING!
IF MAINTENANCE IS REQUIRED, BE SURE TO
TURN THE MACHINE OFF FIRST!
The ag indicator is xed to the shaft and used as a
visual indicator of the impeller shaft's rotational speed.
An food grade oil-lled, Teon freeze sleeve secured
with o-rings surronds the impeller shaft. The freeze
sleeve is free to rotate on the shaft. If the water should
freeze around the machine, the freeze sleeve will stand
still, frozen in by the ice, but inside the plastic sleeve,
the impeller shaft will be turning.
The impeller blades are welded to a hub that is
securely fastened to the impeller shaft. The impeller
is designed to gently pump water from below and can
handle up to 4-inch (10cm) spherical solids.
The impeller bushing is a smooth collar that the
impeller shaft tip ts into. The impeller bushing aligns
and centers the impeller shaft within the machine.
Turn Machine Off Before
Performing Maintenance
CAUTION
Moving blade.
Rotating parts and shaft can
cause injury.
Keep hands clear while
machine is operating.
Flag
Indicator
Impeller Blades
Impeller Hub
Freeze Sleeve
Impeller
Bushing
Block
Impeller Assembly
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB and GF Large Frame Mixers
10267_20200220 O&M_GF10000_10492_20201020 - 8

MODEL MAY VARY
Distributor Dish
The distributor dish, structural members, structural
fasteners, and mounting brackets are constructed
of stainless steel.

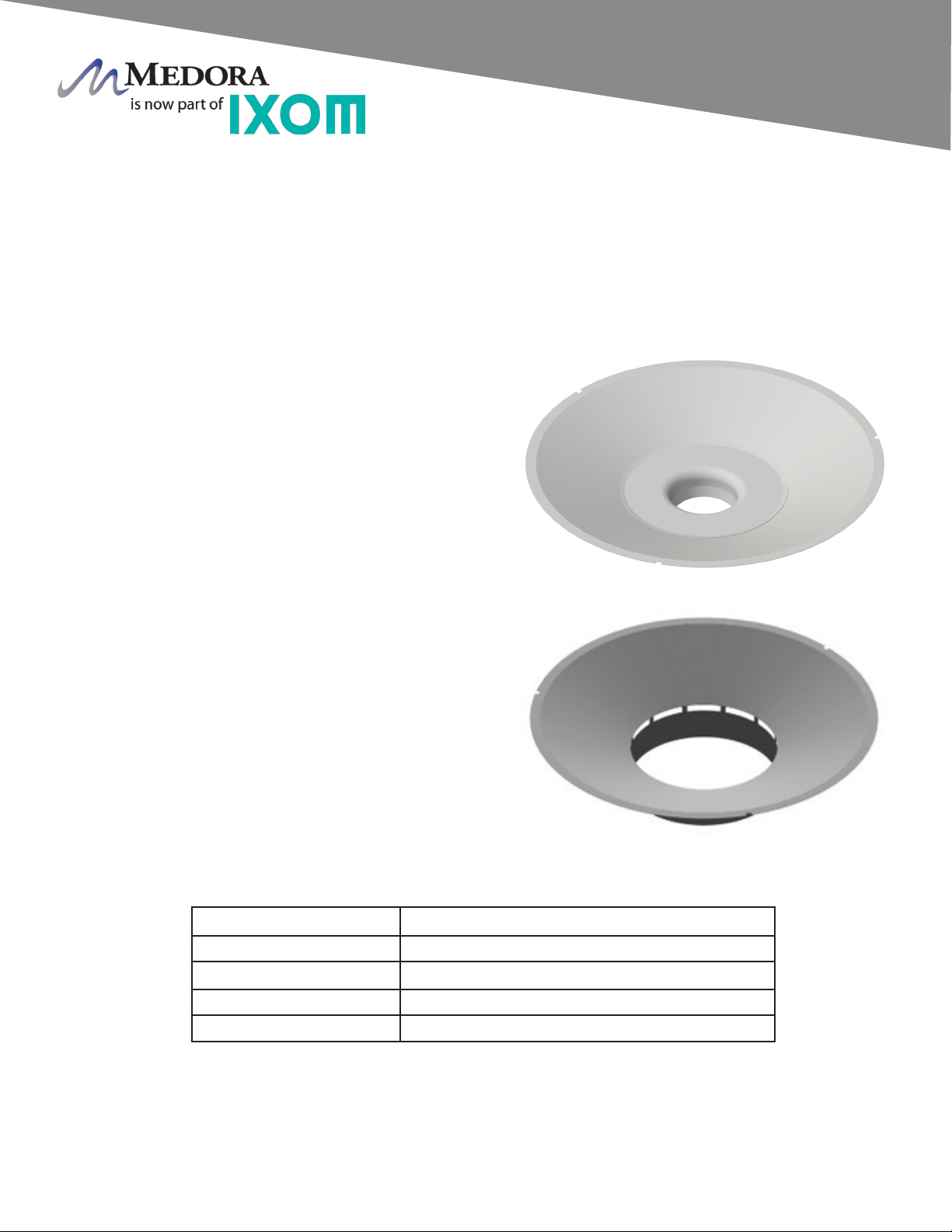

Distributor Dish - Near-laminar ow is achieved
by the Machine due to its uniquely designed
distributor dish. The impeller rotates while sitting
within the lower half of the distributor dish. There
are also small water passages located below the
dish to strengthen the induced ow effect (water
movement occuring between the lower water layer
entering the machine and the upper water layer
leaving the dish).
The top lip of the distributor dish is set from 3/4
inch to 2.5 inches (2 cm to 6.4 cm) (Please refer
to the table below for exact settings) below the
surface of the water to achieve best ow results.
The distributor dish depth is set by rotating the
turnbuckles located on the oat arms.
Distributor Dish
Machine Model Water Level
2500 3/4 in to 1 in (2 cm to 2.5 cm)
5000 1 in to 1 1/2 in (2.5 cm to 3.8 cm)
7500 2 in to 2 1/2 in (5.1 cm to 6.4 cm)
10000 2 in to 2 1/2 in (5.1 cm to 6.4 cm)
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB and GF Large Frame Mixers
10267_20200220 O&M_GF10000_10492_20201020 - 9

Hose / Strainer - The hose is directly below the distributor dish and the strainer is located at the end of
the hose. The strainer contains a buoyant oat ball inside that allows the strainer to draw water from
approximately 1.5 ft to 2 ft (0.45m to 0.6m) above solid bottom. The hose is designed to make a "J" shaped
bend at the bottom so that the strainer does not draw sediment up from the bottom. The strainer has a chain
connected to it and can be chained up at more shallow depths if necessary. The chain also is used for pulling
up the strainer to check it for plugging.
Hose and Strainer Conguration - MODEL MAY VARY
SB2500 SB10000
SB5000
GF2500 GF10000
GF5000
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB and GF Large Frame Mixers
10267_20200220 O&M_GF10000_10492_20201020 - 10

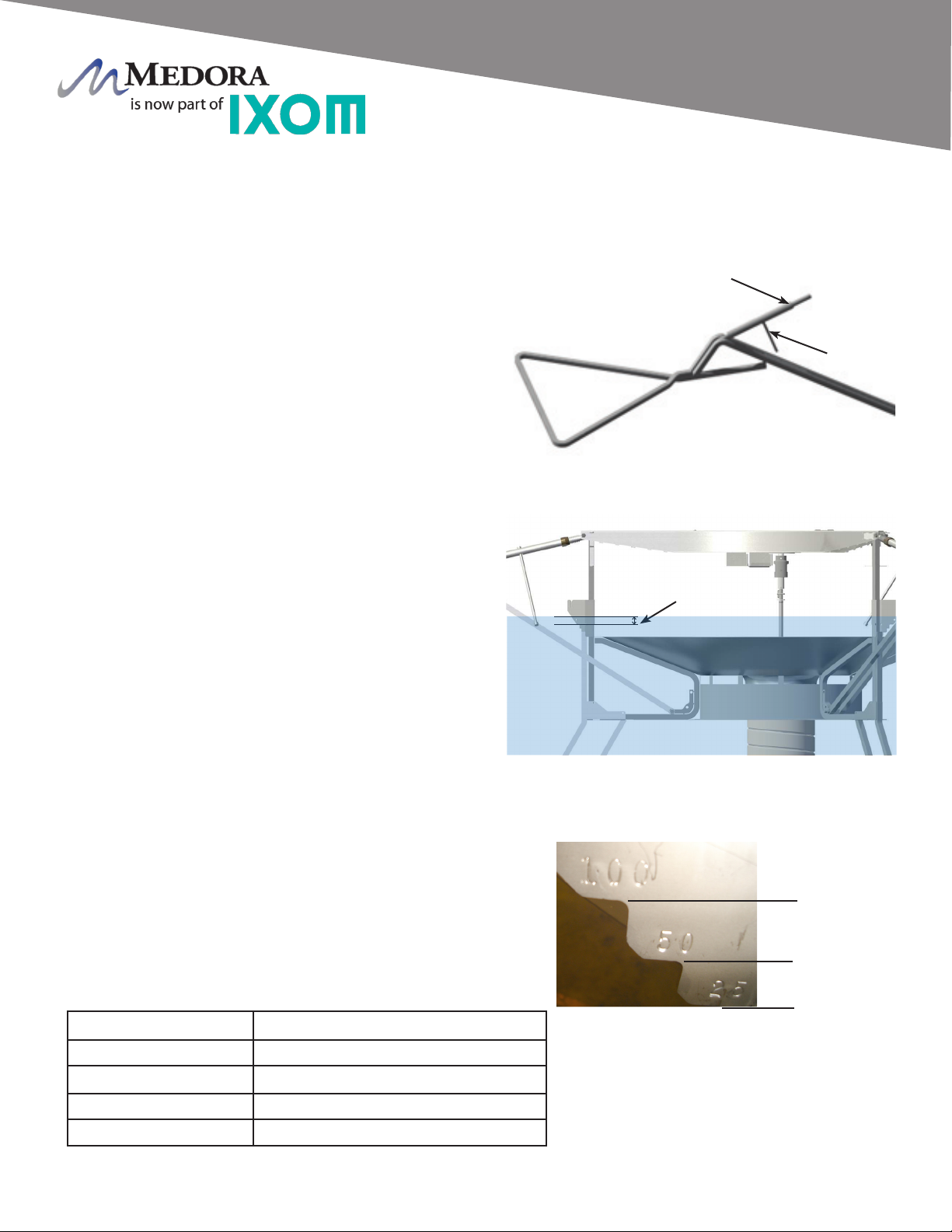

Float Arms / Floats
The Machine contains 3 oat arms and 3 oats. The oat
arms allow vertical positioning of the machine and the
oats provide buoyancy.
Float Arms - The oat arms are constructed of stainless
steel components. They connect the oats to the
central machine structure. Each oat arm has a sturdy
turnbuckle. The turnbuckles can easily be rotated
to adjust the vertical height of the distributor dish.
Lengthening the turnbuckle (rotating clockwise) will raise
the lip of the distributor dish, whereas shortening the
turnbuckle (rotating counter-clockwise) will cause the lip
of the distributor dish to lower.
The turnbuckle and oat arm structure components are
constructed with robust stainless steel materials allowing
the Machine to operate in severe environments without
being damaged. The turnbuckle is self locking. Simply
rotate the handle to expand or collapse the turnbuckle for
dish depth adjustment.
It is important to check the distributor dish depth routinely.
The Machine naturally drops into the water over time
due to biomass buildup and trapped air escaping from
the hose. If the distributor dish lip is too high, the water
coming off the lip may become turbulent and the ow rate
of the machine may be reduced.
Turnbuckle
Float Arm
Handle
(Refer to table below)
Distance Between Distributor
Dish And Water Level
Dish Depths For Different Models
10000
7500
5000
2500
WATER LEVEL NOTCH SETTING FOR:
Machine Model Water Level
2500 3/4 in to 1 in (2 cm to 2.5 cm)
5000 1 in to 1 1/2 in (2.5 cm to 3.8 cm)
7500 2 in to 2 1/2 in (5.1 cm to 6.4 cm)
10000 2 in to 2 1/2 in (5.1 cm to 6.4 cm)
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB and GF Large Frame Mixers
10267_20200220 O&M_GF10000_10492_20201020 - 11

If the distributor dish lip is too low, the water coming
off the lip will ow just underneath the surface of the
pond and the surface will not be renewed.
Each oat arm is connected to the central machine
structure with 1 bolt and 1 pin. Each oat is
connected to the oat arm by 2 pins. The turnbuckle
can be removed from the oat arm by pulling a pin,
but should only be done when the unit is resting on
the shore.
If re-attaching the turnbuckle to the oat arm, be sure
that each threaded end of the turnbuckle together are
screwed all the way in or all the way out before re-
attaching. If threaded ends are not equally expanded
or collapsed before xing the ends, the turnbuckle will
have limited adjustment.
Floats - The Machine has 3 oats, made from high
density Polyethylene. The oats are lled with a
Polystyrene closed-cell foam for long term buoyancy.
The oats have a uniquely designed shape to:
• Minimize the interference with the water
ow on the surface coming off the distributor
dish.
• Have a low prole above the water for
minimizing wind resistance and offering less
exposure to vandalism.
• Avoid being crushed by ice pressure.
• Provide extra buoyancy when needed without
going much deeper into the water.
Float Arm Connection Points
Pin
Pin
Pin
Pin
Float
CAUTION: DO NOT REMOVE
ANY FLOAT ASSEMBLY PINS OR
BOLTS WHILE THE MACHINE IS
FLOATING IN THE WATER! THE
MACHINE MUST BE RESTING
ON THE GROUND OR SAFELY
SUPPORTED TO RELIEVE
THE FORCES ON THE FLOAT
ASSEMBLY STRUCTURES PRIOR
TO DISASSEMBLY! FAILURE
TO FOLLOW THIS WARNING
COULD LEAD TO SINKING THE
MACHINE OR SERIOUS INJURY!
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Features
Features
SB and GF Large Frame Mixers
10267_20200220 O&M_GF10000_10492_20201020 - 12

Float Assembly
NO TOOLS REQUIRED

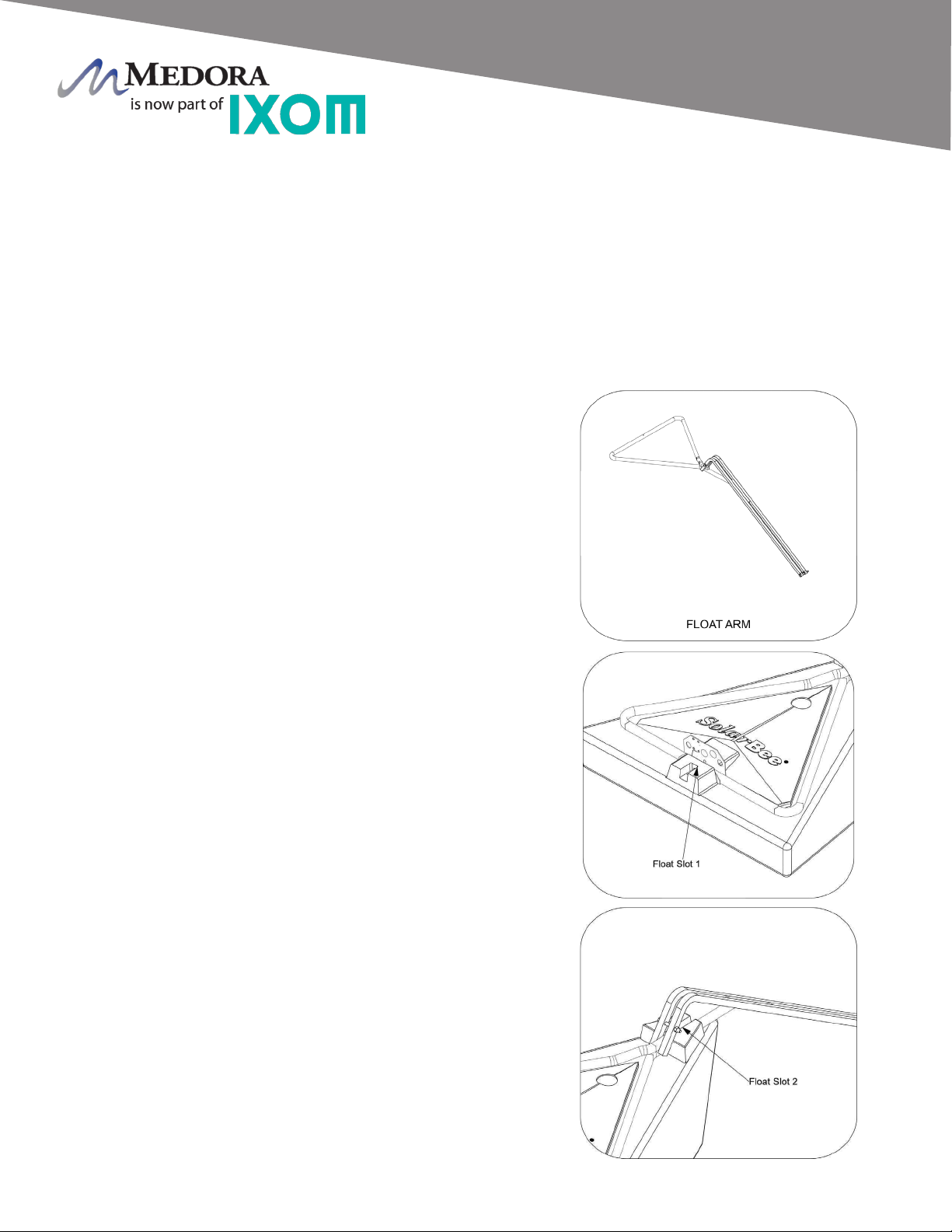

STEP 1: Locate one oat, one oat arm, one
oat bracket, and 2 oat pin sets. Observe
that there are two slots on the top of the oat
which t around the oat arm. One slot runs
left and right, the other runs front to back. If
oat pins are in the slots, remove them.
STEP 2: Orientate the oat so that it will t
around the oat arm when the oat is raised
into place.
STEP 3: Place the oat plate into oat slot 1
furthest from the core unit assembly aligning
the holes of the oat slot with the small holes
on the oat plate (see photo).
STEP 4: Once the oat plate is in place on
the oat, raise the oat up tting it into the oat
arm. Use the oat pins to secure the oat to
the oat arm.
STEP 5: Place hairpins in each oat pin to
secure it and prevent the pin from coming out.
STEP 6: Repeat Steps 1 through 5 for the
other two oats.
NOTE: The oat plate may not be used on one
of the three oats.
After familiarizing yourself with all the components and gathering the necessary tools, you are ready
for setting up the Machine. Find a location where you have approximately 20 ft of working space near
the reservoir that the Machine will be put in (The less distance you have to move the fully assembled
machine, the better). Follow these steps to prepare the Machine before oating it in the water:
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Equipment Assembly
10155_20200529 O&M_GF10000_10492_20201020 - 13

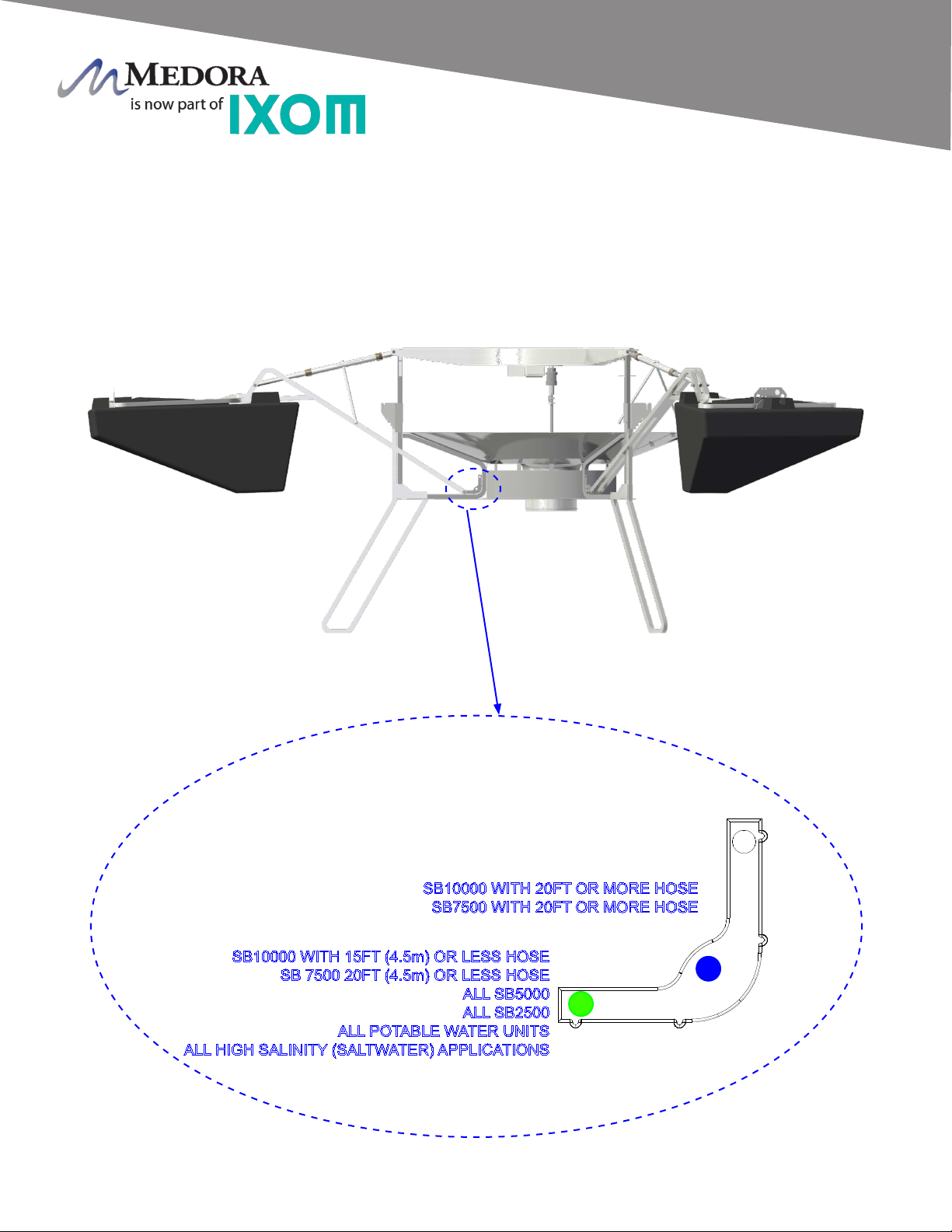

Float Arm to Machine Attachment Assembly
SB10000 WITH 20FT OR MORE HOSE
SB7500 WITH 20FT OR MORE HOSE
IMPORTANT: IF WRONG CONNECTION HOLE IS USED, DISH DEPTH LEVEL MAY NOT BE OBTAINED DURING
FINAL SETTINGS AND UNIT WOULD HAVE TO BE PULLED BACK OUT OF THE WATER,
CORRECTED, AND RE-INSTALLED
SB10000 WITH 15FT (4.5m) OR LESS HOSE
SB 7500 20FT (4.5m) OR LESS HOSE
ALL SB5000
ALL SB2500
ALL POTABLE WATER UNITS
ALL HIGH SALINITY (SALTWATER) APPLICATIONS
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Equipment Assembly
10155_20200529 O&M_GF10000_10492_20201020 - 14

Float Arm Assembly
TOOLS REQUIRED:
(2) 19mm wrench
19mm socket wrench (optional)

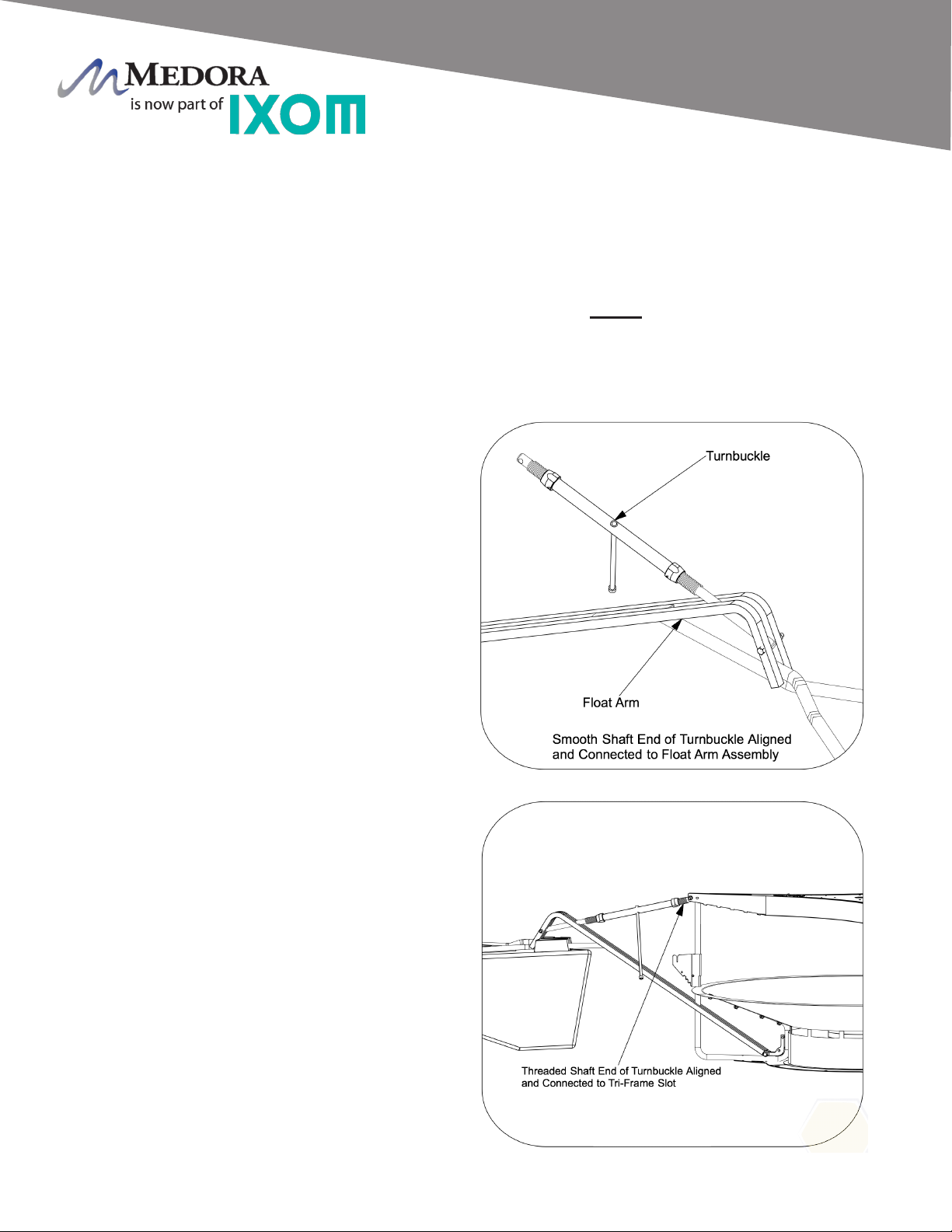

STEP 1: Reference the previous page to
select which oat arm connection hole is
required for your machine.
IMPORTANT: Be sure to use the proper hole
to avoid a prolonged installation.
STEP 2: Locate the 3 oat arm assemblies.
Have the M12 x 90mm long bolts and M12
nylok nuts easily accessible near the core unit
assembly.
STEP 3: Take the oat arm and slip the
narrow end with Float Arm Stems around the
core unit leg. Align the holes through the
Float Arm Stems with the correct oat arm
connection hole determined from Step 1.
STEP 4: Once aligned slide the M12 X 90mm
bolt through all holes. Tighten a M12 nylok nut
onto the bolt until there is little play or space
between the bolted components. Use a two
19mm wrenches to tighten nut.
STEP 5: Repeat steps 2 and 3 for the other 2
oat arms.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Equipment Assembly
10155_20200529 O&M_GF10000_10492_20201020 - 15

Turnbuckle Assembly
NO TOOLS REQUIRED:
STEP 1: Locate the three turnbuckles, M12
90mm Bolts, M12 55mm Bolts, and Nylok
Nuts.
STEP 2: Notice that the turnbuckle assembly
has an end with a smooth shaft and the other
end with threaded shaft.
STEP 3: Take the threaded shaft end of
the turnbuckle assembly and slip it into the
Triframe of the core unit assembly. Align
the holes and slide the M12 55mm Bolt into
position and tighten the Nylok nut.
STEP 4: Once the upper part of the
turnbuckle assembly is in place, take the
opposite end of the turnbuckle and slide it into
the oat arm assembly as shown in picture.
STEP 5: Align the hole through the shaft with
the oat arm assembly holes and slide the
M12 90mm Bolt and tighten the Nylok nut.
STEP 6: Repeat steps 2 through 5 for each
turnbuckle assembly.
• • • IMPORTANT • • •
Hold the center of the turnbuckle assembly and turn both ends all the way into the
center. Skipping this step will cause decreased extension of turnbuckle and more
time to install may be required.
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Equipment Assembly
10155_20200529 O&M_GF10000_10492_20201020 - 16

Chain Bracket Assembly
TOOLS REQUIRED:
(2) 13mm wrench
13mm socket wrench (optional)
STEP 1: Locate the 3 chain brackets and the M8
X 45mm long bolts and M8 nylok nuts
(3 sets needed).
STEP 2: Notice that along the perimeter of the
dish on the core unit assembly, there are three
locations where square tubing extends above the
dish. Each of the 3 chain brackets will be attached
to each of the three square tubing just above the
dish.
STEP 3: Place one of the chain brackets over the
square tubing with the wider side facing up and the
opening facing outward.
STEP 4: Once the chain bracket is slid around the
square tubing, insert the M8 x 45mm bolt through
the outer holes in the chain bracket. Apply anti-
seize to the threads of the bolt. Tighten the M8
nylok nut on the bolt to keep the chain bracket in
place using two 13mm wrenches.
STEP 5: Repeat steps 3 and 4 for the other 2
chain brackets.
Applying Anti-Seize
To The Bolts
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Equipment Assembly
10155_20200529 O&M_GF10000_10492_20201020 - 17

Leg Extension Assembly
(IF APPLICABLE)
NO TOOLS REQUIRED:
STEP 1: Tilt or hoist the core unit assembly
off the ground. Now the leg extensions can be
attached.
STEP 2: Slide the leg extension around the
three legs of the Machine core unit assembly
and above the bottom ange ring.
STEP 3: Slide the leg extension up snug
against the leg to allow two pins to be inserted
through the holes of the leg extension.
STEP 4: Fasten the leg extension to the Core
unit assembly using a set of two 5/16 inch x 2
inch (8mm x 51mm) clevis pins.
STEP 5: Secure both pins using two hair pins.
STEP 6: Repeat steps 2 through 5 for each leg
extension.
NOTE: Once the leg extensions are attached
and secure, the leg extensions act as a tri-pod in
which the Machine can rest on.
Sliding Leg Extension Around Bottom
Leg Of Machine Core Unit
Attaching Leg Extension With a Clevis Pin.
Securing Clevis Pins
Secured with Hair pIns
© 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | [email protected]
Equipment Assembly
10155_20200529 O&M_GF10000_10492_20201020 - 18
